Worldwide, the pollution of water bodies by contaminants of emerging concern (CECs) such as pharmaceuticals, endocrine disrupting compounds, flame retardants including brominated flame retardants (BFRs) and perfluorochemicals (PFCs), microplastics, nanomaterials, and algal toxins, to name just a few, is creating a new set of challenges to the conventional wastewater treatment facilities, which demonstrate inefficiency in removing/degrading many CECs. As a consequence, environmentalists started to detect the presence of some of those contaminants at alarming levels in certain countries, with possible negative effects on aquatic species and often increased potential for human health risks through exposure to the contaminated waters, or the reuse of treated wastewater in agriculture and household use. Such issues are more accentuated in the African continent due to various socio-economic problems giving rise to poor sanitation systems and serious shortages in wastewater treatment plants in many regions, making it difficult to tackle the problem of conventional pollutants, let alone to deal with the more challenging CECs. Thus, in order to effectively deal with this emerging environmental threat, African researchers are working to develop and optimize sound sampling and analytical procedures, risk assessment models, and efficient remediation technologies.
Contaminants of emerging concern (CECs) are a cluster of chemical compounds that are potentially harmful to the environment and possibly to humans (through inherent toxicity or a recalcitrant and persistent nature). CECs are currently an unregulated class of contaminants with increasing global presence and awareness .
Officially, EPA listed twelve CECs that are monitored closely: Trichloropropane (TCP), Dioxane, Trinitrotoluene (TNT), Dinitrotoluene, Hexahydro-trinitro-triazane (RDX), N-nitroso-dimethylamine (NDMA), Perchlorate, Polybrominated biphenyls (PBBs), Tungsten, Polybrominated diphenyl ethers (PBDEs) and Nanomaterials . However, in the last decades, other CECs such as human and animal pharmaceuticals, endocrine disrupting compounds (EDCs), pharmaceuticals and personal care products (PPCPs), microplastics, nanomaterials etc, has come into the spotlight. Consequently, there has been a large increase in scientific studies on the pollution of aquatic ecosystems by CECs, and most notably pharmaceutical drugs and their derivates .
Table 2. Global occurrence of CECs and their use in the industry. (table adapted with permission from .
|gory of Contaminant||Chemical Structure within the Contaminant||Name of Contaminant||Uses in Industry||Concentration Detected||References|
|Pharmaceuticals||Azetidine, Benzene||Amoxicillin||Antibiotics||Queensland: 6.9 µg/L
Delhi: Up to 172.6 ng/L
Ghana: Up to 0.0027 ng/L
|Halogenic-Benzene||Diclofenac||Anti-inflammatory drug||Algiers: 85.2 ± 9.3 ng/L
Saudi Arabian coastal waters: 10,221 ng/L
Lahore: 260–470 ng/L
WWTP effleunt from South Africa: 5.56–243.6 ng/L
|Benzene||Ibuprofen||Painkiller||Madrid: 4.1 ng/L
Algiers: 372.8 ± 19.8 ng/L
Saudi Arabian coastal waters: 127–660 ng/L
Lahore: 1728–2300 ng/L
Sea water Durban, South
Africa: <0.17 ng/L
|Benzene, Piperidine||Acetaminophen (ACE)||Painkiller||Saudi Arabian coastal waters: 1234 and 2346 ng/L
Lahore: 12,120–13,880 ng/L
|Benzene, Pyrazine||Sulfamethoxazole (SMX)||Antibiotics||Mekong Delta: 21 ng/L
Jiangsu Province: 63.6 ng/L
Madrid: 162–530 ng/L
Ghana: 0.013–2.861 ng/L
|Benzene, 7-member ring||Carbamazepine||Anticonvulsant||Various plants in the USA: 2–207 ng/L
Spain treatment plants: <54 ng/L
Hartbeespoort Dam catchment
and the uMngeni River estuary: up to 94 ng/L
|Food additive||Oxadiazine||Acesulfame potassium (ACE-K):||Artificial sweetener in food and beverages||Jiangsu: 2.9 μg/L to 0.20 mg/L
German Elbe river: 100 to 900 mg/s (mass load)
|Benzothiazole||Sucralose||Jiangsu: up to 3.6 μg/L.|||
|Pesticides||Triazine||Atrazine||Herbicide||Jiaozhou Bay: 76 ng/L
Ctalamochita river basin: 0.23 to 0.26 ng/L (urban), 0.28 to 3 ng/L (rural)
Hartbeespoort Dam catchment (South Africa): up to 1570 ng/L
|Industrial chemicals||Dioxane||1,4-Dioxane||Organic solvents||Sant Joan Despí: 4360 (average), 32,370 (max)
Oder River:143–2245 ng/L
Rhine/Main River:110–850 ng/L
|Pyrazole, 6 membered heterocyclic ring||Caffeine||Food and beverage industry||Saudi Arabian coastal waters: 7708 ng/L
Various plants in the USA: 7–687 ng/L
Madrid: 5010–65 625 ng/L
WWTP effluent from South Africa: 85.76–4878 ng/L
|-||Perfluorooctane sulfonate (PFOS) and Perfluorooctanoic acid (PFOA)||Industrial manufacturing and use and disposal of PFAS-containing products,||Worldwide: 0.2–1630.2 ng/L
Singapore: 532–1060 ng/L (WWTP treated effluent)
WWTP effluent from Kampala, Uganda: PFOS (1.3–1.5 ng/L) and PFOA (1.5–2.4 ng/L)
|-||N-Nitroso-dimethylamine (NDMA)||A by-product of industrial processes that use nitrates and/or nitrites.||Various plants in the USA: 12–321 ng/L|||
|Phenols||Bisphenol A (BPA)||Plastic formation||Yamuna/Cooum River: 1420–14,800 ng/L
Zhujiang/Dongjiang River: 101–2310 ng/L
Zhujiang/Dongjiang WWTP: 29,400 ng/L
Riyadhm Saudi Arabia/Drinking water:
|Personal care products (PCPs)||Benzene||Diethyltoluamide (DEET)||Insect repellent||Arizona: 1570–15,200 ng/L|||
|Benzene, 5- member cycloalkane||Galaxolide||Synthetic musk||Madrid: <24 971 ng/L
Lubbock: 3789–10,525 ng/L
|Disinfection by-products (DBPs)||Dihalobenzoquinones||2,6-dichloro-1,4-benzoquinone||Disinfection by-product from water treatment||Canada WWTP: 165.1 ng/L
China Drinking WTP: 2.6–19.70 ng/L
|Iodotrihalomethanes||Dibromoiodomethane (DBIM), Chlorodiiodomethane (CDIM),
|Disinfection by-product from water treatment||China Drinking WTPs: 0.007–0.23 ng/L
Australia Advanced water recycling plant: <1–7 ng/L
CECs are found globally in surface waters and wastewater treatment plants (WWTPs). The summarised table above. Various CECs could be found globally in various waterways, with the majority of the reported occurrence of CEC found in water treatment effleunts. It was reported that conventional and outdated wastewater treatment plants (WWTPs) were one of the main sources of pollution with CECs . Current use of activated sludge-based WWTPs  and even more advanced membrane bioreactor systems were reported to be ineffective in the degradation of CECs.
Due to the increasing global occurrence of CECs, research studies began to be carried out to analyze the fate and ecotoxicology of many CECs in wastewater and aquatic environments . In this regard, endocrine disrupting compounds (EDCs) are among the most investigated CECs. Indeed, their presence in the environment, raw sewage, treated sewage effluents, receiving rivers, and surface waters  constitute a serious menace due to the possible interference with the normal function of the endocrine systems of wildlife and humans, directly through exposure or indirectly via the food chain .
In this context, it was also noted that the majority of the related research studies are concentrated in North American, European and selected Asian countries and that this topic is still absent in the majority of African countries and relatively new in a few of them, with most research studies still in the early stages of assessing the occurrence and, to a lesser extent, the fate of CECs in WWTPs and receiving water bodies .
For many decades, CECs have been entering aquatic environments regularly through discharged WWTP effluents, industrial wastewaters, agricultural runoff, and municipal landfill leachates. Consequently, aquatic species (fauna and flora) are being continuously exposed to these contaminants of emerging concern, especially organisms that can bio-concentrate and bio-accumulate significant amounts of these CECs to concentrations several times higher than in the water body they live in .
Globally, several assessment studies conducted in Europe, North America and China emphasized the adverse impacts of a wide range of CECs on the environment, especially aquatic ecosystems. EDCs and many pharmaceuticals, which are environmentally persistent and bioaccumulating compounds, have great potential environmental risks when reaching drinking water supplies or through the food chain .
For instance, it was revealed that exposure to diclofenac, an NSAID drug, led to the near-extinction of vultures in the Indian subcontinent. The cause was that the birds were feeding on the carcasses of cattle treated with this drug . In aquatic ecosystems, diclofenac, which is widely detected in African wastewater effluents , is suspected to cause damage to the inner organs in many fish species  and sharp declines in the populations of certain fish species due to the feminization of male fish . The same adverse phenomenon, along with reduced fecundity, was also reported for fish species exposed to metformin, an anti-diabetes drug . Such proven adverse eco-toxicological effects on local fish populations provide strong reasons for African researchers to examine such CECs-related issues, especially in African regions with poor sanitation systems or in densely populated areas.
Regarding the assessment of CECs’ impacts on the aquatic environment in Africa, interesting studies, although few in number compared to the ones conducted in other continents, presented valuable results. In South Africa, a research team from the University of the Western Cape, Cape Town, investigated the impact of this issue by attempting to accurately analyze the concentrations of fifteen CECs (pharmaceuticals and personal care products (PPCP), perfluoroalkyl and endocrine-disrupting compounds) in different fish samples . The contaminants were selected according to their high annual consumption, their stability and poor elimination during wastewater treatment, along with concerns about adverse effects on human and aquatic organisms. The results revealed that perfluorodecanoic acid (20.1–179.2 ng/g), perfluorononanoic acid (21.2–114.0 ng/g), and perfluoroheptanoic acid (40.1–138.3 ng/g) were the most predominant among the perfluorinated compounds. Moreover, diclofenac was reported to have the highest concentration in the investigated edible fish species out of all the pharmaceuticals detected (551.8–1812 ng/g). As for the risk assessment, the authors reported values above 0.5 and 1.0, respectively, for acute and chronic risk, thus highlighting high health risks to the pelagic fish, aquatic organisms and humans via the food chain.
In Egypt, a nationwide survey of several CECs in water sources, including bisphenol A (BPA), methylparaben, ethylparaben, propylparaben, butylparaben, and o-phenylphenol, was conducted, along with an assessment of the impacts of the measured concentrations on the aquatic organisms and human health . The results showed that, on the one hand, BPA, methylparaben, propylparaben, and butylparaben were frequently detected in the investigated source and drinking waters. To illustrate the alarming level of the registered data, the authors reported that the highest concentrations of BPA and methylparaben in source water, and those of BPA and methylparaben, propylparaben, and butylparaben in drinking water, were the highest in the world. Regarding the environmental risk assessment, it was shown that among the studied EDCs, BPA presented the highest risk to the aquatic organisms, while human health risks of the exposure to BPA via the consumption of drinking water were at safe levels.
In Nigeria, a research study published in 2020 investigated the distribution and bioaccumulation issues EDCs in Lagos Lagoon as the final sink accumulating and transporting numerous chemicals such as octylphenol (OP), nonylphenol (NP) and BPA . In this study, water and sediment samples were collected at nine locations on the lagoon, along with five different species of fish. It was observed that BPA was not detected in all the collected water samples. However, the concentrations of NP and OP reached up to 102 ng/L and 127 ng/L, respectively. In the sediment samples, the EDCs were substantially detected at concentrations reaching up to 5.1 μg/g for BPA, 1.9 μg/g for NP, and 2.5 μg/g for OP. In the fish samples, the highest concentrations were reported at around 1139 ng/g for BPA, 476 ng/g for NP, and 643 ng/g for OP. Such results confirm the bioaccumulation character of the studied EDCs in the Lagos lagoon biota, which can have detrimental effects on other organisms across the food chain.
Globally, many researchers paid special attention to emerging risks associated with natural and synthetic steroid hormones related to their endocrine-disrupting activities observed in receiving surface waters . In a related joint South African and Canadian study, the estrogenicity and anti-estrogenicity of EDCs in WWTPs’ influents and effluents were assessed using recombinant yeast estrogen receptor binding assays . Thus, seasonal and daily variations were monitored at ten South African WWTPs, as well as the river streams located upstream and downstream of the WWTWs. This comparative analysis was carried out with the objective of assessing potential adverse health risks associated with the measured estrogenic concentrations.
Furthermore, the influence of compounds that may antagonize estrogen-mediated receptor binding (anti-estrogens) in the bioassay was also investigated to further elucidate potential endocrine-disrupting risks that WWTP effluents might pose on receiving surface waters. The main results revealed that despite the fact that WWTPs managed to substantially reduce this EDCs menace (Cf. Figure 1), the abatement efficiencies tended to vary from one season to another and from a set of locations to another.

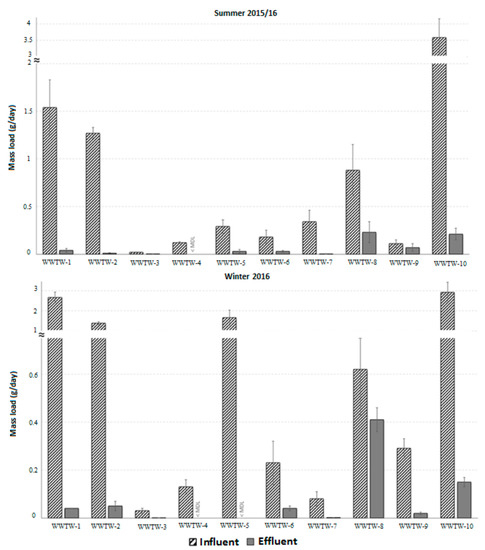

Figure 1. Mass load (g/day) of estrogen equivalent concentrations measured using the yeast estrogen screen for the various WWTPs during sampling campaigns in summer 2015/16 and winter 2016 . Reproduction license secured from Elsevier.
The reported reasons for such variations were higher weekday/weekend variations for WWTPs receiving wastewater from domestic sources and the amount of estrogenic EDC loads being directly influenced by the ongoing connection of more households to the sewage systems. In terms of season, the variations are linked to the differences in the influx of wastewater at the WWTPs, variable rainfall, and large runoff surges. The study also showed that concentrations in some treated effluent and river water samples were above effect-based trigger values, thus posing an endocrine-disrupting risk.
The efficiency of contaminants of emerging concern removal depends on the treatment methods and the chemical characteristics of each contaminant, as well as the characteristics of the wastewater treatment plants. Several pharmaceuticals are not removed from wastewater during the treatment processes. This inefficiency depends on the wastewater treatment plant’s design, and can also be associated with the desorption phenomenon of CECs from the particulate matter during the treatment process. Other processes may take place during treatment, such as biotransformation/biodegradation, and abiotic elimination by adsorption to the sludge.
For instance, for the case of pharmaceuticals, it was reported that several factors including physico-chemical properties of targeted compounds, and operating conditions of the processes in the WWTPs, did influence the removal efficiency of pharmaceuticals in wastewater .
In addition to the application of adsorbents for the removal of pharmaceutical contaminants in African waters , different technologies for water purification have been explored for various CECs including the use of membrane technology , and photo-electrocatalytic water treatment systems . Light-driven technology was also reported to be a promising solution for the removal of CECs in surface waters . Solar processes are particularly attractive for the removal of CECs in the African context, due to the tropical climate.
Thus, as shown in Table 1, for some methods, there is a wide variability of removal efficiency for different compounds across various WWTPs in Africa.
|Methods||Average Removal Efficiency of CECs||Limitations||CECs Nature||References|
|Physic-chemical treatment: Adsorption technique|
|Activated carbon treatment techniques:
Adsorption by entrapped activated carbon in alginate
|Biosorption in a baffled duckweed pond system||<90.6%||-Not available||Analgesic (acetaminophen), antibiotic (amoxicillin, ampicillin) and anti-inflammatory (diclofenac)|||
|Adsorption via porous Sugarcane Bagasse activated carbon (SCB-AC)||<92.4% (after 5 cycles)||-Not available||Anti-inflammatory (diclofenac sodium)|||
microbial communities in the WSPs and biofilms.
|40–100% within 20–116 h||-Not available||Anti-inflammatory (paracetamol)|||
|Biodegradation under aerobic conditions||<100%||-Not available||Female sex hormone (17-β-Estradiol)|||
|Activated sludge process||30–95%||Negative removals being reported for some anti-inflammatory example diclofenac||Analgesic/anti-inflammatory drugs and steroids|||
|Advanced oxidation process (AOPs)|
|Photo-electrocatalytic oxidation at photoanode (FTO (*)/BiVO4/BiOI) under visible||68% and 62%||-Not available||Analgesic (acetaminophen) and antibiotic (ciprofloxacin)|||
|Treatment via photolysis|
|Direct photolysis||48% and 18%||-Not available||Removal of anti-infective (sulfamethoxazole) and antibiotic (trimethoprim) in the effluent|||
|Indirect photolysis||16–36% and 20–62%||-Not available||Removal of sulfamethoxazole and trimethoprim, in the effluent|||
|Filtration and ultrafiltration treatment techniques: ceramic fine ultrafiltration membrane||At least 70%||Are not commonly accessible by poor populations in developing countries||Anti-inflammatory (diclofenac), calming (diazepam), antibiotic (erythromycin), and antibacterial and antifungal (triclosan)|||
|Fenton-biological||<100%||-Not available||Antibiotic (chloramphenicol) and anti-inflammatory (paracetamol, and diclofenac sodium and associated by-products)|||
(*) Fluorine-doped tin oxide (FTO) coated glass.
Results depicted in Table 1 show the wide variability of removal efficiencies for different compounds across various WWTPs. A reduction of over 95% was recorded in all WWTPs, which shows that both of the biological processes were efficient in the removal. With respect to wastewater treatment, CECs are partially removed by wastewater stabilization ponds (WSPs) and trickling filter technologies to a similar extent as compared with other techniques (e.g., conventional activated sludge and constructed wetlands), but long hydraulic residence times and thus large surface areas are required. In the African context, numerous adsorbents have been investigated. Various adsorption mechanisms have been reported in different studies for the uptake of pharmaceuticals from water using various adsorbents. In these views, the mode of adsorption was observed to be exclusive for a specific adsorbent directed to a particular pharmaceutical or group of analytes.
