Submitted Successfully!
Thank you for your contribution! You can also upload a video entry or images related to this topic.
Ver. Summary Created by Modification Content Size Created at Operation
1 -- 2512 2023-06-26 15:07:40 |
2 references update -9 word(s) 2503 2023-06-28 08:48:18 |

Video Upload Options

Do you have a full video?


Are you sure to Delete?
If you have any further questions, please contact Encyclopedia Editorial Office.
Kang, Y.; Zhang, K.; Lin, X. Surface Modification of Magnesium-Based Materials. Encyclopedia. Available online: (accessed on 08 December 2023).
Kang Y, Zhang K, Lin X. Surface Modification of Magnesium-Based Materials. Encyclopedia. Available at: Accessed December 08, 2023.
Kang, Yinglong, Kemin Zhang, Xi Lin. "Surface Modification of Magnesium-Based Materials" Encyclopedia, (accessed December 08, 2023).
Kang, Y., Zhang, K., & Lin, X.(2023, June 26). Surface Modification of Magnesium-Based Materials. In Encyclopedia.
Kang, Yinglong, et al. "Surface Modification of Magnesium-Based Materials." Encyclopedia. Web. 26 June, 2023.
Surface Modification of Magnesium-Based Materials

Mg-based materials, from a comprehensive consideration of energy storage performance, raw material reserves, and prices, have demonstrated potential industrial applications as large-scale hydrogen storage materials. Nevertheless, Mg-based materials also have obvious disadvantages: as a hydrogen storage material, the hydrogen absorption/desorption rate is insufficient, as well as the high hydrogen absorption/desorption temperatures; as the electrode material of Ni-MH batteries, the reactions of Mg with alkaline electrolyte and corrosion are the main problems for applications.

energy storage magnesium-based materials hydrogen storage surface modification nickel–metal hydride batteries

1. Introduction

Energy is one of the most critical material resources for the development of human society. In recent decades, rapid population growth and heavy industry development have led to a significant increase in demand for energy. The traditional energy structure dominated by fossil fuels is no longer sufficient to support the sustainable development of human society. Therefore, one of the biggest challenges for today’s society is the search for sustainable, low-cost, clean energy sources. Furthermore, it is essential to achieve higher energy efficiency while gradually adapting new energy systems. In the future, all energy systems must use traditional energy more efficiently and gradually increase the use of renewable energy sources. Although natural resources such as solar, wind, geothermal, and tidal energy are renewable, their dependence on the environment and time zones leads to shortcomings, such as intermittency, an unstable capacity, and unpredictability [1][2][3][4]. As the cleanest energy source, hydrogen energy is expected to transform the main carbon-based economy of modern society into a less- or even zero-carbon-based economy [5][6]. However, as the lightest gaseous energy source, safe and efficient storage and transportation also limit the speed of the development and broad application of hydrogen energy [7][8][9]. However, for the realization of energy structure adjustment and the efficient use of renewable energy, the problem of how to store energy safely and efficiently must be addressed and solved.
Energy storage is an essential intermediate link to achieving multi-purpose, easy-to-manage, and the efficient use of energy. At present, common energy storage systems include thermal, mechanical, electromagnetic, hydrogen, and electrochemical energy storage systems [10][11][12]. Hydrogen and electrochemical energy storage have attracted increasing research interest and widespread attention in recent years, as they are compared to traditional energy storage methods. The ability of an energy storage technology to achieve large-scale applications in modern industry and real life is also closely related to the research and development of relevant materials [13][14]. Energy storage materials play a key role in the efficient and multifunctional application of energy and are of crucial importance for the development, storage, and utilization of clean energy, as well as the construction of energy infrastructure. There are many kinds of energy storage materials that are widely used in industries. In addition, the safety of energy storage is mainly related to the environment and the choice of energy storage materials. Due to its high storage capacity, cheap price, and abundant reserves, Mg-based materials are considered one of the key types of energy storage materials with great potential applications [15][16][17].
Nowadays, the research of Mg-based materials for energy storage applications mainly focuses on two areas: (1) as a storage medium for hydrogen in solid-state hydrogen storage tanks and (2) as an electrode material for Ni-MH batteries. However, both of these applications suffer from certain shortcomings. The former has a high thermodynamic stability resulting in high operation temperatures and poor kinetic performances, which severely limits the development and widespread use of Mg-based hydrogen storage materials [18][19]. In the case of Ni-MH batteries, the performance largely depends on the rate of charge transfer on the electrode surface, which also includes the transfer rate of hydrogen between adsorbed and adsorbate states, as well as the diffusion of hydrogen in the adsorbed state between the interior of the material and the electrode surface [20][21][22]. Moreover, the alkaline electrolyte in Ni-MH batteries also causes interfacial reactions with the electrode material, accelerating the corrosion of the electrode and, thus, affecting the electrochemical performance of the battery [23][24]. Thus, the poor cycling stability performance and corrosion resistance of Mg-based materials are the obstacles for their application in Ni-MH batteries [25][26][27][28]. More and more research results show that the performance of Mg-based materials, either as hydrogen storage media or electrode materials, is closely related to the surface structure and surface state. [29][30][31][32].
On the one hand, as a hydrogen storage material, the surface layer of Mg-based materials dramatically impacts performance. It directly affects the physical and chemical adsorption and the decomposition of H2 on the material surface, as well as the surface permeation rate of H. These factors ultimately affect the kinetic performance of hydrogen adsorption and desorption. The hydrogen absorption reaction process of materials can be described as follows (Figure 1) [33]: step 1: H2 is physically adsorbed on the surface of particles by van der Waals forces; step 2: H2 is chemisorbed and dissociated to H on the surface of particles; step 3: H penetrates the lattice through the surface and diffuses to the interior of the alloy; step 4: the alloy phase transforms to the hydride phase. The hydrogen desorption reaction can be considered the reverse process of the hydrogen absorption reaction [34]. The dissociation energy barrier of H2 on the Mg surface is as high as 218 kJ mol−1 H2 [35]. The slow surface permeation rate of H on the material surface is also a key factor affecting the hydrogen absorption reaction kinetics of Mg-based materials. As is known, Mg-based materials are extremely prone to oxidation during the preparation process. The oxide layer formed on the surface hinders the decomposition of H2 and the surface permeation of H, leading to a significant decrease in the hydrogen absorption/desorption rate [36]. Moreover, prolonged hydrogen absorption/desorption can also lead to the pulverization of the particles and the poisoning of impurity gas, which reduces the hydrogen storage capacity of the material and shortens its service life. Thus, in order to enhance the hydrogen absorption kinetics, it is necessary to increase the rate of decomposition of H2 on the material surface, the permeation rate of H on the surface, and the ability of the surface to resist impurity gas poisoning. However, these all directly depend on the composition, structure, and state of the material surface.

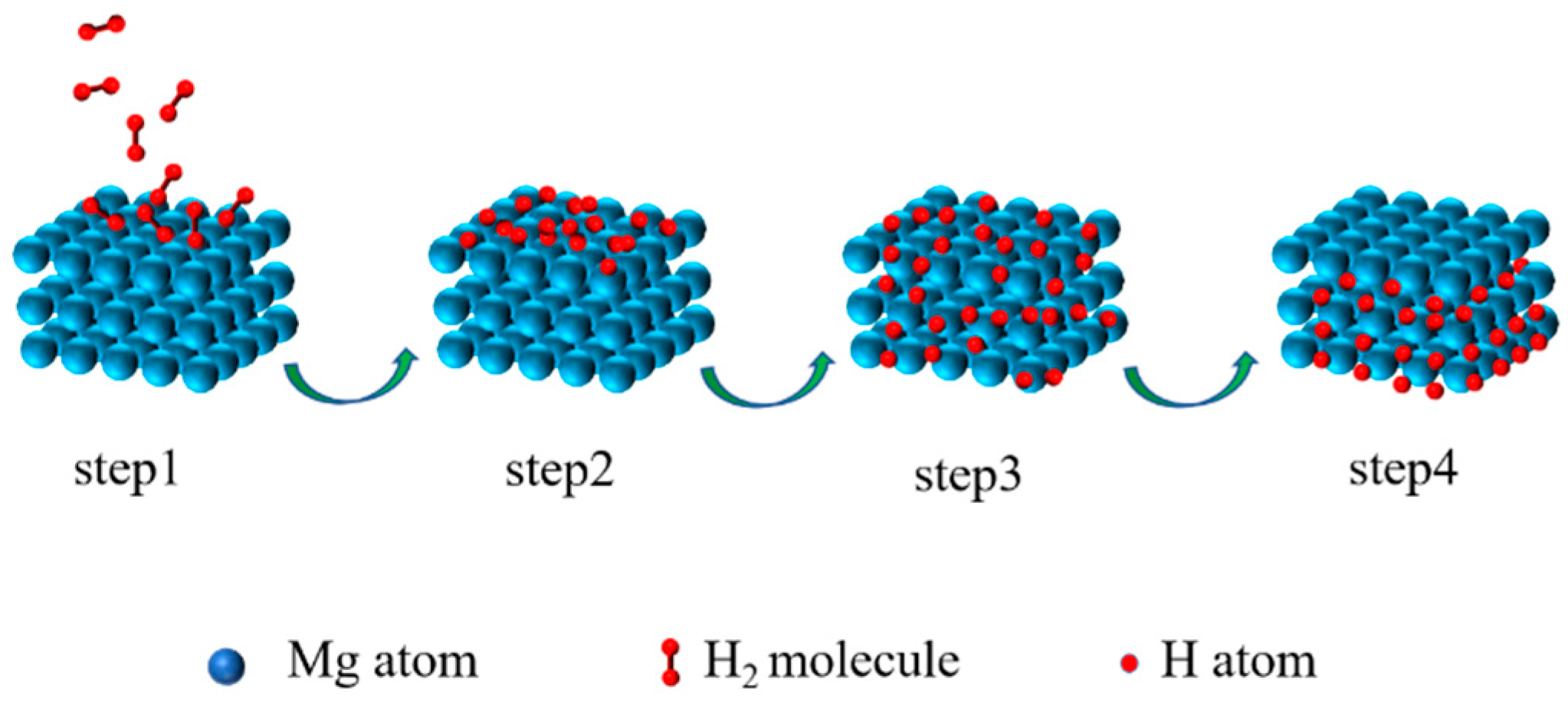

Figure 1. Schematic illustration of the hydrogen absorption process of Mg.
On the other hand, when Mg-based materials are prepared as electrodes for Ni-MH batteries, the main processes that occur at the electrodes during charging are the decomposition of water into H at the material’s surface and the diffusion of H to the surface and inside the material. When the counter-current is applied, H is released and oxidized to water [37][38]. Two main factors dictate the electrochemical kinetic performance of electrodes: the ability of hydrogen diffusion inside the material and the ability of charge transfer on the surface of the material [39][40]. Furthermore, electrons are conducted to the electrolyte through the propagation medium of the material surface, so a key factor influencing the electrode reaction is a surface with good electron conductivity. In addition, the surface of the electrode material is also highly susceptible to corrosion in alkaline electrolytes. As a result, the material surface’s ability to resist corrosion also plays a crucial role in determining the electrode’s cycling stability and service life.

2. Surface Modification of Magnesium-Based Materials

The properties of Mg-based materials are closely related to their composition, crystal structure, and surface state. Generally, thermodynamic properties, such as the maximum capacity and enthalpy change, are directly related to the material composition and crystal structure [41]. However, the surface state significantly impacts the kinetics [42], as well as the properties of surface corrosion resistance, impurity toxicity resistance, and electrocatalytic activity. These factors, in turn, affect the overall performance of the material. To improve the performance of Mg-based materials, various surface modification techniques, such as surface coatings, surface catalysis, nanocrystallization and amorphization, and the formation of core–shell structures, are often employed. These techniques have supported the application of Mg-based materials in fields such as hydrogen storage and Ni-MH batteries.

2.1. Surface Modifications of Hydrogen Storage Material

In recent years, an important research direction for Mg-based materials is their application as a hydrogen storage and transportation medium. In this field, the hydrogen absorption/desorption rate, temperature, and storage capacity are the primary concerns. From a kinetic perspective, the main reasons for the slow hydrogen absorption reaction of Mg-based materials include the following: (1) the MgO or Mg(OH)2 layer on the material’s surface inhibits the decomposition of H2 and the penetration and diffusion of H on the surface [43], and (2) after the initial production of MgH2 on the surface, the subsequent diffusion of H gradually becomes more difficult [44][45][46]. Therefore, it is essential to accelerate H2 decomposition and H diffusion on the material surface to improve the hydrogen absorption/desorption rate. Surface modification techniques, such as surface catalytic treatment, nanocrystalline treatment, and the formation of core–shell structures, are crucial for enhancing the surface performance of Mg-based materials.

2.2. Surface Modifications of Electrode Materials in Nickel–Metal Hydride Batteries

Ni-MH batteries are secondary new energy batteries with Ni(OH)2 as the positive electrode, metal hydride (MH) as the negative electrode, and an alkaline solution as the electrolyte [47][48]. Ni-MH batteries have been widely used in commercial hybrid vehicles, such as Toyota, Honda, and Ford, since 1999 due to their high level of safety, environmental friendliness, and good low-temperature properties [49][50]. However, the capacity, durability, and discharge performance (kinetics) of the battery depend primarily on the inherent properties of the electrode materials, especially for the preparation of active materials for the negative electrode [51][52]. There have been a series of studies on negative electrode materials for Ni-MH batteries, such as AB5, AB2, AB3, AB, A2B, and Mg-based materials [53][54][55][56][57]. However, with these materials for Ni-MH battery applications in the field of high power, there are still some problems, such as easy polarization, a poor discharge ability at a high rate, easy corrosion in alkaline electrolytes, and poor cycling stability.
The performance of Ni-MH batteries depends not only on the bulk structure of the electrode but also on its surface state. Mg-based alloys are widely used as the negative electrode in Ni-MH batteries due to their exceptional electrochemical properties, cost-effectiveness, and abundant reserves of raw materials  [47]. However, the appearance and growth of its MgO/Mg(OH)2 surface layer impede electron transport at the electrode/electrolyte interface and create a large discharge potential, resulting in a lower discharge capacity and a poorer kinetic performance of the electrode material [58]. Moreover, the interfacial reaction between the electrode material and the electrolyte can seriously affect the electrochemical performance of the batteries [59][60]. The optimization of the performance of Mg-based electrode materials and Ni-MH batteries can be achieved through surface treatment. Common methods of modification include surface coating, nanocrystallization and amorphization, and surface catalysis.

2.3. Analysis of the Application of Magnesium-Based Materials in Existing Fields

The research and development of energy storage materials are crucial to the utilization and storage of energy. The ideal energy storage materials for a wide range of industrial and residential should consider factors such as the raw material and preparation costs, energy storage capacity, operating conditions, and service life. Mg has abundant reserves (about 2% [61]) and good hydrogen storage properties in the Earth’s crust. Currently, the research on the performance of Mg-based materials in hydrogen storage mainly focuses on solid-state hydrogen storage and Ni-MH batteries. Although researchers have shown that Mg-based materials show relatively excellent performance in hydrogen storage and electrochemical energy storage, which still not enough to achieve large-scale adoption.
Table 1 and Table 2 briefly summarize the relevant properties of some modified Mg-based materials in the field of hydrogen storage and Ni-MH batteries, respectively.
Table 1. Partial hydrogen storage properties of Mg-based materials after surface modification.
Table 2. Partial electrochemical properties of Mg-based materials after surface modification.
Materials Surface Treatment


(mA h g−1)




(mA g−1)

Nd0.7Mg0.3Ni3 Coating layer (Ni) 355 79.6 (C200) 202.6 [75]
Nd0.7Mg0.3Ni3 Coating layer (Co) 337 76.5 (C200) 163.6 [75]
La0.8Mg0.2Ni3.4Al0.1 Coating layer (polyaniline) 391.8 87.5 (C100) 98.9 [76]
Mg2Ni Coating layer (rGO) 594 60 (C50) 225.9 [77]
Mg2Ni Coating layer (Ni) 946 38 (C10) 91.6 [78]
Mg0.9Ti0.1Ni - 455 31.6 (C20) - [79]
Mg0.8Ti0.1Pd0.1Ni Amorphous structure 326.5 74.2 (C20) 184 [79]


(Ni + 3 wt% GR)

Nanocrystalline and amorphous structures (ball milling 20 h)

315.4 73 (C20) - [80]


(Ni + 3 wt% GR)
Nanocrystalline and amorphous structures (ball milling 80 h) 344.9 55 (C20) - [80]


Surface catalytic phase

361 84.8 (C200) 378.9 [81]


Surface catalytic phase

386.3 82.7 (C100) 483.8 [28]


Surface catalytic phase (Y2O3, milled 10 h) 392.2 90 (C30) - [82]


Surface catalytic phase (Y2O3, milled 20 h) 387 95 (C30) - [82]

Note: (1) ) MDC indicates the maximum discharge capacity, CRR indicates the capacity retention rate, and ECD indicates the exchange current density (Cn indicates the capacity after the nth cycle).  (2)“-” indicates that no data exist.

Based on the current research, it can be found that, in the field of solid-state hydrogen storage, pure Mg materials have the highest hydrogen storage capacity. However, hydrogen absorption/desorption requires exceptionally high temperatures, which requires much energy consumption for assistance. The current research aims to improve the comprehensive performance of the material by improving the preparation method, changing the material composition and structure, and modifying the treatment method. The hydrogen storage properties of Mg-based materials can be improved to some extent after modification treatment, but this is limited to experimental data. As for the design of solid-state hydrogen storage systems, although many studies on hydrogen storage materials and systems already exist, there is a severe lack of practical industrial application validation due to technical and environmental constraints, and there is an extreme lack of research on large-scale hydrogen storage devices. Therefore, more attention should be paid to the local performance and practical applicability of the materials in future research, and practical application verification should be performed. Meanwhile, better preparation processes and modification technologies should be explored to accelerate the realization of large-scale, normalized, and multi-field applications of solid-state hydrogen storage systems.
Even though secondary batteries have a specific research and application base in electrochemical energy storage, further research on high-performance electrode materials is still essential to enhance battery performance. It has been found that, when Mg-based materials are used as negative electrode materials for Ni-MH batteries, modification treatment can improve the corrosion resistance of electrode materials, but there are still apparent deficiencies in discharge capacity and high-rate discharge performance, which limits the application of the materials in the field of high-power batteries.


  1. Yang, Z.; Zhang, J.; Kintner-Meyer, M.C.; Lu, X.; Choi, D.; Lemmon, J.P.; Liu, J. Electrochemical energy storage for green grid. Chem. Rev. 2011, 111, 3577–3613.
  2. Li, K.; Bian, H.; Liu, C.; Zhang, D.; Yang, Y. Comparison of geothermal with solar and wind power generation systems. Renew. Sustain. Energy Rev. 2015, 42, 1464–1474.
  3. Khojasteh, D.; Khojasteh, D.; Kamali, R.; Beyene, A.; Iglesias, G. Assessment of renewable energy resources in Iran; with a focus on wave and tidal energy. Renew. Sustain. Energy Rev. 2018, 81, 2992–3005.
  4. Hussain, A.; Arif, S.M.; Aslam, M. Emerging renewable and sustainable energy technologies: State of the art. Renew. Sustain. Energy Rev. 2017, 71, 12–28.
  5. Pareek, A.; Dom, R.; Gupta, J.; Chandran, J.; Adepu, V.; Borse, P.H. Insights into renewable hydrogen energy: Recent advances and prospects. Mater. Sci. Energy Technol. 2020, 3, 319–327.
  6. Rosen, M.A.; Koohi-Fayegh, S. The prospects for hydrogen as an energy carrier: An overview of hydrogen energy and hydrogen energy systems. Energy Ecol. Environ. 2016, 1, 10–29.
  7. Pearson, P.J.G.; Foxon, T.J. A low carbon industrial revolution? Insights and challenges from past technological and economic transformations. Energy Policy 2012, 50, 117–127.
  8. Tarhan, C.; Çil, M.A. A study on hydrogen, the clean energy of the future: Hydrogen storage methods. J. Energy Storage 2021, 40, 102676.
  9. Zhang, F.; Zhao, P.; Niu, M.; Maddy, J. The survey of key technologies in hydrogen energy storage. Int. J. Hydrogen Energy 2016, 41, 14535–14552.
  10. Liu, C.; Li, F.; Ma, L.P.; Cheng, H.M. Advanced materials for energy storage. Adv. Mater. 2010, 22, E28–E62.
  11. Ibrahim, H.; Ilinca, A.; Perron, J. Energy storage systems–Characteristics and comparisons. Renew. Sustain. Energy Rev. 2008, 12, 1221–1250.
  12. Mahlia, T.M.I.; Saktisahdan, T.J.; Jannifar, A.; Hasan, M.H.; Matseelar, H.S.C. A review of available methods and development on energy storage; technology update. Renew. Sustain. Energy Rev. 2014, 33, 532–545.
  13. Song, Z.; Zhan, H.; Zhou, Y. Polyimides: Promising energy-storage materials. Angew. Chem. Int. Ed. 2010, 49, 8444–8448.
  14. Wang, T.; Chen, H.C.; Yu, F.; Zhao, X.S.; Wang, H. Boosting the cycling stability of transition metal compounds-based supercapacitors. Energy Storage Mater. 2019, 16, 545–573.
  15. Li, J.; Li, B.; Shao, H.; Li, W.; Lin, H. Catalysis and downsizing in Mg-Based hydrogen storage materials. Catalysts 2018, 8, 89.
  16. Li, B.; Li, J.; Shao, H.; He, L. Mg-based hydrogen absorbing materials for thermal energy storage—A Review. Appl. Sci. 2018, 8, 1375.
  17. Shao, H.; Xin, G.; Zheng, J.; Li, X.; Akiba, E. Nanotechnology in Mg-based materials for hydrogen storage. Nano Energy 2012, 1, 590–601.
  18. Zaluska, A.; Zaluski, L.; Ström–Olsen, J.O. Nanocrystalline magnesium for hydrogen storage. J. Alloy. Compd. 1999, 288, 217–225.
  19. Huot, J.; Liang, G.; Boily, S.; Van Neste, A.; Schulz, R. Structural study and hydrogen sorption kinetics of ball-milled magnesium hydride. J. Alloy. Compd. 1999, 293, 495–500.
  20. Jerkiewicz, G. Hydrogen sorption ATIN electrodes. Prog. Surf. Sci. 1998, 57, 137–186.
  21. Züttel, A.; Güther, V.; Otto, A.; Bartsch, M.; Kotz, R.; Chartouni, D.; Nutzenadel, C.; Schlapbach, L. About the mechanism and the rate limiting step of the metalhydride electrode reaction. J. Alloy. Compd. 1999, 293–295, 663–669.
  22. Tliha, M.; Mathlouthi, H.; Lamloumi, J.; Percheron-Guegan, A. AB5-type hydrogen storage alloy used as anodic materials in Ni-MH batteries. J. Alloy. Compd. 2007, 436, 221–225.
  23. Cui, N.; Luo, J.L.; Chuang, K.T. Nickel–metal hydride (Ni-MH) battery using Mg2Ni-type hydrogen storage alloy. J. Alloy. Compd. 2000, 302, 218–226.
  24. Xiong, W.; Yan, H.; Wang, L.; Verbetsky, V.; Zhao, X.; Mitrokhin, S.; Li, B.; Li, J.; Wang, Y. Characteristics of A2B7-type LaYNi-based hydrogen storage alloys modified by partially substituting Ni with Mn. Int. J. Hydrogen Energy 2017, 42, 10131–10141.
  25. Wang, C.; Soriaga, M.P.; Srinivasan, S. Determination of reaction resistances for metal-hydride electrodes during anodic polarization. J. Power Sources 2000, 85, 212–223.
  26. Zhang, H.; Zheng, X.; Tian, X.; Liu, Y.; Li, X. New approaches for rare earth-magnesium based hydrogen storage alloys. Prog. Nat. Sci. Mater. Int. 2017, 27, 50–57.
  27. Wei, T.Y.; Lim, K.L.; Tseng, Y.S.; Chan, S.L.I. A review on the characterization of hydrogen in hydrogen storage materials. Renew. Sustain. Energy Rev. 2017, 79, 1122–1133.
  28. Wang, Y.; Tang, W.; Wang, F.; Ding, C.; Xu, S.; Yu, R. Effects of surface coating with Cu–Pd on electrochemical properties of A2B7-type hydrogen storage alloy. Int. J. Hydrogen Energy 2018, 43, 3244–3252.
  29. Shen, W.; Han, S.; Li, Y.; Yang, J.; Xiao, K. Electrochemical performance of polyaniline electroless deposited La–Mg–Ni-based hydrogen storage alloys. Mater. Chem. Phys. 2012, 132, 852–857.
  30. House, S.D.; Vajo, J.J.; Ren, C.; Rockett, A.A.; Robertson, I.M. Effect of ball-milling duration and dehydrogenation on the morphology, microstructure and catalyst dispersion in Ni-catalyzed MgH2 hydrogen storage materials. Acta Mater. 2015, 86, 55–68.
  31. Ouyang, L.Z.; Cao, Z.J.; Li, L.L.; Wang, H.; Liu, J.W.; Min, D.; Chen, Y.W.; Xiao, F.M.; Tang, R.H.; Zhu, M. Enhanced high-rate discharge properties of La11.3Mg6.0Sm7.4Ni61.0 Co7.2Al7.1 with added graphene synthesized by plasma milling. Int. J. Hydrogen Energy 2014, 39, 12765–12772.
  32. Zhang, Z.; Jin, J.; Zhang, H.; Qi, X.; Bian, Y.; Zhao, H. First-principles calculation of hydrogen adsorption and diffusion on Mn-doped Mg2Ni (010) surfaces. Appl. Surf. Sci. 2017, 425, 148–155.
  33. Li, Q.; Lu, Y.; Luo, Q.; Yang, X.; Yang, Y.; Tan, J.; Dong, Z.; Dang, J.; Li, J.; Chen, Y.; et al. Thermodynamics and kinetics of hydriding and dehydriding reactions in Mg-based hydrogen storage materials. J. Magnes. Alloy. 2021, 9, 1922–1941.
  34. Züttel, A. Materials for hydrogen storage. Mater. Today 2003, 6, 24–33.
  35. Banerjee, S.; Pillai, C.G.S.; Majumder, C. Dissociation and diffusion of hydrogen on the Mg (0001) surface: Catalytic effect of V and Ni double substitution. J. Phys. Chem. C 2009, 113, 10574–10579.
  36. Martino, P.; Chiesa, M.; Cristina Paganini, M.; Giamello, E. Coadsorption of NO and H2 at the surface of MgO monitored by EPR spectroscopy. Towards a site specific discrimination of polycrystalline oxide surfaces. Surf. Sci. 2003, 527, 80–88.
  37. Liu, Y.; Cao, Y.; Huang, L.; Gao, M.; Pan, H. Rare earth–Mg–Ni-based hydrogen storage alloys as negative electrode materials for Ni/MH batteries. J. Alloy. Compd. 2011, 509, 675–686.
  38. Feng, F.; Geng, M.; Northwood, D.O. Electrochemical behaviour of intermetallic-based metal hydrides used in Ni/metal hydride (MH) batteries: A review. Int. J. Hydrogen Energy 2001, 26, 725–734.
  39. Zhao, X.; Ding, Y.; Ma, L.; Wang, L.; Yang, M.; Shen, X. Electrochemical properties of MmNi3.8Co0.75Mn0.4Al0.2 hydrogen storage alloy modified with nanocrystalline nickel. Int. J. Hydrogen Energy 2008, 33, 6727–6733.
  40. Zhu, Y.; Yang, C.; Zhu, J.; Li, L. Structural and electrochemical hydrogen storage properties of Mg2Ni-based alloys. J. Alloy. Compd. 2011, 509, 5309–5314.
  41. Zhu, M.; Lu, Y.; Ouyang, L.; Wang, H. Thermodynamic tuning of Mg-based hydrogen storage alloys: A Review. Materials 2013, 6, 4654–4674.
  42. Luo, Q.; Li, J.; Li, B.; Liu, B.; Shao, H.; Li, Q. Kinetics in Mg-based hydrogen storage materials: Enhancement and mechanism. J. Magnes. Alloy. 2019, 7, 58–71.
  43. Arboleda, J.N.B.; Kasai, H.; Nobuhara, K.; Diño, W.A.; Nakanishi, H. Dissociation and Sticking of H2 on Mg(0001), Ti(0001) and La(0001) Surfaces. J. Phys. Soc. Jpn. 2004, 73, 745–748.
  44. Bérubé, V.; Radtke, G.; Dresselhaus, M.; Chen, G. Size effects on the hydrogen storage properties of nanostructured metal hydrides: A review. Int. J. Energy Res. 2007, 31, 637–663.
  45. Sakintuna, B.; Lamaridarkrim, F.; Hirscher, M. Metal hydride materials for solid hydrogen storage: A review. Int. J. Hydrogen Energy 2007, 32, 1121–1140.
  46. Aguey-Zinsou, K.F.; Ares-Fernández, J.R. Hydrogen in magnesium: New perspectives toward functional stores. Energy Environ. Sci. 2010, 3, 526–543.
  47. Wang, W.; Liu, X.; Zhang, L.; Zhang, S.; Guo, W.; Zhao, Y.; Zhang, H.; Li, Y.; Han, S. The electrochemical characteristics of AB4-type rare earth-Mg–Ni-based superlattice structure hydrogen storage alloys for nickel metal hydride battery. J. Magnes. Alloy. 2021, 9, 2039–2048.
  48. Ouyang, L.; Huang, J.; Wang, H.; Liu, J.; Zhu, M. Progress of hydrogen storage alloys for Ni-MH rechargeable power batteries in electric vehicles: A review. Mater. Chem. Phys. 2017, 200, 164–178.
  49. Liu, Y.; Pan, H.; Gao, M.; Wang, Q. Advanced hydrogen storage alloys for Ni/MH rechargeable batteries. J. Mater. Chem. 2011, 21, 4743–4755.
  50. Young, K.H.; Nei, J. The current status of hydrogen storage alloy development for electrochemical applications. Materials 2013, 6, 4574–4608.
  51. Kleperis, J.; Wojcik, G.; Czerwinski, A.; Skowronski, J.; Kopczyk, M.; Beltowska-Brzezinska, M. Electrochemical behavior of metal hydrides. J. Solid State Electrochem. 2001, 5, 229–249.
  52. Cuevas, F.; Joubert, J.M.; Latroche, M.; Percheron-Guégan, A. Intermetallic compounds as negative electrodes of Ni/MH batteries. Appl. Phys. A Mater. Sci. Process. 2001, 72, 225–238.
  53. Sünbül, S.E.; Öztürk, S.; İçin, K. Structural and hydrogen storage properties of Mg60-Ni40 and Mg80-Ni20 alloys prepared by planar flow casting. J. Mater. Eng. Perform. 2020, 29, 6101–6107.
  54. Charbonnier, V.; Madern, N.; Monnier, J.; Zhang, J.; Paul-Boncour, V.; Latroche, M. Relationship between H2 sorption, electrochemical cycling and aqueous corrosion properties in A5Ni19 hydride-forming alloys (A = Gd, Sm). J. Power Sources 2018, 397, 280–287.
  55. Wang, C.C.; Zhou, Y.T.; Yang, C.C.; Jiang, Q. A strategy for designing new AB4.5-type hydrogen storage alloys with high capacity and long cycling life. J. Power Sources 2018, 398, 42–48.
  56. Zhao, X.; Ma, L. Recent progress in hydrogen storage alloys for nickel/metal hydride secondary batteries. Int. J. Hydrogen Energy 2009, 34, 4788–4796.
  57. Jia, Z.; Zhang, L.; Zhao, Y.; Cao, J.; Li, Y.; Dong, Z.; Wang, W.; Han, S. Self-discharge characteristic and mechanism of single-phase PuNi3-, Gd2Co7-, and Pr5Co19-type Nd–Mg–Ni-based alloys. J. Power Sources 2017, 371, 188–196.
  58. Cui, N.; Luan, B.; Liu, H.K.; Dou, S.X. Discharge behaviour of Mg2Ni-typehydrogen-storage alloy electrodes in 6 M KOH solution by electrochemical impedance spectroscopy. J. Power Sources 1996, 63, 209–214.
  59. Li, M.M.; Yang, C.C.; Wang, C.C.; Wen, Z.; Zhu, Y.F.; Zhao, M.; Li, J.C.; Zheng, W.T.; Lian, J.S.; Jiang, Q. Design of hydrogen storage alloys/nanoporous metals hybrid electrodes for nickel-metal hydride batteries. Sci. Rep. 2016, 6, 27601.
  60. Giza, K.; Drulis, H. Effect of preparation method of metal hydride electrode on efficiency of hydrogen electrosorption process. Int. J. Mater. Res. 2016, 107, 103–108.
  61. Patelli, N.; Migliori, A.; Morandi, V.; Pasquini, L. Interfaces within biphasic nanoparticles give a boost to magnesium-based hydrogen storage. Nano Energy 2020, 72, 104654.
  62. Wang, Y.; Wang, Y. Recent advances in additive-enhanced magnesium hydride for hydrogen storage. Prog. Nat. Sci. Mater. Int. 2017, 27, 41–49.
  63. Liu, G.; Wang, Y.; Qiu, F.; Li, L.; Jiao, L.; Yuan, H. Synthesis of porous nanocomposite and its synergetic effect on hydrogen sorption properties of MgH2. J. Mater. Chem. 2012, 22, 22542.
  64. Liu, M.; Xiao, X.; Zhao, S.; Saremi-Yarahmadi, S.; Chen, M.; Zheng, J.; Li, S.; Chen, L. ZIF-67 derived nanoparticles: Remarkably improved hydrogen storage properties of MgH2 and synergetic catalysis mechanism. Int. J. Hydrogen Energy 2019, 44, 1059–1069.
  65. Bhatnagar, A.; Pandey, S.K.; Vishwakarma, A.K.; Singh, S.; Shukla, V.; Soni, P.K.; Shaz, M.A.; Srivastava, O.N. Fe3O4@graphene as a superior catalyst for hydrogen de/absorption from/in MgH2/Mg. J. Mater. Chem. A 2016, 4, 14761–14772.
  66. Zhang, Y.; Wu, F.; Guemou, S.; Yu, H.; Zhang, L.; Wang, Y. Constructing Mg2Co-Mg2CoH5 nano hydrogen pumps from LiCoO2 nanosheets for boosting the hydrogen storage property of MgH2. Dalton Trans. 2022, 51, 16195–16205.
  67. Herrich, M.; Ismail, N.; Lyubina, J.; Handstein, A.; Pratt, A.; Gutfleisch, O. Synthesis and decomposition of Mg2FeH6 prepared by reactive milling. Mater. Sci. Eng. B 2004, 108, 28–32.
  68. Zhang, Y.; Wei, X.; Zhang, W.; Yuan, Z.; Gao, J.; Qi, Y.; Ren, H. Effect of milling duration on hydrogen storage thermodynamics and kinetics of Mg-based alloy. Int. J. Hydrogen Energy 2020, 45, 33832–33845.
  69. Choi, Y.J.; Choi, J.W.; Sohn, H.Y.; Ryu, T.; Hwang, K.S.; Fang, Z.Z. Chemical vapor synthesis of Mg–Ti nanopowder mixture as a hydrogen storage material. Int. J. Hydrogen Energy 2009, 34, 7700–7706.
  70. Cui, J.; Wang, H.; Liu, J.; Ouyang, L.; Zhang, Q.; Sun, D.; Yao, X.; Zhu, M. Remarkable enhancement in dehydrogenation of MgH2 by a nano-coating of multi-valence Ti-based catalysts. J. Mater. Chem. A 2013, 1, 5603–5611.
  71. Zou, J.; Zeng, X.; Ying, Y.; Chen, X.; Guo, H.; Zhou, S.; Ding, W. Study on the hydrogen storage properties of core-shell structured Mg–RE (RE = Nd, Gd, Er) nano-composites synthesized through arc plasma method. Int. J. Hydrogen Energy 2013, 38, 2337–2346.
  72. Jeon, K.J.; Moon, H.R.; Ruminski, A.M.; Jiang, B.; Kisielowski, C.; Bardhan, R.; Urban, J.J. Air-stable magnesium nanocomposites provide rapid and high-capacity hydrogen storage without using heavy-metal catalysts. Nat. Mater. 2011, 10, 286–290.
  73. Mao, J.; Zou, J.; Lu, C.; Zeng, X.; Ding, W. Hydrogen storage and hydrolysis properties of core-shell structured Mg-MFx (M=V, Ni, La and Ce) nano-composites prepared by arc plasma method. J. Power Sources 2017, 366, 131–142.
  74. Lu, C.; Zou, J.; Zeng, X.; Ding, W. Hydrogen storage properties of core-shell structured (TM=Co, V) composites. Int. J. Hydrogen Energy 2017, 42, 15246–15255.
Contributors MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to : , ,
View Times: 125
Revisions: 2 times (View History)
Update Date: 28 Jun 2023
