Drug Discovery Research around Tetanus Toxin Fragment C

Tetanus caused by the tetanus toxin (TT) is a fatal illness, which despite the existence of a vaccine, led to an estimated 34,684 deaths in 2019. TT is a neurotoxin produced by Clostridium tetani, a Gram-positive pathogenic bacterium, mainly found in soil and the gastrointestinal tracts of animals. TT induces the inhibition of neurotransmitter release, leading to spastic paralysis in a four-step process. First, TT binds to specific receptors, mainly composed of lipids and gangliosides, found at the neuromuscular junction (NMJ). Another receptor is reached by TT after these first bindings: a protein receptor responsible for its internalization (second step). This double receptor binding is responsible for the high affinity between TT and nerve cells. Third, TT is then transported into the cell body via axonal retrograde transport. In the last step, the proteolytic cleavage by TT of the VAMP/synaptobrevin, a neuronal substrate, leads to the inhibition of neurotransmitter release. All of these biological properties can be distinct associated parts of the TT structure. TT is a 150.7 kDa protein composed of a 52.4 kDa light chain and a 98.3 kDa heavy chain linked by a disulfide bond.

tetanus toxin fragment C structure production uses vaccine neuronal protection CNS delivery immunogenicity carrier protein fusion protein

1. Tetanus Toxin Fragment C (TTFC) Properties and Uses: Central Nervous System (CNS) Delivery and Immunogenicity

In view of the numerous potential therapeutic applications of TTFC, especially in the fields of vaccination and neurology, different methods of production, characterization and evaluation were developed. An overview of TTFC by describing its numerous properties regarding immunology and neuroprotection will be offered, but also reflecting the different methods used for producing it (Figure 1).

Figure 1. Key points on TTFC.

1.1. TTFC Neurological Properties

1.1.1. Permeability and CNS Delivery

TTFC was reported to bind to motor neurons (MN) [1]. TTFC contains distinct binding sites, which are recognized by neuronal receptors. This is the first step of its transport into the CNS. It especially binds to polysialylgangliosides GD1b and GT1b, which are present in the CNS. Their role is to regulate protein activities at the lipid membrane [2]. After ganglioside recognition, TTFC is internalized by MN at the NMJ [3]. As it has the ability to form pores in lipid vesicles, the third step of its transfer is its translocation through the lipid membrane. This translocation depends on the ganglioside content but also on the pH of the membrane [4][5]. It finally reaches the neuronal perikaryon in the CNS, where it can target the recognition and the catalytic cleavage of neuronal substrates [4]. Owing to its ability to reach the CNS and to specifically affect neurons, TTFC seems to be a promising candidate as a vector for neuronal disease treatment [5].
Indeed, used as a fusion protein or carrier after chemical linkage, TTFC may be useful to deliver either proteins or drugs into the CNS to cure neurodegenerative diseases. After intramuscular injection or systemic administration, such chemically altered TTFC were shown to enhance protein delivery in neurons by 1000-fold in a mouse model [6]. TTFC was also reported to improve both the neuronal uptake and the distribution of brain-directed therapeutics [6][7]. As the blood–brain barrier (BBB) is relatively difficult to cross, drugs are directly injected into the brain or into cerebrospinal fluid. Using TTFC as a vector for protein delivery could simplify the route of injection. Indeed, a fusion protein administrated by intramuscular injection was detected on endosomal and synaptic vesicles [7]. These two locations are interesting as the synaptic membrane can be targeted for neurotransmitter-related protein or trophic factor delivery, and endosomal and lysosomal locations can be targeted for metabolic enzyme delivery [6]. This method has been used successfully to deliver proteins to Motor Neurons (MN) [7]. Importantly, several studies have shown that a TTFC/cytokine fusion had no effect on neuronal properties or cytokine protection properties [8].
Fusion proteins with TTFC can also be used to study synaptic connections. Fusion with a labeled protein (e.g., GFP, green fluorescence protein) allows transportation of the protein through synapses in a non-toxic way. Such a tool can be used to study the mechanisms of TTFC internalization and to map the neuronal network [9]. Indeed, TTFC is able to fuse with other molecules without altering its trans-synaptic and retrograde properties. This type of fusion has led to the successful study of intra- and inter-neuronal trafficking in vivo [10].
The unique properties of TTFC have also been exploited to construct a TT-derived peptide (Tet1-peptide, sequence HLNILSTLWKYR) as a new approach to delivering therapeutics to the CNS, as illustrated by the efficient delivery of small molecules into the CNS after intramuscular injection. This synthetic analog could thus also be used as a vector [11].

1.1.2. Intrinsic Neuronal Protection

In addition to its carrier properties, TTFC has also been reported to display neuroprotective activity. Indeed, retrograde and trans-synaptic transport of TTFC into the CNS after muscular injection is similar to pathways followed by trophic factors [12]. Different studies have demonstrated that TTFC had a trophic action in the brain and that it mimicked growth factors involved in survival pathways [13]. Furthermore, TTFC prevents cell death by apoptosis via several routes. Briefly, apoptosis occurs after cytochrome c release and caspase-3 activation following induction by the apoptotic promoter Bax. This promoter, in turn, is activated upon reversion of Bcl-Xl activity (an anti-apoptotic protein) through the dephosphorylation of the Bad gene [14]. Caspases are involved in major apoptotic events such as DNA digestion, chromatin condensation or membrane blebbing. TTFC disturbs these events by inhibiting caspase-3 activity, thus preventing apoptotic cell death [15]. TTFC also protects cells from apoptotic death by inhibiting Bad dissociation and association with Bcl-Xl. TTFC was thus shown to exert anti-apoptotic effects by inhibiting cell death pathways activated by Bad and by blocking pro-caspase-3 activation [16].
Moreover, TTFC is also involved in the activation of survival signaling pathways. Trk receptors transmit their signals from axons to neuronal cell bodies in a retrograde manner. Neurotrophins binding to these receptors allow protein kinase activation and tyrosine residue auto-phosphorylation. These phosphorylated tyrosine residues are then recognized by intracellular signaling proteins activating a kinase cascade. For example, Trk activation can be the trigger for phosphoinositide 3-kinase (PI3K) pathway activation, which in turn activates protein kinase B (also known as Akt), which is necessary and sufficient for eukaryotic cell survival [17]. TTFC stimulates signaling pathways Akt/PI3K, ERK and Raf/MEK/ERK [13][15][17], which play a role in cell survival. For example, PI3K is involved in the prevention of low potassium-induced apoptotic death. TTFC can provide cell protection through its action on survival signaling pathways. TTFC also protects cells by activating p21Ras protein, which is essential for the inhibition of cell death pathways [14][15]. In addition, TTFC treatment affects calcium-related gene expression, suggesting that TTFC can impact anti-apoptotic pathways through calcium-related mechanisms [12].
Another type of protection provided by TTFC concerns oxidative stress. Oxidative damage is observed in neurodegenerative diseases such as Parkinson’s disease (PD). Generation of reactive oxygen species can also contribute to MPP(+)-induced oxidative stress that activates a series of cellular factors that initiate apoptotic cell death [14]. Cubí et al. showed that after the administration of TTFC, the ceramide content and the nSMase activity increased in cerebellar granule neurons and NGF-differentiated PC12 cells [18]. It is well-known that an increase in ceramide level is related to neuron survival. Hence, as TTFC treatment increases ceramide contents, this provides neurons with a better protection against oxidation. TTFC is thus able to protect cells against neuronal oxidative stress and prevent oxidative damage.
Owing to its neuroprotective properties, TTFC has been widely tested in animal models of PD, cerebral ischemia, amyotrophic lateral sclerosis (ALS) or animals treated with molecules inducing apoptosis. TTFC was particularly reported to induce protection against dopamine (DA) loss and improved MN behavior [13]. DA plays a key role in controlling locomotion and is the main neurotransmitter affected in PD. DA receptors are involved in the activation of Trk receptors, and it seems that the trkB pathway may be crucial for DA neuron survival. As mentioned above, TTFC has a neuroprotective effect, and that may be due to its known contribution to the activation of Trk receptors, thus improving mechanisms of DA neurotransmission [16]. TTFC had also been identified as a neuroprotective agent in ALS animal models as it prevents anti-apoptotic effects [13]. TTFC fusion proteins were tested in mice with ALS disease and displayed a combination of TTFC neuroprotective and carrier properties. Improvements in motor function activity were observed in TTFC fusion-treated mice, curbing disease progression and increasing the number of surviving MN [12]. In parallel to MN survival, a reduction in microglial reactivity was detected, stopping disease progression. Another example worth mentioning was the use of naked DNA encoding TTFC (nDNA-TTFC) in the treatment of cerebral ischemia. This disease is characterized by a decrease in blood supply to the brain. This dysfunction can lead to permanent disability and death. There is currently no treatment to counter these serious effects. The efficacy of the treatment partly relies on the ability of the therapeutic treatment to reach the neurons after crossing the BBB. Every oxidative stress parameter was reduced after nDNA-TTFC treatment in all brains tested, protecting them from oxidative damage [19]. This treatment may thus represent a non-invasive and non-viral therapeutic approach to treating cerebral ischemia. The unique properties of TTFC as a carrier and neuroprotector may pave the way for many applications to cure neurodegenerative diseases.

1.1.3. Overview of the Uses of TTFC for Its Neurological Properties

Based on all its properties, TTFC has already been used under different forms (e.g., alone, in fusion protein, conjugated) for neuronal applications, including in vivo in several studies, confirming its neurological properties. Examples of these applications are presented in Table 1.
Table 1. Non-exhaustive list of in vivo uses of TTFC for neurological applications between 2005 and 2022.
Biological Interest Administration and Dose Experimental
Observed Effects Ref.
TTFC used alone
TTFC neuronal protection
1 μg
male and female
SOD1-G93A mice
  • Modulated the levels of NLRP3 and caspase-1 in spinal cord, EDL and SOL muscles
  • Reduced IL-6 levels in tissues drastically affected by ALS
  • Potential therapeutic molecule
TTFC neuropsychiatric
20–60 μg/kg
adult male
Wistar-Kyoto rats
  • Levels of hippocampal and frontal cortical BDNF increased
  • Levels of TNF-alpha in the same areas decreased
  • Potential utility of TTFC in PD-depression comorbidity
TTFC neuronal protection
(spinal MN degeneration)
direct spinal infusion
(total amount of
~42 ng/rat)
(total amount of
~400 ng/rat)
adult male
Wistar rats
  • Attenuated the AMPA-induced astrogliosis
  • Increased the phosphorylation of the TrkA receptor at Y490 in spinal MNs
  • Intramuscular > spinal infusion
TTFC neuronal protection
0.5 mg/kg
male 8-week-old
Sprague–Dawley rats
  • TTFC as pre-treatment
  • Prevented decrease in DA, TH, DAT, VMAT-2
  • Uses in neuronal dysfunctions
TTFC neuronal protection
(AD, effect on learning and memory)
medial septum
(local administration)
100 ng
adult male
Wistar rats
  • Protection of the cholinergic system
  • After administration of a toxic peptide, TTFC functionally maintained memory
  • Lower level of cell degeneration
  • Maintained cell morphology
TTFC neuronal protection
(post-methamphetamine treatment)
40 μg/kg
adult male
C57BL/6J mice
  • Only three injections of TTFC
  • Prevented the striatal tyrosine hydroxylase (TH) and DA transporter (DAT) decrease induced by METH
  • Potential for TTFC use against the damage induced by METH
TTFC neuronal protection
(restorative effect)
20 µg/kg
adult male Wistar rats
  • Neurodegeneration caused by 6-OHDA
  • Prevented the progression of asymmetrical motor behavior
  • Decreased the neurodegenerative process (fewer dark cells)
  • Decreased of striatal neurodegeneration after 28 days
Naked DNA
encoding for TTFC
neuronal protection
(cerebral ischemia)
200 µg
adult male
Mongolian gerbils
  • Improved neurological status and survival
  • Elimination of ischemia-induced motor hyperactivity and oxidative stress
  • Reduced nitrite levels, O2-production and lipid peroxidation
  • Improved SOD activity
Naked DNA
encoding for TTFC
neuronal protection
(ALS disease)
300 µg
SOD1-G93A mice
  • Delayed onset of symptoms
  • Extended the mouse survival
TTFC used as a fusion protein
TTFC fused with rAAV8, CMV and eGFP tracing study
(connectivity map)
1 µL
adult male and female
tdTomatoJ mice
  • Exploration of the sequence of cerebellar-hippocampal connections
  • Displayed eGFP positive cells in the rhinal cortex and subiculum
TTFC fused
with GDNF
neuronal protection
(ALS disease)
300 µg
SODG93A mice
  • Improved mice survival
  • Delayed onset symptoms
  • Improved motor function
  • Activation of survival signals in SC
  • Treatment by fusion protein was less efficient as GDNF alone
TTFC fused
with GFP
study of neuronal
(study of nerve injury)
/ transgenic mice
(NPY-Cre, ZWX)
  • Allowed to study the consequence of an injury and especially the CNS reorganization circuits
TTFC fused
with IGF-1
neuronal protection(age related nerve
10 µg
old control FVB and DBA mice
  • Prevented age-related alterations to nerve terminal at the NMJs
  • Prevented Ca2+ dependent contraction
  • No effect with TTFC alone
TTFC fused
with GFP or
study of neuronal
(muscle specific spinal
motor circuitry)
10.57–19.2 µg/mL
new born
BalbC/J mice
  • Fusion protein kept TTFC retrograde transport properties intact
  • With low injected doses, fusion protein spread on other muscles
TTFC fused
with SOD1
neuronal delivery
adult male
C57BL6 mice
  • Enhanced protein distribution and persistence throughout the CNS
  • Injection mode difficult to manage
Other forms of TTFC (analog, complex, conjugate)
125I-TTFC retrograde transport
(spinal cord)
10 µg of radiolabeled TTC
transgenic mice
(C57BL6, SOD193A)
  • Quantification of the net retrograde axonal transport
  • Monitoring of a new therapy
PEISH-based NP with HC neuronal delivery
(gene therapy)
150 μL of dispersion (conc. 7.5 µg pegylated HC per 2 µg of pDNA)
male 4-month old Wistar rats
  • PEISH-HC-functionalized NP
  • In day 5, GFP expressed in dorsal root ganglia neurons
  • Gene therapy strategies
Synthetic analog of TTFC, Tet1-peptide neuronal delivery
(small molecules)
1 µL/g of body weight)
young adult male
heterozygous rats
  • Delivery of small molecules into the CNS without toxicity
TTFC chemically coupled to GDNF neuronal delivery
60–100 µg
adult male mice
  • The conjugate maintained both TTFC transport and GDNF neuroprotection properties
  • Improved GDNF delivery into MN
  • GDNF persistence in spinal cord section

1.2. Immunological Properties

1.2.1. Immunological Properties against Tetanus

Having presented the neurological properties of TTFC,  its immunological properties will be focused. TTFC contains four universal epitopes of the 11 present in the TT sequence: 52 to 68 [35], 83 to 103 [35][36][37][38][39], 290 to 309/310 to 325 [40] (these two peptide sequences may represent the same epitope) and 409 to 420 [35] in the TTFC sequence. An immuno-informatics analysis performed by Nezafat et al. [41] unveiled four regions of the TTFC as helper epitopes (53–69, 84–108, 220–247, 361–386).
According to other studies, TTFC also contains 13 of the 28 epitopes recognized by more than 75% of patients [35][36][37][38][39][40][42]. This means that nearly half of tetanus toxin (TT) epitopes are contained in the TTFC sequence. Ghafari et al. [43] suggested that TTFC may be the immunodominant part of the toxin, i.e., that the fragment may elicit the humoral immune response. Moreover, TT neutralizing antibodies were shown to be mainly directed against TTFC in mouse and human models (100% for mouse models and 75% in a human model) [44]. It is important to note that the many neutralizing antibodies described since the 1980s [45][46][47] cannot individually neutralize TT in vivo. The development of an active and safe monoclonal antibody (mAb) remains a prospect for upcoming years [48]. Hence, TTFC has become a very interesting candidate from an immunological point of view, as it could protect against tetanus. Ghotloo et al. [49] gathered the state of knowledge on epitope mapping of TT and, more particularly, the epitopes localized on the TTFC by mAbs.
Keeping its immunological properties in mind, TTFC was then tested in vivo against tetanus. The first study conducted by Fairweather et al. tested the last 121 amino acids of the B fragment associated with TTFC in mice. One microgram of the fragment was injected without adjuvant and provided complete protection against TT, as all mice survived the TT challenge [50]. Other studies were conducted on TTFC alone showing that it could induce a 13-month protection against TT when expressed in bacteria, yeasts, plant cells or insect cells [51].
Further studies then compared its immunogenicity to the antigen present in the current vaccine (tetanus toxoid, TTd) [52][53]. Depending on the injection mode, the antibody response changed. No difference between TTd and TTFC was observed after the first transcutaneous delivery (injection of either 30 µg of each protein or molar equivalent doses). However, after the third injection, TTFC induced a 2 to 12 times higher antibody response (mainly IgG1 subclasses responses, IgA were not detected). Kinetics of antibody response of both proteins also seemed to differ. Using TTFC, a constant increase in protective response was observed, whereas using TTd, the level of protective response remained constant event after new injections. Using subcutaneous injection, contradictory results were obtained. In one study, a 100 times higher dose of TTd was required to induce the same protection as TTFC [52], and in another, TTFC was 100 times less potent than TTd [53]. The origin of these differences has not been fully investigated, but the induced protection seems to be linked to the mode of injection, which must be considered when developing new tetanus vaccines. Other modes of administration confirmed the capacity of TTFC to offer protection against tetanus: sublingual immunization using Bacillus subtilis as an antigen delivery system showed full protection in mice [54]. The capacity of TTFC to be used as an antigen in a tetanus vaccine has been demonstrated, but further investigations on the impact of the mode of injection must be conducted.
Because TTFC contains many epitopes, its use as a carrier to deliver molecules to the CNS may be delicate in vaccinated individuals. Studies have been conducted to analyze the immunogenic side effects of the administration of TTFC in vaccinated animals [55]. They revealed that the amount of injected TTFC as a carrier (molar equivalent) generally exceeds 10,000 times the lethal dose of TT in a mouse model, and neutralization of all the TTFC injected was unlikely even for a vaccinated animal. This allowed a small part of TTFC to be internalized and to reach the MN. Results have shown that vaccinated and unvaccinated animals presented detectable retrograde transport of TTFC using fluorimetry [55]. This demonstrated that at a high dose, TTFC could be used as a carrier for delivery of bioactive molecules into CNS even in vaccinated individuals. Another explanation could be linked to the mode of injection, as after an intramuscular injection, TTFC was not blocked by antibodies developed after immunization against TT. This could be due to the rapid uptake of the protein after intramuscular injection [3].
Finally, as an attractive alternative to commercial ELISA assays, dipstick tests were developed using gold-conjugated TTFC [56]. This conjugate was used to bind anti-tetanus antibodies in whole blood and plasma samples, with no cold chain requirement. The results obtained were highly promising, with a specificity greater than 0.9. The use of this device could thus be integrated into monitoring programs for populations at risk (non-immune or low titer individuals).

1.2.2. TTFC as a Fusion Protein: Enhancement of Immunogenicity

TTFC did not only induce protection against tetanus, it also enhanced immunogenicity of its partner when fused. DNA-based vaccines have shown their efficacy against infectious diseases but revealed disappointing results when used in tumor models. To overcome this problem, fusion with antigen helpers was developed. TTFC displays functional characteristics of helper antigens and was thus tested in several DNA fusion proteins [57]. In particular, it improved T-cell immunity of viral oncogenes HPV-16 E6 and E7 (viral oncogenes targeted by tumor suppressor proteins p53 and pRb) used in DNA vaccines to protect against papillomavirus [58]. The fusion with TTFC enhanced CD8+ T cell response against the protein of interest. Indeed, the mounting of a robust E7-specific T-cell response was observed after the administration of a TTFC fusion protein [59]. This induced tumor regressing and prolonged survival of all mice tested. E7 stability was also improved by the fusion protein, as E7 accumulation was higher in cells treated with the fusion. This could be explained as TTFC contains universal epitopes for human CD4+ T lymphocytes: the CD4+ T-cell helper response produced after epitope recognition may promote CD8+ T-cell responses. In addition, TTFC has a stimulatory effect on IFN-γ and CD69 production, both involved in modulating the immune response. Enhancement of the immunogenicity using TTFC fusion proteins may thus be due to the action of these proteins [43].
The fragment was also shown to enhance bacterial polysaccharide antigenicity in conjugate vaccines. As for TTd, TTFC has been tested as a carrier protein in conjugate vaccines, albeit because the production of TTFC does not require a formaldehyde detoxification step, its conjugation sites are easier to characterize [60]. Several authors chose to use this protein to synthetize well-defined glycoconjugates to highlight the link between the conjugate structure and the induced immune response [61][62][63][64]. TTFC was shown to play a normal protein carrier role as its conjugation with the bacterial polysaccharides induced a higher and long-lasting immune response.

1.2.3. In Silico Design of Epitope-Based Vaccines

In the last decade, in silico methods have been used to design vaccines based on TTFC epitopes associated with other epitopes. For example, in the case of atherosclerosis, a multi-epitope construct was designed by fusing epitopes from TTFC with other immunogenic molecules such as calreticulin, heat shock protein 60, and cholera toxin B [65]. Bioinformatics analysis allowed the authors to build a stable chimeric protein with the potential to shift the immune response and to reduce atherosclerosis. In silico approaches were also used to design anti-infective vaccines against brucellosis [66] and leptospirosis [67] in order to induce a strong immune response mediated by T- and B-cells. Immuno-informatics was also helpful to design a vaccine against melanoma [68], by fusing several antigens, including TTFC. This multi-epitope vaccine (MEV) approach showed high immunogenicity, providing hope for cancer immunotherapy. In another study [41], different algorithms and servers were used to design a novel MEV against cancer. The selected cytolytic T lymphocyte (CTL) epitopes were linked together to enhance epitope presentation. In parallel, different helper epitopes (including TTFC) were conjugated to stimulate helper T lymphocyte (HTL) immunity. All these epitopes were associated with heparin-binding hemagglutinin used as an adjuvant. The final protein was thus able to stimulate both cellular and humoral immune responses. An in vivo study was conducted to produce the corresponding vaccine in E. coli in order to evaluate antitumor efficacy against the HPV-16 E7-expressing murine tumor cell line TC-1. The results obtained revealed a significantly higher IgG secretion with MEV containing TTFC epitopes compared to the E7 protein vaccine [69].

1.2.4. TTFC Uses for Its Immunological Properties

As for its neurological properties, the immunological properties of TTFC have inspired many groups of research. Again, TTFC was used under different forms (e.g., alone, in fusion proteins, in conjugate vaccines) for diverse vaccine applications. Examples of these applications are presented in Table 2.

2. TTFC Production

2.1. Papain Digestion

One of the simplest ways of obtaining TTFC is to enzymatically digest TT. This can be achieved using the protease papain present in papaya fruits. Papain cleaves TT between Ser864 and Lys865 residues resulting in two fragments: TTFC and fragment A-B (Figure 2). Papain was first used for this purpose by Helting et al. in 1974 [83]. At that time, structural and functional studies of TT were difficult to ascertain because of the lability of the whole protein after purification. This is why researchers decided to split the protein into smaller fragments, trying to obtain separate structural information. The digestion was usually performed in 0.1 M phosphate buffer containing 1 mM EDTA and cysteine hydrochloride at pH 6.5. The experimental conditions (e.g., reaction temperature, amount of material) were progressively optimized [83][84][85][86][87]. For example, in 2014, Murzello et al. [84] digested TT within 30 min at 55 °C using 10 units of papain from papaya latex (Sigma P4762) per 10 mg of TT. To stop the reaction, the enzyme was inactivated by adding L-1-chloro-3-tosylamido-7-amino-2-heptanone and by letting the batch cool to 25 °C.

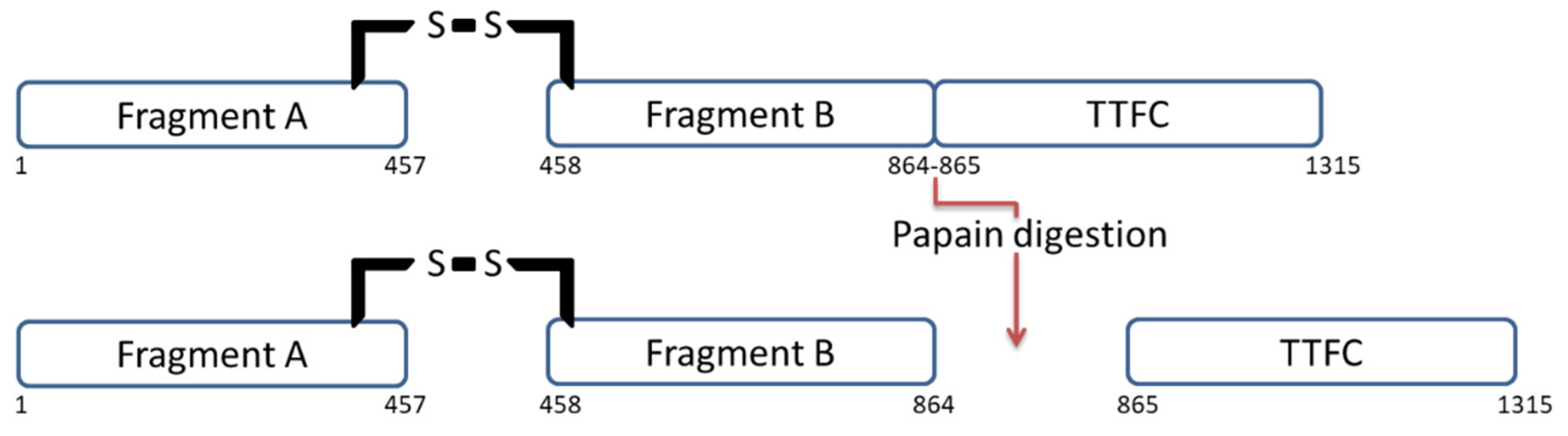

Figure 2. TT structure before and after papain digestion. Papain digests the protein by splitting it into two fragments: TTFC and fragment A-B.
In the next step, TTFC was purified from the solution obtained after papain digestion. Usually, several chromatographic separations (e.g., size-exclusion chromatography) were performed to finally yield pure TTFC. Subsequently, an affinity chromatography column using an anti-fragment [A-B] antibody could complete the purification protocol. Sometimes, TTFC needed to be rechromatographed (on the same column material under different elution conditions) to remove the remaining contaminants. Yields obtained after all purification steps varied between 15 to 28% from the TT starting material (approximately 0.13 to 10 mg of protein per mL) [83][84][85][86][87].

2.2. TTFC Production in Recombinant Systems

TTFC production using papain digestion was the first to be described, but as it was hazardous and a major difficulty was to eliminate the very small amount of undigested toxin from the fragment preparation, recombinant production systems were developed [88]. These systems present some striking advantages compared to papain digestion. First, large amounts of TTFC can be efficiently produced since large numbers of host organisms (e.g., bacteria, yeast, plant cells, insect cells) can be grown in small- and large-scale cultures with standard laboratory equipment. Second, only controlled non-toxic proteins can be produced, which means that production is safer and toxic contaminations are easy to avoid [89].

2.2.1. Escherichia coli as a Host for TTFC Production

In 1986, the cloning of the DNA encoding the TTFC from C. tetani CN3911 strain was published [90]. From this first study, several groups started to work on the production of TTFC as a heterologous protein in E. coli  (Table 3) [88][89][90][91][92][93][94][95][96][97]. Low amounts (from 1 to 10 mg/L) of recombinant proteins were obtained from expression vectors containing trp or tac promoters [88][89][90]. TTFC was also produced as a fusion protein in the pMalc2x vector [93]. TFC codon analysis revealed that the gene contained a high proportion of rare codons in E. coli, and teams thus produced synthetic TTFC DNA in order to reduce rare codons and decrease the percentage of AT pairs, increasing protein production [94][95]. However, it appeared that the yield increased further when BL21 bacteria and an expression plasmid the including T7 promotor were used [91][92][96][97]. In 2011, Yu et al. [94] optimized the fermentation production of 40 L to reach 333 mg/mL recombinant TTFC. As described recently [98], the fermentation conditions were further optimized to increase the production of recombinant proteins. In the late 1990s, other bacterial expression systems were studied to produce and ensure the delivery of TTFC. In fact, these alternative bacterial expression systems were developed to produce oral vaccines against TT, i.e., they served both as an expression method and as a delivery system.
Table 3. Expression of recombinant TTFC in E. coli.
et al. 1986
et al. 1989
et al. 1989
et al. 1990
et al. 2000
et al. 2011
Yu et al.
Yu et al.
et al. 2013 [91]
et al. 2018
host DH1 E. coli E. coli DH5α BL21 DH5α BL21 BL21 BL21 BL21pLys
TTFC DNA origin C. tetani synthetic
for end of
synthetic (optimized codons
for TTFC)
C. tetani C. tetani C. tetani synthetic synthetic
(optimized AT: 72.50% to 52.47%)
C. tetani C. tetani
recombinant protein TrpE-TTFC
(trpE: anthranilate synthetase)
1: met-3AA INFγ-TTFB(537–864)-TTFC(865–1315)
2: met-TTFC
met-TTFC fusion with 8AA from vector and 9AA from fragment B 112AA Trx-45AA TTFC-
(MBP:maltose binding
Trx-TTFC-6His tag no tag Cterm of TTFC (25 kDa)-6His tag 6His-tagged fusion protein
plasmid pWRL507 pTET-Tact1
pTET-Tact2 pTTQ8 pET32a pMalc2x pTIG-Trx pET32a+ pET28b+ pET28a
promotor trpE tac (derived
from trp and lac UV5)
tac tac T7 tac T7 T7 T7 T7
inducer indoylacrylic
60 µg/mL
0.67 mM
1 mM
0.4 mM
0.2 mM
1 mM
(optimized protocol)
quantity low amount
of fusion protein
/trpE protein
2: 12 mg TTFC/L
(3–4% TPC)
TPC (with optimized promotor)
1 mg/L
(0.5% TPC)
35 mg/L un-specified 15–30% TPC
(20–35 mg/mL after
333 mg/L
42 L
(46% TPC)
35% TCP pET28a:
38 mg/mL

32 mg/mL
solubility soluble 1: low solubilty
2: soluble
soluble soluble soluble soluble soluble soluble soluble soluble

2.2.2. TTFC Expression and Delivery in Other Bacterial Host Strains

The production of heterologous proteins in cyanobacteria, phototrophic microorganisms with low nutrient requirements, may be an alternative. For eukaryote proteins, this is possible in the form of fusion proteins. Recently, in 2021, the TTFC protein was expressed in the cyanobacterium Synechocystic sp. PCC6803 (Synechocystis) [99]. This bacterium was initially modified to stably express the tobacco etch virus protease (TEVp). Then in the cpc operon locus, the native cpcB gene encoding the abundant β-subunit of the phycocyanin was replaced with a fusion construct comprising the cpcB and TTFC DNA sequences separated by a TEV cleavage site. In vivo cleavage led to the accumulation in the cytosol of soluble TTFC proteins and putative aggregates containing the uncleaved protein cpcB-tev-TTFC, the sum of the two proteins representing approximately 20% of the total protein content (TPC). Hidalgo Martinez et al. [100] showed that the accumulation of soluble cpcB-tev-TTFC fusion proteins could occur as they contribute to the formation of phycobilisomes, comprising the major light-harvesting antenna complex for photosynthesis.
TTFC was produced by other bacterial recombinant expression systems for different applications. All these bacteria were not only used to express TTFC but also to deliver it in oral vaccination approaches. These delivery systems were developed in order to produce safe, stable and inexpensive oral vaccines. Such vaccines are particularly appropriate in developing countries because syringes and needles used for injected vaccination may be used repeatedly and lead to the transmission of infectious agents such as HIV, hepatitis B and C viruses. Oral immunization also simplifies the administration of vaccines, allowing less qualified health workers to immunize populations. These vaccines are highly compatible with mass immunization programs as their logistics are simpler. Finally, oral administration is usually preferred by both children and adults compared to parenteral injection [101]. The objective of oral vaccines is to pass through the intestinal mucosal surfaces to reach the immune system. Mucosal surfaces play a role in nutrient uptake, and an immune response against these dietary antigens is unwanted and generally suppressed to avoid food intolerance. It is thus difficult to induce a systemic immune response after the delivery of antigens to these surfaces. The immune response can, however, be improved by associating the antigen with a bacterium [102]. Lactic acid bacteria are well adapted to deliver antigens through mucosal surfaces and are interesting since they are generally recognized as safe (GRAS) by the FDA [103]. These nonpathogenic food-grade Gram-positive bacteria can be resistant to the harsh conditions of the intestinal environment. For example, the Lactococcus lactis bacterium can prevent direct contact of antigens with gastric acid and proteolytic enzymes, conferring a higher resistance in the intestinal medium [104]. Different lactic acid bacteria were tested as expression systems for TTFC: L. plantarum, L. lactis and L. casei [102][103][104][105][106][107][108][109][110][111]. Generally, the recombinant plasmids were constructed in the E. coli DH5α host strain and were subsequently introduced into alternative bacterial host strains by electroporation. Several strains and plasmids were tested to express the protein, leading in most cases to successful intragastric immunization. Strains UCP1060 and MG1363 were most often used for L. lactis, strains NCIMB8826 for L. plantarum and strains ATCC393 for L. casei [102][103][104][105][106][107]. Plasmids pMEC46 and pMEC127 were both frequently used within these strains, and the administration of MG1363(pMEC46) and NCIMB8826(pMEC127) strains, in particular, showed a high antibody production in mice [103][105][107]. To increase the immune response, different mutations were also tested in bacterial strains. For example, L. plantarum and L. lactis (Alr) mutant strains (replacing of L-alanine by D-alanine), both producing TTFC intracellularly, were more immunogenic than their wild-type counterparts [105]. These expression systems were good alternatives to attenuate pathogenic bacterial delivery systems such as Salmonella typhimurium [112] and Mycobacterium bovis BCG [113].
In summary, several bacterial production systems have been developed to produce TTFC. Different modifications have been made to the plasmids and the host strains to improve the fragment expression. Bacterial expression systems are widely used because they are cheap, their genetic manipulation is easy, and these fermentation systems are often easy to scale up. However, expressing foreign antigens in bacterial strains also has its drawbacks: Gram-negative bacteria cell walls contain lipopolysaccharides (LPS), which are toxic pyrogens. Consequently, proteins expressed in these bacteria must be carefully tested on LPS content before being used. Yeasts or plant cells exhibit no such features and could thus be attractive hosts for TTFC expression.

2.2.3. Recombinant TTFC Expression in Yeast and Plant Cells

The yeast species Saccharomyces cerevisiae and Pichia pastoris were used for recombinant TTFC expression as well as tobacco chloroplasts, representing a common plant expression system. To obtain satisfying levels of expression in yeast, a synthetic TTFC gene was constructed, containing a codon-optimized high CG gene lacking the fortuitous polyadenylation sites, which gave rise to truncated mRNA [114][115]. Around 60 to 90 mg/L of soluble protein were obtained using S. cerevisiae S150-2B strain expressing the synthetic TTFC gene (pWYG5-TET15) [114]. However, in S. cerevisiae, the recombinant TTFC secreted in the culture medium was immunogenically inactive due to glycosylation. A methylotrophic yeast, P. pastoris, produced a much higher yield of 12 g/L of soluble protein using the integrative plasmid with the promotor from the methanol-induced alcohol oxidase gene and the synthetic TTFC gene (pPIC3-TET15) [115]. When the native gene was cloned into a yeast expression plasmid (p9k-G) with the alpha factor secretion signal and expressed in P. pastoris, the secreted TTFC was glycosylated. Site-directed mutation performed on five potential N-glycosylation sites showed that the number and localization of these sites impact the expression and secretion of TTFC. Indeed, decreasing the number of N-glycosylation sites decreased TTFC secretion [116].
Conversely, plant cells did not require the use of the synthetic TTFC gene to obtain high yields of proteins. Indeed, the AT-rich bacterial gene, when expressed in a cassette consisting of a PrrnLT7g10 cassette (plasmids pJST10 and pJST11, respectively), produced twice as much protein (25% of total cell protein (TCP)) than the high-GC synthetic gene. However, this high level of TTFC is detrimental to plants, as evidenced by the chlorotic phenotype in plants [117][118]. The chloroplast expression system has inherited similarities with the prokaryotic expression systems derived from the ancestral cyanobacterium. They contain a plastid-encoded RNA polymerase, which can be compared to the bacterial RNA polymerase [119]. Two types of methods can be used to produce proteins in plant expression systems: either nuclear transgenic plants (low expression levels generally achieved) or DNA can be introduced into the chloroplast genome by particle bombardment (higher expression levels of recombinant proteins) [120]. Proteins are usually extracted from leaf tissues using an extraction buffer. In addition, chloroplasts are heat stable, cheap to produce, and they can remove undesirable selectable markers and use operons for multi-antigen expression; they produce a high level of immunogenic recombinant proteins, specifically target the gene and retain the gene product in the plastid; this system also benefits from environmental containment as a result of maternal inheritance [120]. Michoux et al. studied the production capacity of the Nt-pJST12 line obtained from a plasmid expressing the synthetic gene in a cassette consisting of a PrrnLatpB cassette. They showed that 92 g of TTFC could be produced annually, using five 250 L-bioreactors and running 20 rounds of production per reactor per year. This quantity of TTFC should be enough to launch preclinical and clinical trials [121]. Chloroplast-expressing systems were able to yield high amounts of protein but were not always efficient as vaccines. As both plant and the expressed vaccine are degraded in the intestinal tract, oral immunization was inefficient [122]. Nevertheless, intranasal immunization was protective in mice against the TT challenge [117][118].
Beyond yeast and chloroplasts, insect cells were also tested as host organisms using baculovirus expression vector p36C to co-infect Spodoptera frugipedra cells. The resulting TTFC was soluble and showed an immunogenic activity, but its secondary structure was different from the TTFC obtained in E. coli as its ganglioside binding properties were altered [123].
TTFC can be produced using a panel of different production methods. Purification [88][89][91][92][94][124] and characterization [92][94][106][124][125] steps are then usually the last ones performed in protein production to finally obtain the required quality. In 2020, Chai et al. established a simple method to purify TTFC by ion-exchange chromatography [126].

3. Conclusion

The development of new vaccines and neuroprotective agents present major issues in drug discovery. New vaccines must be well defined and better controlled, present great antigenic and immunogenic activities and be as stable as possible to allow mass vaccination campaigns in developing countries. The development of neuroprotective agents mostly focuses on the drug delivery into neuronal cells as the BBB is difficult to cross. TTFC protein can be a good candidate to overcome problematics in both fields. Its structure has been characterized allowing a better understanding of its biological properties. Recombinant TTFC is easily characterized and was shown to be sufficient for the protection of mice against tetanus. Its properties can also be used to protect against other diseases (e.g., multiple myeloma, cholera) as TTFC enhances immunogenicity of therapeutic proteins when fused to them. This fragment is responsible for neuronal binding of TT, meaning that it can reach neurons. This property has been widely studied for drug delivery into the CNS, as this is a key point in the cure of neurodegenerative diseases (e.g., ALS, AD, PD). These studies have shown that when conjugated or fused to a drug, TTFC retains its neuronal binding capacity and is a good carrier for drug delivery into the brain. Intrinsic neuroprotective properties were also discovered confirming the growing interest for this protein in the neurological field. TTFC thus appears to be a promising protein for drug discovery; as its production, characterization, and properties are well described. Further studies must now be conducted on different animal models to confirm its biological relevance and hopefully will result in the development of new drugs. In addition, TTFC-based immune-informatics approaches also seem to be an attractive and effective design to access new therapeutic entities against certain zoonotic diseases (e.g., brucellosis, leptospirosis).
In conclusion, TTFC protein can be considered to be a useful drug discovery toolbox. Few proteins offer such a wide range of uses including as a carrier, delivery vector, conjugate, booster, inducer, and neuroprotector. With the development of nanomedicines, and consideration for brain safety [127], the use of TTFC could pave the way for novel, safer applications.


  1. Herreros, J.; Lalli, G.; Schiavo, G. C-terminal half of tetanus toxin fragment C is sufficient for neuronal binding and interaction with a putative protein receptor. Biochem. J. 2000, 347 Pt 1, 199–204.
  2. Vajn, K.; Viljetić, B.; Degmečić, I.V.; Schnaar, R.L.; Heffer, M. Differential distribution of major brain gangliosides in the adult mouse central nervous system. PLoS ONE 2013, 8, e75720.
  3. Toivonen, J.M.; Oliván, S.; Osta, R. Tetanus toxin C-fragment: The courier and the cure? Toxins 2010, 2, 2622–2644.
  4. Calvo, A.C.; Oliván, S.; Manzano, R.; Zaragoza, P.; Aguilera, J.; Osta, R. Fragment C of tetanus toxin: New insights into its neuronal signaling pathway. Int. J. Mol. Sci. 2012, 13, 6883–6901.
  5. Gramlich, P.A.; Remington, M.P.; Amin, J.; Betenbaugh, M.J.; Fishman, P.S. Tat-tetanus toxin fragment C: A novel protein delivery vector and its use with photochemical internalization. J. Drug Target. 2013, 21, 662–674.
  6. Francis, J.W.; Bastia, E.; Matthews, C.C.; Parks, D.A.; Schwarzschild, M.A.; Brown, R.H.; Fishman, P.S. Tetanus toxin fragment C as a vector to enhance delivery of proteins to the CNS. Brain Res. 2004, 1011, 7–13.
  7. Benn, S.C.; Ay, I.; Bastia, E.; Chian, R.-J.; Celia, S.A.; Pepinsky, R.B.; Fishman, P.S.; Brown, R.H.; Francis, J.W. Tetanus toxin fragment C fusion facilitates protein delivery to CNS neurons from cerebrospinal fluid in mice. J. Neurochem. 2005, 95, 1118–1131.
  8. Bordet, T.; Castelnau-Ptakhine, L.; Fauchereau, F.; Friocourt, G.; Kahn, A.; Haase, G. Neuronal targeting of cardiotrophin-1 by coupling with tetanus toxin C fragment. Mol. Cell. Neurosci. 2001, 17, 842–854.
  9. Kissa, K.; Mordelet, E.; Soudais, C.; Kremer, E.J.; Demeneix, B.A.; Brûlet, P.; Coen, L. In vivo neuronal tracing with GFP-TTC gene delivery. Mol. Cell. Neurosci. 2002, 20, 627–637.
  10. Miana-Mena, F.J.; Roux, S.; Benichou, J.-C.; Osta, R.; Brûlet, P. Neuronal activity-dependent membrane traffic at the neuromuscular junction. Proc. Natl. Acad. Sci. USA 2002, 99, 3234–3239.
  11. Kassa, R.; Monterroso, V.; David, L.L.; Tshala-Katumbay, D. Diagnostic and therapeutic potential of tetanus toxin-derivatives in neurological diseases. J. Mol. Neurosci. 2013, 51, 788–791.
  12. Moreno-Igoa, M.; Calvo, A.C.; Penas, C.; Manzano, R.; Oliván, S.; Muñoz, M.J.; Mancuso, R.; Zaragoza, P.; Aguilera, J.; Navarro, X.; et al. Fragment C of tetanus toxin, more than a carrier. Novel perspectives in non-viral ALS gene therapy. J. Mol. Med. 2010, 88, 297–308.
  13. Mendieta, L.; Bautista, E.; Sánchez, A.; Guevara, J.; Herrando-Grabulosa, M.; Moran, J.; Martínez, R.; Aguilera, J.; Limón, I.D. The C-terminal domain of the heavy chain of tetanus toxin given by intramuscular injection causes neuroprotection and improves the motor behavior in rats treated with 6-hydroxydopamine. Neurosci. Res. 2012, 74, 156–167.
  14. Chaïb-Oukadour, I.; Gil, C.; Rodríguez-Alvarez, J.; Ortega, A.; Aguilera, J. Tetanus toxin HC fragment reduces neuronal MPP+ toxicity. Mol. Cell. Neurosci. 2009, 41, 297–303.
  15. Chaïb-Oukadour, I.; Gil, C.; Aguilera, J. The C-terminal domain of the heavy chain of tetanus toxin rescues cerebellar granule neurones from apoptotic death: Involvement of phosphatidylinositol 3-kinase and mitogen-activated protein kinase pathways. J. Neurochem. 2004, 90, 1227–1236.
  16. Mendieta, L.; Venegas, B.; Moreno, N.; Patricio, A.; Martínez, I.; Aguilera, J.; Limón, I.D. The carboxyl-terminal domain of the heavy chain of tetanus toxin prevents dopaminergic degeneration and improves motor behavior in rats with striatal MPP+-lesions. Neurosci. Res. 2009, 65, 98–106.
  17. Gil, C.; Chaib-Oukadour, I.; Aguilera, J. C-terminal fragment of tetanus toxin heavy chain activates Akt and MEK/ERK signalling pathways in a Trk receptor-dependent manner in cultured cortical neurons. Biochem. J. 2003, 373 Pt 2, 613–620.
  18. Cubí, R.; Candalija, A.; Ortega, A.; Gil, C.; Aguilera, J. Tetanus toxin Hc fragment induces the formation of ceramide platforms and protects neuronal cells against oxidative stress. PLoS ONE 2013, 8, e68055.
  19. Radenovic, L.; Selakovic, V.; Olivan, S.; Calvo, A.C.; Rando, A.; Janac, B.; Osta, R. Neuroprotective efficiency of tetanus toxin C fragment in model of global cerebral ischemia in Mongolian gerbils. Brain Res. Bull. 2014, 101, 37–44.
  20. Moreno-Martinez, L.; de la Torre, M.; Muñoz, M.J.; Zaragoza, P.; Aguilera, J.; Calvo, A.C.; Osta, R. Neuroprotective fragment C of tetanus toxin modulates IL-6 in an ALS mouse model. Toxins 2020, 12, 330.
  21. Getachew, B.; Mendieta, L.; Csoka, A.B.; Aguilera, J.; Tizabi, Y. Antidepressant effects of C-terminal domain of the heavy chain of tetanus toxin in a rat model of depression. Behav. Brain Res. 2019, 370, 111968.
  22. Netzahualcoyotzi, C.; Tapia, R. Tetanus toxin C-fragment protects against excitotoxic spinal motoneuron degeneration in vivo. Sci. Rep. 2018, 8, 16584.
  23. Moreno-Galarza, N.; Mendieta, L.; Palafox-Sánchez, V.; Herrando-Grabulosa, M.; Gil, C.; Limón, D.I.; Aguilera, J. Peripheral administration of tetanus toxin Hc fragment prevents MPP+ toxicity In vivo. Neurotox. Res. 2018, 34, 47–61.
  24. Patricio-Martínez, A.; Mendieta, L.; Martínez, I.; Aguilera, J.; Limón, I.D. The recombinant C-terminal fragment of tetanus toxin protects against cholinotoxicity by intraseptal injection of β-amyloid peptide (25–35) in rats. Neuroscience 2016, 315, 18–30.
  25. Mendieta, L.; Granado, N.; Aguilera, J.; Tizabi, Y.; Moratalla, R. Fragment C domain of tetanus toxin mitigates methamphetamine neurotoxicity and its motor consequences in mice. Int. J. Neuropsychopharmacol. 2016, 19, pyw021.
  26. Sánchez-González, A.; Mendieta, L.; Palafox, V.; Candalija, A.; Luna, F.; Aguilera, J.; Limón, I.D. The restorative effect of intramuscular injection of tetanus toxin C-fragment in hemiparkinsonian rats. Neurosci. Res. 2014, 84, 1–9.
  27. Bohne, P.; Schwarz, M.K.; Herlitze, S.; Mark, M.D. A new projection from the deep cerebellar nuclei to the hippocampus via the ventrolateral and laterodorsal thalamus in mice. Front. Neural Circuits 2019, 13, 51.
  28. Moreno-Igoa, M.; Calvo, A.C.; Jesús, C.; Muñoz, M.J.; Zaragoza, P.; Rosario, O. Non-viral gene delivery of the GDNF, either alone or fused to the C-fragment of tetanus toxin protein, prolongs survival in a mouse ALS model. Restor. Neurol. Neurosci. 2012, 30, 69–80.
  29. Bráz, J.M.; Basbaum, A.I. Triggering genetically-expressed transneuronal tracers by peripheral axotomy reveals convergent and segregated sensory neuron-spinal cord connectivity. Neuroscience 2009, 163, 1220–1232.
  30. Payne, A.M.; Messi, M.L.; Zheng, Z.; Delbono, O. Motor neuron targeting of IGF-1 attenuates age-related external Ca2+-dependent skeletal muscle contraction in senescent mice. Exp. Gerontol. 2007, 42, 309–319.
  31. Perreault, M.C.; Bernier, A.P.; Renaud, J.S.; Roux, S.; Glover, J.C. C fragment of tetanus toxin hybrid proteins evaluated for muscle-specific transsynaptic mapping of spinal motor circuitry in the newborn mouse. Neuroscience 2006, 141, 803–816.
  32. Lee, P.J.; Kennedy, Z.; Wang, Y.; Lu, Y.; Cefaliello, C.; Uyan, Ö.; Song, C.Q.; da Cruz Godinho, B.M.; Xu, Z.; Rusckowski, M.; et al. Imaging net retrograde axonal transport in vivo: A physiological biomarker. Ann. Neurol. 2022, 91, 716–729.
  33. Lopes, C.D.; Oliveira, H.; Estevão, I.; Pires, L.R.; Pêgo, A.P. In vivo targeted gene delivery to peripheral neurons mediated by neurotropic poly(ethylene imine)-based nanoparticles. Int. J. Nanomed. 2016, 11, 2675–2683.
  34. Larsen, K.E.; Benn, S.C.; Ay, I.; Chian, R.-J.; Celia, S.A.; Remington, M.P.; Bejarano, M.; Liu, M.; Ross, J.; Carmillo, P.; et al. A glial cell line-derived neurotrophic factor (GDNF): Tetanus toxin fragment C protein conjugate improves delivery of GDNF to spinal cord motor neurons in mice. Brain Res. 2006, 1120, 1–12.
  35. Reece, J.C.; Geysen, H.M.; Rodda, S.J. Mapping the major human T helper epitopes of tetanus toxin. The emerging picture. J. Immunol. 1993, 151, 6175–6184.
  36. Diethelm-Okita, B.M.; Okita, D.K.; Banaszak, L.; Conti-Fine, B.M. Universal epitopes for human CD4+ cells on tetanus and diphtheria toxins. J. Infect. Dis. 2000, 181, 1001–1009.
  37. Diethelm-Okita, B.M.; Raju, R.; Okita, D.K.; Contl-Fine, B.M. Epitope repertoire of human CD4+ T cells on tetanus toxin: Identification of immunodominant sequence segments. J. Infect. Dis. 1997, 175, 382–391.
  38. Valmori, D.; Pessi, A.; Bianchi, E.; Corradin, G. Use of human universally antigenic tetanus toxin T cell epitopes as carriers for human vaccination. J. Immunol. 1992, 149, 717–721.
  39. Panina-Bordignon, P.; Tan, A.; Termijtelen, A.; Demotz, S.; Corradin, G.; Lanzavecchia, A. Universally immunogenic T cell epitopes: Promiscuous binding to human MHC class II and promiscuous recognition by T cells. Eur. J. Immunol. 1989, 19, 2237–2242.
  40. Biradhar, N.; Nimmagadda, S.V.; Aavula, S.M.; Parthasarathy, S.; Sula, S.; Maithal, K. Identification and characterization of novel binding epitope of tetanus toxoid by phage display peptide library. Curr. Trends Biotechnol. Pharm. 2015, 9, 49–58.
  41. Nezafat, N.; Ghasemi, Y.; Javadi, G.; Khoshnoud, M.J.; Omidinia, E. A novel multi-epitope peptide vaccine against cancer: An in silico approach. J. Theor. Biol. 2014, 349, 121–134.
  42. James, E.A.; Bui, D.; Berger, J.; Huston, L.; Roti, M.; Kwok, W.W. Tetramer-guided epitope mapping reveals broad, individualized repertoires of tetanus toxin-specific CD4+ T cells and suggests HLA-based differences in epitope recognition. Int. Immunol. 2007, 19, 1291–1301.
  43. Ghafari-Khamene, M.; Torabi-Goudarzi, S.; Hosseini, M.; Haji-Fatahaliha, M.; Sadreddini, S.; Seyfi-Najmi, M.; Majidi, J.; Yousefi, M. Response of human T cells to tetanus neurotoxin HCC sub-domain: T cell cytokine production and activation marker induced by HCC. Iran. J. Allergy Asthma Immunol. 2015, 14, 519–525.
  44. Yousefi, M.; Younesi, V.; Bayat, A.A.; Jadidi-Niaragh, F.; Abbasi, E.; Razavi, A.; Khosravi-Eghbal, R.; Asgarin-Omran, H.; Shokri, F. Comparative human and mouse antibody responses against tetanus toxin at clonal level. J. Immunotoxicol. 2016, 13, 243–248.
  45. Volk, W.A.; Bizzini, B.; Snyder, R.M.; Bernhard, E.; Wagner, R.R. Neutralization of tetanus toxin by distinct monoclonal antibodies. Binding to multiple epitopes on the toxin molecule. Infect. Immun. 1984, 45, 604–609.
  46. Matsuda, M.; Kamei, M.; Sugimoto, N.; Ma, Y.; Hashizume, S. Characteristics of toxin-neutralization by anti-tetanus human monoclonal antibodies directed against the three functional domains , and of the tetanus toxin molecule and a reliable method for evaluating the protective effects of monoclonal antibodies. Eur. J. Epidemiol. 1992, 8, 1–8.
  47. Wang, Y.; Wu, C.; Yu, J.; Lin, S.; Liu, T.; Zan, L.; Li, N.; Hong, P.; Wang, X.; Jia, Z.; et al. Structural basis of tetanus toxin neutralization by native human monoclonal antibodies. Cell Rep. 2021, 35, 109070.
  48. Lukić, I.; Marinković, E.; Filipović, A.; Krnjaja, O.; Kosanović, D.; Inić-Kanada, A.; Stojanović, M. Key protection factors against tetanus: Anti-tetanus toxin antibody affinity and its ability to prevent tetanus toxin—Ganglioside interaction. Toxicon 2015, 103, 135–144.
  49. Ghotloo, S.; Golsaz-Shirazi, F.; Amiri, M.M.; Jeddi-Tehrani, M.; Shokri, F. Epitope mapping of tetanus toxin by monoclonal antibodies: Implication for immunotherapy and vaccine design. Neurotox. Res. 2020, 37, 239–249.
  50. Fairweather, N.F.; Lyness, V.A.; Maskell, D.J. Immunization of mice against tetanus with fragments of tetanus toxin synthesized in Escherichia coli. Infect. Immun. 1987, 55, 2541–2545.
  51. Luo, P.; Qin, L.; Mao, X.; Chen, L.; Yu, S.; Li, Q.; Liu, W.; Zhang, W.; Gu, J.; Zou, Q. Identification of a novel linear epitope in tetanus toxin recognized by a protective monoclonal antibody: Implications for vaccine design. Vaccine 2012, 30, 6449–6455.
  52. Johnston, L.; Mawas, F.; Tierney, R.; Qazi, O.; Fairweather, N.F.; Sesardic, D. Transcutaneous delivery of tetanus toxin Hc fragment induces superior tetanus toxin neutralizing antibody response compared to tetanus toxoid. Hum. Vaccin. 2009, 5, 230–236.
  53. Qazi, O.; Sesardic, D.; Tierney, R.; Soderback, Z.; Crane, D.; Bolgiano, B.; Fairweather, N.F. Reduction of the ganglioside binding activity of the tetanus toxin HC fragment destroys immunogenicity: Implications for development of novel tetanus vaccines. Infect. Immun. 2006, 74, 4884–4891.
  54. Amuguni, J.H.; Lee, S.; Kerstein, K.O.; Brown, D.W.; Belitsky, B.R.; Herrmann, J.E.; Keusch, G.T.; Sonenshein, A.L.; Tzipori, S. Sublingually administered Bacillus subtilis cells expressing tetanus toxin C fragment induce protective systemic and mucosal antibodies against tetanus toxin in mice. Vaccine 2011, 29, 4778–4784.
  55. Fishman, P.S.; Matthews, C.C.; Parks, D.A.; Box, M.; Fairweather, N.F. Immunization does not interfere with uptake and transport by motor neurons of the binding fragment of tetanus toxin. J. Neurosci. Res. 2006, 83, 1540–1543.
  56. Ramakrishnan, G.; Wright, M.; Alam, M.; Naylor, C.; Kabir, M.; Zerin, A.; Ferdous, T.; Pedersen, K.; Hennig, B.J.; Donowitz, J.R.; et al. Rapid assessment of tetanus vaccine-induced immunity in Bangladesh and the Gambia. Diagn. Microbiol. Infect. Dis. 2017, 87, 272–274.
  57. Leitner, W.W.; Baker, M.C.; Berenberg, T.L.; Lu, M.C.; Yannie, P.J.; Udey, M.C. Enhancement of DNA tumor vaccine efficacy by gene gun-mediated codelivery of threshold amounts of plasmid-encoded helper antigen. Blood 2009, 113, 37–45.
  58. Henken, F.E.; Oosterhuis, K.; Öhlschläger, P.; Bosch, L.; Hooijberg, E.; Haanen, J.B.A.G.; Steenbergen, R.D.M. Preclinical safety evaluation of DNA vaccines encoding modified HPV16 E6 and E7. Vaccine 2012, 30, 4259–4266.
  59. Oosterhuis, K.; Öhlschläger, P.; Van den Berg, J.H.; Teebs, M.; Gomez, R.; Schumacher, T.N.; Haanen, J.B. Preclinical development of highly effective and safe DNA vaccines directed against HPV 16 E6 and E7. Int. J. Cancer 2011, 129, 397–406.
  60. Jahouh, F.; Xu, P.; Vann, W.F.; Kováč, P.; Banoub, J.H. Mapping the glycation sites in the neoglycoconjugate from hexasaccharide antigen of Vibrio cholerae, serotype Ogawa and the recombinant tetanus toxin C-fragment carrier: Glycations sites of rTT-Hc neoglycoconjugates. J. Mass Spectrom. 2013, 48, 1083–1090.
  61. McCarthy, P.C.; Saksena, R.; Peterson, D.C.; Lee, C.H.; An, Y.; Cipollo, J.F.; Vann, W.F. Chemoenzymatic synthesis of immunogenic meningococcal group C polysialic acid-tetanus Hc fragment glycoconjugates. Glycoconj. J. 2013, 30, 857–870.
  62. Scott, A.E.; Ngugi, S.A.; Laws, T.R.; Corser, D.; Lonsdale, C.L.; D’Elia, R.V.; Titball, R.W.; Williamson, E.D.; Atkins, T.P.; Prior, J.L. Protection against experimental melioidosis following immunisation with a lipopolysaccharide-protein conjugate. J. Immunol. Res. 2014, 2014, 392170.
  63. Sayeed, M.A.; Bufano, M.K.; Xu, P.; Eckhoff, G.; Charles, R.C.; Alam, M.M.; Sultana, T.; Rashu, M.R.; Berger, A.; Gonzalez-Escobedo, G.; et al. A Cholera conjugate vaccine containing O-specific polysaccharide (OSP) of V. cholerae O1 Inaba and recombinant fragment of tetanus toxin heavy chain (OSP:rTTHc) induces serum, memory and lamina proprial responses against OSP and is protective in mice. PLoS Negl. Trop. Dis. 2015, 9, e0003881.
  64. Xu, P.; Kelly, M.; Vann, W.F.; Qadri, F.; Ryan, E.T.; Kováč, P. Conjugate vaccines from bacterial antigens by squaric acid chemistry: A closer look. ChemBioChem 2017, 18, 799–815.
  65. Karkhah, A.; Saadi, M.; Nouri, H.R. In silico analyses of heat shock protein 60 and calreticulin to designing a novel vaccine shifting immune response toward T helper 2 in atherosclerosis. Comput. Biol. Chem. 2017, 67, 244–254.
  66. Saadi, M.; Karkhah, A.; Nouri, H.R. Development of a multi-epitope peptide vaccine inducing robust T cell responses against brucellosis using immunoinformatics based approaches. Infect. Genet. Evol. 2017, 51, 227–234.
  67. Validi, M.; Karkhah, A.; Prajapati, V.K.; Nouri, H.R. Immuno-informatics based approaches to design a novel multi epitope-based vaccine for immune response reinforcement against leptospirosis. Mol. Immunol. 2018, 104, 128–138.
  68. Safavi, A.; Kefayat, A.; Abiri, A.; Mahdevar, E.; Behnia, A.H.; Ghahremani, F. In silico analysis of transmembrane protein 31 (TMEM31) antigen to design novel multiepitope peptide and DNA cancer vaccines against melanoma. Mol. Immunol. 2019, 112, 93–102.
  69. Nezafat, N.; Sadraeian, M.; Rahbar, M.R.; Khoshnoud, M.J.; Mohkam, M.; Gholami, A.; Banihashemi, M.; Ghasemi, Y. Production of a novel multi-epitope peptide vaccine for cancer immunotherapy in TC-1 tumor-bearing mice. Biologicals 2015, 43, 11–17.
  70. Yu, R.; Ji, C.; Xu, J.; Wang, D.; Fang, T.; Jing, Y.; Kwang-Fu Shen, C.; Chen, W. The immunogenicity of the C fragment of tetanus neurotoxin in production of tetanus antitoxin. Biomed. Res. Int. 2018, 2018, 6057348.
  71. Qian, M.; Zhao, T.; Li, R.; Yang, Q.; Yu, R.; Yin, Y.; Zai, X.; Li, Y.; Zhang, J.; Xu, J.; et al. Targeting the R domain of coagulase by active vaccination protects mice against lethal Staphylococcus aureus infection. Microbes Infect. 2019, 21, 163–169.
  72. Lee, S.E.; Nguyen, C.T.; Kim, S.Y.; Thi, T.N.; Rhee, J.H. Tetanus toxin fragment C fused to flagellin makes a potent mucosal vaccine. Clin. Exp. Vaccine Res. 2015, 4, 59–67.
  73. McCann, K.J.; Godeseth, R.; Chudley, L.; Mander, A.; Di Genova, G.; Lloyd-Evans, P.; Kerr, J.P.; Malykh, V.B.; Jenner, M.W.; Orchard, K.H.; et al. Idiotypic DNA vaccination for the treatment of multiple myeloma: Safety and immunogenicity in a phase I clinical study. Cancer Immunol. Immunother. 2015, 64, 1021–1032.
  74. Facciponte, J.G.; Ugel, S.; De Sanctis, F.; Li, C.; Wang, L.; Nair, G.; Sehgal, S.; Raj, A.; Matthaiou, E.; Coukos, G.; et al. Tumor endothelial marker 1–specific DNA vaccination targets tumor vasculature. J. Clin. Investig. 2014, 124, 1497–1511.
  75. Chudley, L.; McCann, K.; Mander, A.; Tjelle, T.; Campos-Perez, J.; Godeseth, R.; Creak, A.; Dobbyn, J.; Johnson, B.; Bass, P.; et al. DNA fusion-gene vaccination in patients with prostate cancer induces high-frequency CD8+ T-cell responses and increases PSA doubling time. Cancer Immunol. Immunother. 2012, 61, 2161–2170.
  76. Iurescia, S.; Fioretti, D.; Pierimarchi, P.; Signori, E.; Zonfrillo, M.; Tonon, G.; Fazio, V.M.; Rinaldi, M. Genetic immunization with CDR3-based fusion vaccine confers protection and long-term tumor-free survival in a mouse model of lymphoma. J. Biomed. Biotechnol. 2010, 2010, 316069.
  77. Benitez, A.J.; McNair, N.; Mead, J.R. Oral immunization with attenuated Salmonella enterica serovar Typhimurium encoding Cryptosporidium parvum Cp23 and Cp40 antigens induces a specific immune response in mice. Clin. Vaccine Immunol. 2009, 16, 1272–1278.
  78. Yu, R.; Xu, J.; Hu, T.; Chen, W. The pneumococcal polysaccharide-tetanus toxin native C-fragment conjugate vaccine: The carrier effect and immunogenicity. Mediators Inflamm. 2020, 2020, e9596129.
  79. Yang, Y.; Yu, R.; Yang, X.; Liu, S.; Fang, T.; Song, X.; Hou, L.; Yu, C.; Xu, J.; Fu, L.; et al. Protection against Staphylococcus aureus and tetanus infections by a combined vaccine containing SasA and TeNT-Hc in mice. Mol. Med. Rep. 2017, 15, 2369–2373.
  80. Chotprakaikiat, W.; Allen, A.; Bui-Minh, D.; Harden, E.; Jobsri, J.; Cavallo, F.; Gleba, Y.; Stevenson, F.K.; Ottensmeier, C.; Klimyuk, V.; et al. A plant-expressed conjugate vaccine breaks CD4(+) tolerance and induces potent immunity against metastatic Her2(+) breast cancer. Oncoimmunology 2016, 5, e1166323.
  81. Scott, A.E.; Christ, W.J.; George, A.J.; Stokes, M.G.; Lohman, G.J.; Guo, Y.; Jones, M.; Titball, R.W.; Atkins, T.P.; Campbell, A.S.; et al. Protection against experimental melioidosis with a synthetic manno-heptopyranose hexasaccharide glycoconjugate. Bioconjug. Chem. 2016, 27, 1435–1446.
  82. Tierney, R.; Nakai, T.; Parkins, C.J.; Caposio, P.; Fairweather, N.F.; Sesardic, D.; Jarvis, M.A. A single-dose cytomegalovirus-based vaccine encoding tetanus toxin fragment C induces sustained levels of protective tetanus toxin antibodies in mice. Vaccine 2012, 30, 3047–3052.
  83. Helting, T.; Zwister, O. Enzymatic breakdown of tetanus toxin. Biochem. Biophys. Res. Commun. 1974, 57, 1263–1270.
  84. Murzello, K.; Kaundinya, J.O.; Dandekar, S. Simplified method for purification of C-fragment from tetanus toxin and toxoid by enzymatic fragmentation and chromatography. Indo Am. J. Pharm. Res. 2014, 4, 4060–4066.
  85. Weller, U.; Dauzenroth, M.E.; Meyer zu Reindorf, D.; Habermann, E. Chains and fragments of tetanus toxin. Separation, reassociation and pharmacological properties. Eur. J. Biochem. 1989, 182, 649–656.
  86. Neubauer, V.; Helting, T.B. Structure of tetanus toxin: The arrangement of papain digestion products within the heavy chain-light chain framework of extracellular toxin. Biochim. Biophys. Acta 1981, 668, 141–148.
  87. Helting, T.B.; Zwisler, O. Structure of tetanus toxin. I. Breakdown of the toxin molecule and discrimination between polypeptide fragments. J. Biol. Chem. 1977, 252, 187–193.
  88. Makoff, A.J.; Ballantine, S.P.; Smallwood, A.E.; Fairweather, N.F. Expression of tetanus toxin fragment C in E. coli: Its purification and potential use as a vaccine. Nat. Biotechnol. 1989, 7, 1043–1046.
  89. Halpern, J.L.; Habig, W.H.; Neale, E.A.; Stibitz, S. Cloning and expression of functional fragment C of tetanus toxin. Infect. Immun. 1990, 58, 1004–1009.
  90. Fairweather, N.F.; Lyness, V.A.; Pickard, D.J.; Allen, G.; Thomson, R.O. Cloning, nucleotide sequencing, and expression of tetanus toxin fragment C in Escherichia coli. J. Bacteriol. 1986, 165, 21–27.
  91. Yousefi, M.; Khosravi-Eghbal, R.; Hemmati, A.; Shokri, F. Production and characterization of recombinant light chain and carboxyterminal heavy chain fragments of tetanus toxin. Avicenna J. Med. Biotechnol. 2013, 5, 220–226.
  92. Yu, Y.Z.; Gong, Z.W.; Ma, Y.; Zhang, S.M.; Zhu, H.Q.; Wang, W.B.; Du, Y.; Wang, S.; Yu, W.Y.; Sun, Z.W. Co-expression of tetanus toxin fragment C in Escherichia coli with thioredoxin and its evaluation as an effective subunit vaccine candidate. Vaccine 2011, 29, 5978–5985.
  93. Motamedi, H.; Seyfiabad Shapouri, M.R.; Ghorbanpour Najafabadi, M.; Arefzadeh, N. Cloning and expression of tetanus toxin C fragment (Fc) in prokaryotic vector for constructing recombinant protein based vaccine for tetanus. Iran. J. Vet. Res. 2011, 12, 107–112.
  94. Yu, R.; Hou, L.; Yu, C.; Liu, S.; Ren, J.; Fang, T.; Zhang, X.; Chen, W. Enhanced expression of soluble recombinant tetanus neurotoxin Hc in Escherichia coli as a tetanus vaccine candidate. Immunobiology 2011, 216, 485–490.
  95. Makoff, A.J.; Romanos, M.A.; Oxer, M.D.; Fairweather, N.F.; Ballantine, S.P. Expression of tetanus toxin fragment C in E. coli: High level expression by removing rare codons. Nucleic Acids Res. 1989, 17, 10191–10202.
  96. Ribas, A.V.; Ho, P.L.; Tanizaki, M.M.; Raw, I.; Nascimento, A.L.T.O. High-level expression of tetanus toxin fragment C–thioredoxin fusion protein in Escherichia coli. Biotechnol. Appl. Biochem. 2000, 31, 91–94.
  97. Aghayipour, K.; Teymourpour, R. High-level expression of tetanus toxin fragment C in Escherichia coli. Arch. Razi Inst. 2018, 73, 27–38.
  98. Koopaei, N.N.; Khadiv-Parsi, P.; Khoshayand, M.R.; Mazlomi, M.A.; Kebriaeezadeh, A.; Moloudian, H.; Solhi, R.; Aminian, M. Optimization of rPDT fusion protein expression by Escherichia coli in pilot scale fermentation: A statistical experimental design approach. AMB Express 2018, 8, 135.
  99. Zhang, X.; Betterle, N.; Hidalgo Martinez, D.; Melis, A. Recombinant protein stability in cyanobacteria. ACS Synth. Biol. 2021, 10, 810–825.
  100. Hidalgo Martinez, D.; Betterle, N.; Melis, A. Phycocyanin fusion constructs for heterologous protein expression accumulate as functional heterohexameric complexes in cyanobacteria. ACS Synth. Biol. 2022, 11, 1152–1166.
  101. Levine, M.M. Immunogenicity and efficacy of oral vaccines in developing countries: Lessons from a live cholera vaccine. BMC Biol. 2010, 8, 129.
  102. Maassen, C.B.; Laman, J.D.; den Bak-Glashouwer, M.J.; Tielen, F.J.; van Holten-Neelen, J.C.; Hoogteijling, L.; Antonissen, C.; Leer, R.J.; Pouwels, P.H.; Boersma, W.J.; et al. Instruments for oral disease-intervention strategies: Recombinant Lactobacillus casei expressing tetanus toxin fragment C for vaccination or myelin proteins for oral tolerance induction in multiple sclerosis. Vaccine 1999, 17, 2117–2128.
  103. Reveneau, N.; Geoffroy, M.C.; Locht, C.; Chagnaud, P.; Mercenier, A. Comparison of the immune responses induced by local immunizations with recombinant Lactobacillus plantarum producing tetanus toxin fragment C in different cellular locations. Vaccine 2002, 20, 1769–1777.
  104. Robinson, K.; Chamberlain, L.M.; Schofield, K.M.; Wells, J.M.; Le Page, R.W. Oral vaccination of mice against tetanus with recombinant Lactococcus lactis. Nat. Biotechnol. 1997, 15, 653–657.
  105. Grangette, C.; Muller-Alouf, H.; Hols, P.; Goudercourt, D.; Delcour, J.; Turneer, M.; Mercenier, A. Enhanced mucosal delivery of antigen with cell wall mutants of lactic acid bacteria. Infect. Immun. 2004, 72, 2731–2737.
  106. Robinson, K.; Chamberlain, L.M.; Lopez, M.C.; Rush, C.M.; Marcotte, H.; Le Page, R.W.F.; Wells, J.M. Mucosal and cellular immune responses elicited by recombinant Lactococcus lactis strains expressing tetanus toxin fragment C. Infect. Immun. 2004, 72, 2753–2761.
  107. Grangette, C.; Müller-Alouf, H.; Geoffroy, M.; Goudercourt, D.; Turneer, M.; Mercenier, A. Protection against tetanus toxin after intragastric administration of two recombinant lactic acid bacteria: Impact of strain viability and in vivo persistence. Vaccine 2002, 20, 3304–3309.
  108. Shaw, D.M.; Gaerthé, B.; Leer, R.J.; Van Der Stap, J.G.M.M.; Smittenaar, C.; Heijne Den Bak-Glashouwer, M.J.; Thole, J.E.R.; Tielen, F.J.; Pouwels, P.H.; Havenith, C.E.G. Engineering the microflora to vaccinate the mucosa: Serum immunoglobulin G responses and activated draining cervical lymph nodes following mucosal application of tetanus toxin fragment C-expressing lactobacilli. Immunology 2000, 100, 510–518.
  109. Norton, P.M.; Brown, H.W.; Wells, J.M.; Macpherson, A.M.; Wilson, P.W.; Le Page, R.W. Factors affecting the immunogenicity of tetanus toxin fragment C expressed in Lactococcus lactis. FEMS Immunol. Med. Microbiol. 1996, 14, 167–177.
  110. Wells, J.M.; Wilson, P.W.; Norton, P.M.; Gasson, M.J.; Le Page, R.W. Lactococcus lactis: High-level expression of tetanus toxin fragment C and protection against lethal challenge. Mol. Microbiol. 1993, 8, 1155–1162.
  111. Yang, X.Q.; Zhao, Y.G.; Chen, X.Q.; Jiang, B.; Sun, D.Y. The protective effect of recombinant Lactococcus lactis oral vaccine on a Clostridium difficile-infected animal model. BMC Gastroenterol. 2013, 13, 117.
  112. Jang, J.I.; Kim, J.S.; Eom, J.S.; Kim, H.G.; Kim, B.H.; Lim, S.; Bang, I.S.; Park, Y.K. Expression and delivery of tetanus toxin fragment C fused to the N-terminal domain of SipB enhances specific immune responses in mice. Microbiol. Immunol. 2012, 56, 595–604.
  113. Mazzantini, R.P.; Miyaji, E.N.; Dias, W.O.; Sakauchi, D.; Nascimento, A.L.T.O.; Raw, I.; Winter, N.; Gicquel, B.; Rappuoli, R.; Leite, L.C.C. Adjuvant activity of Mycobacterium bovis BCG expressing CRM197 on the immune response induced by BCG expressing tetanus toxin fragment C. Vaccine 2004, 22, 740–746.
  114. Romanos, M.A.; Makoff, A.J.; Fairweather, N.F.; Beesley, K.M.; Salter, D.E.; Rayment, F.B.; Payne, M.M.; Clare, J.J. Expression of tetanus toxin fragment C in yeast: Gene synthesis is required to eliminate fortuitous polyadenylation sites in AT-rich DNA. Nucleic Acids Res. 1991, 19, 1461–1467.
  115. Clare, J.J.; Rayment, F.B.; Ballantine, S.P.; Sreekrishna, K.; Romanos, M.A. High-level expression of tetanus toxin fragment C in Pichia pastoris strains containing multiple tandem integrations of the gene. Biotechnology 1991, 9, 455–460.
  116. Wang, N.; Wang, K.Y.; Xu, F.; Li, G.; Liu, D. The effect of N-glycosylation on the expression of the tetanus toxin fragment C in Pichia pastoris. Protein Expr. Purif. 2020, 166, 105503.
  117. Tregoning, J.S.; Nixon, P.; Kuroda, H.; Svab, Z.; Clare, S.; Bowe, F.; Fairweather, N.; Ytterberg, J.; van Wijk, K.J.; Dougan, G.; et al. Expression of tetanus toxin fragment C in tobacco chloroplasts. Nucleic Acids Res. 2003, 31, 1174–1179.
  118. Tregoning, J.S.; Maliga, P.; Dougan, G.; Nixon, P.J. New advances in the production of edible plant vaccines: Chloroplast expression of a tetanus vaccine antigen, TetC. Phytochemistry 2004, 65, 989–994.
  119. Yagi, Y.; Shiina, T. Recent advances in the study of chloroplast gene expression and its evolution. Front. Plant Sci. 2014, 5, 61.
  120. Ma, J.K.-C.; Drake, P.M.W.; Christou, P. Genetic modification: The production of recombinant pharmaceutical proteins in plants. Nat. Rev. Genet. 2003, 4, 794–805.
  121. Michoux, F.; Ahmad, N.; McCarthy, J.; Nixon, P.J. Contained and high-level production of recombinant protein in plant chloroplasts using a temporary immersion bioreactor. Plant Biotechnol. J. 2011, 9, 575–584.
  122. Tregoning, J.S.; Clare, S.; Bowe, F.; Edwards, L.; Fairweather, N.F.; Qazi, O.; Nixon, P.J.; Maliga, P.; Dougan, G.; Hussell, T. Protection against tetanus toxin using a plant-based vaccine. Eur. J. Immunol. 2005, 35, 1320–1326.
  123. Charles, I.G.; Rodgers, B.C.; Makoff, A.J.; Chatfield, S.N.; Salter, D.E.; Fairweather, N.F. Synthesis of tetanus toxin fragment C in insect cells by use of a baculovirus expression system. Infect. Immun. 1991, 59, 1627–1632.
  124. Bayart, C.; Peronin, S.; Jean, E.; Paladino, J.; Talaga, P.; Borgne, M.L. The combined use of analytical tools for exploring tetanus toxin and tetanus toxoid structures. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2017, 1054, 80–92.
  125. Lee, S.; Belitsky, B.R.; Brown, D.W.; Brinker, J.P.; Kerstein, K.O.; Herrmann, J.E.; Keusch, G.T.; Sonenshein, A.L.; Tzipori, S. Efficacy, heat stability and safety of intranasally administered Bacillus subtilis spore or vegetative cell vaccines expressing tetanus toxin fragment C. Vaccine 2010, 28, 6658–6665.
  126. Chai, P.; Pu, X.; Li, J.; Xia, X.; Ge, J.; Luo, A.; Su, H.; Zhang, W.; Ma, J. Expression and purification of tetanus toxin fragment C in Escherichia coli BL21(DE3). Protein Pept. Lett. 2020, 27, 1132–1140.
  127. Szabat-Iriaka, B.; Le Borgne, M. Brain safety concerns of nanomedicines: The need for a specific regulatory framework. Drug Discov. Today. 2021, 26, 2502-2507. doi: 10.1016/j.drudis.2021.06.011
Contributors MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to : , , , , , , ,
View Times: 537
Revisions: 4 times (View History)
Update Date: 26 Aug 2022
