Design and Challenges of Antibiotic Molecularly Imprinted Polymers

Version	Summary	Created by	Modification	Content Size	Created at	Operation
1		Akinrinade George Ayankojo	--	2578	2022-07-22 12:31:24	\|
2	layout	Jessie Wu	+ 5 word(s)	2583	2022-07-25 04:31:54	\|

This entry is adapted from the peer-reviewed paper 10.3390/bios12070441

Antibiotics constitute one of the emerging categories of persistent organic pollutants, characterised by their expansion of resistant pathogens. Antibiotic pollutants create a major public health challenge, with already identifiable detrimental effects on human and animal health. A fundamental aspect of controlling and preventing the spread of pollutants is the continuous screening and monitoring of environmental samples. Molecular imprinting is a state-of-the-art technique for designing robust biomimetic receptors called molecularly imprinted polymers (MIPs), which mimic natural biomolecules in target-selective recognition. When integrated with an appropriate sensor transducer, MIP demonstrates a potential for the needed environmental monitoring, thus justifying the observed rise in interest in this field of research.

antibiotics molecularly imprinted polymers Computational Chemistry Rational monomer selection Challenges for commercial application of MIP

1. Rational Design of Antibiotic Molecularly Imprinted Polymers (MIPs)

The success of molecular imprinting relies on the choice of template, functional and cross-linking monomers, as well as a suitable porogenic solvent. A detailed analysis of the significance of each component was previously reported ^[1]. In summary, a template could be any molecule, ion, macromolecule, compound or whole cell that has functional moiety that can be harnessed for chemical interactions. Mostly, the target analyte serves as the template during MIP preparation. The polymerisation solvent plays important roles, including solubilisation of all the monomers in the pre-polymerisation mixture, stabilisation of template-monomer complexes and acting as a porogen that helps to control the porosity of the resulting polymer. Following polymerisation, functional groups of the monomers are held in position by cross-linking the polymeric structure, thereby cementing their orientation within the polymer after template extraction.

Indeed, MIP recognition of a target is greatly influenced by the strength of the interaction between the template and functional monomer during the pre-polymerisation complex formation stage that then dictates the binding affinity, usually represented by the dissociation constant (i.e., KD) of the MIP for the targets at rebinding. A lower KD would generally suggest that the recognition layer possesses a greater fraction of high-affinity binding sites, due to a strong interaction (high binding energy) between the template and the monomer that was formed during the pre-polymerisation stage. Moreover, a strong interaction between the template and functional monomer is critical, especially in the analysis of small targets, such as antibiotics, where a high binding affinity (low KD) is required to analyse low concentrations of analytes.

Depending on the interaction type in the template–monomer complex, molecular imprinting approaches are generally categorised as covalent and noncovalent. The covalent approach employs reversible covalent bonds between the functional monomer and template, such as boronate ester, ketal/acetal, and Schiff’s base formation. This strategy leads to the generation of a higher yield of specific and more homogeneous binding sites, while the applicability is limited because of the small number of compounds bearing required functionalities (alcohols (diols), aldehydes, ketones, amines, and carboxylic acids). Another disadvantage of covalent imprinting is the complicated template removal and slow binding kinetics of the resulting MIP. On the contrary, the most frequently employed noncovalent approach offers a wide variety of functional monomers, with high flexibility and rapid rebinding kinetics. This approach is based on noncovalent interactions, such as hydrogen bonding, electrostatic interactions and van der Waals forces in the template–functional monomer complex. In addition, molecular imprinting based on metal-ion coordination was introduced ^[2]^[3]. In this approach, the functional monomer and template are bridged through coordination binding with various metal ions, such as Cu²⁺, Ni²⁺, Cd²⁺ or Zn²⁺. Compared to noncovalent interactions, metal-ion coordination bonds are stronger, leading to better stability of the MIP in aqueous media. Hence, the selection of an appropriate functional monomer capable of forming a stable complex with a target analyte via the reversible covalent, noncovalent or metal-ion coordination is of great importance for a successful imprinting process. Notwithstanding, not all monomers fulfilling this obligation are suitable candidates. This is because the appropriate monomer must also be compatible with the desired polymerization approach. Therefore, a potential functional monomer should possess chemical groups for polymerisation and formation of strong interactions with template molecules. Although such a demand may suggest a limitation in the number of suitable functional monomers for molecular imprinting, new functional monomers tailor-made to accommodate these challenges are being synthesised ^[4]^[5]^[6]^[7]^[8].

Moreover, cross-linking monomers are essential for controlling the morphology of the MIP matrix during polymerisation by fixing functional monomers around template molecules. Typically, an insufficient amount of crosslinker reduces the structural stability of the polymer, whereas an excess reduces the number of MIP binding sites. Reportedly, most commercial crosslinkers, such as ethylene glycol dimethacrylate (EGDMA), are compatible with molecular imprinting ^[9]. However, the selection of crosslinkers should be based on their solubility in the synthesis medium and the strength of the interaction with the template. It was reported that the crosslinker that displays lower binding of the template should be preferential because it generates MIPs with lower non-specific binding and a higher imprinting factor, and therefore specificity ^[10]. If the level of non-specific binding background on the MIP is high, a similar polymeric material, i.e., non-imprinted polymer (NIP) generated in the absence of the template, might serve as a good reference, allowing one to compensate the background and accurately analyse label-free responses originating from a MIP modified sensor.

Various functional monomers exist for building polymer matrices for molecular imprinting. Figure 1 shows the structure of monomers commonly employed in antibiotic imprinting. Among these, methacrylic acid (MAA) is the most utilised. This is partly because hydrogen bonding constitutes one of the dominant interactions employed in MIP research and MAA can serve as a hydrogen bond acceptor or donor. Moreover, it was revealed that the dimerisation of MAA can improve, to an extent, the success of molecular imprinting ^[11]. However, the growth in scientific efforts has resulted in an increasing utilisation of other monomers, thereby removing the monopoly in MAA usage.

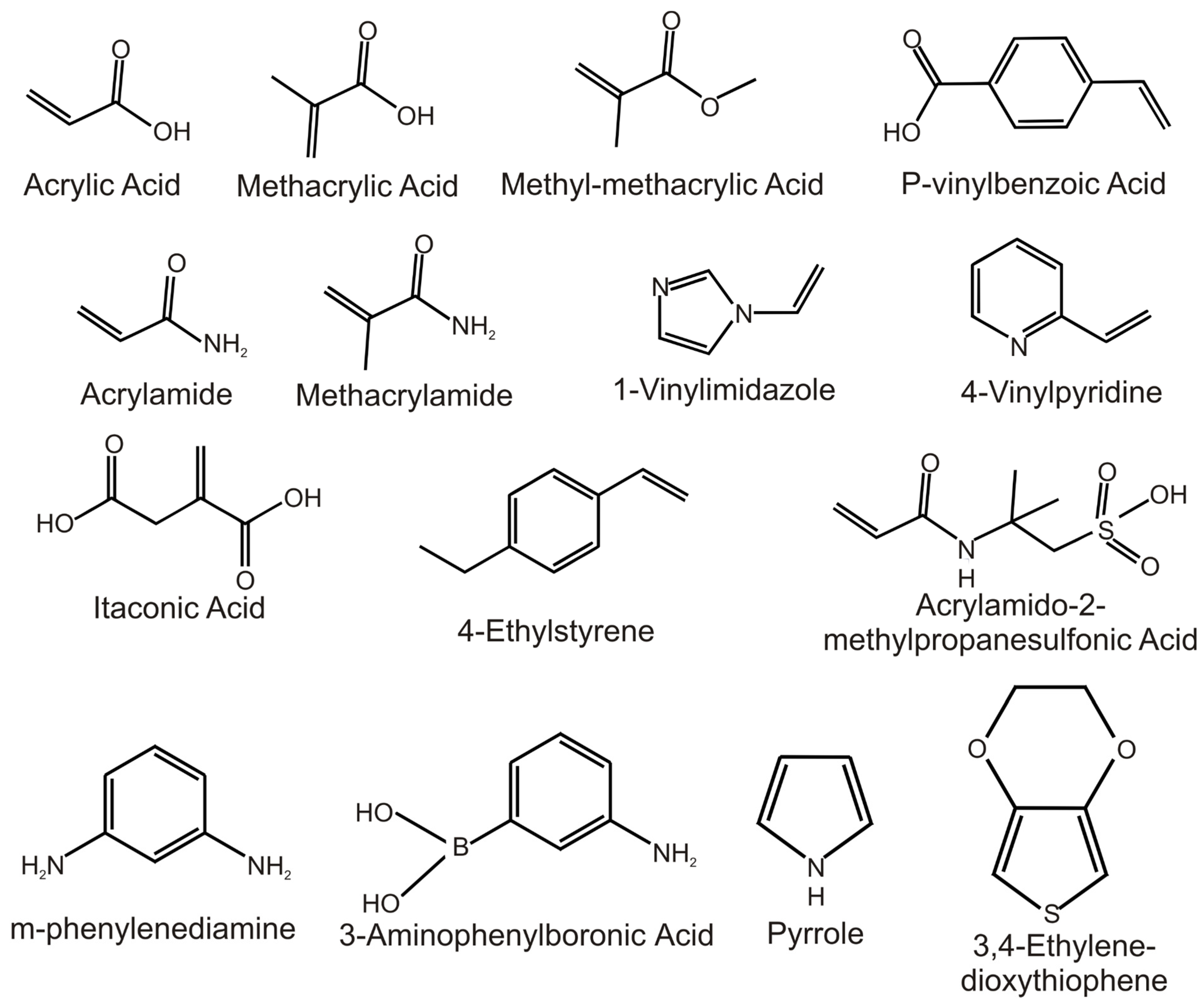

Figure 1. Structures of commonly used functional monomers for molecular imprinting.

The understanding of the noncovalent interactions between a template and functional monomer could be obtained through computational software that assists in studying these interactions at the molecular level, thereby allowing the optimisation of factors that affect the performance of the MIP-based system. The adaptation of computational approaches for rational design of MIPs requires calculating binding energies between a template and functional monomer(s) and designing the more specific and selective recognition sites in the polymers ^[12]. The computational approach demonstrates superior advantages over experimental trial and error due to its time efficiency, low costs, and the possibility to circumvent the use of expensive and toxic chemicals.

In molecular imprinting research, commonly employed computational approaches for estimating noncovalent interactions between a template molecule and a monomer in pre-polymerisation solution include quantum chemical calculations (QCC), molecular docking (MD), molecular mechanics (MM), and molecular dynamics. For small molecular weight analytes, QCC has become the most promising approach for calculating hydrogen binding energies between the template and monomer ^[13]. To perform a QCC calculation, the geometry of the monomer-template complexes and their individual compounds are optimised by semi-empirical (SE) parameterised method 3 (PM3). This is then followed by the estimation of the binding energy by either density functional theory (DFT) or Hartree–Fock methods. Based on the DFT method that is commonly used to estimate hydrogen binding energy between small molecular-weight templates (e.g antibiotics) and monomers, a hydrogen bond interaction is usually classified as strong (>63 kJ mol⁻¹), moderate (16.8–63 kJ mol⁻¹), and weak (<16.8 kJ mol−1) ^[14]. A brief account of antibiotic MIP-based sensing research preceded by a painstaking but rewarding computationally assisted selection of the functional monomer is provided here, while a more comprehensive list is shown in Table 1.

Tadi et al. ^[15] achieved a rational selection of pyrrole, as the functional monomer for the imprinting of sulfanilamide among many monomers, with the help of QCC and DFT methods. The high binding energy obtained between the template and monomer was traceable to the hydrogen bond formed between S=O and -NH2 groups of the template and the -N and -CH groups of pyrrole. After electrodeposition on a pencil graphite electrode and parameter optimisation, the MIP demonstrated a discriminatory recognition for the target and the assay indicated a significant LOD of 20 nM. Similarly, to select an appropriate monomer for the preparation of amoxicillin MIP on QCM, QCC was employed to estimate the binding energies between the target and several electropolymerisable monomers including pyrrole, meta-phenylenediamine (mPD) and 3,4-ethylenedioxythiophene (EDOT) ^[16]. The study indicates the highest binding energy for mPD (273 kJ/mol), as compared to 63 and 8 kJ/mol for pyrrole and EDOT, respectively. The significance of this study was reflected in the sensor’s superior binding of the target (about 7 times higher adsorption capacity) over its reference NIP-based sensor.

Although MD and molecular dynamics are conventional in the rational monomer selection for imprinting of macromolecules, e.g., protein, their implementation is extended to small molecular weight templates ^[17]^[18]. Thus, in two separate reports ^[19]^[20], MD was applied for the rational selection of a monomer for the imprinting of norfloxacin using CDOCKER and SYBYL software. In both cases, MAA gave the highest binding energy among the tested monomers, including acrylamide, methacrylamide, polyvinylpyrrolidone, and MAA. Although the binding energies in both reports were slightly different (100.33 vs. 87.45 kJ/mol), a pronounced difference in the affinity (0.004 vs. 2.06 μM) and relative adsorption capacity (4.3 vs. 2.4) was observed. This further indicates the importance of accounting for molecular interaction between a template and a functional monomer and that a small change in the effectiveness of the interaction might lead to a significant effect on the performance of the MIP-based sensor.

Table 1. Antibiotic MIPs designed by computationally assisted selection of functional monomer and their analytical performances in different aqueous media.

Computational Approach	Template	Monomers Studied	Binding Energy (kJ/mol)	Selected Monomer	K_D (μM)	Q_MAX(MIP)/Q_MAX(NIP)	LOD (nM)	Media	Ref.
QCC	Sulfanilamide	Pyrrole	18.86	Pyrrole	-		20	Ground water	^[15]
		Furan	15.11
		Thiophene	8.62
		1-Methylthiophene	7.63
		Methylpyrrole	7.13
	Flumequine	Pyrrole	34.98	Pyrrole	20	-	1000	Aquaculture water	^[21]
	Sulfadiazine and sulfamerazine	AA	557.727 552.58	AA	0.19	>3.0		water	^[22]
	Sulfamethizole	mPD Pyrrole EDOT	181.20 80.26 30.10	mPD	47.2	8.24	2	Tap water	^[23]
	Amoxicillin	mPD EDOT Pyrrole	273.05 8.40 63.01	mPD	28.8	7.2	0.2	PBS	^[16]
	Azithromycin	4-ABA Phenol Pyrrole Aniline Thiophene	71.55 69.41 68.93 45.08 31.96	4-ABA	-	-	80	River water	^[24]
Molecular Docking (CDOCKER)	Norfloxacin	AM AA MAM MAA N-iAA PVP	82.22 54.27 58.95 100.33 61.04 76.32	MAA	0.004	4.3	31	Waste water	^[20]
	Norfloxacin	MAA AA MAM AM 4-VP	87.45 64.68 53.97 76.65 56.48	MAA	2.06	2.44	16	Lake water	^[19]
Molecular Docking (SYBYL)	Cefquinome sulphate	Pyrrole-2-carboxylic acid Pyrrolidine-2-carbohydrazide 4-ABA oPD 4-ATP	603.09 485.79 435.47 325.77 271.94	4-ABA	-	3.5	-	PBS	^[25]
	Nafcillin	oPD Proline Aniline Pyrrolidine-2-carbohydrazide 4-Aminobenzoic acid	163.55 159.41 152.67 149.33 135.23	oPD	-	-	80	River water	^[26]
	Chloramphenicol	AA, MMA	75	AA	-	-	1.5	Tap water	^[27]
Molecular Dynamic	Norfloxacin	MAA/EGDMA ratio is optimised	-	MAA, EGDMA	374; 279 772; 481	High adsorption capacity (29.35 mg/g)	-	Water	^[28]
Molecular Dynamic	Sulfamethoxazole	APTES/TEOS ratio optimised	-	APTES, TEOS	-	-	60	Lake water	^[29]
Molecular Mechanic	Penicillin G	CMA and CSEV compatibility	-	MAA, TRIM	-	6.03–6.69	-	Water	^[30]

2. Practical Challenges of Antibiotic Molecularly Imprinted Polymer

Without a doubt, MIPs represent a promising alternative to biological elements in sensor development. Although MIPs still suffer certain setbacks in comparison to antibodies, in relation to the binding affinity and kinetics, thus depicting a potential limitation to the analysis of very low analyte concentrations under certain conditions, their potential adoption in several applications e.g., sensing, cannot be overemphasised. However, despite the great potential, the commercialisation of MIP-based sensors is still far from being realised. Although there exist some commercial MIPs that are available from Sigma Aldrich (now Merk) or AFFINISEP, they are only suitable for applications involving separation (including antibiotics separation) by solid-phase extraction, whereas MIP-based sensors ideal for onsite monitoring of environmental contaminants, e.g., antibiotics or medical diagnostics, are difficult to find. Typically, commercialising a lab-based technology is not a straightforward process, but this constitutes a significant hurdle to be crossed if MIP-based sensors are to be translated to the market. To facilitate progress towards the achievement of this aim, there is an increasing number of patents and patent applications on MIP-based sensors for antibiotics analysis. A quick search on the Espacenet database returns 13 such patents within the last 5 years. However, despite concerted efforts and the accompanying success witnessed in surpassing fabrication technicalities arising from the need for portability, usability and cost of MIP-based sensors, the challenges encountered in its design and applications must be overcome to adequately compete with commercially available sensors and diagnostic devices.

One of the main drawbacks to the commercial implementation of antibiotic MIP, as well as other MIPs, is the incomplete elution of the template during MIP preparation, thereby causing template leakage during MIP usage. Generally, it is perhaps difficult to ensure a 100% template extraction from the polymer. Thus, during MIP-based sensor utilisation, the entrapped template is being released continuously from the MIP and interacts with target sensing, affecting assay accuracy, especially for the trace analysis of small molecules, such as antibiotics. In addition, low selectivity may arise due to an incomplete template removal that further prevents efficient analyte detection in complex environmental samples. This effect could be more pronounced for MIPs designed by covalent imprinting, where the covalent bond may lead to a slower template removal. Therefore, possible maximum template removal is an obligatory step in MIP preparation. However, it was found that not many reports focus on optimising this parameter during MIP preparation. To overcome this challenge, the use of dummy templates bearing close resemblance in size and shape to the targets is a common overriding strategy ^[31]. In addition, the electrochemically-assisted removal of the template molecules ^[32] has been reported to achieve improved elution by eliminating cationic charges from the matrix, leading to the escape of the template anion. Although, this may further raise questions relating to its broad applicability, as well as binding site geometry. Above all, the use of a sufficient amount of crosslinkers that preserve adequate porosity and remove difficulties in template removal during the washing out process is essential.

On the other hand, the performance of MIP prepared on the basis of noncovalent imprinting may also be affected when used in aqueous samples, where water affects H-bonds between the template and functional monomer, thereby disrupting the binding equilibrium and limiting the practical application of the MIP-based antibiotic sensor. To circumvent such limitations, the use of organic solvents during MIP synthesis prior to rebinding in an aqueous environment is conventional. However, such an approach may also result in some compromise in the performance of the MIP-based sensor, since it was found that the use of the same solvent during synthesis and rebinding is critical for optimal performance ^[33]. Other suggestions include giving attention to monomers hydrophophilicity during functional monomer selection, adopting the semi-covalent imprinting that allows covalent interactions between functional monomer and template prior to polymerisation, whereas analyte rebinding is governed by noncovalent interactions, and controlling polymer surface modification by adopting a controlled radical polymerisation ^[34].

Moreover, for a reliable characterisation of the performance of an MIP-based chemosensor, a homogeneous distribution of the binding sites within the polymer that is uniformly immobilised on the transducer is required. However, MIPs have a certain degree of heterogeneity in the binding sites, arising from the preparation protocol. The polymer matrix, by nature, can adsorb the target molecules through weak interactions. This allows for additional contribution from non-specific binding to the obtained signal, hence the variation in the binding constants ^[35]. While the challenge with non-specific binding still remains, large-scale reproducibility of MIP layers on electrode transducers is ensured by focusing on electropolymerisation, dip or roll-coating, surface grafting, etc., to prevent variation from batch to batch ^[36].

Lastly, another conceivable obstacle could be the challenge of using these materials in the media where the target antibiotics are naturally found, without the need for a laborious sample preparation step. This is essential in the consideration of the possible incompatibility and/or cross-reactivity of the matrix components. Therefore, vigorous and continual efforts are still needed in MIP research to achieve the aim of commercialised MIP-based sensors in the shortest space of time.

References

Chen, L.; Wang, X.; Lu, W.; Wu, X.; Li, J. Molecular Imprinting: Perspectives and Applications. Chem. Soc. Rev. 2016, 45, 2137–2211.
Qu, S.; Wang, X.; Tong, C.; Wu, J. Metal Ion Mediated Molecularly Imprinted Polymer for Selective Capturing Antibiotics Containing Beta-Diketone Structure. J. Chromatogr. A 2010, 1217, 8205–8211.
Matsui, J.; Nicholls, I.A.; Takeuchi, T.; Mosbach, K.; Karube, I. Metal Ion Mediated Recognition in Molecularly Imprinted Polymers. Anal. Chim. Acta 1996, 335, 71–77.
Lay, S.; Ni, X.; Yu, H.; Shen, S. State-of-the-Art Applications of Cyclodextrins as Functional Monomers in Molecular Imprinting Techniques: A Review. J. Sep. Sci. 2016, 39, 2321–2331.
Wagner, R.; Wan, W.; Biyikal, M.; Benito-Peña, E.; Moreno-Bondi, M.C.; Lazraq, I.; Rurack, K.; Sellergren, B. Synthesis, Spectroscopic, and Analyte-Responsive Behavior of a Polymerizable Naphthalimide-Based Carboxylate Probe and Molecularly Imprinted Polymers Prepared Thereof. J. Org. Chem. 2013, 78, 1377–1389.
Wang, L.; Lin, Q.; Zhang, Y.; Liu, Y.; Yasin, A.; Zhang, L. Design and Synthesis of Supramolecular Functional Monomers Bearing Urea and Norbornene Motifs. RSC Adv. 2019, 9, 20058–20064.
Xu, S.; Chen, L.; Li, J.; Guan, Y.; Lu, H. Novel Hg2+-Imprinted Polymers Based on Thymine–Hg2+–Thymine Interaction for Highly Selective Preconcentration of Hg2+ in Water Samples. J. Hazard. Mater. 2012, 237–238, 347–354.
Zhang, X.; Shen, F.; Zhang, Z.; Xing, Y.; Ren, X. Synthesis of a Novel Cross-Linker Doubles as a Functional Monomer for Preparing a Water Compatible Molecularly Imprinted Polymer. Anal. Methods 2014, 6, 9483–9489.
Gao, M.; Gao, Y.; Chen, G.; Huang, X.; Xu, X.; Lv, J.; Wang, J.; Xu, D.; Liu, G. Recent Advances and Future Trends in the Detection of Contaminants by Molecularly Imprinted Polymers in Food Samples. Front. Chem. 2020, 8, 616326.
Muhammad, T.; Nur, Z.; Piletska, E.V.; Yimit, O.; Piletsky, S.A. Rational Design of Molecularly Imprinted Polymer: The Choice of Cross-Linker. Analyst 2012, 137, 2623–2628.
Zhang, Y.; Song, D.; Lanni, L.M.; Shimizu, K.D. Importance of Functional Monomer Dimerization in the Molecular Imprinting Process. Macromolecules 2010, 43, 6284–6294.
Azimi, A.; Javanbakht, M. Computational Prediction and Experimental Selectivity Coefficients for Hydroxyzine and Cetirizine Molecularly Imprinted Polymer Based Potentiometric Sensors. Anal. Chim. Acta 2014, 812, 184–190.
Dong, C.; Li, X.; Guo, Z.; Qi, J. Development of a Model for the Rational Design of Molecular Imprinted Polymer: Computational Approach for Combined Molecular Dynamics/Quantum Mechanics Calculations. Anal. Chim. Acta 2009, 647, 117–124.
Grabowski, S.J. Chapter 1 Hydrogen Bond—Definitions, Criteria of Existence and Various Types. In Understanding Hydrogen Bonds: Theoretical and Experimental Views; The Royal Society of Chemistry: London, UK, 2021; pp. 1–40. ISBN 978-1-78801-479-3.
Tadi, K.K.; Motghare, R.V.; Ganesh, V. Electrochemical Detection of Sulfanilamide Using Pencil Graphite Electrode Based on Molecular Imprinting Technology. Electroanalysis 2014, 26, 2328–2336.
Ayankojo, A.G.; Reut, J.; Boroznjak, R.; Öpik, A.; Syritski, V. Molecularly Imprinted Poly(Meta-Phenylenediamine) Based QCM Sensor for Detecting Amoxicillin. Sens. Actuators B-Chem. 2018, 258, 766–774.
Xi, S.; Zhang, K.; Xiao, D.; He, H. Computational-Aided Design of Magnetic Ultra-Thin Dummy Molecularly Imprinted Polymer for Selective Extraction and Determination of Morphine from Urine by High-Performance Liquid Chromatography. J. Chromatogr. A 2016, 1473, 1–9.
Zhang, K.; Zou, W.; Zhao, H.; Dramou, P.; Pham-Huy, C.; He, J.; He, H. Adsorption Behavior of a Computer-Aid Designed Magnetic Molecularly Imprinted Polymer via Response Surface Methodology. RSC Adv. 2015, 5, 61161–61169.
Fizir, M.; Wei, L.; Muchuan, N.; Itatahine, A.; mehdi, Y.A.; He, H.; Dramou, P. QbD Approach by Computer Aided Design and Response Surface Methodology for Molecularly Imprinted Polymer Based on Magnetic Halloysite Nanotubes for Extraction of Norfloxacin from Real Samples. Talanta 2018, 184, 266–276.
Niu, M.; Sun, C.; Zhang, K.; Li, G.; Meriem, F.; Pham-Huy, C.; Hui, X.; Shi, J.; He, H. A Simple Extraction Method for Norfloxacin from Pharmaceutical Wastewater with a Magnetic Core–Shell Molecularly Imprinted Polymer with the Aid of Computer Simulation. New J. Chem. 2017, 41, 2614–2624.
Ktari, N.; Fourati, N.; Zerrouki, C.; Ruan, M.; Seydou, M.; Barbaut, F.; Nal, F.; Yaakoubi, N.; Chehimi, M.M.; Kalfat, R. Design of a Polypyrrole MIP-SAW Sensor for Selective Detection of Flumequine in Aqueous Media. Correlation between Experimental Results and DFT Calculations. RSC Adv. 2015, 5, 88666–88674.
Chen, L.; Lee, Y.K.; Manmana, Y.; Tay, K.S.; Lee, V.S.; Rahman, N.A. Synthesis, Characterization, and Theoretical Study of an Acrylamide-Based Magnetic Molecularly Imprinted Polymer for the Recognition of Sulfonamide Drugs. E-Polymers 2015, 15, 141–150.
Ayankojo, A.G.; Tretjakov, A.; Reut, J.; Boroznjak, R.; Öpik, A.; Rappich, J.; Furchner, A.; Hinrichs, K.; Syritski, V. Molecularly Imprinted Polymer Integrated with a Surface Acoustic Wave Technique for Detection of Sulfamethizole. Anal. Chem. 2016, 88, 1476–1484.
Rebelo, P.; Pacheco, J.G.; Cordeiro, M.N.D.S.; Melo, A.; Delerue-Matos, C. Azithromycin Electrochemical Detection Using a Molecularly Imprinted Polymer Prepared on a Disposable Screen-Printed Electrode. Anal. Methods 2020, 12, 1486–1494.
Moro, G.; Bottari, F.; Sleegers, N.; Florea, A.; Cowen, T.; Moretto, L.M.; Piletsky, S.; De Wael, K. Conductive Imprinted Polymers for the Direct Electrochemical Detection of β-Lactam Antibiotics: The Case of Cefquinome. Sens. Actuators B Chem. 2019, 297, 126786.
Bottari, F.; Moro, G.; Sleegers, N.; Florea, A.; Cowen, T.; Piletsky, S.; van Nuijs, A.L.N.; De Wael, K. Electropolymerized O-Phenylenediamine on Graphite Promoting the Electrochemical Detection of Nafcillin. Electroanalysis 2020, 32, 135–141.
Sai, N.; Wu, Y.; Yu, G.; Sun, Z.; Huang, G. A Novel Enrichment Imprinted Crystalline Colloidal Array for the Ultratrace Detection of Chloramphenicol. Talanta 2016, 161, 1–7.
Kong, Y.; Wang, N.; Ni, X.; Yu, Q.; Liu, H.; Huang, W.; Xu, W. Molecular Dynamics Simulations of Molecularly Imprinted Polymer Approaches to the Preparation of Selective Materials to Remove Norfloxacin. J. Appl. Polym. Sci. 2016, 133, 42817.
Xu, W.; Wang, Y.; Huang, W.; Yu, L.; Yang, Y.; Liu, H.; Yang, W. Computer-Aided Design and Synthesis of 2 Core-Shell Molecularly Imprinted Polymers as a Fluorescent Sensor for the Selective Determination of Sulfamethoxazole in Milk and Lake Water. J. Sep. Sci. 2017, 40, 1091–1098.
Kempe, H.; Kempe, M. QSRR Analysis of β-Lactam Antibiotics on a Penicillin G Targeted MIP Stationary Phase. Anal. Bioanal. Chem. 2010, 398, 3087–3096.
Ansari, S.; Karimi, M. Recent Progress, Challenges and Trends in Trace Determination of Drug Analysis Using Molecularly Imprinted Solid-Phase Microextraction Technology. Talanta 2017, 164, 612–625.
Devkota, L.; Nguyen, L.T.; Vu, T.; Piro, B. Electrochemical Determination of Tetracycline Using AuNP-Coated Molecularly Imprinted Overoxidized Polypyrrole Sensing Interface. Electrochim. Acta 2018, 270, 535–542.
Vasapollo, G.; Del Sole, R.; Mergola, L.; Lazzoi, M.R.; Scardino, A.; Scorrano, S.; Mele, G.; Vasapollo, G.; Del Sole, R.; Mergola, L.; et al. Molecularly Imprinted Polymers: Present and Future Prospective. Int. J. Mol. Sci. 2011, 12, 5908–5945.
Jamieson, O.; Mecozzi, F.; Crapnell, R.D.; Battell, W.; Hudson, A.; Novakovic, K.; Sachdeva, A.; Canfarotta, F.; Herdes, C.; Banks, C.E.; et al. Approaches to the Rational Design of Molecularly Imprinted Polymers Developed for the Selective Extraction or Detection of Antibiotics in Environmental and Food Samples. Phys. Status Solidi A 2021, 218, 2100021.
BelBruno, J.J. Molecularly Imprinted Polymers. Chem. Rev. 2019, 119, 94–119.
Lowdon, J.W.; Diliën, H.; Singla, P.; Peeters, M.; Cleij, T.J.; van Grinsven, B.; Eersels, K. MIPs for Commercial Application in Low-Cost Sensors and Assays—An Overview of the Current Status Quo. Sens. Actuators B Chem. 2020, 325, 128973.
