1. Introduction

The successful translation of nanomedicine from laboratory formulation to clinical application remains one of the most significant challenges in pharmaceutical sciences. A primary bottleneck in this translational pipeline is the lack of robust, predictive mathematical models capable of describing drug release kinetics from complex, stimuli-responsive biomaterials. Historically, formulation scientists have relied on empirical or semi-empirical equations to describe drug dissolution and release.^[1][2] While these classical models are highly accessible, they are fundamentally descriptive rather than predictive.

The Dual-Polyelectrolyte Adaptive Release Mechanistic Outlook (D-PARMO) framework represents a paradigm shift in the evaluation of controlled release systems, particularly for polyelectrolyte complexes such as chitosan-alginate (CS/ALG) hydrogels and nanoparticles.^[1] By transitioning away from retrospective curve-fitting and moving toward a unified mechanistic physics-based approach, D-PARMO allows for the a priori prediction of drug release profiles. The framework integrates dual-polymer ionization equilibria, swelling thermodynamics, osmotic partitioning, and multi-modal transport kinetics. Consequently, it translates complex physicochemical phenomena into physically meaningful operational parameters, enabling researchers to rationally engineer targeted delivery systems with intent rather than relying on trial-and-error methodologies.

2. Limitations of Classical Release Models

To appreciate the utility of the D-PARMO framework, it is necessary to understand the structural limitations of the classical models that have dominated the literature for decades, most notably the Higuchi, Korsmeyer-Peppas, and Peppas-Sahlin equations.^[2][3][4]

2.1. The "R² Illusion"

Modern pharmaceutical literature frequently evaluates the validity of a drug release model based solely on the coefficient of determination (R²). High R² values derived from non-linear regression are often misinterpreted as proof of a model's mechanistic accuracy. However, fitting experimental data to a power law (M_t/M_∞ = ktⁿ) after the experiment has concluded is a strictly retrospective exercise. This phenomenon, termed the "R² Illusion," obscures the fact that semi-empirical models lack the thermodynamic parameters necessary to predict how a formulation will behave if the crosslinking density, drug payload, or physiological pH is altered.^[1]

2.2. Shortcomings in Complex Biomaterials

Classical equations were originally derived for simple, single-mechanism systems—for example, pure Fickian diffusion from a planar matrix.^[2] When applied to stimuli-responsive polyelectrolyte complexes like CS/ALG, these models fall short. They cannot account for the dynamic, simultaneously occurring processes of polymer relaxation, pH-dependent ionization, erosion, and electrostatic drug-polymer interactions. The Korsmeyer-Peppas exponent (n) can indicate whether diffusion is Fickian or non-Fickian^[3], but it provides no actionable data regarding the internal thermodynamic state of the hydrogel.

3. Mechanistic Foundations of D-PARMO

The D-PARMO framework overcomes the limitations of semi-empirical models by computationally unifying the four distinct physical chemistry phenomena that govern polyelectrolyte drug carriers.^[1]

3.1. Dual-Polymer Ionization Equilibria

In systems utilizing opposing polyelectrolytes (e.g., the cationic amine groups of chitosan and the anionic carboxylic groups of alginate), the degree of structural crosslinking is dependent on the pH of the surrounding medium. D-PARMO integrates the specific pKa values of the polymers via the Henderson-Hasselbalch equation to calculate the precise fraction of ionized binding sites, predicting the structural integrity of the complex across the highly acidic gastric fluid to the neutral intestinal tract.

3.2. Flory-Rehner Swelling Thermodynamics

Unlike rigid matrices, hydrogels absorb significant solvent, leading to volumetric expansion. D-PARMO utilizes Flory-Rehner theory to balance the total change in free energy (Δμ):

This balances the entropy of polymer-solvent mixing against the opposing elastic retraction of the crosslinked chains and the ionic osmotic pressure.^[5] By calculating this differential, the framework accurately models the time-dependent expansion of the polymer mesh size (ξ), which physically dictates the spatial diffusion of the drug.

3.3. Donnan Partitioning

Because polyelectrolyte systems possess a net charge, mobile buffer ions do not distribute equally across the hydrogel boundary. D-PARMO utilizes Donnan equilibrium theory to quantify the influx of physiological counter-ions.^[1] This influx screens the internal electrostatic interactions between the drug and the matrix, frequently triggering the accelerated "burst release" phase observed in high-ionic-strength media.

3.4. Multi-Modal Transport Kinetics

Rather than forcing drug release into a single mathematical box, D-PARMO acknowledges that macroscopic release is the sum of multiple transport vectors. The framework couples Fickian diffusion (driven by concentration gradients) with case-II transport (driven by polymer relaxation and swelling) and surface/bulk erosion kinetics.^[1][4]

4. Key Operational Parameters

By mathematically coupling the phenomena detailed above, the D-PARMO framework extracts specific, physically meaningful variables from in vitro release data. These variables serve as the foundational parameters for predictive formulation engineering.^[1]

• Diffusion Rate Constant (k_d): This parameter quantifies the intrinsic mobility of the drug molecule through the hydrated polymer mesh, independent of matrix degradation. It is heavily influenced by the steric hindrance of the polyelectrolyte network and the molecular weight of the encapsulated therapeutic.

• Swelling Amplitude and Rate (k_s): Swelling parameters denote the maximum volumetric expansion of the carrier and the kinetic velocity at which hydration occurs. A high k_s indicates rapid water ingress, which typically precedes a phase of accelerated drug diffusion.

• Erosion Amplitude and Rate (k_e): In biodegradable systems, k_e quantifies the mass loss of the polymer matrix over time due to chain cleavage and dissolution. It allows formulators to predict the late-stage release profile as the carrier structurally collapses.

• Electrostatic Coupling Coefficient (α): This is one of the most critical parameters introduced by D-PARMO. It quantifies the magnitude of the electrostatic affinity between the ionized drug and the charged polymer backbone. A high α value indicates strong ionic tethering, which suppresses burst release and extends the therapeutic half-life of the formulation.

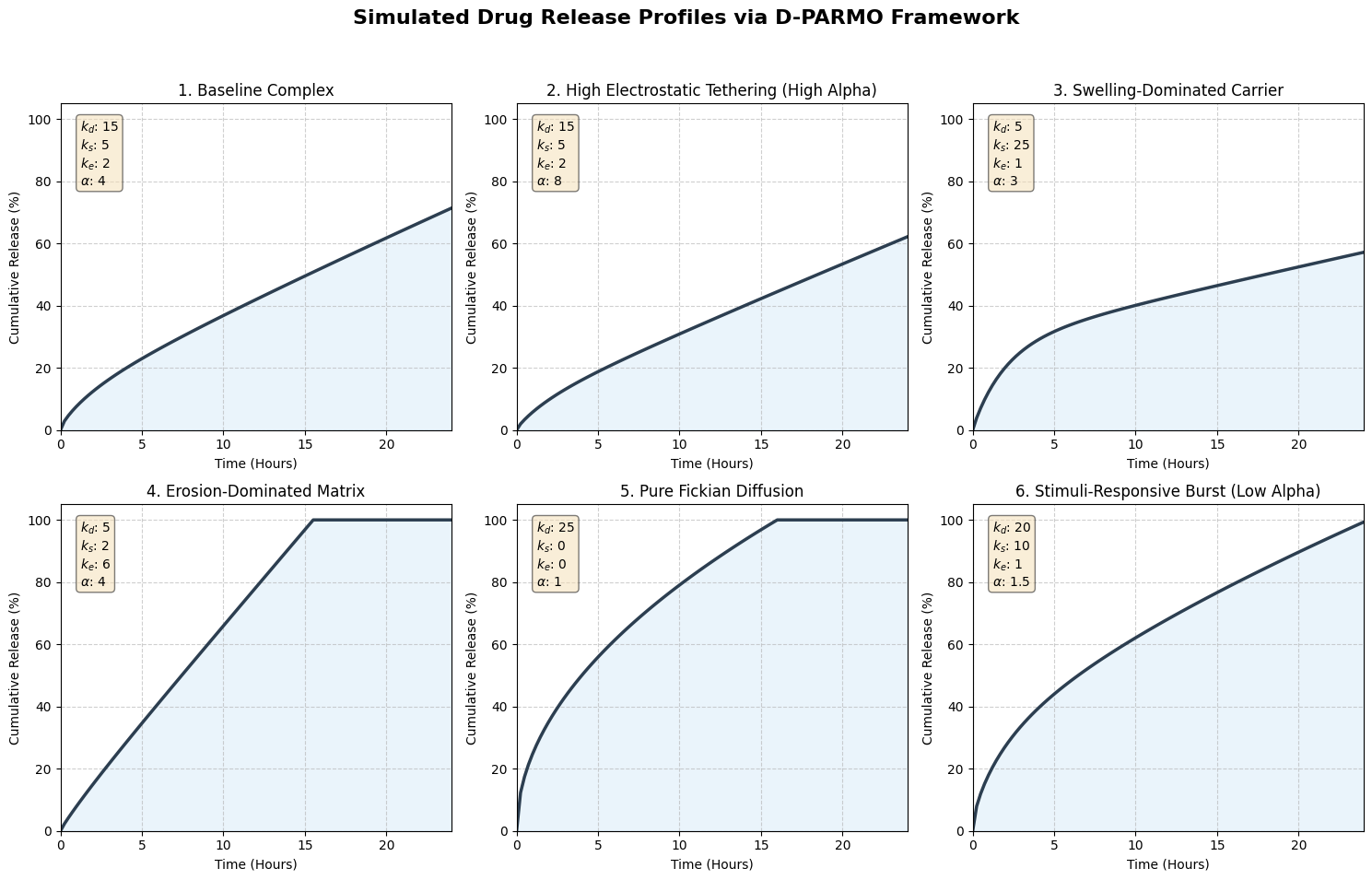

Figure 1. Simulated drug release profiles illustrating the predictive utility of the D-PARMO framework across six distinct parametric cases. By isolating variables such as the electrostatic coupling coefficient (α) and the erosion rate (ke), formulators can visually map the shift from pure Fickian diffusion to complex, erosion-dominated release kinetics.

The operational parameters generated by D-PARMO provide actionable intelligence for biomaterial engineering. Formulators can utilize these parameters to conduct in silico optimizations before moving to the laboratory bench. For example, if an oral drug delivery system exhibits an undesirable burst release in simulated gastric fluid, an analysis of the D-PARMO parameters might reveal a remarkably low α coefficient combined with a high k_s. To correct this, scientists can rationally increase the crosslinking density or adjust the chitosan-to-alginate stoichiometric ratio to optimize the thermodynamic stability of the complex, thereby tuning the release profile without relying on exhaustive empirical iterations.

5. Applications in Biomaterial Engineering

The parameters generated by D-PARMO provide actionable intelligence for pre-clinical development. For example, if an oral delivery system exhibits an undesirable premature burst release of insulin in simulated gastric fluid, a D-PARMO analysis might reveal a critically low α coefficient combined with a high k_s. To correct this without exhaustive in vitro trial-and-error, scientists can in silico model an increase in the chitosan-to-alginate stoichiometric ratio, rationally optimizing the thermodynamic stability of the complex.^[6][7] This allows for the precise tuning of systems designed for the acidic tumor microenvironment or localized colonic delivery as demonstrated in Figure 2.

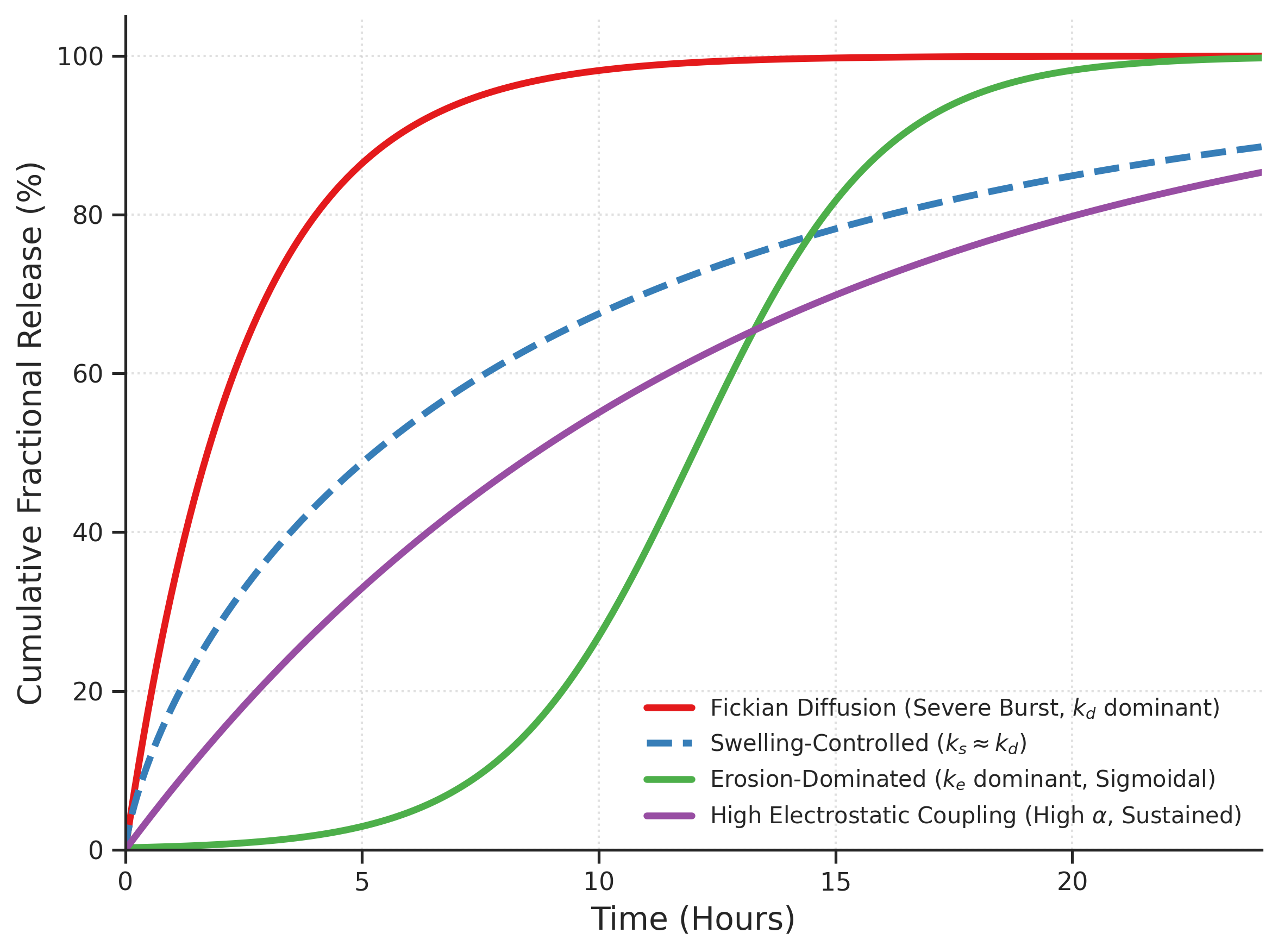

Figure 2. Predictive utility of the D-PARMO framework. By isolating specific variables such as the electrostatic coupling coefficient (α) and the erosion rate (k_e), formulators can visually map and predict the shift from pure Fickian diffusion (red) to highly controlled, sustained release kinetics (purple).

6. Computational Integration: Physics-Informed Machine Learning (PIML)

The integration of artificial intelligence into pharmaceutical formulation has historically been impeded by standard deep learning architectures functioning as "black-box" interpolators. While conventional neural networks can achieve high accuracy on standardized datasets, they suffer catastrophic generalization failure when predicting release kinetics across out-of-distribution physiological regimes (e.g., dynamic pH shifts). This empirical vulnerability is a modern iteration of the "R² Illusion," where data-hungry models overfit without acquiring any fundamental representation of mass transport physics.^[8] D-PARMO resolves this by serving as the mechanistic foundation for Physics-Informed Neural Networks (PINNs). In a D-PARMO-guided PINN, the underlying physical laws act as strict regularization boundaries within the network's optimization landscape.

6.1. Multi-Objective Loss Function Formulation

In a conventional neural network, the loss function (L_standard) quantifies only the mean squared error between the predicted fractional drug release and the experimental in vitro data (M_t /M_∞):

In contrast, a D-PARMO-guided PINN introduces a multi-objective loss function ($\mathcal{L}_{total}$) that couples empirical data fidelity with physical residual loss terms derived from the four foundational phenomena of the framework:

where λ_phys represents a dynamic weighting hyperparameter that balances empirical fitting against physical compliance. The physics loss term (L_D-PARMO) is constructed from the residuals of the governing partial differential equations (PDEs) for osmotic swelling, electrostatic binding, and multi-modal transport:

Each component forces the hidden layers of the neural network to satisfy specific thermodynamic boundary conditions:

• Swelling Residual (L_swelling): Penalizes predictions that violate the Flory-Rehner osmotic pressure equilibrium (ΔΠ = 0), ensuring that the predicted mesh size (ξ) scales realistically with solvent ingress (k_s).

• Donnan Residual (L_Donnan): Constrains the mobile ion distribution across the hydrogel boundary, preventing the network from predicting physical impossibilities such as sustained electrostatic tethering in high-ionic-strength media without counter-ion screening.

• Transport Residual (L_transport): Enforces mass conservation by penalizing deviations from the coupled Fickian-erosion transport equation governed by the intrinsic diffusion rate (k_d) and matrix erosion velocity (k_e).

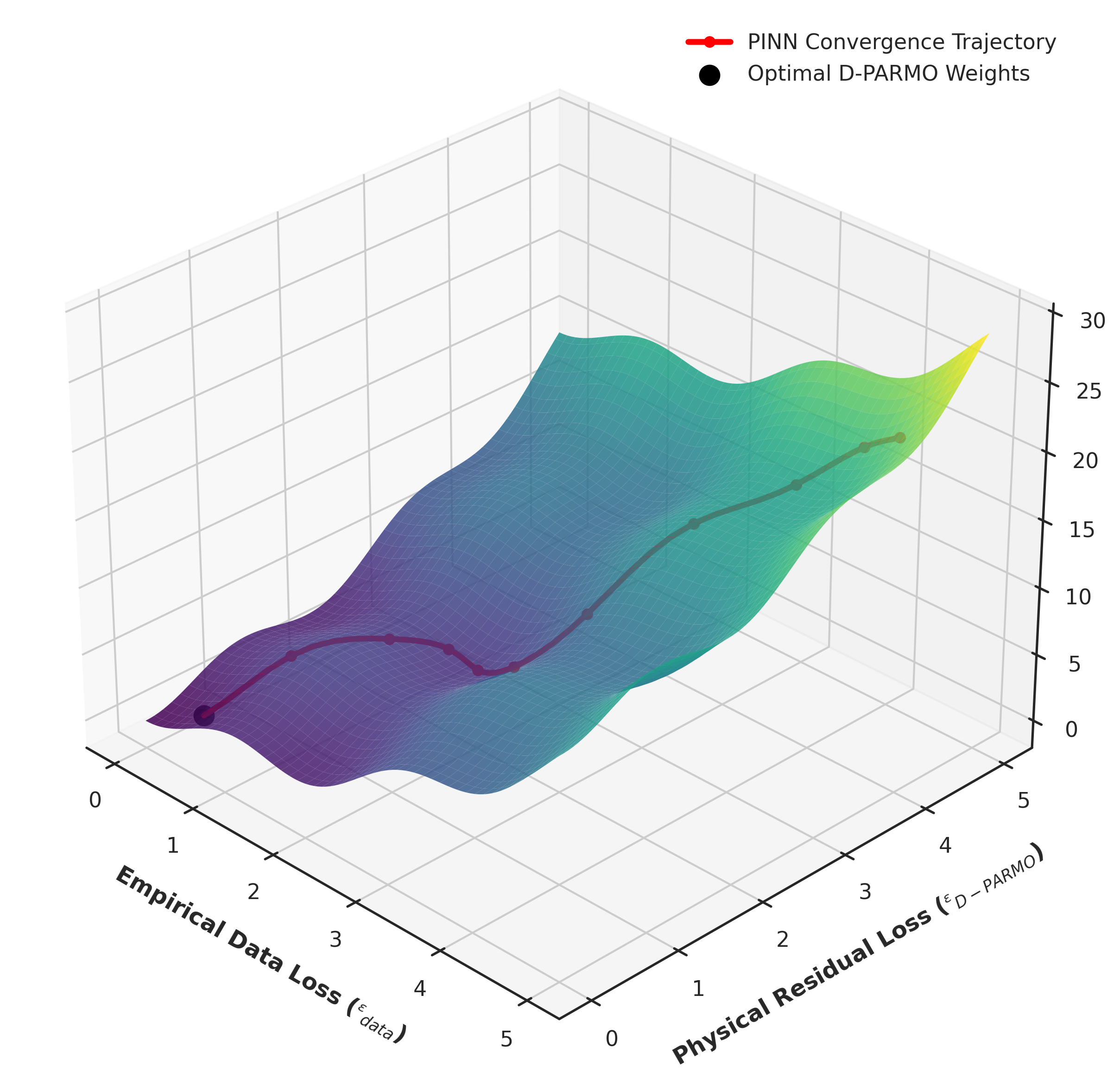

Figure 3. 3D Loss Landscape of the D-PARMO Physics-Informed Neural Network (PINN). The red trajectory illustrates the convergence of the algorithm as it dynamically optimizes the network weights, descending into the Pareto optimum by successfully balancing empirical data fidelity (L_data) with strict thermodynamic and transport constraints (L_D-PARMO).

6.2. Sparse-Data Optimization and Digital Twins

By embedding the parameters (k_d, k_s, k_e, α) into the network's loss topology, the data requirements for model convergence drop by orders of magnitude. A D-PARMO PINN can accurately reconstruct complex profiles from highly sparse experimental time points.^[9] Furthermore, linking this PINN to Process Analytical Technology (PAT) sensors during continuous manufacturing enables the deployment of real-time Digital Twins, instantaneously simulating the in vivo dissolution profile of a specific nanoparticle batch.

7. Implications for Clinical Translation

Regulatory agencies, including the FDA and EMA, increasingly mandate Quality by Design (QbD) frameworks in pharmaceutical manufacturing. D-PARMO aligns perfectly with QbD by establishing absolute mechanistic control over the product lifecycle. By accurately describing the thermodynamics and kinetics of the formulation, D-PARMO reduces reliance on costly in vivo animal screening, ensuring that in vitro dissolution profiles hold true predictive power for in vivo pharmacokinetic behavior.^[10]

8. Conclusion

The D-PARMO framework establishes a new benchmark for the mathematical evaluation of targeted drug delivery systems. By unifying ionization equilibria, swelling thermodynamics, Donnan partitioning, and multi-modal transport, it definitively moves the field beyond the descriptive limitations of classical equations. For complex, stimuli-responsive carriers, D-PARMO provides the physical parameters required to rationally engineer biomaterials. Its seamless integration into Physics-Informed Neural Networks establishes a powerful digital twin architecture, drastically de-risking formulation development and accelerating the pathway toward clinical translation.
