Incircle and Excircles of a Triangle
Edit

In geometry, the incircle or inscribed circle of a triangle is the largest circle contained in the triangle; it touches (is tangent to) the three sides. The center of the incircle is a triangle center called the triangle's incenter. An excircle or escribed circle of the triangle is a circle lying outside the triangle, tangent to one of its sides and tangent to the extensions of the other two. Every triangle has three distinct excircles, each tangent to one of the triangle's sides. The center of the incircle, called the incenter, can be found as the intersection of the three internal angle bisectors. The center of an excircle is the intersection of the internal bisector of one angle (at vertex A, for example) and the external bisectors of the other two. The center of this excircle is called the excenter relative to the vertex A, or the excenter of A. Because the internal bisector of an angle is perpendicular to its external bisector, it follows that the center of the incircle together with the three excircle centers form an orthocentric system.:p. 182 All regular polygons have incircles tangent to all sides, but not all polygons do; those that do are tangential polygons.

regular polygons polygons incircle

1. Incircle and Incenter

Suppose ABC has an incircle with radius r and center I. Let a be the length of BC, b the length of AC, and c the length of AB. Also let TA, TB, and TC be the touchpoints where the incircle touches BC, AC, and AB.

1.1. Incenter

The incenter is the point where the internal angle bisectors of ABC,BCA, and BAC meet.

The distance from vertex A to the incenter I is:

d(A,I)=csin(B2)cos(C2)=bsin(C2)cos(B2).

Trilinear coordinates

The trilinear coordinates for a point in the triangle is the ratio of all the distances to the triangle sides. Because the incenter is the same distance from all sides of the triangle, the trilinear coordinates for the incenter are[1]

 1:1:1.

Barycentric coordinates

The barycentric coordinates for a point in a triangle give weights such that the point is the weighted average of the triangle vertex positions. Barycentric coordinates for the incenter are given by

 a:b:c

where a, b, and c are the lengths of the sides of the triangle, or equivalently (using the law of sines) by

sin(A):sin(B):sin(C)

where A, B, and C are the angles at the three vertices.

Cartesian coordinates

The Cartesian coordinates of the incenter are a weighted average of the coordinates of the three vertices using the side lengths of the triangle relative to the perimeter (that is, using the barycentric coordinates given above, normalized to sum to unity) as weights. The weights are positive so the incenter lies inside the triangle as stated above. If the three vertices are located at (xa,ya), (xb,yb), and (xc,yc), and the sides opposite these vertices have corresponding lengths a, b, and c, then the incenter is at

(axa+bxb+cxca+b+c,aya+byb+cyca+b+c)=a(xa,ya)+b(xb,yb)+c(xc,yc)a+b+c.

Radius

The inradius r of the incircle in a triangle with sides of length a, b, c is given by[2]

r=s(sa)(sb)(sc)s, where s=(a+b+c)/2.

See Heron's formula.

Distances to the vertices

Denoting the incenter of ABC as I, the distances from the incenter to the vertices combined with the lengths of the triangle sides obey the equation[3]

IAIACAAB+IBIBABBC+ICICBCCA=1.

Additionally,[4]

IAIBIC=4Rr2,

where R and r are the triangle's circumradius and inradius respectively.

Other properties

The collection of triangle centers may be given the structure of a group under coordinate-wise multiplication of trilinear coordinates; in this group, the incenter forms the identity element.[1]

1.2. Incircle and Its Radius Properties

Distances between vertex and nearest touchpoints

The distances from a vertex to the two nearest touchpoints are equal; for example:[5]

d(A,TB)=d(A,TC)=12(b+ca).

Other properties

Suppose the tangency points of the incircle divide the sides into lengths of x and y, y and z, and z and x. Then the incircle has the radius[6]

r=xyzx+y+z

and the area of the triangle is

Δ=xyz(x+y+z).

If the altitudes from sides of lengths a, b, and c are ha, hb, and hc, then the inradius r is one-third of the harmonic mean of these altitudes; that is,[7]

r=11ha+1hb+1hc.

The product of the incircle radius r and the circumcircle radius R of a triangle with sides a, b, and c is[8]:189,#298(d)

rR=abc2(a+b+c).

Some relations among the sides, incircle radius, and circumcircle radius are:[9]

Unknown environment 'align'

Any line through a triangle that splits both the triangle's area and its perimeter in half goes through the triangle's incenter (the center of its incircle). There are either one, two, or three of these for any given triangle.[10]

Denoting the center of the incircle of ABC as I, we have[11]

IAIACAAB+IBIBABBC+ICICBCCA=1

and[12]:121,#84

IAIBIC=4Rr2.

The incircle radius is no greater than one-ninth the sum of the altitudes.[13]:289

The squared distance from the incenter I to the circumcenter O is given by[14]:232

OI2=R(R2r),

and the distance from the incenter to the center N of the nine point circle is[14]:232

IN=12(R2r)<12R.

The incenter lies in the medial triangle (whose vertices are the midpoints of the sides).[14]:233, Lemma 1

Relation to area of the triangle

The radius of the incircle is related to the area of the triangle.[15] The ratio of the area of the incircle to the area of the triangle is less than or equal to Undefined control sequence \tfrac, with equality holding only for equilateral triangles.[16]

Suppose ABC has an incircle with radius r and center I. Let a be the length of BC, b the length of AC, and c the length of AB. Now, the incircle is tangent to AB at some point C, and so ATCI is right. Thus, the radius TCI is an altitude of IAB. Therefore, IAB has base length c and height r, and so has area Undefined control sequence \tfrac. Similarly, IAC has area Undefined control sequence \tfrac and IBC has area Undefined control sequence \tfrac. Since these three triangles decompose ABC, we see that the area Δ of ABC

Δ=12(a+b+c)r=sr,     and     r=Δs,

where Δ is the area of ABC and Undefined control sequence \tfrac is its semiperimeter.

For an alternative formula, consider ITCA. This is a right-angled triangle with one side equal to r and the other side equal to rcot(A2). The same is true for IBA. The large triangle is composed of six such triangles and the total area is:

Δ=r2(cot(A2)+cot(B2)+cot(C2)).

1.3. Gergonne Triangle and Point

A triangle, ABC, with      incircle,      incenter (I),      contact triangle (TATBTC) and      Gergonne point (Ge) https://handwiki.org/wiki/index.php?curid=2026341

The Gergonne triangle (of ABC) is defined by the three touchpoints of the incircle on the three sides. The touchpoint opposite A is denoted TA, etc.

This Gergonne triangle, TATBTC, is also known as the contact triangle or intouch triangle of ABC. Its area is

KT=K2r2sabc

where K, r, and s are the area, radius of the incircle, and semiperimeter of the original triangle, and a, b, and c are the side lengths of the original triangle. This is the same area as that of the extouch triangle.[17]

The three lines ATA, BTB and CTC intersect in a single point called the Gergonne point, denoted as Ge (or triangle center X7). The Gergonne point lies in the open orthocentroidal disk punctured at its own center, and can be any point therein.[18]

The Gergonne point of a triangle has a number of properties, including that it is the symmedian point of the Gergonne triangle.[19]

Trilinear coordinates for the vertices of the intouch triangle are given by

  • vertexTA=0:sec2(B2):sec2(C2)
  • vertexTB=sec2(A2):0:sec2(C2)
  • vertexTC=sec2(A2):sec2(B2):0.

Trilinear coordinates for the Gergonne point are given by

sec2(A2):sec2(B2):sec2(C2),

or, equivalently, by the Law of Sines,

bcb+ca:cac+ab:aba+bc.

2. Excircles and Excenters

A      triangle with      incircle, incenter I),      excircles, excenters (JA, JB, JC),      internal angle bisectors and      external angle bisectors. The      green triangle is the excentral triangle. https://handwiki.org/wiki/index.php?curid=2070658

An excircle or escribed circle[20] of the triangle is a circle lying outside the triangle, tangent to one of its sides and tangent to the extensions of the other two. Every triangle has three distinct excircles, each tangent to one of the triangle's sides.[21]

The center of an excircle is the intersection of the internal bisector of one angle (at vertex A, for example) and the external bisectors of the other two. The center of this excircle is called the excenter relative to the vertex A, or the excenter of A.[21] Because the internal bisector of an angle is perpendicular to its external bisector, it follows that the center of the incircle together with the three excircle centers form an orthocentric system.[8]:182

2.1. Trilinear Coordinates of Excenters

While the incenter of ABC has trilinear coordinates 1:1:1, the excenters have trilinears 1:1:1, 1:1:1, and 1:1:1.

2.2. Exradii

The radii of the excircles are called the exradii.

The exradius of the excircle opposite A (so touching BC, centered at JA) is[22][23]

ra=rssa=s(sb)(sc)sa, where Undefined control sequence \tfrac

See Heron's formula.

Derivation of exradii formula[24]

Click on show to view the contents of this section

Let the excircle at side AB touch at side AC extended at G, and let this excircle's radius be rc and its center be Jc.

Then JcG is an altitude of ACJc, so ACJc has area Undefined control sequence \tfrac. By a similar argument, BCJc has area Undefined control sequence \tfrac and ABJc has area Undefined control sequence \tfrac. Thus the area Δ of triangle ABC is

Δ=12(a+bc)rc=(sc)rc.

So, by symmetry, denoting r as the radius of the incircle,

Δ=sr=(sa)ra=(sb)rb=(sc)rc.

By the Law of Cosines, we have

cos(A)=b2+c2a22bc

Combining this with the identity sin2A+cos2A=1, we have

sin(A)=a4b4c4+2a2b2+2b2c2+2a2c22bc

But Undefined control sequence \tfrac, and so

Unknown environment 'align'

which is Heron's formula.

Combining this with sr=Δ, we have

r2=Δ2s2=(sa)(sb)(sc)s.

Similarly, (sa)ra=Δ gives

ra2=s(sb)(sc)sa

and

ra=s(sb)(sc)sa.

Other properties

From the formulas above one can see that the excircles are always larger than the incircle and that the largest excircle is the one tangent to the longest side and the smallest excircle is tangent to the shortest side. Further, combining these formulas yields:[25]

Δ=rrarbrc.

2.3. Other Excircle Properties

The circular hull of the excircles is internally tangent to each of the excircles and is thus an Apollonius circle.[26] The radius of this Apollonius circle is Undefined control sequence \tfrac where r is the incircle radius and s is the semiperimeter of the triangle.[27]

The following relations hold among the inradius r, the circumradius R, the semiperimeter s, and the excircle radii ra, rb, rc:[9]

Unknown environment 'align'

The circle through the centers of the three excircles has radius 2R.[9]

If H is the orthocenter of ABC, then[9]

Unknown environment 'align'

2.4. Nagel Triangle and Nagel Point

The      extouch triangle (TATBTC) and the      Nagel point (N) of a      triangle (ABC). The orange circles are the excircles of the triangle. https://handwiki.org/wiki/index.php?curid=2058052

The Nagel triangle or extouch triangle of ABC is denoted by the vertices TA, TB, and TC that are the three points where the excircles touch the reference ABC and where TA is opposite of A, etc. This TATBTC is also known as the extouch triangle of ABC. The circumcircle of the extouch TATBTC is called the Mandart circle.

The three lines ATA, BTB and CTC are called the splitters of the triangle; they each bisect the perimeter of the triangle,

AB+BTA=AC+CTA=12(AB+BC+AC).

The splitters intersect in a single point, the triangle's Nagel point Na (or triangle center X8).

Trilinear coordinates for the vertices of the extouch triangle are given by

  • vertexTA=0:csc2(B2):csc2(C2)
  • vertexTB=csc2(A2):0:csc2(C2)
  • vertexTC=csc2(A2):csc2(B2):0.

Trilinear coordinates for the Nagel point are given by

csc2(A2):csc2(B2):csc2(C2),

or, equivalently, by the Law of Sines,

b+caa:c+abb:a+bcc.

The Nagel point is the isotomic conjugate of the Gergonne point.

3.1. Nine-Point Circle and Feuerbach Point

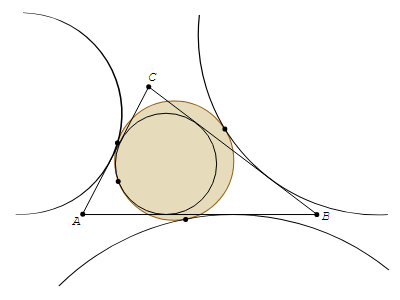

The nine-point circle is tangent to the incircle and excircles. https://handwiki.org/wiki/index.php?curid=2014273

In geometry, the nine-point circle is a circle that can be constructed for any given triangle. It is so named because it passes through nine significant concyclic points defined from the triangle. These nine points are:[28][29]

  • The midpoint of each side of the triangle
  • The foot of each altitude
  • The midpoint of the line segment from each vertex of the triangle to the orthocenter (where the three altitudes meet; these line segments lie on their respective altitudes).

In 1822 Karl Feuerbach discovered that any triangle's nine-point circle is externally tangent to that triangle's three excircles and internally tangent to its incircle; this result is known as Feuerbach's theorem. He proved that:

... the circle which passes through the feet of the altitudes of a triangle is tangent to all four circles which in turn are tangent to the three sides of the triangle ... (Feuerbach 1822)

The triangle center at which the incircle and the nine-point circle touch is called the Feuerbach point.

3.2. Incentral and Excentral Triangles

The points of intersection of the interior angle bisectors of ABC with the segments BC, CA, and AB are the vertices of the incentral triangle. Trilinear coordinates for the vertices of the incentral triangle are given by

  •  (vertex oppositeA)=0:1:1
  •  (vertex oppositeB)=1:0:1
  •  (vertex oppositeC)=1:1:0.

The excentral triangle of a reference triangle has vertices at the centers of the reference triangle's excircles. Its sides are on the external angle bisectors of the reference triangle (see figure at top of page). Trilinear coordinates for the vertices of the excentral triangle are given by

  • (vertex oppositeA)=1:1:1
  • (vertex oppositeB)=1:1:1
  • (vertex oppositeC)=1:1:1.

4. Equations for Four Circles

Let x:y:z be a variable point in trilinear coordinates, and let u=cos2(A/2), v=cos2(B/2), w=cos2(C/2). The four circles described above are given equivalently by either of the two given equations:[30]:210–215

  • Incircle:
    Unknown environment 'align'
  • A-excircle:
    Unknown environment 'align'
  • B-excircle:
    Unknown environment 'align'
  • C-excircle:
    Unknown environment 'align'

5. Euler's Theorem

Euler's theorem states that in a triangle:

(Rr)2=d2+r2,

where R and r are the circumradius and inradius respectively, and d is the distance between the circumcenter and the incenter.

For excircles the equation is similar:

(R+rex)2=dex2+rex2,

where rex is the radius of one of the excircles, and dex is the distance between the circumcenter and that excircle's center.[31][32][33]

6. Generalization to Other Polygons

Some (but not all) quadrilaterals have an incircle. These are called tangential quadrilaterals. Among their many properties perhaps the most important is that their two pairs of opposite sides have equal sums. This is called the Pitot theorem.

More generally, a polygon with any number of sides that has an inscribed circle (that is, one that is tangent to each side) is called a tangential polygon.
