1. Right-angled Triangle Definition

For the angle α, the sine function gives the ratio of the length of the opposite side to the length of the hypotenuse. By Trigono_a10.svg: Dnu72derivative work: Pengo (talk) - Trigono_a10.svg, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=11434668

To define the sine function of an acute angle α, start with a right triangle that contains an angle of measure α; in the accompanying figure, angle α in triangle ABC is the angle of interest. The three sides of the triangle are named as follows:

• The opposite side is the side opposite to the angle of interest, in this case side a.
• The hypotenuse is the side opposite the right angle, in this case side h. The hypotenuse is always the longest side of a right-angled triangle.
• The adjacent side is the remaining side, in this case side b. It forms a side of (and is adjacent to) both the angle of interest (angle A) and the right angle.

Once such a triangle is chosen, the sine of the angle is equal to the length of the opposite side, divided by the length of the hypotenuse:^[1]

[math]\displaystyle{ \sin(\alpha) = \frac {\textrm{opposite}} {\textrm{hypotenuse}} }[/math]

The other trigonometric functions of the angle can be defined similarly; for example, the cosine of the angle is the ratio between the adjacent side and the hypotenuse, while the tangent gives the ratio between the opposite and adjacent sides.^[1]

As stated, the value [math]\displaystyle{ \sin(\alpha) }[/math] appears to depend on the choice of right triangle containing an angle of measure α. However, this is not the case: all such triangles are similar, and so the ratio is the same for each of them.

2. Unit Circle Definition

In trigonometry, a unit circle is the circle of radius one centered at the origin (0, 0) in the Cartesian coordinate system.

Unit circle: a circle with radius one. By Khan Academy - https://www.khanacademy.org/math/algebra2/x2ec2f6f830c9fb89:trig/x2ec2f6f830c9fb89:unit-circle/a/trig-unit-circle-review, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=89542932

Let a line through the origin intersect the unit circle, making an angle of θ with the positive half of the x-axis. The x- and y-coordinates of this point of intersection are equal to cos(θ) and sin(θ), respectively. This definition is consistent with the right-angled triangle definition of sine and cosine when 0° < θ < 90°: because the length of the hypotenuse of the unit circle is always 1, [math]\displaystyle{ \sin(\theta) = \frac {\text{opposite}} {\text{hypotenuse}} = \frac {\text{opposite}} {1} = {\text{opposite}} }[/math]. The length of the opposite side of the triangle is simply the y-coordinate. A similar argument can be made for the cosine function to show that [math]\displaystyle{ \cos (\theta) = \frac {\text{adjacent}}{\text{hypotenuse}} }[/math] when 0° < θ < 90°, even under the new definition using the unit circle. tan(θ) is then defined as [math]\displaystyle{ \frac{\sin(\theta)}{\cos(\theta)} }[/math], or, equivalently, as the slope of the line segment.

Using the unit circle definition has the advantage that the angle can be extended to any real argument. This can also be achieved by requiring certain symmetries, and that sine be a periodic function.

3. Identities

Exact identities (using radians):

These apply for all values of [math]\displaystyle{ \theta }[/math].

[math]\displaystyle{ \sin(\theta) = \cos\left(\frac{\pi}{2} - \theta \right) = \frac{1}{\csc(\theta)} }[/math]

3.1. Reciprocal

The reciprocal of sine is cosecant, i.e., the reciprocal of sin(A) is csc(A), or cosec(A). Cosecant gives the ratio of the length of the hypotenuse to the length of the opposite side:

[math]\displaystyle{ \csc(A) = \frac{1}{\sin(A)} = \frac {\textrm{hypotenuse}} {\textrm{opposite}} = \frac{h}{a}. }[/math]

3.2. Inverse

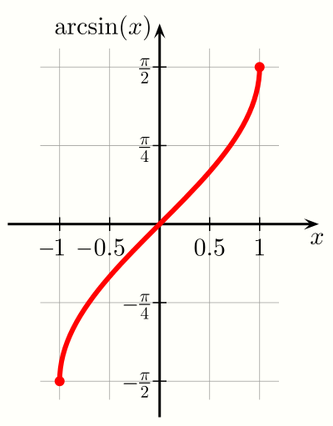

The usual principal values of the arcsin(x) function graphed on the Cartesian plane. Arcsin is the inverse of sin. By Geek3 - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=4033749

The inverse function of sine is arcsine (arcsin or asin) or inverse sine (sin⁻¹).As sine is non-injective, it is not an exact inverse function, but a partial inverse function. For example, sin(0) = 0, but also sin(π) = 0, sin(2π) = 0 etc. It follows that the arcsine function is multivalued: arcsin(0) = 0, but also arcsin(0) = π, arcsin(0) = 2π, etc. When only one value is desired, the function may be restricted to its principal branch. With this restriction, for each x in the domain, the expression arcsin(x) will evaluate only to a single value, called its principal value.

[math]\displaystyle{ \theta = \arcsin \left( \frac{\text{opposite}}{\text{hypotenuse}} \right) = \sin^{-1} \left( \frac {o}{h} \right). }[/math]

where (for some integer k):

[math]\displaystyle{ \begin{align} \sin(y) = x \iff & y = \arcsin(x) + 2\pi k , \text{ or }\\ & y = \pi - \arcsin(x) + 2\pi k \end{align} }[/math]

Or in one equation:

[math]\displaystyle{ \sin(y) = x \iff y = (-1)^k \arcsin(x) + \pi k }[/math]

By definition, arcsine satisfies the equation:

[math]\displaystyle{ \sin(\arcsin(x)) = x }[/math]

and

[math]\displaystyle{ \arcsin(\sin(\theta)) = \theta\quad\text{for }-\frac{\pi}{2} \leq \theta \leq \frac{\pi}{2}. }[/math]

3.3. Calculus

For the sine function:

[math]\displaystyle{ f(x) = \sin(x) }[/math]

The derivative is:

[math]\displaystyle{ f'(x) = \cos(x) }[/math]

The antiderivative is:

[math]\displaystyle{ \int f(x)\,dx = -\cos(x) + C }[/math]

where C denotes the constant of integration.^[2]

3.4. Other Trigonometric Functions

The sine and cosine functions are related in multiple ways. The two functions are out of phase by 90°: [math]\displaystyle{ \sin(\pi/2 - x) }[/math] = [math]\displaystyle{ \cos(x) }[/math] for all angles x. Also, the derivative of the function sin(x) is cos(x). By Geek3 - Own work, Public Domain, https://commons.wikimedia.org/w/index.php?curid=10904768

It is possible to express any trigonometric function in terms of any other (up to a plus or minus sign, or using the sign function).

The following table documents how sine can be expressed in terms of the other common trigonometric functions:

For all equations which use plus/minus (±), the result is positive for angles in the first quadrant.

The basic relationship between the sine and the cosine can also be expressed as the Pythagorean trigonometric identity:^[2]

[math]\displaystyle{ \cos^2(\theta) + \sin^2(\theta) = 1 }[/math]

where sin²(x) means (sin(x))².

3.5. Sine Squared Function

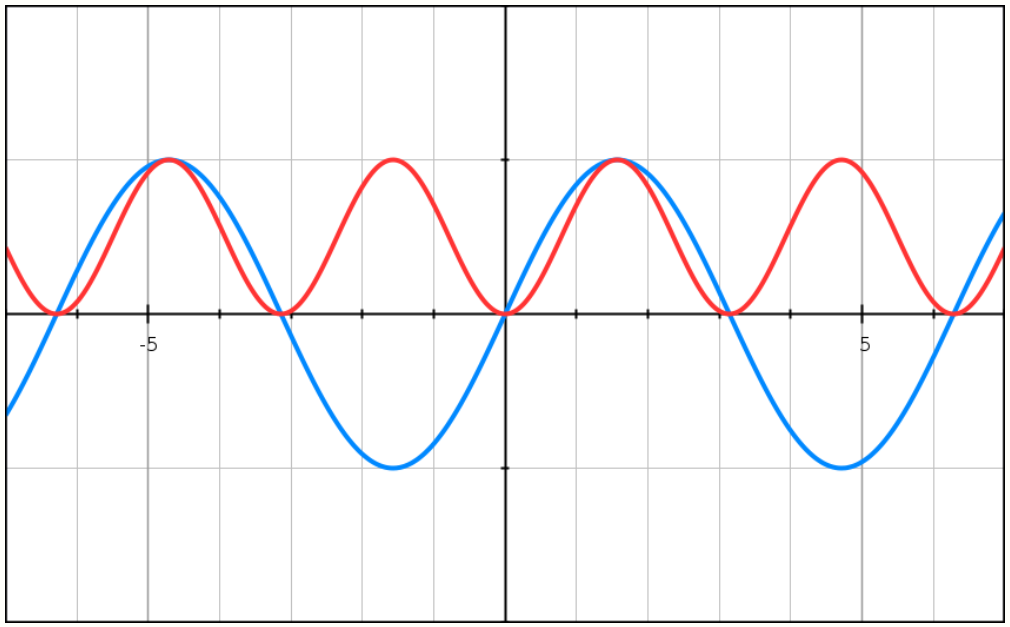

Sine function in blue and sine squared function in red. The X axis is in radians. By Comfr - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=81225531

The graph shows both the sine function and the sine squared function, with the sine in blue and sine squared in red. Both graphs have the same shape, but with different ranges of values, and different periods. Sine squared has only positive values, but twice the number of periods.

The sine squared function can be expressed as a modified sine wave from the Pythagorean identity and power reduction—by the cosine double-angle formula:^[3]

[math]\displaystyle{ \sin^2(\theta) = \frac{1 - \sin\left(2\theta + \frac{\pi}{2}\right)}{2} }[/math]

4. Properties Relating to the Quadrants

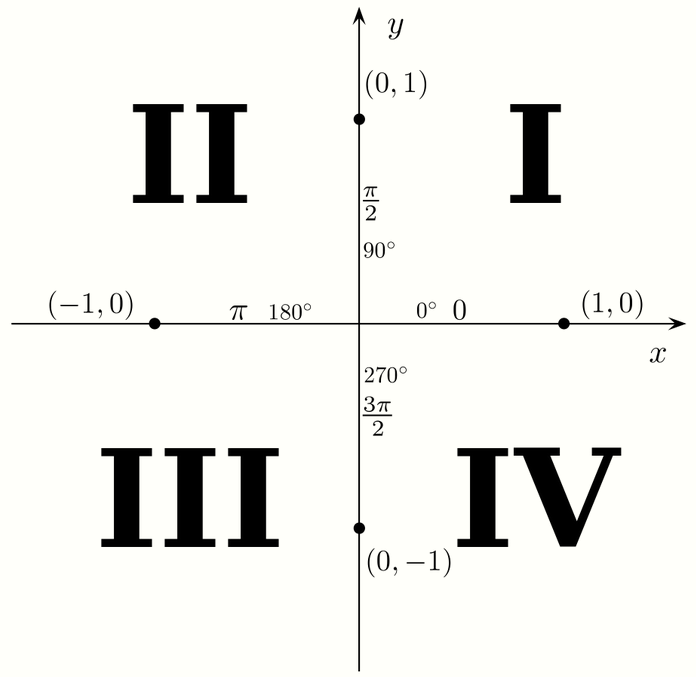

The four quadrants of a Cartesian coordinate system. By Pengo - Own work, Public Domain, https://commons.wikimedia.org/w/index.php?curid=11500082

The table below displays many of the key properties of the sine function (sign, monotonicity, convexity), arranged by the quadrant of the argument. For arguments outside those in the table, one may compute the corresponding information by using the periodicity [math]\displaystyle{ \sin(\alpha + 360^\circ) = \sin(\alpha) }[/math] of the sine function.

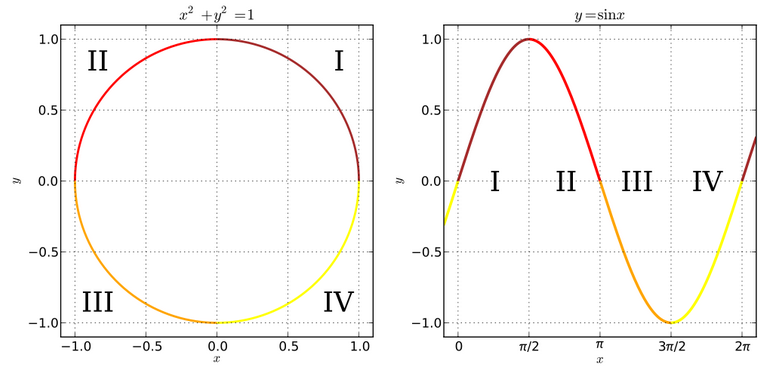

The quadrants of the unit circle and of sin(x), using the Cartesian coordinate system. By Pengo - Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=11540847

The following table gives basic information at the boundary of the quadrants.

5. Series Definition

The sine function (blue) is closely approximated by its Taylor polynomial of degree 7 (pink) for a full cycle centered on the origin. By No machine-readable author provided. Riojajar~commonswiki assumed (based on copyright claims). - No machine-readable source provided. Own work assumed (based on copyright claims)., Public Domain, https://commons.wikimedia.org/w/index.php?curid=825819

This animation shows how including more and more terms in the partial sum of its Taylor series approaches a sine curve. By IkamusumeFan - This plot was created with Matplotlib., CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=27893309

Using only geometry and properties of limits, it can be shown that the derivative of sine is cosine, and that the derivative of cosine is the negative of sine.

Using the reflection from the calculated geometric derivation of the sine is with the (4n+k)-th derivative at the point 0:

[math]\displaystyle{ \sin^{(4n+k)}(0)=\begin{cases} 0 & \text{when } k=0 \\ 1 & \text{when } k=1 \\ 0 & \text{when } k=2 \\ -1 & \text{when } k=3 \end{cases} }[/math]

This gives the following Taylor series expansion at x = 0. One can then use the theory of Taylor series to show that the following identities hold for all real numbers x (where x is the angle in radians):^[4]

[math]\displaystyle{ \begin{align} \sin(x) &= x - \frac{x^3}{3!} + \frac{x^5}{5!} - \frac{x^7}{7!} + \cdots \\[8pt] & = \sum_{n=0}^\infty \frac{(-1)^n}{(2n+1)!}x^{2n+1} \\[8pt] \end{align} }[/math]

If x were expressed in degrees then the series would contain factors involving powers of π/180: if x is the number of degrees, the number of radians is y = πx /180, so

[math]\displaystyle{ \begin{align} \sin(x_\mathrm{deg}) & = \sin(y_\mathrm{rad}) \\ & = \frac{\pi}{180} x - \left (\frac{\pi}{180} \right )^3 \frac{x^3}{3!} + \left (\frac{\pi}{180} \right )^5 \frac{x^5}{5!} - \left (\frac{\pi}{180} \right )^7 \frac{x^7}{7!} + \cdots . \end{align} }[/math]

The series formulas for the sine and cosine are uniquely determined, up to the choice of unit for angles, by the requirements that

[math]\displaystyle{ \begin{align} \sin(0) = 0 & \text{ and } \sin(2x) = 2 \sin(x) \cos(x) \\ \cos^2(x) + \sin^2(x) = 1 & \text{ and } \cos(2x) = \cos^2(x) - \sin^2(x) \\ \end{align} }[/math]

The radian is the unit that leads to the expansion with leading coefficient 1 for the sine and is determined by the additional requirement that

[math]\displaystyle{ \sin(x) \approx x \text{ when } x \approx 0. }[/math]

The coefficients for both the sine and cosine series may therefore be derived by substituting their expansions into the Pythagorean and double angle identities, taking the leading coefficient for the sine to be 1, and matching the remaining coefficients.

In general, mathematically important relationships between the sine and cosine functions and the exponential function (see, for example, Euler's formula) are substantially simplified when angles are expressed in radians, rather than in degrees, grads or other units. Therefore, in most branches of mathematics beyond practical geometry, angles are generally assumed to be expressed in radians.

A similar series is Gregory's series for arctan, which is obtained by omitting the factorials in the denominator.

Continued fraction

The sine function can also be represented as a generalized continued fraction:

[math]\displaystyle{ \sin(x) = \cfrac{x}{1 + \cfrac{x^2}{2\cdot3-x^2 + \cfrac{2\cdot3 x^2}{4\cdot5-x^2 + \cfrac{4\cdot5 x^2}{6\cdot7-x^2 + \ddots}}}}. }[/math]

The continued fraction representation can be derived from Euler's continued fraction formula and expresses the real number values, both rational and irrational, of the sine function.

6. Fixed Point

The fixed point iteration x_n+1 = sin(x_n) with initial value x₀ = 2 converges to 0. CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=1641553

Zero is the only real fixed point of the sine function; in other words the only intersection of the sine function and the identity function is [math]\displaystyle{ \sin(0)=0 }[/math].

7. Arc Length

The arc length of the sine curve between [math]\displaystyle{ a }[/math] and [math]\displaystyle{ b }[/math] is [math]\displaystyle{ \int_a^b\!\sqrt{1+\cos^2(x)}\, dx =\sqrt{2}(\operatorname{E}(b,1/\sqrt{2})-\operatorname{E}(a,1/\sqrt{2})) }[/math], where [math]\displaystyle{ \operatorname{E}(\varphi,k) }[/math] is the incomplete elliptic integral of the second kind with modulus [math]\displaystyle{ k }[/math].

The arc length for a full period is [math]\displaystyle{ L = 4\sqrt{2\pi ^3}/\Gamma(1/4)^2 + \Gamma(1/4)^2/\sqrt{2\pi} = 7.640395578\ldots }[/math] where [math]\displaystyle{ \Gamma }[/math] is the gamma function. This can be calculated very rapidly using the arithmetic–geometric mean: [math]\displaystyle{ L=2\operatorname{M}(1,\sqrt{2})+2\pi /\operatorname{M}(1,\sqrt{2}) }[/math].^[5] In fact, [math]\displaystyle{ L }[/math] is the circumference of an ellipse when the length of the semi-major axis equals [math]\displaystyle{ \sqrt{2} }[/math] and the length of the semi-minor axis equals [math]\displaystyle{ 1 }[/math].^[5]

The arc length of the sine curve from [math]\displaystyle{ 0 }[/math] to [math]\displaystyle{ x }[/math] is [math]\displaystyle{ Lx/(2\pi) }[/math], plus a correction that varies periodically in [math]\displaystyle{ x }[/math] with period [math]\displaystyle{ \pi }[/math]. The Fourier series for this correction can be written in closed form using special functions. The sine curve arc length from [math]\displaystyle{ 0 }[/math] to [math]\displaystyle{ x }[/math] is^[6]

[math]\displaystyle{ \left(\frac{\operatorname{M}(1,\sqrt{2})}{\pi}+\frac{1}{\operatorname{M}(1,\sqrt{2})}\right)x+\sqrt{2}\sum_{n=1}^\infty \frac{(-1)^n\tbinom{n-3/2}{n}}{2^{3n}n} {}_2F_1\left(n-\frac{1}{2},n+\frac{1}{2};2n+1;\frac{1}{2}\right)\sin (2nx), }[/math]

where [math]\displaystyle{ {}_2F_1 }[/math] is the hypergeometric function. The terms of the arc length expression can be approximated as

[math]\displaystyle{ 1.21600672x + 0.10317093 \sin(2x) - 0.00220445\sin(4x) + 0.00012584\sin(6x) - 0.00001011\sin(8 x) + \cdots }[/math]

8. Law of Sines

The law of sines states that for an arbitrary triangle with sides a, b, and c and angles opposite those sides A, B and C:

[math]\displaystyle{ \frac{\sin A}{a} = \frac{\sin B}{b} = \frac{\sin C}{c}. }[/math]

This is equivalent to the equality of the first three expressions below:

[math]\displaystyle{ \frac{a}{\sin A} = \frac{b}{\sin B} = \frac{c}{\sin C} = 2R, }[/math]

where R is the triangle's circumradius.

It can be proven by dividing the triangle into two right ones and using the above definition of sine. The law of sines is useful for computing the lengths of the unknown sides in a triangle if two angles and one side are known. This is a common situation occurring in triangulation, a technique to determine unknown distances by measuring two angles and an accessible enclosed distance.

9. Special Values

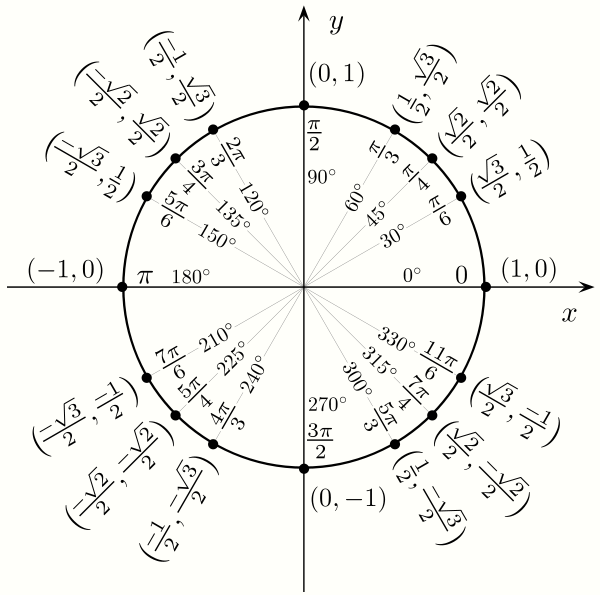

Some common angles (θ) shown on the unit circle. The angles are given in degrees and radians, together with the corresponding intersection point on the unit circle, (cos(θ), sin(θ)). By Gustavb (talk · contribs) - Own work using: Eukleides, Public Domain, https://commons.wikimedia.org/w/index.php?curid=584159

For certain integral numbers x of degrees, the value of sin(x) is particularly simple. A table of some of these values is given below.

90 degree increments:

Other values not listed above:

[math]\displaystyle{ \sin\left(\frac{\pi}{60}\right) = \sin(3^\circ)=\frac{(2-\sqrt{12})\sqrt{5+\sqrt5}+(\sqrt{10}-\sqrt2)(\sqrt3+1)}{16} }[/math] OEIS: A019812

[math]\displaystyle{ \sin\left(\frac{\pi}{30}\right) = \sin(6^\circ)=\frac{\sqrt{30-\sqrt{180}}-\sqrt5-1}{8} }[/math] OEIS: A019815

[math]\displaystyle{ \sin\left(\frac{\pi}{20}\right) = \sin(9^\circ)=\frac{\sqrt{10}+\sqrt2-\sqrt{20-\sqrt{80}}}{8} }[/math] OEIS: A019818

[math]\displaystyle{ \sin\left(\frac{\pi}{15}\right) = \sin(12^\circ)=\frac{\sqrt{10+\sqrt{20}}+\sqrt{3}-\sqrt{15}}{8} }[/math] OEIS: A019821

[math]\displaystyle{ \sin\left(\frac{\pi}{10}\right) = \sin(18^\circ)=\frac{\sqrt5-1}{4}=\tfrac{1}{2}\varphi^{-1} }[/math] OEIS: A019827

[math]\displaystyle{ \sin\left(\frac{7\pi}{60}\right) = \sin(21^\circ)=\frac{(2+\sqrt{12})\sqrt{5-\sqrt5}-(\sqrt{10}+\sqrt2)(\sqrt3-1)}{16} }[/math] OEIS: A019830

[math]\displaystyle{ \sin\left(\frac{\pi}{8}\right) = \sin(22.5^\circ)=\frac{\sqrt{2-\sqrt2}}{2} }[/math]

[math]\displaystyle{ \sin\left(\frac{2\pi}{15}\right) = \sin(24^\circ)=\frac{\sqrt3+\sqrt{15}-\sqrt{10-\sqrt{20}}}{8} }[/math] OEIS: A019833

[math]\displaystyle{ \sin\left(\frac{3\pi}{20}\right) = \sin(27^\circ)=\frac{\sqrt{20+\sqrt{80}}-\sqrt{10}+\sqrt2}{8} }[/math] OEIS: A019836

[math]\displaystyle{ \sin\left(\frac{11\pi}{60}\right) = \sin(33^\circ)=\frac{(\sqrt{12}-2)\sqrt{5+\sqrt5}+(\sqrt{10}-\sqrt2)(\sqrt3+1)}{16} }[/math] OEIS: A019842

[math]\displaystyle{ \sin\left(\frac{\pi}{5}\right) = \sin(36^\circ)=\frac{\sqrt{10-\sqrt{20}}}{4} }[/math] OEIS: A019845

[math]\displaystyle{ \sin\left(\frac{13\pi}{60}\right) = \sin(39^\circ)=\frac{(2-\sqrt{12})\sqrt{5-\sqrt5}+(\sqrt{10}+\sqrt2)(\sqrt3+1)}{16} }[/math] OEIS: A019848

[math]\displaystyle{ \sin\left(\frac{7\pi}{30}\right) = \sin(42^\circ)=\frac{\sqrt{30+\sqrt{180}}-\sqrt5+1}{8} }[/math] OEIS: A019851

10. Relationship to Complex Numbers

An illustration of the complex plane. The imaginary numbers are on the vertical coordinate axis. By This version, simplified for use in en:Sine: Pengo (talk)First version: http://ja.wikipedia.org/wiki/画像:Complex.png by jp:user:たまなるたみVectorized and tweaked: Complex_conjugate_picture.svg by Oleg Alexandrov - Complex_conjugate_picture.svg, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=11500957

Sine is used to determine the imaginary part of a complex number given in polar coordinates (r, φ):

[math]\displaystyle{ z = r(\cos(\varphi) + i\sin(\varphi)) }[/math]

the imaginary part is:

[math]\displaystyle{ \operatorname{Im}(z) = r \sin(\varphi) }[/math]

r and φ represent the magnitude and angle of the complex number respectively. i is the imaginary unit. z is a complex number.

Although dealing with complex numbers, sine's parameter in this usage is still a real number. Sine can also take a complex number as an argument.

10.1. Sine with a Complex Argument

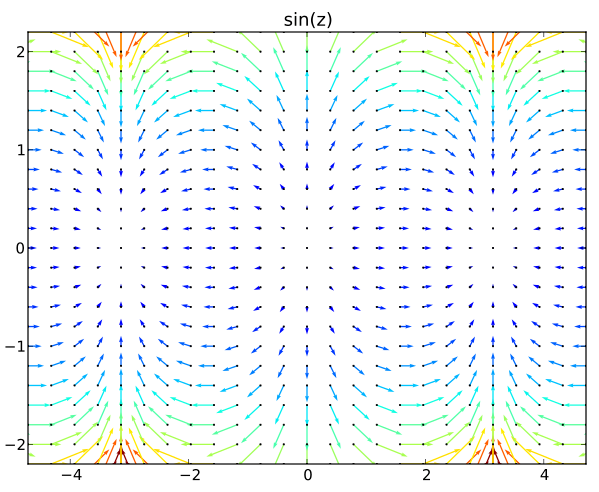

sin(z) as a vector field. By Pengo - Own work, Public Domain, https://commons.wikimedia.org/w/index.php?curid=11478667

[math]\displaystyle{ \sin(\theta) }[/math] is the imaginary part of [math]\displaystyle{ e^{i\theta} }[/math]. By Stephan Kulla (User:Stephan Kulla) - Own work, CC0, https://commons.wikimedia.org/w/index.php?curid=57563357

The definition of the sine function for complex arguments z:

[math]\displaystyle{ \begin{align} \sin(z)& = \sum_{n=0}^\infty \frac{(-1)^{n}}{(2n+1)!}z^{2n+1} \\ & = \frac{e^{i z} - e^{-i z}}{2i} \\ & = \frac{\sinh \left( i z\right) }{i} \\ & = -i \sinh \left(i z\right) \end{align} }[/math]

where i ² = −1, and sinh is hyperbolic sine. This is an entire function. Also, for purely real x,

[math]\displaystyle{ \sin(x) = \operatorname{Im}(e^{i x}). }[/math]

For purely imaginary numbers:

[math]\displaystyle{ \sin(iy) = i \sinh(y). }[/math]

It is also sometimes useful to express the complex sine function in terms of the real and imaginary parts of its argument:

[math]\displaystyle{ \begin{align} \sin (x + iy) &= \sin(x) \cos(iy) + \cos(x) \sin(iy) \\ &= \sin(x) \cosh(y) + i \cos(x) \sinh(y). \end{align} }[/math]

Partial fraction and product expansions of complex sine

Using the partial fraction expansion technique in complex analysis, one can find that the infinite series

[math]\displaystyle{ \sum_{n = -\infty}^{\infty}\frac{(-1)^n}{z-n} = \frac{1}{z} -2z \sum_{n = 1}^{\infty}\frac{(-1)^n}{n^2 - z^2} }[/math]

both converge and are equal to [math]\displaystyle{ \frac{\pi}{\sin (\pi z)} }[/math]. Similarly, one can show that

[math]\displaystyle{ \frac{\pi^2}{\sin^2 (\pi z)} = \sum_{n=-\infty}^\infty \frac{1}{(z - n)^2}. }[/math]

Using product expansion technique, one can derive

[math]\displaystyle{ \sin(\pi z) = \pi z \prod_{n = 1}^\infty \left( 1 - \frac{z^2}{n^2} \right). }[/math]

Alternatively, the infinite product for the sine can be proved using complex Fourier series.

Usage of complex sine

sin(z) is found in the functional equation for the Gamma function,

[math]\displaystyle{ \Gamma(s)\Gamma(1 - s) = {\pi\over\sin(\pi s)}, }[/math]

which in turn is found in the functional equation for the Riemann zeta-function,

[math]\displaystyle{ \zeta(s) = 2(2\pi)^{s-1}\Gamma(1 - s)\sin\left(\frac{\pi}{2} s\right)\zeta(1 - s). }[/math]

As a holomorphic function, sin z is a 2D solution of Laplace's equation:

[math]\displaystyle{ \Delta u(x_1, x_2) = 0. }[/math]

The complex sine function is also related to the level curves of pendulums.^[7]

10.2. Complex graphs

Sine function in the complex plane

real component	imaginary component	magnitude

Arcsine function in the complex plane

real component	imaginary component	magnitude

11. History

While the early study of trigonometry can be traced to antiquity, the trigonometric functions as they are in use today were developed in the medieval period. The chord function was discovered by Hipparchus of Nicaea (180–125 BCE) and Ptolemy of Roman Egypt (90–165 CE). See in particular Ptolemy's table of chords.

The function of sine and versine (1 − cosine) can be traced to the jyā and koṭi-jyā functions used in Gupta period (320 to 550 CE) Indian astronomy (Aryabhatiya, Surya Siddhanta), via translation from Sanskrit to Arabic and then from Arabic to Latin.^[8]

All six trigonometric functions in current use were known in Islamic mathematics by the 9th century, as was the law of sines, used in solving triangles.^[9] With the exception of the sine (which was adopted from Indian mathematics), the other five modern trigonometric functions were discovered by Arabic mathematicians, including the cosine, tangent, cotangent, secant and cosecant.^[9] Al-Khwārizmī (c. 780–850) produced tables of sines, cosines and tangents.^[10][11] Muhammad ibn Jābir al-Harrānī al-Battānī (853–929) discovered the reciprocal functions of secant and cosecant, and produced the first table of cosecants for each degree from 1° to 90°.^[11]

The first published use of the abbreviations 'sin', 'cos', and 'tan' is by the 16th century French mathematician Albert Girard; these were further promulgated by Euler (see below). The Opus palatinum de triangulis of Georg Joachim Rheticus, a student of Copernicus, was probably the first in Europe to define trigonometric functions directly in terms of right triangles instead of circles, with tables for all six trigonometric functions; this work was finished by Rheticus' student Valentin Otho in 1596.

In a paper published in 1682, Leibniz proved that sin x is not an algebraic function of x.^[12] Roger Cotes computed the derivative of sine in his Harmonia Mensurarum (1722).^[13] Leonhard Euler's Introductio in analysin infinitorum (1748) was mostly responsible for establishing the analytic treatment of trigonometric functions in Europe, also defining them as infinite series and presenting "Euler's formula", as well as the near-modern abbreviations sin., cos., tang., cot., sec., and cosec.^[14]

Etymology

Etymologically, the word sine derives from the Sanskrit word for chord, jiva*(jya being its more popular synonym). This was transliterated in Arabic as jiba جيب, which however is meaningless in that language and abbreviated jb جب . Since Arabic is written without short vowels, "jb" was interpreted as the word jaib جيب, which means "bosom". When the Arabic texts were translated in the 12th century into Latin by Gerard of Cremona, he used the Latin equivalent for "bosom", sinus (which means "bosom" or "bay" or "fold").^[15][16] Gerard was probably not the first scholar to use this translation; Robert of Chester appears to have preceded him and there is evidence of even earlier usage.^[17] The English form sine was introduced in the 1590s.

12. Software Implementations

There is no standard algorithm for calculating sine. IEEE 754-2008, the most widely used standard for floating-point computation, does not address calculating trigonometric functions such as sine.^[18] Algorithms for calculating sine may be balanced for such constraints as speed, accuracy, portability, or range of input values accepted. This can lead to different results for different algorithms, especially for special circumstances such as very large inputs, e.g. sin(1022).

A common programming optimization, used especially in 3D graphics, is to pre-calculate a table of sine values, for example one value per degree, then for values in-between pick the closest pre-calculated value, or linearly interpolate between the 2 closest values to approximate it. This allows results to be looked up from a table rather than being calculated in real time. With modern CPU architectures this method may offer no advantage.

The CORDIC algorithm is commonly used in scientific calculators.

The sine function, along with other trigonometric functions, is widely available across programming languages and platforms. In computing, it is typically abbreviated to sin.

Some CPU architectures have a built-in instruction for sine, including the Intel x87 FPUs since the 80387.

In programming languages, sin is typically either a built-in function or found within the language's standard math library.

For example, the C standard library defines sine functions within math.h: sin(double), sinf(float), and sinl(long double). The parameter of each is a floating point value, specifying the angle in radians. Each function returns the same data type as it accepts. Many other trigonometric functions are also defined in math.h, such as for cosine, arc sine, and hyperbolic sine (sinh).

Similarly, Python defines math.sin(x) within the built-in math module. Complex sine functions are also available within the cmath module, e.g. cmath.sin(z). CPython's math functions call the C math library, and use a double-precision floating-point format.

Turns based implementations

Some software libraries provide implementations of sine using the input angle in half-turns, a half-turn being an angle of 180 degrees or [math]\displaystyle{ \pi }[/math] radians. Representing angles in turns or half-turns has accuracy advantages and efficiency advantages in some cases.^[19][20]

The accuracy advantage stems from the ability to perfectly represent key angles like full-turn, half-turn, and quarter-turn losslessly in binary floating-point or fixed-point. In contrast, representing [math]\displaystyle{ 2\pi }[/math], [math]\displaystyle{ \pi }[/math], and [math]\displaystyle{ \frac{\pi}{2} }[/math] in binary floating-point or binary scaled fixed-point always involves a loss of accuracy.

Turns also have an accuracy advantage and efficiency advantage for computing modulo to one period. Computing modulo 1 turn or modulo 2 half-turns can be losslessly and efficiently computed in both floating-point and fixed-point. For example, computing modulo 1 or modulo 2 for a binary point scaled fixed-point value requires only a bit shift or bitwise AND operation. In contrast, computing modulo [math]\displaystyle{ \frac{\pi}{2} }[/math] involves inaccuracies in representing [math]\displaystyle{ \frac{\pi}{2} }[/math].

For applications involving angle sensors, the sensor typically provides angle measurements in a form directly compatible with turns or half-turns. For example, an angle sensor may count from 0 to 4096 over one complete revolution.^[25] If half-turns are used as the unit for angle, then the value provided by the sensor directly and losslessly maps to a fixed-point data type with 11 bits to the right of the binary point. In contrast, if radians are used as the unit for storing the angle, then the inaccuracies and cost of multiplying the raw sensor integer by an approximation to [math]\displaystyle{ \frac{\pi}{2048} }[/math] would be incurred.
