Oncoprotein-Specific Recombinant Antibodies for HPV Tumour Therapy

Human papillomaviruses (HPVs) are involved in the development of around 5% of all human cancers and HPV16 is the high-risk genotype with the highest prevalence worldwide, playing a dominant role in all HPV-associated cancers. Recombinant antibodies against specific antigens have shown great promise for the therapy of infectious diseases and cancer.

antibody therapeutics recombinant antibodies intracellular antibodies single-chain antibody fragment nanobody Human papillomaviruses HPV oncoproteins HPV-associated cancer HPV cancer therapy

1. Introduction

In the last decades, thanks to DNA technology, recombinant antibodies have been increasingly applied to the therapy of many diseases of genetic, infectious, or tumour origin. The mammalian immune system produces antibodies against virtually any antigen, and over 30 years of molecular technology studies allowed to establish methods to select ligands for specific protein epitopes in either intra- or extra-cellular environment from libraries of different kinds, even originating from animals immunized with antigens of interest. Recombinant antibodies can interfere with specific protein functions at DNA, RNA, or protein level, and many antibodies and antibody-based products either approved or under investigation in clinical trials are revolutionizing classical drug-based tumour chemotherapy[1].

Phage display, yeast display, ribosome display, bacterial display, mammalian cell surface display, mRNA display, and DNA display technologies allow in vitro selection from non-animal-derived recombinant (naïve or synthetic) repertoires (libraries) of peptides and antibody fragments in different formats specific for chosen targets. All display technologies mimic what occurs in vivo during antibody generation by the immune system as they rely on (1) genotypic diversity (2) link between genotype and phenotype; (3) selective pressure for increasing antibody specificity; (4) amplification of specific clones originated by selective pressure. The coding sequences of the binders identified can be expressed in prokaryotic or eukaryotic systems and tested both in vitro and in vivo for their ability to recognize the target antigen and counteract its activity.

Specific antibodies in different formats representing more or less extended regions of an immunoglobulin (Ig) can be delivered directly to the cells as purified proteins or expressed as intracellular antibodies (intrabodies) by recombinant DNA technology.  Antibodies in single-chain format (scFvs) and single-domain antibody or nanobodies (sdAb or Nbs)[2], are the most suitable for expression as intrabodies because of low molecular weight and easy engineering[3].

2. Antibody structure: scFvs and nanobodies

A whole IgG molecule (150 kDa) comprises heavy (H) and light (L) chains each consisting of a variable (VH and VL) and a constant (CH and CL) region covalently linked to each other and to oligosaccharides necessary for antibody effector functions and for long serum half-life. The antigen-binding regions responsible for diversity among antibodies are the complementary determining regions (CDRs), three for each VH and VL. The VH and VL joined by a disulphide bond and covalently linked to the first CH domain are obtainable by IgG proteolysis, resulting in a Fab monovalent antibody fragment (55 kDa) (Figure 1).

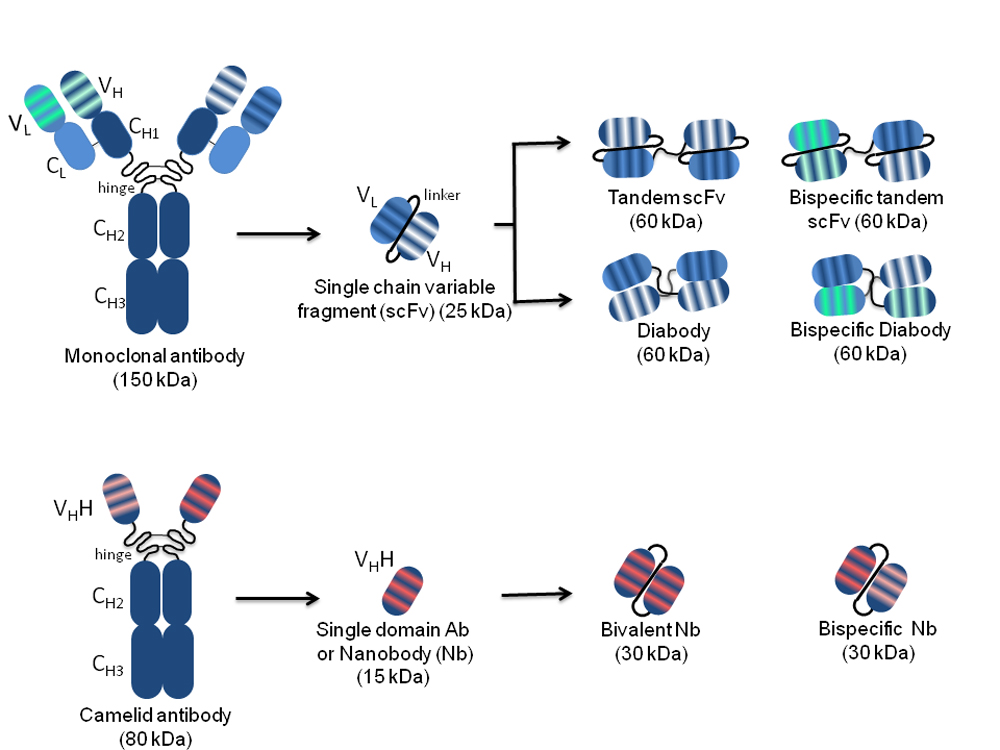

Figure 1. Schematic representation of the structure of conventional and camelidae monoclonal, and single-chain antibodies. On the left, the whole monoclonal antibody (top) and camelid antibody (bottom) structures are represented. The variable light (VL) and heavy (VH) chains, as well as the constant light (CL) and heavy (CH1, CH2, CH3) chains are indicated. The complementarity determining regions responsible for antigen binding, three for each VL and each VH, are represented by stripes highlighted in different colours according to the different antigen specificity. Arrows indicate different monospecific and bispecific antibody fragments derived from the original antibody molecules with their nomenclature and molecular weight. The VH and VL in the different arrangements are connected by peptide linkers of 3–12 amino acids represented by black curved lines.

The N-terminal IgG fragment including the VH and VL retains the same antigen-binding capacity as the whole IgG molecule. The antibodies in single-chain format, called scFvs (27 kDa), lack the constant regions and include only the VH and VL linked by a short peptide consisting of a sequence of glycine and serine residues such as (Gly4Ser)3. This arrangement provides flexibility, hydrophilicity, and resistance to proteases digestion. The linker length can be modified to favour or not the formation of multimers. A short linker (3–12 amino acids) prevents the formation of monomeric forms and supports inter-molecular VH-VL combinations with spontaneous formation of a scFv dimer called “diabody” (60 kDa), where each of the two antigen-binding sites is formed by the VH of one scFv and the VL of the other one. The linkage of two scFvs in a unique molecule forms a tandem scFv. Both diabodies and tandem scFvs can have two different binding specificities, and in this case, they are called bispecific (bs).

The CDRs of a scFv are embedded in an amino acid scaffold of either human or animal origin, according to the library utilized for selection. However, CDRs with specific binding activities can be isolated and grafted onto different scaffolds. Importantly, the use of human scaffolds allows bypassing the risk of immune reactions during clinical use.

Antibody engineering by cloning of scFv sequences into eukaryotic vectors allows the expression of scFvs as intrabodies capable of recognizing target antigens in intracellular compartments where they are located, with outcomes ranging from direct antigen blockade to indirect impairment of its activity through delocalization, to its targeted degradation[4][5]. Nbs derive from Camelidae species (e.g., llamas, dromedaries and camels), which in their antibody repertoire have IgG lacking both light chains and CH1 domains (heavy-chain-only antibodies: HCAbs)[6]. The variable domains of these HCAbs are named VHHs and can be isolated as sdAbs, which are small-sized (~15 kDa) but retain the antigen-binding capability of the full-size antibody. VHHs can easily penetrate tissues and access cryptic epitopes, are quickly cleared from the bloodstream, are more soluble and capable of efficient folding with respect to conventional mAbs, and can resist a wide pH range and high temperatures[7][8]. Despite the non-human origin, VHHs are rarely immunogenic due to the small size and high sequence homology to the human VH3 gene family, which avoids the necessity of humanization for translation into clinic[9]. Such characteristics, together with the short half-life (2 hours) facilitate application in diagnosis rather than therapy. A humanized VHH (Caplacizumab, CabliviTM) has been recently approved in Europe and USA for the treatment of acquired thrombotic thrombocytopenic purpura[10][11][12], and others targeting haematological, oncological, infectious, inflammatory/auto-immune, bone and neurological diseases are being evaluated in clinical trials.

3. HPV-Associated Lesions and Therapies

HPVs are small, non-enveloped viruses, with a circular dsDNA genome of about 8 Kbp and an icosahedral capsid composed of the major L1 protein and the minor L2 protein. Following infection of the epithelium basal cells, the E1 and E2 early proteins play key roles in viral DNA replication and amplification, as well as in regulating viral transcription. When actively expressed, the viral genome is maintained as an episome. Viral genome amplification, late gene expression, and viral progeny assembly are limited to terminally differentiated layers of the epithelium. To overcome growth arrest of terminally differentiated keratinocytes and be able to replicate, HPV genomes express E6, E7, and E5 proteins, which keep the infected cells in a competent state for DNA synthesis. Most HPV infections usually clear within 1–2 years. Nevertheless, in some cases, the virus may persist and occasional integration of its genome in the host’s genome occurs, with the interruption of the E2 transcriptional repressor coding sequence and consequent overexpression of E6 and E7. Persistent expression of these proteins leads to cancer development by impacting on cell cycle control, cell growth regulation and resistance to apoptosis (Figure 2).

Figure 2. Schematic representation of HPV16-related cancer natural history with the underlying role of E5, E6 and E7 oncoproteins during transition from normal to precancer and cancer cell. The main targets of HPV oncoproteins are indicated. Oncoprotein-specific antibodies in different formats are potential therapeutics to counteract tumor progression.

The E7 protein binds to pRB and displaces the E2F transcription factor, thus facilitating S-phase entry[13]. E7 also alters p21, histone deacetylases (HDACs) and cyclins and alters their function. The E6 interacts with PDZ-containing proteins through a PDZ-domain binding site and thus affects cell polarity, cell-cell adhesion, and diverse cell signaling pathways[14]. Recently, its X-ray structure in complex with E6-associated protein (E6AP), the ubiquitin ligase involved in p53 degradation, and p53 has been resolved[15].

More recently, it has also been found that E5, a small hydrophobic oncoprotein mostly located in the endopalsmatic reticulum (ER) and Golgi apparatus, also plays an important role in immune evasion, cell growth and interference with signal transduction pathways, and cooperates with E6 and E7 in procarcinogenic activity[16].

HPV infections are among the most common sexually-transmitted diseases and cause annually around 5% of all cancers worldwide[17][18][19]. Some genotypes, defined as high-risk (HR) types, are responsible for morbidity and mortality related to cancer, mostly of the cervix (CC) but also of the anogenital area and of the oropharynx. Currently, treatment of HPV-associated lesions varies widely, mainly depending on lesion grade and localization, and tumour stage. The therapeutic approaches currently in use aim at eliminating abnormal/malignant cells through surgery, chemotherapy, radiotherapy, targeted therapy, or immunotherapy alone or in combination. Recombinant vaccines consisting of DNA-free virus-like particles (VLPs) containing the viral L1 protein and adjuvants, have become available since more than 10 years. Nevertheless, effective prevention of the HPV-associated pathologies is expected only in the long-term if HPV vaccination is able to reach a significant percentage of the target population worldwide[20][21][22]. Of note, the 73rd World Health Assembly, held on August 2020, strongly encouraged the acceleration of actions aimed at eliminating CC as a public health problem [23].

Since during natural infections E6- and E7-specific CD4 and CD8 immune responses are associated with the regression of HPV-associated cervical lesions, both these tumour-associated antigens represent the ideal antigens for the development of therapeutic vaccines. Also the E5 oncoprotein has recently been proposed as a possible immunotherapy target[23]. Different peptide- and protein-based therapeutic vaccines against HPV-associated tumours are under development. However, anti-HPV tumours vaccines are not yet available for clinical practice in spite of the numerous E6/E7-based clinical experimentations because the lack of specific adjuvants of cytotoxic T lymphocytes (CTLs) responses often caused a poor vaccine efficacy leading to the interruption of many clinical trials in the early stages[21][22].

4. Recombinant Antibodies Targeting HPV Oncoproteins

Safe and non-invasive therapeutic interventions, without side effects and possibly not involving the individual immune response to be effective also in immunodeficient patients, would be desirable for the treatment of HPV-related lesions.

An effective and timely treatment of pre-neoplastic lesions could avoid their progression toward invasive cancer. At the same time, a well-timed and effective therapy for already established tumours could ameliorate patient prognosis. Another important therapeutic area of intervention could be the prevention of metastases deriving from surgically removed HPV-driven tumours.

In view of their crucial role in the onset and progression of HPV-driven tumours[24], E5, E6, and E7 proteins represent ideal targets for alternative anti-tumour therapeutic approaches based on protein knock out or knock down methods. In this context, recombinant antibodies seem to represent a valid therapeutic opportunity. In recent years, such antibodies have been tested for their therapeutic potential against HPV-associated disease. They are summarized here referring to their targets (Tab. 1).

Table 1. Summary of antibodies targeting the HPV16 E6, E7 and E5 oncoproteins (in transcription order). The antibody target, format, known in vitro and in vivo activities, and delivery system are indicated for each antibody. EGFR: epidermal-growth factor receptor; ER: endoplasmic reticulum; mAb: monoclonal antibody; PAGE: polyacrylamide gel electrophoresis; scFv: single-chain variable fragment; VHH: variable domain of heavy chain antibody; Zn: zinc.





In vitro activity

In vivo activity



HPV16 E6


1F1 scFv -inhibition of E6/p53 binding-inhibition of p53 degradation     [25]

HPV16 E6


6F4/IF4-P41L (intracellular) scFv -inhibition of p53 degradation-inhibition of E6AP-dependent E6/p53 binding-no p53 accumulation in 6F4 protein-transduced HPV16+ cells-induction of apoptosis in HPV16+ cells (IF4-P41L)   -6F4: lipid-based transfection-IF4-P41L: adenoviral vector-based delivery [25][26][27][28]

HPV16 E6

(2nd Zn binding domain-ZD2)

1F53B83F8 mAb -no inhibition of p53 degradation-inhibition of E6AP-independent E6/p53 binding-no p53 accumulation in 3F8 protein-transduced HPV16+ cells   3F8: lipid-based transfection [26][28]

HPV16 E6

4C6 mAb -inhibition of p53 degradation-in 4C6 protein-transduced HPV16+ cells:-p53 accumulation-inhibition of proliferation   lipid-based transfection [28]

HPV16 E6

(1st Zn finger)

GTE6-1 scFv -inhibition of p53 degradation-in HPV16+ cells:-p53 rescue-apoptosis induction   transfection of recombinant plasmid [29]

HPV16 E6

F127-6G6 mAb p53 rescue in HPV16+ cells   sonoporation [30]

HPV16 E6

I7nuc scFv intrabody -co-localization with E6-partial p53 rescue-inhibition of cell proliferation-induction of necrosis and apoptosis-detection of endogenous E6 -prevention of tumour onset, and-impairment of established tumour growth in C57BL/6 mice electroporation [31][32][33]

HPV16 E6

C1P5 mAb   impairment of tumour growth in Balb/c nude mice intratumour/intraperitoneal injection as purified protein [34]

HPV16 E6

26 potential E6-binding clones VHH (nanobody) clone 2A17: detection of recombinant E6 in native PAGE     [35]

HPV16 E6

Nb9 VHH (nanobody) inhibition of HPV16+ cell proliferation inhibition of xenograft tumours in nuce mice -subcutaneous injection of HPV16+ cells expressing Nb9 (lentiviral vector-based expression)-in vivo transfection of established tumours with Nb9-intrabody expression plasmid [36]

HPV16 E7

TVG701Y mAb   impairment of tumour growth in Balb/c nude mice intratumoural/intraperitoneal injection of purified mAb [34]

HPV16 E7

pSTCF with secretory or ER signal scFv -down-regulation of 16E7 expression-inhibition of HPV16+ cell proliferation   Adenovirus Poly Lysine (AdpL)-based transfection of expression vectors [37]

HPV16 E7

scFv32scFv43/scFv43M2scFv51 scFv -43, 51 and 43M2SD: inhibition of HPV16+ cell proliferation-43M2SD: E7 delocalization and accumulation in ER 43M2:-prevention of tumour onset, and-impairment of  established tumour growth in C57BL/6 mice -electroporation-exosome-based delivery [32][38][39][40][41]

HPV16 E7

Nb2 VHH (nanobody) -binding to endogenous E7-inhibition of HPV16+ cell proliferation   liposome-based transfection of recombinant plasmids [42]

HPV16 E5

H2-I scFv -detection of endogenous E5 in W12 cells-co-localization with EGFR     [43]

4.1. E6-Specific Recombinant Antibodies

4.1.1. ScFvs and mAbs

The 1F1 and 6F4 (F4) scFvs, derived from mAbs obtained by mice immunization with the GST-HPV16E6 fusion protein and targeting the E6 N-terminus, were able to hamper p53 degradation in vitro by inhibiting the formation of the E6/p53 complex[44]. The capacity of intracellular folding and cytosolic stability/solubility of scFvF4 was improved by mutagenesis, obtaining the IF4-P41L scFv[26]. Such scFv expressed by adenoviral system was able to cause specific apoptosis of HPV16-positive cells in a way proportional to the scFv solubility and not related to p53 rescue[27]. By comparing the activity of scFv F4 to that of three anti-16E6 mAbs (1F5, 3B8, 3F8) targeting the 16ZD2 zinc-binding domain, the mAbs resulted to be unable to affect the E6AP-dependent and able to affect the E6AP-independent binding of p53, possibly as a consequence of an antibody-induced conformational change at the E6AP-binding site of E6[26].

One anti-16E6 mAb (4C6) delivered to HPV16- and HPV18-positive cells induced a specific p53 accumulation in the nucleus of HPV16-positive cells, associated to the impairment of cell proliferation in the absence of apoptosis[27].

GTE6-1, a 16E6 binder selected from a scFv library, was able to bind to the first zinc finger of E6 with high affinity. GTE6-1 was able to recognize specifically both partially denatured and native E6 and to inhibit E6-mediated degradation of p53 in vitro assay[29]. Expression of this scFv in a number of cell lines, the proliferation of which depends on E6 and E7, induced significant p53 rescue and nuclear apoptosis in HPV16-positive cells

The delivery of the 16E6-targeting F127-6G6 mAb to HPV16-positive cells by sonoporation reduced the E6-mediated p53 degradation but did not induce apoptosis[30]. Nevertheless, the effect was transient probably due to the inability of molecules as large as mAbs to penetrate the cell nucleus, and the outcome was different in the two HPV16-positive cell lines utilized, suggesting that different treatment plans might be necessary for in vivo tumour therapy. No mAb effect was observed in HPV-negative cells, confirming the safety of a mAb-based treatment, effective only in tumour cells.

The scFv I7 binder of E6 was isolated from the SPLINT library by IACT technology. In the light of E6 activity in the cell nucleus, scFvI7 was provided with a signal for nuclear localization (NLS), and found to co-localize in cell nucleus of cells co-transfected with I7nuc and recombinant E6 plasmids. Retroviral delivery of I7nuc in HPV16-positive cells caused a partial rescue of p53, associated with the block of cell proliferation and induction of apoptosis and necrosis of tumour cells[31].

The antitumour activity of I7nuc was investigated in mouse models for HPV tumours based on the injection of HPV16-positive tumour cells in C57BL6 mice. The scFv capability to either prevent cancer development from scFv-expressing tumour cells, or to hinder cancer progression by delivery to already established tumours, was evaluated. A clear impairment of tumour growth was observed in mice injected with TC-1 tumour cells expressing I7nuc, with 60% of them completely protected from tumour onset for the 4 months of observation time[31]. Similarly, tumour growth was greatly hampered following the delivery of scFvI7nuc-expressing plasmids by electroporation to implanted tumours. Histology and immunohistochemistry showed that the antitumour activity is based on the induction of extensive cell death by apoptosis in the tumour mass[32].

In view of a possible direct use of antibodies in protein format for therapeutic purposes, the scFv I7nuc protein was purified from E. coli and delivered to HPV16-positive cell lines. Interestingly, the I7nuc protein was able to penetrate cell membrane, recognize the endogenous monomeric E6 in the cell nucleus and hamper the proliferation of cells[33].

A recent study utilized anti-16 E6 and -16 E7 mAbs in an experimental murine model based on HPV16-positive cells implanted in Balb/c nude mice. Two different doses of the anti-16E6 C1P5 and anti-16E7 TVG701Y mAbs were delivered via intraperitoneal or intratumour injections and both showed significant ability to specifically inhibit tumour growth at an extent comparable to the Cisplatin chemotherapy. The mechanism underlying the mAb activity consists of a specific effect causing complement deposition and a non-specific effect on macrophage polarization facilitating the elimination of cancer cells by opsonisation, and promoting surveillance by the immune system[34].

4.1.2. Nanobodies

Nanobodies represent the new generation of anti-HPV recombinant antibodies (Figure 1). Three VHHs binding to the recombinant E6 with nanomolar affinities were identified from two llama, immune VHH phage display libraries[35]. The capacity of the selected VHHs to bind the native E6 derived from HPV16-positive biological samples had not yet been determined at the time of the study, nor had the bound E6 epitopes been characterized.

More recently, a different 16E6-targeting nanobody was isolated and characterized[36]. Such antibody could be used to counteract HPV-induced tumours given its capacity to inhibit both the proliferation of HPV16 -positive cells in vitro and the growth of xenograft tumours in nude mice.

To neutralize the E6 ability to degrade p53. VHHs against the degradation-binding domain (DBD) of p53 were developed and shown to stabilise nuclear p53 in HeLa cells, which harbour the HPV18 genome. Nevertheless, the VHHs were unable to rescue the p53 tumour-suppressive functions. The authors hypothesized that this was due to inhibition of p53 transactivation associated with an increased cell proliferation and viability[45].

4.2. E7-Specific Recombinant Antibodies

4.2.1. ScFvs and mAbs

The first scFvs selected against 16E7 oncoprotein were constructed directly from murine spleen cells, and then provided with signals for subcellular localization by cloning[37]. When the scFv-expressing plasmids were transfected in HPV16-positive cells, the scFv with SEKDEL signal for localization in the ER was effective in decreasing E7 expression in a manner inversely related to the amount of plasmid used for cell transfection. Furthermore, stable expression of these anti-16E7 scFvs and of that with localization in the ER in particular, successfully and specifically inhibited the proliferation of 16E7-expressing tumour cells.

More recently, three different scFvs against the 16E7, selected from a Phage library of human recombinant antibodies, and provided with signals for localization in the cell nucleus or ER by cloning in eukaryotic vectors, were found to inhibit significantly the proliferation of HPV16-positive cells in vitro[38]. The half-life and thermal stability of the most reactive of the anti-16E7 scFvs, scFv43, was improved by site-directed mutagenesis and the modified scFv, namely scFv43M2, was provided with the SEKDEL signal (SD) for localization in the ER[39]. The resulting scFv43M2SD was thereafter tested for its ability to counteract the 16E7 activity. In SiHa cells, the intrabody was able to subtract E7 from the usual localization and cause it to accumulate in the ER. In addition, the scFv43M2SD intracellular expression was able to inhibit significantly and specifically the proliferation of different HPV16-positive cell lines[40]. The scFv43M2 was then tested in vivo in mouse HPV tumour models, demonstrating the ability to counteract tumour progression both when administered to tumour cells before their injection into mice and when administered to already implanted tumours[32][40].

4.2.2. Nanobodies

One of four VHHs with high affinity for 16E7 selected from llama libraries by Phage display was expressed in prokaryotic system as a protein, and its ability to bind to the recombinant E7 in vitro was confirmed in immunological assays. Furthermore, the nanobody was able to detect the endogenous E7 protein in Western blotting and, most importantly, induced a specific inhibition of the proliferation of HPV16-positive cells[42].

4.3. E5-Specific scFvs

The first and currently only scFv anti-HPV16 E5 (16E5) was developed with the purpose of investigating the E5 functions. In fact, this E5-specific scFv, when expressed in human immortalized keratinocytes carrying up to 1000 episomal copies of the HPV16 genome, was able to recognize E5 and to reveal its co-localization with EGFR[43].

5. Intracellular Delivery Methods for Recombinant Antibodies against HPV Oncoproteins

Despite the safety and benefits of what would be a recombinant antibody-based therapy for HPV-associated lesions, still a low number of Nbs, scFvs and mAbs against HPV oncoproteins have been developed, and none of them has reached the clinical stage so far. One of the reasons behind this essentially lies in the difficulty of identifying a delivery method that allows recombinant antibodies to cross biological barriers while maintaining biological activity, particularly when the targets are intracellular. Several studies are underway to address this criticality and permit translation to humans. In general, recombinant antibodies for intracellular targets can be either expressed within cells from DNA plasmids or delivered directly to cells as purified proteins. This is achievable by physical methods, transfection, electroporation (EP), or fusion with a peptide transduction domain (PTD) or nanocarriers.

5.1. Electrotransfer/Electroporation

EP applies voltage pulses to generate an electric field between two electrodes, which interrupts the integrity of cell membranes with the formation of pores allowing cell uptake of nucleic acids as well as proteins. EP is therefore a safe method for intracellular protein expression since it avoids insertional mutagenesis and immunogenicity problems inherent in other methods[32][46]. The methodology is used in several, particularly immunotherapeutic, applications, and even to deliver scFvs as proteins or mRNAs[47].

5.2. Fusion with Protein Transduction Domain

PTDs or cell penetrating peptides (CPPs) are cationic and/or hydrophobic 10–30 amino acid long peptides that can be conjugated or fused to antibodies to make them able to penetrate the cell membrane via different mechanisms[48]. However, for effective translation in the clinic, the CPP-based delivery has some limitations to circumvent, mainly due to low in vivo stability and reduced binding capability.

5.3. Exosome-Based Methods

The established proof-of-concept that the Extracellular Vescicles (EV)-mediated delivery of scFvs can target intracellular antigens renders it feasible its application in vivo[41]. In addition, the possibility to obtain recombinant exosomes from the host following the administration of a genetic construct as a vaccine, suggests that delivery of anti-E6 and E7 intrabodies by exosomes is feasible in humans[49]. This also takes advantage of the capacity of the recipient organism to produce the exosomes as the intramuscular injection of DNA plasmids expressing antibody constructs, followed or not by electroporation, would permit the exosome-loaded antibodies to reach several body districts. In virtue of the antibody specificity for the HPV oncoproteins, such broad distribution will not result in off-target effects while potentially affecting any metastatic cells derived from the primary tumour.

5.4. Viral Vector-Based Methods

In the last 30 years, several clinical trials used viral vectors for gene transfer. Gamma-retroviral and lentiviral vectors for haematological cancers; adenoviral vectors for prostate, ovarian and bladder cancer; and adenovirus-associated vectors for pathologies other than cancer were employed with more or less success, and are still the object of preclinical and clinical proof-of-concept studies[50]. Noteworthy, HPV-associated lesions have a confined localization that renders them accessible to topical therapy whatever the delivery system chosen. Furthermore, the expression of the target oncoproteins being limited to cancer cells represents an additional advantage for the safety of a therapy designed to inhibit protein–protein interactions such as that based on recombinant antibodies.

5.5. Ultrasound-Based Methods

The Ultrasound-mediated targeted delivery (UMTD) is a non-invasive method that is attracting increasing interest for many biochemical applications including immunotherapy of tumours. UMTD combined with microbubbles allows delivery of therapeutic molecules precisely in the tumour site. In fact, oscillation and cavitation of microbubbles under the influence of the acoustic beam causes the reversible formation of localized pores of about 100 nm in diameter in the cell membrane[51]. This phenomenon, known as sonoporation, allows the passive release of therapeutic molecules into target cells. Feasibility and specificity of sonoporation for anti-16E6 mAb delivery to cervical carcinoma cell lines were assessed in vitro but the effect was transient and incomplete as p53 levels were affected but no apoptosis was induced[30]. However, the issue of delivery to nucleus, which probably underlies the observed partial efficacy, could be addressed using smaller antibody formats provided with NLS. Sonoporation is increasingly explored for both passive and active immunotherapy in vivo[52]. Ultrasound in combination with microbubbles even allowed the Herceptin mAb (trastuzumab) to cross the blood-brain barrier in mice, thus opening up the possibility of treating brain metastases of breast cancer[53]. However, translation of the methodology to human therapy requires further investigation on the possible elicitation of immune response by microbubbles, the exact mechanism of the therapeutic material release, the size-based microbubble capacity of penetrating cell membranes, and the excretion of microbubbles from the body.

6. Conclusions and Perspectives

Currently, recombinant antibodies for targeting antigens involved in the pathogenesis of a variety of diseases are obtainable by robust methodologies of immunization and in vitro screening. Nevertheless, their use as therapeutics may require optimization of crucial characteristics such as binding specificity and affinity, solubility, and pharmacokinetics, as well as setting up an appropriate delivery system. The possibility of designing bispecific antibodies that combine binding domains from different parental antibodies can expand the binding capacity of a single molecule by targeting at the same time multiple antigens such as E6 and E7, or multiple epitopes on the same antigen (such as DBD and E6AP binding domain on E6) but their solubility and stability may be affected and require corrections[54].

In conclusion, the therapy for HPV-associated lesions relying on antibodies shows great potential and presents some advantages over more conventional systems of immunization, such as specificity and effectiveness also in subjects immunosuppressed by natural or induced causes as co-infections or pharmacological treatments.
