Submitted Successfully!
Thank you for your contribution! You can also upload a video entry or images related to this topic.
Ver. Summary Created by Modification Content Size Created at Operation
1 + 3187 word(s) 3187 2021-08-20 06:14:41 |
2 The format is correct Meta information modification 3187 2021-09-28 03:51:53 |

Video Upload Options

Do you have a full video?


Are you sure to Delete?
If you have any further questions, please contact Encyclopedia Editorial Office.
Humayun, M. Cobalt Catalysts for CO2 Reduction. Encyclopedia. Available online: (accessed on 10 December 2023).
Humayun M. Cobalt Catalysts for CO2 Reduction. Encyclopedia. Available at: Accessed December 10, 2023.
Humayun, Muhammad. "Cobalt Catalysts for CO2 Reduction" Encyclopedia, (accessed December 10, 2023).
Humayun, M.(2021, September 23). Cobalt Catalysts for CO2 Reduction. In Encyclopedia.
Humayun, Muhammad. "Cobalt Catalysts for CO2 Reduction." Encyclopedia. Web. 23 September, 2021.
Cobalt Catalysts for CO2 Reduction

Cobalt catalysts are very important due to their extensive applications in many industrial processes, such as Fisher–Tropsh synthesis and CO2 conversion. Electrocatalytic CO2 reduction reaction (CO2RR) is a promising strategy due to its easy operating system, simple constructions, operational at neutral pH, ambient temperature and atmospheric pressure, and low energy utilization to produce valuable chemicals and fuels such as formic acid, methane, ethanol, and carbon using renewable electricity. Therefore, CO2RR coupling with renewable energy sources can effectively achieve a carbon-neutral energy cycle and hydrocarbon products with high activity, stability, and selectivity.

CO2 conversion electrocatalysts cobalt catalysts MOFs

1. Introduction

The excessive combustion of fossil fuels has caused massive carbon dioxide (CO2) emissions, leading to rapid global environmental changes such as global warming, air pollution, desertification, acid rains, rise in sea levels, and extreme weather conditions [1]. The threats to human life and the environment due to high CO2 emissions are increasing day by day with growing energy demands.
Several carbon capture and utilization methods are implemented to mitigate CO2 concentration in the atmosphere and overcome its environmental challenges [2][3][4][5][6]. The main strategies to reduce CO2 emissions deal with the circular carbon economy (CCE), a holistic approach that consists of Reduce, Reuse, Recycle and Remove (4Rs) of CO2. The reuse of CO2 is categorized to search for low carbon energy alternatives such as wind, solar and hydro energy for replacing fossil fuels. Another approach is geological sequestration, a promising strategy to provide a low carbon energy future [7][8][9]. Still, there is uncertainty about stored CO2 for a long time, and it might have leakage issues. Another approach is recycling, and utilizing CO2 into other useful chemicals is the most attractive strategy to reduce CO2 emissions [10][11][12]. Catalysis plays a vital role in our daily life. Various types of catalysts have been reported for the conversion of waste into useful products, including zeolites [13][14][15][16][17][18][19][20][21][22][23][24][25][26][27], metal and metal oxides [28][29][30][31][32][33][34][35][36][37][38][39][40], nitrides [41][42][43][44][45][46][47][48][49], carbon-based catalysts [50][51][52][53][54][55][56][57][58][59][60][61], metal complexes [62][63][64][65][66][67][68][69][70] or highly porous metal–organic frameworks (MOFs) and covalent organic frameworks (COFs) [3][71][72][73][74][75][76][77][78]. The synthesis of supported catalysts methods has also been reviewed recently [79]. We observed the superior behavior of cobalt in catalysis, especially in electrocatalysis.
Co-based materials have many advantages over others because as a popular metal, Co belongs to the group VIII-B of the periodic table having unique features like high electrical conductivity, thermal stability, unique electronic features, chemical stability, and high catalytic performances, which makes co-based catalysts as promising materials for CO2RR applications. Cobalt as an earth-abundant transition metal is a splendid alternative to noble metals such as Pt, Ir, Ru, etc. For CO2RR, Co has been used as a prominent source as noble metal-free electro/photocatalysts due to fascinating properties such as loosely bonded d-electrons and therefore readily available multiple oxidation states (Co(0), Co(I), Co(II), Co(III) and Co(IV). Moreover, it is found that a transition from Co(II) to Co(I) is involved at the intermediate state for CO2 reduction. Hence, high activity, outstanding stability and product selectivity are achieved through Co-based catalysts for CO2 reduction [80][81]. Cobalt is more reactive than other earth-abundant metals due to the possession of modest CO2 adsorption and d-band closeness to the Fermi level [82]. Co-based catalysts have been explored as effective cathode materials for electroreduction of CO2 to CO exhibiting high activities and selectivity [83]. For CO2 photoreduction, Co metal sites in Co-based MOFs offer the traps for electrons for facilitation in electrons-holes separation, thus providing a longer life for electrons for the reduction reaction. Co is found to be an important stabilizer for major intermediates in CO2 reduction [80][82]. Co-based materials have applications in various other fields such as energy storage, catalysis, and thermopower. Co-based materials (i.e., NaxCoO2) play a critical role in cathode and anode materials for Na-ion batteries. Likewise, LiCoO2 has been regarded as one of the most commercialized cathode materials for Li-ion batteries. Cobalt oxides and cobalt chalcogenides exhibit a high theoretical capacity for sodium storage [84]. Thus, cobalt has been reported as an important center for CO2 reduction [38][44][85][86][87][88].

2. Cobalt Catalysts for CO2 Reduction

2.1. Cobalt-Based Single-Atom Catalysts (SACs) for CO2RR

CO2 reduction reaction (CO2RR) catalysts have challenges of high overpotential, low Faradaic efficiency, low current density and lack of long-term stability. However, single-atom catalysts (SACs) are used for CO2RR with great importance. Studies show that SACs for CO2RR are of two categories based on their synthesis route: i) organometallic precursor pyrolysis such as MOFs; ii) loading of the metal precursor directly onto the support, which are followed by heat and acids treatment to get rid of the excess nanoparticles as shown in Figure 1. The Co precursor was dispersed with the polymer (Pluronic F127) and the colloidal silica, then the mixture was pyrolyzed and the template was etched by acid treatment to obtain the Co-SAS/HOPNC. Uniform hierarchical and atomic sites of cobalt dispersed in the carbon matrix were observed by the BET. SEM and TEM and the elemental analysis confirm the presence of the Co, N and C.

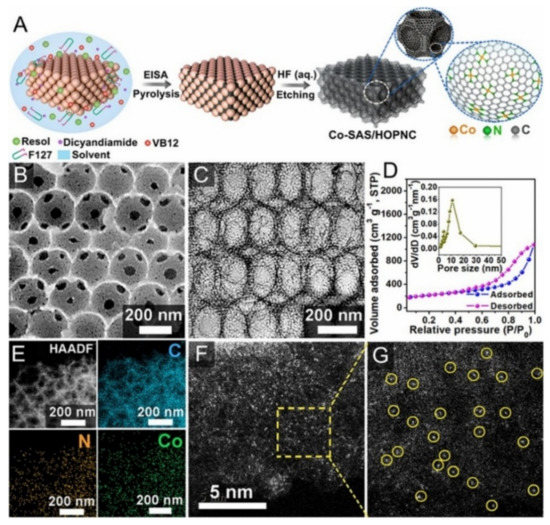

Figure 1. Fabrication of Co-SAS/HOPNC catalyst. (A) Step-wise synthesis procedure of Co-SAS/HOPNC. (B) SEM image, and (C) TEM micrograph of Co-SAS/HOPNC catalyst. (D) N2 adsorption–desorption isotherm curves of Co-SAS/HOPNC catalyst. (Inset) The pore size distribution curve. (E) HAADF-STEM micrograph and the EDS maps of Co-SAS/HOPNC catalyst. (F,G) AC HAADF-STEM micrographs of the Co-SAS/HOPNC catalyst. Yellow circles represent the isolated single Co atoms. Reproduced from [89], with permission from PNAS, 2018.

2.2. Multi-Metals Cobalt Catalysts for CO2RR

Electrochemical CO2RR produces various forms of products ranging from CO, formic acid, alcohols, methane, olefin, and hydrocarbon [90]. However, the selectivity of these products is highly dependent on the adsorption characteristics of the reactants on the electrode surface. Due to the associated problems of metal electrocatalyst, transition metal catalysts could solve the problems to some extent because of the overpotential and poisoning [91], as metal and mixed metal electro catalysis still attracted scientific attention [92][93]. Recently, multimetallic compounds have been given more attention to reducing material cost and tuning the strength of intermediate electrochemical reaction of CO2 reduction to achieve high selectivity [94]. Multi-metals Co and Fe electrocatalyst were investigated for CO2-reduction by Abdinejad and coworkers [69][95]. Their research finding reveals that the introduction of amino substituent enhanced the electrolytic activity toward the CO2 conversion through dual active sites. The mono-amino FeP reduces the CO2 to CO at ambient temperature and pressure with significant turnover (TON). They further reported the reactivity and selectivity of amino compounds towards capture and electroreduction of CO2 in both homogeneous and heterogeneous [96].

2.3. Cobalt Oxides Catalysts for CO2RR

Cobalt oxides have been used extensively in CO2RR as active catalysts as well as support materials. Aljabour et al. [97] used nanofibrous Co3O4 for the production of CO and formic acid. The nanofiber electrode exhibits stability for 8 h and overall Faradaic efficiency of about 90% for CO at a geometric current density of ~0.5 mAcm2 on a flat surface shown in Figure 2.

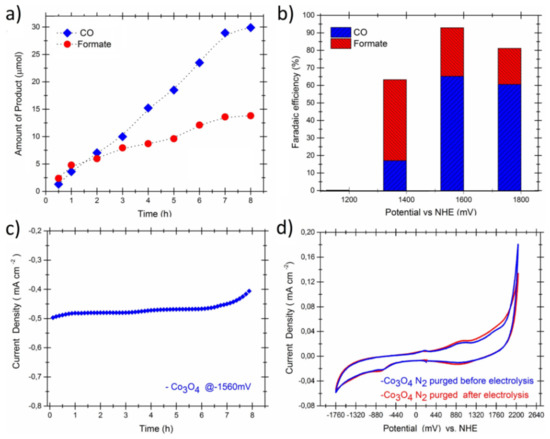

Figure 2. Electroreduction of CO2 via the nanofibrous Co3O4, (a) increase in the amount of CO gas and formate as a function of time at a regular electrolysis potential of −1560 mV vs. NHE, (b) the electrolysis voltage versus the faradaic efficiency, (c) the chronoamperometry results, (d) Cyclic voltammograms of the electrode nanofibers measured before and after the electrolysis at a scan rate of 30 mV s−1. Reproduced from [97], with permission from Elsevier, 2018.

2.4. Cobalt-Based Nitride Catalysts

Cobalt nitrides have proved beneficial for CO2RR because they offer more surface base sites of adsorption of CO2 and the generation of more active sites [98][99][100][101][102][103][104]. Peng et al. reported the highly efficient CO2RR cobalt nitride catalysts (700-Co5.47N/C) in an aqueous electrolyte. For the synthesis of these cobalt nitride catalysts, impregnation and nitridation involving temperature-programmed reaction (TRP) were used. For the optimized electrocatalyst 700-Co5.47N/C, the observed CO current density was 9.78 mA. cm2 at −0.7 V vs. RHE. The as-prepared electrocatalyst showed high Faradaic efficiency and good stability. Furthermore, tuning of the electrolysis potentials led to the CO/H2 ratio adjustment from 3:1 to 3:2 [42]. In 2019, a robust synthesis strategy was adopted to synthesize the metal/nitrogen/carbon (MNC) catalysts with the presence of metal atoms as the atomically dispersed metal-Nx moieties (wherein MNx, M represents Mn, Co, Fe, Ni, and Cu metals) in N doped carbon using Zn MOF and metal salts. Jaouen et al. identified a volcano trend in MNC catalysts with MNx (M = Mn, Co, Fe, Ni, and Cu), providing an in-depth understanding of the activity and selectivity of atomically MNx with different metals for CO2RR. MNC catalysts as promising candidates for CO2RR were studied as model catalysts. Co was observed at the top of the volcano based on electrochemical potential. The experimental-operando X-ray absorption near edge structural spectroscopy was used for accurate modelling of active sites keeping the changes in the oxidation states of metals with change in potential. CoNC had no change in oxidation state with changing potential, and M2 + N4-H2O was identified as the most active center by computational studies. This work provided a base for the design and fabrication of cobalt-based MNC catalysts for CO2RR to be used in the future [43]. The cobalt nitrogen functionalized materials are noteworthy catalysts for CO2RR due to their high-performance activities. Metalloporphyrin and its derivatives have also been promising materials for catalytic activities [12]. Therefore, in 2019, Zhou et al. employed DFT calculations to study CO2RR on Co-centered porphyrin and graphene with C, N and O as different coordinating atoms to further improve the activities. Through coordination engineering, the catalytic activities can be enhanced by the cobalt atom’s vacancy formation energy arising by substituting different coordinating atoms. Detailed electronic studies results showed that Co-O bonds lack π
-bonding compared to the Co-N and Co-C bonds in the Co-centered structure, therefore, had potential for high catalytic activities. Hence, coordination engineering can be employed as an effective strategy for the enhancement of CO2RR catalytic activities in cobalt nitrogen functionalized materials [105].

2.5. Cobalt-Based Complexes for CO2RR

Transition metal complexes offer an advantage for CO2RR due to fine-tuning the coordination sphere via altering the chelating surroundings vis-à-vis electronic and steric effects of the chelating agents. Such fine-tuning is not possible in solid-state transition metal catalysts. Metal complex-type catalysts are available in the literature, ranging from noble metals (Ir, Ru, Re, etc.) to none-noble coinage metals (Co, Ni, Fe Cu, etc.) [106][107]. These metals provide a two-electron reduction pathway to form -COOH, using organic reaction media. The porphyrin ring is an efficient ligand among other ligands because of its peculiar stability and high photo-electrochemical traits. A variety of cobalt complexes have been investigated for CO2RR with promising results, there is still a need to find and generate a low-valent intermediate with significantly lower potential.

2.6. Cobalt Porphyrin for CO2RR

In recent years, porphyrin-based metal complexes have been significantly explored for CO2 reduction [108]. This section keeps separately due to its broad research because porphyrin-ring offers high electron transfer activity, thus requiring relatively lower overpotential with high CO selectivity in the CO2 reduction reactions. Additionally, researchers have made significant progress in porphyrin-based electrocatalysts anchored on potential host materials in terms of catalyst stability. Immobilized cobalt porphyrins have been reported for high faraday efficiency towards CO with lower overpotential. First principle calculations have also played a pivotal part in explaining the electronic structures of the metal-porphyrin catalytic systems for CO2 reduction [109]. Shen et al. [68] immobilized cobalt protoporphyrins on pyrolytic graphite in aqueous media, and tested them for CO2 reduction. The authors underpinned the pH stability of cobalt porphyrin electrocatalyst, saying that optimization of pH plays a crucial role in triggering the CO2 reduction reaction. Their study claimed a >60% Faraday efficiency towards CO and >2.5% towards CH4 was reported at a potential of −0.6 V vs. RHE, under acidic conditions. First principle calculations are important to understand the reaction pathways in the cobalt porphyrin electrocatalytic systems. In this regard, Leung et al. [110] performed the pioneering work by applying quantum chemistry and ab initio calculations in investigating the electrocatalytic effect of cobalt porphyrin complexes in the reductive decomposition of CO2 in aqueous media. They used hybrid functionals alongside the dielectric continuum solcation methods, for determining the electron transfer mechanisms. They proposed a reductive mechanism that explained the CO2 reduction at ambient to higher pH levels, which starts with one-electron transfer to the cobalt porphyrin complex [Co-porphyrin], which then adds CO2 to itself forming adjunct an [Co-porphyrin.CO2]2. Upon protonation an intermediate [Co-porphyrin.COOH] is produced, which upon relieving the OH moiety, produces the product CO. The two key intermediates in this whole reaction cycle are [Co-porphyrin.CO2]2 and [Co-porphyrin.COOH], due to the stronger interactions of CO2 and water. Miyamoto and Asahi [111] reported on the enhanced CO2 reduction to CO over cobalt porphyrin complexes in water based upon Koper’s mechanism. They combined their DFT calculations with the experimental results. Their work targeted the pH stability of their catalytic system, and reported that at pH = 3, a single proton shift from water occurs at −0.8 V vs. RHE. They said that water plays a vital role in the CO2 reduction to CO, as their calculated redox potential of proton transfer matched that of the experimental results.

2.7. Cobalt-Based MOFs and COFs for CO2RR

The reticular chemistry of the MOFs and COFs enable the use of tunable control of the catalytic system to convert the carbon dioxide to value-added products [112]. However, this tunable property is prohibited by poor electrical conductivities. This can only be overcome by the suitable use of the metals such as cobalt, copper in the inorganic SBUs.Katherine A. Mirica reported the synthesis of conductive two-dimensional MOF made of metallophalocyanine (cobalt/nickel) ligands linked by copper nodes with high electrical conductivities for the conversion of CO2 to CO. It was observed that TOF values range from 1.15 and 0.63 s1 for CoPc-Cu-NH and CoPc-Cu-O [113]. Christopher J. Chang reported COF synthesis containing cobalt porphyrin catalysts as building units and organic linkers bonded through imine linkage to make the COF for the aqueous electrochemical reduction of CO2 to CO. The COF materials were deposited on porous, conductive carbon fabric. Incorporating tubular molecular units of the porphyrins within the extended COF structure gave an advantage in electrocatalytic reduction with exceptionally high activity and selectivity. Thus we find that with the increasing length of the linker from COF-366 to COF-367, the activity is increased with the TON up to 290,000 and TOF of 9400 h1 about 26-fold more than the normal cobalt complex with no degradation over 24 h [114]. Rong Xu immobilized cobalt oxide nanoparticles on MIL-101 for water oxidation with a TOF of 0.012 s1 [115]. Jinhong et al. prepared cobalt immobilized on a covalent triazine-based framework (CTF) as an efficient cocatalyst to reduce CO2 under visible-light irradiation. The CTF helps in the CO2 adsorption while the pore structure helps in the accommodation of CO2 and electron mediator. It was observed that the production of CO increases 44-fold than the pristine CTF on the introduction of cobalt. The obtained CO from this catalyst was about 50 mol g1h1 [116]. Peidong Yang et al. prepared a cobalt porphyrin-based Aluminum MOF for the conversion of CO2 to CO with the TON up to 1400. In situ analysis showed that the majority of the redox-accessible Co(II) is reduced to Co(I) during catalysis [117]. Xinyong Li prepared a novel Z-scheme heterojunction of Co3O4@CoFe2O4 hierarchical hollow double-shelled nanoboxes derived from ZIF-67 to give CH4 and CO at a rate of 2.06 mol h1 and 72.2 mol h1, respectively [117]. Yaghi et al. [118] prepared a new anionic 3D metal–organic framework MOF-1992 containing Co phthalocyaninoctaol. It converts CO2 to CO with the TON up to 5800 and TOF 0.20 s1 with a current density of −16.2 mA cm2 at −0.52. The electroactive coverage of the catalyst was estimated with the aid of the CV measurement (Figure 3), and it was found to be ~25% of the total catalyst loading. Zhang et al. [119] studied a novel mixed-metallic MOF [Ag4Co2(PYZ)PDC4] which transformed into an Ag-doped CoO4 catalyst. The Ag/Co3O4 catalyst gives the highest selectivity for CO in 0.1 M KHCO3 electrolyte (CO2 saturation), up to ~45% Faradaic efficiency was reported. Compared to the Ag/Co3O4 electrode, the highest Faradaic efficiency for CO over the pure Co3O4 is 21.3% at 1.8 V (vs. SCE). Their findings show that the presence of Ag improves the efficiency of CO significantly and inhibits H2 production for 10 h at −1.8 V (vs. SCE). Pan et al. [38] used cobalt MOF as a precursor to synthesized electrocatalysts on carbon as model catalysts for CO2RR. The prepared Co electrocatalyst was compared with Fe MOF-based electrocatalysts. The MOFs-derived catalysts were more active than the bulk electrocatalysts for CO2 reduction over hydrogen production reaction.

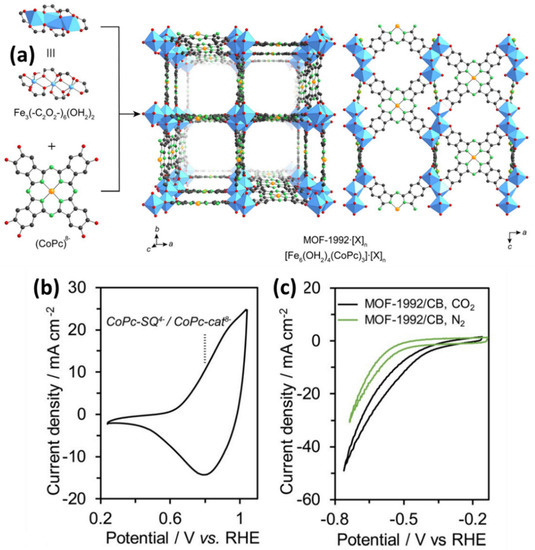

Figure 3. (a) Single-crystal X-ray structure of MOF-1992 based on the Fe-trimers and Co-phthalocyanine catechollinkers (CoPc). Atoms color: C-black; O-red; N-green; Co-orange; Fe-blue polyhedra. Hydrogen atoms and the chlorido ligands are omitted. The anionic charge of [Fe6(OH2)4(CoPc)3]6-, MOF-1992, was balanced by the presence of [X] n counterions (X represents Mg2+ or Fe3+). Electrochemical characterizations of the MOF-1992 (b) Cyclic voltammetry (CV) of the MOF-1992/CB (CB, carbon black). The vertical line display the potential of Co-Pc-semiquinolate (CoPc-SQ) 4-/CoPc-catecholate (CoPc-cat) 8-redox couple (c) CV of the MOF-1992/CB in a CO2-saturated (black, pH = 6.8) and N2-saturated (green, pH = 7.2) KHCO3 solution. Reproduced from [118], with permission from American Chemical Society, 2019.

3. Outlook

Despite several advancements, further improvements for recommendation are given below:
  • Mixed metal catalysts: The numbers of electrons involved in the ECO2RR are 2,8,12,14 for the formation of CO, methane, ethylene, and ethane, respectively. Bi and trimetallic catalysts are required to allow the charge transfer for the desire products especially CO2, towards higher hydrocarbons.
  • Complexes: The use of organometallic complexes is still needed to increase the conjugation of the materials to overcome the conductivity problem for CO2RR for products higher than the eight-electron system.
  • Nanostructured electrocatalysts: The use of nanostructured cobalt catalysts can be further improved to gain a high current and to provide a high density of active sites for CO2RR.
  • In situ/operando measurements: It is crucial to understand the catalyst’s active sites, reduction pathway, and the type of intermediates by operando techniques.
  • Simulation data: The CO2 electro reduction can be combined with simulation electrocatalysts to predict the product efficiency. A better reaction is needed to predict the catalyst development for efficient CO2RR.
  • Cobalt sulfide and selenide: The composites of cobalt sulfide and selenide can be explored for electrochemical CO2RR.
  • CO2 reduction under impurities: The post-combustion plant contains several impurities along with CO2. Thus CO2RR in the presence of impurities must be tested to revealed electrode activity and stability.
  • Mixed gases data: CO2 in the air is present as a mixture with other gases. The practical application of this technology is required to reduce the CO2 in mixed gases electrochemically.
  • Current density: Currently, cobalt-based materials used liquid electrolytes with bubbled CO2 for reduction. However, this gives low current density. The gas diffusion cells can be introduced to overcome this solubility issue by the liquid electrolytes and to achieve high current densities (>100 mA).
  • Use of solid electrolytes: A solid-state electrolyte configuration might overcome the challenge of CO2 solubility and low current density.


  1. Draper, A.M.; Weissburg, M.J. Impacts of Global Warming and Elevated CO2 on Sensory Behavior in Predator-Prey Interactions: A Review and Synthesis. Front. Ecol. Evol. 2019, 7.
  2. Garba, M.D.; Usman, M.; Khan, S.; Shehzad, F.; Galadima, A.; Ehsan, M.F.; Ghanem, A.S.; Humayun, M. CO2 towards fuels: A review of catalytic conversion of carbon dioxide to hydrocarbons. J. Environ. Chem. Eng. 2021, 9, 104756.
  3. Usman, M.; Helal, A.; Abdelnaby, M.M.; Alloush, A.M.; Zeama, M.; Yamani, Z.H. Trends and Prospects in UiO-66 Metal-Organic Framework for CO2 Capture, Separation, and Conversion. Chem. Rec. 2021, 21, 1771–1791.
  4. Usman, M.; Helal, A. Zirconium Metal-Organic Framework and a Method of Capturing Carbon Dioxide. U.S. Patent 16/677,277, 13 May 2021.
  5. Usman, M.; Al-Maythalony, B.A. Hybrid Zeolitic Imidazolate Framework and a Method of Capturing Carbon Dioxide. U.S. Patent 16/720,535, 24 June 2021.
  6. Ala’a, F.E.; Abdussalam, K.Q.; Areej, K.H.; Khaleel, I.A.; Feda’a, M.; Al-Qaisi, A.; Maryam, E.M.; Bassem, A.A.-M.; Muhammad, U. Cross-linked, Porous Imidazolium-based Poly(Ionic Liquid)s for CO2 Capture and Utilisation. New J. Chem. 2021.
  7. Khan, S.; Khulief, Y.A.; Al-Shuhail, A. Mitigating climate change via C sequestration into Biyadh reservoir: Geomechanical modeling and caprock integrity. Mitig. Adapt. Strateg. Glob. Change. 2019, 24, 23–52.
  8. Khan, S.; Khulief, Y.; Al-Shuhail, A. The effect of injection well arrangement on injection into carbonate petroleum reservoir. Int. J. Glob. Warm. 2018, 14, 462–487.
  9. Khan, S.; Khulief, Y.A.; Al-Shuhail, A.A. Effects of reservoir size and boundary conditions on pore-pressure buildup and fault reactivation during CO2 injection in deep geological reservoirs. Environ. Earth Sci. 2020, 79, 294.
  10. Cheng, Y.; Yang, S.Z.; Jiang, S.P.; Wang, S.Y. Supported Single Atoms as New Class of Catalysts for Electrochemical Reduction of Carbon Dioxide. Small Methods 2019, 3, 656–664.
  11. Zheng, T.T.; Jiang, K.; Wang, H.T. Recent Advances in Electrochemical CO2-to-CO Conversion on Heterogeneous Catalysts. Adv. Mater. 2018, 30, 1802066.
  12. Din, I.U.; Usman, M.; Khan, S.; Helal, A.; Alotaibi, M.A.; Alharthi, A.I.; Centi, G. Prospects for a green methanol thermo-catalytic process from CO2 by using MOFs based materials: A mini-review. J. CO2 Util. 2021, 43, 101361.
  13. Zhu, J.; Li, Y.; Muhammad, U.; Wang, D.; Wang, Y. Effect of alkene co-feed on the MTO reactions over SAPO-34. Chem. Eng. J. 2017, 316, 187–195.
  14. Arslan, M.T.; Qureshi, B.A.; Gilani, S.Z.A.; Cai, D.; Ma, Y.; Usman, M.; Chen, X.; Wang, Y.; Wei, F. Single-Step Conversion of H2-Deficient Syngas into High Yield of Tetramethylbenzene. ACS Catal. 2019, 9, 2203–2212.
  15. Usman, M.; Zhu, J.; Chuiyang, K.; Arslan, M.T.; Khan, A.; Galadima, A.; Muraza, O.; Khan, I.; Helal, A.; Al-Maythalony, B.A.; et al. Propene Adsorption-Chemisorption Behaviors on H-SAPO-34 Zeolite Catalysts at Different Temperatures. Catalysts 2019, 9, 919.
  16. Ashraf, M.; Khan, I.; Usman, M.; Khan, A.; Shah, S.S.; Khan, A.Z.; Saeed, K.; Yaseen, M.; Ehsan, M.F.; Tahir, M.N.; et al. Hematite and Magnetite Nanostructures for Green and Sustainable Energy Harnessing and Environmental Pollution Control: A Review. Chem. Res. Toxicol. 2020, 33, 1292–1311.
  17. Zhang, C.; Wang, Q.; Jia, Z.; Muhammad, U.; Qian, W.; Wei, F. Design of parallel cyclones based on stability analysis. AlChE J. 2016, 62, 4251–4258.
  18. Ma, Y.; Cai, D.; Li, Y.; Wang, N.; Muhammad, U.; Carlsson, A.; Tang, D.; Qian, W.; Wang, Y.; Su, D.; et al. The influence of straight pore blockage on the selectivity of methanol to aromatics in nanosized Zn/ZSM-5: An atomic Cs-corrected STEM analysis study. RSC Adv. 2016, 6, 74797–74801.
  19. Cai, D.; Wang, Q.; Jia, Z.; Ma, Y.; Cui, Y.; Muhammad, U.; Wang, Y.; Qian, W.; Wei, F. Equilibrium analysis of methylbenzene intermediates for a methanol-to-olefins process. Catal. Sci. Technol. 2016, 6, 1297–1301.
  20. Usman, M.; Li, D.; Li, C.; Zhang, S. Highly selective and stable hydrogenation of heavy aromatic-naphthalene over transition metal phosphides. Sci. China Chem. 2015, 58, 738–746.
  21. Wang, H.; Cao, Y.; Li, D.; Muhammad, U.; Li, C.; Li, Z.; Zhang, S. Catalytic hydrorefining of tar to liquid fuel over multi-metals (W-Mo-Ni) catalysts. J. Renew. Sustain. Energy 2013, 5, 053114.
  22. Zhang, H.H.; Cao, Y.M.; Usman, M.; Li, L.J.; Li, C.S. Study on the Hydrotreating Catalysts Containing Phosphorus of Coal Tar to Clean Fuels. Adv. Mat. Res. 2012, 531, 263–267.
  23. Yaseen, M.; Shakirullah, M.; Ahmad, I.; Rahman, A.U.; Rahman, F.U.; Usman, M.; Razzaq, R. Simultaneous operation of dibenzothiophene hydrodesulfurization and methanol reforming reactions over Pd promoted alumina based catalysts. J. Fuel Chem. Technol. 2012, 40, 714–720.
  24. Kan, T.; Sun, X.; Wang, H.; Li, C.; Muhammad, U. Production of Gasoline and Diesel from Coal Tar via Its Catalytic Hydrogenation in Serial Fixed Beds. Energy Fuels 2012, 26, 3604–3611.
  25. Din, I.U.; Alotaibi, M.A.; Alharthi, A.I. Green synthesis of methanol over zeolite based Cu nano-catalysts, effect of Mg promoter. Sustain. Chem. Pharm. 2020, 16.
  26. Alharthi, A.I.; Din, I.U.; Alotaibi, M.A. Effect of the Cu/Ni Ratio on the Activity of Zeolite Based Cu–Ni Bimetallic Catalysts for CO2 Hydrogenation to Methanol. Russ. J. Phys. Chem. A 2020, 94, 2563–2568.
  27. Garba, M.D.; Galadima, A. Catalytic Hydrogenation of Hydrocarbons for Gasoline Production. J. Phys. Sci. 2018, 29, 153–176.
  28. Khan, F.-A.; Yaqoob, S.; Nasim, N.; Wang, Y.; Usman, M.; Isab, A.A.; Altaf, M.; Sun, B.; El Azab, I.H.; El-Seedi, H.R. Ruthenium Nanoparticles Intercalated in Montmorillonite () Is Highly Efficient Catalyst for the Selective Hydrogenation of 2-Furaldehyde in Benign Aqueous Medium. Catalysts 2021, 11, 66.
  29. Ehsan, M.F.; Fazal, A.; Hamid, S.; Arfan, M.; Khan, I.; Usman, M.; Shafiee, A.; Ashiq, M.N. CoFe2O4 decorated g-C3N4 nanosheets: New insights into superoxide anion mediated photomineralization of methylene blue. J. Environ. Chem. Eng. 2020, 8.
  30. Ehsan, M.F.; Shafiq, M.; Hamid, S.; Shafiee, A.; Usman, M.; Khan, I.; Ashiq, M.N.; Arfan, M. Reactive oxygen species: New insights into photocatalytic pollutant degradation over g-C3N4/ZnSe nanocomposite. Appl. Surf. Sci. 2020, 532.
  31. Garba, M.D.; Jackson, S.D. Transhydrogenation of pentane and 1-hexyne over CrOx/Al2O3 and potassium-doped CrOx/Al2O3 catalysts. Appl. Petrochem. Res. 2019, 9, 113–125.
  32. Garba, M.D.; Jackson, S.D. Catalytic upgrading of refinery cracked products by trans-hydrogenation: A review. Appl. Petrochem. Res. 2017, 7, 1–8.
  33. Akbar Jan, F.; Wajidullah; Ullah, R.; Ullah, N.; Salman; Usman, M. Exploring the environmental and potential therapeutic applications of Myrtus communis L. assisted synthesized zinc oxide (ZnO) and iron doped zinc oxide (Fe-ZnO) nanoparticles. J. Saudi Chem. Soc. 2021, 25.
  34. Jan, F.A.; Shah, U.; Saleem, M.; Ullah, R.; Ullah, N.; Usman, M.; Hameed, S. Photo catalytic degradation of xylene cyanol FF dye using synthesized bismuth-doped zinc oxide nanocatalyst. Bulg. Chem. Commun. 2021, 53, 83–90.
  35. Medina, O.E.; Gallego, J.; Acevedo, S.; Riazi, M.; Ocampo-Pérez, R.; Cortés, F.B.; Franco, C.A. Catalytic Conversion of n-C7 Asphaltenes and Resins II into Hydrogen Using CeO2-Based Nanocatalysts. Nanomaterials 2021, 11, 1301.
  36. Melo, J.A.; de Sá, M.S.; Moral, A.; Bimbela, F.; Gandía, L.M.; Wisniewski, A. Renewable Hydrocarbon Production from Waste Cottonseed Oil Pyrolysis and Catalytic Upgrading of Vapors with Mo-Co and Mo-Ni Catalysts Supported on γ-Al2O3. Nanomaterials 2021, 11, 1659.
  37. Zedan, A.F.; Gaber, S.; AlJaber, A.S.; Polychronopoulou, K. CO Oxidation at Near-Ambient Temperatures over TiO2-Supported Pd-Cu Catalysts: Promoting Effect of Pd-Cu Nanointerface and TiO2 Morphology. Nanomaterials 2021, 11, 1675.
  38. Pan, F.P.; Zhang, H.G.; Liu, K.X.; Cullen, D.; More, K.; Wang, M.Y.; Feng, Z.X.; Wang, G.F.; Wu, G.; Li, Y. Unveiling Active Sites of CO2 Reduction on Nitrogen-Coordinated and Atomically Dispersed Iron and Cobalt Catalysts. ACS Catal. 2018, 8, 3116–3122.
  39. Orudzhev, F.; Ramazanov, S.; Sobola, D.; Isaev, A.; Wang, C.; Magomedova, A.; Kadiev, M.; Kaviyarasu, K. Atomic Layer Deposition of Mixed-Layered Aurivillius Phase on TiO2 Nanotubes: Synthesis, Characterization and Photoelectrocatalytic Properties. Nanomaterials 2020, 10, 2183.
  40. Garba, M.D.; Jackson, S.D. Transhydrogenation of pentane with 1,5- and 2,4-hexadiene over CrOx/Al2O3. Appl. Petrochem. Res. 2021, 11, 79–88.
  41. Guo, Y.; Wang, Y.C.; Shen, Y.; Cai, Z.Y.; Li, Z.; Liu, J.; Chen, J.W.; Xiao, C.; Liu, H.C.; Lin, W.B.; et al. Tunable Cobalt-Polypyridyl Catalysts Supported on Metal-Organic Layers for Electrochemical CO2 Reduction at Low Overpotentials. J. Am. Chem. Soc. 2020, 142, 21493–21501.
  42. Chen, M.; Peng-fei, H.; Peng, K. Electrocatalytic Reduction of Carbon Dioxide to Carbon Monoxide using Cobalt Nitride. J. Appl. Electrochem. 2019, 25, 467–476.
  43. Li, J.; Prslja, P.; Shinagawa, T.; Martin Fernandez, A.J.; Krumeich, F.; Artyushkova, K.; Atanassov, P.; Zitolo, A.; Zhou, Y.; Garcia-Muelas, R.; et al. Volcano Trend in Electrocatalytic CO2 Reduction Activity over Atomically Dispersed Metal Sites on Nitrogen-Doped Carbon. ACS Catal. 2019, 9, 10426–10439.
  44. Pan, Y.; Lin, R.; Chen, Y.; Liu, S.; Zhu, W.; Cao, X.; Chen, W.; Wu, K.; Cheong, W.-C.; Wang, Y.; et al. Design of Single-Atom Co-N-5 Catalytic Site: A Robust Electrocatalyst for CO2 Reduction with Nearly 100% CO Selectivity and Remarkable Stability. J. Am. Chem. Soc. 2018, 140, 4218–4221.
  45. Wang, X.; Chen, Z.; Zhao, X.; Yao, T.; Chen, W.; You, R.; Zhao, C.; Wu, G.; Wang, J.; Huang, W.; et al. Regulation of Coordination Number over Single Co Sites: Triggering the Efficient Electroreduction of CO2. Angew. Chem. Int. Ed. 2018, 57, 1944–1948.
  46. Dongil, A.B. Recent progress on transition metal nitrides nanoparticles as heterogeneous catalysts. Nanomaterials 2019, 9, 1111.
  47. Humayun, M.; Ullah, H.; Tahir, A.A.; bin Mohd Yusoff, A.R.; Mat Teridi, M.A.; Nazeeruddin, M.K.; Luo, W. An Overview of the Recent Progress in Polymeric Carbon Nitride Based Photocatalysis. Chem. Rec. 2021.
  48. Liu, W.; Miao, Z.; Li, Z.; Wu, X.; Zhou, P.; Zhao, J.; Zhao, H.; Si, W.; Zhou, J.; Zhuo, S. Electroreduction of CO2 catalyzed by materials. J. CO2 Util. 2019, 32, 241–250.
  49. Miao, Z.; Liu, W.; Zhao, Y.; Wang, F.; Meng, J.; Liang, M.; Wu, X.; Zhao, J.; Zhuo, S.; Zhou, J. Zn-Modified –C composites with adjusted Co particle size as catalysts for the efficient electroreduction of CO2. Catal. Sci. Technol. 2020, 10, 967–977.
  50. Adio, S.O.; Ganiyu, S.A.; Usman, M.; Abdulazeez, I.; Alhooshani, K. Facile and efficient nitrogen modified porous carbon derived from sugarcane bagasse for CO2 capture: Experimental and DFT investigation of nitrogen atoms on carbon frameworks. Chem. Eng. J. 2020, 382.
  51. Usman, M.; Li, D.; Razzaq, R.; Latif, U.; Muraza, O.; Yamani, Z.H.; Al-Maythalony, B.A.; Li, C.; Zhang, S. Poly aromatic hydrocarbon (naphthalene) conversion into value added chemical (tetralin): Activity and stability of MoP/AC catalyst. J. Environ. Chem. Eng. 2018, 6, 4525–4530.
  52. Din, I.U.; Shaharun, M.S.; Naeem, A.; Alotaibi, M.A.; Alharthi, A.I.; Nasir, Q. Effect of reaction conditions on the activity of novel carbon nanofiber-based Cu/ZrO2 catalysts for CO2 hydrogenation to methanol. Comptes Rendus. Chim. 2020, 23, 57–61.
  53. Din, I.U.; Shaharun, M.S.; Naeem, A.; Alotaibi, M.A.; Alharthi, A.I.; Nasir, Q. CO2 Conversion to Methanol over Novel Carbon Nanofiber-Based Cu/ZrO2 Catalysts—A Kinetics Study. Catalysts 2020, 10, 567.
  54. Usman, M.; Humayun, M.; Shah, S.S.; Ullah, H.; Tahir, A.A.; Khan, A.; Ullah, H. Bismuth-Graphene Nanohybrids: Synthesis, Reaction Mechanisms, and Photocatalytic Applications—A Review. Energies 2021, 14, 2281.
  55. Buliyaminu, I.A.; Aziz, M.A.; Shah, S.S.; Mohamedkhair, A.K.; Yamani, Z.H. Preparation of nano-Co3O4-coated Albizia procera-derived carbon by direct thermal decomposition method for electrochemical water oxidation. Arab. J. Chem. 2020, 13, 4785–4796.
  56. Shah, S.S.; Aziz, M.A.; Mohamedkhair, A.K.; Qasem, M.A.A.; Hakeem, A.S.; Nazal, M.K.; Yamani, Z.H. Preparation and characterization of manganese oxide nanoparticles-coated Albizia procera derived carbon for electrochemical water oxidation. J. Mater. Sci. Mater. Electron. 2019, 30, 16087–16098.
  57. Shah, S.S.; Alfasane, M.A.; Bakare, I.A.; Aziz, M.A.; Yamani, Z.H. Polyaniline and heteroatoms–enriched carbon derived from Pithophora polymorpha composite for high performance supercapacitor. J. Energy Storage 2020, 30.
  58. Shah, S.S.; Qasem, M.A.A.; Berni, R.; Del Casino, C.; Cai, G.; Contal, S.; Ahmad, I.; Siddiqui, K.S.; Gatti, E.; Predieri, S.; et al. Physico-chemical properties and toxicological effects on plant and algal models of carbon nanosheets from a nettle fibre clone. Sci. Rep. 2021, 11, 6945.
  59. Raziq, F.; Qu, Y.; Humayun, M.; Zada, A.; Yu, H.; Jing, L. Synthesis of SnO2/B-P codoped g-C3N4 nanocomposites as efficient cocatalyst-free visible-light photocatalysts for CO2 conversion and pollutant degradation. Appl. Catal. B 2017, 201, 486–494.
  60. Aziz, A.; Shah, S.S.; Kashem, A. Preparation and Utilization of Jute-Derived Carbon: A Short Review. Chem. Rec. 2020, 20, 1074–1098.
  61. Daiyan, R.; Chen, R.; Kumar, P.; Bedford, N.M.; Qu, J.; Cairney, J.M.; Lu, X.; Amal, R. Tunable Syngas Production through CO2 Electroreduction on Cobalt–Carbon Composite Electrocatalyst. ACS Appl. Mater. Interfaces 2020, 12, 9307–9315.
  62. Roy, S.; Sharma, B.; Pécaut, J.; Simon, P.; Fontecave, M.; Tran, P.D.; Derat, E.; Artero, V. Molecular Cobalt Complexes with Pendant Amines for Selective Electrocatalytic Reduction of Carbon Dioxide to Formic Acid. J. Am. Chem. Soc. 2017, 139, 3685–3696.
  63. Wang, M.; Torbensen, K.; Salvatore, D.; Ren, S.; Joulié, D.; Dumoulin, F.; Mendoza, D.; Lassalle-Kaiser, B.; Işci, U.; Berlinguette, C.P.; et al. CO2 electrochemical catalytic reduction with a highly active cobalt phthalocyanine. Nat. Commun. 2019, 10, 3602.
  64. Nganga, J.; Chaudhri, N.; Brückner, C.; Angeles-Boza, A.M. β-Oxochlorin cobalt(ii) complexes catalyze the electrochemical reduction of CO2. Chem. Commun. 2021, 57, 4396–4399.
  65. Xia, Y.; Kashtanov, S.; Yu, P.; Chang, L.-Y.; Feng, K.; Zhong, J.; Guo, J.; Sun, X. Identification of dual-active sites in cobalt phthalocyanine for electrochemical carbon dioxide reduction. Nano Energy 2020, 67.
  66. Ma, J.; Zhu, H.; Zheng, Y. Highly dispersed cobalt phthalocyanine on nitrogen-doped carbon towards electrocatalytic reduction of CO2 to CO. Ionics 2021, 27, 2583–2590.
  67. Ogawa, A.; Oohora, K.; Gu, W.; Hayashi, T. Electrochemical CO2 reduction by a cobalt bipyricorrole complex: Decrease of an overpotential value derived from monoanionic ligand character of the porphyrinoid species. Chem. Commun. 2019, 55, 493–496.
  68. Shen, J.; Kortlever, R.; Kas, R.; Birdja, Y.Y.; Diaz-Morales, O.; Kwon, Y.; Ledezma-Yanez, I.; Schouten, K.J.P.; Mul, G.; Koper, M.T.M. Electrocatalytic reduction of carbon dioxide to carbon monoxide and methane at an immobilized cobalt protoporphyrin. Nat. Commun. 2015, 6, 1–8.
  69. Abdinejad, M.; Seifitokaldani, A.; Dao, C.; Sargent, E.H.; Zhang, X.-a.; Kraatz, H.B. Enhanced Electrochemical Reduction of CO2 Catalyzed by Cobalt and Iron Amino Porphyrin Complexes. ACS Appl. Energy Mater. 2019, 2, 1330–1335.
  70. Humayun, M.; Zada, A.; Li, Z.; Xie, M.; Zhang, X.; Qu, Y.; Raziq, F.; Jing, L. Enhanced visible-light activities of porous BiFeO3 by coupling with nanocrystalline TiO2 and mechanism. Appl. Catal. B 2016, 180, 219–226.
  71. Yaqoob, L.; Noor, T.; Iqbal, N.; Nasir, H.; Sohail, M.; Zaman, N.; Usman, M. Nanocomposites of cobalt benzene Tricarboxylic acid MOF with rGO: An efficient and robust electocatalyst for oxygen evaluation reaction (OER). Renew. Energy 2020.
  72. Helal, A.; Usman, M.; Arafat, M.E.; Abdelnaby, M.M. Allyl functionalized UiO-66 metal-organic framework as a catalyst for the synthesis of cyclic carbonates by CO2 cycloaddition. J. Ind. Eng. Chem. 2020, 89, 104–110.
  73. Helal, A. Fine Chemical Synthesis Using Metal–Organic Frameworks as Catalysts. In Applications of Metal–Organic Frameworks and Their Derived Materials; Scrivener Publishing LLC: Beverly, MA, USA, 2020; pp. 177–191.
  74. Ahmad, A.; Iqbal, N.; Noor, T.; Hassan, A.; Khan, U.A.; Wahab, A.; Raza, M.A.; Ashraf, S. Cu-doped zeolite imidazole framework (ZIF-8) for effective electrocatalytic CO2 reduction. J. CO2 Util. 2021, 48.
  75. Mehek, R.; Iqbal, N.; Noor, T.; Nasir, H.; Mehmood, Y.; Ahmed, S. Novel Co-MOF/Graphene Oxide Electrocatalyst for Methanol Oxidation. Electrochim. Acta 2017, 255, 195–204.
  76. Asghar, A.; Iqbal, N.; Noor, T.; Kariuki, B.M.; Kidwell, L.; Easun, T.L. Efficient electrochemical synthesis of a manganese-based metal–organic framework for H2 and CO2 uptake. Green Chem. 2021, 23, 1220–1227.
  77. Khan, J.; Iqbal, N.; Asghar, A.; Noor, T. Novel amine functionalized metal organic framework synthesis for enhanced carbon dioxide capture. Mater. Res. Express 2019, 6, 105539.
  78. Pi, W.; Humayun, M.; Li, Y.; Yuan, Y.; Cao, J.; Ali, S.; Wang, M.; Li, H.; Khan, A.; Zheng, Z.; et al. Properly aligned band structures in B-TiO2/MIL53(Fe)/g-C3N4 ternary nanocomposite can drastically improve its photocatalytic activity for H2 evolution: Investigations based on the experimental results. Int. J. Hydrogen Energy 2021, 46, 21912–21923.
  79. Israf Ud, D.; Qazi, N.; Mustapha, D.G.; Abdulrahman, I.A.; Mshari, A.A.; Muhammad, U. A Review of Preparation Methods for Heterogeneous Catalysts. Mini Rev. Org. Chem. 2021, 18, 1.
  80. Li, C.; Tong, X.; Yu, P.; Du, W.; Wu, J.; Rao, H.; Wang, Z.M. Carbon dioxide photo/electroreduction with cobalt. J. Mater. Chem. A 2019, 7, 16622–16642.
  81. Yang, P.; Wang, R.; Tao, H.; Zhang, Y.; Titirici, M.-M.; Wang, X.C. Cobalt Nitride Anchored on Nitrogen-Rich Carbons for Efficient Carbon Dioxide Reduction with Visible Light. Catal. Sci. Technol. 2021, 280, 119454.
  82. Nguyen, D.-T.; Nguyen, C.-C.; Do, T.-O. Rational one-step synthesis of cobalt clusters embedded-graphitic carbon nitrides for the efficient photocatalytic CO2 reduction under ambient conditions. J. Catal. 2020, 392, 88–96.
  83. Zhu, M.; Yang, D.-T.; Ye, R.; Zeng, J.; Corbin, N.; Manthiram, K. Inductive and electrostatic effects on cobalt porphyrins for heterogeneous electrocatalytic carbon dioxide reduction. Catal. Sci. Technol. 2019, 9, 974–980.
  84. Qi, S.; Wu, D.; Dong, Y.; Liao, J.; Foster, C.W.; O’Dwyer, C.; Feng, Y.; Liu, C.; Ma, J. Cobalt-based electrode materials for sodium-ion batteries. Chem. Eng. J. 2019, 370, 185–207.
  85. Diercks, C.S.; Liu, Y.Z.; Cordova, K.E.; Yaghi, O.M. The role of reticular chemistry in the design of CO2 reduction catalysts. Nat. Mater. 2018, 17, 943.
  86. Wang, Y.-R.; Huang, Q.; He, C.-T.; Chen, Y.; Liu, J.; Shen, F.-C.; Lan, Y.-Q. Oriented electron transmission in polyoxometalate-metalloporphyrin organic framework for highly selective electroreduction of CO2. Nat. Commun. 2018, 9, 1–8.
  87. Lin, L.; Li, H.; Yan, C.; Li, H.; Si, R.; Li, M.; Xiao, J.; Wang, G.; Bao, X. Synergistic Catalysis over Iron-Nitrogen Sites Anchored with Cobalt Phthalocyanine for Efficient CO2 Electroreduction. Adv. Mater. 2019, 31, 1903470.
  88. Li, T.T.; Mei, Y.; Li, H.W.; Qian, J.J.; Wu, M.; Zheng, Y.Q. Highly Selective and Active Electrochemical Reduction of CO2 to CO on a Polymeric Co(II) Carbon Nitride Nanosheet-Carbon Nanotube Composite. Inorg. Chem. 2020, 59, 14184–14192.
  89. Sun, T.; Zhao, S.; Chen, W.; Zhai, D.; Dong, J.; Wang, Y.; Zhang, S.; Han, A.; Gu, L.; Yu, R.; et al. Single-atomic cobalt sites embedded in hierarchically ordered porous nitrogen-doped carbon as a superior bifunctional electrocatalyst. Proc. Nat. Acad. Sci. USA 2018, 115, 12692–12697.
  90. Hori, Y.; Kikuchi, K.; Suzuki, S. Production of CO and CH4 in electrochemical reduction of CO2 at metal electrodes in aqueous hydrogencarbonate solution. Chem. Lett. 1985, 14, 1695–1698.
  91. Inglis, J.L.; MacLean, B.J.; Pryce, M.T.; Vos, J.G. Electrocatalytic pathways towards sustainable fuel production from water and CO2. Coord. Chem. Rev. 2012, 256, 2571–2600.
  92. Singh, S.; Phukan, B.; Mukherjee, C.; Verma, A. Salen ligand complexes as electrocatalysts for direct electrochemical reduction of gaseous carbon dioxide to value added products. RSC Adv. 2015, 5, 3581–3589.
  93. Shah, S.S.; Shaikh, M.N.; Khan, M.Y.; Alfasane, M.A.; Rahman, M.M.; Aziz, M.A. Present Status and Future Prospects of Jute in Nanotechnology: A Review. Chem. Rec. 2021, 21, 1631–1665.
  94. Peterson, A.A.; Nørskov, J.K. Activity Descriptors for CO2 Electroreduction to Methane on Transition-Metal Catalysts. J. Phys. Chem. Lett. 2012, 3, 251–258.
  95. Abdinejad, M.; Wilm, L.F.B.; Dielmann, F.; Kraatz, H.B. Electroreduction of CO2 Catalyzed by Nickel Imidazolin-2-ylidenamino-Porphyrins in Both Heterogeneous and Homogeneous Molecular Systems. ACS Sustain. Chem. Eng. 2021, 9, 521–530.
  96. Abdinejad, M.; Mirza, Z.; Zhang, X.-A.; Kraatz, H.-B. Enhanced Electrocatalytic Activity of Primary Amines for CO2 Reduction Using Copper Electrodes in Aqueous Solution. ACS Sustain. Chem. Eng. 2020, 8, 1715–1720.
  97. Aljabour, A.; Coskun, H.; Apaydin, D.H.; Ozel, F.; Hassel, A.W.; Stadler, P.; Sariciftci, N.S.; Kus, M. Nanofibrous cobalt oxide for electrocatalysis of CO2 reduction to carbon monoxide and formate in an acetonitrile-water electrolyte solution. Appl. Catal. B Environ. 2018, 229, 163–170.
  98. Zhu, X.W.; Ji, H.Y.; Yi, J.Y.; Yang, J.M.; She, X.J.; Ding, P.H.; Li, L.; Deng, J.J.; Qian, J.C.; Xu, H.; et al. A Specifically Exposed Cobalt Oxide/Carbon Nitride 2D Heterostructure for Carbon Dioxide Photoreduction. Ind. Eng. Chem. Res. 2018, 57, 17394–17400.
  99. Vinoth, S.; Ong, W.-J.; Pandikumar, A. Sulfur-doped graphitic carbon nitride incorporated bismuth oxychloride/Cobalt based type-II heterojunction as a highly stable material for photoelectrochemical water splitting. J. Colloid Interface Sci. 2021, 591, 85–95.
  100. Kumar, A.; Prajapati, P.K.; Aathira, M.S.; Bansiwal, A.; Boukherroub, R.; Jain, S.L. Highly improved photoreduction of carbon dioxide to methanol using cobalt phthalocyanine grafted to graphitic carbon nitride as photocatalyst under visible light irradiation. J. Colloid Interface Sci. 2019, 543, 201–213.
  101. Huang, P.; Huang, J.; Pantovich, S.A.; Carl, A.D.; Fenton, T.G.; Caputo, C.A.; Grimm, R.L.; Frenkel, A.I.; Li, G. Selective CO2 Reduction Catalyzed by Single Cobalt Sites on Carbon Nitride under Visible-Light Irradiation. J. Am. Chem. Soc. 2018, 140, 16042–16047.
  102. Fu, J.W.; Zhu, L.; Jiang, K.X.; Liu, K.; Wang, Z.H.; Qiu, X.Q.; Li, H.M.; Hu, J.H.; Pan, H.; Lu, Y.R.; et al. Activation of CO2 on graphitic carbon nitride supported single-atom cobalt sites. Chem. Eng. J. 2021, 415, 8.
  103. Roy, S.; Reisner, E. Visible-Light-Driven CO2 Reduction by Mesoporous Carbon Nitride Modified with Polymeric Cobalt Phthalocyanine. Angew. Chem. Int. Ed. 2019, 58, 12180–12184.
  104. Tian, S.; Chen, S.; Ren, X.; Hu, Y.; Hu, H.; Sun, J.; Bai, F. An efficient visible-light photocatalyst for CO(2)reduction fabricated by cobalt porphyrin and graphitic carbon nitride via covalent bonding. Nano Res. 2020, 13, 2665–2672.
  105. Zhou, H.; Zou, X.; Wu, X.; Yang, X.; Li, J. Coordination Engineering in Cobalt-Nitrogen-Functionalized Materials for CO2 Reduction. J. Phys. Chem. Lett. 2019, 10, 6551–6557.
  106. Costentin, C.; Robert, M.; Savéant, J.-M. Catalysis of the electrochemical reduction of carbon dioxide. Chem. Soc. Rev. 2013, 42, 2423–2436.
  107. Takeda, H.; Cometto, C.; Ishitani, O.; Robert, M. Electrons, Photons, Protons and Earth-Abundant Metal Complexes for Molecular Catalysis of CO2 Reduction. ACS Catal. 2017, 7, 70–88.
  108. Manbeck, G.F.; Fujita, E. A review of iron and cobalt porphyrins, phthalocyanines and related complexes for electrochemical and photochemical reduction of carbon dioxide. J. Porphyr. Phthalocyanines 2015, 19, 45–64.
  109. Nielsen, I.M.B.; Leung, K. Cobalt−Porphyrin Catalyzed Electrochemical Reduction of Carbon Dioxide in Water. 1. A Density Functional Study of Intermediates. J. Phys. Chem. A 2010, 114, 10166–10173.
  110. Leung, K.; Nielsen, I.M.B.; Sai, N.; Medforth, C.; Shelnutt, J.A. Cobalt−Porphyrin Catalyzed Electrochemical Reduction of Carbon Dioxide in Water. 2. Mechanism from First Principles. J. Phys. Chem. A 2010, 114, 10174–10184.
  111. Miyamoto, K.; Asahi, R. Water Facilitated Electrochemical Reduction of CO2 on Cobalt-Porphyrin Catalysts. J. Phys. Chem. C 2019, 123, 9944–9948.
  112. Khan, N.A.; Humayun, M.; Usman, M.; Ghazi, Z.A.; Naeem, A.; Khan, A.; Khan, A.L.; Tahir, A.A.; Ullah, H. Structural Characteristics and Environmental Applications of Covalent Organic Frameworks. Energies 2021, 14, 2267.
  113. Meng, Z.; Luo, J.; Li, W.; Mirica, K.A. Hierarchical Tuning of the Performance of Electrochemical Carbon Dioxide Reduction Using Conductive Two-Dimensional Metallophthalocyanine Based Metal–Organic Frameworks. J. Am. Chem. Soc. 2020, 142, 21656–21669.
  114. Lin, S.; Diercks, C.S.; Zhang, Y.-B.; Kornienko, N.; Nichols, E.M.; Zhao, Y.; Paris, A.R.; Kim, D.; Yang, P.; Yaghi, O.M.; et al. Covalent organic frameworks comprising cobalt porphyrins for catalytic CO2 reduction in water. Science 2015, 349, 1208.
  115. Ren, J.-T.; Zheng, Y.-L.; Yuan, K.; Zhou, L.; Wu, K.; Zhang, Y.-W. Self-templated synthesis of Co3O4 hierarchical nanosheets from a metal–organic framework for efficient visible-light photocatalytic CO2 reduction. Nanoscale 2020, 12, 755–762.
  116. Bi, J.; Xu, B.; Sun, L.; Huang, H.; Fang, S.; Li, L.; Wu, L. A Cobalt-Modified Covalent Triazine-Based Framework as an Efficient Cocatalyst for Visible-Light-Driven Photocatalytic CO2 Reduction. ChemPlusChem 2019, 84, 1149–1154.
  117. Long, D.; Li, X.; Yin, Z.; Fan, S.; Wang, P.; Xu, F.; Wei, L.; Tadé, M.O.; Liu, S. Novel Co3O4 @ CoFe2O4 double-shelled nanoboxes derived from Metal–Organic Framework for CO2 reduction. J. Alloys Compd. 2021, 854, 156942.
  118. Matheu, R.; Gutierrez-Puebla, E.; Monge, M.Á.; Diercks, C.S.; Kang, J.; Prévot, M.S.; Pei, X.; Hanikel, N.; Zhang, B.; Yang, P.; et al. Three-Dimensional Phthalocyanine Metal-Catecholates for High Electrochemical Carbon Dioxide Reduction. J. Am. Chem. Soc. 2019, 141, 17081–17085.
  119. Zhang, S.-Y.; Yang, Y.-Y.; Zheng, Y.-Q.; Zhu, H.-L. Ag-doped Co3O4 catalyst derived from heterometallic MOF for syngas production by electrocatalytic reduction of CO2 in water. J. Solid State Chem. 2018, 263, 44–51.
Contributor MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to :
View Times: 767
Revisions: 2 times (View History)
Update Date: 28 Sep 2021
