MIPs Preparation by Computational Simulation–Aided

Molecularly imprinted polymers (MIP) are obtained by initiating the polymerization of functional monomers surrounding the template molecule in the presence of crosslinkers and porogens. Usually the best adsorption performance can be obtained by optimizing the polymerization conditions, but the process is time-consuming and labor-intensive. At the same time, the use of a large number of organic reagents in the process of experimental optimization also limits the development and promotion of molecular imprinting technology. Theoretical calculation based on calculation simulation and intermolecular force is an effective method to solve this problem because it is convenient, versatile, environmentally friendly and low in price. It is not affected by the space environment, and the calculation efficiency is high.

computational simulation molecularly imprinted polymers intermolecular interaction

1. Introduction

Molecularly imprinted polymers (MIPs) are porous materials with specific recognition capacity towards the template molecule, which are obtained by self-assembly of template molecules and functional monomers in a porogen, and then polymerization is initiated in the presence of a cross-linking agent. The process of preparing MIPs is outlined in Figure 1. When the template molecule interacts with the functional monomer, the imprinting site is memorized through multiple action effects and fixed through the polymerization process. After the template is removed, the adsorption cavity complementary in shape and structure to the template molecule is left in the polymer matrix, which can selectively recognize the target molecule. Molecular imprinting technology originated from antibody immunology, that is, the specific combination of “lock and key” between antibody and antigen [1]. In 1973, Wulff [2] prepared organic MIPs for the first time. Since then, MIPs have attracted widespread attention. At present, MIPs, as a kind of intelligent adsorption material, are widely used in various fields, such as chromatographic separation [3], solid phase extraction [4][5][6], sensors [7][8][9], and biomedicine [10][11]. In the past two decades, great progress in MIPs has been achieved (Figure 2). A variety of novel and interesting imprinted polymers, including supramolecular imprinted polymers [12][13], multitemplate imprinted polymers [14][15], multifunctional monomer imprinted polymers [16][17], dummy template imprinted polymers [18][19], and chiral recognition polymers [20][21], have been developed. In fact, synthesis parameters have been obtained through experimental optimization in most cases. Finding complex and cumbersome conditions is time consuming and laborious. Moreover, numerous organic reagents are used. These factors severely restrict the application and promotion of molecular imprinting technology.

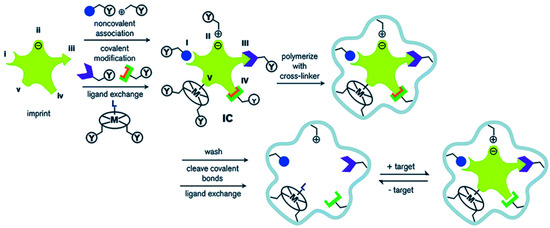

Figure 1. Schematic diagram of the molecular imprinting process: (I) non-covalent, (II) electrostatic/ionic, (III) covalent, (IV) semi-covalent, and (V) coordination to a metal center (Reprinted with permission from [22]. Copyright 2014 Royal Society of Chemistry).

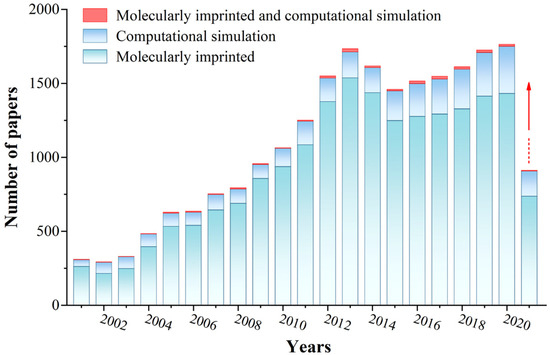

Figure 2. The literature statistics of MIPs and computational simulation. (Database: Scifinder; Search keywords: molecularly imprinted, computational simulation, molecularly imprinted and computational simulation, respectively. Search time: 13 June 2021).

Computational simulation has rapidly developed in recent years. It uses computer technology as a carrier and combines the theoretical basis of quantum mechanics and statistical mechanics as a tool-based cross-discipline. Molecular simulation calculation employs computer technology to simulate changes in the static structure and dynamic motion of molecules by calculating and comparing the relationship between the form and energy of the interaction between molecules to effectively explain the mechanism of action at the molecular level. The method is simple to operate and not restricted by the space environment, and the calculation is accurate and efficient. At present, many reports on the application of computational simulation in molecular imprinting technology have been published [23][24][25][26]. Computational simulation greatly reduces the cost of condition optimization during the polymerization of MIPs. Furthermore, it can effectively predict the more stable conformational composition between the template and the monomer. It can even simulate and calculate the types of porogens, crosslinkers, and initiators [27][28].

2.Theoretical Methods of Computational Simulation for MIPs

The methods used in the theoretical calculation and simulation of various MIP designs are molecular mechanics (MM), molecular dynamics (MD), and quantum mechanics (QM). The computational cost of MM optimization is considerably lower than that of QM, and thus it is orders of magnitude faster than the latter. However, the accuracy of MM results is limited by simplified calculation models, which allow the reduction in calculation costs. The QM approach can better solve the problem of choosing the appropriate initial direction of interacting molecules because it is more accurate than the other methods. However, the computational complexity of the QM approach exponentially increases as the number of molecules involved in the calculation system increases. The MD method can effectively address this problem. When simulating the dynamic process of the interaction between molecules, changes in the molecule itself are often not considered, thereby making the calculation of the simulation method more efficient. Therefore, the MD method is most widely used when numerous molecules are involved in designing MIPs, such as in optimizing the ratio of template, monomer, and cross-linking agent. The application of MM, MD, and QM methods in MIP simulation is given in Table 1.

Table 1. Theoretical simulation calculation methods for the design of MIPs.

Simulation Method


Force Field/Method


MIPs Design

Molecular mechanics (MM)

Myoglobin [29]



Screening functional monomers

Morphine [30]


Discovery Studio

Template-monomer ratio

Metolachlor deschloro [31], metsulfuron-methyl [32]


SPSS Statistics

Screening functional monomers/template-monomer ratio

Norfloxacin [33]


Discovery Studio

Screening functional monomers/template-monomer ratio

Molecular dynamics (MD)

Curcumin [34], fenthion [35], N-3-oxo-dodecanoyl-L-homoserine lactone [36], methidathion [37], endotoxins [38], phosmet insecticide [39], cocaine [40], methyl parathion [41], aflatoxin B1 [42]



Screening functional monomers/template-monomer ratio

Bisphenol A [43], carbamazepine [44], phthalates [45], norfloxacin [46], sulfamethoxazole [47]


Materials Studio/

Screening functional monomers/template-monomer ratio

Thiamethoxam [48]



Template-monomer ratio and solvent

Rhodamine B [49]



Template-monomer ratio and solvent

Quantum mechanics (QM)

Vancomycin [50], primaquine [51], tramadol [52], thiamethoxam [48], clenbuterol [53], sulfadimidine [54], bilobalide [55], chloramphenicol [56], paclitaxel [57], acetamiprid [58], acetazolamide [59], lamotrigine [60], cyanazine [61], 3-methylindole [62], polybrominated diphenyl ethers [63], pirimicarb [64], metoprolol [65], ciprofloxacin or norfloxacin [66]



Screening functional monomers/template-monomer ratio/solvent

Aspartame [67], pinacolyl methylphosphonate [68], metolachlor deschloro [31], metsulfuron-methyl [32], thiocarbohydrazide [69]

Semiempirical method

Spartan/SPSS Statistics

Screening functional monomers/template-monomer ratio

Benzo[a]pyrene [70], tryptophan [71], furosemide [72], buprenorphine [73], hydroxyzine and cetirizine [74], atenolol [75], diazepam [76], metolachlor deschloro [31], metsulfuron-methyl [32], allopurinol [77], methadone [78], clonazepam [79], theophylline [80], ametryn [81], mosapride citrate [82], baicalein [83],

Ab initio

HyperChem/Gaussian/AutoDockTools/SPSS Statistics

Screening functional monomers/template-monomer ratio

3.Computational Simulation and Design of New MIPs

The application of theoretical calculations in designing MIPs is primarily achieved by theoretical simulations and selection of appropriate functional monomers, template molecules, crosslinkers, and their ratios. The binding energy (i.e., electronic interaction energy) between the template molecule and the functional monomer can be simulated and calculated provided that the binding energy between the template molecule and the functional monomer is high, indicating that the corresponding MIPs have excellent selectivity and adsorption performance. In addition, the ratio of the molecular and monomer system is closely related to the imprint factor of MIPs. In general, this ratio is calculated and optimized by performing the computational simulation in a vacuum environment to obtain the Eqaution (1) for the binding energy between the template molecule and the functional monomer.

In most cases, vacuum simulation calculations often differ from the actual situation as they consider the effects of spatial media, including the addition of solvents, to make the simulation calculation highly consistent with experimental results. The solvent (i.e., porogen) affects the energy of the system during the synthesis of MIPs. The results of molecular modeling can be made closer to real situation and the reliability of the results can be increased by conducting the simulation of a molecular fingerprint polymer in a solvent medium. The binding energy is calculated by Equation (2):

where ΔESolvent is the energy difference between a template molecule and a functional monomer in solution and in a vacuum environment. A weak influence of the solution on noncovalent interactions during molecular fingerprint polymerization results in a small energy difference value, suggesting that the solvent is the best polymerization solvent for obtaining molecular fingerprint polymers [84][85].

The primary factor in MIP imprinting polymerization is the strong bonding force between the template and the functional monomer. Therefore, choosing the right functional monomer is a key factor in designing MIPs. An MIP can be reasonably designed by applying the DFT method in selecting the monomer with the best interaction with 2-isopropoxyphenol; it can be combined with the PM3.5 method to optimize the template-to-monomer ratio [86]. Quantum calculations were performed using the Spartan software, and the complexes’ binding energy can be obtained to evaluate their stability. Pyrrole had been selected as the best functional monomer for designing 2-isopropoxyphenol MIPs. PM3 and DFT calculation methods were also used to simulate and calculate the monomers with the strongest interaction with disulfoton [87], chlorogenic acid [88], and amoxicillin [89], as well as the best ratio between the two. This method can be further used to calculate the solution energies of baicalein and acrylamide complexes in different solvents to screen the best polymerization solvent [90].
The strongest interaction site can be further located by obtaining the electrostatic potential map on the surface of the template molecule via the DFT method [91]. Figure 3 shows the electrostatic charge distribution of carvedilol after the geometry was optimized. The hydrogen bonding sites between carvedilol and functional monomer evidently appear in the red, yellow, and blue regions, which were O1, O2, O3, and H1. According to the quantitative information of the electrostatic map, each functional monomer undergoes hydrogen bonding at the four interaction sites in sequence to form hydrogen bonds; thus, the ratio of template and monomer complexes were 1:1 and 1:2, and 1:3 and 1:4. When the functional monomer is methacrylic acid and the template is combined with the monomer at a ratio of 1:4, a stable complex can be formed. The DFT method had also been adopted to study the interaction between p-nitrophenol and β-cyclodextrin [12].

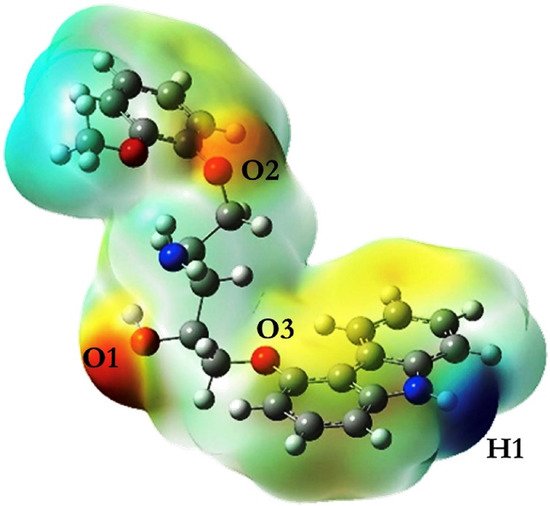

Figure 3. Electrostatic potential energy diagram of endotoxin in template (Reprinted with permission from [106]. Copyright 2019 Elsevier).

4.Computational Simulation and MIP Identification Mechanism

Theoretical simulation can also provide a theoretical basis for the identification mechanism of MIPs. The formation process of experimentally proposed magnetic molecularly imprinted polypyrrole at the molecular level can be understood via the DFT method to obtain the thermodynamic properties of the prepolymerized template and the monomer complex in the presence of water. On the basis of the negative values of ΔG and ΔH, this results in the complexation of the monomer with praziquantel in aqueous solution spontaneously forming stable complexes. Moreover, the results of molecular geometric conformation simulation showed that four hydrogen bonds and one π–π stacking interaction are established between praziquantel and pyrrole, which explains the formation of praziquantel and pyrrole prepolymer complex at the molecular level [92]. Through PM3 and DFT theoretical simulation methods, the Muliken charge on each atom of the fluazuron optimized geometric structure can be obtained, which can quantitatively reveal the existence of six regions with a high electron charge density. These local regions can interact with methacrylic acid molecules and build hydrogen bonds. If the value of enthalpy and Gibbs free energy is less than zero, then the prepolymer complex of flusulfuron–methyl and methacrylic acid can be considered to have spontaneously and stably formed. These simulation results explain the polymerization mechanism of fluazuron MIP [93].
The selective mechanism of ciprofloxacin-imprinted membrane was also further explained through molecular simulations [94]. The binding energy of the interaction between the functional monomer and ciprofloxacin and its structural analogs, including norfloxacin hydrochloride, enrofloxacin hydrochloride and ofloxacin hydrochloride, was obtained through molecular simulation calculations. Kinetic simulations had also been performed using GROMACS software. The parameters of bond, angle, dihedral angle, and Lennard–Jones interaction had been directly taken from the GAFF force field. Part of the charge was obtained using the restricted electrostatic potential method at the theoretical level of B3LYP/6-31+G (d, p). The recombination ability of the imprinted site of ciprofloxacin was dominated by hydrogen bond interactions, whereas its structural analogs were dominated by van der Waals interaction. Thus, strong hydrogen bond interactions led to a high tendency for the imprinted site of ciprofloxacin to recombine with the template molecule. Theoretical simulations of the recombination mechanism and selective permeation experiments mutually confirmed the superior selectivity of ciprofloxacin-imprinted membranes. Zhang [95] further explained the specific selective recognition mechanism of molecularly imprinted nanocomposite membranes for artemisinin by dynamic simulations. A comparison of the binding energy of the imprinted membrane with artemisinin and its structural analogs shows that the strong interaction between artemisinin and the imprinted polymer matrix contributes to its large adsorption capacity and high selectivity. A similar DFT method has been used to explain the selective recognition mechanism of the alternative template N-(4-isopropylphenyl)-N-butyleneurea MIP to phenylurea herbicides [96]. This method also explained the mechanism of experimentally preferred dummy template imprinted polymer [97] and the strength of the bonding force of chiral naproxen MIP [21] at the molecular level. These observations provide a theoretical basis to explain the experimental results from the perspective of intermolecular interactions.
Yang [61] performed molecular simulation to reveal the essential reason for the difference between single-template and double-template MIP stirring bars in their ability to recognize target analytes by using the YASARA software to study the recognition mechanism. The 3D shape and size of the imprinted cavity in the MIPs are the corresponding template molecules. Given that the dual-template MIP contains imprinted cavities of the two template molecules, it had a fairly high recovery for nine fluoroquinolones, and the simulation results are consistent with the experimental findings. However, the influence of template–template interactions on the performance of multitemplate MIPs has been further verified via the DFT method [62]. The results of both theoretical simulations and experiments indicated that the interaction between more template molecules affects the formation of specific recognition sites and even reduces the formation of effective imprinting sites.

5. Conclusions and Outlook

Computer molecular modeling technology has been applied to the screening and optimization of molecules in many materials, and it is also a feasible method for preliminary exploration of MIP. Computer simulation reduces the time and reagent-related costs required to obtain the appropriate MIP adsorbent, and significantly reduces the consumption of organic solvents. In addition, it can explain the specific recognition mechanism of imprinted materials at the molecular level. For all the above reasons, the use of computer molecular simulation to design MIP adsorbents in analytical practice not only conforms to the principles of green analytical chemistry, but also explains the nature of MIPs binding to target molecules from the intermolecular forces. The QM method, compared with other methods, can ensure more accurate simulation results in the MIP system dominated by non-bonding interaction, because the smallest structural unit electron was studied and the quantum effect was considered in the method. Therefore, the QM method is also the most widely used in MIP simulation operations. However, in the simulation of macromolecules and polyatomic systems, this method is very time-consuming and even prone to errors. MM and MD are classical mechanics methods. Their smallest structural unit is no longer an electron but an atom. Therefore, the simulation operation complexity of the imprinting system is greatly reduced, and the operation speed is faster. MM method directly utilizes the potential function to study the problem, without considering the kinetic energy and the corresponding structure of the atom. However, the MD method focuses on the movement of atoms in the MIP system and establishes the relationship between temperature and time, which can simulate the imprinting system more realistically, and the simulation results are more representative. In general, the DFT procedure in the QM method was recommended in the MIPs design and mechanism interpretation simulation calculation. However, this also means that the computational complexity of this method increases dramatically for large molecules and systems with a large number of molecules. MD method may be the best solution at this situation, simulated annealing process in particular, which can complete the lowest energy conformation search in a very short time. At present, an increasing number of research have been using multiple calculation methods to achieve complementary advantages when designing and optimizing the experimental parameters of MIPs preparation, so as to ensure more efficient and accurate simulation results. In addition, simulation is also the direction of current efforts. A more realistic simulation environment can make the calculation results accurate and reliable.


  1. Pauling, L. A Theory of the structure and process of formation of antibodies. J. Am. Chem. Soc. 1940, 62, 2643–2657.
  2. Wulff, G.; Sarhan, A.; Zabrocki, K. Enzyme-analogue built polymers and their use for the resolution of racemates. Tetrahedron Lett. 1973, 14, 4329–4332.
  3. Kubo, T.; Nomachi, M.; Nemoto, K.; Sano, T.; Hosoya, K.; Tanaka, N.; Kaya, K. Chromatographic separation for domoic acid using a fragment imprinted polymer. Anal. Chim. Acta 2006, 577, 1–7.
  4. Sarafraz-Yazdi, A.; Razavi, N. Application of molecularly-imprinted polymers in solid-phase microextraction techniques. TrAC Trends Anal. Chem. 2015, 73, 81–90.
  5. Song, Y.P.; Zhang, L.; Wang, G.N.; Liu, J.X.; Liu, J.; Wang, J.P. Dual-dummy-template molecularly imprinted polymer combining ultra performance liquid chromatography for determination of fluoroquinolones and sulfonamides in pork and chicken muscle. Food Control 2017, 82, 233–242.
  6. Lian, Z.; Li, H.-B.; Wang, J. Experimental and computational studies on molecularly imprinted solid-phase extraction for gonyautoxins 2,3 from dinoflagellate Alexandrium minutum. Anal. Bioanal. Chem. 2016, 408, 5527–5535.
  7. Ahmad, O.S.; Bedwell, T.S.; Esen, C.; Garcia-Cruz, A.; Piletsky, S.A. Molecularly imprinted polymers in electrochemical and optical sensors. Trends Biotechnol. 2019, 37, 294–309.
  8. Su, C.; Li, Z.; Zhang, D.; Wang, Z.; Zhou, X.; Liao, L.; Xiao, X. A highly sensitive sensor based on a computer-designed magnetic molecularly imprinted membrane for the determination of acetaminophen. Biosens. Bioelectron. 2020, 148, 111819.
  9. Goud, K.Y.; Reddy, K.K.; Gobi, K.V. Development of highly selective electrochemical impedance sensor for detection of sub-micromolar concentrations of 5-Chloro-2,4-dinitrotoluene. J. Chem. Sci. 2016, 128, 763–770.
  10. Gu, X.; Huang, J.; Zhang, L.; Zhang, Y.; Wang, C.-Z.; Sun, C.; Yao, D.; Li, F.; Chen, L.; Yuan, C.-S. Efficient discovery and capture of new neuronal nitric oxide synthase-postsynaptic density protein-95 uncouplers from herbal medicines using magnetic molecularly imprinted polymers as artificial antibodies. J. Sep. Sci. 2017, 40, 3522–3534.
  11. Dong, Y.; Li, W.; Gu, Z.; Xing, R.; Ma, Y.; Zhang, Q.; Liu, Z. Inhibition of HER2-positive breast cancer growth by blocking the HER2 signaling pathway with HER2-glycan-imprinted nanoparticles. Angew. Chem. Int. Ed. 2019, 58, 10621–10625.
  12. Liu, Y.; Liu, Y.; Liu, Z.; Du, F.; Qin, G.; Li, G.; Hu, X.; Xu, Z.; Cai, Z. Supramolecularly imprinted polymeric solid phase microextraction coatings for synergetic recognition nitrophenols and bisphenol A. J. Hazard. Mater. 2019, 368, 358–364.
  13. Li, S.; Yin, G.; Wu, X.; Liu, C.; Luo, J. Supramolecular imprinted sensor for carbofuran detection based on a functionalized multiwalled carbon nanotube-supported Pd-Ir composite and methylene blue as catalyst. Electrochim. Acta 2016, 188, 294–300.
  14. Wang, S.; She, Y.; Hong, S.; Du, X.; Yan, M.; Wang, Y.; Qi, Y.; Wang, M.; Jiang, W.; Wang, J. Dual-template imprinted polymers for class-selective solid-phase extraction of seventeen triazine herbicides and metabolites in agro-products. J. Hazard. Mater. 2019, 367, 686–693.
  15. Liu, Y.; Liu, Y.; Liu, Z.; Hill, J.P.; Alowasheeir, A.; Xu, Z.; Xu, X.; Yamauchi, Y. Ultra-durable, multi-template molecularly imprinted polymers for ultrasensitive monitoring and multicomponent quantification of trace sulfa antibiotics. J. Mater. Chem. B 2021, 9, 3192–3199.
  16. Gao, R.; Hao, Y.; Zhao, S.; Zhang, L.; Cui, X.; Liu, D.; Tang, Y.; Zheng, Y. Novel magnetic multi-template molecularly imprinted polymers for specific separation and determination of three endocrine disrupting compounds simultaneously in environmental water samples. RSC Adv. 2014, 4, 56798–56808.
  17. Li, Y.; Zhang, L.; Dang, Y.; Chen, Z.; Zhang, R.; Li, Y.; Ye, B. A robust electrochemical sensing of molecularly imprinted polymer prepared by using bifunctional monomer and its application in detection of cypermethrin. Biosens. Bioelectron. 2019, 127, 207–214.
  18. Marća, M.; Wieczorek, P.P. The preparation and evaluation of core-shell magnetic dummy-template molecularly imprinted polymers for preliminary recognition of the low-mass polybrominated diphenyl ethers from aqueous solutions. Sci. Total. Environ. 2020, 724, 138151.
  19. Yuan, X.; Yuan, Y.; Gao, X.; Xiong, Z.; Zhao, L. Magnetic dummy-template molecularly imprinted polymers based on multi-walled carbon nanotubes for simultaneous selective extraction and analysis of phenoxy carboxylic acid herbicides in cereals. Food Chem. 2020, 333, 127540.
  20. Zhang, Y.; Wang, H.-Y.; He, X.-W.; Li, W.-Y.; Zhang, Y.-K. Homochiral fluorescence responsive molecularly imprinted polymer: Highly chiral enantiomer resolution and quantitative detection of L-penicillamine. J. Hazard. Mater. 2021, 412, 125249.
  21. Liu, Y.; Liu, Y.; Liu, Z.; Zhao, X.; Wei, J.; Liu, H.; Si, X.; Xu, Z.; Cai, Z. Chiral molecularly imprinted polymeric stir bar sorptive extraction for naproxen enantiomer detection in PPCPs. J. Hazard. Mater. 2020, 392, 122251.
  22. Lofgreen, J.E.; Ozin, G.A. Controlling morphology and porosity to improve performance of molecularly imprinted sol–gel silica. Chem. Soc. Rev. 2014, 43, 911–933.
  23. Marć, M.; Kupka, T.; Wieczorek, P.P.; Namieśnik, J. Computational modeling of molecularly imprinted polymers as a green approach to the development of novel analytical sorbents. TrAC Trends Anal. Chem. 2018, 98, 64–78.
  24. Paredes-Ramos, M.; Bates, F.; Rodríguez-González, I.; López-Vilariño, J.M. Computational approximations of molecularly imprinted polymers with sulphur based monomers for biological purposes. Mater. Today Commun. 2019, 20, 100526.
  25. Cowen, T.; Karim, K.; Piletsky, S. Computational approaches in the design of synthetic receptors—A review. Anal. Chim. Acta 2016, 936, 62–74.
  26. Khan, M.S.; Pal, S.; Krupadam, R.J. Computational strategies for understanding the nature of interaction in dioxin imprinted nanoporous trappers. J. Mol. Recognit. 2015, 28, 427–437.
  27. Paredes-Ramos, M.; Sabín-López, A.; Peña-García, J.; Pérez-Sánchez, H.; López-Vilariño, J.M.; Sastre De Vicente, M.E. Computational aided acetaminophen—Phthalic acid molecularly imprinted polymer design for analytical determination of known and new developed recreational drugs. J. Mol. Graph. Model. 2020, 100, 107627.
  28. Lai, W.; Zhang, K.; Shao, P.; Yang, L.; Ding, L.; Pavlostathis, S.G.; Shi, H.; Zou, L.; Liang, D.; Luo, X. Optimization of adsorption configuration by DFT calculation for design of adsorbent: A case study of palladium ion-imprinted polymers. J. Hazard. Mater. 2019, 379, 120791.
  29. Sullivan, M.V.; Dennison, S.R.; Archontis, G.; Reddy, S.M.; Hayes, J.M. Toward rational design of selective molecularly imprinted polymers (MIPs) for proteins: Computational and experimental studies of acrylamide based polymers for myoglobin. J. Phys. Chem. B 2019, 123, 5432–5443.
  30. Xi, S.; Zhang, K.; Xiao, D.; He, H. Computational-aided design of magnetic ultra-thin dummy molecularly imprinted polymer for selective extraction and determination of morphine from urine by high-performance liquid chromatography. J. Chromatogr. A 2016, 1473, 1–9.
  31. Zhang, L.; Han, F.; Hu, Y.; Zheng, P.; Sheng, X.; Sun, H.; Song, W.; Lv, Y. Selective trace analysis of chloroacetamide herbicides in food samples using dummy molecularly imprinted solid phase extraction based on chemometrics and quantum chemistry. Anal. Chim. Acta 2012, 729, 36–44.
  32. Han, F.; Zhou, D.B.; Song, W.; Hu, Y.Y.; Lv, Y.N.; Ding, L.; Zheng, P.; Jia, X.Y.; Zhang, L.; Deng, X.J. Computational design and synthesis of molecular imprinted polymers for selective solid phase extraction of sulfonylurea herbicides. J. Chromatogr. A 2021, 1651, 462321.
  33. Fizir, M.; Wei, L.; Muchuan, N.; Itatahine, A.; Mehdi, Y.A.; He, H.; Dramou, P. QbD approach by computer aided design and response surface methodology for molecularly imprinted polymer based on magnetic halloysite nanotubes for extraction of norfloxacin from real samples. Talanta 2018, 184, 266–276.
  34. Piletska, E.V.; Abd, B.H.; Krakowiak, A.S.; Parmar, A.; Pink, D.L.; Wall, K.S.; Wharton, L.; Moczko, E.; Whitcombe, M.J.; Karim, K.; et al. Magnetic high throughput screening system for the development of nano-sized molecularly imprinted polymers for controlled delivery of curcumin. Analyst 2015, 140, 3113–3120.
  35. Bakas, I.; Ben Oujji, N.; Istamboulié, G.; Piletsky, S.; Piletska, E.; Ait-Addi, E.; Ait-Ichou, I.; Noguer, T.; Rouillon, R. Molecularly imprinted polymer cartridges coupled to high performance liquid chromatography (HPLC-UV) for simple and rapid analysis of fenthion in olive oil. Talanta 2014, 125, 313–318.
  36. Karim, K.; Cowen, T.; Guerreiro, A.; Piletska, E.; Whitcombe, M. A protocol for the computational design of high affinity molecularly imprinted polymer synthetic receptors. Glob. J. Biotechnol. Biomater. Sci. 2017, 3, 1–7.
  37. Bakas, I.; Hayat, A.; Piletsky, S.; Piletska, E.; Chehimi, M.M.; Noguer, T.; Rouillon, R. Electrochemical impedimetric sensor based on molecularly imprinted polymers/sol–gel chemistry for methidathion organophosphorous insecticide recognition. Talanta 2014, 130, 294–298.
  38. Abdin, M.J.; Altintas, Z.; Tothill, I.E. In silico designed nanoMIP based optical sensor for endotoxins monitoring. Biosens. Bioelectron. 2015, 67, 177–183.
  39. Aftim, N.; Istamboulié, G.; Piletska, E.; Piletsky, S.; Calas-Blanchard, C.; Noguer, T. Biosensor-assisted selection of optimal parameters for designing molecularly imprinted polymers selective to phosmet insecticide. Talanta 2017, 174, 414–419.
  40. Smolinska-Kempisty, K.; Ahmad, O.S.; Guerreiro, A.; Karim, K.; Piletska, E.; Piletsky, S. New potentiometric sensor based on molecularly imprinted nanoparticles for cocaine detection. Biosens. Bioelectron. 2017, 96, 49–54.
  41. Esen, C.; Czulak, J.; Cowen, T.; Piletska, E.; Piletsky, S.A. Highly efficient abiotic assay formats for methyl parathion: Molecularly imprinted polymer nanoparticle assay as an alternative to enzyme-linked immunosorbent assay. Anal. Chem. 2019, 91, 958–964.
  42. Sergeyeva, T.; Yarynka, D.; Piletska, E.; Lynnik, R.; Zaporozhets, O.; Brovko, O.; Piletsky, S.; El’Skaya, A. Fluorescent sensor systems based on nanostructured polymeric membranes for selective recognition of Aflatoxin B1. Talanta 2017, 175, 101–107.
  43. Qiu, C.; Xing, Y.; Yang, W.; Zhou, Z.; Wang, Y.; Liu, H.; Xu, W. Surface molecular imprinting on hybrid SiO 2 -coated CdTe nanocrystals for selective optosensing of bisphenol A and its optimal design. Appl. Surf. Sci. 2015, 345, 405–417.
  44. He, Q.; Liang, J.-J.; Chen, L.-X.; Chen, S.-L.; Zheng, H.-L.; Liu, H.-X.; Zhang, H.-J. Removal of the environmental pollutant carbamazepine using molecular imprinted adsorbents: Molecular simulation, adsorption properties, and mechanisms. Water Res. 2020, 168, 115164.
  45. Li, X.; Wan, J.; Wang, Y.; Ding, S.; Sun, J. Improvement of selective catalytic oxidation capacity of phthalates from surface molecular-imprinted catalysis materials: Design, mechanism, and application. Chem. Eng. J. 2021, 413, 127406.
  46. Kong, Y.; Wang, N.; Ni, X.; Yu, Q.; Liu, H.; Huang, W.; Xu, W. Molecular dynamics simulations of molecularly imprinted polymer approaches to the preparation of selective materials to remove norfloxacin. J. Appl. Polym. Sci. 2016, 133.
  47. Xu, W.; Wang, Y.; Huang, W.; Yu, L.; Yang, Y.; Liu, H.; Yang, W. Computer-aided design and synthesis of [email protected]2 core-shell molecularly imprinted polymers as a fluorescent sensor for the selective determination of sulfamethoxazole in milk and lake water. J. Sep. Sci. 2017, 40, 1091–1098.
  48. Silva, C.F.; Menezes, L.F.; Pereira, A.C.; Nascimento, C.S. Molecularly Imprinted Polymer (MIP) for thiamethoxam: A theoretical and experimental study. J. Mol. Struct. 2021, 1231, 129980.
  49. Liu, R.; Li, X.; Li, Y.; Jin, P.; Qin, W.; Qi, J. Effective removal of rhodamine B from contaminated water using non-covalent imprinted microspheres designed by computational approach. Biosens. Bioelectron. 2009, 25, 629–634.
  50. Yu, H.; Yao, R.; Shen, S. Development of a novel assay of molecularly imprinted membrane by design-based gaussian pattern for vancomycin determination. J. Pharm. Biomed. Anal. 2019, 175, 112789.
  51. Prasad, B.B.; Kumar, A.; Singh, R. Molecularly imprinted polymer-based electrochemical sensor using functionalized fullerene as a nanomediator for ultratrace analysis of primaquine. Carbon 2016, 109, 196–207.
  52. Fonseca, M.C.; Nascimento, C.S.; Borges, K.B. Theoretical investigation on functional monomer and solvent selection for molecular imprinting of tramadol. Chem. Phys. Lett. 2016, 645, 174–179.
  53. Zhang, B.; Fan, X.; Zhao, D. Computer-aided design of molecularly imprinted polymers for simultaneous detection of clenbuterol and its metabolites. Polymers 2018, 11, 17.
  54. Zhang, L.; He, L.; Wang, Q.; Tang, Q.; Liu, F. Theoretical and experimental studies of a novel electrochemical sensor based on molecularly imprinted polymer and GQDs-PtNPs nanocomposite. Microchem. J. 2020, 158, 105196.
  55. Huang, X.; Zhang, W.; Wu, Z.; Li, H.; Yang, C.; Ma, W.; Hui, A.; Zeng, Q.; Xiong, B.; Xian, Z. Computer simulation aided preparation of molecularly imprinted polymers for separation of bilobalide. J. Mol. Model. 2020, 26, 198.
  56. Xie, L.; Xiao, N.; Li, L.; Xie, X.; Li, Y. Theoretical insight into the interaction between chloramphenicol and functional monomer (methacrylic acid) in molecularly imprinted polymers. Int. J. Mol. Sci. 2020, 21, 4139.
  57. Wang, L.; Yang, F.; Zhao, X.; Li, Y. Screening of functional monomers and solvents for the molecular imprinting of paclitaxel separation: A theoretical study. J. Mol. Model. 2020, 26, 26.
  58. Silva, C.F.; Borges, K.B.; Nascimento, C.S. Computational study on acetamiprid-molecular imprinted polymer. J. Mol. Model. 2019, 25, 1–5.
  59. Khodadadian, M.; Ahmadi, F. Computer-assisted design and synthesis of molecularly imprinted polymers for selective extraction of acetazolamide from human plasma prior to its voltammetric determination. Talanta 2010, 81, 1446–1453.
  60. Wang, H.; Qian, D.; Xiao, X.; Gao, S.; Cheng, J.; He, B.; Liao, L.; Deng, J. A highly sensitive and selective sensor based on a graphene-coated carbon paste electrode modified with a computationally designed boron-embedded duplex molecularly imprinted hybrid membrane for the sensing of lamotrigine. Biosens. Bioelectron. 2017, 94, 663–670.
  61. Gholivand, M.B.; Torkashvand, M.; Malekzadeh, G. Fabrication of an electrochemical sensor based on computationally designed molecularly imprinted polymers for determination of cyanazine in food samples. Anal. Chim. Acta 2012, 713, 36–44.
  62. Yu, R.; Zhou, H.; Li, M.; Song, Q. Rational selection of the monomer for molecularly imprinted polymer preparation for selective and sensitive detection of 3-methylindole in water. J. Electroanal. Chem. 2019, 832, 129–136.
  63. Marc, M.; Panuszko, A.; Namiesnik, J.; Wieczorek, P.P. Preparation and characterization of dummy-template molecularly imprinted polymers as potential sorbents for the recognition of selected polybrominated diphenyl ethers. Anal. Chim. Acta 2018, 1030, 77–95.
  64. He, C.; Lay, S.; Yu, H.; Shen, S. Synthesis and application of selective adsorbent for pirimicarb pesticides in aqueous media using allyl-β -cyclodextrin based binary functional monomers. J. Sci. Food Agric. 2018, 98, 2089–2097.
  65. Nezhadali, A.; Mojarrab, M. Computational design and multivariate optimization of an electrochemical metoprolol sensor based on molecular imprinting in combination with carbon nanotubes. Anal. Chim. Acta 2016, 924, 86–98.
  66. Gao, B.; He, X.-P.; Jiang, Y.; Wei, J.-T.; Suo, H.; Zhao, C. Computational simulation and preparation of fluorescent magnetic molecularly imprinted silica nanospheres for ciprofloxacin or norfloxacin sensing. J. Sep. Sci. 2014, 37, 3753–3759.
  67. Tiu, B.D.B.; Pernites, R.B.; Tiu, S.B.; Advincula, R.C. Detection of aspartame via microsphere-patterned and molecularly imprinted polymer arrays. Colloids Surf. A Physicochem. Eng. Asp. 2016, 495, 149–158.
  68. Vergara, A.V.; Pernites, R.B.; Pascua, S.; Binag, C.A.; Advincula, R.C. QCM sensing of a chemical nerve agent analog via electropolymerized molecularly imprinted polythiophene films. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 675–685.
  69. Nezhadali, A.; Shadmehri, R. Computer-aided sensor design and analysis of thiocarbohydrazide in biological matrices using electropolymerized-molecularly imprinted polypyrrole modified pencil graphite electrode. Sens. Actuators B Chem. 2013, 177, 871–878.
  70. Khan, M.S.; Wate, P.S.; Krupadam, R.J. Combinatorial screening of polymer precursors for preparation of benzo[α] pyrene imprinted polymer: An ab initio computational approach. J. Mol. Model. 2012, 18, 1969–1981.
  71. Prasad, B.B.; Rai, G. Study on monomer suitability toward the template in molecularly imprinted polymer: An ab initio approach. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2012, 88, 82–89.
  72. Gholivand, M.B.; Khodadadian, M.; Ahmadi, F. Computer aided-molecular design and synthesis of a high selective molecularly imprinted polymer for solid-phase extraction of furosemide from human plasma. Anal. Chim. Acta 2010, 658, 225–232.
  73. Ganjavi, F.; Ansari, M.; Kazemipour, M.; Zeidabadinejad, L. Computer-aided design and synthesis of a highly selective molecularly imprinted polymer for the extraction and determination of buprenorphine in biological fluids. J. Sep. Sci. 2017, 40, 3175–3182.
  74. Azimi, A.; Javanbakht, M. Computational prediction and experimental selectivity coefficients for hydroxyzine and cetirizine molecularly imprinted polymer based potentiometric sensors. Anal. Chim. Acta 2014, 812, 184–190.
  75. Hasanah, A.N.; Rahayu, D.; Pratiwi, R.; Rostinawati, T.; Megantara, S.; Saputri, F.A.; Puspanegara, K.H. Extraction of atenolol from spiked blood serum using a molecularly imprinted polymer sorbent obtained by precipitation polymerization. Heliyon 2019, 5, e01533.
  76. Hasanah, A.N.; Soni, D.; Pratiwi, R.; Rahayu, D.; Megantara, S.; Mutakin. Synthesis of diazepam-imprinted polymers with two functional monomers in chloroform using a bulk polymerization method. J. Chem. 2020, 2020, 7282415.
  77. Tabandeh, M.; Ghassamipour, S.; Aqababa, H.; Tabatabaei, M.; Hasheminejad, M. Computational design and synthesis of molecular imprinted polymers for selective extraction of allopurinol from human plasma. J. Chromatogr. B 2012, 898, 24–31.
  78. Ahmadi, F.; Rezaei, H.; Tahvilian, R. Computational-aided design of molecularly imprinted polymer for selective extraction of methadone from plasma and saliva and determination by gas chromatography. J. Chromatogr. A 2012, 1270, 9–19.
  79. Aqababa, H.; Tabandeh, M.; Tabatabaei, M.; Hasheminejad, M.; Emadi, M. Computer-assisted design and synthesis of a highly selective smart adsorbent for extraction of clonazepam from human serum. Mater. Sci. Eng. C 2013, 33, 189–195.
  80. Salajegheh, M.; Ansari, M.; Foroghi, M.M.; Kazemipour, M. Computational design as a green approach for facile preparation of molecularly imprinted polyarginine-sodium alginate-multiwalled carbon nanotubes composite film on glassy carbon electrode for theophylline sensing. J. Pharm. Biomed. Anal. 2019, 162, 215–224.
  81. Khan, S.; Hussain, S.; Wong, A.; Foguel, M.V.; Moreira Gonçalves, L.; Pividori Gurgo, M.I.; Taboada Sotomayor, M.D.P. Synthesis and characterization of magnetic-molecularly imprinted polymers for the HPLC-UV analysis of ametryn. React. Funct. Polym. 2018, 122, 175–182.
  82. Nashar, R.M.E.; Ghani, N.T.A.; Gohary, N.A.E.; Barhoum, A.; Madbouly, A. Molecularly imprinted polymers based biomimetic sensors for mosapride citrate detection in biological fluids. Mater. Sci. Eng. C 2017, 76, 123–129.
  83. He, H.; Gu, X.; Shi, L.; Hong, J.; Zhang, H.; Gao, Y.; Du, S.; Chen, L. Molecularly imprinted polymers based on SBA-15 for selective solid-phase extraction of baicalein from plasma samples. Anal. Bioanal. Chem. 2015, 407, 509–519.
  84. Dong, W.; Yan, M.; Liu, Z.; Wu, G.; Li, Y. Effects of solvents on the adsorption selectivity of molecularly imprinted polymers: Molecular simulation and experimental validation. Sep. Purif. Technol. 2007, 53, 183–188.
  85. Douhaya, Y.V.; Barkaline, V.V.; Tsakalof, A. Computer-simulation-based selection of optimal monomer for imprinting of tri-O-acetyl adenosine in a polymer matrix: Calculations for benzene solution. J. Mol. Model. 2016, 22, 157.
  86. Qader, B.; Baron, M.; Hussain, I.; Gonzalez-Rodriguez, J. Electrochemical determination of 2-isopropoxyphenol in glassy carbon and molecularly imprinted poly-pyrrole electrodes. J. Electroanal. Chem. 2018, 821, 16–21.
  87. Qader, B.; Baron, M.; Hussain, I.; Sevilla, J.M.; Johnson, R.P.; Gonzalez-Rodriguez, J. Electrochemical determination of disulfoton using a molecularly imprinted poly-phenol polymer. Electrochim. Acta 2019, 295, 333–339.
  88. Peng, M.; Li, H.; Long, R.; Shi, S.; Zhou, H.; Yang, S. Magnetic porous molecularly imprinted polymers based on surface precipitation polymerization and mesoporous SiO2 layer as sacrificial support for efficient and selective extraction and determination of chlorogenic acid in duzhong brick Tea. Molecules 2018, 23, 1554.
  89. Ayankojo, A.G.; Reut, J.; Boroznjak, R.; Öpik, A.; Syritski, V. Molecularly imprinted poly(meta-phenylenediamine) based QCM sensor for detecting Amoxicillin. Sens. Actuators B Chem. 2018, 258, 766–774.
  90. Li, H.; He, H.; Huang, J.; Wang, C.-Z.; Gu, X.; Gao, Y.; Zhang, H.; Du, S.; Chen, L.; Yuan, C.-S. A novel molecularly imprinted method with computational simulation for the affinity isolation and knockout of baicalein from Scutellaria baicalensis. Biomed. Chromatogr. 2016, 30, 117–125.
  91. Pereira, T.F.D.; Da Silva, A.T.M.; Borges, K.B.; Nascimento, C.S. Carvedilol-imprinted polymer: Rational design and selectivity studies. J. Mol. Struct. 2019, 1177, 101–106.
  92. Nascimento, T.A.; Silva, C.F.; Oliveira, H.L.D.; Da Silva, R.C.S.; Nascimento, C.S.; Borges, K.B. Magnetic molecularly imprinted conducting polymer for determination of praziquantel enantiomers in milk. Analyst 2020, 145, 4245–4253.
  93. Teixeira, R.A.; Dinali, L.A.F.; Silva, C.F.; De Oliveira, H.L.; Da Silva, A.T.M.; Nascimento, C.S.; Borges, K.B. Microextraction by packed molecularly imprinted polymer followed by ultra-high performance liquid chromatography for determination of fipronil and fluazuron residues in drinking water and veterinary clinic wastewater. Microchem. J. 2021, 168, 106405.
  94. Lu, J.; Qin, Y.; Wu, Y.; Chen, M.; Sun, C.; Han, Z.; Yan, Y.; Li, C.; Yan, Y. Mimetic-core-shell design on molecularly imprinted membranes providing an antifouling and high-selective surface. Chem. Eng. J. 2021, 417, 128085.
  95. Zhang, Y.; Tan, X.; Liu, X.; Li, C.; Zeng, S.; Wang, H.; Zhang, S. Fabrication of multilayered molecularly imprinted membrane for selective recognition and separation of artemisinin. ACS Sustain. Chem. Eng. 2019, 7, 3127–3137.
  96. Wang, J.; Guo, R.; Chen, J.; Zhang, Q.; Liang, X. Phenylurea herbicides-selective polymer prepared by molecular imprinting using N-(4-isopropylphenyl)-N′-butyleneurea as dummy template. Anal. Chim. Acta 2005, 540, 307–315.
  97. Liu, Y.; Wang, D.; Du, F.; Zheng, W.; Liu, Z.; Xu, Z.; Hu, X.; Liu, H. Dummy-template molecularly imprinted micro-solid-phase extraction coupled with high-performance liquid chromatography for bisphenol A determination in environmental water samples. Microchem. J. 2019, 145, 337–344.
