Wireless Caching in RAN
Caching has attracted much attention recently because it holds the promise of scaling the service capability of radio access networks (RANs). To realize caching, the physical layer and higher layers have to function together, with the aid of prediction and memory units, which substantially broadens the concept of cross-layer design to a multi-unit collaboration methodology.
Modern radio access networks are capable of achieving data rates of Gbps, while they may still fail to meet the predicted bandwidth requirements of future networks. A recent report from Cisco  forecasts that mobile data traffic will grow to 77.49 EB per month in 2022. In theory, a human brain may process up to 100T bits per second . As a result, a huge gap may exist between the future bandwidth demand and provision in next generation radio access networks (RANs). Unfortunately, on-demand transmission that dominates current RAN architectures has almost achieved its performance limits revealed by Shannon in 1948, given extensive development of physical layer techniques in the past decades. On the other hand, the radio spectrum has been over-allocated, while the overall energy consumption is explosive. Since the potential of on-demand transmission has been fully exploited, it is time to conceive novel transmission architectures for sixth generation (6G) networks  so as to scale its service capability. The cache-empowered RAN is one of the potential solutions that hold the promise of scaling service capability .
Caching techniques were originally developed for computer systems in the 1960s. Web caching was conceived for the Internet due to the explosively increasing number of websites in the 2000s. In contrast to on-demand transmission, caching allows proactive content placement before being requested, which has motivated some novel infrastructures such as information-centric networks (ICNs) and content delivery networks (CDNs).
Though considerable literature on the subject of wireless caching exists, there is a need to revisit it from a cross-layer perspective, as shown in Figure 1.
|Transmission Techniques||Application Scenarios||How Is SE or EE Gain Attained?||Why Is Delay Increased?|
|Lazy Scheduling||Additive White Gaussian Noise Channels||Due to the convexity of Shannon capacity, EE is a decreasing function of the transmission power/rate.||Low data rate|
|Opportunistic Scheduling||Fading Channels||EE/SE is increased by time domain water-filling, or simply accessing good channels only.||Channel states remaining poor|
|Opportunistic Spectrum Access||Secondary Users||SE is increased by sensing and accessing idle timeslots or spectrum holes.||Spectrum remaining busy|
|Energy Harvesting||Renewable Energy Powered BSs/UEs||The renewable energy harvested from solar panels, wind turbines, or even the RF environment helps to save grid power.||No or little energy harvested|
|Physical-Layer Multicasting||Users with Common Interests||Multiple users located in the same cell are served by broadcasting a common signal to them.||Waiting for common requests|
2. Proactive Service: Gains, Costs, and Needs
Without waiting for users’ orders, a cache-empowered RAN provides proactive services.
2.1. Caching Gains: A Time-Domain Perspective
Caching enables physical layer multicasting . In theory, caching is capable of serving infinitely many users with a common request, thereby making RANs scalable. Classic on-demand transmission can seldom benefit from the multicasting gain because users seldom ask for a common message simultaneously. Aligning common requests in the time domain may, however, cause severe delay and damage Quality-of-Service (QoS). Proactive caching brings a solution to attain multicasting gain without inducing delay in data services. Even when users have different requests, judiciously designed coded caching strategies  allow RANs to enjoy the multicasting gain.
Caching extends the tolerable transmission time, thereby bringing spectral efficiency (SE) or energy efficiency (EE) gains. Lazy scheduling , opportunistic scheduling , opportunistic spectrum access (OSA) , and energy harvesting (EH)  may increase the SE and EE. However, their applications are usually prohibited or limited due to their random transmission delay. Caching enables content transmission before user requests and hence substantially prolongs the delay tolerance.
Caching enables low-complexity interference mitigation or alignment . It is well known that a user can cancel a signal’s interference based on prior knowledge about the message that the signal bears. Classic successive interference cancellation (SIC) decodes the interference first by treating the desired signal as noise. However, SIC can suffer from high complexity and error propagation. By contrast, caching provides reliable prior knowledge on the interfering signal, which significantly reduces the complexity of interference cancellation.
2.2. Memory Cost to Be Paid for Caching
3. Request Time Prediction: Beyond Content PopularityRequest time prediction is potentially highly beneficial in proactive caching. Unfortunately, conventional popularity based models, either static or time-varying, are content-specific. They mainly focus on the content popularity distribution among users.
3.1. Characterization of Random Request TimeRequest time prediction relies on the fact, also observed in , that a content item is usually requested by a user at most once. We set a content item’s generation time to be the time origin. The item can be requested by a user at a random time after its generation, denoted by X, also referred to as the request delay. If it is never requested by the user, we regard the request delay to be X=0−. Otherwise, the user will ask for it at X≥0. The accurate request delay X can hardly be predicted, but its probability density function (p.d.f.), denoted by p(x), is predictable. We shall refer to p(x) as the statistical request delay information (RDI), which characterizes our prediction about the request time .
3.2. RDI Estimation Methods
Artificial Intelligence (AI) and big data technologies provide powerful tools for understanding user behaviors in the time domain . A time-varying popularity prediction for video clips can be found in , in which real data from YouTube and Facebook are used. In practice, the request time is also affected by one’s environments, activities, social connections, etc. For instance, one tends to watch video clips to kill time in the subway or during leisure time, but internet surfing is strictly prohibited while driving. Consequently, user-specific prediction brings together human behavior analysis, natural language processing (NLP), social networks, etc., leading to many cross-disciplinary research opportunities that include but are not limited to
Exploiting the impact of social networks, recommendation systems, and search engines,
Discovering relevant content using NLP,
Analyzing a user behaviors, e.g., activities, mobilities, and localizations.
4. Fundamental Limits of Caching: A Cross-Layer Perspective
4.1. Communication Gains
Proactive caching prolongs the transmission time, which enables many possible energy- and/or spectral-efficient physical layer techniques. We are interested in how a content item is pushed given its RDI and what its EE/SE limit is. Quantitative case studies on the EE of pushing over additive white Gaussian noise (AWGN), multiple-input single-output (MISO), and fading channels are presented in , respectively. A user that tolerates a maximal delay of T seconds may request a content item having B bits. The AWGN channel has a normalized bandwidth and power spectral density of noise.
4.2. Memory Costs

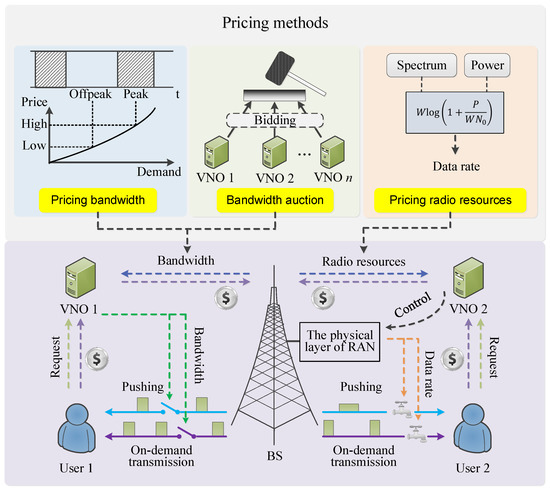

5. Pricing: Creating Incentive for Caching
5.1. Pricing Caching Service Using a Hierarchical Architecture
5.2. Pricing User Cooperation
5.3. Competition and Evolution
5.4. Pricing Radio Resources, Memory, and Privacy
6. Recommendation: Making RANs More Proactive
6.1. Joint Caching and Recommendation
6.2. After-Request Recommendation and Soft Hit
