二2、卫星导航信号认证原理与技术架构Principles and Technical Architecture of the Satellite Navigation Signal Authentication

2.1. 原则Principles

Satellite navigation signal authentication technology aims to add encrypted authentication marks to satellite navigation signals to prevent satellite navigation signals from GNSS spoofing attacks. It is a new GNSS anti-spoofing technology that combines information security and navigation signal design. The sender (navigation satellite) uses cryptography technology to generate an "authentication symbol", which is embedded in the existing satellite navigation signal and broadcast to users. The receiver (GNSS user terminal) verifies the "authentication symbol" to confirm whether the received navigation signal is from a real satellite in orbit, and whether the navigation message has been forged or tampered with [

]. Satellite navigation signal authentication technology has the following characteristics:

1) One-way broadcast.

(1)

单向广播。

The satellite navigation signal uses the navigation satellite broadcast signal to provide PNT services for terrestrial users, and its signal characteristics have the characteristics of one-way broadcast. Therefore, satellite navigation signal authentication technology should be based on the broadcast system authentication framework.

2) Signal disclosure transmission.

卫星导航信号利用导航卫星广播信号为地面用户提供PNT服务，其信号特性具有单向广播的特点。因此，卫星导航信号认证技术应基于广播系统认证框架。

Satellite navigation signals use the public signal structure to broadcast signals, and their signal authentication needs to have the characteristics of public signal transmission.

(2)

信号泄露传输。

3) Compatible with existing signal structure.

卫星导航信号采用公共信号结构广播信号，其信号认证需要具有公共信号传输的特点。

The authentication of satellite navigation signals will not affect existing GNSS services, so its authentication signal design should be compatible with existing signal structure.

(3)

与现有信号结构兼容。

卫星导航信号的认证不会影响现有的GNSS业务，因此其认证信号设计应与现有的信号结构兼容。

2.1.1. Satellite Navigation Signal Authentication Type

2.1.1. 卫星导航信号认证类型

卫星导航信号包括载波、伪码和消息。新添加的认证标记可以添加到导航消息[

Satellite navigation signals include the carrier, pseudocodes, and message. The newly added authentication mark can be added to the navigation message [

22]和扩频码[

] and spreading spectrum codes [

23]中。图1示出了包括认证消息和扩频码在内的认证码的导航消息的生成。因此，卫星导航信号认证类型分为导航消息认证（NMA）和扩码认证（SCA）[

]. Figure 1 shows the generation of the navigation message including authentication message and the spreading spectrum code including authentication code. Therefore, the satellite navigation signal authentication type is divided into Navigation Message Authentication (NMA) and Spreading Code Authentication (SCA) [

24]。

].

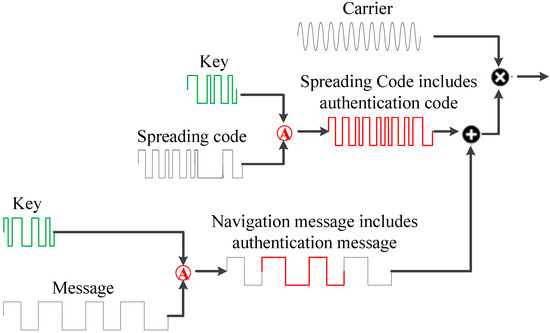

图Figure 1.卫星导航信号认证。 Satellite Navigation Signal Authentication.

1) NMA

NMA uses message bit-level authentication to realize navigation source authentication. Its advantage is that the modification of the existing signal system is small and the signal modulation method is not changed. It’s just to upgrade the software of the user receiver. The engineering realization cost is small. The Galileo E1 OSNMA structure is shown as Figure 2. Galileo reserved a 40-bit message in the early ICD, and the ICD announced in 2021 clarified that the 40-bit message is the navigation authentication message [25].

(1)

国家海洋管理局

NMA使用消息位级认证实现导航源认证。其优点是现有信号系统的修改量小，信号调制方式不改变——只是用来升级用户接收机的软件。工程实现成本小。伽利略E1 OSNMA结构如图2所示。伽利略在早期ICD中保留了40位消息，ICD在2021年宣布澄清了40位消息是导航认证消息[25]。



图

Figure 2.

伽利略NMA报文结构[

GALILEO NMA message structure [

25]。

(2)

爱生雅

SCA采用不可预测的认证扩展芯片的特性，在电源域实现认证处理，可以在伪距离域提供欺骗保护。典型的SCA是CHIMERA信号，如图3所示。基于TMBOC（时间多路复用二进制偏移载波）信号，通过时分和跳频的组合将1 ms扇区划分为31段，并为每个段分配不同的认证通道（快速通道和慢速通道）。在 29 个芯片的每个段中，1 个 BOC（1，33） 的身份验证代码被随机替换，并且 4 个 BOC（6，1） 芯片永远不会被修改 [

].

2) SCA

SCA adopts the characteristics of unpredictable authentication spreading chips, and implements authentication processing in the power domain, which can provide spoofing protection in the pseudorange domain. The typical SCA is the CHIMERA signal, as shown in the Figure 3. Based on the TMBOC (Time-Multiplexed Binary Offset Carrier) signal, the 1 ms sector is divided into 31 segments via a combination of time division and time hopping, and different authentication channel (fast channel and slow channel) are assigned for each segment. The authentication codes are randomly replaced for 29 BOC(1,1) in each segment of 33 chips, and the four BOC(6,1) chips are never modified [

26]。

].

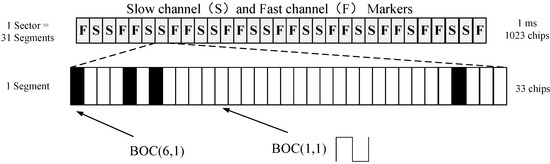

Figure 3. CHIMERA spreading code [26].

Compared with NMA, SCA can provide spoofing protection in the pseudorange domain, and it has higher security. However, the SCA authentication chip needs to be delayed to the user receiver; the receiver needs to buffer the sampled data so the implementation cost of the receiver is relatively costly. Table 1 shows the comparison of NMA and SCA.

Table 1. Comparison of NMA and SCA.

Type	Indicators	Receiver Processing	Feature
NMA [25]	Galileo-OSNMA Time Between Authentication: 10 s	Message bit authentication using Message Authentication Code (MAC)	The project implementation is less difficult, the security level is not as good as SCA, and it can be processed in real time at the terminal.
SCA [26]	NTS3-CHIMERA Time Between Authentication for slow channel: 180 s Time Between Authentication for fast channel: 1.5 s or 6 s	Power Domain Authentication Using Sampled Data for Spreading Code Correlation Processing	The pseudorange can be authenticated. The authentication requires data caching, and the project implementation is costly.

2.1.2. Satellite Navigation Message Authentication Type

The navigation message authentication protocol includes Digital Signatures (DS) and the Timed Efficient Stream Loss-Tolerant Authentication (TESLA). Digital signatures are implemented based on asymmetric cryptography (also known as public key cryptography). The sender uses the private key to sign the message, and the receiver uses the public key to verify the signature of the message [27]. Digital signatures commonly use the Elliptic Curve Digital Signature Algorithm (ECDSA), which has the characteristics of high security and complex algorithm strength. In addition, European scholars proposed EC Schnorr’s digital signature algorithm [18]. The digital signature schematic is shown in Figure 4 below.

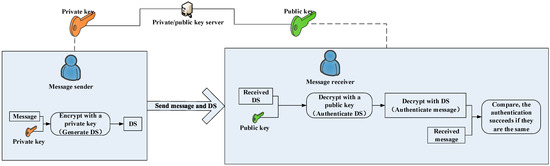

Figure 4. Digital Signature Schematic.

The TESLA protocol is a broadcast authentication protocol that can be applied to satellite navigation broadcast signals with limited bandwidth [28,29]. The TESLA protocol, designed by Perring et al., is an MAC-based broadcast authentication protocol [30,31]. The protocol uses a symmetric cryptography method, and the key is to use the delayed key release to ensure the security of the broadcast key. The TESLA protocol generates a set of keychains through the hash function. The generation order of the keychain is Key_i, Key_i−1, …, Key₁, Key₀, while the keychain system uses Key₀, Key₁, …, Key_i−1, Key_i. The advantage is that when the key is not received or not received at a certain moment, the key can be obtained via the key hash of the subsequent epoch. Then, according to the key Key_i and the navigation message M_i at the current moment, the Hash-based Message Authentication Code (HMAC) algorithm is used to generate the message authentication code MAC_i. The GNSS system broadcasts the navigation message M_i, the message authentication code MAC_i, and the Key_i−1 of the previous epoch to the user; that is, the symmetric key used to generate the MAC is sent after the broadcast MAC is delayed by δ time. The user receives the GNSS message M_i for storage and the delayed symmetric key Key_i, then generates delay MAC′i′, and compares it with the MAC_i of the GNSS broadcast. If the two are consistent, the authentication is passed. Key chain generation and the key usage of TESLA are shown in Figure 5 below.

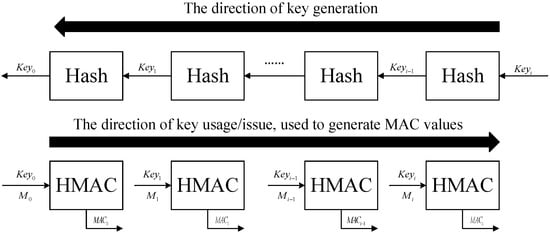

Figure 5. Key chain generation and key usage of TESLA.

Compared with the ECDSA algorithm, TESLA has a lower computational load and communication load, and is suitable for satellite navigation systems with limited message bandwidth. TESLA’s one-way keychain generation and transmission improve the stability of authentication services. ECDSA has a variety of international standards, and the implementation process is simple, but ECDSA occupies more data bits. The comparison between TESLA and the digital signature is shown in Table 2.

Table 2. Comparison of TESLA and ECDSA.

Protocol	Cryptographic Algorithm	Calculated Amount	Authentication Information Truncation	Key Distribution Requirements	Key Length under the Same Security Level
TESLA [28,29,30,31]	Hash, HMAC	Small	Yes	Yes	Short
DS [18,27]	DS	Big	No	No	Long

2.2. Technical Architecture

The satellite navigation system consists of the space segment, ground segment, and user segment. Based on the existing satellite navigation system, the satellite navigation signal authentication will be extended to the space segment, the ground segment, the user terminal, and the network auxiliary segment. The space segment adds the authentication spreading code/authentication messages to the broadcast downlink satellite navigation signal, the user segment authenticates the received satellite navigation signal, and the network auxiliary segment uses the communication base station (terrestrial communication/satellite communication) to provide network auxiliary authentication information. If there is a GNSS spoofing signal in the actual environment, the user segment can identify whether the current signal is a spoofing signal through the authentication of the message/spreading spectrum code. The architecture of the satellite navigation signal authentication is shown in Figure 6.

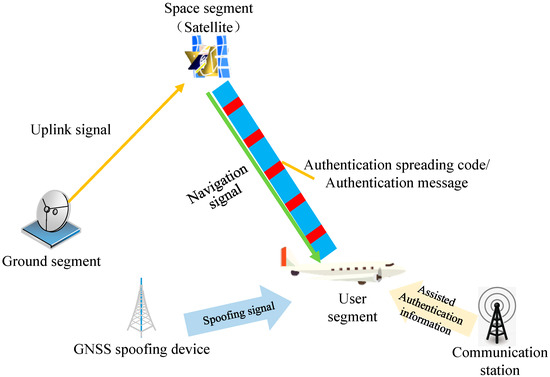

Figure 6. Satellite navigation signal authentication architecture.

2.3. Incremental Capability

Navigation signal authentication technology will bring a new service to the GNSS, which neither improves the accuracy nor augments the integrity and continuity, just focuses on improving the anti-spoofing capability of GNSS civil signals to provide users with more credible PNT services. Signal authentication is a system-side anti-spoof technology which can resist generative spoofing. The orange part in Figure 7 represents the incremental capability.

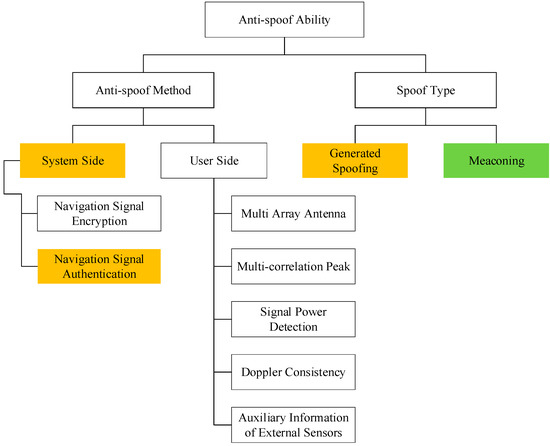

Figure 7. Ability of satellite navigation signal authentication technology.

(1)

Anti-spoofing method

The anti-spoofing capability can be divided into system-side and user-side anti-spoofing technology according to the anti-spoofing method. The system-side anti-spoofing technology provides signal services with anti-spoofing capability, including navigation encryption signal technology [32] and navigation signal authentication technology [17]. The user-side anti-spoofing technology includes the direction of arrival (DOA) detection based on multi-array antennas [7,8], multiple correlation peaks [33,34], signal power [35,36], Doppler consistency [37,38], baseband processing algorithms, and the auxiliary information of external sensors [4,5]. Table 3 lists the comparison of the common anti-spoof algorithms. Compared with the existing user-side anti-spoofing algorithms, navigation signal authentication has a better anti-spoofing effect.

Table 3. Comparison of common anti-spoofing algorithms.

Anti-Spoofing Method	Description	Effect
SCA
Navigation signal encryption [32]	Encrypted signals serve authorized users, making it difficult for attackers to predict signals	High
Generated spoofing	Primary generated spoofing (low-cost software radio or commercial signal simulator)	High	High
	Navigation signal authentication [17]	It is difficult for spoofed attackers to predict the authentication message/spreading code	High
	DOA detection based on multi-array antennas [7,
	Intermediate generated spoofing (receive GNSS signal first and then generate spoofing signal)	High	High	8]	The spoofing signal is generally emitted from a single transmitting antenna, and its satellites come from the same direction, while the real satellites of the signal come from different directions	High
Multiple correlation peaks [
SCER	Low	33,34]	The superposition of the spoofed signal and the real signal will bring multiple correlation peaks, and it will also cause distortion of the correlation peaks	Medium
High/Medium
Advanced generated spoofing (multiple intermediate generative spoofing)	High/Medium	High	Signal power [35,36]	The spoofing signal has more power, and the signal power changes during the spoofing implementation	Medium
Meaconing	Simple meaconing (same delay for each satellite channel)	Low	Low	Doppler consistency [37,38]	It is difficult for spoofing signals to keep the carrier Doppler shift consistent with the pseudocode Doppler shift	Medium
	Auxiliary information of external sensors [4,5]	Spoofing signals cannot deceive sensors such as inertial navigation, chip-scale atomic clocks, and lidar	High

(2)

Anti-spoofing capability

According to the GNSS cheating attacker type, it is divided into generated spoofing and meaconing. The anti-spoofing effect of the satellite navigation signal authentication is detailed, as shown in Table 4 [17].

Table 4. Signal authentication anti-spoofing effect [17].

Spoofing		NMA
Multichannel meaconing (the delay of each satellite channel is inconsistent)
Low
Low

Generated spoofing means that the attacker generates a spoofing signal with the exact same structure as the real GNSS signal [39], which utilizes the known vulnerabilities of the civilian signal ICD to generate a false GNSS spoofing signal and broadcast it to the target receiver. The prerequisite for satellite navigation signal authentication is that the spoofing attacker cannot break the cryptographic algorithm, so that the authentication message/spreading code cannot be forged. Therefore, satellite navigation signal authentication can solve the generative spoofing attack to civilian users. Meaconing means that the attacker receives the navigation signal [40], performing proper delay and power amplification on the real GNSS signal, and then broadcasts the meaconing signal to the target receiver. The meaconing does not change the message and spreading code, so the satellite navigation signal authentication effect is not good for this method. In addition to the above two common spoofing methods, Security Code Estimation and Replay (SCER) [41] has also been proposed in recent years. This method is to receive the real signal and estimate the encrypted or authenticated message in real time as much as possible. Then, the encrypted or authenticated message in the signal is reassembled and sent. SCER predicts the authentication message based on the security code estimation method, which is effective for security codes with a low symbol rate (navigation message), but less effective for security codes with a high symbol rate (spreading code).
