The advancement in water treatment technology has revolutionized the progress of membrane bioreactor (MBR) technology in the modern era. The large space requirement, low efficiency, and high cost of the traditional activated sludge process have given the necessary space for the MBR system to come into action.

  • membrane bioreactor (MBR)
  • structural features
  • sustainable water treatment

1. Introduction

In recent times, rapid industrial growth that is due to an ever-increasing population has caused an increase in demand for water [1,2,3][1][2][3]. The increase in the use of fresh water and discharging without adequate treatment poses a significant challenge to the world [4,5][4][5]. At present, there are two billion people who live in countries with water scarcity, and it is estimated that 25% of the children will be living in places with severe water scarcity by 2040, according to the United Nations Children’s Fund (UNICEF) [6]. Other than water scarcity, water pollution due to the discharge of industrial effluents has a significant impact on the environment [7,8][7][8]. As a result, there is a necessity of developing sustainable and efficient wastewater treatment technologies for better water cycle management and reuse [4]. The membrane bioreactor (MBR) has received attention in the past few decades as one of the promising technologies for wastewater treatment and reuse [9,10,11][9][10][11].
MBR is the process that combines biological treatment (aerobic, anaerobic) with membrane technology for the treatment of wastewater [12]. This process uses microfiltration or ultrafiltration for the separation of sludge produced by biological treatments instead of using a clarifier for gravity settling as in conventional biological treatments. In comparison to the conventional activated sludge (CAS) process, MBR offers several benefits. The solid retention time (SRT) in MBR is higher compared with CAS, whereas the hydraulic retention time (HRT) is lower in MBR than in the CAS process. Moreover, the separation of sludge is more efficient in the case of MBR. The effluent quality of MBR is much better in terms of biochemical oxygen demand (BOD), suspended solids, and turbidity, making it suitable for water reclamation and requiring less space [3,12][3][12]. Other than CAS, MBR can also be used in anaerobic treatments by replacing conventional anaerobic digestion by using an up-flow anaerobic sludge blanket (UASB), expanded granular sludge bed (EGSB), or anaerobic baffled tank reactor [13]. The anaerobic membrane bioreactor (AnMBR) can produce high-quality effluent with lower chemical oxygen demand (COD) compared with the conventional process by controlling the biomass concentration [13,14][13][14].
The MBR process was first introduced in 1969 by Dorr-Oliver Inc. However, the initial developments could not be translated to widespread industrial applications, owing to the large expenses associated with membrane material and energy [3,15][3][15]. Since then, further improvements in membrane materials, configurations, and process parameters have been made for its utilization in commercial applications. The development of MBR on a commercial scale has gained momentum since its application started in the treatment of industrial and municipal wastewater [16].

2. Water Treatment Stages in the Modern Age

At present, conventional wastewater treatment consists of three stages: primary, secondary, and tertiary (Figure 1).

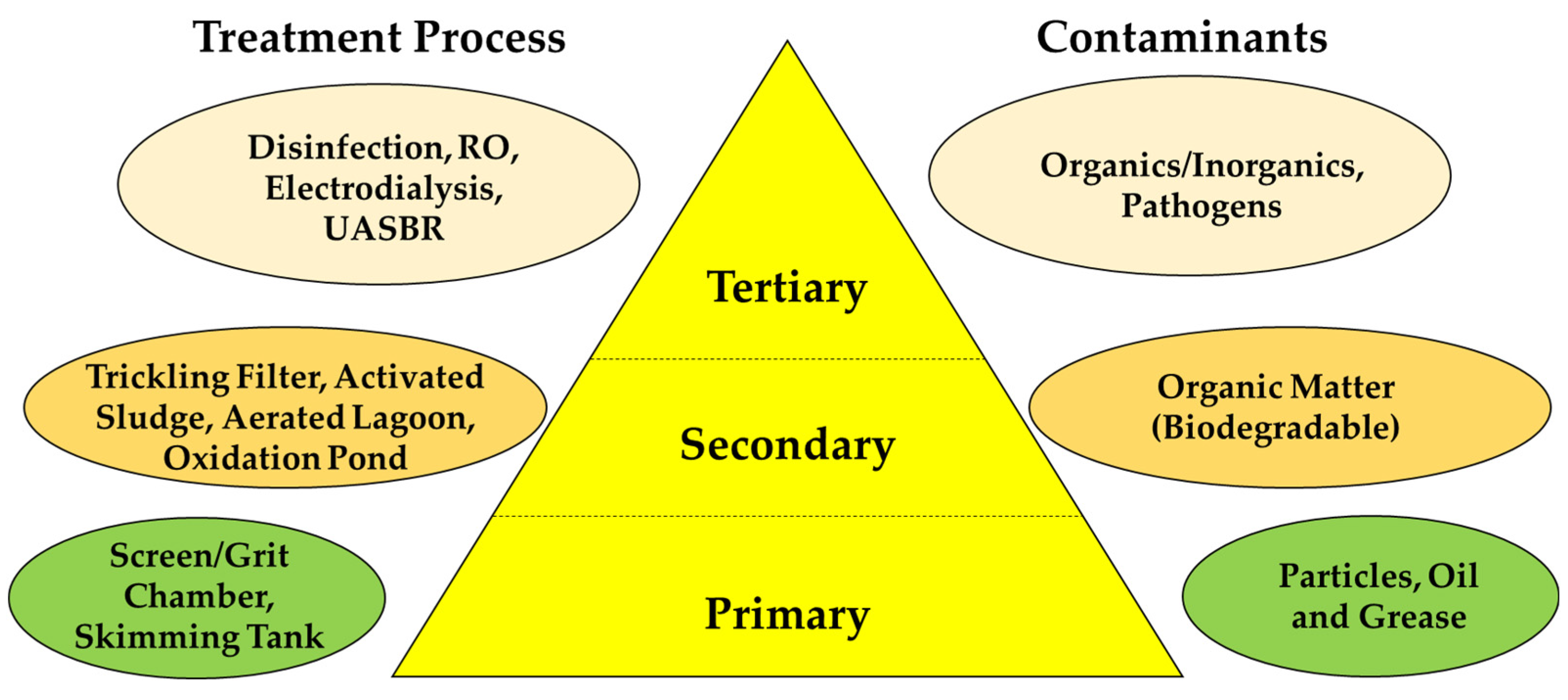

Figure 1.
Different levels of wastewater treatment.
Primary treatment has two steps: preliminary treatment and the sedimentation tank. Preliminary treatment consists of screening to remove large particles, oil, fat, rock, and debris, and with small screens, it screens out even algae. The sedimentation tank is chemical precipitation (coagulation, flocculation) in a primary settling tank to remove organic matter and colloidal suspended particles. Secondary treatment is the degradation of biodegradable and soluble organics by microorganisms through aeration and an activated sludge process. Tertiary treatment, also known as advanced treatment, is responsible for the removal of nutrients (nitrogen, phosphorus), suspended solids, pathogenic bacteria, viruses, and heavy metals. Membrane filtration, electrodialysis, photocatalysis, and water oxidation are some of the advanced treatment methods [32][17]. Currently, MBR is one of the promising methods for municipal and industrial wastewater treatment. It is a combination of the microfiltration or ultrafiltration of the advanced treatment stage with a biological treatment process of the secondary stage [33][18]. Membrane bioreactors are compact and can remove suspended and soluble compounds, viruses, and bacteria from wastewater and produce excellent-quality effluent. It eliminates the use of secondary clarifiers and the time associated with them [28][19].

3. MBR Technology for Sustainable Water Treatment

3.1. Configuration of MBR

Conventional aerobic treatment has been used for over a century to treat industrial wastewater and effluent. However, the high energy requirement for the aeration process, the bulk amount of sludge generation, the greenhouse gases such as nitrous oxide (N2O) emissions, the huge environmental imprint, and the high maintenance costs of the conventional aerobic process demand a more efficient method of wastewater treatment. In anaerobic treatments, the production of methane-rich biogas from the breakdown of organic matter lowers the energy needed for wastewater treatment [3]. Typically, aerobic processes are used to treat effluents with biodegradable COD contents less than 1000 mg/L, while the anaerobic technique is widely employed to treat strong and highly polluting processes (e.g., biodegradable COD contents >4000 mg/L) [120][20]. The advantages of high effluent quality, low environmental impact, and other factors have accelerated MBR technology’s development to treat wastewater [121][21]. The MBR process, which combines membrane filtration with biological treatment using a reactor, is similar to CAS; however, it operates without secondary clarification and tertiary processes, e.g., a sand filter, an activated carbon filter, etc. [85,122][22][23]. Out of the two configurations of MBRs, the side-stream membrane module system is compact. However, to limit the fouling rate, it employs a high suspension regeneration flow rate throughout the membrane module, which increases its power requirement. The submerged membrane module operates at low transmembrane pressure (TMP) and uses air fluid to create turbulence [123,124][24][25]. Depending on the membrane shear velocity, an external or side-stream MBR arrangement can be advanced in two ways. The first one is BioFlow mode, which treats wastewater with greater fouling potential e.g., greasy sewage of 75–150 L/m2 h permeate flux at 3.5–4.5 m/s velocity (inside membrane). The second uses BioPulse mode to treat wastewater with a moderate fouling potential, such as municipal or industrial effluent of 40–70 Lm−2h−1 and 1–2 m/s velocity (inside membrane). In this mode, water pulses back from the permeate side to the mixed liquor side at irregular intervals [125][26]. In recent years, the advanced airlift side-stream MBR (ArMBR) systems have received a lot of attention. The idea incorporates the benefits of the low-energy submerged systems and, at the same time, applies the side-stream airlift principle employing a stable and dependable side-stream arrangement [85][22]. However, the ArMBR systems are still in the development phase. In 2018, Shin and Bae reported that a lab-sized (maximum capacity of 135 kWhm3) ArMBR system requires lower energy for a pilot study, compared with a typical external submerged AnMBR configuration [124][25].

3.2. Impact of MBR in Sustainable Wastewater Treatment

Wastewater treatment has become a necessity to resolve the water scarcity issues and reclamation of water as an essential resource. Membrane bioreactor technology is an advanced and unique option for this purpose. Since the 2000s, the MBR technology has undergone considerable development [3]. What with energy limitations, climatic changes, and resource depletion, conventional wastewater treatment systems face significant obstacles [91][27]. When compared with CAS, MBR has several significant advantages, e.g., better permeate quality, simpler operational management, and a reduced footprint [126][28]. Banti et al., (2020) conducted a life-cycle analysis (LCA) study to compare the CAS plant with an MBR plant in northern Greece to assess their respective environmental impacts. The life-cycle impact assessment (LCIA) showed lower values for impact factors such as global warming potential (GWP), ozone depletion potential, etc. for the MBR plant. The results proved that the MBR plant process was more environmentally sustainable [127][29]. Recent research has indicated that using an ammonia-N-based aeration management technique reduced aeration and energy consumption rates in full-scale MBRs by 20% and 4%, respectively [128][30]. The reduction in the air flow rate decreases energy consumption and GHG emissions thanks to the incomplete nitrification in MBR [129][31]. The study suggests that closed-loop aeration with consistent dissolved oxygen (DO) levels inside the aerobic reactor rather than open-loop aeration will successfully bring down the operating cost of MBRs plants by 13–17% [130][32]. Moreover, MBR can achieve the goal of zero discharge. MBRs and their variants would dominate this sector for future sustainable water treatment technologies.
