Cluster-Based Coordination Polymers
Edit
This entry is adapted from the peer-reviewed paper 10.3390/chemistry3010023

Cluster-based coordination polymers (CCPs) are constructed from metal coordination clusters that are bridged by polytopic organic ligands forming multidimensional systems such as one-dimensional (1D) chains, two-dimensional (2D) layers, and three-dimensional (3D) metal-organic frameworks. Structurally well-defined polynuclear Mn(II,III)/Fe(III)-oxo pivalate and isobutyrate clusters recommend them-selves as extremely versatille building blocks where their ancillary coordination ligands are sufficiently flexible to allow the formation of a wide variety of 1D, 2D and 3D CCPs.

cluster-based coordination polymer carboxylate

1. Introduction

Cluster-based coordination polymers (CCPs) have received significant attention over the past decade due to their promising potential as multifunctional materials for technological and industrial applications [1][2][3][4][5][6]. Typically, CCPs are constructed from metal coordination clusters that are bridged by polytopic organic ligands forming multidimensional systems such as one-dimensional (1D) chains, two-dimensional (2D) layers and three-dimensional (3D) metal–organic frameworks (MOFs) [7]. Two synthetic pathways have been explored by synthetic chemists for the fabrication of the CCPs. In formation reactions, one can utilize simple salts or presynthesized well-defined polynuclear metal clusters, following Robson’s classical node (typically consisting of a single metal ion) and spacer (polytopic coordination ligand) approach [8] or Yaghi and O’Keeffe’s “secondary building units” (SBUs, representing a rigid metal carboxylate cluster with external connectivity that mimics triangle, square, tetrahedral, hexagonal or octahedral patterns) strategy [9][10]. Later, Zaworotko et al. developed a design strategy that exploits metal–organic polyhedra as “supermolecular building blocks” (SBBs), which combine a greater range of scale (nanometer scale) and high symmetry and, thus, can afford improved control over the topology of the resulting coordination polymers [11].

To date, considerable efforts have been devoted to developing a range of CCPs by using rigid carboxylate clusters of paramagnetic transition metals as building units that contain multiple metal ions linked by multiple coordination ligands, especially for producing molecular magnetic arrays [12]. In comparison to other typically employed structural building blocks, polynuclear carboxylate-based clusters offer distinct advantages for engineering CCPs: (i) they can afford specific control over a CCPs’ topology through precise adjusting the coordination environment of metal ions and thus providing the easy accessibility of spacers to a vacant coordination site at the periphery of the cluster, to which a separate cluster can be attached; (ii) ease in managing and fine-tuning their shape and size via increasing or decreasing the nuclearity; (iii) and feasibility to vary their physical properties since their physical characteristics (magnetic, spectroscopic and redox behavior) can be determined and modified prior to network formation [4][5]. Furthermore, the carboxylate ligands can be partially substituted, e.g., by redox-active inorganic ligands such as magnetically functionalized polyoxoanions [13] or paramagnetic organic ligands [14][15][16][17]; thus, the final assemblies can reveal some additional properties and functions such as charge-state switching of magnetic ground states and anisotropy. Such tailor-made multidimensional CCPs can be applied in numerous important fields such as catalysis, gas storage, pharmaceuticals, etc. [18].

2. Oxo-Trinuclear Mn/Fe-Based CCPs

Trinuclear oxo-centered carboxylate coordination clusters of general composition [M3(µ3-O)(O2CR)6(L)3]+/0 (where L = a neutral terminal ligand) are the most frequently used building blocks in the construction of CCPs. For assembling 1D oxo-trinuclear Mn/Fe CCPs, several synthetic strategies have been explored, e.g., using simple soluble metal salts or well-known pre-designed “basic carboxylate”, e.g., μ3-oxo trinuclear Mn/Fe carboxylate clusters. The combination of these starting materials with organic ligands, usually in “one-pot” syntheses at temperatures starting from room temperature and up to solvothermal conditions in different solvents, gave the expected CCPs. The first 1D CCP, [Mn3O(ac)7(Hac)]n, which is composed of [Mn3(μ3-O)(ac)6(Hac)] acetate clusters interlinked by acetate bridges, was reported by Hessel and Romers in 1969 [19], whereas Rentschler and Albores synthesized the first 1D CCP composed of [Fe3(μ3-O)(piv)6(H2O)]pivalate clusters interlinked by dicyanamide (dca) bridges in 2008, [Fe3O(piv)6(H2O)(dca)]n (where Hpiv = pivalic acid) [20].

Cronin, Kögerler et al. [21] suggested an effective route to assembling 1D CCPs through metal building block linkers in 2006. A helical {[(Fe3O(aa)6(H2O))(MoO4)(Fe3O(aa)6(H2O)2)]·2(MeCN)·H2O}n CCP (where Haa = acrylic acid) has been synthesized by linking the [Fe3O(aa)6(H2O)3]+ cations with [MoO4]2− dianions derived from (Bu4N)2[Mo6O19] in MeCN. As an extension, Bu et al. [22] in 2015, introduced [M(H2O)2(fa)4]2− formate building block linkers for connecting μ3-oxo trinuclear neutral [Fe3O(fa)7] formate clusters into {(NH4)2[Fe3O(fa)7]2[M(H2O)2(fa)4]}n CCPs (where Hfa = formic acid; MII = Fe; Mn; Mg) with the formation of anionic double-strained chains.

The family of 1D Mn and Fe pivalate or isobutyrate CCPs (Table 1) has been generated by using simple metal carboxylates or employing pre-designed oxo-trinuclear building blocks in reactions [23][24]. Thus, mixing a hot ethanol solution of hexamethylenetetramine (hmta) with MnII isobutyrate in tetrahydrofuran yields the chain coordination polymer {[Mn3O(is)6(hmta)2]·EtOH}n (where His = isobutyric acid) (1) [23]. This CCP comprises neutral mixed-valent μ3-oxo trinuclear [MnIIMnIII2O(is)6] clusters bridged by hmta into a linear 1D chain as shown in Figure 1. To model its magnetic behavior, an approximation considered two trimers coupled through MnIII and MnII ions (the Mn···Mn distances between clusters via hmta linkers are equal to 6.310 Å). For 1, the authors reported significant antiferromagnetic intracluster interactions between Mn spin centers with 2J1 = +32.5 K and 2J2 = −16.8 K, whereas the intercluster interactions through hmta spacers were found to be weakly ferromagnetic.

Chemistry 03 00023 g001 550

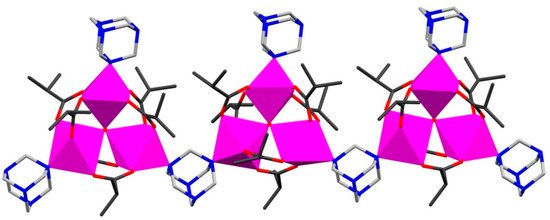

Figure 1. A linear 1D chain in {[Mn3O(is)6(hmta)2]·EtOH}n (1) CCP [23]. H atoms and solvent (EtOH) molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.

Table 1. Cluster-based coordination polymers (CCPs) built up from Fe/Mn-oxo pivalates and isobutyrates.
Code Formulae Oxo Building Block Linker 1 Dimensionality Refs
1 {[Mn3O(is)6(hmta)2]·EtOH}n {MnIII2MnIIO} hmta 1D [23]
2 {[Fe2MnO(piv)6(hmta)2]·0.5(MeCN)}n {FeIII2MnIIO} hmta 1D [24]
3 {[Fe2MnO(piv)6(hmta)2]·Hpiv·n-hexane}n {FeIII2MnIIO} hmta 1D [24]
4 {[Fe2MnO(piv)6(hmta)1.5]·toluene}n {FeIII2MnIIO} hmta 2D [24]
5 {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n {FeIII3O} 4,4′-bpy 3D [25]
6 [Fe2CoO(piv)6(bpe)0.5(pyz)]n {FeIII2CoIIO} bpe, pyz 3D [25]
7 [Mn4O2(is)6(bpm)(EtOH)4]n {MnIII2MnII2O2} bpm 1D [23]
8 [Fe4O2(piv)8(hmta)]n {FeIII4O2} hmta 1D [26]
9 {[Mn6O2(piv)10(Hpiv)(EtOH)(na)]·EtOH·H2O}n {MnIII2MnII4O2} na 1D [27]
10 [Mn6O2(piv)10(Hpiv)2(en)]n {MnIII2MnII4O2} en 1D [28]
11 {[Mn6O2(is)10(pyz)3]·2(H2O)}n {MnIII2MnII4O2} pyz 1D [27]
12 [Mn6O2(is)10(pyz)(MeOH)2]n {MnIII2MnII4O2} pyz 1D [28]
13 {[Mn6O2(is)10(pyz)1.5(H2O)]·0.5(H2O)}n {MnIII2MnII4O2} pyz 1D [28]
14 {[Mn6O2(is)10(His)(EtOH)(bpea)]·His}n {MnIII2MnII4O2} bpea 1D [27]
15 [Fe6O2(O2CH2)(piv)12(diox)]n {FeIII6O2} diox 1D [29]
16 [Fe6O2(O2CH2)(piv)12(4,4′-bpy)]n {FeIII6O2} 4,4′-bpy 1D [29]
17 [Mn6O2(piv)10(ina)2]n {MnIII2MnII4O2} ina 2D [30]
18 {[Mn6O2(piv)10(adt-4)2]·2(thf)}n {MnIII2MnII4O2} adt-4 2D [30]
19 {[Mn6O2(is)10(adt-4)2]·thf·3(EtOH)}n {MnIII2MnII4O2} adt-4 2D [30]

1 hmta = hexamethylenetetramine; 4,4′-bpy = 4,4′-bipyridine; bpe = 1,2′-bis(4-pyridyl)ethylene; pyz = pyrazine; bpm = 2,2′-bipyrimidine; na = nicotinamide; en = ethyl nicotinate; bpea = 1,2-bis(4-pyridiyl)ethane; diox = 1,4-dioxane; ina = isonicotinamide; adt-4 = aldrithiol.

Combining the different pre-designed μ3-oxo trinuclear pivalate complexes such as [Fe3O(piv)6(H2O)3]piv·2(piv) and [Mn3O(piv)6(hmta)3]·n-PrOH in one-pot reactions with the same spacer (hmta) lead to the formation of heteronuclear Fe/Mn-oxo 1D CCPs [24]. The solvothermal reaction of these precursors in MeCN at 120 °C for 4 h gave a heterometallic chain polymer {[Fe2MnO(piv)6(hmta)2]·0.5(MeCN)}n (2), while refluxing in n-hexane resulted in the solvated heterometallic chain polymer {[Fe2MnO(piv)6(hmta)2]·Hpiv·n-hexane}n (3). Magnetic studies of 2 and 3 indicated dominant antiferromagnetic interactions between the metal centers with significant intercluster interaction through hmta spacer with the following exchange parameters: JMnII–FeIII = −17.4 cm−1 and JFeIII–FeIII = −43.7 cm−1 for 2; and JMnII–FeIII = −23.8 cm−1 and JFeIII–FeIII = −53.4 cm−1 for 3. All intercluster exchange interactions were modeled using a molecular field model approximation to give λmf = −0.219 mol cm−3 (2) and λmf = −0.096 mol cm−3 (3) [24].

In comparison to Baca and Kögerler’s approach, Kolotilov et al. [31][32][33][34] employed already preformed oxo-centered heterometallic trinuclear [Fe2MO(piv)6(Hpiv)3] (MII = Co, Ni) pivalates to isolate a series of heterometallic 1D CCPs formulated as {[Fe2CoO(piv)6(bpe)]·0.5(bpe)}n, [Fe2NiO(piv)6(bpp)(dmf)]n, {[Fe2NiO(piv)6(pnp)(dmso)]·2.5(dmso)}n, [Fe2NiO(piv)6(pnp)(H2O)]n, {[(Fe2NiO(piv)6)4(Et-4-ppp)6]·3(def)}n, and [Fe2NiO(piv)6(bpt)1.5]n (where bpe = 1,2-bis(4-pyridyl)ethylene, bpp = 1,3-bis(4-pyridyl)propane, pnp = 2,6-bis(4-pyridyl)-4-(1-naphtyl)pyridine, Et-4-ppp = 4-(N,N-diethylamino)phenyl-bis-2,6-(4-pyridyl)pyridine, bpt = 3,6-bis(3-pyridyl)-1,2,4,5-tetrazine).

The presence of three potential donor metal sites in the oxo-centered trinuclear carboxylate species makes this building block very attractive and useful for the construction of 2D CCPs. The first homometallic 2D {[Fe3O(ac)6(H2O)3][Fe3O(ac)7.5]2·7(H2O)}n cluster-based layer has been prepared by Long and coworkers [35] in 2007 from the reaction of a trinuclear iron acetate, [Fe3O(ac)6(H2O)3]Cl·6H2O, FeCl3·4H2O and sodium acetate in MeCN/water solution at room temperature in 4 months. The main feature of it is the formation of the “star” anionic layer of acetate-bridged [Fe3O(ac)6]+ clusters that contain in its channels cationic guest-trimer [Fe3O(ac)6(H2O)3]+ clusters. In 2009, Pavlishchuk et al. [36] reacted simple salt precursors, namely iron(III) nitrate nonahydrate and manganese(II) nitrate hexahydrate, with formic acid under heating to isolate the first heterometallic 2D CCP {[Fe3O(fa)6][Mn(fa)3(H2O)3]·3.5(Hfa)}n. This compound consists of trinuclear [Fe3O(fa)6]+ units linked by mononuclear [Mn(fa)3(H2O)3]− bridges into 2D honeycomb layers.

By refluxing the presynthesized pivalate complex compounds [Mn3O(piv)6(hmta)3]·n-PrOH and [Fe3O(piv)6(H2O)3]piv·2(Hpiv) in a hot toluene solution for 6 h, the new 2D heterometallic coordination polymer {[Fe2MnO(piv)6(hmta)1.5]·toluene}n (4) can be prepared [24]. In contrast to the above-mentioned 1D CCPs (1–3), in 4 hmta ligands, connect neighboring heterometallic {[Fe2Mn(μ3-O)(piv)6] pivalate clusters into a 2D corrugated layer as shown in Figure 2. The formed framework accommodates guest toluene molecules. In 4, the exchange interactions between MnII and FeIII were found to be antiferromagnetic (JMnII–FeIII = −13.3 cm−1; JFeIII–FeIII = −35.4 cm−1), with significant intercluster interactions through hmta (λmf = –0.051 mol cm−3). A series of 2D heterometallic pivalate CCPs built from [Fe2MO(piv)6] (MII = Co, Ni) clusters bridged by different polydentate polypyridyl-type linkers has also been reported by other groups [31][36][37][38].

Chemistry 03 00023 g002 550

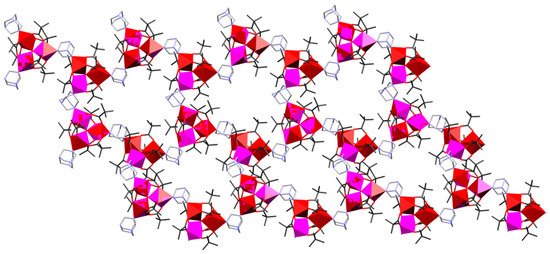

Figure 2. A heterometallic 2D layer in {[Fe2MnO(piv)6(hmta)1.5]·toluene}n (4) CCP [24]. H atoms and solvent toluene molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks and Fe/Mn atoms are shown as brown/magenta coordination polyhedra. C atoms in carboxylates are shown as black sticks.

In 2014, Baca and Kögerler et al. [25] reported the first 3D cluster-based coordination polymers, {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n (5) and [Fe2CoO(piv)6(bpe)0.5(pyz)]n (6). Relative to the 1D and 2D CCPs, 3D structures based on Mn/Fe trinuclear oxo-clusters are rare: up to now, only three compounds were reported [25][39]. CCPs 5 and 6 consist of μ3-oxo-centered cationic homometallic [FeIII3(μ3-O)(piv)6]+ or neutral heterometallic [FeIII2CoII(μ3-O)(piv)6] coordination clusters bridged by different N,N′-donor ligands: 4,4′-bipyridine (4,4′-bpy) in case of 5, and 1,2′-bis(4-pyridyl)ethylene (bpe) and pyrazine (pyz) in case of 6. They were prepared in a “one-pot” solvothermal reaction in dichloromethane from [Fe6O2(OH)2(piv)12] and organic spacers, and, additionally, cobalt(II) pivalate was added in 6. It is worth noting that the mutual arrangement of three-connected [M3(μ3-O)(piv)6] nodes linked by a linear spacer determines the topology of the final CCPs. Here, neighboring μ3-oxo trinuclear clusters are mutually perpendicular, and the pair of clusters may be regarded as a pseudo-tetrahedral four-connected binodal building block, and as a result, 3D porous networks are formed. A 6-fold interpenetrated network with rare (8.3)-c (etc) topology can be observed in 5, and a three-fold interpenetrated network with (10.3)-b (ths) topology in 6 (Figure 3). Magnetic studies of 5 and 6 point to both ferro- and antiferromagnetic intra- and intercluster exchange interactions between the isotropic FeIII and/or the strongly anisotropic (octahedrally coordinated) CoII spin centers. In particular, the χmT value of 7.54 cm3 K mol−1 at 290 K, significantly smaller than the expected spin-only value of 13.1 cm3 K mol−1 for three isolated S = 5/2 centers (giso = 2.0) for 5, indicates dominant antiferromagnetic exchange interactions mediated by the central μ3-O within {Fe3(μ3-O)} unit (J1 = −0.1 cm−1 and J2 = −27.0 cm−1) and the 4,4′-bpy bridges (λmf = −0.609 mol cm−3, the Fe···Fe distances via 4,4′-bpy are equal to 11.347 and 11.380 Å). For 6, both contributions of the orbital momentum of CoII center in {Fe2Co} unit and intracluster (ferromagnetic) and intercluster (ferromagnetic) coupling within {Fe2Co} triangular unit and between them have been considered via the magnetochemical computational framework CONDON [40][41]. The exchange interaction parameters are JCoII–FeIII = +55.0 cm−1, JFeIII–FeIII = −122.0 cm−1 and λmf = +1.163 mol cm−3 (through the pyz ligand the M···M distances are 7.096 and 7.142 Å, and through the bpe spacer these distances equal 13.603 Å). Subsequently, a 3D CCP, {[NH4]2[Fe9O3(ac)23(H2O)]}n, with triangular [Fe3(μ3-O)(ac)6]+ cations and acetate as linkers between the units has been reported by Bu et al. [39]. Its structure exhibits a 4-fold interpenetrating 3D network with a rare eta-c4 net topology.

Chemistry 03 00023 g003 550

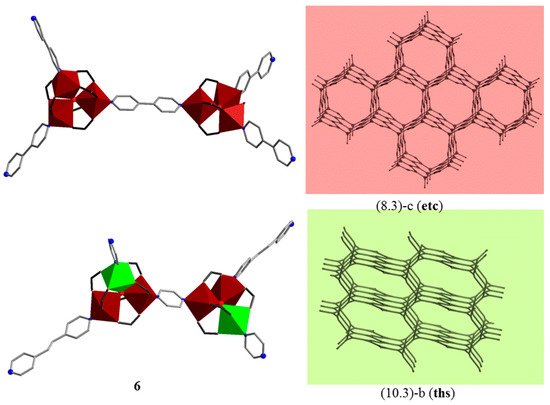

Figure 3. 3D layers in {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n (5) and [Fe2CoO(piv)6(bpe)0.5(pyz)]n (6) CCPs [25]. H atoms and CMe3 groups are omitted for clarity. Color codes: Fe, brown; Co, green coordination polyhedra; C, gray sticks; N, blue; O red spheres. C atoms in carboxylates are shown as black sticks.

References

  1. Zhang, W.-X.; Liao, P.-Q.; Lin, R.-B.; Wei, Y.-S.; Zeng, M.-H.; Chen, X.-M. Metal cluster-based functional porous coordination polymers. Coord. Chem. Rev. 2015, 293–294, 263–278.
  2. Kang, X.-M.; Tang, M.-H.; Yang, G.-L.; Zhao, B. Cluster/cage-based coordination polymers with tetrazole derivatives. Coord. Chem. Rev. 2020, 422, 213424.
  3. Andruh, M. Oligonuclear complexes as tectons in crystal engineering: Structural diversity and magnetic properties. Chem. Commun. 2007, 2565–2577.
  4. Roubeau, O.; Clérac, R. Rational assembly of high-spin polynuclear magnetic complexes into coordination networks: The case of a [Mn4] single-molecule magnet building block. Eur. J. Inorg. Chem. 2008, 4325–4342.
  5. Jeon, I.R.; Clerac, R. Controlled association of single-molecule magnets (SMMs) into coordination networks: Towards a new generation of magnetic materials. Dalton Trans. 2012, 41, 9569–9586.
  6. Shieh, M.; Liu, Y.-H.; Lia, Y.-H.; Lina, R.Y. Metal carbonyl cluster-based coordination polymers: Diverse syntheses, versatile network structures, and special properties. Cryst. Eng. Comm. 2019, 21, 7341–7364.
  7. Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers: Design, Analysis and Application; Royal Society of Chemistry: Cambridge, UK, 2008; pp. 1–471.
  8. Robson, R. A net-based approach to coordination polymers. J. Chem. Soc. Dalton Trans. 2000, 3735–3744.
  9. Tranchemontagne, D.J.; Mendoza-Cortes, J.L.; O’Keeffe, M.; Yaghi, O.M. Secondary building units, nets and bonding in the chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 1257–1283.
  10. Eddaoudi, M.; Moler, D.B.; Li, H.; Chen, B.; Reineke, T.M.; O’Keeffe, M.; Yaghi, O.M. Modular chemistry: Secondary building units as a basis for the design of highly porous and robust metal-organic carboxylate frameworks. Acc. Chem. Res. 2001, 34, 319–330.
  11. Perry, J.J.; Permana, J.A.; Zaworotko, M.J. Design and synthesis of metal–organic frameworks using metal–organic polyhedra as supermolecular building blocks. Chem. Soc. Rev. 2009, 38, 1400–1417.
  12. Baca, S.G. The design of coordination networks from polynuclear Mn(II, III) and Fe(III) oxo-carboxylate clusters. In Advances in Chemistry Research; Taylor, J.C., Ed.; Nova Science Publishers: New York, NY, USA, 2018; Volume 43, pp. 81–130.
  13. Fang, X.; Kögerler, P. A polyoxometalate-based manganese carboxylate cluster. Chem. Commun. 2008, 3396–3398.
  14. Vaz, M.G.F.; Andruh, M. Molecule-based magnetic materials constructed from paramagnetic organic ligands and two different metal ions. Coord. Chem. Rev. 2021, 427, 213611.
  15. Ratera, I.; Veciana, J. Playing with organic radicals as building blocks for functional molecular materials. Chem. Soc. Rev. 2012, 41, 303–349.
  16. Kahn, O. Chemistry and physics of supramolecular magnetic materials. Acc. Chem. Res. 2000, 33, 647–657.
  17. Mccleverty, J.A.; Ward, M.D. The role of bridging ligands in controlling electronic and magnetic properties in polynuclear complexes. Acc. Chem. Res. 1998, 31, 842–851.
  18. Farrusseng, D. (Ed.) Metal–Organic Frameworks. Applications from Catalysis to Gas Storage; Wiley-VCH Verlag & Co. KgaA: Weinheim, Germany, 2011; p. 392.
  19. Hessel, L.W.; Romers, C. The crystal structure of “anhydrous manganic acetate”. Recl. Trav. Chim. Pays-Bas 1969, 88, 545–552.
  20. Albores, P.; Rentschler, E. Structural and magnetic characterization of a μ-1,5-dicyanamide-bridged iron basic carboxylate [Fe3O(O2C(CH3)3)6] 1D chain. Inorg. Chem. 2008, 47, 7960–7962.
  21. Long, D.L.; Kögerler, P.; Farrugia, L.J.; Cronin, L. Linking chiral clusters with molybdate building blocks: From homochiral helical supramolecular arrays to coordination helices. Chem. Asian J. 2006, 1, 352–357.
  22. Wu, Q.L.; Han, S.D.; Wang, Q.L.; Zhao, J.P.; Ma, F.; Jiang, X.; Liu, F.C.; Bu, X.H. Divalent metal ions modulated strong frustrated M(II)–Fe(III)3O (M = Fe, Mn, Mg) chains with metamagnetism only in a mixed valence iron complex. Chem. Commun. 2015, 51, 15336–15339.
  23. Baca, S.G.; Malaestean, I.L.; Keene, T.D.; Adams, H.; Ward, M.D.; Hauser, J.; Neels, A.; Decurtins, S. One-dimensional manganese coordination polymers composed of polynuclear cluster blocks and polypyridyl linkers: Structures and properties. Inorg. Chem. 2008, 47, 11108–11119.
  24. Dulcevscaia, G.M.; Filippova, I.G.; Speldrich, M.; Leusen, J.; Kravtsov, V.C.; Baca, S.G.; Kögerler, P.; Liu, S.X.; Decurtins, S. Cluster-based networks: 1D and 2D coordination polymers based on -type clusters. Inorg. Chem. 2012, 51, 5110–5117.
  25. Botezat, O.; van Leusen, J.; Kravtsov, V.C.; Filippova, I.G.; Hauser, J.; Speldrich, M.; Hermann, R.P.; Krämer, K.W.; Liu, S.-X.; Decurtins, S.; et al. Interpenetrated (8,3)-c and (10,3)-b metal–organic frameworks based on and pivalate spin clusters. Cryst. Growth. Des. 2014, 14, 4721–4728.
  26. Baca, S.G.; Filippova, I.G.; Keene, T.D.; Botezat, O.; Malaestean, I.L.; Stoeckli-Evans, H.; Kravtsov, V.C.; Chumacov, I.; Liu, S.-X.; Decurtins, S. Iron(III)-pivalate-based complexes with tetranuclear 8+ cores and N-donor ligands: Formation of cluster and polymeric architectures. Eur. J. Inorg. Chem. 2011, 3, 356–367.
  27. Malaestean, I.L.; Kravtsov, V.C.; Speldrich, M.; Dulcevscaia, G.; Simonov, Y.A.; Lipkowski, J.; Ellern, A.; Baca, S.G.; Kögerler, P. One-dimensional coordination polymers from hexanuclear manganese carboxylate clusters featuring a core and spacer linkers. Inorg. Chem. 2010, 49, 7764–7772.
  28. Darii, M.; Filippova, I.G.; Hauser, J.; Decurtins, S.; Liu, S.-X.; Kravtsov, V.C.; Baca, S.G. Incorporation of hexanuclear Mn(II,III) carboxylate clusters with a core in polymeric structures. Crystals 2018, 8, 100.
  29. Baca, S.G.; Secker, T.; Mikosch, A.; Speldrich, M.; van Leusen, J.; Ellern, A.; Kögerler, P. Avoiding magnetochemical overparametrization, exemplified by one-dimensional chains of hexanuclear iron(III) pivalate clusters. Inorg. Chem. 2013, 52, 4154–4156.
  30. Malaestean, I.L.; Ellern, A.; van Leusen, J.; Kravtsov, V.C.; Kögerler, P.; Baca, S.G. Cluster-based networks: Assembly of a (4,4) layer and a rare T-shaped bilayer from [MnIII2MnII4O2(RCOO)10] coordination clusters. Cryst. Eng. Comm. 2014, 16, 6523–6525.
  31. Polunin, R.A.; Kiskin, M.A.; Cador, O.; Kolotilov, S.V. Coordination polymers based on trinuclear heterometallic pivalates and polypyridines: Synthesis, structure, sorption and magnetic properties. Inorg. Chim. Acta 2012, 380, 201–210.
  32. Lytvynenko, A.S.; Kiskin, M.A.; Dorofeeva, V.N.; Mishura, A.M.; Titov, V.E.; Kolotilov, S.V.; Eremenko, I.L.; Novotortsev, V.M. Redox-active porous coordination polymer based on trinuclear pivalate: Temperature-dependent crystal rearrangement and redox-behavior. J. Solid State Chem. 2015, 223, 122–130.
  33. Sotnik, S.A.; Polunin, R.A.; Kiskin, M.A.; Kirillov, A.M.; Dorofeeva, V.N.; Gavrilenko, K.S.; Eremenko, I.L.; Novotortsev, V.M.; Kolotilov, S.V. Heterometallic coordination polymers assembled from trigonal trinuclear Fe2Ni-pivalate blocks and polypyridine spacers: Topological diversity, sorption, and catalytic properties. Inorg. Chem. 2015, 54, 5169–5181.
  34. Lytvynenko, A.S.; Polunin, R.A.; Kiskin, M.A.; Mishura, A.M.; Titov, V.E.; Kolotilov, S.V.; Novotortsev, V.M.; Eremenko, I.L. Electrochemical and electrocatalytic characteristics of coordination polymers based on trinuclear pivalates and heterocyclic bridging ligands. Theor. Exp. Chem. 2015, 51, 54–61.
  35. Zheng, Y.Z.; Tong, M.L.; Xue, W.; Zhang, W.X.; Chen, X.M.; Grandjean, F.; Long, G.J. A “Star” antiferromagnet: A polymeric iron(III) acetate that exhibits both spin frustration and long-range magnetic ordering. Angew. Chem. Int. Ed. 2007, 46, 6076–6080.
  36. Lytvynenko, A.S.; Kolotilov, S.V.; Cador, O.; Gavrilenko, K.S.; Golhen, S.; Ouahab, L.; Pavlishchuk, V.V. Porous 2D coordination polymeric formate built up by Mn(II) linking of Fe3O units: Influence of guest molecules on magnetic properties. Dalton Trans. 2009, 3503–3509.
  37. Polunin, R.A.; Kolotilov, S.V.; Kiskin, M.A.; Cador, O.; Mikhalyova, E.A.; Lytvynenko, A.S.; Golhen, S.; Ouahab, L.; Ovcharenko, V.I.; Eremenko, I.L.; et al. Topology control of porous coordination polymers by building block symmetry. Eur. J. Inorg. Chem. 2010, 5055–5057.
  38. Dorofeeva, V.N.; Kolotilov, S.V.; Kiskin, M.A.; Polunin, R.A.; Dobrokhotova, Z.V.; Cador, O.; Golhen, S.; Ouahab, L.; Eremenko, I.; Novotortsev, V. 2D Porous honeycomb polymers versus discrete nanocubes from trigonal trinuclear complexes and ligands with variable topology. Chem. Eur. J. 2012, 18, 5006–5012.
  39. Zhao, J.P.; Han, S.D.; Jiang, X.; Xu, J.; Chang, Z.; Bu, X.H. A three dimensional magnetically frustrated metal–organic framework via the vertices augmentation of underlying net. Chem. Commun. 2015, 51, 4627–4630.
  40. Speldrich, M.; van Leusen, J.; Kögerler, P. CONDON 3.0: An updated software package for magnetochemical analysis - all the way to polynuclear actinide complexes. J. Comput. Chem. 2018, 39, 2133–2145.
  41. van Leusen, J.; Speldrich, M.; Schilder, H.; Kögerler, P. Comprehensive insight into molecular magnetism via CONDON: Full vs. Effective Models. Coord. Chem. Rev. 2015, 289–290, 137–148.
