Geothermal Fluids: Opportunities for Critical Element Extraction
Edit

Several elements found in New Zealand geothermal fluids are currently considered ‘critical’ for the transition to a carbon-neutral economy and are present in economically extractable quantities.

geothermal fluid critical elements Lithium extraction Element distribution

1. Introduction

Building a low-carbon energy ecosystem for Aotearoa, New Zealand, will require access to new resources of specific elements and materials. Elements that play an important role in low-carbon future technologies—many of which are classified as ‘critical elements’—are unevenly distributed around the world [1]. Often, ‘critical element’ supply chains (both for mining and processing) are dominated by a few players that are granted a “near-monopoly” in a small number of countries. While global efforts to secure supply chains of critical elements have focused on traditional mineral ore bodies and material recycling, critical elements are known to occur in geothermal fluids in economically extractable quantities [2][3][4][5][6][7][8]. Geothermal fluids used to generate electricity represent a particularly interesting opportunity for critical element extraction, thanks to the existing substantial infrastructure. Although the process of economic recovery of aqueous critical elements presents technical challenges [3][9], it is certainly worth exploring, especially considering the potential added value to producing geothermal power stations [10]

2. Critical Elements

Critical elements are defined as those that are crucial to society for economic growth and/or national security but which are vulnerable to supply disruption (Figure 1) [11]. They are usually in high demand and have no practical substitutes. As such, the elements deemed ‘critical’ change through time due to social, technical, and political changes [12]. Presently, most of the elements classified as ‘critical’ are essential components for clean energy (i.e., solar, wind) and clean technology (i.e., electric vehicles, home battery devices) sectors and are therefore crucial in enabling the move to a global low-carbon economy. There are currently 50 elements and minerals listed as critical in the United States of America (USA) [13]. These are: aluminum, antimony, arsenic, barite, beryllium, bismuth, cerium, caesium, chromium, cobalt, dysprosium, erbium, europium, fluorspar, gadolinium, gallium, germanium, graphite, hafnium, holmium, indium, iridium, lanthanum, lithium, lutetium, magnesium, manganese, neodymium, nickel, niobium, palladium, platinum, praseodymium, rhodium, rubidium, ruthenium, samarium, scandium, tantalum, tellurium, terbium, thulium, tin, titanium, tungsten, vanadium, ytterbium, yttrium, zinc, and zirconium.

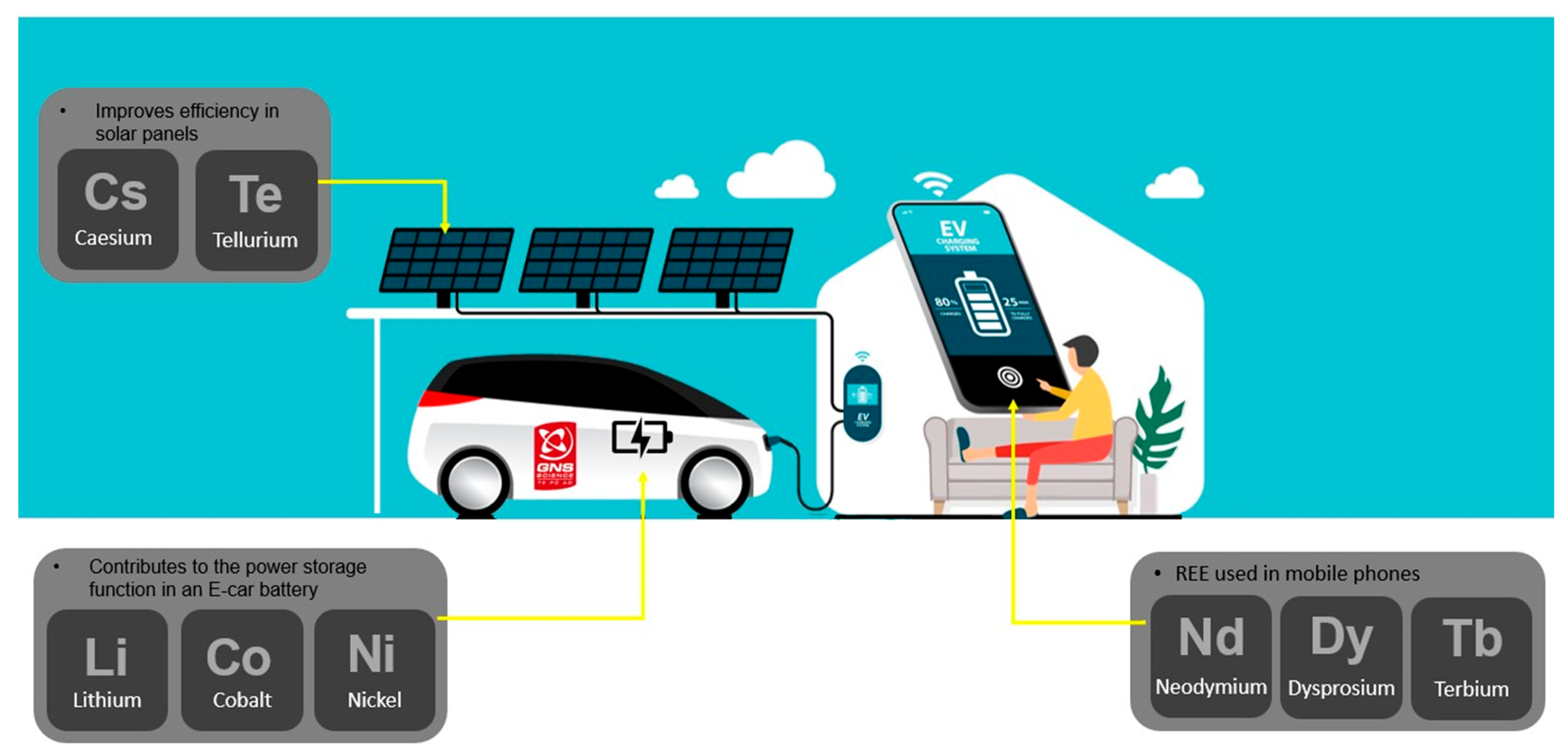

Figure 1. Examples of the use of some critical elements in green technology (electric car batteries, solar panels) and high-tech electronics (i.e., smartphone batteries, magnets, and screens). The examples above include numerous other critical elements not shown that are essential to their various technologies (e.g., electric vehicles).
In comparison, the European Union defined its own list of critical materials (elemental groups and minerals) [14][15], including many of the elements listed as ‘critical’ by the US Geological Survey (USGS), but also including bauxite, borate, coking coal, natural rubber, phosphate rock, phosphorus, silicon metal, and strontium.
New Zealand does not currently have a list of elements considered ‘critical’ for societal, economic, and/or national security reasons. However, the necessity for the development of such a list has been recognized as a part of a plan to secure affordable resources to meet New Zealand’s future mineral and energy needs. As part of the Ministry of Business, Innovation and Employment’s (MBIE) 2019–2029 Resource Strategy for New Zealand, a list of critical minerals specific to New Zealand is in development [16].

3. Extraction of Critical Elements from Geothermal Fluids

Growing demand for carbon-neutral renewable energy is generating an incentive to grow geothermal developments worldwide. New Zealand is no different, and geothermally generated electricity accounts for c. 20% of New Zealand’s total electricity supply, with new field developments still ongoing. In addition to generating electricity, geothermal fluid can also be used as a direct source of heat energy in industrial, commercial, and residential sectors. In Iceland, geothermal heating utilizing geothermal fluids piped into buildings has provided heating and hot water for >90% of all of Iceland’s buildings for more than 20 years [17]. In New Zealand, geothermal heat is used to dry timber, manufacture milk powder, and heat glasshouses for horticultural purposes.
Well-managed geothermal resources are a source of clean, reliable, and sustainable energy. Once geothermal fluid has been extracted from a production well and has been used to generate electricity or supply heat, the energy-depleted fluid is reinjected back into the reservoir through reinjection wells some distance from the production well. The reinjected fluid flows through the fractured reservoir network (i.e., permeable zones in the rock), extracting more thermal energy from the rocks and mixing with the reservoir fluid as it flows back towards the production well [18][19][20][21][22].
In recent years, research has begun to examine the potential for the commercial extraction of various elements from geothermal fluids (Figure 2), (i.e., [3][4][6][23][24]. This new and emerging industry has the potential to develop into a significant multi-million-dollar industry both in New Zealand and internationally. However, multidisciplinary collaborative research is necessary to assist in removing implementation barriers [25]. Despite promising fluid compositions and the substantial volume of geothermal fluid production at numerous geothermal fields in the Taupo Volcanic Zone (TVZ), the additional opportunity for critical element extraction at a commercial scale in New Zealand is yet to be realized for minerals other than silica.

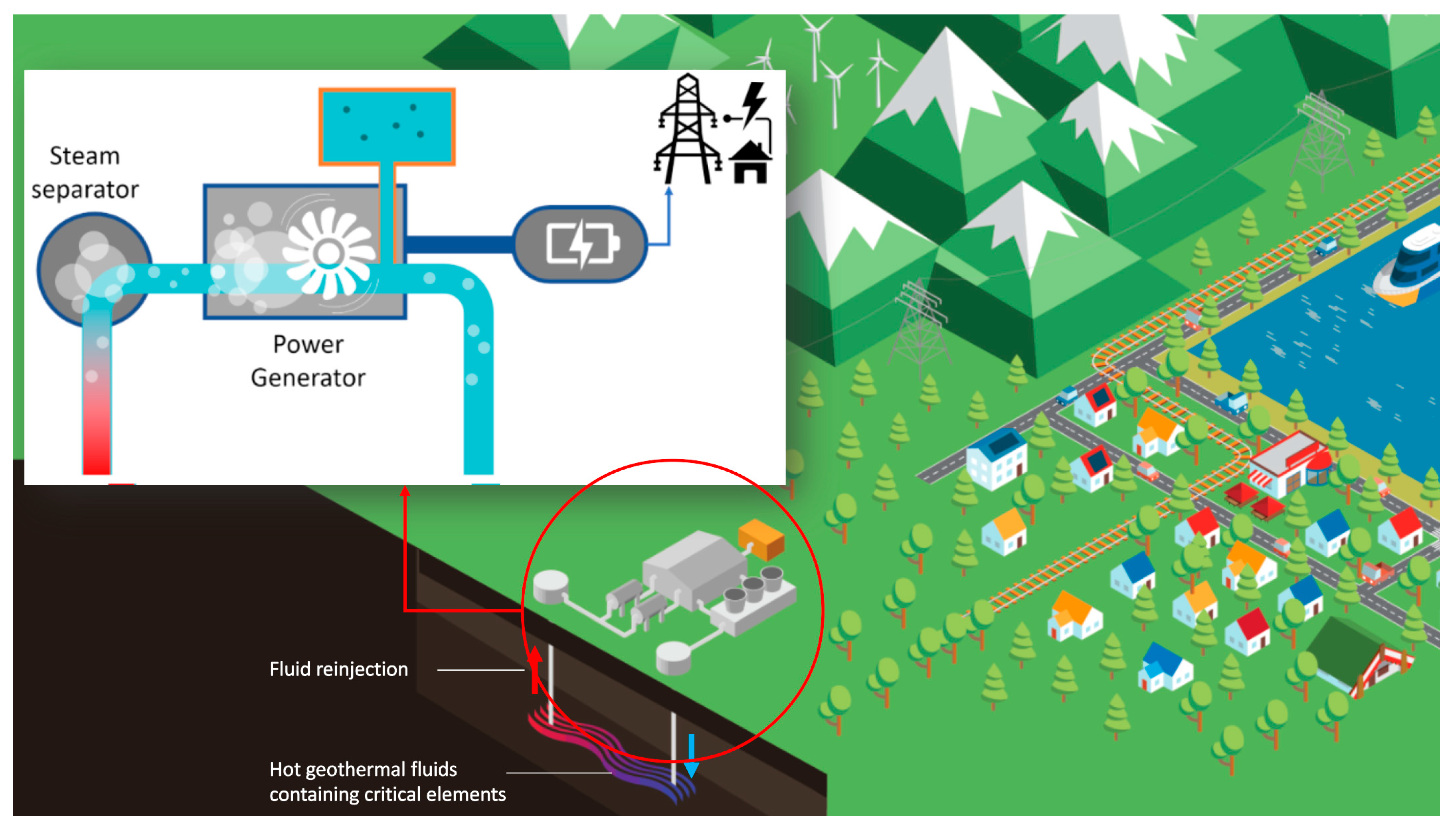

Figure 2. Cartoon highlighting the co-existence of geothermal energy production and critical element extraction from geothermal fluids (i.e., lithium).

4. Recovery of Elements from Geothermal Fluids

The concept of multi-element extraction from geothermal fluid is not new. In the 1960s, extraction of lithium, sodium, and potassium from the Wairakei geothermal field was considered [26]. In the early 1980s, a pilot plant at Wairakei was set up to separate solids (e.g., calcium silicate) from geothermal fluid [10]. Subsequently, over the years, many researchers and engineers have revisited the opportunity for mineral extraction from geothermal fluids [3][5][6][8][9][25][27][28][29][30][31].
Today a sustainable silica extraction plant is in operation at the Ohaaki geothermal power station in New Zealand, with a lithium extraction plant in the pilot stages of operation. In the USA, at Salton Sea, California, three companies are developing chemical processes to extract lithium in economic quantities from geothermal fluids [32]. Similarly, other countries, including the United Kingdom (UK) and Italy, are exploring opportunities to extract elements from geothermal fluids [33][34][35], and in Germany, the first example of battery-grade lithium has already been produced from geothermal fluids [36].

References

  1. U.S. Geological Survey. Mineral Commodity Summaries 2023; U.S. Geological Survey: Reston, VA, USA, 2023.
  2. Krupp, R.E.; Seward, T.M. The Rotokawa Geothermal System, New Zealand: An Active Epithermal Gold-Depositing Environment. Econ. Geol. 1987, 82, 1109–1129.
  3. Smith, Y.R.; Kumar, P.; McLennan, J.D. On the Extraction of Rare Earth Elements from Geothermal Brines. Resources 2017, 6, 39.
  4. Simmons, S.F.; Kirby, S.; Verplanck, P.; Kelley, K. Strategic and Critical Elements in Produced Geothermal Fluids from Nevada and Utah. In Proceedings of the PROCEEDINGS, 43rd Workshop on Geothermal Reservoir Engineering Stanford University, Stanford, CA, USA, 12–14 February 2018; pp. 1–12.
  5. Stringfellow, W.T.; Dobson, P.F. Technology for the Recovery of Lithium from Geothermal Brines. Energies 2021, 14, 6805.
  6. Bourcier, W.; Lin, M.; Nix, G. Recovery of Minerals and Metals from Geothermal Fluids. In Proceedings of the 2003 SME Annual Meeting, Cincinnati, OH, USA, 24–26 February 2003; p. 18.
  7. Neupane, G.; Wendt, D.S. Assessment of Mineral Resources in Geothermal Brines in the US. In Proceedings of the 42nd Workshop on Geothermal Reservoir Engineering Stanford University, Stanford, CA, USA, 13–15 February 2017.
  8. Mroczek, E.; Climo, M.; Evans, D. The Composition of High Temperature Geothermal Fluids in New Zealand Producing Geothermal Fields; GNS Science Report 2014/68; GNS Science: Taupo, New Zealand, 2015.
  9. Mroczek, E.; Dedual, G.; Graham, D.; Bacon, L. Lithium Extraction from Wairakei Geothermal Fluid Using Electrodialysis. In Proceedings of the World Geothermal Congress 2015, Melbourne, Australia, 19–25 April 2015; p. 6.
  10. Shannon, W.T.; Owers, W.R.; Rothbaum, H.P. Pilot Scale Solids/Liquid Separation in Hot Geothermal Discharge Waters Using Dissolved Air Flotation. Geothermics 1982, 11, 43–58.
  11. Schulz, K.J.; DeYoung, J.H., Jr.; Seal, R.R., II; Bradley, D.C. Critical Mineral Resources of the United States—An Introduction; U.S. Geological Survey: Reston, VA, USA, 2017.
  12. AGI. Available online: https://Www.Americangeosciences.Org/Critical-Issues/Critical-Minerals (accessed on 16 March 2023).
  13. U.S. Geological Survey. Department of the Interior. 2022 Final List of Critical Minerals. Federal Register, 24 February 2022; p. 87.
  14. Bobba, S.; Carrara, S.; Huisman, J.; Mathieux, F.; Pavel, C. Critical Raw Materials for Strategic Technologies and Sectors in the EU—A Foresight Study. 2020. Available online: https://rmis.jrc.ec.europa.eu/uploads/CRMs_for_Strategic_Technologies_and_Sectors_in_the_EU_2020.pdf (accessed on 25 March 2023).
  15. Blengini, G.A.; Latunussa, C.E.L.; Eynard, U.; Torres de Matos, C.; Wittmer, D.; Georgitzikis, K.; Pavel, C.; Carrara, S.; Mancini, L.; Unguru, M.; et al. Study on the EU’s List of Critical Raw Materials (2020) Final Report; 2020; ISBN 978-92-76-21050-4. Available online: https://www.researchgate.net/publication/344124852_Study_on_the_EU’s_list_of_Critical_Raw_Materials_2020_Final_Report (accessed on 20 March 2023).
  16. New Zealand Government. Responsibly Delivering Value—A Minerals and Petroleum Strategy for Aotearoa New Zealand: 2019–2029; 2019. Available online: https://www.mbie.govt.nz/dmsdocument/7148-responsibly-delivering-value-a-minerals-and-petroleum-strategy-for-aotearoa-new-zealand-2019-2029 (accessed on 25 March 2023).
  17. Ragnarsson, Á. Utilization of Geothermal Energy in Iceland. In Proceedings of the International Geothermal Conference, Reykjavík, Iceland, 14–17 September 2003; pp. 39–45.
  18. Gudmundsson, A. Transport of Geothermal Fluids along Dikes and Fault Zones. Energies 2022, 15, 7106.
  19. Chicco, J.M.; Giammanco, S.; Mandrone, G. Multidisciplinary Study of the “Salinelle” of Paternò Mud Volcanoes: Characteristics of the Fluids and Possible Correlations with Mt. Etna Activity. Ann. Geophys. 2020, 63.
  20. Chicco, J.M.; Pierantoni, P.P.; Costa, M.; Invernizzi, C. Plio-Quaternary Tectonics and Possible Implications for Geothermal Fluids in the Marche Region (Italy). Tectonophysics 2019, 755, 21–34.
  21. Parisio, F.; Yoshioka, K. Modeling Fluid Reinjection Into an Enhanced Geothermal System. Geophys. Res. Lett. 2020, 47, e2020GL089886.
  22. Davis, T.; Rivalta, E.; Dahm, T. Critical Fluid Injection Volumes for Uncontrolled Fracture Ascent. Geophys. Res. Lett. 2020, 47, e2020GL087774.
  23. Hall, J.; Climo, M. Geothermal Direct Use in New Zealand: Industrial Heat Park Opportunities; GNS Science Report 2014/17; GNS Science: Taupo, New Zealand, 2015.
  24. Toba, A.-L.; Nguyen, R.T.; Cole, C.; Neupane, G.; Paranthaman, M.P. U.S. Lithium Resources from Geothermal and Extraction Feasibility. Resour. Conserv. Recycl. 2021, 169, 105514.
  25. Mroczek, E.; Climo, M.; Carey, B.; Li, Y. Technology Review of Mineral Extraction from Separated Geothermal Water; GNS Science Report 2015/25; GNS Science: Taupo, New Zealand, 2015.
  26. Kennedy, A.M. The Recovery of Lithium and Other Minerals from Geothermal Water at Wairakei. In Proceedings of the UN Conference on New Sources of Energy, Rome, Italy, 21–31 August 1961.
  27. Harper, R.T.; Thain, I.A.; Johnston, J.H. Towards the Efficient Utilization of Geothermal Resources. Geothermics 1992, 21, 641–651.
  28. Brown, K.; Bacon, L.G. Manufacture of Silica Sols from Separated Geothermal Water. In Proceedings of the World Geothermal Congress, Tohoku, Japan, 28 May–10 June 2000; pp. 533–537.
  29. Gordon Bloomquist, R. Economic Benefits of Mineral Extraction from Geothermal Brines. Trans.-Geotherm. Resour. Counc. 2006, 30 II, 579–582.
  30. Barton, B. Centre for Environmental, Resources and Energy Law/te Putahi o te Ture tai Ao legal Rights to Minerals in Geothermal Fluids; 2015; ISBN 9780473312893. Available online: https://core.ac.uk/download/pdf/44289146.pdf (accessed on 25 March 2023).
  31. Tong Chua, H.; Sommer, H.; Regenauer-Lieb, K. Mineral Recovery Through Geothermal Desalination. In Proceedings of the 40th New Zealand Geothermal Workshop, Taupo, New Zealand, 14–16 November 2018.
  32. Brigham, K. The Salton Sea Could Produce the World’s Greenest Lithium, If New Extraction Technologies Work. Available online: https://www.cnbc.com/2022/05/04/the-salton-sea-could-produce-the-worlds-greenest-lithium.html (accessed on 25 March 2023).
  33. Cariaga, C. Partnership to Explore Geothermal Heating and Lithium Extraction in UK. Available online: https://www.thinkgeoenergy.com/partnership-to-explore-geothermal-heating-and-lithium-extraction-in-uk/ (accessed on 25 March 2023).
  34. Richter, A. Research Permit Granted on Geothermal Lithium Extraction in Italy. Available online: https://www.thinkgeoenergy.com/research-permit-granted-on-geothermal-lithium-extraction-in-italy/ (accessed on 25 March 2023).
  35. Cariaga, C. Cornish Lithium Has Proposed the Drilling of a Research Borehole to Explore the Lithium Potential of Geothermal Waters at Blackwater in Cornwall, England. Available online: https://www.thinkgeoenergy.com/cornish-lithium-proposes-new-geothermal-lithium-project-at-blackwater-uk/ (accessed on 15 March 2023).
  36. Cariaga, C. Vulcan Energy Produces Battery Grade Lithium from Geothermal. Available online: https://www.thinkgeoenergy.com/vulcan-energy-produces-battery-grade-lithium-from-geothermal/ (accessed on 15 March 2023).
