Digital Twin Technology in a Human-in-Loop Setting
Edit
This entry is adapted from the peer-reviewed paper 10.3390/systems11010035

The increase in computational capability has led to an unprecedented increase in the range of new applications where machine learning can be used in real time. Notwithstanding the range of use cases where automation is now feasible, humans are likely to retain a critical role in the operation and certification of manufacturing systems for the foreseeable future. Digital twin technology is a virtual representation of a system, updated by real-time data, that uses simulation, machine learning (ML), and reasoning to enhance decision-making. This idea promises to give production systems real-time control.

human-in-loop digital twin data

1. Introduction

Dynamic visualisation in multi-mode is the key requirement of digital twin technology, which offers the user a close approximation of the application domain in real life, and is used for training and problem solving, as given in Figure 1.
Systems 11 00035 g007 550

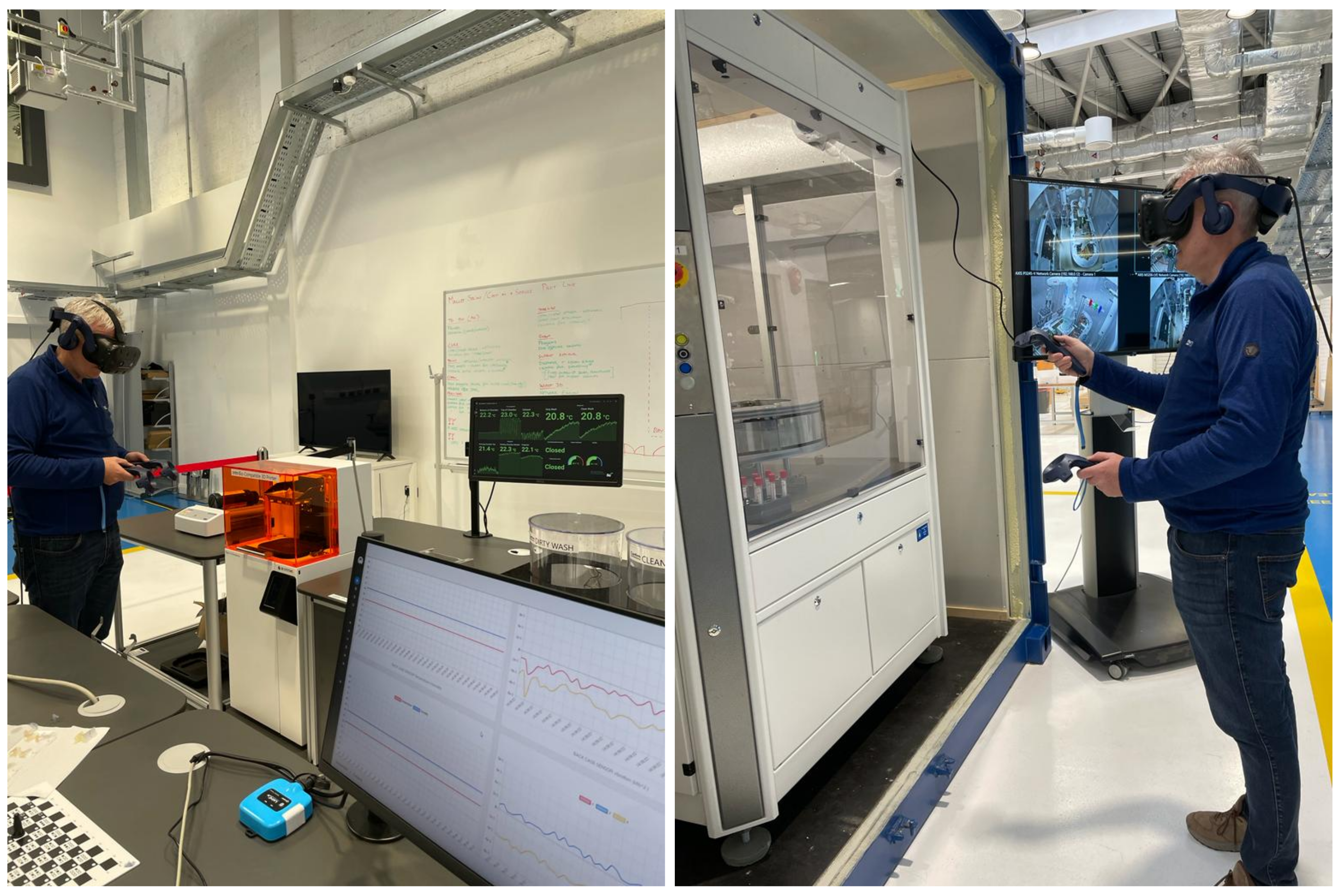

Figure 1. Three-dimensional visualisation for operator assistance.
Capturing any differences between a simulation and a digital twin (DT) is critical to the success of any use case. The simulation is an offline, conditional experimentation [1], while the latter is a real-time event and the quality of the model determines how accurate any simulation will be. The DT technology explores how the user interaction is captured by the CPS sensors and actuators, and the loss of information between the real and simulated events is kept vanishingly small. With the aid of augmented reality, discrete events can be overlaid with simulation model layouts in real-time over live manufacturing line scenes via headsets and hand devices. Closed loop decision-making that is facilitated using mixed or augmented reality environments is another way in which this information loss can be minimised [2]. Case studies involving virtual reality (VR) presentations of manufacturing settings that are boosted using motion and depth sensors such as Kinect have yielded promising results [3]. Models are built using industrial floor layouts for operator control of discrete event simulation capturing real-time movements and voice commands [4]. Radio frequency identification (RFID) labels are used to monitor and manage logistics on the industry floor, focusing on the visualisation of logistics trajectories [4]. There is a need for research on DT-based manufacturing system feedback control loops [5][6]. DT has also been investigated as a method to control and visualise information flow for more comprehensive product development, using the finished product’s performance as a feedback loop in designing new products [7]. Both larger and small- and medium-sized enterprises (SMEs) can benefit from digital twin technology, as it provides unified data acquisition. Lower price point solutions are emerging in the literature [1][7][8][9]. The need for additional research in DT and visualisation is highlighted to address questions such as:
  • what is the amount of autonomous operation and feedback from the industry floor that will be facilitated through the DT?
  • what modifications may be made to better integrate HIL with DT technologies??
To improve urban planning, building, and service, Dassault created a “Digital Twin Singapore” for civil engineering using its 3D Experience Platform [10].

2. Tools to Model and Manage Digital Twin Applications

The enterprise tools that are now appearing for DT applications can be broadly divided into the platform, simulation, optimisation, diagnostic, and prognosis categories. Across these categories, data quality is the primary driver behind DT fidelity. As displayed in Figure 2, the various categories, namely collection, transmission, storage, processing, fusion, and visualisation, are the tools for managing data in a DT.
Systems 11 00035 g008 550

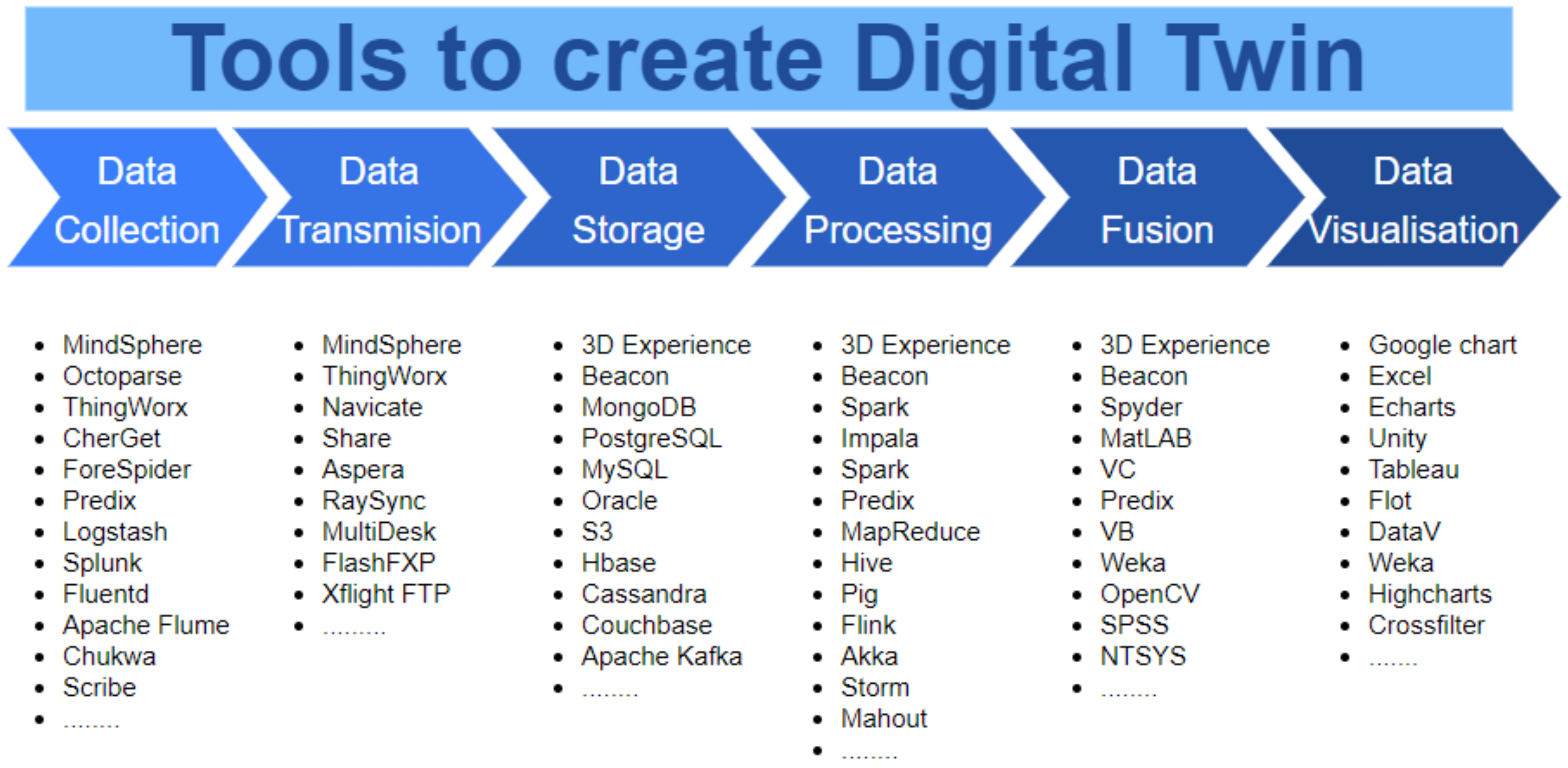

Figure 2. Tools for data management in a digital twin.
The Thingworx platform [11] has been used to link the DT model to operational products, gather, and display sensor data, and examine results via web applications. Data collection, device administration, big data analysis, industrial protocol translation, and many other services are offered by Thingworx. HIROTEC [12] has also provided case studies in the production of body-in-white closures, exhaust systems, and enclosure manufacturing. Connections between the data from CNC machine operations in real-time and enterprise resource planning system data have been shown to reduce equipment downtime successfully. Siemens has launched the MindSphere platform [13], which provides real-time, secure transmission of data collected from sensors, controllers, and various information systems to the cloud enabling big data analysis and other services. Other data collection tools are also shown in Figure 2. In DT, data transmission needs to be continuous and in real time. Simultaneously, it is also needed to confirm that the data are not missing, the accuracy of the data is maintained to the maximum degree, and that the distance between the real system and DT models remains acceptably small. The container DT model presented by Jedermann et al. [14] provides a state space-based approach to the measurement of this distance. IBM’s Aspera [15] is known for its capacity for fast data transmission of large files over long distances under substandard network speeds. It transmits data using the current WAN infrastructure more quickly than the file transfer protocol (FTP) and hypertext transfer protocol (HTTP). Other tools commonly used for data transmission are shown in Figure 2.
Data storage warrants the safeguarding of data and answers to data access in real time using the read–write mechanism. For instance, Apache HBase is a high-performance, column-oriented, real-time scalable read–write distributed database that is built on the Hadoop software platform. Other data storing systems are shown in Figure 2.
Data processing is the manipulation of data to extract useful information. Apache Spark is an open-source unified analytics engine for real-time data processing and data analytics. Java, Python, and other programming languages are supported by Spark. Data query is also supported using SQL and HiveSQL.
Data fusion combines, correlates, and amalgamates several data sources to provide information that is more reliable, accurate, and practical than information obtained from any one data source alone. In Python, Spyder and Pycharm are used as data fusion software to develop, debug, and as project management, smart prompting, auto-completion, and version control. Other data fusion tools are shown in Figure 2.
The open-source software Echarts provides customised data visualisation for large and dynamic data. Similar tools are shown in Figure 2.

3. Service Applications That Support Human-in-Loop for Digital Twin

Service platform tools fuse emerging technologies such as the Internet of things (IoT), big data, and AI. The application tools include monitoring tools, optimisation tools, diagnostic tools, etc. The diagnosis tools provide intelligent predictive maintenance strategy for equipment and reduce downtime, etc., by analysing and processing the twin data. For example, the ANSYS simulation tool helps to design IIoT-connected devices and data analysis of the connected devices, along with design data for troubleshooting and predictive maintenance purposes [16]. Additionally, data-driven methods can be integrated to determine the remaining tool life to inform the human operator when the replacement of machine parts is needed. Such an example can be found in Baker Hughes, which is an oil industry company. They provide products and services to the oil industries and have developed a predictive alarm system on MATLAB [17].
In an HIL setting, the quality of sensor data, energy costs, and required performance factors are all factors that affect the quality of simulations. Control system operation will only be successful through real-time comparison of simulation and real-world states, measurements, inputs, and outputs. The mitigation of risk factors, reducing energy consumption, and increasing system efficiencies have all been considered in the literature. For example, the Plant Simulation software developed by Siemens is able to optimise the scheduling of the manufacturing line and the layout of the factory [18]. Within the digital twin electric grid, Simulink runs several simulated scenarios and analyses the measured grid data to assess whether the energy reserve is adequate and if the grid controllers need to be altered. Comparable tools are shown in Figure 2. Modern simulation technologies carry out diagnostics, decide the optimal maintenance strategies, and gather data to improve the next-generation design. For example, a lack of appropriate FEM simulation analysis during the design of a CNC machine tool may lead to the failure of the machine under vibration. Alternatively, adding more material to boost strength and lessen vibration raises the price. However, simulating the structure analysis on FEA/FEM in ANSYS and taking into account the performance and strength will meet the design requirements of the CNC machine tools [19].

4. Human-in-Loop as a Human–Machine Interface

In addition to performing autonomous tasks, CPS also provides HIL with physical and cognitive support. This requires a clear bidirectional information flow in form of interactive human–machine interfaces (HMI). Automatic speech recognition, gesture recognition, and augmented reality are the three key elements of HMI in I4.0 [20]. The latter, commonly referred to as virtual reality, is a vital component of the forthcoming I5.0 and digital twin technology. In the augmented age of I5.0, tools such as VR headsets will be used to augment skills and to make processes simpler and more repeatable. A GUI made up of an enhanced reality visualisation environment, a setup panel, and a gesture detection system are combined to create an HMI [21]. The operator gestures are decoded and transmitted by the gesture recognition system, by specifying the control unit’s input signals. Two frameworks are used to build the recognition system. The former is an optical tracking sensor based on stereo vision and the latter uses a step counter, step detector, accelerometer, gyroscope, linear acceleration sensor, and rotation vector included in an android smartphone. The enhanced reality environment then offers the images captured by the cameras along with a simulation environment to observe any location at random and map gestures in the workspace. This visual input from the HIL enables more effective control of the robot because self-collisions or singular configurations can be clearly anticipated [21]. In other studies, the usage of an evolutionary multi-objective and interactive scheduling framework that incorporates the human’s context-aware preferences in the optimisation process is used to implement HMI at the decisional level [22]. A Flexible Job Shop NSGA2 scheduling scheme that represents a number of Pareto optimal scheduling alternatives is provided to the HMI, and the human operator then selects the preferred choice. This helps in equipping the CPS with decision-making capabilities [22][23].
Zolotová et al. [24] present a series of case studies highlighting the potential applications of intelligent solutions using HIL and describes the changing roles of operators in production systems.
