1. History

1.1. Pre-Islamic Arabs

Ahmad Dallal notes that, unlike the Babylonians, Greeks, and Indians, who had developed elaborate systems of mathematical astronomical study, the pre-Islamic Arabs relied entirely on empirical observations. These observations were based on the rising and setting of particular stars, and this indigenous constellation tradition was known as Anwā’. The study of Anwā’ continued to be developed after Islamization by the Arabs, where Islamic astronomers added mathematical methods to their empirical observations.^[1]

1.2. Early Abbasid Era

The first astronomical texts that were translated into Arabic were of Indian^[2] and Persian origin.^[3] The most notable of the texts was Zij al-Sindhind,^[4] an 8th-century Indian astronomical work that was translated by Muhammad ibn Ibrahim al-Fazari and Yaqub ibn Tariq after 770 CE with the assistance of Indian astronomers who visited the court of caliph Al-Mansur in 770.^[2] Another text translated was the Zij al-Shah, a collection of astronomical tables (based on Indian parameters) compiled in Sasanid Persia over two centuries. Fragments of texts during this period indicate that Arabs adopted the sine function (inherited from India) in place of the chords of arc used in Greek trigonometry.^[1]

According to David King, after the rise of Islam, the religious obligation to determine the qibla and prayer times inspired progress in astronomy.^[5] Early Islam's history shows evidence of a productive relationship between faith and science. Specifically, Islamic scientists took an early interest in astronomy, as the concept of keeping time accurately was important for the five daily prayers central to the faith. Early Islamicate scientists constructed astronomical tables specifically to determine the exact times of prayer for specific locations around the continent, serving effectively as an early system of time zones.^[6]

1.3. Astronomical Methods

Al-Farabi (d. 950) was a philosopher who had a method of knowing what astronomy was. He describes mathematical astronomy but also can convey a sense of understanding of astronomy presented with music/optics.^[7] In a mathematical sense, astronomy can be broken up into three parts as explained by Al-Farabi.^[8] He shows that inhabited and uninhabited places on earth can be examined with astronomy how the earth moves and from day or night. Another is the movement of different Astronomical objects of where they move to, number of motions, and where they started. The third one is the shapes/sizes/positioning of the celestial bodies to obtain.^[9] Al-Farabi's believes that his idea of mathematical astronomy is separate from science. Such as physics dealing with the internal aspect of planets, what they can be made out of. Astronomy is restricted to the external aspect, such as positioning, shape, and size. This helps show how Al-Farabi's method of figuring out knowledge on what astronomy was can not correct. Namely to separate physics and astronomy as two separate sciences in order to discover more about the subject.^[10]

Analemma for planet Earth during the middle of the day. In 2006 it was recorded at the Royal Observatory, Greenwich. https://handwiki.org/wiki/index.php?curid=1164772

Al-Farabi had followed some of the same ideas as Ptolemy. This was because Ptolemy enjoyed observations and only knew mathematics to be an accurate way of composing compelling reason. Rather than having to deal with physics and metaphysics because they were seen as unreliable to help prove theories of the universe.^[11] Ptolemy had a mathematical way of astronomy just as Al-Farabi. His way was called Analemma, which is a way to calculate the Suns position from a fixed location.^[12] Within old historic texts, such as Vitruvius Architecture IX.7, and Hero of Alexandria's Dioptra 35, analemma's were drawn to help solve answers to problems that had to deal with geometry, possibly about astronomy.^[13] The analemma was shown to be one of Ptolemy's Hypothesis' for problem-solving. An analemma is very complicated and difficult to understand with multiple techniques on how to draw and perform the math of one. It was very common for many people to group the sundial and analemma together.^[14] Ptolemy's analemma helped the Islamic period thrive because it was used continuously to locate the sun.

1.4. Golden Age

The Tusi-couple is a mathematical device invented by Nasir al-Din al-Tusi in which a small circle rotates inside a larger circle twice the diameter of the smaller circle. Rotations of the circles cause a point on the circumference of the smaller circle to oscillate back and forth in linear motion along a diameter of the larger circle. https://handwiki.org/wiki/index.php?curid=1694808

The House of Wisdom was an academy established in Baghdad under Abbasid caliph Al-Ma'mun in the early 9th century. Astronomical research was greatly supported by the Abbasid caliph al-Mamun through the House of Wisdom. Baghdad and Damascus became the centers of such activity.

The first major Muslim work of astronomy was Zij al-Sindhind by Persian mathematician al-Khwarizmi in 830. The work contains tables for the movements of the Sun, the Moon, and the five planets known at the time. The work is significant as it introduced Ptolemaic concepts into Islamic sciences. This work also marks the turning point in Islamic astronomy. Hitherto, Muslim astronomers had adopted a primary research approach to the field, translating works of others and learning already discovered knowledge. Al-Khwarizmi's work marked the beginning of nontraditional methods of study and calculations.^[15]

Doubts on Ptolemy

In 850, al-Farghani wrote Kitab fi Jawami (meaning "A compendium of the science of stars"). The book primarily gave a summary of Ptolemic cosmography. However, it also corrected Ptolemy based on the findings of earlier Arab astronomers. Al-Farghani gave revised values for the obliquity of the ecliptic, the precessional movement of the apogees of the Sun and the Moon, and the circumference of the Earth. The book was widely circulated through the Muslim world, and translated into Latin.^[16]

By the 10th century texts appeared regularly whose subject matter was doubts concerning Ptolemy (shukūk).^[17] Several Muslim scholars questioned the Earth's apparent immobility^[18][19] and centrality within the universe.^[20] From this time, independent investigation into the Ptolemaic system became possible. According to Dallal (2010), the use of parameters, sources and calculation methods from different scientific traditions made the Ptolemaic tradition "receptive right from the beginning to the possibility of observational refinement and mathematical restructuring".^[21]

Egyptian astronomer Ibn Yunus found fault in Ptolemy's calculations about the planet's movements and their peculiarity in the late 10th century. Ptolemy calculated that Earth's wobble, otherwise known as precession, varied 1 degree every 100 years. Ibn Yunus contradicted this finding by calculating that it was instead 1 degree every 70​¹⁄₄ years.

Between 1025 and 1028, Ibn al-Haytham wrote his Al-Shukuk ala Batlamyus (meaning "Doubts on Ptolemy"). While maintaining the physical reality of the geocentric model, he criticized elements of the Ptolemic models. Many astronomers took up the challenge posed in this work, namely to develop alternate models that resolved these difficulties. In 1070, Abu Ubayd al-Juzjani published the Tarik al-Aflak where he discussed the "equant" problem of the Ptolemic model and proposed a solution. In Al-Andalus, the anonymous work al-Istidrak ala Batlamyus (meaning "Recapitulation regarding Ptolemy"), included a list of objections to Ptolemic astronomy.

Nasir al-Din al-Tusi, the creator of the Tusi couple, also worked heavily to expose the problems present in Ptolemy's work. In 1261, Tusi published his Tadkhira, which contained 16 fundamental problems he found with Ptolemaic astronomy,^[22] and by doing this, set off a chain of Islamic scholars that would attempt to solve these problems. Scholars such as Qutb al-Din al-Shirazi, Ibn al-Shatir, and Shams al-Din al-Khafri all worked to produce new models for solving Tusi's 16 Problems,^[23] and the models they worked to create would become widely adopted by astronomers for use in their own works.

This model presenting how Nasir al-Din al-Tusi explain the motion of Earth, relative to the moon and the Sun using Tusi couple. It is used to support that Earth rotate around something, and equant is not the correct way to explain the motion of the moon around Earth. https://handwiki.org/wiki/index.php?curid=1979171

Nasir al-Din Tusi wanted to use the concept of Tusi couple to replace the "equant" concept in Ptolemic model. Since the equant concept would result in the moon distance to change dramatically through each month, at least by the factor of two if the math is done. But with the Tusi couple, the moon would just rotate around Earth resulting in the correct observation and applied concept.^[24] Mu'ayyad al-Din al-Urdi was another engineer/scholar that tried to make sense of the motion of planets. He came up with the concept of lemma, which is a way of representing the epicyclical motion of planets without using Ptolemic method. Lemma was intended to replace the concept of equant as well.

Earth rotation

An illustration from al-Biruni's astronomical works, explains the different phases of the moon, with respect to the position of the sun. https://handwiki.org/wiki/index.php?curid=1370090

Abu Rayhan Biruni (b. 973) discussed the possibility of whether the Earth rotated about its own axis and around the Sun, but in his Masudic Canon, he set forth the principles that the Earth is at the center of the universe and that it has no motion of its own.^[25] He was aware that if the Earth rotated on its axis, this would be consistent with his astronomical parameters,^[26] but he considered this a problem of natural philosophy rather than mathematics.^[27][28]

His contemporary, Abu Sa'id al-Sijzi, accepted that the Earth rotates around its axis.^[29] Al-Biruni described an astrolabe invented by Sijzi based on the idea that the earth rotates:

I have seen the astrolabe called Zuraqi invented by Abu Sa'id Sijzi. I liked it very much and praised him a great deal, as it is based on the idea entertained by some to the effect that the motion we see is due to the Earth's movement and not to that of the sky. By my life, it is a problem difficult to solve and refutation. [...] For it is the same whether you take it that the Earth is in motion or the sky. For, in both cases, it does not affect Astronomical Science. It is just for the physicist to see if it is possible to refute it.^[30]

The fact that some people did believe that the earth is moving on its own axis is further confirmed by an Arabic reference work from the 13th century which states:

According to the geometers [or engineers] (muhandisīn), the earth is in a constant circular motion, and what appears to be the motion of the heavens is actually due to the motion of the earth and not the stars.^[27]

At the Maragha and Samarkand observatories, the Earth's rotation was discussed by al-Kātibī (d. 1277),^[31] Tusi (b. 1201) and Qushji (b. 1403). The arguments and evidence used by Tusi and Qushji resemble those used by Copernicus to support the Earth's motion.^[18][19] However, it remains a fact that the Maragha school never made the big leap to heliocentrism.^[32]

Alternative geocentric systems

In the 12th century, non-heliocentric alternatives to the Ptolemaic system were developed by some Islamic astronomers in al-Andalus, following a tradition established by Ibn Bajjah, Ibn Tufail, and Ibn Rushd.

A notable example is Nur ad-Din al-Bitruji, who considered the Ptolemaic model mathematical, and not physical.^[33][34] Al-Bitruji proposed a theory on planetary motion in which he wished to avoid both epicycles and eccentrics.^[35] He was unsuccessful in replacing Ptolemy's planetary model, as the numerical predictions of the planetary positions in his configuration were less accurate than those of the Ptolemaic model.^[36] One original aspects of al-Bitruji's system is his proposal of a physical cause of celestial motions. He contradicts the Aristotelian idea that there is a specific kind of dynamics for each world, applying instead the same dynamics to the sublunar and the celestial worlds.^[37]

1.5. Later Period

In the late thirteenth century, Nasir al-Din al-Tusi created the Tusi couple, as pictured above. Other notable astronomers from the later medieval period include Mu'ayyad al-Din al-'Urdi (c. 1266), Qutb al-Din al Shirazi (c. 1311), Sadr al-Sharia al-Bukhari (c. 1347), Ibn al-Shatir (c. 1375), and Ali al-Qushji (c. 1474).^[38]

In the fifteenth century, the Timurid ruler Ulugh Beg of Samarkand established his court as a center of patronage for astronomy. He studied it in his youth, and in 1420 ordered the construction of Ulugh Beg Observatory, which produced a new set of astronomical tables, as well as contributing to other scientific and mathematical advances.^[39]

Several major astronomical works were produced in the early 16th century, including ones by 'Abd al-Ali al-Birjandi (d. 1525 or 1526) and Shams al-Din al-Khafri (fl. 1525). However, the vast majority of works written in this and later periods in the history of Islamic sciences are yet to be studied.^[19]

2. Influences

2.1. Europe

Ibn al-Shatir's model for the appearances of Mercury, showing the multiplication of epicycles using the Tusi-couple, thus eliminating the Ptolemaic eccentrics and equant. https://handwiki.org/wiki/index.php?curid=1762825

Several works of Islamic astronomy were translated to Latin starting from the 12th century.

The work of al-Battani (d. 929), Kitāb az-Zīj ("Book of Astronomical Tables"), was frequently cited by European astronomers and received several reprints, including one with annotations by Regiomontanus.^[40] Copernicus, in his book that initiated the Copernican Revolution, the De Revolutionibus Orbium Coelestium, mentioned al-Battani no fewer than 23 times,^[41] and also mentions him in the Commentariolus.^[42] Tycho Brahe, Riccioli, Kepler, Galileo and others frequently cited him or his observations.^[43] His data is still used in geophysics.^[44]

Around 1190, Al-Bitruji published an alternative geocentric system to Ptolemy's model. His system spread through most of Europe during the 13th century, with debates and refutations of his ideas continued to the 16th century.^[45] In 1217, Michael Scot finished a Latin translation of al-Bitruji's Book of Cosmology (Kitāb al-Hayʾah), which became a valid alternative to Ptolemy's Almagest in scholastic circles.^[37] Several European writers, including Albertus Magnus and Roger Bacon, explained it in detail and compared it with Ptolemy's.^[45] Copernicus cited his system in the De revolutionibus while discussing theories of the order of the inferior planets.^[37][45]

Some historians maintain that the thought of the Maragheh observatory, in particular the mathematical devices known as the Urdi lemma and the Tusi couple, influenced Renaissance-era European astronomy and thus Copernicus.^{[28][46][47][48][49]} Copernicus used such devices in the same planetary models as found in Arabic sources.^[50] Furthermore, the exact replacement of the equant by two epicycles used by Copernicus in the Commentariolus was found in an earlier work by Ibn al-Shatir (d. c. 1375) of Damascus.^[51] Copernicus' lunar and Mercury models are also identical to Ibn al-Shatir's.^[52]

While the influence of the criticism of Ptolemy by Averroes on Renaissance thought is clear and explicit, the claim of direct influence of the Maragha school, postulated by Otto E. Neugebauer in 1957, remains an open question.^[32][53][54] Since the Tusi couple was used by Copernicus in his reformulation of mathematical astronomy, there is a growing consensus that he became aware of this idea in some way. It has been suggested^[55][56] that the idea of the Tusi couple may have arrived in Europe leaving few manuscript traces, since it could have occurred without the translation of any Arabic text into Latin. One possible route of transmission may have been through Byzantine science, which translated some of al-Tusi's works from Arabic into Byzantine Greek. Several Byzantine Greek manuscripts containing the Tusi-couple are still extant in Italy.^[57] Other scholars have argued that Copernicus could well have developed these ideas independently of the late Islamic tradition.^[58] Copernicus explicitly references several astronomers of the "Islamic Golden Age" (10th to 12th centuries) in De Revolutionibus: Albategnius (Al-Battani), Averroes (Ibn Rushd), Thebit (Thabit Ibn Qurra), Arzachel (Al-Zarqali), and Alpetragius (Al-Bitruji), but he does not show awareness of the existence of any of the later astronomers of the Maragha school.^[42]

It has been argued that Copernicus could have independently discovered the Tusi couple or took the idea from Proclus's Commentary on the First Book of Euclid,^[59] which Copernicus cited.^[60] Another possible source for Copernicus's knowledge of this mathematical device is the Questiones de Spera of Nicole Oresme, who described how a reciprocating linear motion of a celestial body could be produced by a combination of circular motions similar to those proposed by al-Tusi.^[61]

2.2. China

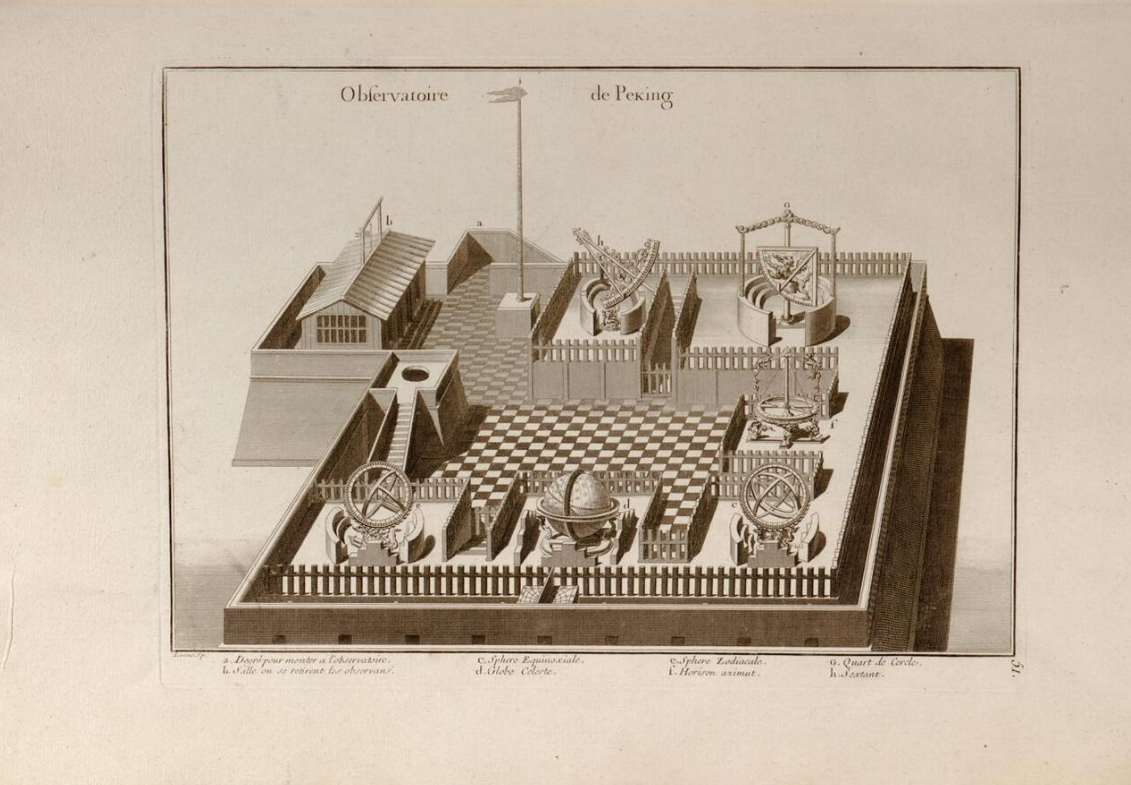

Layout of the Beijing Ancient Observatory. https://handwiki.org/wiki/index.php?curid=1801017

Islamic influence on Chinese astronomy was first recorded during the Song dynasty when a Hui Muslim astronomer named Ma Yize introduced the concept of seven days in a week and made other contributions.^[62]

Islamic astronomers were brought to China in order to work on calendar making and astronomy during the Mongol Empire and the succeeding Yuan dynasty.^[63][64] The Chinese scholar Yeh-lu Chu'tsai accompanied Genghis Khan to Persia in 1210 and studied their calendar for use in the Mongol Empire.^[64] Kublai Khan brought Iranians to Beijing to construct an observatory and an institution for astronomical studies.^[63]

Several Chinese astronomers worked at the Maragheh observatory, founded by Nasir al-Din al-Tusi in 1259 under the patronage of Hulagu Khan in Persia.^[65] One of these Chinese astronomers was Fu Mengchi, or Fu Mezhai.^[66] In 1267, the Persian astronomer Jamal ad-Din, who previously worked at Maragha observatory, presented Kublai Khan with seven Persian astronomical instruments, including a terrestrial globe and an armillary sphere,^[67] as well as an astronomical almanac, which was later known in China as the Wannian Li ("Ten Thousand Year Calendar" or "Eternal Calendar"). He was known as "Zhamaluding" in China, where, in 1271,^[66] he was appointed by Khan as the first director of the Islamic observatory in Beijing,^[65] known as the Islamic Astronomical Bureau, which operated alongside the Chinese Astronomical Bureau for four centuries. Islamic astronomy gained a good reputation in China for its theory of planetary latitudes, which did not exist in Chinese astronomy at the time, and for its accurate prediction of eclipses.^[68]

Some of the astronomical instruments constructed by the famous Chinese astronomer Guo Shoujing shortly afterwards resemble the style of instrumentation built at Maragheh.^[65] In particular, the "simplified instrument" (jianyi) and the large gnomon at the Gaocheng Astronomical Observatory show traces of Islamic influence.^[68] While formulating the Shoushili calendar in 1281, Shoujing's work in spherical trigonometry may have also been partially influenced by Islamic mathematics, which was largely accepted at Kublai's court.^[69] These possible influences include a pseudo-geometrical method for converting between equatorial and ecliptic coordinates, the systematic use of decimals in the underlying parameters, and the application of cubic interpolation in the calculation of the irregularity in the planetary motions.^[68]

Hongwu Emperor (r. 1368–1398) of the Ming dynasty (1328–1398), in the first year of his reign (1368), conscripted Han and non-Han astrology specialists from the astronomical institutions in Beijing of the former Mongolian Yuan to Nanjing to become officials of the newly established national observatory.

That year, the Ming government summoned for the first time the astronomical officials to come south from the upper capital of Yuan. There were fourteen of them. In order to enhance accuracy in methods of observation and computation, Hongwu Emperor reinforced the adoption of parallel calendar systems, the Han and the Hui. In the following years, the Ming Court appointed several Hui astrologers to hold high positions in the Imperial Observatory. They wrote many books on Islamic astronomy and also manufactured astronomical equipment based on the Islamic system.

The translation of two important works into Chinese was completed in 1383: Zij (1366) and al-Madkhal fi Sina'at Ahkam al-Nujum, Introduction to Astrology (1004).

In 1384, a Chinese astrolabe was made for observing stars based on the instructions for making multi-purposed Islamic equipment. In 1385, the apparatus was installed on a hill in northern Nanjing.

Around 1384, during the Ming dynasty, Hongwu Emperor ordered the Chinese translation and compilation of Islamic astronomical tables, a task that was carried out by the scholars Mashayihei, a Muslim astronomer, and Wu Bozong, a Chinese scholar-official. These tables came to be known as the Huihui Lifa (Muslim System of Calendrical Astronomy), which was published in China a number of times until the early 18th century,^[70] though the Qing dynasty had officially abandoned the tradition of Chinese-Islamic astronomy in 1659.^[71] The Muslim astronomer Yang Guangxian was known for his attacks on the Jesuit's astronomical sciences.

2.3. Korea

Korean celestial globe based on the Huihui Lifa. https://handwiki.org/wiki/index.php?curid=1542957

In the early Joseon period, the Islamic calendar served as a basis for calendar reform being more accurate than the existing Chinese-based calendars.^[72] A Korean translation of the Huihui Lifa, a text combining Chinese astronomy with Islamic astronomy works of Jamal ad-Din, was studied in Korea under the Joseon dynasty during the time of Sejong in the fifteenth century.^[73] The tradition of Chinese-Islamic astronomy survived

3. Observatories

Work in the observatorium of Taqi al-Din. https://handwiki.org/wiki/index.php?curid=1966142

The first systematic observations in Islam are reported to have taken place under the patronage of al-Mamun. Here, and in many other private observatories from Damascus to Baghdad, meridian degree measurement were performed (al-Ma'mun's arc measurement), solar parameters were established, and detailed observations of the Sun, Moon, and planets were undertaken.

During the tenth century, the Buwayhid dynasty encouraged the undertaking of extensive works in astronomy; such as the construction of a large-scale instruments with which observations were made in the year 950. This is known through recordings made in the zij of astronomers such as Ibn al-Alam. The great astronomer Abd Al-Rahman Al Sufi was patronised by prince Adud o-dowleh, who systematically revised Ptolemy's catalogue of stars. Sharaf al-Daula also established a similar observatory in Baghdad. Reports by Ibn Yunus and al-Zarqall in Toledo and Cordoba indicate the use of sophisticated instruments for their time.

It was Malik Shah I who established the first large observatory, probably in Isfahan. It was here where Omar Khayyám with many other collaborators constructed a zij and formulated the Persian Solar Calendar a.k.a. the jalali calendar. A modern version of this calendar, the Solar Hijri calendar, is still in official use in Iran and Afghanistan today.

The most influential observatory was however founded by Hulegu Khan during the thirteenth century. Here, Nasir al-Din al-Tusi supervised its technical construction at Maragha. The facility contained resting quarters for Hulagu Khan, as well as a library and mosque. Some of the top astronomers of the day gathered there, and from their collaboration resulted important modifications to the Ptolemaic system over a period of 50 years.

The Ulugh Beg Observatory in Samarqand. https://handwiki.org/wiki/index.php?curid=1728517

In 1420, prince Ulugh Beg, himself an astronomer and mathematician, founded another large observatory in Samarkand, the remains of which were excavated in 1908 by Russian teams.

And finally, Taqi al-Din Muhammad ibn Ma'ruf founded a large observatory in Ottoman Constantinople in 1577, which was on the same scale as those in Maragha and Samarkand. The observatory was short-lived however, as opponents of the observatory and prognostication from the heavens prevailed and the observatory was destroyed in 1580.^[74] While the Ottoman clergy did not object to the science of astronomy, the observatory was primarily being used for astrology, which they did oppose, and successfully sought its destruction.^[75]

As observatory development continued, Islamicate scientists began to pioneer the planetarium. The major difference between a planetarium and an observatory is how the universe is projected. In an observatory, you must look up into the night sky, on the other hand, planetariums allow for universes planets and stars to project at eye-level in a room. Scientist Ibn Firnas, created a planetarium in his home that included artificial storm noises and was completely made of glass. Being the first of its kind, it very similar to what we see  for planetariums today.

4. Instruments

Our knowledge of the instruments used by Muslim astronomers primarily comes from two sources: first the remaining instruments in private and museum collections today, and second the treatises and manuscripts preserved from the Middle Ages. Muslim astronomers of the "Golden Period" made many improvements to instruments already in use before their time, such as adding new scales or details.

4.1. Celestial Globes and Armillary Spheres

A Large Persian Brass Celestial Globe with an ascription to Hadi Isfahani and a date of 1197 AH/ 1782-3 AD of typical spherical form, the globe engraved with markings, figures and astrological symbols, inscriptive details throughout. https://handwiki.org/wiki/index.php?curid=1783759

Celestial globes were used primarily for solving problems in celestial astronomy. Today, 126 such instruments remain worldwide, the oldest from the 11th century. The altitude of the Sun, or the Right Ascension and Declination of stars could be calculated with these by inputting the location of the observer on the meridian ring of the globe.^[76] The initial blueprint for a portable celestial globe to measure celestial coordinates came from Spanish Muslim astronomer Jabir ibn Aflah (d. 1145). Another skillful Muslim astronomer working on celestial globes was Abd al-Rahman al-Sufi (b. 903), whose treatise the Book of Fixed Stars describes how to design the constellation images on the globe, as well as how to use the celestial globe. However, it was in Iraq in the 10th century that astronomer Al-Battani was working on celestial globes to record celestial data. This was different because up until then, the traditional use for a celestial globe was as an observational instrument. Al-Battani's treatise describes in detail the plotting coordinates for 1,022 stars, as well as how the stars should be marked. An armillary sphere had similar applications. No early Islamic armillary spheres survive, but several treatises on "the instrument with the rings" were written. In this context there is also an Islamic development, the spherical astrolabe, of which only one complete instrument, from the 14th century, has survived.

4.2. Astrolabes

Brass astrolabes were an invention of Late Antiquity. The first Islamic astronomer reported as having built an astrolabe is Muhammad al-Fazari (late 8th century).^[77] Astrolabes were popular in the Islamic world during the "Golden Age", chiefly as an aid to finding the qibla. The earliest known example is dated to 927/8 (AH 315).^[78]

The device was incredibly useful, and sometime during the 10th century it was brought to Europe from the Muslim world, where it inspired Latin scholars to take up a vested interest in both math and astronomy.^[79] Despite how much we know much about the tool, many of the functions of the device have become lost to history. Although it is true that there are many surviving instruction manuals, historians have come to the conclusion that there are more functions of specialized astrolabes that we do not know of.^[6] One example of this is an astrolabe created by Nasir al-Din al-Tusi in Aleppo in the year 1328/29 C.E. This particular astrolabe was special and is hailed by historians as the "most sophisticated astrolabe ever made",^[6] being known to have five distinct universal uses.

The largest function of the astrolabe is it serves as a portable model of space that can calculate the approximate location of any heavenly body found within the solar system at any point in time, provided the latitude of the observer is accounted for. In order to adjust for latitude, astrolabes often had a second plate on top of the first, which the user could swap out to account for their correct latitude.^[79] One of the most useful features of the device is that the projection created allows users to calculate and solve mathematical problems graphically which could otherwise be done only by using complex spherical trigonometry, allowing for earlier access to great mathematical feats.^[80] In addition to this, use of the astrolabe allowed for ships at sea to calculate their position given that the device is fixed upon a star with a known altitude. Standard astrolabes performed poorly on the ocean, as bumpy waters and aggressive winds made use difficult, so a new iteration of the device, known as a Mariner's astrolabe, was developed to counteract the difficult conditions of the sea.^[81]

The instruments were used to read the time of the Sun rising and fixed stars. al-Zarqali of Andalusia constructed one such instrument in which, unlike its predecessors, did not depend on the latitude of the observer, and could be used anywhere. This instrument became known in Europe as the Saphea.^[82]

Mid-17th century astrolabe inscribed with Quranic verses and Persian poetry as well as technical information, with five interchangeable plates corresponding to the latitudes of major cities. https://handwiki.org/wiki/index.php?curid=1355891

The astrolabe was arguably the most important instrument created and used for astronomical purposes in the medieval period. Its invention in early medieval times required immense study and much trial and error in order to find the right method of which to construct it to where it would work efficiently and consistently, and its invention led to several mathematic advances which came from the problems that arose from using the instrument.^[83] The astrolabe's original purpose was to allow one to find the altitudes of the sun and many visible stars, during the day and night, respectively.^[84] However, they have ultimately come to provide great contribution to the progress of mapping the globe, thus resulting in further exploration of the sea, which then resulted in a series of positive events that allowed the world we know today to come to be.^[85] The astrolabe has served many purposes over time, and it has shown to be quite a key factor from medieval times to the present.

The astrolabe, as mentioned before, required the use of mathematics, and the development of the instrument incorporated azimuth circles, which opened a series of questions on further mathematical dilemmas.^[83] Astrolabes served the purpose of finding the altitude of the sun, which also meant that they provided one the ability to find the direction of Muslim prayer (or the direction of Mecca).^[83] Aside from these perhaps more widely known purposes, the astrolabe has led to many other advances as well. One very important advance to note is the great influence it had on navigation, specifically in the marine world. This advancement is incredibly important because the calculation of latitude being made more simple not only allowed for the increase in sea exploration, but it eventually led to the Renaissance revolution, the increase in global trade activity, even the discovery of several of the world's continents.^[85]

4.3. Mechanical Calendar

Abu Rayhan Biruni designed an instrument he called "Box of the Moon", which was a mechanical lunisolar calendar, employing a gear train and eight gear-wheels.^[86] This was an early example of a fixed-wired knowledge processing machine.^[87] This work of Al Biruni uses the same gear trains preserved in a 6th-century Byzantine portable sundial.^[88]

4.4. Sundials

The Timbuktu Manuscripts showing both mathematics and astronomy.^[89] https://handwiki.org/wiki/index.php?curid=1837326

Muslims made several important improvements to the theory and construction of sundials, which they inherited from their Indian and Greek predecessors. Khwarizmi made tables for these instruments which considerably shortened the time needed to make specific calculations.

Sundials were frequently placed on mosques to determine the time of prayer. One of the most striking examples was built in the fourteenth century by the muwaqqit (timekeeper) of the Umayyad Mosque in Damascus, ibn al-Shatir.^[90]

4.5. Quadrants

Several forms of quadrants were invented by Muslims. Among them was the sine quadrant used for astronomical calculations, and various forms of the horary quadrant used to determine the time (especially the times of prayer) by observations of the Sun or stars. A center of the development of quadrants was ninth-century Baghdad.^[91] Abu Bakr ibn al-Sarah al-Hamawi (d. 1329) was a Syrian astronomer that invented a quadrant called “al-muqantarat al-yusra”. He devoted his time to writing several books on his accomplishments and advancements with quadrants and geometrical problems. His works on quadrants include Treatise on Operations with the Hidden Quadrant and Rare Pearls on Operations with the Circle for Finding Sines. These instruments could measure the altitude between a celestial object and the horizon. However, as Muslim astronomers used them, they began to find other ways to use them. For example, the mural quadrant, for recording the angles of planets and celestial bodies. Or the universal quadrant, for latitude solving astronomical problems. The horary quadrant, for finding the time of day with the sun. The almucantar quadrant, which was developed from the astrolabe.

4.6. Equatoria

Planetary equatoria were probably made by ancient Greeks, although no findings nor descriptions have been preserved from that period. In his comment on Ptolemy's Handy Tables, 4th century mathematician Theon of Alexandria introduced some diagrams to geometrically compute the position of the planets based on Ptolemy's epicyclical theory. The first description of the construction of a solar (as opposed to planetary) equatorium is contained in Proclus's fifth-century work Hypotyposis,^[92] where he gives instructions on how to construct one in wood or bronze.^[93]

The earliest known description of a planetary equatorium is contained in early 11th-century treatise by Ibn al‐Samḥ, preserved only as a 13th-century Castillian translation contained in the Libros del saber de astronomia (Books of the knowledge of astronomy); the same book contains also a 1080/1081 treatise on the equatorium by al-Zarqālī.^[93]

5. Astronomy in Islamic Art

Qusayr' Amra Dome Fresco, 705–15, fresco on tepidarium, bathhouse dome ceiling, Jordan. https://handwiki.org/wiki/index.php?curid=1104488

There are examples of cosmological imagery throughout many forms of Islamic art, whether that be manuscripts, ornately crafted astrological tools, or palace frescoes, just to name a few. Islamic art maintains the capability to reach every class and level of society.

Within Islamic cosmological doctrines and the Islamic study of astronomy, such as the Encyclopedia of the Brethren of Purity (alternatively called The Rasa'il of the Ikhwan al-Safa) there is a heavy emphasis by medieval scholars on the importance of the study of the heavens. This study of the heavens has translated into artistic representations of the universe and astrological concepts.^[94] There are many themes under which Islamic astrological art falls under, such as religious, political, and cultural contexts.^[95] It is posited by scholars that there are actually three waves or traditions of cosmological imagery, Western, Byzantine, and Islamic. The Islamic world gleaned inspiration from Greek, Iranian, and Indian methods in order to procure a unique representation of the stars and the universe.^[96]

5.1. Examples

Zodiac Ewer, first half 13th century, potentially Iran. Engraved Brass, inlaid with copper and silver, 8 3/4 in. x 6 7/8 in..https://handwiki.org/wiki/index.php?curid=1594591

A place like Quasyr' Amra, which was used as a rural Umayyad palace and bath complex, coveys the way astrology and the cosmos have weaved their way into architectural design. During the time of its use, one could be resting in the bathhouse and gaze at the frescoed dome that would almost reveal a sacred and cosmic nature. Aside from the other frescoes of the complex which heavily focused on al-Walid, the bath dome was decorated in the Islamic zodiac and celestial designs.^[95] It would have almost been as if the room was suspended in space. In their encyclopedia, the Ikhwan al' Safa describe the Sun to have been placed at the center of the universe by God, and all other celestial bodies orbit around it in spheres.^[94] As a result, it would be as if whoever was sitting underneath this fresco would have been at the center of the universe, reminded of their power and position. A place like Qusayr' Amra represents the way astrological art and images interacted with Islamic elites and those who maintained caliphal authority.

The Islamic zodiac and astrological visuals have also been present in metalwork. Ewers depicting the twelve zodiac symbols exist in order to emphasize elite craftsmanship and carry blessings such as one example now at the Metropolitan Museum of Art.^[97] Coinage also carried zodiac imagery that bears the sole purpose of representing the month in which the coin was minted.^[98] As a result, astrological symbols could have been used as both decoration, and a means to communicate symbolic meanings or specific information.

6. Notable Astronomers

Khalid ibn Yazid (Calif) Jafar al-Sadiq Yaqūb ibn Tāriq Ibrahim al-Fazari Muhammad al-Fazari Mashallah ibn Athari Naubakht Abu Hanifa Dinawari Al-Khwarizmi, also a mathematician Abu Ma'shar al-Balkhi (Albumasar) Al-Farghani Banū Mūsā (Ben Mousa) Ja'far Muhammad ibn Mūsā ibn Shākir Ahmad ibn Mūsā ibn Shākir Al-Hasan ibn Mūsā ibn Shākir Thābit ibn Qurra (Thebit) Sinan ibn Thabit Ibrahim ibn Sinan Sind ibn Ali Al-Majriti Al-Battani (Albatenius) Al-Farabi (Abunaser)

Abd Al-Rahman Al Sufi Abu Sa'id Gorgani Kushyar ibn Labban Abū Ja'far al-Khāzin Al-Mahani Al-Marwazi Al-Nayrizi Al-Saghani Brethren of Purity Abū Sahl al-Qūhī (Kuhi) Abu-Mahmud al-Khujandi Abū al-Wafā' al-Būzjānī Ibn Yunus Abu Nasr Mansur Ibn al-Haytham (Alhacen) Al-Biruni Avicenna Abū Ishāq Ibrāhīm al-Zarqālī (Arzachel) Omar Khayyám Al-Khazini Ibn Bajjah (Avempace) Ibn Tufail (Abubacer)

Nur Ed-Din Al Betrugi (Alpetragius) Averroes Al-Jazari Anvari Sharaf al-Dīn al-Tūsī Mo'ayyeduddin Urdi Nasir al-Din al-Tusi Ibn al-Nafis Qutb al-Din al-Shirazi Ibn al-Shatir Shams al-Dīn al-Samarqandī Jamshīd al-Kāshī Ulugh Beg, also a mathematician Ali Qushji, also a mathematician and philosopher Al-Birjandi Taqi al-Din Muhammad ibn Ma'ruf, Ottoman astronomer Ahmad Nahavandi Ahmad Khani Haly Abenragel Abolfadl Harawi

Medieval manuscript by Qutb al-Din al-Shirazi depicting an epicyclic planetary model. https://handwiki.org/wiki/index.php?curid=1712588
