DTS, Inc. (originally Digital Theater Systems) is an American company that makes multichannel audio technologies for film and video. Based in Calabasas, California, the company introduced its DTS technology in 1993 as a competitor to Dolby Laboratories, incorporating DTS in the film Jurassic Park (1993). The DTS product is used in surround sound formats for both commercial/theatrical and consumer-grade applications. It was known as The Digital Experience until 1995. DTS licenses its technologies to consumer electronics manufacturers. The DTS brand was acquired by Tessera Holding Corporation in December 2016, then Tessera was renamed to Xperi Corporation.
DTS was founded by Terry Beard, an audio engineer and Caltech graduate. Beard, speaking to a friend of a friend, was able to get in touch with Steven Spielberg to audition a remastering of Spielberg's film Close Encounters of the Third Kind mixed in DTS. Spielberg then selected DTS sound for his next film, Jurassic Park (1993) and with the backing of Universal and its then-parent Matsushita Electric, over 1,000 theatres in the United States adopted the DTS system.
Work on the new audio format started in 1991, four years after Dolby Laboratories started work on its new codec, Dolby Digital.
The basic and most common version of the format is a 5.1-channel system, similar to a Dolby Digital setup, which encodes the audio as five primary (full-range) channels plus a special LFE (low-frequency effects) channel for the subwoofer.
Encoders and decoders support numerous channel combinations, and stereo, four-channel, and four-channel+LFE soundtracks have been released commercially on DVD, CD, and Laserdisc.
Other, newer DTS variants are also currently available, including versions that support up to seven primary audio channels plus one LFE channel (DTS-ES). These variants are generally based on DTS's core-and-extension philosophy, in which a core DTS data stream is augmented with an extension stream which includes the additional data necessary for the new variant in use. The core stream can be decoded by any DTS decoder, even if it does not understand the new variant. A decoder which does understand the new variant decodes the core stream, and then modifies it according to the instructions contained in the extension stream. This method allows backward compatibility.
DTS's main competitors in multichannel theatrical audio are Dolby Digital and SDDS, although only Dolby Digital and DTS are used on DVDs and implemented in home theater hardware.
One of the DTS Inc.'s initial investors was film director Steven Spielberg, who felt that theatrical sound formats up until the company's founding were no longer state of the art, and as a result were no longer optimal for use on projects where quality sound reproduction was of the utmost importance. Spielberg debuted the format with his 1993 production of Jurassic Park, which came slightly less than a full year after the official theatrical debut of Dolby Digital (Batman Returns). In addition, Jurassic Park also became the first home video release to contain DTS sound when it was released on LaserDisc in January 1997, two years after the first Dolby Digital home video release (Clear and Present Danger on Laserdisc), which debuted in January 1995. Universal Pictures would exclusively support DTS until late 1997.
In 2008, the cinema division was divested to form DTS Digital Cinema. In 2009 DTS Digital Cinema was purchased by Beaufort International Group Plc. and became known as Datasat Digital Entertainment.
In 2012, DTS acquired the business of SRS Labs (Sound Retrieval System), a psychoacoustic 3D audio processing technology, including over 1,000 audio patents and trademarks.
Phorus, a subsidiary of DTS, Inc., is a Los Angeles-based technology group dedicated to wireless audio for connected devices.
On September 2, 2015, iBiquity announced that it was being purchased by DTS for US$172 million, uniting iBiquity's HD Radio digital radio broadcast technology with DTS' digital audio surround sound systems.

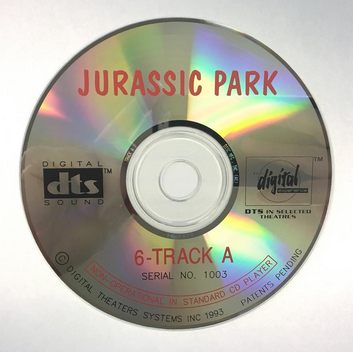

In theatrical use, a proprietary 24-bit time code is optically imaged onto the film. An LED reader scans the timecode data from the film and sends it to the DTS processor, using the time code to synchronize the projected image with the DTS soundtrack audio. The multi-channel DTS audio is recorded in compressed form on standard CD-ROM media at a bitrate of 882 kbit/s. The audio compression used in the theatrical DTS system (which is very different and completely unrelated to the home Coherent Acoustics-based DTS Digital Surround format) is the APT-X100 system. Unlike the home version of DTS or any version of Dolby Digital, the APT-X100 system is fixed at a 4:1 compression ratio. Data reduction is accomplished via sub-band coding with linear prediction and adaptive quantization. The theatrical DTS processor acts as a transport mechanism, as it holds and reads the audio discs. When the DTS format was launched, it used one or two discs with later units holding three discs, thus allowing a single DTS processor to handle two-disc film soundtracks along with a third disc for theatrical trailers. The DTS time code on the 35mm print identifies the film title which is matched to the individual DTS CD-ROMs, guaranteeing that the film cannot be played with the wrong disc. Each DTS CD-ROM contains a DOS program that the processor uses to play back the soundtrack, allowing system improvements or bug fixes to be added easily. Unlike Dolby Digital and SDDS, or the home version of DTS, the theatrical DTS system only carries 5 discrete channels on the CD-ROMs. The .1 LFE subwoofer track is mixed into the discrete surround channels on the disc and recovered via low-pass filters in the theater.
On the consumer level, DTS is the oft-used shorthand for the DTS Coherent Acoustics (DCA) codec, transportable through S/PDIF and part of the LaserDisc, DVD, and Blu-ray specifications. This system is the consumer version of the DTS standard, using a similar codec without needing separate DTS CD-ROM media. Like standard CD players, DVD and Blu-ray Disc players cannot decode audio from DTS audio CDs.
DTS is related to the aptX audio coding format, and it is based on the adaptive differential pulse-code modulation (ADPCM) audio data compression algorithm. In contrast, Dolby Digital (AC-3) is based on the modified discrete cosine transform (MDCT) compression algorithm.
Both music and movie DVDs allow delivery of DTS audio signal, but DTS was not part of the original DVD specification, so early DVD players do not recognize DTS audio tracks at all. The DVD specification was revised to allow optional inclusion of DTS audio tracks. The DVD title must carry one or more primary audio tracks in AC-3 or LPCM format (in Europe, MPEG-1 Audio Layer II is also an allowed primary track format). The DTS audio track, if present, can be selected by the user. Subsequent DVD players now decode DTS natively or pass it through to an external decoder. Nearly all standalone receivers and many integrated DVD player/receivers can decode DTS.
A small number of Laserdiscs carry DTS soundtracks. The NTSC Laserdisc format allows for either analog audio only or both analog and digital audio tracks. Laserdiscs encoded with DTS sound replace the LPCM digital audio track with the DTS soundtrack. This soundtrack is output via digital coaxial or optical audio outputs and requires an external decoder to process the bitstream.
For PC playback, many software players support the decoding of DTS. The VideoLAN project has created a decoding module for DTS called libdca (formerly libdts), which is the first open source implementation of DTS.
Sony's PlayStation 3 and Microsoft's Xbox 360 are capable of DTS decoding and output via TOSLINK or HDMI as LPCM. However, HDMI output on the Xbox 360 is only found on the "Elite" model and newer models available since mid-2007, with the release of the Falcon motherboard revision. Also, the Xbox 360 cannot decode DTS from DTS audio CDs. PlayStation 3 consoles can bitstream DTS over HDMI, but cannot decode audio from DTS audio CDs. The newer "slim" models are able to bitstream DTS-HD MA as well, but also cannot decode audio from DTS CDs.
DTS and Dolby Digital (AC-3), DTS's chief competitor in the cinema theatre and home theatre markets, are often compared because of their similarity in product goals, though Dolby believed that the surround channels should be diffused[clarification needed] and DTS said they should be directional. In theatrical installations, AC-3 audio is placed between sprocket holes on the 35 mm film itself, leaving the audio content susceptible to physical damage from film wear and mishandling. DTS audio is stored on a separate set of CD-ROM media, with greater storage capacity that affords the potential to deliver better audio fidelity and is not subject to the usual wear and damage suffered by the film print during the normal course of the movie's theatrical screening. Disregarding the separate CD-ROM assembly as a potential point of failure, the DTS audiopath is comparatively impervious to film degradation, unless the film-printed timecode is completely destroyed.
In the consumer (home theater) market, AC-3 and DTS are close in terms of audio performance. When the DTS audio track is encoded at its highest legal bitrate (1509.75 kbit/s), technical experts rank DTS as perceptually transparent for most audio program material (i.e., indistinguishable to the uncoded source in a double blind test). Dolby claims its competing AC-3 codec achieves similar transparency at its highest coded bitrate (640 kbit/s). However, in program material available to home consumers (DVD, broadcast, and subscription digital TV), neither AC-3 nor DTS typically run at their highest allowed bitrate. DVD and broadcast (ATSC) HDTV cap AC-3 bitrate at 448 kbit/s. But even at that rate, consumer audio gear already enjoys better audio performance than theatrical (35 mm movie) installations, which are limited to even lower bitrates. When DTS audio was introduced to the DVD specification, a few studios authored DTS tracks on some DVDs at the full bitrate (1509.75 kbit/s). Most later DVD titles that offered DTS tracks were encoded at 754.5 kbit/s (about half the rate of 1536kbit/s). At this reduced rate, DTS no longer retains audio transparency. This was done to make room for more audio tracks and content to reduce costs of spreading extra material on multiple discs.
AC-3 and DTS are sometimes judged by their encoded bitrates. Dolby Digital 5.1 can compress the same data to less, taking up minimal space. Conversely, DTS proponents claim that the extra bits give higher fidelity and more dynamic range, providing a richer and more lifelike sound. But no conclusion can be drawn from their respective bitrates, as each codec relies on different coding tools and syntax to compress audio.
In addition to the standard 5.1-channel DTS Surround codec, the company has several other technologies in its product range designed to compete with similar systems from Dolby Labs. Those which conceptually extend DTS (to add more channels and/or more accurate sound reproduction) are implemented as extensions to a core DTS Coherent Acoustics data stream. The core stream is compatible with DTS decoders which do not support the extension(s); the extension(s) provide the additional data required to implement the additional functionality.
This is a process designed specifically for playback in motion picture theaters equipped with 70mm projection and 6-track surround sound. The 70 mm DTS prints do not have 6-track magnetic striping, so there is no analog backup should the digital sound fail. The time code track on the film is many times wider than the 35mm version, since it can occupy the real estate formerly taken up by a magnetic track. Theaters with 70 mm DTS frequently install two time code readers for greater reliability.
The gradual disappearance of 70 mm as a common exhibition format has led to DTS-70 being reserved for niche engagements of 70 mm revivals and restorations. Dolby Digital has not been adapted to the 70 mm format.
DTS-ES (DTS Extended Surround) includes two variants, DTS-ES Discrete 6.1, and DTS-ES Matrix 5.1, depending on how the sound was originally mastered and stored. Both variants are implemented in ways which are compatible with DTS decoders which do not include support for DTS-ES.
DTS-ES Matrix provides 5.1 discrete channels, with a matrixed center-surround audio channel. DTS processors that are compatible with the ES codec look for and recognize "flags" built into the audio coding and "unfold" the rear-center sound from data that would otherwise be sent to rear surround speakers. DTS decoders which do not understand ES process the sound as if it were standard 5.1 and the matrixed audio for the center surround channel is output equally from the two surround speakers (very much as a sound intended to be in the center of the sound field in a stereo recording is played equally by the left and right speakers). This is notated as DTS-ES 5.1.
DTS-ES Discrete provides 6.1 discrete channels, with a discretely recorded (non-matrixed) center-surround channel; in home theater systems with a 7.1 configuration, the two rear-center speakers play in mono. To maintain compatibility with DTS decoders which do not support DTS-ES, the center-surround channel is also matrixed into the left and right surround channels, so that the rear center channel's sound is still present when played in 5.1 on a non-ES system; an ES decoder removes the matrixed audio from these two channels when playing back DTS-ES Discrete soundtracks. DTS-ES Discrete is sometimes notated as DTS-ES 6.1. Only a few DVD titles have been released with DTS-ES Discrete.
In contrast, Dolby's competing EX codec, which also boasts a center rear channel, can only handle matrixed data and does not support a discrete sixth channel; it is most directly comparable to DTS-ES Matrix.
Note: The center-rear/surround channel is encoded and decoded in exactly the same way as the center-front. The center-surround channel can be decoded using any surround sound processor by feeding the left and right surround signals to the processor inputs. The left-Center-Right surround is produced. This will work for a "center-surround" reproduction, whether the source material is explicitly encoded, as in DTS-ES, or hidden as the ambience in any 5.1 sources, including DTS-ES 5.1 and Dolby 5.1.
DTS 96/24 allows the delivery of 5.1 channels of 24-bit, 96 kHz audio and high quality video on the DVD-Video format. Prior to the development of DTS 96/24, it was only possible to deliver two channels of 24-bit, 96 kHz audio on DVD Video. DTS 96/24 can also be placed in the video zone on DVD-Audio discs, making these discs playable on all DTS-compatible DVD players. DTS 96/24 is implemented as a core DTS stream plus an extension containing the deltas to enable 96/24 sound reproduction.
DTS-HD High Resolution Audio, along with DTS-HD Master Audio, comprise the DTS-HD extension to the original DTS audio format. It delivers up to 7.1 channels of sound at a 96 kHz sampling frequency and 24-bit depth resolution. DTS-HD High Resolution Audio is selected as an optional surround sound format for Blu-ray Disc, with constant bit rates up to 6.0 Mbit/s and 3.0 Mbit/s, respectively. It is intended to be an alternative for DTS-HD Master Audio where disc space may not allow it. DTS-HD High Resolution Audio is implemented as a core DTS stream plus an extension containing the two additional channels plus details to enable 96/24 sound reproduction.
DTS-HD Master Audio, previously known as DTS++, is the second of two DTS-HD audio formats. It supports a virtually unlimited number of surround sound channels, can deliver audio quality at bit rates extending from lossless (24-bit, 192 kHz) down to DTS Digital Surround and, like Neo, downmix to 5.1 or 2.1 systems.
DTS-HD Master Audio is selected as an optional surround sound format for Blu-ray, where it has been limited to a maximum of 8 discrete channels. DTS-HD MA supports variable bit rates up to 24.5 Mbit/s, with up to 6 channels encoded at up to 192 kHz or 8 channels and nine objects encoded at 96 kHz/24 bit. If more than two channels are used, a "channel remapping" function allows for remixing the soundtrack to compensate for a different channel layout in the playback system compared to the original mix.
All Blu-ray players can decode the DTS "core" resolution soundtrack at 1.5 Mbit/s, however, as DTS-HD Master Audio is also implemented as a standard DTS core plus extensions, but cannot decode audio from DTS audio CDs. DTS-HD Master Audio and Dolby TrueHD are the only technologies that deliver compressed lossless surround sound for these new disc formats, ensuring the highest quality audio performance available in the new standards. (DTS Coherent Acoustics' coding system was selected as mandatory audio technology for Blu-ray Discs.
For each speaker, DTS:X allows the "location" (direction from the listener) of "objects" (audio tracks) to be specified as polar coordinates. The audio processor is then responsible for dynamically rendering sound output depending on the number and position of speakers available. Dolby Atmos uses a similar technique, although the speaker layout employed by cinema DTS:X is the sum of Dolby Atmos and Auro-3D. The layout showcased at AMC Burbank theatre number 8 has a standard eight channel base layer, a five channel height layer on top of the base layer (on the front and side walls) and three rows of speakers on the ceiling. The surround arrays are bass managed by woofers suspended from the ceiling.
DTS Neo:6, like Dolby's Pro Logic IIx system, reconstructs 2.1, 5.1, 6.1, or 7.1 sources to 3.1, 4.1, 5.1, 6.1, and 7.1 channel systems. A 7.1 system's 2 rear speakers are mono. Neo:6 is a multi-band decoder, unlike Dolby Pro Logic II's broadband logic steering, meaning that the decoder can enhance more than one predominant signal at a time — provided each predominant signal lies in a different frequency band than the others. The number of bands steered varies in each Neo:6 implementation, with the first decoders steering in 12 separate bands and later units steering up to 19.
DTS Neo:X reconstructs 2.1, 5.1, 6.1, or 7.1 sources to 11.1 front height and width channel systems. Dolby's Pro Logic IIz's system adds only front height channels to the 7.1 configuration. Neo:X also matrix downmixes 11.1 sources to 5.1 or 7.1 channel systems.
DTS Neural:X usually comes on systems that also have DTS:X, and is an upmixing technique for upmixing or remapping legacy bitstreams and PCM content to virtually any speaker layout, in which the sound can come from anywhere around the listener, including above.
DTS Virtual:X creates "phantom" surround and/or height speakers using psychoacoustic processing of existing soundtracks (including, if needed, the creation of height channels) to allow systems with a reduced number of physical speakers (such as TV soundbars) to provide a more "immersive" experience.
DTS Surround Sensation: Previously known as DTS Virtual. It allows a virtual 5.1 surround sound to be heard through a standard pair of headphones.
DTS Headphone:X is metadata which can be encoded on top of a 2-channel lossy DTS bitstream that reproduces 12 channels of binaural surround sound using any pair of stereo headphones. The head related transfer function is developed by DTS and includes compensation for room cues such as reflection and delay by mapping the acoustic characteristic of the original mixing studio, or other professional audio lab as a reference.
DTS Connect is a blanket name for a two-part system used on the computer platform only, in order to convert PC audio into the DTS format, transported via a single S/PDIF cable. The two components of the system are DTS Interactive and DTS Neo:PC. It is found on various CMedia soundcards and onboard audio with Realtek ALC883DTS/ALC889A/ALC888DD-GR/ALC892-DTS-CG and SoundMAX AD1988 chips, as well as several cards based on the X-Fi chipset, such as the SoundBlaster Titanium series and Auzentech's X-Fi Forte, X-Fi Prelude, X-Fi Home Theater HD and X-Fi Bravura cards.
Play-Fi is a wireless protocol for multiroom audio based on the existing 802.11 specification (b/g/n). It emerged in late 2012 as an Android streaming protocol, with iOS support added in September 2013, and Windows support later, including audio/video sync. The first Play-Fi speaker was the Phorus PS1, made by DTS subsidiary Phorus.
Unlike competitors such as Sonos or SoundTouch from Bose, Play-Fi is an open standard and has been adopted by a wide range of brands including Anthem, Arcam, Audiolab, Definitive Technology, Hewlett-Packard, Integra, Klipsch, MartinLogan, McIntosh, Onkyo, Paradigm, Philips, Pioneer, Polk Audio, Rotel, Sonus Faber, Soundcast and Wren. The Play-Fi app supports streaming from the user's device, DLNA servers, via AirPlay and from online streaming services including Spotify, Pandora Radio, Amazon Prime Music, iHeart Radio, Rhapsody, SiriusXM, Tidal, Qobuz, KKBox, QQ Music, and Juke. DTS Play-Fi also introduced a Play-Fi enabled wireless speaker with Amazon Alexa Voice Services built-in under the Onkyo, Phorus, and Pioneer brands in September 2017.
Other Play-Fi capabilities include:
