High-resolution transmission electron microscopy is an imaging mode of specialized transmission electron microscopes that allows for direct imaging of the atomic structure of samples. It is a powerful tool to study properties of materials on the atomic scale, such as semiconductors, metals, nanoparticles and sp2-bonded carbon (e.g., graphene, C nanotubes). While this term is often also used to refer to high resolution scanning transmission electron microscopy, mostly in high angle annular dark field mode, this article describes mainly the imaging of an object by recording the two-dimensional spatial wave amplitude distribution in the image plane, in analogy to a "classic" light microscope. For disambiguation, the technique is also often referred to as phase contrast transmission electron microscopy. At present, the highest point resolution realised in phase contrast transmission electron microscopy is around 0.5 ångströms (0.050 nm). At these small scales, individual atoms of a crystal and its defects can be resolved. For 3-dimensional crystals, it may be necessary to combine several views, taken from different angles, into a 3D map. This technique is called electron crystallography. One of the difficulties with high resolution transmission electron microscopy is that image formation relies on phase contrast. In phase-contrast imaging, contrast is not intuitively interpretable, as the image is influenced by aberrations of the imaging lenses in the microscope. The largest contributions for uncorrected instruments typically come from defocus and astigmatism. The latter can be estimated from the so-called Thon ring pattern appearing in the Fourier transform modulus of an image of a thin amorphous film.

crystallography
nanoparticles
electron microscopy

The contrast of a high resolution transmission electron microscopy image arises from the interference in the image plane of the electron wave with itself. Due to our inability to record the phase of an electron wave, only the amplitude in the image plane is recorded. However, a large part of the structure information of the sample is contained in the phase of the electron wave. In order to detect it, the aberrations of the microscope (like defocus) have to be tuned in a way that converts the phase of the wave at the specimen exit plane into amplitudes in the image plane.

The interaction of the electron wave with the crystallographic structure of the sample is complex, but a qualitative idea of the interaction can readily be obtained. Each imaging electron interacts independently with the sample. Above the sample, the wave of an electron can be approximated as a plane wave incident on the sample surface. As it penetrates the sample, it is attracted by the positive atomic potentials of the atom cores, and channels along the atom columns of the crystallographic lattice (s-state model^{[1]}). At the same time, the interaction between the electron wave in different atom columns leads to Bragg diffraction. The exact description of dynamical scattering of electrons in a sample not satisfying the weak phase object approximation, which is almost all real samples, still remains the holy grail of electron microscopy. However, the physics of electron scattering and electron microscope image formation are sufficiently well known to allow accurate simulation of electron microscope images.^{[2]}

As a result of the interaction with a crystalline sample, the **electron exit wave** right below the sample *φ _{e}(x,u)* as a function of the spatial coordinate

The phase contrast transfer function is a function of limiting apertures and aberrations in the imaging lenses of a microscope. It describes their effect on the phase of the exit wave *φ _{e}(x,u)* and propagates it to the image wave. Following

- [math]\displaystyle{ CTF(u)=A(u)E(u)2\sin(\chi(u)) }[/math]

where *A( u)* is the

The last, sinusoidal term of the contrast transfer function will determine the sign with which components of frequency * u* will enter contrast in the final image. If one takes into account only spherical aberration to third order and defocus, χ is rotationally symmetric about the optical axis of the microscope and thus only depends on the modulus

- [math]\displaystyle{ \chi(u)=\frac{\pi}{2}C_s\lambda^3u^4-\pi \Delta f \lambda u^2 }[/math]

where *C _{s}* is the spherical aberration coefficient,

The *aperture function* cuts off beams scattered above a certain critical angle (given by the objective pole piece for ex), thus effectively limiting the attainable resolution. However it is the *envelope function* *E( u)* which usually dampens the signal of beams scattered at high angles, and imposes a maximum to the transmitted spatial frequency. This maximum determines the highest resolution attainable with a microscope and is known as the information limit.

- [math]\displaystyle{ E(u)=E_s(u)E_c(u)E_d(u)E_v(u)E_D(u),\, }[/math]

due to

*E*: angular spread of the source_{s}(**u**)*E*: chromatic aberration_{c}(**u**)*E*: specimen drift_{d}(**u**)*E*: specimen vibration_{v}(**u**)*E*: detector_{D}(**u**)

Specimen drift and vibration can be minimized in a stable environment. It is usually the spherical aberration *C _{s}* that limits spatial coherency and defines

- [math]\displaystyle{ E_s(u) = \exp\left[-\left(\frac{\pi\alpha}{\lambda}\right)^2 \left(\frac{\delta\Chi(u)}{\delta u}\right)^2\right] = \exp\left[-\left(\frac{\pi\alpha}{\lambda}\right)^2(C_s\lambda^3u^3+\Delta f\lambda u)^2\right], }[/math]

where α is the semiangle of the pencil of rays illuminating the sample. Clearly, if the wave aberration ('here represented by *C _{s}* and Δ

The temporal envelope function can be expressed as

- [math]\displaystyle{ E_c(u) = \exp\left[-\frac{1}{2}\left(\pi\lambda\delta\right)^2u^4\right], }[/math].

Here, δ is the focal spread with the chromatic aberration *C _{c}* as the parameter:

- [math]\displaystyle{ \delta = C_c\sqrt{4\left(\frac{\Delta I_\text{obj}}{I_\text{obj}}\right)^2 + \left(\frac{\Delta E}{V_\text{acc}}\right)^2 + \left(\frac{\Delta V_\text{acc}}{V_\text{acc}}\right)^2}, }[/math]

The terms [math]\displaystyle{ \Delta I_\text{obj}/I_\text{obj} }[/math] and [math]\displaystyle{ \Delta V_\text{acc}/V_\text{acc} }[/math] represent instabilities in of the total current in the magnetic lenses and the acceleration voltage. [math]\displaystyle{ \Delta E/V_\text{acc} }[/math] is the energy spread of electrons emitted by the source.

The information limit of current state-of-the-art transmission electron microscopes is well below 1 Å. The **TEAM** project at Lawrence Berkeley National Laboratory resulted in the first transmission electron microscope to reach an information limit of <0.5 Å in 2009 ^{[4]} by the use of a highly stable mechanical and electrical environment, an ultra-bright, monochromated electron source and double-hexapole aberration correctors.

Choosing the optimum defocus is crucial to fully exploit the capabilities of an electron microscope in high resolution transmission electron microscopy mode. However, there is no simple answer as to which one is the best.

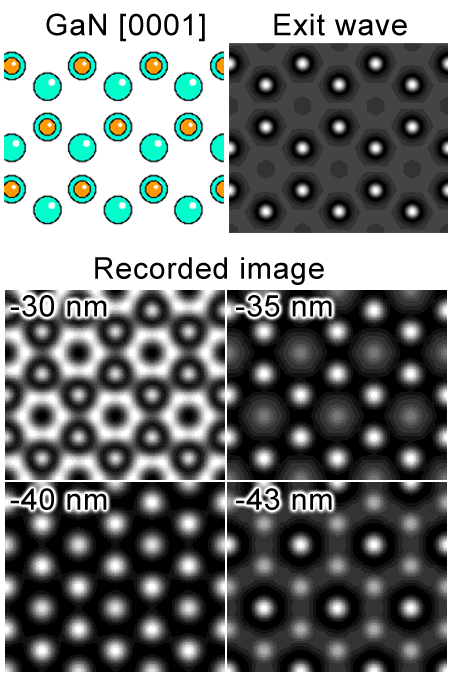

In Gaussian focus one sets the defocus to zero, the sample is in focus. As a consequence contrast in the image plane gets its image components from the minimal area of the sample, the contrast is *localized* (no blurring and information overlap from other parts of the sample). The contrast transfer function becomes a function that oscillates quickly with *C _{s}u^{4}*. This means that for certain diffracted beams with a spatial frequency

In Scherzer defocus, one aims to counter the term in *u*^{4} with the parabolic term Δ*fu*^{2} of *χ*(*u*). Thus by choosing the right defocus value *Δf* one flattens *χ*(*u*) and creates a wide band where low spatial frequencies *u* are transferred into image intensity with a similar phase. In 1949, Scherzer found that the optimum defocus depends on microscope properties like the spherical aberration *C _{s}* and the accelerating voltage (through

- [math]\displaystyle{ \Delta f_\text{Scherzer}=-1.2\sqrt{C_s\lambda}\, }[/math]

where the factor 1.2 defines the extended Scherzer defocus. For the CM300 at NCEM, *C*_{s} = 0.6mm and an accelerating voltage of 300keV (*λ* = 1.97 pm) (Wavelength calculation) result in *Δf _{Scherzer} = -41.25 nm*.

The point resolution of a microscope is defined as the spatial frequency *u*_{res} where the contrast transfer function crosses the abscissa for the first time. At Scherzer defocus this value is maximized:

- [math]\displaystyle{ u_\text{res}(\text{Scherzer})=0.6\lambda^{3/4} C_s^{1/4}, }[/math]

which corresponds to 6.1 nm^{−1} on the CM300. Contributions with a spatial frequency higher than the point resolution can be filtered out with an appropriate aperture leading to easily interpretable images at the cost of a lot of information lost.

Gabor defocus is used in electron holography where both amplitude and phase of the image wave are recorded. One thus wants to minimize crosstalk between the two. The Gabor defocus can be expressed as a function of the Scherzer defocus as

- [math]\displaystyle{ \Delta f_\text{Gabor}=0.56\Delta f_\text{Scherzer} }[/math]

To exploit all beams transmitted through the microscope up to the information limit, one relies on a complex method called **exit wave reconstruction** which consists in mathematically reversing the effect of the contrast transfer function to recover the original exit wave *φ _{e}(x,u)*. To maximize the information throughput, Hannes Lichte proposed in 1991 a defocus of a fundamentally different nature than the Scherzer defocus: because the dampening of the envelope function scales with the first derivative of

[math]\displaystyle{ \Delta f_\text{Lichte}=-0.75 C_s(u_\max\lambda)^2, }[/math]

where *u*_{max} is the maximum transmitted spatial frequency. For the CM300 with an information limit of 0.8 Å Lichte defocus lies at −272 nm.

To calculate back to *φ _{e}(x,u)* the wave in the image plane is back propagated numerically to the sample. If all properties of the microscope are well known, it is possible to recover the real exit wave with very high accuracy.

First however, both phase and amplitude of the electron wave in the image plane must be measured. As our instruments only record amplitudes, an alternative method to recover the phase has to be used. There are two methods in use today:

**Holography**, which was developed by Gabor expressly for transmission electron microscopy applications, uses a prism to split the beam into a reference beam and a second one passing through the sample. Phase changes between the two are then translated in small shifts of the interference pattern, which allows recovering both phase and amplitude of the interfering wave.**Through focal series method**takes advantage of the fact that the contrast transfer function is focus dependent. A series of about 20 pictures is shot under the same imaging conditions with the exception of the focus which is incremented between each take. Together with exact knowledge of the contrast transfer function, the series allows for computation of*φ*(see figure)._{e}(**x**,**u**)

Both methods extend the point resolution of the microscope past the information limit, which is the highest possible resolution achievable on a given machine. The ideal defocus value for this type of imaging is known as Lichte defocus and is usually several hundred nanometers negative.
