1. Introduction

In the North American market it is very common for brake lights and turn signals to be combined.

On cars and light trucks (listed below as Light Vehicles) there is no formal standard, instead there is a wealth of contacts with more or less accepted standard. However, you can not be entirely sure until you have measured the current connector on the vehicle and trailer that they fit each other.

Heavy Vehicles are standardized through SAE J560 which is similar to ISO 1185.

Note that different color coding can be used for certain functions, which means that you can not trust the colors mentioned here without measuring the contact and wiring from case to case. In some cases - as in the flat 4-pin or 5-pin connector - it is fairly obvious which color that is connected to which pin.

In case you have a vehicle that separates the left and right side position lights into 58L and 58R - like many German cars - it is advisable to choose 58L to feed the taillights. These two circuits shall not be merged because it can create problems in the towing vehicle. If you want to be more advanced you can make a simple connection with two diodes that provide balanced load of the circuits. Note that the diodes have to be able to handle high currents or that they are used to control a relay which in turn feeds the trailer. If you have a trailer with a lot of lights the diode and relay wiring is preferred, but if you have a trailer with a simple light arrangement it is usually sufficient to wire to 58L.

In market there are many special converters^[1][2][3] that solves the problem of connecting a car with European wiring to a trailer with North American wiring. What most of these converters do is to bring together the turn signals and stop lamp signal from a three-wire solution using 54, L and R into a two-wire solution using L54 and R54 according to DIN where brake light and turn indicator uses the same wire and bulb for each side. These converters usually don't handle the case of separate position light circuits for left and right side in the towing vehicle.

2. Heavy Duty Vehicles - SAE J560

7-pin trailer connector according to ISO 1185/SAE J560 (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2052734

Physical design according to standard ISO 1185^[4] / SAE J560.^[5][6]

The plug for SAE J560 is physically identical to the connector ISO 1185. The difference is that J560 indicates that the voltage must be 12V and that wire areas shall be larger due to the higher currents needed when using 12V compared to 24V. Some of the pins in the connector have also a slightly different function.

The functional differences are small, but the difference in voltage and current requirements makes the SAE J560 and ISO 1185 incompatible without the use of additional equipment in the form of voltage converters. It is also necessary to pay particular attention to pin 7.

Note that the SAE J560 connector is not controlling the brakes. SAE J560 is typically used on heavy duty trucks and trailers with pneumatic brakes where only the power to the ABS unit and indication of braking by brake light signal is required. The brakes themselves are controlled using air pressure.

SAE J560 was introduced in 1951, which means that older heavy duty vehicles (vintage) may have other connectors.

The following supplementary information exists for the connector:

3. Light Vehicles, Common Connector Types

Light vehicles use a plethora of contacts,^[9][10][11] but among these are two that are most common:

• 4-pin flat connector, often used for simpler trailers.
• 7-pin round blade connector, often used in caravans/RVs etc.

Due to this there are unified vehicle outlets on the market that combine these two into a single module.

3.1. 7-Pin Round Blade Connector

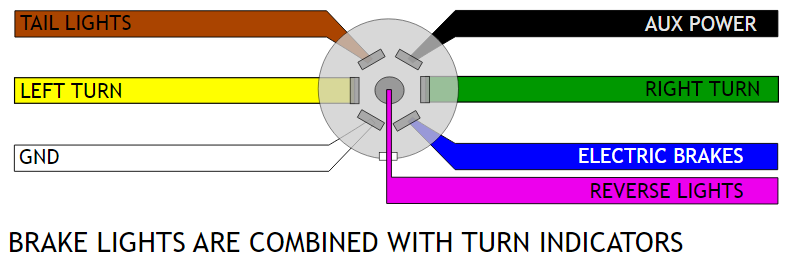

7-pin blade connector (Towing vehicle side) https://handwiki.org/wiki/index.php?curid=2055066

This is common for RVs and other large trailers which have additional loads beyond the basic for tail lights and brake/turn signals.

3.2. 6-Pin Round Connector

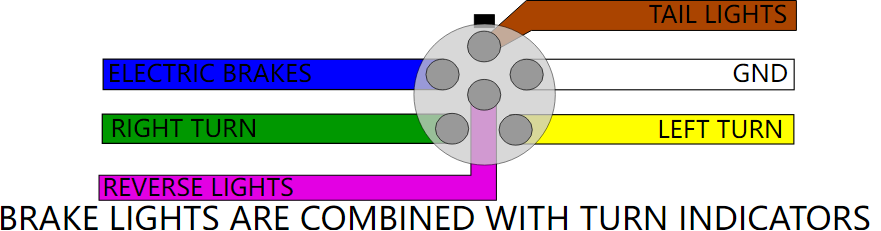

6-pin round connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2026536

This contact occurs on medium duty trailers where you want both reverse lights and electric brakes.

3.3. Flat 5-Pin Connector

Flat 5-pin connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2053267

This contact is not as common, but is compatible with the 4-pin connector in the way that a towing vehicle with this connector can be connected to a trailer with the 4-pin flat plug.

The extra connection is often used to block the surge brakes when reversing with the trailer.

3.4. Flat 4-Pin Connector

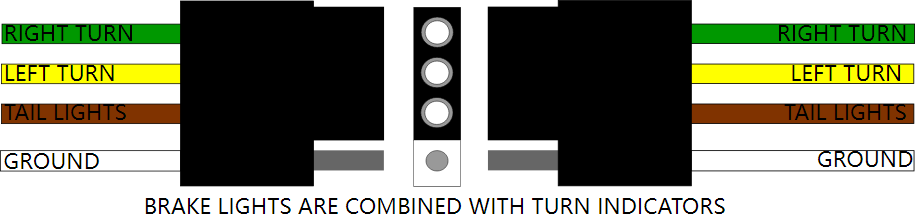

Flat 4-pin connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2041904

This contact is one of the most frequent contacts on the trucks in North America. It contains the minimum necessary signals for coping with regulatory requirements in the United States .

4. Less Common Connectors

These contacts are less common, and the wiring of these may differ from what is listed here, as well as Application area. The contacts can be for example be used for task lighting, etc.

4.1. SAE J560-Like, Type 1

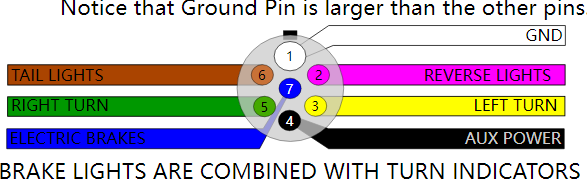

7-pin SAE J560-like, type 1 (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2071584

Although this has physical similarities to SAE J560 is not electrically compatible, and shall be avoided. Wiring shall be in accordance with SAE J560 instead to avoid problems.

4.2. SAE J560-Like, Type 2

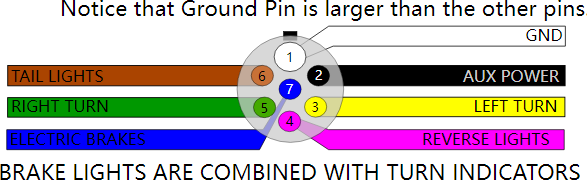

7-pin SAE J560-like, type 2 (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2021811

Although this has physical similarities to SAE J560 is not electrically compatible, and shall be avoided. Wiring shall be in accordance with SAE J560 instead to avoid problems.

4.3. 6-Pin Rectangular Connector

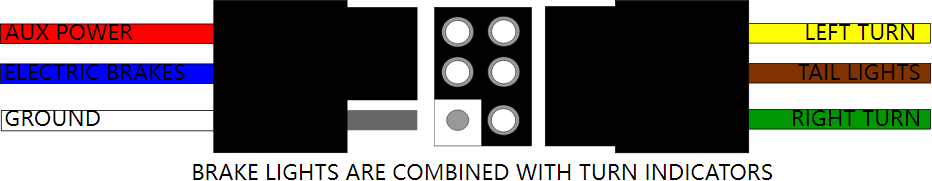

6-pin rectangular connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2046360

Because this connector has pins in two rows, it is not backwards compatible with the 4-pin and 5-pin flat connectors.

4.4. 5-pin Round Connector

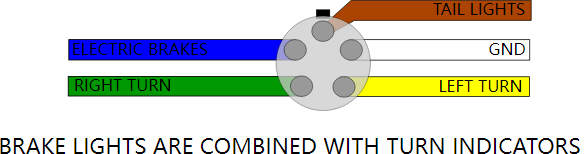

5-pin round connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2085031

This contact is less common, and may have completely different wiring than that shown here. The wiring is same as for the 6-pin round connector with center pin (Reversing lamps) excluded.

4.5. 4-Pin Round Connector

4-pin round connector (Towing vehicle side). https://handwiki.org/wiki/index.php?curid=2029977

This connector is available in some cases instead of the flat 4-pin connector.
