1. History

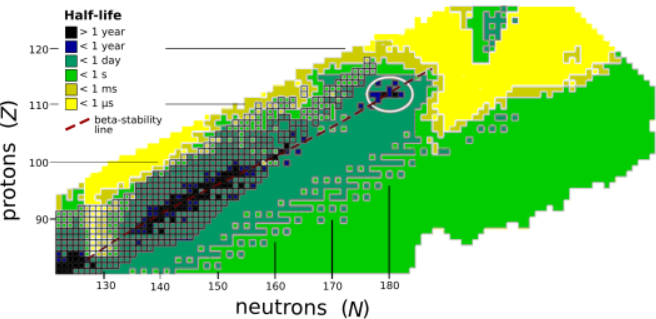

A chart of nuclide stability as used by the Dubna team in 2010. Characterized isotopes are shown with borders. Beyond element 118 (oganesson, the last known element), the line of known nuclides is expected to rapidly enter a region of instability, with no half-lives over one microsecond after element 121. The elliptical region encloses the predicted location of the island of stability.^[1] https://handwiki.org/wiki/index.php?curid=1933953

Transactinide elements, such as unbiunium, are produced by nuclear fusion. These fusion reactions can be divided into "hot" and "cold" fusion,^[2] depending on the excitation energy of the compound nucleus produced. In hot fusion reactions, very light, high-energy projectiles are accelerated toward very heavy targets (actinides), giving rise to compound nuclei at high excitation energies (~40–50 MeV) that may fission or evaporate several (3 to 5) neutrons.^[3] In cold fusion reactions (which use heavier projectiles, typically from the fourth period, and lighter targets, usually lead and bismuth), the fused nuclei produced have a relatively low excitation energy (~10–20 MeV), which decreases the probability that these products will undergo fission reactions. As the fused nuclei cool to the ground state, they require emission of only one or two neutrons. However, hot fusion reactions tend to produce more neutron-rich products because the actinides have the highest neutron-to-proton ratios of any element that can presently be made in macroscopic quantities; it is currently the only method to produce the superheavy elements from flerovium (element 114) onward.^[4]

The stability of nuclei decreases greatly with the increase in atomic number after curium, element 96, whose half-life is four orders of magnitude longer than that of any currently known higher-numbered element. All isotopes with an atomic number above 101 undergo radioactive decay with half-lives of less than 30 hours. No elements with atomic numbers above 82 (after lead) have stable isotopes.^[5] Nevertheless, for reasons not yet well understood, there is a slight increase of nuclear stability around atomic numbers 110–114, which leads to the appearance of what is known in nuclear physics as the "island of stability". This concept, proposed by University of California professor Glenn Seaborg and stemming from the stability of the closed nuclear shells around Z = 114 (or possibly 120, 122, 124, or 126) and N = 184, explains why superheavy elements last longer than predicted.^[6]

The deformation of nuclei in the superheavy region also slightly alters the magic numbers, so that elements in the "sea of instability" can exist as well, albeit for shorter periods of time. However, the strong force must eventually lose its fight against the Coulomb repulsion of protons: while there might be another brief island of stability around the next closed proton and neutron shells at Z = 164 and N = 318, some proton numbers stranded too far between the first and second islands may not correspond to bound nuclei. Furthermore, the greatest stability is expected to be reached only as one approaches the closed neutron shell at N = 184; the most neutron-rich confirmed nuclides, ²⁹³Lv and ²⁹⁴Ts, only reach N = 177.^[7][8]

Attempts to synthesize elements 119 and 120 push the limits of current technology, due to the decreasing cross sections of the production reactions and their probably short half-lives,^[1] expected to be on the order of microseconds.^[9][10] Heavier elements, beginning with element 121, would likely be too short-lived to be detected with current technology, decaying within a microsecond before reaching the detectors.^[1] Where this one-microsecond border of half-lives lies is not known, and this may allow the synthesis of elements 121 through 124, with the exact limit depending on the model chosen for predicting nuclide masses. The nuclides ²⁹⁶Uue, ^296,299Ubn, ³⁰⁰Ubu, ^300,303Ubb, ³⁰⁴Ubt, and ³⁰⁴Ubq, continuing up a possible narrow one-microsecond alpha-decaying corridor, could conceivably be produced in the reactions of projectiles of ⁵⁰Ti, ⁵⁴Cr, and ⁵⁸Fe with targets of ²⁴⁸Cm, ²⁴⁹Bk, and ²⁴⁹Cf.^[10]

Previously, important help (characterized as "silver bullets") in the synthesis of superheavy elements came from the deformed nuclear shells around hassium-270 which increased the stability of surrounding nuclei, and the existence of the quasi-stable neutron-rich isotope calcium-48 which could be used as a projectile to produce more neutron-rich isotopes of superheavy elements.^[11] (The more neutron-rich a superheavy nuclide is, the closer it is expected to be to the sought-after island of stability.^[12]) Even so, the synthesized isotopes still have fewer neutrons than those expected to be in the island of stability.^[13] Furthermore, because of the current impossibility of synthesizing elements beyond californium (Z = 98) in sufficient quantities to create a target, with einsteinium (Z = 99) targets being currently considered, the practical synthesis of elements beyond oganesson requires heavier projectiles, such as titanium-50, chromium-54, iron-58, or nickel-64.^[11][14] This however has the drawback of resulting in more symmetrical fusion reactions that are colder and less likely to succeed:^[11] the cross-sections for even-numbered elements 122 and beyond with projectiles of ⁵⁴Cr, ⁵⁸Fe, and ⁶⁴Ni quickly become too small to be detected with current equipment, even if the nuclides formed did live long enough to reach the detectors.^[15]

Since there is no way to reach N = 184 close to the magic proton shell, the main hope of reaching anywhere near this neutron number in fusion–evaporation reactions is via increasing the proton number past 118, but that also greatly diminishes the cross-sections and may not quite reach N = 184. Using newly available ²⁵¹Cf targets and intense beams of ⁴⁸Ca, ⁵⁰Ti, ⁵⁴Cr, and ⁵⁸Fe would allow the production of the more neutron-rich ²⁹⁶Og, ³⁰⁰Ubn, ³⁰⁴Ubb, and ³⁰⁸Ubq, the latter three in the 1n channel that may be indicated by the low neutron binding energy of the compound nucleus ³⁰⁹Ubq* with N = 185 just above the closed shell. ³⁰⁸Ubq would reach the magic neutron number N = 184 and consequently have a higher cross-section for its production.^[16] Nevertheless, the growing importance of spontaneous fission as a decay mode over alpha decay in this region of the nuclide chart, as well as the short half-lives, may hamper the production of these nuclides even though they reach the closed neutron shell, and the feasibility of the 1n channel is also questionable.^[10] The most plausible way of reaching the center of the island with current technology is to reach nuclides like ²⁹⁹Uue, ²⁹⁵Ts, and ²⁹⁵Lv whose alpha daughters are near enough to the island to undergo electron capture to add the necessary neutrons; nonetheless, the island is expected to be centered around copernicium, element 112, and thus this would not be of much help synthesizing elements beyond 118.^[1]

A 2016 calculation of the half-lives of the isotopes of unbiunium from ²⁹⁰Ubu to ³³⁹Ubu suggested that those from ²⁹⁰Ubu to ³⁰³Ubu would not be bound and would decay through proton emission, those from ³⁰⁴Ubu through ³¹⁴Ubu would undergo alpha decay, and those from ³¹⁵Ubu to ³³⁹Ubu would undergo spontaneous fission. Only the isotopes from ³⁰⁹Ubu to ³¹⁴Ubu would have long enough alpha-decay lifetimes to be detected in laboratories, starting decay chains terminating in spontaneous fission at moscovium, tennessine, or ununennium. This would present a grave problem for experiments aiming at synthesizing isotopes of unbiunium if true, because the isotopes whose alpha decay could be observed could not be reached by any presently usable combination of target and projectile.^[17] Calculations in 2016 and 2017 by the same authors on elements 123 and 125 suggest a less bleak outcome, with alpha decay chains from the more reachable nuclides ^300–307Ubt leading down to bohrium or nihonium; in particular, ³⁰⁴Ubt could be synthesised in the reaction ²⁴⁹Bk(⁵⁸Fe,3n)³⁰⁴Ubt and would alpha decay through ³⁰⁰Ubu, ²⁹⁶Uue, and ²⁹²Ts to the known ²⁸⁸Mc and ²⁸⁴Nh, though the cross-section would likely be extremely low.^[18] It has also been suggested that cluster decay might be a significant decay mode in competition with alpha decay and spontaneous fission in the region past Z = 120, which would pose yet another hurdle for experimental identification of these nuclides.^[19][20][21]

1.1. Synthesis Attempts

Past

The synthesis of unbiunium was first attempted in 1977 by bombarding a target of uranium-238 with copper-65 ions at the Gesellschaft für Schwerionenforschung in Darmstadt, Germany :

23892U + 6529Cu → 303121Ubu* → no atoms

No atoms were identified.^[22]

Planned

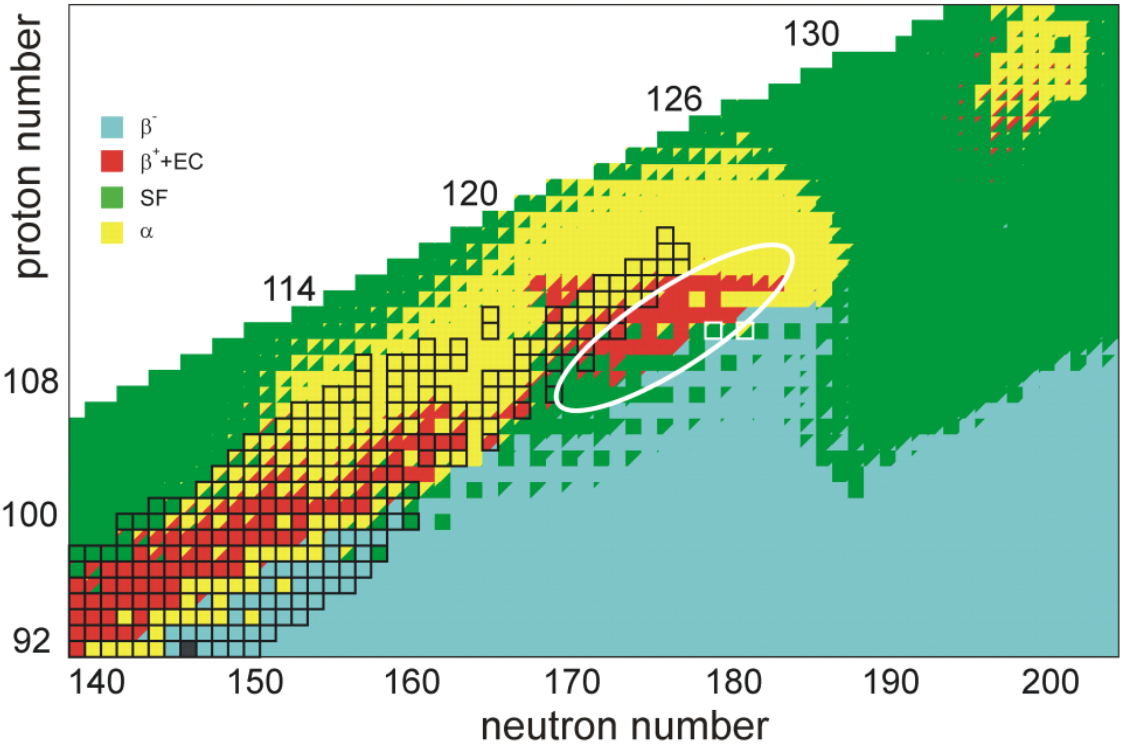

Predicted decay modes of superheavy nuclei. The line of synthesized proton-rich nuclei is expected to be broken soon after Z = 120, because of the shortening half-lives until around Z = 124, the increasing contribution of spontaneous fission instead of alpha decay from Z = 122 onward until it dominates from Z = 125, and the proton drip line around Z = 130. Beyond this is a region of slightly increased stability of second-living nuclides around Z = 124 and N = 198, but it is separated from the mainland of nuclides that may be obtained with current techniques. The white ring denotes the expected location of the island of stability; the two squares outlined in white denote ²⁹¹Cn and ²⁹³Cn, predicted to be the longest-lived nuclides on the island with half-lives of centuries or millennia.^[7][10] https://handwiki.org/wiki/index.php?curid=1139367

Currently, the beam intensities at superheavy element facilities result in about 10¹² projectiles hitting the target per second; this cannot be increased without burning the target and the detector, and producing larger amounts of the increasingly unstable actinides needed for the target is impractical. The team at the Joint Institute for Nuclear Research (JINR) in Dubna is building a new superheavy element factory (SHE-factory) with improved detectors and the ability to work on a smaller scale, but even so continuing beyond element 120 and perhaps 121 would be a great challenge. Krzysztof Rykaczewski, a professor at Oak Ridge National Laboratory which collaborates with Dubna on superheavy elements, has nevertheless predicted that in one generation element 124 would be reached. Chemist, writer, and philosopher of science Eric Scerri has noted that the development of new technologies in the field has been driven by the quest for new elements, so that the inability to proceed beyond elements 120 and 121 with current technologies may not necessarily cause a very long pause in new discoveries.^[23]

It is possible that the age of fusion–evaporation reactions to produce new superheavy elements is coming to an end due to the increasingly short half-lives to spontaneous fission and the looming proton drip line, so that new techniques such as nuclear transfer reactions (for example, firing uranium nuclei at each other and letting them exchange protons, potentially producing products with around 120 protons) would be required to reach the superactinides.^[23] On the other hand, many changes in techniques have been needed to synthesize transuranium elements, from neutron capture (until Z = 100) to light-ion bombardment (until Z = 110) to cold fusion (until Z = 113) and now hot fusion with ⁴⁸Ca (until Z = 118), not to mention the essential difference before and after uranium between finding the elements chemically or spectroscopically in nature and synthesizing them.^[24] In spite of this, the rate of discovery of new elements has remained at one every two and a half years on average for the past two and a half centuries.^[25]

The team at RIKEN has listed the synthesis of element 121 among their future plans after their attempts to synthesize element 120 in 2017–2018 and element 119 in 2019–2020.^[26][27] Because the cross-sections of these fusion-evaporation reactions increase with the asymmetry of the reaction, titanium would be a better projectile than chromium for the synthesis of element 121.^[28] This necessitates an einsteinium target, since titanium has 22 protons and the remaining 99 must be supplied by the target, and einsteinium is element 99. This poses severe challenges due to the significant heating and damage of the target due to the high radioactivity of einsteinium-254, but it would probably be the most promising approach to element 119 with ⁴⁸Ca beams and possibly element 121 with ⁵⁰Ti beams. It would also require working on a smaller scale due to the lower amount of ²⁵⁴Es that can be produced. This small-scale work could in the near future only be carried out in Dubna's SHE-factory.^[26]

25499Es + 5022Ti → 300121Ubu + 4 10n

25499Es + 5022Ti → 301121Ubu + 3 10n

For further elements up to 124, given that increasing the neutron number allows for getting closer to the predicted closed neutron shell at N = 184 that would confer stability, the use of weakly radioactive iron-60 instead of stable iron-58 as a projectile has been considered. ⁶⁰Fe has a half-life of 2.6 million years.^[26] The isotopes ²⁹⁹Ubu, ³⁰⁰Ubu, and ³⁰¹Ubu that could be produced in these reactions via the 3n and 4n channels are expected to be the only reachable unbiunium isotopes with half-lives long enough for detection; the cross-sections would nevertheless push the limits of what can currently be detected. They would decay through isotopes of ununennium that could be produced by cross-bombardments in the ²⁴⁸Cm+⁵¹V or ²⁴⁹Bk+⁵⁰Ti reactions, which will be tried at RIKEN and JINR respectively in 2019–2020, down through known isotopes of tennessine and moscovium synthesized in the ²⁴⁹Bk+⁴⁸Ca and ²⁴³Am+⁴⁸Ca reactions.^[1] The multiplicity of excited states populated by the alpha decay of odd nuclei may however preclude clear cross-bombardment cases, as was seen in the controversial link between ²⁹³Ts and ²⁸⁹Mc.^[29][30] Heavier isotopes are expected to be more stable; ³²⁰Ubu is predicted to be the most stable unbiunium isotope, but there is no way to synthesize it with current technology as no combination of usable target and projectile could provide enough neutrons.^[31]

The laboratories at RIKEN in Japan and at the JINR in Russia are best suited to these experiments as they are the only ones in the world where long beam times are accessible for reactions with such low predicted cross-sections.^[32]

1.2. Naming

Using Mendeleev's nomenclature for unnamed and undiscovered elements, unbiunium should be known as eka-actinium. Using the 1979 IUPAC recommendations, the element should be temporarily called unbiunium (symbol Ubu) until it is discovered, the discovery is confirmed, and a permanent name chosen.^[33] Although widely used in the chemical community on all levels, from chemistry classrooms to advanced textbooks, the recommendations are mostly ignored among scientists who work theoretically or experimentally on superheavy elements, who call it "element 121", with the symbol E121, (121), or 121.^[9]

2. Predicted Chemistry

Unbiunium is predicted to be the first element of an unprecedentedly long transition series, called the superactinides in analogy to the earlier actinides. While its behavior is not likely to be very distinct from its lighter congeners in group 3,^[9] it is likely to pose a limit to the applicability of the periodic law; after element 121, the 5g, 6f, 7d, and 8p_1/2 orbitals are expected to fill up together due to their very close energies, and around the elements in the late 150s and 160s the 9s, 9p_1/2, and 8p_3/2 subshells join in, so that the chemistry of the elements just beyond 121 and 122 (the last for which complete calculations have been conducted) is expected to be so similar that their position in the periodic table would be purely a formal matter.^[34] Like its lighter congeners, unbiunium could be considered to begin the 7d series of elements, which would be the fifth row of the transition metals.^[9]

Based on the Aufbau principle, one would expect the 5g subshell to begin filling at unbiunium. However, the f-block is theoretically expected to begin at lanthanum and actinium, but neither element shows significant f-orbital involvement. It is predicted that a similar situation of delayed "radial" collapse might happen for unbiunium, so that the 5g orbitals do not start filling until around element 125. This is similar to the situation with lanthanum, where the 4f shell has not yet undergone the sudden contraction and lowering in energy to the level it will have in the lanthanide series; even in the next element, cerium, this contraction is not yet complete enough to avoid occupation of the 5d orbital.^[35] The delay in the contraction of the 5g orbitals is expected to be so large that occupation of the 6f, 7d, and 8p_1/2 subshells cannot be avoided in any superactinide.^[9] Because of the lack of radial nodes in the 5g orbitals, analogous to the 4f but not the 5f orbitals, the position of unbiunium in the periodic table is expected to be more akin to that of lanthanum than that of actinium among its congeners, and some have proposed to rename the superactinides as "superlanthanides" for that reason.^[36] The lack of radial nodes in the 4f orbitals contribute to their core-like behavior in the lanthanide series, unlike the more valence-like 5f orbitals in the actinides; however, the relativistic expansion and destabilization of the 5g orbitals should partially compensate for their lack of radial nodes and hence smaller extent.^[37]

While the lighter group 3 elements fill d-orbitals (Sc, [Ar]3d¹4s²; Y, [Kr]4d¹5s²; La, [Xe]5d¹6s²; Ac, [Rn]6d¹7s²), unbiunium is expected to fill the 8p_1/2 orbital instead due to its relativistic stabilization, with a configuration of [Og]8s²8p¹. Nevertheless, the expected [Og]7d¹8s² configuration is expected to be a low-lying excited state at only 0.412 eV.^[38] The electron configurations of the ions of unbiunium are expected to be Ubu⁺, [Og]8s²; Ubu²⁺, [Og]8s¹; and Ubu³⁺, [Og].^[39] The 8p electron of unbiunium is expected to be very loosely bound, so that its predicted ionization energy of 4.45 eV is lower than that of ununennium (4.53 eV) and all known elements except for the alkali metals from potassium downwards. A similar dramatic reduction in ionization energy is also seen in lawrencium, another element having an anomalous s²p configuration instead of the expected ds² due to relativistic effects.^[9]

Despite the change in electron configuration, unbiunium is not expected to behave chemically very differently from its lighter congeners. A 2016 calculation on unbiunium monofluoride (UbuF) showed similarities between the valence orbitals of unbiunium in this molecule and those of actinium in actinium monofluoride (AcF); in both molecules, the highest occupied molecular orbital is expected to be non-bonding, unlike in the superficially more similar nihonium monofluoride (NhF) where it is bonding. Nihonium has the electron configuration [Rn]5f¹⁴6d¹⁰7s²7p¹, with an s²p valence configuration. Unbiunium may hence be somewhat like lawrencium in having an anomalous s²p configuration from relativistic effects that does not affect its chemistry: the bond dissociation energies, bond lengths, and polarizabilities of the UbuF molecule are expected to continue the trend down group 3. Hence lawrencium and unbiunium are expected to be similar to lutetium and actinium respectively, and not thallium and nihonium as would be expected from looking at their electron configurations. The Ubu–F bond is expected to be strong and polarized, just like for the lighter group 3 monofluorides.^[31]

Analogous to its lighter congeners, the non-bonding electrons on unbiunium in UbuF are expected to be able to bond to extra atoms or groups, resulting in the formation of the unbiunium trihalides UbuX₃, analogous to ScX₃, YX₃, LaX₃, and AcX₃. Hence, the main oxidation state of unbiunium in its compounds should be +3, although the closeness of the valence subshells' energy levels may permit higher oxidation states, just like in elements 119 and 120.^[9][31][36] The standard electrode potential for the Ubu³⁺/Ubu couple is predicted as −2.1 V.^[9]
