1. History

1.1. Background

The LIGO concept built upon early work by many scientists to test a component of Albert Einstein's theory of relativity, the existence of gravitational waves. Starting in the 1960s, American scientists including Joseph Weber, as well as Soviet scientists Mikhail Gertsenshtein and Vladislav Pustovoit, conceived of basic ideas and prototypes of laser interferometry,^[1][2] and in 1967 Rainer Weiss of MIT published an analysis of interferometer use and initiated the construction of a prototype with military funding, but it was terminated before it could become operational.^[3] Starting in 1968, Kip Thorne initiated theoretical efforts on gravitational waves and their sources at Caltech, and was convinced that gravitational wave detection would eventually succeed.^[1]

Prototype interferometric gravitational wave detectors (interferometers) were built in the late 1960s by Robert L. Forward and colleagues at Hughes Research Laboratories (with mirrors mounted on a vibration isolated plate rather than free swinging), and in the 1970s (with free swinging mirrors between which light bounced many times) by Weiss at MIT, and then by Heinz Billing and colleagues in Garching Germany, and then by Ronald Drever, James Hough and colleagues in Glasgow, Scotland.^[4]

In 1980, the NSF funded the study of a large interferometer led by MIT (Paul Linsay, Peter Saulson, Rainer Weiss), and the following year, Caltech constructed a 40-meter prototype (Ronald Drever and Stan Whitcomb). The MIT study established the feasibility of interferometers at a 1-kilometer scale with adequate sensitivity.^[1][5]

Under pressure from the NSF, MIT and Caltech were asked to join forces to lead a LIGO project based on the MIT study and on experimental work at Caltech, MIT, Glasgow, and Garching. Drever, Thorne, and Weiss formed a LIGO steering committee, though they were turned down for funding in 1984 and 1985. By 1986, they were asked to disband the steering committee and a single director, Rochus E. Vogt (Caltech), was appointed. In 1988, a research and development proposal achieved funding.^{[1][5][6][7][8][9]}

From 1989 through 1994, LIGO failed to progress technically and organizationally. Only political efforts continued to acquire funding.^[1][10] Ongoing funding was routinely rejected until 1991, when the U.S. Congress agreed to fund LIGO for the first year for $23 million. However, requirements for receiving the funding were not met or approved, and the NSF questioned the technological and organizational basis of the project.^[6][7] By 1992, LIGO was restructured with Drever no longer a direct participant.^{[1][10][11][12]} Ongoing project management issues and technical concerns were revealed in NSF reviews of the project, resulting in the withholding of funds until they formally froze spending in 1993.^{[1][10][13][14]}

In 1994, after consultation between relevant NSF personnel, LIGO's scientific leaders, and the presidents of MIT and Caltech, Vogt stepped down and Barry Barish (Caltech) was appointed laboratory director,^[1][11][15] and the NSF made clear that LIGO had one last chance for support.^[10] Barish's team created a new study, budget, and project plan with a budget exceeding the previous proposals by 40%. Barish proposed to the NSF and National Science Board to build LIGO as an evolutionary detector, where detection of gravitational waves with initial LIGO would be possible, and with advanced LIGO would be probable.^[16] This new proposal received NSF funding, Barish was appointed Principal Investigator, and the increase was approved. In 1994, with a budget of USD 395 million, LIGO stood as the largest overall funded NSF project in history. The project broke ground in Hanford, Washington in late 1994 and in Livingston, Louisiana in 1995. As construction neared completion in 1997, under Barish's leadership two organizational institutions were formed, LIGO Laboratory and LIGO Scientific Collaboration (LSC). The LIGO laboratory consists of the facilities supported by the NSF under LIGO Operation and Advanced R&D; this includes administration of the LIGO detector and test facilities. The LIGO Scientific Collaboration is a forum for organizing technical and scientific research in LIGO. It is a separate organization from LIGO Laboratory with its own oversight. Barish appointed Weiss as the first spokesperson for this scientific collaboration.^[1][6]

1.2. Observations Begin

Initial LIGO operations between 2002 and 2010 did not detect any gravitational waves. In 2004, under Barish, the funding and groundwork were laid for the next phase of LIGO development (called "Enhanced LIGO"). This was followed by a multi-year shut-down while the detectors were replaced by much improved "Advanced LIGO" versions.^[17][18] Much of the research and development work for the LIGO/aLIGO machines was based on pioneering work for the GEO600 detector at Hannover, Germany.^[19][20] By February 2015, the detectors were brought into engineering mode in both locations.^[21]

By mid-September 2015 "the world's largest gravitational-wave facility" completed a 5-year US $200-million overhaul at a total cost of $620 million.^[22][23] On 18 September 2015, Advanced LIGO began its first formal science observations at about four times the sensitivity of the initial LIGO interferometers.^[24] Its sensitivity will be further enhanced until it reaches design sensitivity around 2021.^[25]

On 11 February 2016, the LIGO Scientific Collaboration and Virgo Collaboration published a paper about the detection of gravitational waves, from a signal detected at 09.51 UTC on 14 September 2015 of two ~30 solar mass black holes merging about 1.3 billion light-years from Earth.^[26][27]

Current executive director David Reitze announced the findings at a media event in Washington D.C., while executive director emeritus Barry Barish presented the first scientific paper of the findings at CERN to the physics community.^[28]

On 2 May 2016, members of the LIGO Scientific Collaboration and other contributors were awarded a Special Breakthrough Prize in Fundamental Physics for contributing to the direct detection of gravitational waves.^[29]

On 16 June 2016 LIGO announced a second signal was detected from the merging of two black holes with 14.2 and 7.5 times the mass of the Sun. The signal was picked up on 26 December 2015, at 3:38 UTC ^[30]

The detection of a third black hole merger, between objects of 31.2 and 19.4 solar masses, occurred on 4 January 2017 and was announced on 1 June 2017.^[31][32]

A fourth detection of a black hole merger, between objects of 30.5 and 25.3 solar masses, was observed on 14 August 2017 and was announced on 27 September 2017.^[33]

In 2017, Weiss, Barish, and Thorne received the Nobel Prize in Physics "for decisive contributions to the LIGO detector and the observation of gravitational waves." Weiss was awarded one-half of the total prize money, and Barish and Thorne each received a one-quarter prize.^[34][35][36]

LIGO is currently paused but will start running again in early 2019 for the O3 run (joint with Virgo)^[37]

2. Mission

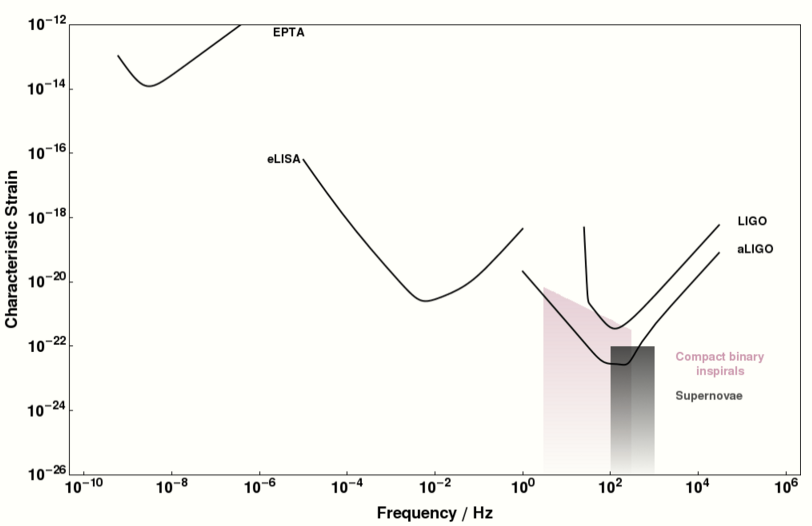

Detector noise curves for Initial and Advanced LIGO as a function of frequency. They lie above the bands for space-borne detectors like the evolved Laser Interferometer Space Antenna (eLISA) and pulsar timing arrays such as the European Pulsar Timing Array (EPTA). The characteristic strains of potential astrophysical sources are also shown. To be detectable the characteristic strain of a signal must be above the noise curve.^[38] These frequencies that aLIGO can detect are in the range of human hearing. https://handwiki.org/wiki/index.php?curid=1281753

LIGO's mission is to directly observe gravitational waves of cosmic origin. These waves were first predicted by Einstein's general theory of relativity in 1916, when the technology necessary for their detection did not yet exist. Their existence was indirectly confirmed when observations of the binary pulsar PSR 1913+16 in 1974 showed an orbital decay which matched Einstein's predictions of energy loss by gravitational radiation. The Nobel Prize in Physics 1993 was awarded to Hulse and Taylor for this discovery.^[39]

Direct detection of gravitational waves had long been sought. Their discovery has launched a new branch of astronomy to complement electromagnetic telescopes and neutrino observatories. Joseph Weber pioneered the effort to detect gravitational waves in the 1960s through his work on resonant mass bar detectors. Bar detectors continue to be used at six sites worldwide. By the 1970s, scientists including Rainer Weiss realized the applicability of laser interferometry to gravitational wave measurements. Robert Forward operated an interferometric detector at Hughes in the early 1970s.^[40]

In fact as early as the 1960s, and perhaps before that, there were papers published on wave resonance of light and gravitational waves.^[41] Work was published in 1971 on methods to exploit this resonance for the detection of high-frequency gravitational waves. In 1962, M. E. Gertsenshtein and V. I. Pustovoit published the very first paper describing the principles for using interferometers for the detection of very long wavelength gravitational waves.^[42] The authors argued that by using interferometers the sensitivity can be 10⁷ to 10¹⁰ times better than by using electromechanical experiments. Later, in 1965, Braginsky extensively discussed gravitational-wave sources and their possible detection. He pointed out the 1962 paper and mentioned the possibility of detecting gravitational waves if the interferometric technology and measuring techniques improved.

In August 2002, LIGO began its search for cosmic gravitational waves. Measurable emissions of gravitational waves are expected from binary systems (collisions and coalescences of neutron stars or black holes), supernova explosions of massive stars (which form neutron stars and black holes), accreting neutron stars, rotations of neutron stars with deformed crusts, and the remnants of gravitational radiation created by the birth of the universe. The observatory may, in theory, also observe more exotic hypothetical phenomena, such as gravitational waves caused by oscillating cosmic strings or colliding domain walls.

Since the early 1990s, physicists have thought that technology has evolved to the point where detection of gravitational waves—of significant astrophysical interest—is now possible.^[43]

3. Observatories

LIGO operates two gravitational wave observatories in unison: the LIGO Livingston Observatory (30°33′46.42″N 90°46′27.27″W / 30.5628944°N 90.7742417°W / 30.5628944; -90.7742417) in Livingston, Louisiana, and the LIGO Hanford Observatory, on the DOE Hanford Site (46°27′18.52″N 119°24′27.56″W / 46.4551444°N 119.4076556°W / 46.4551444; -119.4076556), located near Richland, Washington. These sites are separated by 3,002 kilometers (1,865 miles). Since gravitational waves are expected to travel at the speed of light, this distance corresponds to a difference in gravitational wave arrival times of up to ten milliseconds. Through the use of trilateration, the difference in arrival times helps to determine the source of the wave, especially when a third similar instrument like Virgo, located at an even greater distance in Europe, is added.^[44]

Each observatory supports an L-shaped ultra high vacuum system, measuring 4 kilometers (2.5 miles) on each side. Up to five interferometers can be set up in each vacuum system.

The LIGO Livingston Observatory houses one laser interferometer in the primary configuration. This interferometer was successfully upgraded in 2004 with an active vibration isolation system based on hydraulic actuators providing a factor of 10 isolation in the 0.1–5 Hz band. Seismic vibration in this band is chiefly due to microseismic waves and anthropogenic sources (traffic, logging, etc.).

The LIGO Hanford Observatory houses one interferometer, almost identical to the one at the Livingston Observatory. During the Initial and Enhanced LIGO phases, a half-length interferometer operated in parallel with the main interferometer. For this 2 km interferometer, the Fabry–Pérot arm cavities had the same optical finesse, and, thus, half the storage time as the 4 km interferometers. With half the storage time, the theoretical strain sensitivity was as good as the full length interferometers above 200 Hz but only half as good at low frequencies. During the same era, Hanford retained its original passive seismic isolation system due to limited geologic activity in Southeastern Washington.

4. Operation

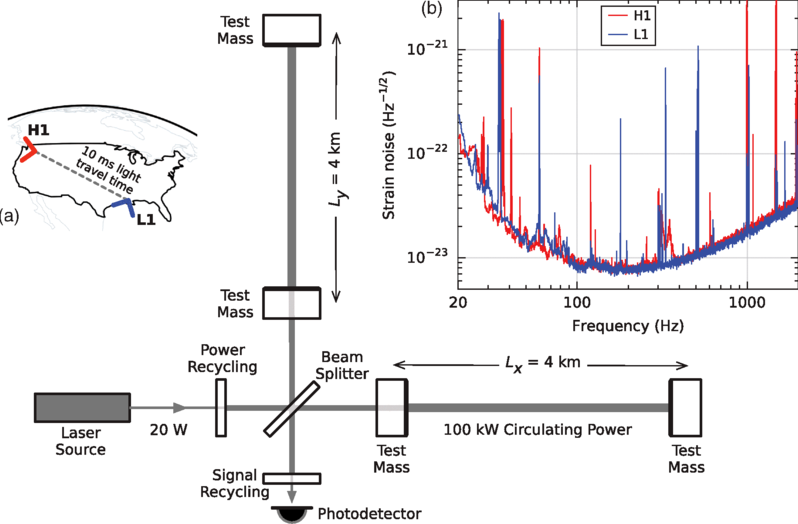

Simplified operation of a gravitational wave observatory. https://handwiki.org/wiki/index.php?curid=1087366

Figure 1: A beamsplitter (green line) splits coherent light (from the white box) into two beams which reflect off the mirrors (cyan oblongs); only one outgoing and reflected beam in each arm is shown, and separated for clarity. The reflected beams recombine and an interference pattern is detected (purple circle).

Figure 2: A gravitational wave passing over the left arm (yellow) changes its length and thus the interference pattern.

The parameters in this section refer to the Advanced LIGO experiment. The primary interferometer consists of two beam lines of 4 km length which form a power-recycled Michelson interferometer with Gires–Tournois etalon arms. A pre-stabilized 1064 nm Nd emits a beam with a power of 20 W that passes through a power recycling mirror. The mirror fully transmits light incident from the laser and reflects light from the other side increasing the power of the light field between the mirror and the subsequent beam splitter to 700 W. From the beam splitter the light travels along two orthogonal arms. By the use of partially reflecting mirrors, Fabry–Pérot cavities are created in both arms that increase the effective path length of laser light in the arm. The power of the light field in the cavity is 100 kW.^[45]

When a gravitational wave passes through the interferometer, the spacetime in the local area is altered. Depending on the source of the wave and its polarization, this results in an effective change in length of one or both of the cavities. The effective length change between the beams will cause the light currently in the cavity to become very slightly out of phase (antiphase) with the incoming light. The cavity will therefore periodically get very slightly out of coherence and the beams, which are tuned to destructively interfere at the detector, will have a very slight periodically varying detuning. This results in a measurable signal.^[46]

After an equivalent of approximately 280 trips down the 4 km length to the far mirrors and back again,^[47] the two separate beams leave the arms and recombine at the beam splitter. The beams returning from two arms are kept out of phase so that when the arms are both in coherence and interference (as when there is no gravitational wave passing through), their light waves subtract, and no light should arrive at the photodiode. When a gravitational wave passes through the interferometer, the distances along the arms of the interferometer are shortened and lengthened, causing the beams to become slightly less out of phase. This results in the beams coming in phase, creating a resonance, hence, some light arrives at the photodiode, indicating a signal. Light that does not contain a signal is returned to the interferometer using a power recycling mirror, thus increasing the power of the light in the arms. In actual operation, noise sources can cause movement in the optics which produces similar effects to real gravitational wave signals; a great deal of the art and complexity in the instrument is in finding ways to reduce these spurious motions of the mirrors. Observers compare signals from both sites to reduce the effects of noise.^[48]

An interesting fact is that the mechanism for the operation of lasers – stimulated emission – was also predicted by Einstein in 1917^[49][50] and then realized by experiments after more than four decades.^[51]

5. Observations

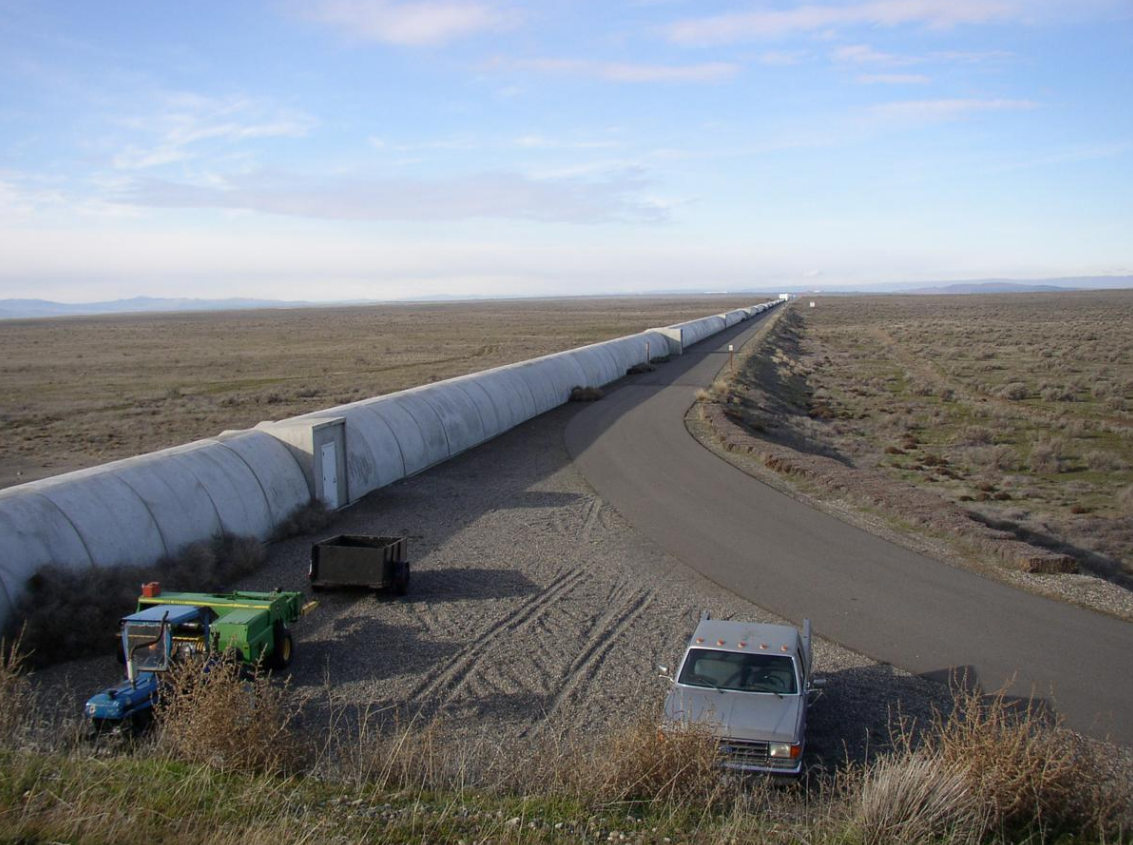

Western leg of LIGO interferometer on Hanford Reservation. https://handwiki.org/wiki/index.php?curid=1648663

Based on current models of astronomical events, and the predictions of the general theory of relativity,^[52][53][54] gravitational waves that originate tens of millions of light years from Earth are expected to distort the 4 kilometer (2.5 miles) mirror spacing by about 10⁻¹⁸ m, less than one-thousandth the charge diameter of a proton. Equivalently, this is a relative change in distance of approximately one part in 10²¹. A typical event which might cause a detection event would be the late stage inspiral and merger of two 10-solar-mass black holes, not necessarily located in the Milky Way galaxy, which is expected to result in a very specific sequence of signals often summarized by the slogan chirp, burst, quasi-normal mode ringing, exponential decay.

In their fourth Science Run at the end of 2004, the LIGO detectors demonstrated sensitivities in measuring these displacements to within a factor of 2 of their design.

During LIGO's fifth Science Run in November 2005, sensitivity reached the primary design specification of a detectable strain of one part in 10²¹ over a 100 Hz bandwidth. The baseline inspiral of two roughly solar-mass neutron stars is typically expected to be observable if it occurs within about 8 million parsecs (26×10^⁶ ly), or the vicinity of the Local Group, averaged over all directions and polarizations. Also at this time, LIGO and GEO 600 (the German-UK interferometric detector) began a joint science run, during which they collected data for several months. Virgo (the French-Italian interferometric detector) joined in May 2007. The fifth science run ended in 2007, after extensive analysis of data from this run did not uncover any unambiguous detection events.

In February 2007, GRB 070201, a short gamma-ray burst arrived at Earth from the direction of the Andromeda Galaxy. The prevailing explanation of most short gamma-ray bursts is the merger of a neutron star with either a neutron star or a black hole. LIGO reported a non-detection for GRB 070201, ruling out a merger at the distance of Andromeda with high confidence. Such a constraint was predicated on LIGO eventually demonstrating a direct detection of gravitational waves.^[55]

5.1. Enhanced LIGO

Northern leg (x-arm) of LIGO interferometer on Hanford Reservation. https://handwiki.org/wiki/index.php?curid=1842994

After the completion of Science Run 5, initial LIGO was upgraded with certain technologies, planned for Advanced LIGO but available and able to be retrofitted to initial LIGO, which resulted in an improved-performance configuration dubbed Enhanced LIGO.^[56] Some of the improvements in Enhanced LIGO included:

• Increased laser power
• Homodyne detection
• Output mode cleaner
• In-vacuum readout hardware

Science Run 6 (S6) began in July 2009 with the enhanced configurations on the 4 km detectors.^[57] It concluded in October 2010, and the disassembly of the original detectors began.

5.2. Advanced LIGO

Simplified diagram of an Advanced LIGO detector (not to scale). https://handwiki.org/wiki/index.php?curid=1509213

After 2010, LIGO went offline for several years for a major upgrade, installing the new Advanced LIGO detectors in the LIGO Observatory infrastructures.

The project continued to attract new members, with the Australian National University and University of Adelaide contributing to Advanced LIGO, and by the time the LIGO Laboratory started the first observing run 'O1' with the Advanced LIGO detectors in September 2015, the LIGO Scientific Collaboration included more than 900 scientists worldwide.^[22]

The first observing run operated at a sensitivity roughly 3 times greater than Initial LIGO,^[58] and a much greater sensitivity for larger systems with their peak radiation at lower audio frequencies.^[59]

On 11 February 2016, the LIGO and Virgo collaborations announced the first observation of gravitational waves.^[27][45] The signal was named GW150914.^[45][60] The waveform showed up on 14 September 2015, within just two days of when the Advanced LIGO detectors started collecting data after their upgrade.^[27][61][62] It matched the predictions of general relativity^[52][53][54] for the inward spiral and merger of a pair of black holes and subsequent 'ringdown' of the resulting single black hole. The observations demonstrated the existence of binary stellar-mass black hole systems and the first observation of a binary black hole merger.

On 15 June 2016, LIGO announced the detection of a second gravitational wave event, recorded on 26 December 2015, at 3:38 UTC. Analysis of the observed signal indicated that the event was caused by the merger of two black holes with masses of 14.2 and 7.5 solar masses, at a distance of 1.4 billion light years.^[63] The signal was named GW151226.^[64]

The second observing run (O2) ran from 30 November 2016^[65] to 25 August 2017,^[66] with Livingston achieving 15–25% sensitivity improvement over O1, and with Hanford's sensitivity similar to O1.^[67]

Further upgrades following O2 (of unspecified duration) will be followed by a nine-month O3.^[68] April 2018 plans place the start of O3 in early 2019.^[66] Further observing runs will be interleaved with commissioning efforts to further improve the sensitivity. It is aimed to achieve design sensitivity in 2021.^[25]

In 2017, LIGO saw four further gravitational waves: the first (GW170104) in January; the second (GW170608) in June; the third (GW170814) and the fourth (GW170817) both in August. GW170814 and GW170817 were also seen by the Virgo Collaboration.^[69][70] Unlike the black hole mergers which are only detectable gravitationally, GW170817 came from the collision of two neutron stars and was also detected electromagnetically by gamma ray satellites and optical telescopes.^[69]

6. Future

6.1. LIGO-India

LIGO-India, or INDIGO, is a planned collaborative project between the LIGO Laboratory and the Indian Initiative in Gravitational-wave Observations (IndIGO) to create a world-class gravitational-wave detector in India. The LIGO Laboratory, in collaboration with the US National Science Foundation and Advanced LIGO partners from the U.K., Germany and Australia, has offered to provide all of the designs and hardware for one of the three planned Advanced LIGO detectors to be installed, commissioned, and operated by an Indian team of scientists in a facility to be built in India.

LIGO-India project is a collaboration between LIGO Laboratory and LIGO-India consortium: Institute of Plasma Research, Gandhinagar; IUCAA (Inter-University Centre for Astronomy and Astrophysics), Pune and Raja Ramanna Centre for Advanced Technology, Indore.

The expansion of worldwide activities in gravitational-wave detection to produce an effective global network has been a goal of LIGO for many years. In 2010, a developmental roadmap^[71] issued by the Gravitational Wave International Committee (GWIC) recommended that an expansion of the global array of interferometric detectors be pursued as a highest priority. Such a network would afford astrophysicists with more robust search capabilities and higher scientific yields. The current agreement between the LIGO Scientific Collaboration and the Virgo collaboration links three detectors of comparable sensitivity and forms the core of this international network. Studies indicate that the localization of sources by a network that includes a detector in India would provide significant improvements.^[72][73] Improvements in localization averages are predicted to be approximately an order of magnitude, with substantially larger improvements in certain regions of the sky.

The NSF was willing to permit this relocation, and its consequent schedule delays, as long as it did not increase the LIGO budget. Thus, all costs required to build a laboratory equivalent to the LIGO sites to house the detector would have to be borne by the host country.^[74] The first potential distant location was at AIGO in Western Australia,^[75] however the Australian government was unwilling to commit funding by 1 October 2011 deadline.

A location in India was discussed at a Joint Commission meeting between India and the US in June 2012.^[76] In parallel, the proposal was evaluated by LIGO's funding agency, the NSF. As the basis of the LIGO-India project entails the transfer of one of LIGO's detectors to India, the plan would affect work and scheduling on the Advanced LIGO upgrades already underway. In August 2012, the U.S. National Science Board approved the LIGO Laboratory's request to modify the scope of Advanced LIGO by not installing the Hanford "H2" interferometer, and to prepare it instead for storage in anticipation of sending it to LIGO-India.^[77] In India, the project was presented to the Department of Atomic Energy and the Department of Science and Technology for approval and funding. On 17 February 2016, less than a week after LIGO's landmark announcement about the detection of gravitational waves, Indian Prime Minister Narendra Modi announced that the Cabinet has granted ‘in-principle’ approval to the LIGO-India mega science proposal.^[78]

A site in the Hingoli district in western India has been selected.^[79]

6.2. A+

Like Enhanced LIGO, certain improvements can be retrofitted to the existing Advanced LIGO instrument. These are referred to as "A+" proposals, and are planned for installation over the decade from 2017 to 2026.^[80] Two changes would almost double Advanced LIGO's sensitivity and range:^[81][82]

• Using frequency-dependent squeezed light, which would simultaneously decrease radiation pressure at low frequencies and shot noise at high frequencies, and
• Improved mirror coatings with lower mechanical loss.

Because the final LIGO output photodetector is sensitive to phase, and not amplitude, it is possible to squeeze the signal so there is less phase noise and more amplitude noise, without violating the quantum mechanical limit on their product.^[83] This is done by injecting a "squeezed vacuum state" into the dark port (interferometer output) which is quieter, in the relevant parameter, than simple darkness. This has been demonstrated at LIGO^[84] and is in use operationally at the GEO600 detector.^[85] One change required for Advanced LIGO is frequency dependence. The squeezing quadrature must be rotated from amplitude quadrature at high frequencies (around 1 kHz) to phase quadrature at low frequencies.

6.3. LIGO Voyager

A third-generation detector at the existing LIGO sites is being planned under the name "LIGO Voyager" to improve the sensitivity by an additional factor of two, and halve the low-frequency cutoff to 10 Hz.^[80] Plans call for the glass mirrors and 1064 nm lasers to be replaced by even larger 160 kg silicon test masses, cooled to 123 K (a temperature achievable with liquid nitrogen), and a change to a longer laser wavelength in the 1500–2200 nm range at which silicon is transparent. (Many documents assume a wavelength of 1550 nm, but this is not final.)

6.4. Cosmic Explorer

A design for a larger facility with longer arms is called "Cosmic Explorer", and would improve on the European Einstein Telescope proposal. This is based on the LIGO Voyager technology, but expanded either to an ET-like triangular configuration or in the LIGO-type L-shape with 40 km arms in both scenarios. The facility could be built underground or on the surface.^[80]
