Reclaimed Water

Reclaimed or recycled water (also called wastewater reuse or water reclamation) is the process of converting wastewater into water that can be reused for other purposes. Reuse may include irrigation of gardens and agricultural fields or replenishing surface water and groundwater (i.e., groundwater recharge). Reused water may also be directed toward fulfilling certain needs in residences (e.g. toilet flushing), businesses, and industry, and could even be treated to reach drinking water standards. This last option is called either "direct potable reuse" or "indirect potable" reuse, depending on the approach used. Reclaiming water for reuse applications instead of using freshwater supplies can be a water-saving measure. When used water is eventually discharged back into natural water sources, it can still have benefits to ecosystems, improving streamflow, nourishing plant life and recharging aquifers, as part of the natural water cycle. Wastewater reuse is a long-established practice used for irrigation, especially in arid countries. Reusing wastewater as part of sustainable water management allows water to remain as an alternative water source for human activities. This can reduce scarcity and alleviate pressures on groundwater and other natural water bodies.

sustainable water wastewater reuse alternative water source

1. Background

Irrigation water is pumped from this tank which stores effluent received from a constructed wetland in Haran-Al-Awamied, Syria.

Achieving more sustainable sanitation and wastewater management will require emphasis on actions linked to resource management, such as wastewater reuse or excreta reuse that will keep valuable resources available for productive uses.[1] This in turn supports human wellbeing and broader sustainability.

Simply stated, reclaimed water is water that is used more than one time before it passes back into the natural water cycle. Advances in wastewater treatment technology allow communities to reuse water for many different purposes. The water is treated differently depending upon the source and use of the water and how it gets delivered.

Cycled repeatedly through the planetary hydrosphere, all water on Earth is recycled water, but the terms "recycled water" or "reclaimed water" typically mean wastewater sent from a home or business through a sewer system to a wastewater treatment plant, where it is treated to a level consistent with its intended use.

The World Health Organization has recognized the following principal driving forces for wastewater reuse:[2][3]

  1. increasing water scarcity and stress,
  2. increasing populations and related food security issues,
  3. increasing environmental pollution from improper wastewater disposal, and
  4. increasing recognition of the resource value of wastewater, excreta and greywater.

Water recycling and reuse is of increasing importance, not only in arid regions but also in cities and contaminated environments.[4]

Already, the groundwater aquifers that are used by over half of the world population are being over-drafted.[5] Reuse will continue to increase as the world's population becomes increasingly urbanized and concentrated near coastlines, where local freshwater supplies are limited or are available only with large capital expenditure.[6][7] Large quantities of freshwater can be saved by wastewater reuse and recycling, reducing environmental pollution and improving carbon footprint.[4] Reuse can be an alternative water supply option.

2. Types and Applications

Most of the uses of water reclamation are non potable uses such as washing cars, flushing toilets, cooling water for power plants, concrete mixing, artificial lakes, irrigation for golf courses and public parks, and for hydraulic fracturing. Where applicable, systems run a dual piping system to keep the recycled water separate from the potable water.

The main reclaimed water applications in the world are shown below:[8][9][10]

Categories of use Uses
Urban uses Irrigation of public parks, sporting facilities, private gardens, roadsides; Street cleaning; Fire protection systems; Vehicle washing; Toilet flushing; Air conditioners; Dust control.
Agricultural uses Food crops not commercially processed; Food crops commercially processed; Pasture for milking animals; Fodder; Fibre; Seed crops; Ornamental flowers; Orchards; Hydroponic culture; Aquaculture; Greenhouses; Viticulture.
Industrial uses Processing water; Cooling water; Recirculating cooling towers; Washdown water; Washing aggregate; Making concrete; Soil compaction; Dust control.
Recreational uses Golf course irrigation; Recreational impoundments with/without public access (e.g. fishing, boating, bathing); Aesthetic impoundments without public access; Snowmaking.
Environmental uses Aquifer recharge; Wetlands; Marshes; Stream augmentation; Wildlife habitat; Silviculture.
Potable uses Aquifer recharge for drinking water use; Augmentation of surface drinking water supplies; Treatment until drinking water quality.

2.1. De Facto Wastewater Reuse (Unplanned Potable Reuse)

De facto, unacknowledged or unplanned potable reuse refers to a situation where reuse of treated wastewater is, in fact, practiced but is not officially recognized.[11] For example, a wastewater treatment plant from one city may be discharging effluents to a river which is used as a drinking water supply for another city downstream.

Unplanned Indirect Potable Use[12] has existed for a long time. Large towns on the River Thames upstream of London (Oxford, Reading, Swindon, Bracknell) discharge their treated sewage ("non-potable water") into the Thames, which supplies water to London downstream. In the United States, the Mississippi River serves as both the destination of sewage treatment plant effluent and the source of potable water.

2.2. Urban Reuse

  • Unrestricted: The use of reclaimed water for non-potable applications in municipal settings, where public access is not restricted.
  • Restricted: The use of reclaimed water for non-potable applications in municipal settings, where public access is controlled or restricted by physical or institutional barriers, such as fencing, advisory signage, or temporal access restriction.[13]

2.3. Agricultural Reuse

There are benefits of using recycled water for irrigation, including the lower cost compared to some other sources and consistency of supply regardless of season, climatic conditions and associated water restrictions. When reclaimed water is used for irrigation in agriculture, the nutrient (nitrogen and phosphorus) content of the treated wastewater has the benefit of acting as a fertilizer.[14] This can make the reuse of excreta contained in sewage attractive.[2]

The irrigation water can be used in different ways on different crops:

  • Food crops to be eaten raw: crops which are intended for human consumption to be eaten raw or unprocessed.
  • Processed food crops: crops which are intended for human consumption not to be eaten raw but after treatment process (i.e. cooked, industrially processed).
  • Non-food crops: crops which are not intended for human consumption (e.g. pastures, forage, fiber, ornamental, seed, forest and turf crops).[15]

In developing countries, agriculture is increasingly using untreated wastewater for irrigation - often in an unsafe manner. Cities provide lucrative markets for fresh produce, so are attractive to farmers. However, because agriculture has to compete for increasingly scarce water resources with industry and municipal users, there is often no alternative for farmers but to use water polluted with urban waste directly to water their crops.

There can be significant health hazards related to using untreated wastewater in agriculture. Wastewater from cities can contain a mixture of chemical and biological pollutants. In low-income countries, there are often high levels of pathogens from excreta. In emerging nations, where industrial development is outpacing environmental regulation, there are increasing risks from inorganic and organic chemicals. The World Health Organization, in collaboration with the Food and Agriculture Organization of the United Nations (FAO) and the United Nations Environmental Program (UNEP), has developed guidelines for safe use of wastewater in 2006.[2] These guidelines advocate a ‘multiple-barrier’ approach wastewater use, for example by encouraging farmers to adopt various risk-reducing behaviours. These include ceasing irrigation a few days before harvesting to allow pathogens to die off in the sunlight, applying water carefully so it does not contaminate leaves likely to be eaten raw, cleaning vegetables with disinfectant or allowing fecal sludge used in farming to dry before being used as a human manure.[14]

2.4. Environmental Reuse

The use of reclaimed water to create, enhance, sustain, or augment water bodies including wetlands, aquatic habitats, or stream flow is called "environmental reuse".[13] For example, constructed wetlands fed by wastewater provide both wastewater treatment and habitats for flora and fauna.

2.5. Industrial Reuse

The use of reclaimed water to recharge aquifers that are not used as a potable water source.[13]

2.6. Planned Potable Reuse

Planned potable reuse is publicly acknowledged as an intentional project to recycle water for drinking water. There are two ways in which potable water can be delivered for reuse - "Indirect Potable Reuse" (IPR) and "Direct Potable Reuse". Both these forms of reuse are described below, and commonly involve a more formal public process and public consultation program than is the case with de facto or unacknowledged reuse.[13][16]

Some water agencies reuse highly treated effluent from municipal wastewater or resource recovery plants as a reliable, drought proof source of drinking water. By using advanced purification processes, they produce water that meets all applicable drinking water standards. System reliability and frequent monitoring and testing are imperative to them meeting stringent controls.[17]

The water needs of a community, water sources, public health regulations, costs, and the types of water infrastructure in place, such as distribution systems, man-made reservoirs, or natural groundwater basins, determine if and how reclaimed water can be part of the drinking water supply. Some communities reuse water to replenish groundwater basins. Others put it into surface water reservoirs. In these instances the reclaimed water is blended with other water supplies and/or sits in storage for a certain amount of time before it is drawn out and gets treated again at a water treatment or distribution system. In some communities, the reused water is put directly into pipelines that go to a water treatment plant or distribution system.

Modern technologies such as reverse osmosis and ultraviolet disinfection are commonly used when reclaimed water will be mixed with the drinking water supply.[17]

Indirect potable reuse

Indirect potable reuse (IPR) means the water is delivered to the consumer indirectly. After it is purified, the reused water blends with other supplies and/or sits a while in some sort of storage, man-made or natural, before it gets delivered to a pipeline that leads to a water treatment plant or distribution system. That storage could be a groundwater basin or a surface water reservoir.

Some municipalities are using and others are investigating Indirect Potable Reuse (IPR) of reclaimed water. For example, reclaimed water may be pumped into (subsurface recharge) or percolated down to (surface recharge) groundwater aquifers, pumped out, treated again, and finally used as drinking water. This technique may also be referred to as groundwater recharging. This includes slow processes of further multiple purification steps via the layers of earth/sand (absorption) and microflora in the soil (biodegradation).

IPR or even unplanned potable use of reclaimed wastewater is used in many countries, where the latter is discharged into groundwater to hold back saline intrusion in coastal aquifers. IPR has generally included some type of environmental buffer, but conditions in certain areas have created an urgent need for more direct alternatives.[18]

IPR occurs through the augmentation of drinking water supplies with urban wastewater treated to a level suitable for IPR followed by an environmental buffer (e.g. rivers, dams, aquifers, etc.) that precedes drinking water treatment. In this case, urban wastewater passes through a series of treatment steps that encompasses membrane filtration and separation processes (e.g. MF, UF and RO), followed by an advanced chemical oxidation process (e.g. UV, UV+H2O2, ozone).[13] In ‘indirect’ potable reuse applications, the reclaimed wastewater is used directly or mixed with other sources.

Direct potable reuse

Direct potable reuse (DPR) means the reused water is put directly into pipelines that go to a water treatment plant or distribution system. Direct potable reuse may occur with or without “engineered storage” such as underground or above ground tanks.[13] In other words, DPR is the introduction of reclaimed water derived from domestic wastewater after extensive treatment and monitoring to assure that strict water quality requirements are met at all times, directly into a municipal water supply system. Direct potable reuse is also called "toilet to tap".

2.7. Reuse in Space

Wastewater reclamation can be especially important in relation to human spaceflight. In 1998, NASA announced it had built a human waste reclamation bioreactor designed for use in the International Space Station and a manned Mars mission. Human urine and feces are input into one end of the reactor and pure oxygen, pure water, and compost (humanure) are output from the other end. The soil could be used for growing vegetables, and the bioreactor also produces electricity.[19][20]

Aboard the International Space Station, astronauts have been able to drink recycled urine due to the introduction of the ECLSS system. The system costs $250 million and has been working since May 2009. The system recycles wastewater and urine back into potable water used for drinking, food preparation, and oxygen generation. This cuts back on the need for resupplying the space station so often.[21]

3. Benefits

Water/wastewater reuse, as an alternative water source, can provide significant economic, social and environmental benefits, which are key motivators for implementing such reuse programmes. Specifically, in agriculture, irrigation with wastewater may contribute to improve production yields, reduce the ecological footprint and promote socioeconomic benefits.[22] These benefits include:[13][23]

  • Increased water availability
  • Drinking water substitution - keep drinking water for drinking and reclaimed water for non-drinking use (i.e. industry, cleaning, irrigation, domestic uses, toilet flushing, etc.)
  • Reduced over-abstraction of surface and groundwater
  • Reduced energy consumption associated with production, treatment, and distribution of water compared to using deep groundwater resources, water importation or desalination
  • Reduced nutrient loads to receiving waters (i.e. rivers, canals and other surface water resources)
  • Reduced manufacturing costs of using high quality reclaimed water
  • Increased agricultural production (i.e. crop yields)
  • Reduced application of fertilizers (i.e. conservation of nutrients, reducing the need for artificial fertilizer (e.g. soil nutrition by the nutrients existing in the treated effluents))
  • Enhanced environmental protection by restoration of streams, wetlands and ponds
  • Increased employment and local economy (e.g. tourism, agriculture).

4. Design Considerations

4.1. Distribution

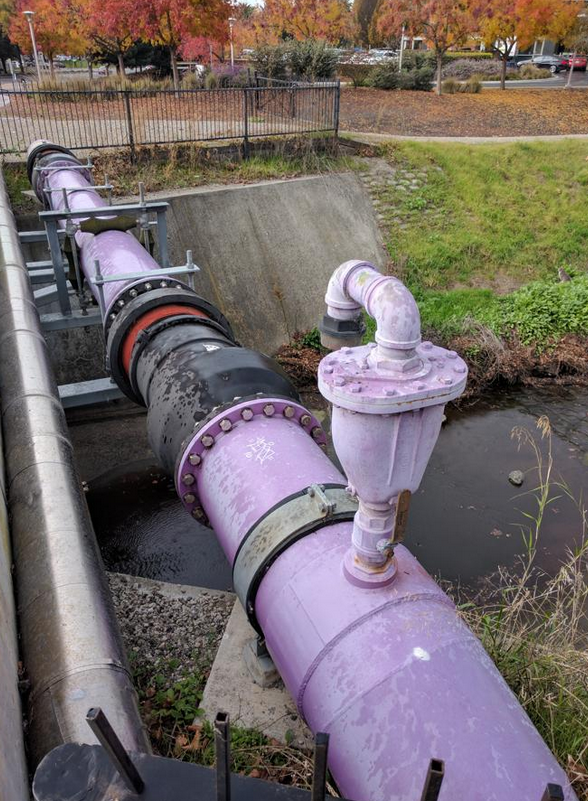

A lavender-colored pipeline carrying nonpotable water in a dual piping system in Mountain View, California, U.S.

Nonpotable reclaimed water is often distributed with a dual piping network that keeps reclaimed water pipes completely separate from potable water pipes.

In many cities using reclaimed water, it is now in such demand that consumers are only allowed to use it on assigned days. Some cities that previously offered unlimited reclaimed water at a flat rate are now beginning to charge citizens by the amount they use.

4.2. Treatment Processes

For many types of reuse applications wastewater must pass through numerous sewage treatment process steps before it can be used. Steps might include screening, primary settling, biological treatment, tertiary treatment (for example reverse osmosis), and disinfection. It is possible to acquire nitrogen from sewage[24] and produce ammonium nitrate. This generates a revenue, and produces a useful fertilizer for farmers.

There are several technologies used to treat wastewater for reuse. A combination of these technologies can meet strict treatment standards and make sure that the processed water is hygienically safe, meaning free from bacteria and viruses. The following are some of the typical technologies: Ozonation, ultrafiltration, aerobic treatment (membrane bioreactor), forward osmosis, reverse osmosis, advanced oxidation.[17]

Wastewater is generally treated to only secondary level treatment when used for irrigation.

A pump station distributes reclaimed water to users around the city. This may include golf courses, agricultural uses, cooling towers, or in land fills.

4.3. Alternative Options

Rather than treating wastewater for reuse purposes, other options can achieve similar effects of freshwater savings:

  • Greywater reuse systems - at a household level, treated or untreated greywater may be used for flush toilets or to water the garden.
  • Rainwater harvesting and stormwater recovery- Urban design systems which incorporate rainwater harvesting and reduce runoff are known as Water Sensitive Urban Design (WSUD) in Australia, Low Impact Development (LID) in the United States and Sustainable urban drainage systems (SUDS) in the United Kingdom.
  • Seawater desalination - an energy-intensive process where salt and other minerals are removed from seawater to produce potable water for drinking and irrigation, typically through membrane filtration (reverse-osmosis), and steam-distillation.

4.4. Costs

The cost of reclaimed water exceeds that of potable water in many regions of the world, where a fresh water supply is plentiful. However, reclaimed water is usually sold to citizens at a cheaper rate to encourage its use. As fresh water supplies become limited from distribution costs, increased population demands, or climate change reducing sources, the cost ratios will evolve also. The evaluation of reclaimed water needs to consider the entire water supply system, as it may bring important value of flexibility into the overall system [25]

Reclaimed water systems usually require a dual piping network, often with additional storage tanks, which adds to the costs of the system.

4.5. Barriers to Implementation

  • Full-scale implementation and operation of water reuse schemes still face regulatory, economic, social and institutional challenges.[26]
  • Economic viability of water reuse schemes.[26]
  • Costs of water quality monitoring and identification of contaminants.[27] Difficulties in contaminant identification may include the separation of inorganic and organic pollutants, microorganisms, Colloids, and others.[28]
  • Full cost recovery from water reuse schemes - lack of financial water pricing systems comparable to already subsidized conventional treatment plants.[29]
  • Psychological barriers, sometimes referred to as the "yuck factor" can also be an impediment to implementation, particularly for direct potable reuse plans. These psychological factors appear to be closely associated with disgust, specifically pathogen avoidance.[30]

5. Health Aspects

Reclaimed water is considered safe when appropriately used. Reclaimed water planned for use in recharging aquifers or augmenting surface water receives adequate and reliable treatment before mixing with naturally occurring water and undergoing natural restoration processes. Some of this water eventually becomes part of drinking water supplies.

A water quality study published in 2009 compared the water quality differences of reclaimed/recycled water, surface water, and groundwater.[31] Results indicate that reclaimed water, surface water, and groundwater are more similar than dissimilar with regard to constituents. The researchers tested for 244 representative constituents typically found in water. When detected, most constituents were in the parts per billion and parts per trillion range. DEET (a bug repellant), and caffeine were found in all water types and virtually in all samples. Triclosan (in anti-bacterial soap & toothpaste) was found in all water types, but detected in higher levels (parts per trillion) in reclaimed water than in surface or groundwater. Very few hormones/steroids were detected in samples, and when detected were at very low levels. Haloacetic acids (a disinfection by-product) were found in all types of samples, even groundwater. The largest difference between reclaimed water and the other waters appears to be that reclaimed water has been disinfected and thus has disinfection by-products (due to chlorine use).

A 2005 study titled "Irrigation of Parks, Playgrounds, and Schoolyards with Reclaimed Water" found that there had been no incidences of illness or disease from either microbial pathogens or chemicals, and the risks of using reclaimed water for irrigation are not measurably different from irrigation using potable water.[32]

A 2012 study conducted by the National Research Council in the United States of America found that the risk of exposure to certain microbial and chemical contaminants from drinking reclaimed water does not appear to be any higher than the risk experienced in at least some current drinking water treatment systems, and may be orders of magnitude lower.[33] This report recommends adjustments to the federal regulatory framework that could enhance public health protection for both planned and unplanned (or de facto) reuse and increase public confidence in water reuse.

Many humans associate a feeling of disgust with reclaimed water and 13% of a survey group said they would not even sip it.[34] Nonetheless, the main health risk for potable use of reclaimed water is the potential for pharmaceutical and other household chemicals or their derivatives (Environmental persistent pharmaceutical pollutants) to persist in this water.[35] This would be less of a concern if human excreta was kept out of sewage by using dry toilets or systems that treat blackwater separately from greywater.

To address these concerns about the source water, reclaimed water providers use multi-barrier treatment processes and constant monitoring to ensure that reclaimed water is safe and treated properly for the intended end use.

6. Environmental Aspects

There is debate about possible health and environmental effects. To address these concerns, A Risk Assessment Study of potential health risks of recycled water and comparisons to conventional Pharmaceuticals and Personal Care Product (PPCP) exposures was conducted by the WateReuse Research Foundation. For each of four scenarios in which people come into contact with recycled water used for irrigation - children on the playground, golfers, and landscape, and agricultural workers - the findings from the study indicate that it could take anywhere from a few years to millions of years of exposure to nonpotable recycled water to reach the same exposure to PPCPs that we get in a single day through routine activities.

Using reclaimed water for non-potable uses saves potable water for drinking, since less potable water will be used for non-potable uses.[36]

It sometimes contains higher levels of nutrients such as nitrogen, phosphorus and oxygen which may somewhat help fertilize garden and agricultural plants when used for irrigation.

The usage of water reclamation decreases the pollution sent to sensitive environments. It can also enhance wetlands, which benefits the wildlife depending on that eco-system. It also helps to stop the chances of drought as recycling of water reduces the use of fresh water supply from underground sources. For instance, The San Jose/Santa Clara Water Pollution Control Plant instituted a water recycling program to protect the San Francisco Bay area's natural salt water marshes.[36]

The main potential risks that are associated with reclaimed wastewater reuse for irrigation purposes, when the treatment is not adequate are the following:[37][38]

  1. contamination of the food chain with microcontaminants, pathogens (i.e. bacteria, viruses, protozoa, helminths), or antibiotic resistance determinants;
  2. soil salinization and accumulation of various unknown constituents that might adversely affect agricultural production;
  3. distribution of the indigenous soil microbial communities;
  4. alteration of the physicochemical and microbiological properties of the soil and contribution to the accumulation of chemical/biological contaminants (e.g. heavy metals, chemicals (i.e. boron, nitrogen, phosphorus, chloride, sodium, pesticides/herbicides), natural chemicals (i.e. hormones), contaminants of emerging concern (CECs) (i.e. pharmaceuticals and their metabolites, personal care products, household chemicals and food additives and their transformation products), etc.) in it and subsequent uptake by plants and crops;
  5. excessive growth of algae and vegetation in canals carrying wastewater (i.e. eutrophication);
  6. groundwater quality degradation by the various reclaimed water contaminants, migrating and accumulating in the soil and aquifers.

7. History

Wastewater reuse (planned or unplanned) is an ancient practice, which has been applied since the dawn of human history and is closely connected to the development of sanitation provision.[39]

7.1. U.S.

In the U.S., the Clean Water Act of 1972 mandated elimination of the discharge of untreated waste from municipal and industrial sources to make water safe for fishing and recreation. The US federal government provided billions of dollars in grants for building sewage treatment plants around the country. Modern treatment plants, usually using oxidation and/or chlorination in addition to primary and secondary treatment, were required to meet certain standards.[40]

Los Angeles County's sanitation districts started providing treated wastewater for landscape irrigation in parks and golf courses in 1929. The first reclaimed water facility in California was built at San Francisco 's Golden Gate Park in 1932. The Water Replenishment District of Southern California was the first groundwater agency to obtain permitted use of recycled water for groundwater recharge in 1962.

Denver’s Direct Potable Water Reuse Demonstration Project[41] examined the technical, scientific, and public acceptance aspects of DPR from 1979 to 1993. A chronic lifetime whole-animal health effects study on the 1 MGD advanced treatment plant product augmented a comprehensive assessment of the chemical and microbiological water quality. The $30 million study found that the water produced met all health standards and compared favorably with Denver’s high quality drinking water. Further, the projected cost was lower than estimates for obtaining distant new water supplies.

Orange County is located in Southern California, USA, and houses a classic example in indirect potable reuse.[42] A large-scale artificial groundwater recharge scheme exists in the area, providing a much-needed freshwater barrier to intruding seawater.[43] Part of the injected water consists of recycled water, which started in 1976 with Water Factory 21, which used RO and high lime to clean the water (production capacity of 19,000 m3 per day).[44] This plant was decommissioned in 2004 and has since made place for a new project with a higher capacity (265,000 m3 per day with an ultimate capacity of 492,000 m3 per day), under the name of Groundwater Replenishment System.[42]

8. Guidelines and Regulations

8.1. International Organisations

  • World Health Organization (WHO): “Guidelines for the safe use of wastewater, excreta and greywater” (2006).[2]
  • United Nations Environment Programme (UNEP): “Guidelines for municipal wastewater reuse in the Mediterranean region” (2005).
  • United Nations Water Decade Programme on Capacity Development (UNW-DPC): Proceedings on the UNWater project “Safe use of wastewater in agriculture” (2013).

8.2. European Union

The health and environmental safety conditions under which wastewater may be reused are not specifically regulated at the European Union (EU) level. There are no guidelines or regulations at EU level on water quality for water reuse purposes. In the Water Framework Directive, reuse of water is mentioned as one of the possible measures to achieve the Directive's quality goals, however this remains a relatively vague recommendation rather than a requirement: Part B of Annex VI refers to reuse as one of the “supplementary measures which Member States within each river basin district may choose to adopt as part of the programme of measures required under Article 11(4)”.[45]

Besides that, Article 12 of the Urban Wastewater Treatment Directive concerning the reuse of treated wastewater states that “treated wastewater shall be reused whenever appropriate”, is not specific enough to promote water reuse and it leaves too much room for interpretation as to what can be considered as an “appropriate” situation to reuse treated wastewater.

Despite the lack of common water reuse criteria at the EU level, several Member States (MS) have issued their own legislative frameworks, regulations, or guidelines for different water reuse applications (e.g. Cyprus, France, Greece, Italy, and Spain).

However, after an evaluation carried out by the European Commission (EC) on the water reuse standards of several member states it was concluded that they differ in their approach. There are important divergences among the different standards regarding the permitted uses, the parameters to be monitored, and the limit values allowed. This lack of harmonization among water reuse standards might create some trade barriers for agricultural goods irrigated with reclaimed water. Once on the common market, the level of safety in the producing member states may be not considered as sufficient by the importing countries.[46] The most representative standards on wastewater reuse from European member states are the following:[45]

  • Cyprus: Law 106 (I) 2002 Water and Soil pollution control and associated regulations (KDP 772/2003, KDP 269/2005) (Issuing Institutions: Ministry of Agriculture, Natural resources and Environment, Water Development Department).
  • France: Jorf num.0153, 4 July 2014. Order of 2014, related to the use of water from treated urban wastewater for irrigation of crops and green areas (Issuing Institutions: Ministry of Public Health, Ministry of Agriculture, Food and Fisheries, Ministry of Ecology, Energy and Sustainability).
  • Greece: CMD No 145116. Measures, limits and procedures for reuse of treated wastewater (Issuing Institutions: Ministry of Environment, Energy and Climate Change).
  • Italy: DM 185/2003. Technical measures for reuse of wastewater (Issuing Institutions: Ministry of Environment, Ministry of Agriculture, Ministry of Public Health).
  • Portugal: NP 4434 2005. Reuse of reclaimed urban water for irrigation (Issuing Institutions: Portuguese Institute for Quality).
  • Spain: RD 1620/2007. The legal framework for the reuse of treated wastewater (Issuing Institutions: Ministry of Environment, Ministry of Agriculture, Food and Fisheries, Ministry of Health).

8.3. U.S.

Reclaimed water is not regulated by the Environmental Protection Agency (EPA), but the EPA has developed water reuse guidelines that were most recently updated in 2012.[47][48] The EPA Guidelines for Water Reuse represents the international standard for best practices in water reuse. The document was developed under a Cooperative Research and Development Agreement between the U.S. Environmental Protection Agency (EPA), the U.S. Agency for International Development (USAID), and the global consultancy CDM Smith. The Guidelines provide a framework for states to develop regulations that incorporate the best practices and address local requirements.

8.4. Other Countries

  • Canada: “Canadian guidelines for domestic reclaimed water for use in toilet and urinal flushing” (2010).
  • China: China National Reclaimed Water Quality Standard; China National Standard GB/T 18920-2002, GB/T 19923-2005, GB/T 18921-2002, GB 20922-2007 and GB/T 19772-2005.
  • Israel: Ministry of Health regulation (2005).
  • Japan: National Institute for Land and Infrastructure Management: Report of the Microbial Water Quality Project on Treated Sewage and Reclaimed Wastewater (2008).
  • Jordan: Jordanian technical base n. 893/2006 Jordan water reuse management Plan (policy).
  • Mexico: Mexican Standard NOM-001-ECOL-1996 governing wastewater reuse in Agriculture.
  • South Africa Policies: The latest revision of the Water Services Act of 1997 relating to grey-water and treated effluent (Department of Water Affairs and Forestry, 2001).
  • Tunisia: Standard for the use of treated wastewater in agriculture (NT 106-109 of 1989) and list of crops that can be irrigated with treated wastewater (Ministry of Agriculture, 1994).
  • USA National: United States Environmental Protection Agency (USEPA) “Guidelines for water reuse” (2012).
  • Australia National level Guidelines: Government of Australia (the Natural Resource Management Ministerial Council, the Environment Protection and Heritage Council, and the Australian Health Ministers Conference (NRMMC-EPHC-AHMC)): Guidelines for water recycling: managing health and environmental risks” Phase 1, 2006.[45]

9. Examples

9.1. Australia

When there are droughts in Australia interest in reclaimed effluent options increases. Brisbane has been seen as a leader in this trend, and other cities and towns will review the Western Corridor Recycled Water Project once completed.[4][49]

While there are currently no full-scale direct potable reuse schemes operating in Australia, the Australian Antarctic Division is investigating the option of installing a potable reuse scheme at its Davis research base in Antarctica. To enhance the quality of the marine discharge from the Davis WWTP, a number of different, proven technologies have been selected to be used in the future, such as ozonation, UV disinfection, chlorine, as well as UF, activated carbon filtration and RO.[4]

9.2. Israel

As of 2010, Israel leads the world in the proportion of water it recycles.[50] Israel treats 80% of its sewage (400 billion liters a year), and 100% of the sewage from the Tel Aviv metropolitan area is treated and reused as irrigation water for agriculture and public works. As of today, all the reclaimed sewage water in Israel is used for agricultural and land improvement purposes.

9.3. Namibia

An example of direct potable reuse is the case of Windhoek (Namibia, New Goreangab Water Reclamation Plant (NGWRP)), where treated wastewater has been blended with drinking water for more than 40 years. It is based on the multiple treatment barriers concept (i.e. pre-ozonation, enhanced coagulation/dissolved air flotation/rapid sand filtration, and subsequent ozone, biological activated carbon/granular activated carbon, ultrafiltration (UF), chlorination) to reduce associated risks and improve the water quality.[49] The reclaimed wastewater nowadays represent about 14% of the city's drinking water production.[51]

9.4. Singapore

In Singapore reclaimed water is called NEWater and is bottled directly from an advanced water purification facility for educational and celebratory purposes. Though most of the reused water is used for high-tech industry in Singapore, a small amount is returned to reservoirs for drinking water.

At the end of 2002, the programme - successfully branded as NEWater - had garnered a 98 percent acceptance rate, with 82% of respondents indicating that they would drink the reused water directly, another 16% only when mixed with reservoir water.[52] The produced NEWater after stabilization (addition of alkaline chemicals) is in compliance with the WHO requirements and can be piped off to its wide range of applications (e.g. reuse in industry, discharge to a drinking water reservoir).[53] NEWater now makes up around 30% of Singapore's total use, by 2060 Singapore's National Water Agency plans to triple the current NEWater capacity as to meet 50% of Singapore's future water demand.[54]

9.5. South Africa

In South Africa, the main driver for wastewater reuse is drought conditions.[4]

For example, in Beaufort West, South Africa's a direct wastewater reclamation plant (WRP) for the production of drinking water was constructed in the end of 2010, as a result of acute water scarcity (production of 2,300 m3 per day).[55][56] The process configuration based on multi-barrier concept and includes the following treatment processes: sand filtration, UF, two-stage RO, and permeate disinfected by ultraviolet light (UV).

9.6. U.S.

The leaders in use of reclaimed water in the U.S. are Florida and California.[57]

In a January 2012 U.S. National Research Council report,[58] a committee of independent experts found that expanding the reuse of municipal wastewater for irrigation, industrial uses, and drinking water augmentation could significantly increase the United States’ total available water resources.[59]

One example is Orange County which is located in Southern California, USA, and houses a classic example in indirect potable reuse.[42] A large-scale artificial groundwater recharge scheme exists in the area, providing a much-needed freshwater barrier to intruding seawater.[43]


  1. Andersson, K., Rosemarin, A., Lamizana, B., Kvarnström, E., McConville, J., Seidu, R., Dickin, S. and Trimmer, C. (2016). Sanitation, Wastewater Management and Sustainability: from Waste Disposal to Resource Recovery. Nairobi and Stockholm: United Nations Environment Programme and Stockholm Environment Institute. ISBN:978-92-807-3488-1
  2. WHO (2006). WHO Guidelines for the Safe Use of Wastewater, Excreta and Greywater - Volume IV: Excreta and greywater use in agriculture. World Health Organization (WHO), Geneva, Switzerland
  3. WWAP (United Nations World Water Assessment Programme) (2017). The United Nations World Water Development Report 2017. Wastewater: The Untapped Resource. Paris. ISBN 978-92-3-100201-4.
  4. Burgess, Jo; Meeker, Melissa; Minton, Julie; O'Donohue, Mark (4 September 2015). "International research agency perspectives on potable water reuse" (in en). Environmental Science: Water Research & Technology 1 (5): 563–580. doi:10.1039/C5EW00165J. ISSN 2053-1419.
  5. "Direct Potable Reuse: Benefits for Public Water Supplies, Agriculture, the Environment, and Energy Conservation". Retrieved 29 July 2016.
  6. Creel, Liz. RIPPLE EFFECTS: POPULATION AND COASTAL REGIONS. Retrieved 29 July 2016.
  7. "Guidelines for water reuse". USEPA. Retrieved 29 July 2016.
  8. "National Water Quality Management Strategy.". Retrieved 29 July 2016.
  9. "Water Recycling and Reuse: The Environmental Benefits". USEPA. Retrieved 29 July 2016.
  10. "Water reuse in Europe. Relevant guidelines, needs for and barriers to innovation". European Union. Retrieved 29 July 2016.
  11. "Guidelines for water reuse". USEPA. Retrieved 29 July 2016.
  12. Public Utilities Board, Overseas Experiences, accessed 24 April 2007.
  13. "Guidelines for water reuse". USEPA. Retrieved 29 July 2016.
  14. Otoo, Miriam; Drechsel, Pay (2018). Resource recovery from waste: business models for energy, nutrient and water reuse in low- and middle-income countries. Oxon, UK: Routledge - Earthscan.
  15. "ISO 16075-1:2015 - Guidelines for treated wastewater use for irrigation projects -- Part 1: The basis of a reuse project for irrigation".
  16. Gerrity, D; Pecson, B; Trussell, R.S.; Trussell, R.R. (2013). "Potable reuse treatment trains throughout the world". J. Water Supply Res. Technol.-AQUA 62 (6): 321–338. doi:10.2166/aqua.2013.041. Retrieved 29 July 2016.
  17. Warsinger, David M.; Chakraborty, Sudip; Tow, Emily W.; Plumlee, Megan H.; Bellona, Christopher; Loutatidou, Savvina; Karimi, Leila; Mikelonis, Anne M. et al. (2018). "A review of polymeric membranes and processes for potable water reuse". Progress in Polymer Science 81: 209–237. doi:10.1016/j.progpolymsci.2018.01.004. ISSN 0079-6700. PMID 29937599.
  18. Michael-Kordatou, I.; Michael, C.; Duan, X.; He, X.; Dionysiou, D.D.; Mills, M.A.; Fatta-Kassinos, D. (June 2015). "Dissolved effluent organic matter: Characteristics and potential implications in wastewater treatment and reuse applications". Water Research 77: 213–248. doi:10.1016/j.watres.2015.03.011. PMID 25917290.
  19. University of Colorado
  20. "Scientific American Frontiers". Scientific American Frontiers - PBS Programs - PBS. Retrieved 12 March 2016.
  21. "Astronauts Drink Recycled Urine, and Celebrate". May 20, 2009.
  22. Lopes, Ana Rita; Becerra-Castro, Cristina; Vaz-Moreira, Ivone; Silva, M. Elisabete F.; Nunes, Olga C.; Manaia, Célia M. (2015). "Irrigation with Treated Wastewater: Potential Impacts on Microbial Function and Diversity in Agricultural Soils". Wastewater Reuse and Current Challenges. The Handbook of Environmental Chemistry. 44. Springer. pp. 105–128. doi:10.1007/698_2015_346. ISBN 978-3-319-23891-3.
  23. "Water Reuse in Europe - Relevant guidelines, needs for and barriers to innovation". Retrieved 29 July 2016.
  24. Nitrogen recovery by VEAS/Yara
  25. Zhang, S.X.; V. Babovic (2012). "A real options approach to the design and architecture of water supply systems using innovative water technologies under uncertainty". Journal of Hydroinformatics 14: 13–29. doi:10.2166/hydro.2011.078.
  26. "Water Scarcity, a driver for water reclamation, reuse and collaboration". Retrieved 17 August 2016.
  27. "Water Reuse - Environment - European Commission". Retrieved 17 August 2016.
  28. Pintilie, Loredana; Torres, Carmen M.; Teodosiu, Carmen; Castells, Francesc (December 15, 2016). "Urban wastewater reclamation for industrial reuse: An LCA case study". Journal of Cleaner Production 139: 1–14. doi:10.1016/j.jclepro.2016.07.209. ISSN 0959-6526.
  29. Burgess, Jo; Meeker, Melissa; Minton, Julie; O'Donohue, Mark (2015). "International research agency perspectives on potable water reuse". Environ. Sci.: Water Res. Technol. 1 (5): 563–580. doi:10.1039/C5EW00165J.
  30. Wester, Julia; Timpano, Kiara R.; Çek, Demet; Broad, Kenneth (2016). "The psychology of recycled water: Factors predicting disgust and willingness to use" (in en). Water Resources Research 52 (4): 3212–3226. doi:10.1002/2015WR018340. ISSN 1944-7973. Bibcode: 2016WRR....52.3212W.
  31. Helgeson, Tom (2009). A Reconnaissance-Level Quantitative Comparison of Reclaimed Water, Surface Water, and Groundwater. Alexandria, VA: WateReuse Research Foundation. pp. 141. ISBN 978-1-934183-12-0.
  32. Crook, James (2005). Irrigation of Parks, Playgrounds, and Schoolyards: Extent and Safety. Alexandria, VA: WateReuse Research Foundation. pp. 60. ISBN 978-0-9747586-3-3.
  33. Water Reuse: Potential for Expanding the Nation's Water Supply through Reuse of Municipal Wastewater. National Research Council. 2012. ISBN 978-0-309-25749-7.
  34. Kean, Sam (Winter 2015). "Waste Not, Want Not". Distillations 1 (4): 5. Retrieved 22 March 2018.
  35. Owens, Brian (19 February 2015). "Pharmaceuticals in the environment: a growing problem". The Pharmaceutical Journal. Retrieved 3 January 2017.
  36. "Water Recycling and Reuse: The Environmental Benefits/". US Environment Protection Agency. 23 February 2016.
  38. "Water Reuse in Europe - Relevant guidelines, needs for and barriers to innovation". Retrieved 29 July 2016.
  39. Khouri, N; Kalbermatten, J. M.; Bartone, C. R.. "Reuse of wastewater in agriculture: A guide for planners". Retrieved 29 July 2016.
  40. 33 Usc 1251 seq., 1972, Federal Water Pollution Control Act, Enacted by Congress.
  41. Lauer, William C (1993). Denver’s Direct Potable Water Reuse Demonstration Project Final Report (25 volumes). Denver Water and US EPA Cooperative Agreement CS-806821-01-4.
  42. "Remaking waste as water: The governance of recycled effluent for potable water supply". Retrieved 29 July 2016.
  43. Wehner, Mike (2010-05-23). "Orange County's groundwater replenishment system: Potable reuse for the best available water".
  44. "Advanced reuse: from Windhoek to Singapore and beyond, Water". Retrieved 29 July 2016.
  45. Alcalde Sanz, Laura; Gawlik, Bernd (1 January 2014). "Water Reuse in Europe - Relevant guidelines, needs for and barriers to innovation". Publications Office of the European Union. Retrieved 17 August 2016.
  46. "Water Reuse - Environment - European Commission". Retrieved 17 August 2016.
  47. "Environmental Protection Agency". Retrieved 17 August 2016.
  48. 2012 Guidelines for Water Reuse. USEPA. 2012. Retrieved 5 July 2014.
  49. Rodriguez, Clemencia; Van Buynder, Paul; Lugg, Richard; Blair, Palenque; Devine, Brian; Cook, Angus; Weinstein, Philip (17 March 2009). "Indirect Potable Reuse: A Sustainable Water Supply Alternative". International Journal of Environmental Research and Public Health 6 (3): 1174–1203. doi:10.3390/ijerph6031174. PMID 19440440.
  50. "Arid Israel recycles waste water on grand scale". Retrieved 12 March 2016.
  52. Water Sensitive Cities. IWA Publishing.
  53. "Singapore Public Utilities Board". Archived from the original on 28 May 2016. Retrieved 29 July 2016.
  54. "Global milestones in water reuse: keys to success and trends in development". Retrieved 29 July 2016.
  55. "Risk Assessment for South Africa's first direct wastewater reclamation system for drinking water production". Retrieved 29 July 2016.
  56. "Beaufort West Water Reclamation Plant: First Direct (Toilet-to-Tap) Water Reclamation Plant in South Africa". Retrieved 29 July 2016.
  57. UF Professor: Drought Highlights Value Of Reused Water . University of Florida News. May 24, 2000.
  58. "Water Reuse: Potential for Expanding the Nation's Water Supply through Reuse of Municipal Wastewater (2012) : Division on Earth and Life Studies". Retrieved 12 March 2016.
  59. "Division on Earth and Life Studies". Retrieved 12 March 2016.
Subjects: Others
Contributor MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to :
View Times: 2.9K
Entry Collection: HandWiki
Revision: 1 time (View History)
Update Date: 24 Oct 2022
Video Production Service
