1. Generations

1.1. First-Generation Biofuels

"First-generation" or conventional biofuels are biofuels made from food crops grown on arable land. With this biofuel production generation, food crops are thus explicitly grown for fuel production, and not anything else. The sugar, starch, or vegetable oil obtained from the crops is converted into biodiesel or ethanol, using transesterification, or yeast fermentation.^[1]

1.2. Second-Generation Biofuels

Second-generation biofuels are fuels manufactured from various types of biomass. Biomass is a wide-ranging term meaning any source of organic carbon that is renewed rapidly as part of the carbon cycle. Biomass is derived from plant materials, but can also include animal materials.

Whereas first generation biofuels are made from the sugars and vegetable oils found in arable crops, second generation biofuels are made from lignocellulosic biomass or woody crops, agricultural residues or waste plant material (from food crops that have already fulfilled their food purpose).^{[2][3][4][5][6]} The feedstock used to generate second-generation biofuels thus either grows on arable lands, but are just byproducts of the actual harvest (main crop) or they are grown on lands which cannot be used to effectively grow food crops^[7] and in some cases neither extra water or fertilizer is applied to them. Non-human food second generation feedstock sources include grasses, jatropha and other seed crops, waste vegetable oil, municipal solid waste and so forth.^[8]

This has both advantages and disadvantages. The advantage is that, unlike with regular food crops, no arable land is used solely for the production of fuel. The disadvantage is that unlike with regular food crops, it may be rather difficult to extract the fuel. For instance, a series of physical and chemical treatments might be required to convert lignocellulosic biomass to liquid fuels suitable for transportation.^[9][10]

1.3. Third-Generation Biofuels

From 1978 to 1996, the US NREL experimented with using algae as a biofuels source in the Aquatic Species Program.^[11] A self-published article by Michael Briggs, at the UNH Biofuels Group, offers estimates for the realistic replacement of all vehicular fuel with biofuels by using algae that have a natural oil content greater than 50%, which Briggs suggests can be grown on algae ponds at wastewater treatment plants.^[12] These oil-rich algae can then be extracted from the system and processed into biofuels, with the dried remainder further reprocessed to create ethanol. The production of algae to harvest oil for biofuels has not yet been undertaken on a commercial scale, but feasibility studies have been conducted to arrive at the above yield estimate. In addition to its projected high yield, algaculture – unlike crop-based biofuels – does not entail a decrease in food production, since it requires neither farmland nor fresh water. Many companies are pursuing algae bioreactors for various purposes, including scaling up biofuels production to commercial levels.^[13][14] Prof. Rodrigo E. Teixeira from the University of Alabama in Huntsville demonstrated the extraction of biofuels lipids from wet algae using a simple and economical reaction in ionic liquids.^[15]

1.4. Fourth-Generation Biofuels

Similarly to third-generation biofuels, fourth-generation biofuels are made using non-arable land. However, unlike third-generation biofuels, they do not require the destruction of biomass. This class of biofuels includes electrofuels^[1] and photobiological solar fuels.^[16] Some of these fuels are carbon-neutral.

2. Examples

The following fuels can be produced using first, second, third or fourth-generation biofuel production procedures. Most of these can even be produced using two or three of the different biofuel generation procedures.^[17]

2.1. Biogas

Pipes carrying biogas. By Vortexrealm at English Wikipedia, CC BY 3.0, https://commons.wikimedia.org/w/index.php?curid=3441883

Biogas is methane produced by the process of anaerobic digestion of organic material by anaerobes.^[18] It can be produced either from biodegradable waste materials or by the use of energy crops fed into anaerobic digesters to supplement gas yields. The solid byproduct, digestate, can be used as a biofuel or a fertilizer.

Biogas can be recovered from mechanical biological treatment waste processing systems. Landfill gas, a less clean form of biogas, is produced in landfills through naturally occurring anaerobic digestion. If it escapes into the atmosphere, it is a potential greenhouse gas.

Farmers can produce biogas from manure from their cattle by using anaerobic digesters.^[19]

2.2. Syngas

Syngas, a mixture of carbon monoxide, hydrogen and other hydrocarbons, is produced by partial combustion of biomass, that is, combustion with an amount of oxygen that is not sufficient to convert the biomass completely to carbon dioxide and water.^[20] Before partial combustion, the biomass is dried, and sometimes pyrolysed. The resulting gas mixture, syngas, is more efficient than direct combustion of the original biofuel; more of the energy contained in the fuel is extracted.

Syngas may be burned directly in internal combustion engines, turbines or high-temperature fuel cells.^[21] The wood gas generator, a wood-fueled gasification reactor, can be connected to an internal combustion engine.

Syngas can be used to produce methanol, DME and hydrogen, or converted via the Fischer–Tropsch process to produce a diesel substitute, or a mixture of alcohols that can be blended into gasoline. Gasification normally relies on temperatures greater than 700 °C.

Lower-temperature gasification is desirable when co-producing biochar, but results in syngas polluted with tar.

2.3. Ethanol

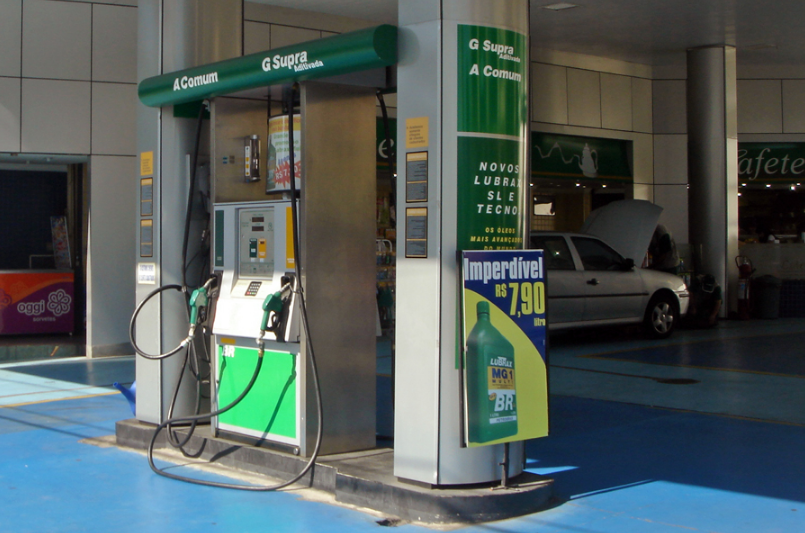

Neat ethanol on the left (A), gasoline on the right (G) at a filling station in Brazil. By Mariordo Mario Roberto Duran Ortiz - Own work, CC BY 3.0, https://commons.wikimedia.org/w/index.php?curid=3988176.

Biologically produced alcohols, most commonly ethanol, and less commonly propanol and butanol, are produced by the action of microorganisms and enzymes through the fermentation of sugars or starches (easiest), or cellulose (which is more difficult). Biobutanol (also called biogasoline) is often claimed to provide a direct replacement for gasoline, because it can be used directly in a gasoline engine.

Ethanol fuel is the most common biofuel worldwide, particularly in Brazil. Alcohol fuels are produced by fermentation of sugars derived from wheat, corn, sugar beets, sugar cane, molasses and any sugar or starch from which alcoholic beverages such as whiskey, can be made (such as potato and fruit waste, etc.). The ethanol production methods used are enzyme digestion (to release sugars from stored starches), fermentation of the sugars, distillation and drying. The distillation process requires significant energy input for heat (sometimes unsustainable natural gas fossil fuel, but cellulosic biomass such as bagasse, the waste left after sugar cane is pressed to extract its juice, is the most common fuel in Brazil, while pellets, wood chips and also waste heat are more common in Europe) Waste steam fuels ethanol factory^[22] – where waste heat from the factories also is used in the district heating grid.

Ethanol can be used in petrol engines as a replacement for gasoline; it can be mixed with gasoline to any percentage. Most existing car petrol engines can run on blends of up to 15% bioethanol with petroleum/gasoline. Ethanol has a smaller energy density than that of gasoline; this means it takes more fuel (volume and mass) to produce the same amount of work. An advantage of ethanol (CH₃CH₂OH) is that it has a higher octane rating than ethanol-free gasoline available at roadside gas stations, which allows an increase of an engine's compression ratio for increased thermal efficiency. In high-altitude (thin air) locations, some states mandate a mix of gasoline and ethanol as a winter oxidizer to reduce atmospheric pollution emissions.

Ethanol is also used to fuel bioethanol fireplaces. As they do not require a chimney and are "flueless", bioethanol fires^[23] are extremely useful for newly built homes and apartments without a flue. The downsides to these fireplaces is that their heat output is slightly less than electric heat or gas fires, and precautions must be taken to avoid carbon monoxide poisoning.

Corn-to-ethanol and other food stocks has led to the development of cellulosic ethanol. According to a joint research agenda conducted through the US Department of Energy,^[24] the fossil energy ratios (FER) for cellulosic ethanol, corn ethanol, and gasoline are 10.3, 1.36, and 0.81, respectively.^[25][26][27]

Ethanol has roughly one-third lower energy content per unit of volume compared to gasoline. This is partly counteracted by the better efficiency when using ethanol (in a long-term test of more than 2.1 million km, the BEST project found FFV vehicles to be 1–26% more energy efficient than petrol cars, but the volumetric consumption increases by approximately 30%, so more fuel stops are required).

With current subsidies, ethanol fuel is slightly cheaper per distance traveled in the United States.

2.4. Other Bioalcohols

Methanol is currently produced from natural gas, a non-renewable fossil fuel. In the future it is hoped to be produced from biomass as biomethanol. This is technically feasible, but the production is currently being postponed for concerns that the economic viability is still pending.^[28] The methanol economy is an alternative to the hydrogen economy, to be contrasted with today's hydrogen production from natural gas.

Butanol (C₄H₉OH) is formed by ABE fermentation (acetone, butanol, ethanol) and experimental modifications of the process show potentially high net energy gains with butanol as the only liquid product. Butanol will produce more energy than ethanol because of its lower oxygen content^[29] and allegedly can be burned "straight" in existing gasoline engines (without modification to the engine or car),^[30] and is less corrosive and less water-soluble than ethanol, and could be distributed via existing infrastructures. DuPont and BP are working together to help develop butanol. Escherichia coli strains have also been successfully engineered to produce butanol by modifying their amino acid metabolism.^[31] One drawback to butanol production in E. coli remains the high cost of nutrient rich media, however, recent work has demonstrated E. coli can produce butanol with minimal nutritional supplementation.^[32]

2.5. Biodiesel

Biodiesel is the most common biofuel in Europe. It is produced from oils or fats using transesterification and is a liquid similar in composition to fossil/mineral diesel. Chemically, it consists mostly of fatty acid methyl (or ethyl) esters (FAMEs). Feedstocks for biodiesel include animal fats, vegetable oils, soy, rapeseed, jatropha, mahua, mustard, flax, sunflower, palm oil, hemp, field pennycress, Pongamia pinnata and algae. Pure biodiesel (B100, also known as "neat" biodiesel) currently reduces emissions with up to 60% compared to diesel Second generation B100.^[33] (As of 2020), researchers at Australia's CSIRO have been studying safflower oil as an engine lubricant, and researchers at Montana State University's Advanced Fuel Centre in the US have been studying the oil's performance in a large diesel engine, with results described as a "game-changer".^[34]

Targray Biofuels Division railcar transporting Biodiesel. By Olivier Benny - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=66041540

Biodiesel can be used in any diesel engine when mixed with mineral diesel. It can also be used in its pure form (B100) in diesel engines, but some maintenance and performance problems may then occur during wintertime utilization, since the fuel becomes somewhat more viscous at lower temperatures, depending on the feedstock used.^[35]

In some countries, manufacturers cover their diesel engines under warranty for B100 use, although Volkswagen of Germany , for example, asks drivers to check by telephone with the VW environmental services department before switching to B100. In most cases, biodiesel is compatible with diesel engines from 1994 onwards, which use 'Viton' (by DuPont) synthetic rubber in their mechanical fuel injection systems. Note however, that no vehicles are certified for using pure biodiesel before 2014, as there was no emission control protocol available for biodiesel before this date.

Electronically controlled 'common rail' and 'Unit Injector' type systems from the late 1990s onwards may only use biodiesel blended with conventional diesel fuel. These engines have finely metered and atomized multiple-stage injection systems that are very sensitive to the viscosity of the fuel. Many current-generation diesel engines are made so that they can run on B100 without altering the engine itself, although this depends on the fuel rail design. Since biodiesel is an effective solvent and cleans residues deposited by mineral diesel, engine filters may need to be replaced more often, as the biofuel dissolves old deposits in the fuel tank and pipes. It also effectively cleans the engine combustion chamber of carbon deposits, helping to maintain efficiency. In many European countries, a 5% biodiesel blend is widely used and is available at thousands of gas stations.^[36][37] Biodiesel is also an oxygenated fuel, meaning it contains a reduced amount of carbon and higher hydrogen and oxygen content than fossil diesel. This improves the combustion of biodiesel and reduces the particulate emissions from unburnt carbon. However, using pure biodiesel may increase NO_x-emissions^[38]

Biodiesel is also safe to handle and transport because it is non-toxic and biodegradable, and has a high flash point of about 300 °F (148 °C) compared to petroleum diesel fuel, which has a flash point of 125 °F (52 °C).^[39]

In the US, more than 80% of commercial trucks and city buses run on diesel. The emerging US biodiesel market is estimated to have grown 200% from 2004 to 2005. "By the end of 2006 biodiesel production was estimated to increase fourfold [from 2004] to more than" 1 billion US gallons (3,800,000 m³).^[40]

In France, biodiesel is incorporated at a rate of 8% in the fuel used by all French diesel vehicles.^[41] Avril Group produces under the brand Diester, a fifth of 11 million tons of biodiesel consumed annually by the European Union.^[42] It is the leading European producer of biodiesel.^[41]

2.6. Green Diesel

Green diesel is produced through hydrocracking biological oil feedstocks, such as vegetable oils and animal fats.^[43][44] Hydrocracking is a refinery method that uses elevated temperatures and pressure in the presence of a catalyst to break down larger molecules, such as those found in vegetable oils, into shorter hydrocarbon chains used in diesel engines.^[45] It may also be called renewable diesel, hydrotreated vegetable oil (HVO fuel)^[45] or hydrogen-derived renewable diesel.^[44] Unlike biodiesel, green diesel has exactly the same chemical properties as petroleum-based diesel.^[45][46] It does not require new engines, pipelines or infrastructure to distribute and use, but has not been produced at a cost that is competitive with petroleum.^[44] Gasoline versions are also being developed.^[47] Green diesel is being developed in Louisiana and Singapore by ConocoPhillips, Neste Oil, Valero, Dynamic Fuels, and Honeywell UOP^[44][48] as well as Preem in Gothenburg, Sweden, creating what is known as Evolution Diesel.^[49]

2.7. Straight Vegetable Oil

Filtered waste vegetable oil



This truck is one of 15 based at Walmart's Buckeye, Arizona distribution center that was converted to run on a biofuel made from reclaimed cooking grease produced during food preparation at Walmart stores.^[50]

Straight unmodified edible vegetable oil is generally not used as fuel, but lower-quality oil has been used for this purpose. Used vegetable oil is increasingly being processed into biodiesel, or (more rarely) cleaned of water and particulates and then used as a fuel.

As with 100% biodiesel (B100), to ensure the fuel injectors atomize the vegetable oil in the correct pattern for efficient combustion, vegetable oil fuel must be heated to reduce its viscosity to that of diesel, either by electric coils or heat exchangers. This is easier in warm or temperate climates. MAN B&W Diesel, Wärtsilä, and Deutz AG, as well as a number of smaller companies, such as Elsbett, offer engines that are compatible with straight vegetable oil, without the need for after-market modifications.

Vegetable oil can also be used in many older diesel engines that do not use common rail or unit injection electronic diesel injection systems. Due to the design of the combustion chambers in indirect injection engines, these are the best engines for use with vegetable oil. This system allows the relatively larger oil molecules more time to burn. Some older engines, especially Mercedes, are driven experimentally by enthusiasts without any conversion. A handful of drivers have experienced limited success with earlier pre-"Pumpe Duse" VW TDI engines and other similar engines with direct injection. Several companies, such as Elsbett or Wolf, have developed professional conversion kits and successfully installed hundreds of them over the last decades.

Oils and fats can be hydrogenated to give a diesel substitute. The resulting product is a straight-chain hydrocarbon with a high cetane number, low in aromatics and sulfur and does not contain oxygen. Hydrogenated oils can be blended with diesel in all proportions. They have several advantages over biodiesel, including good performance at low temperatures, no storage stability problems and no susceptibility to microbial attack.^[20]

2.8. Bioethers

Bioethers (also referred to as fuel ethers or oxygenated fuels) are cost-effective compounds that act as octane rating enhancers."Bioethers are produced by the reaction of reactive iso-olefins, such as iso-butylene, with bioethanol."^[51] Bioethers are created from wheat or sugar beets.^[52] They also enhance engine performance, while significantly reducing engine wear and toxic exhaust emissions. Although bioethers are likely to replace petroethers in the UK, it is highly unlikely they will become a fuel in and of itself due to the low energy density.^[53] By greatly reducing the amount of ground-level ozone emissions, they contribute to air quality.^[54][55]

When it comes to transportation fuel there are six ether additives: dimethyl ether (DME), diethyl ether (DEE), methyl tert-butyl ether (MTBE), ethyl tert-butyl ether (ETBE), tert-amyl methyl ether (TAME), and tert-amyl ethyl ether (TAEE).^[56]

The European Fuel Oxygenates Association (EFOA) identifies methyl tert-butyl ether (MTBE) and ethyl tert-butyl ether (ETBE) as the most commonly used ethers in fuel to replace lead. Ethers were introduced in Europe in the 1970s to replace the highly toxic compound.^[57] Although Europeans still use bioether additives, the US no longer has an oxygenate requirement therefore bioethers are no longer used as the main fuel additive.^[58]

3. Today's Technology

So-called "drop-in" biofuels can be defined as "liquid bio-hydrocarbons that are functionally equivalent to petroleum fuels and are fully compatible with existing petroleum infrastructure".^[59] Drop-in biofuels require no (engine) modification of the vehicle.^[60]

Some examples of drop-in biofuels include biobutanol, biodiesel, synthetic paraffinic kerosine,^[61][62] and other synthetic fuels.

According to a July 2014 report published by the IEA Bioenergy Task 39, entitled "The Potential and Challenges of Drop-in Biofuels", there are several ways to produce drop-in biofuels that are functionally equivalent to petroleum-derived transportation fuel blendstocks. These are discussed within three major sections of the full report and include:

• oleochemical processes, such as the hydroprocessing of lipid feedstocks obtained from oilseed crops, algae or tallow;
• thermochemical processes, such as the thermochemical conversion of biomass to fluid intermediates (gas or oil) followed by catalytic upgrading and hydroprocessing to hydrocarbon fuels; and
• biochemical processes, such as the biological conversion of biomass (sugars, starches or lignocellulose-derived feedstocks) to longer chain alcohols and hydrocarbons.^[63]

A fourth category is also briefly described that includes "hybrid" thermochemical/biochemical technologies such as fermentation of synthesis gas and catalytic reforming of sugars/carbohydrates.

The report concludes by stating:

Tremendous entrepreneurial activity to develop and commercialize drop-in biofuels from aquatic and terrestrial feedstocks has taken place over the past several years. However, despite these efforts, drop-in biofuels represent only a small percentage (around 2%) of global biofuel markets. ... Due to the increased processing and resource requirements (e.g., hydrogen and catalysts) needed to make drop-in biofuels as compared to conventional biofuels, large scale production of cost-competitive drop-in biofuels is not expected to occur in the near to midterm. Rather, dedicated policies to promote development and commercialization of these fuels will be needed before they become significant contributors to global biofuels production. Currently, no policies (e.g., tax breaks, subsidies etc.) differentiate new, more fungible and infrastructure ready drop-in type biofuels from less infrastructure compatible oxygenated biofuels. ... Thus, while tremendous technical progress has been made in developing and improving the various routes to drop-in fuels, supportive policies directed specifically towards the further development of drop-in biofuels are likely to be needed to ensure their future commercial success.^[64]

4. By Region

Bio Diesel Powered Fast Attack Craft Of Indian Navy patrolling during IFR 2016. The green bands on the side of the vessel are indicative of the fact that the vessel is powered by biodiesel. By Nani1992 - Bio Diesel Powered Fast Attack Craft Of Indian Navy patrolling during IFR 2016, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=46877707

There are international organizations such as IEA Bioenergy,^[65] established in 1978 by the OECD International Energy Agency (IEA), with the aim of improving cooperation and information exchange between countries that have national programs in bioenergy research, development and deployment. The United Nations International Biofuels Forum is formed by Brazil , China , India , Pakistan , South Africa , the United States and the European Commission.^[66] The world leaders in biofuel development and use are Brazil, the United States, France, Sweden and Germany. Russia also has 22% of world's forest,^[67] and is a big biomass (solid biofuels) supplier. In 2010, Russian pulp and paper maker, Vyborgskaya Cellulose, said they would be producing pellets that can be used in heat and electricity generation from its plant in Vyborg by the end of the year.^[68] The plant will eventually produce about 900,000 tons of pellets per year, making it the largest in the world once operational.

Biofuels currently make up 3.1%^[69] of the total road transport fuel in the UK or 1,440 million litres. By 2020, 10% of the energy used in UK road and rail transport must come from renewable sources – this is the equivalent of replacing 4.3 million tonnes of fossil oil each year. Conventional biofuels are likely to produce between 3.7 and 6.6% of the energy needed in road and rail transport, while advanced biofuels could meet up to 4.3% of the UK's renewable transport fuel target by 2020.^[70]

4.1. Offshore Energy

Offshore Biofuels can be categorized into three subsets being manufacturing, mining, and usage. Mining is used by growing algae or seaweed in floating farms off of coastlines and deep sea farms. Seaweed farms are combining with offshore windmills. Combing offshore windmills with seaweed farms could be an effective method for growing mass amounts of biomass, while using existing structures.Biomass - Offshore wind farms = seaweed = biofuel Using biofuels with cruise liners, shipping, and aircraft for long distance is other ways to implement the biofuels. The United State Navy is currently using biofuels for their ships.Navy Ship Runs on 100% Biodiesel The Navy ship in 2016 took on 180,000 gallons of biodiesel and practiced starts and stops, as well as speed changes to test the very compatibility of biodiesel.

5. Air Pollution

Biofuels are similar to fossil fuels in that biofuels contribute to air pollution. Burning produces carbon dioxide, airborne carbon particulates, carbon monoxide and nitrous oxides.^[71] The WHO estimates 4.2 million premature deaths worldwide in 2016 due to air pollution.^[72] Brazil burns significant amounts of ethanol biofuel. Gas chromatograph studies were performed of ambient air in São Paulo, Brazil, and compared to Osaka, Japan, which does not burn ethanol fuel. Atmospheric Formaldehyde was 160% higher in Brazil, and Acetaldehyde was 260% higher.^[73]

The Environmental Protection Agency acknowledged in April 2007 that the increased use of bioethanol will lead to worse air quality. The total emissions of air pollutants such as nitrogen oxides will rise due the growing use of bioethanol. There is an increase in carbon dioxide from the burning of fossil fuels to produce the biofuels as well as nitrous oxide from the soil, which has most likely been treated with nitrogen fertilizer. Nitrous oxide is known to have a greater impact on the atmosphere in relation to global warming, as it is also an ozone destroyer.^[74]

6. Debates Regarding the Production and Use of Biofuel

There are various social, economic, environmental and technical issues with biofuel production and use, which have been discussed in the popular media and scientific journals. These include: the effect of moderating oil prices, the "food vs fuel" debate, food prices, poverty reduction potential, energy ratio, energy requirements, carbon emissions levels, sustainable biofuel production, deforestation and soil erosion, loss of biodiversity,^[75] impact on water resources, the possible modifications necessary to run the engine on biofuel, as well as energy balance and efficiency.^[76] The International Resource Panel, which provides independent scientific assessments and expert advice on a variety of resource-related themes, assessed the issues relating to biofuel use in its first report Towards sustainable production and use of resources: Assessing Biofuels.^[77] "Assessing Biofuels" outlined the wider and interrelated factors that need to be considered when deciding on the relative merits of pursuing one biofuel over another. It concluded that not all biofuels perform equally in terms of their impact on climate, energy security and ecosystems, and suggested that environmental and social impacts need to be assessed throughout the entire life-cycle.

Another issue with biofuel use and production is the US has changed mandates many times because the production has been taking longer than expected. The Renewable Fuel Standard (RFS) set by congress for 2010 was pushed back to at best 2012 to produce 100 million gallons of pure ethanol (not blended with a fossil fuel).^[78]

6.1. Banning of First-Generation Biofuels

In the EU, the revised renewable energy directive calls for a complete ban on first-generation biofuels by 2020, as was decided by the EU Parliament in 2016. Particularly fuels made from such oils such as palm oil and soy oil are being targeted.^[79][80][81]

6.2. Sustainable Biofuels

Many of the biofuels that were being supplied in 2008 (using the first-generation biofuel production procedure) have been criticised for their adverse impacts on the natural environment, food security, and land use.^[82][83] In 2008, the Nobel-prize winning chemist Paul J. Crutzen published findings that the release of nitrous oxide (N₂O) emissions in the production of biofuels means that overall they contribute more to global warming than the fossil fuels they replace.^[84] In 2008, the challenge was to support biofuel development, including the development of new cellulosic technologies, with responsible policies and economic instruments to help ensure that biofuel commercialization is sustainable. Responsible commercialization of biofuels represented an opportunity to enhance sustainable economic prospects in Africa, Latin America and Asia.^[82][83][85] Biofuels in the form of liquid fuels derived from plant materials have entered the market, driven by the perception that they reduce climate gas emissions, and also by factors such as oil price spikes and the need for increased energy security.

According to the Rocky Mountain Institute, sound biofuel production practices would not hamper food and fibre production, nor cause water or environmental problems, and would enhance soil fertility.^[86] The selection of land on which to grow the feedstocks is a critical component of the ability of biofuels to deliver sustainable solutions. A key consideration is the minimisation of biofuel competition for prime cropland.^[87][88]

6.3. Greenhouse Gas Emissions

Some scientists have expressed concerns about land-use change in response to greater demand for crops to use for biofuel and the subsequent carbon emissions.^[89] The payback period, that is, the time it will take biofuels to pay back the carbon debt they acquire due to land-use change, has been estimated to be between 100 and 1000 years, depending on the specific instance and location of land-use change. However, no-till practices combined with cover-crop practices can reduce the payback period to three years for grassland conversion and 14 years for forest conversion.^[90]

A study conducted in the Tocantis State, in northern Brazil, found that many families were cutting down forests in order to produce two conglomerates of oilseed plants, the J. curcas (JC group) and the R. communis (RC group). This region is composed of 15% Amazonian rainforest with high biodiversity, and 80% Cerrado forest with lower biodiversity. During the study, the farmers that planted the JC group released over 2193 Mg CO₂, while losing 53–105 Mg CO₂ sequestration from deforestation; and the RC group farmers released 562 Mg CO₂, while losing 48–90 Mg CO₂ to be sequestered from forest depletion.^[91] The production of these types of biofuels not only led into an increased emission of carbon dioxide, but also to lower efficiency of forests to absorb the gases that these farms were emitting. This has to do with the amount of fossil fuel the production of fuel crops involves. In addition, the intensive use of monocropping agriculture requires large amounts of water irrigation, as well as of fertilizers, herbicides and pesticides. This does not only lead to poisonous chemicals to disperse on water runoff, but also to the emission of nitrous oxide (NO₂) as a fertilizer byproduct, which is three hundred times more efficient in producing a greenhouse effect than carbon dioxide (CO₂).^[92]

Converting rainforests, peatlands, savannas, or grasslands to produce food crop–based biofuels in Brazil, Southeast Asia, and the United States creates a "biofuel carbon debt" by releasing 17 to 420 times more CO₂ than the annual greenhouse gas (GHG) reductions that these biofuels would provide by displacing fossil fuels. Biofuels made from waste biomass or from biomass grown on abandoned agricultural lands incur little to no carbon debt.^[93]

In addition to crop growth requiring water, biofuel facilities require significant process water.^[94]

As of January 2020, a bill (H.853) was pending in the Massachusetts Legislature to exclude biomass fuels from the state's Alternative Portfolio Standard for renewable heating sources.^[95]

Biofuel Mandates

The Renewable Energy Directive 2009 Union mandated biofuel production for countries within their membership. This led to agricultural expansion and crop substitution, which in turn caused environmental and economic effects. The environmental effects are driven by this land use change while the economic effects led to rising global prices in the crops that were substituted for these newly developed biofuel croplands. Environmental factor (Section on "Socioeconomic Drivers")

7. Current Research

Specially bred mustard varieties can produce reasonably high oil yields and are very useful in crop rotation with cereals, and have the added benefit that the meal left over after the oil has been pressed out can act as an effective and biodegradable pesticide.^[96]

The NFESC, with Santa Barbara-based Biodiesel Industries, is working to develop biofuels technologies for the US navy and military, one of the largest diesel fuel users in the world.^[97] A group of Spanish developers working for a company called Ecofasa announced a new biofuel made from trash. The fuel is created from general urban waste which is treated by bacteria to produce fatty acids, which can be used to make biofuels.^[98] Before its shutdown, Joule Unlimited was attempting to make cheap ethanol and biodiesel from a genetically modified photosynthetic bacterium.

As of 2017, the Wrigley Institute of Environmental Studies was testing kelp farming near Catalina Island to create biofuel by thermochemical liquefaction.^[99]

7.1. Ethanol Biofuels (Bioethanol)

As the primary source of biofuels in North America, many organizations are conducting research in the area of ethanol production. The National Corn-to-Ethanol Research Center (NCERC) is a research division of Southern Illinois University Edwardsville dedicated solely to ethanol-based biofuel research projects.^[100] On the federal level, the USDA conducts a large amount of research regarding ethanol production in the United States. Much of this research is targeted toward the effect of ethanol production on domestic food markets.^[101] A division of the US Department of Energy, the National Renewable Energy Laboratory (NREL), has also conducted various ethanol research projects, mainly in the area of cellulosic ethanol.^[102]

Cellulosic ethanol commercialization is the process of building an industry out of methods of turning cellulose-containing organic matter into fuel. Companies, such as Iogen, POET, and Abengoa, are building refineries that can process biomass and turn it into bioethanol. Companies, such as Diversa, Novozymes, and Dyadic, are producing enzymes that could enable a cellulosic ethanol future. The shift from food crop feedstocks to waste residues and native grasses offers significant opportunities for a range of players, from farmers to biotechnology firms, and from project developers to investors.^[103]

As of 2013, the first commercial-scale plants to produce cellulosic biofuels have begun operating. Multiple pathways for the conversion of different biofuel feedstocks are being used. In the next few years, the cost data of these technologies operating at commercial scale, and their relative performance, will become available. Lessons learnt will lower the costs of the industrial processes involved.^[104]

In parts of Asia and Africa where drylands prevail, sweet sorghum is being investigated as a potential source of food, feed and fuel combined. The crop is particularly suitable for growing in arid conditions, as it only extracts one seventh of the water used by sugarcane. In India , and other places, sweet sorghum stalks are used to produce biofuel by squeezing the juice and then fermenting into ethanol.^[105]

A study by researchers at the International Crops Research Institute for the Semi-Arid Tropics (ICRISAT) found that growing sweet sorghum instead of grain sorghum could increase farmers incomes by US$40 per hectare per crop because it can provide fuel in addition to food and animal feed. With grain sorghum currently grown on over 11 million hectares (ha) in Asia and on 23.4 million ha in Africa, a switch to sweet sorghum could have a considerable economic impact.^[106]

7.2. Jatropha

Several groups in various sectors are conducting research on Jatropha curcas, a poisonous shrub-like tree that produces seeds considered by many to be a viable source of biofuels feedstock oil.^[107] Much of this research focuses on improving the overall per acre oil yield of Jatropha through advancements in genetics, soil science, and horticultural practices.

SG Biofuels, a San Diego-based jatropha developer, has used molecular breeding and biotechnology to produce elite hybrid seeds that show significant yield improvements over first-generation varieties.^[108] SG Biofuels also claims additional benefits have arisen from such strains, including improved flowering synchronicity, higher resistance to pests and diseases, and increased cold-weather tolerance.^[109]

Plant Research International, a department of the Wageningen University and Research Centre in the Netherlands, maintains an ongoing Jatropha Evaluation Project that examines the feasibility of large-scale jatropha cultivation through field and laboratory experiments.^[110] The Center for Sustainable Energy Farming (CfSEF) is a Los Angeles-based nonprofit research organization dedicated to jatropha research in the areas of plant science, agronomy, and horticulture. Successful exploration of these disciplines is projected to increase jatropha farm production yields by 200–300% in the next 10 years.^[111]

7.3. Fungi

A group at the Russian Academy of Sciences in Moscow, in a 2008 paper, stated they had isolated large amounts of lipids from single-celled fungi and turned it into biofuels in an economically efficient manner. More research on this fungal species, Cunninghamella japonica, and others, is likely to appear in the near future.^[112] The recent discovery of a variant of the fungus Gliocladium roseum (later renamed Ascocoryne sarcoides) points toward the production of so-called myco-diesel from cellulose. This organism was recently discovered in the rainforests of northern Patagonia, and has the unique capability of converting cellulose into medium-length hydrocarbons typically found in diesel fuel.^[113] Many other fungi that can degrade cellulose and other polymers have been observed to produce molecules that are currently being engineered using organisms from other kingdoms, suggesting that fungi may play a large role in the bioproduction of fuels in the future.^[114]

7.4. Animal Gut Bacteria

Microbial gastrointestinal flora in a variety of animals have shown potential for the production of biofuels. Recent research has shown that TU-103, a strain of Clostridium bacteria found in Zebra feces, can convert nearly any form of cellulose into butanol fuel.^[115] Microbes in panda waste are being investigated for their use in creating biofuels from bamboo and other plant materials.^[116] There has also been substantial research into the technology of using the gut microbiomes of wood-feeding insects for the conversion of lignocellulotic material into biofuel.^[117]
