1. History

The M79 was a result of the US Army's Project Niblick, an attempt to increase firepower for the infantryman by having an explosive projectile more accurate with further range than rifle grenades, but more portable than a mortar. Project Niblick created the 40 x 46 mm grenade, but was unable to create a satisfactory launcher for it that could fire more than a single shot. One of the launchers at Springfield Armory was the three-shot "harmonica" T148 (not to be confused with the later, underbarrel XM148), which did see some limited production and fielding in Vietnam, but problems with the three-round magazine prevented widespread acceptance. The other design was a single-shot break-open, shoulder-fired weapon, the S-3. This was refined into the S-5, which resembled an oversized single-barrel shotgun. Unable to solve the problems with the multi-shot T148 launcher, the Army adopted the S-5 as the XM79. With a new sight, the XM79 was officially adopted as the M79 on December 15, 1960.^[4]

In 1961, the first M79 grenade launchers were delivered to the US Army. Owing to its ease of use, reliability, and firepower, the M79 became popular among American soldiers, who dubbed it "the platoon leader's artillery".^[5][6] Some soldiers would cut down the stock and barrel to make the M79 even more portable.^[7]

The M79 saw combat in the Vietnam War beginning in the early days, when M79 Grenadiers assigned to major Army divisions first arrived to see combat in Vietnam in 1965, including the 1st Cavalry Division, the 1st Infantry Division, the 101st Airborne Division, and the 173rd Airborne Brigade. M79s were assigned to the specialist 4 grenadier in both 4-5-man fire teams organic to an Army rifle squad headed by a squad leader. The Marines assigned one grenadier to their three-fire team 14-man rifle squad.

However, its single-shot nature was a serious drawback. Reloading after every shot meant a slow rate of fire and an inability to keep up a constant volume of fire during a firefight. This led the Navy to develop the China Lake Grenade Launcher, which was produced for deployed SEAL Teams. For close-in situations, the minimum arming range (the round travels 30 meters to arm itself) and the blast radius meant a grenadier had to use his .45 cal. pistol, or fire and hope that the grenade acted as a giant slow bullet. Special grenades for close-in fighting were created to compensate, though a soldier was not always able to load one in the heat of battle. Moreover, its size meant that a grenadier armed with the M79 could not carry a rifle, having only a sidearm to use in a firefight after expending his grenades, though some grenadiers opted to carry a slung M16 rifle in lieu of a sidearm.

Underbarrel grenade launchers, such as the XM148 and the M203, both designed as attachments for the M16 rifle, were developed during the Vietnam War, allowing the grenadier to also function as a rifleman. The XM148 was plagued with problems and the project was dropped. The M203 was however a success, and was standardized in 1969;^[8] it had replaced the M79 by the end of the war, though M79s were still used in Reserve and National Guard units.

Some US Navy SEALs and Army Special Forces in Iraq have been seen using the M79 in recent years, due to its greater accuracy and range compared to the M203 (350m effective versus 150 m effective on the M203). The M79 has seen notable limited use during Operation Iraqi Freedom, such as for clearing IEDs.^[9]

2. Design

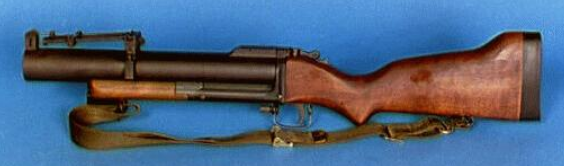

M79.

Visually, the M79 grenade launcher resembles a large bore, break-action, sawed-off shotgun,^[10] and is simple in design, having only five major parts: a receiver group, a fore-end assembly, a barrel group, a sight assembly, and a stock. The fore-end assembly beds the barrel to the receiver. The stock is made out of wood or fiberglass. A rubber pad affixed to the buttstock absorbs some recoil. The front sight is a fixed blade. The rear sight on the M79 is a folding ladder-style leaf-type sight. When folded, the leaf sight acts as a fixed sight for close range. A grenadier may simply point and shoot with high accuracy. When unfolded, the leaf-type sight could be adjusted for ranges from 75 meters to 375 meters, in 25-meter increments. Additionally, Appendix A of U.S. Army field manual for the M203 includes instructions for attaching the M16 rifle grenade sight to the M79's stock and marking the sling for indirect fire at elevations greater than 40°.

While not a manufacturer, Milcor/Mechem of South Africa do re-manufacture M-79 grenade launchers to more modern standards. They replace the leaf sight with an optical one and replace the wooden stock with a modified R-4/R-5 stock.

3. Operation

M79 (right) with an FN minimi, Panama, January 1989.

M79 being set up for display. By BrokenSphere - Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=2680388

The M79 is easy to operate. To load, the grenadier pushes the barrel locking latch on the receiver group to the right. Gravity will pull down the barrel, opening the action and exposing the breech. The hammer is cocked when the breech is opened. A round then may be loaded. The break action must then be closed manually. Closing the breech will cause the barrel locking latch to return to center. The safety must then be pushed to the forward position in order to ready the weapon for firing.

4. Ammunition

Many different ammunition types were produced for the M79 (and subsequently for the M203). Outside of the smoke and illumination rounds three main types emerge: explosive, close-range, and non-lethal crowd control. The break-open action of the M79 allows it to use longer rounds that the standard M203 cannot use without some difficulty.

4.1. Explosive

The M406 40 mm HE (high explosive) grenades fired from the M79 travel at a muzzle velocity of 75 meters per second. The M406 contained enough explosive to produce over 300 fragments that travel at 1,524 meters per second within a lethal radius of 5 meters. This round incorporated a spin-activation safety feature which prevents the grenade from arming while still within range of the shooter; it armed itself after traveling a distance of about 30 meters. The round would not arm at point blank ranges and it usually did not have enough kinetic energy to kill, although it sometimes penetrated the abdomen or caused large hematomas.

4.2. Close Range

A less-lethal round is loaded into an M79.

For close range fighting, two styles of M79 rounds were developed. The first was a flechette or Bee Hive round (so named for the sound the flechettes made while in flight)^[11] that fired 45 10-grain steel flechettes. Flechettes proved to be ineffective because they would often not hit point-first and penetrate. Instead they would hit sideways and bounce off. About 1966, this was replaced by the M576 buckshot round. Containing twenty 24-grain metal pellets^[12] (M576E1) or twenty-seven 24-grain metal pellets (M576E2), this round could be devastating at close ranges. However, as range increased, the shot spread out so rapidly as to be ineffective. The M576E2, despite the greater number of shot, was less effective at range than the M576E1, because its shot spread out much more quickly and could completely miss the target.

4.3. Non-Lethal

The M79 has been used extensively also for crowd control purposes where it is desirable to have a weapon dedicated solely to non-lethal force. The three common less-lethal rounds are the M651 CS gas, the M1006 sponge grenade, and the M1029 Crowd Dispersal rounds.

5. Users

Australia[2]  Brazil: Used by the Brazilian Army.[13][14]  Cambodia[15][16]  Chad[13]  China: Grenade launcher captured and used in Sino-Vietnamese War and Sino-Vietnamese conflicts[17]  Colombia[13]  Costa Rica[13]  Dominican Republic: Used by the Dominican Army.[13]  El Salvador[13]  Eritrea[13]  Ethiopia[13]  Fiji[13]  Greece[13]  Guatemala[13]  Haiti[13]  Honduras[13]  Indonesia[13]  Iran[13]  Ireland[13]  Israel[13]  Jamaica: Jamaica Defence Force.[13][18]  Jordan[13]

Soldiers of the Royal Thai Army Volunteer Regiment (Queen's Cobras) conduct a search and sweep mission in Phuoc Tho, 1967  Kenya[13] Template:Country data Kurdistan – Peshmerga  Kingdom of Laos[19]  Lebanon[13] Lord Resistance Army[20]  Malaysia[13]  Myanmar[13]  Nicaragua[13]  Niger[21]  Oman[13]  Paraguay[13]  Philippines[13]  Portugal[13]  Saint Vincent and the Grenadines[13]  Saudi Arabia[13]  Somalia[13]  South Korea: Manufactured by S&T Daewoo under license as KM79.[22]  Spain[13]  Taiwan[13]  Thailand[13]  Turkey[13]  United States[13]  Vietnam: Locally produced (at Factory Z125) as M79-VN, with plum-red synthetic stock and optical sight.[23]  Yemen[13]
