Prestressed Fibre-Reinforced Polymer Matrix Composites
Edit
This entry is adapted from the peer-reviewed paper 10.3390/polym14010060

Composite materials are developed by combining materials offering unique properties that cannot be achieved individually by the constituent materials. To produce a fibre-reinforced polymer composite, fibres of various configurations and stiffness are embedded into a polymer matrix of lower stiffness. While the fibre is responsible for carrying the load and offering much needed strength and stiffness, the polymer matrix is responsible for the mobility of the load to other parts of the fibre by providing the required binding forces. The matrices also prevent the reinforced fibres from absorbing moisture, propagating micro-cracking due to microbial and chemical attacks.

polymer composite fibre-prestressing residual stresses

1. Introduction

Composite materials are developed by combining materials offering unique properties that cannot be achieved individually by the constituent materials. Because of their excellent strength to weight ratio, they have increasingly been used as engineering materials for many applications, that include automotive and aerospace parts, construction materials, electrical parts and other consumer products [1]. The growth of composite materials for extended use, particularly in the aerospace and automobile industries, has necessitated continuous research for developing improved composites with excellent mechanical properties [2]. The constituents of composites are classified into matrix and reinforcement. While the matrix can be made of polymers, metals or ceramics, reinforcement includes fibres, whiskers and particulate fillers that exist in natural (lignocellulose, animal fibres and minerals) or synthetic form (carbon, aramid, boron, nylon, polyethylene) [3].
To produce a fibre-reinforced polymer composite, fibres of various configurations and stiffness are embedded into a polymer matrix of lower stiffness. While the fibre is responsible for carrying the load and offering much needed strength and stiffness, the polymer matrix is responsible for the mobility of the load to other parts of the fibre by providing the required binding forces [3]. The matrices also prevent the reinforced fibres from absorbing moisture, propagating micro-cracking due to microbial and chemical attacks. Polymer matrices can be either thermoplastic or thermoset. Thermoplastic polymers undergo a physical change when heated and can be softened and reformed. Some thermoplastics commonly used in composites include polyetheretherketone (PEEK), polyetherketoneketone (PEKK), polyphenylene sulphide, polyethylenimine (PEI) and polycarbonates (PC) [4]. On the other hand, thermoset polymers undergo a chemical change in the presence of a crosslinking agent (hardener) to form a three-dimensional structure. Thermosets include epoxies, phenolics, polyimides, polyester, vinyl ester, bismaleimide, melamine and silicone [4]. Thermoplastic composites offer great potential due to less processing time. However, significant drawbacks, which include a high processing temperature (the polymers must be heated to melting point to incorporate the fibre), a high tendency for the buckling of fibres in the polymer matrices, and solvent and fluid resistance features, have reduced their adoption as a substitute for thermoset in fibre-reinforced polymer composites [5].
Both tensile and compressive stresses are generated in polymer composite structures during the manufacturing process, and their occurrence in a composite can result from differences in physical and mechanical properties, a contraction of the polymer matrices before curing, manufacturing techniques and moisture absorption from the environment [6]. However, while compressive stresses have positive influences on the mechanical properties of the composite material, the tensile stresses have a detrimental effect on the manufactured polymer composite by causing distortion, dimensional instability and matrix cracking [7]. Fibre-prestressing offers a low-cost means of reducing the influence of tensile residual stresses, thereby improving the mechanical properties without increasing the mass or dimension of the composite [8]. It is important to know that fibre-prestressing can only reduce residual stress in polymer composites if applied to a certain level [9].

2. Source of Residual Stresses in a Composite

In the absence of external forces, residual stresses are forms of stress that bring about the deformation of a composite material [7]. There are two primary sources of residual stresses in a composite material; (i) residual stresses generated due to differences in deformation-related properties of the materials, and (ii) production processes that induce residual stresses [9]. Moisture absorption, the chemical shrinkage of the matrix and a variation in the coefficient of thermal expansion induce residual stresses in polymer composites. Researchers have also shown that residual stresses can initiate failure in a composite material due to matrix cracking [10]. The influence of matrix cracking can lead to a dangerous failure, especially when the material is under loading conditions. Both compressive and tensile residual stresses are generated in composite materials. However, while compressive residual stresses help prevent cracks from spreading throughout the matrices, tensile residual stresses assist in the opening of micro-cracks in the polymer matrix [11]. Other defects such as fibre waviness, delamination, warping and dimensional imbalance are also due to residual stresses [12].
Many techniques have reportedly been used to reduce the effect of residual stresses in polymer composites. Process optimisation of cure cycle parameters such as dwell time, dwell temperature, dwell cycle and cooling rate can minimise residual stress during production [13][14][15]. Shape memory alloys (SMAs) also reduce stress concentration in FRP matrices. SMAs are novel metallic materials that can undergo reversible solid to solid change in a phase when subjected to thermal or mechanical loading that can cause sizeable inelastic strain [16]. They are generally available in the form of a wire with a diameter below 200 µm [17] and can be embedded in various configurations, as shown in Figure 1. SMAs offer other vital properties such as impact damage control, crack closure and shape morphing. Nevertheless, SMAs induce fibre misalignment and can create an uneven stress distribution in a composite [17].
/media/item_content/202201/61d6838141e71polymers-14-00060-g001.png

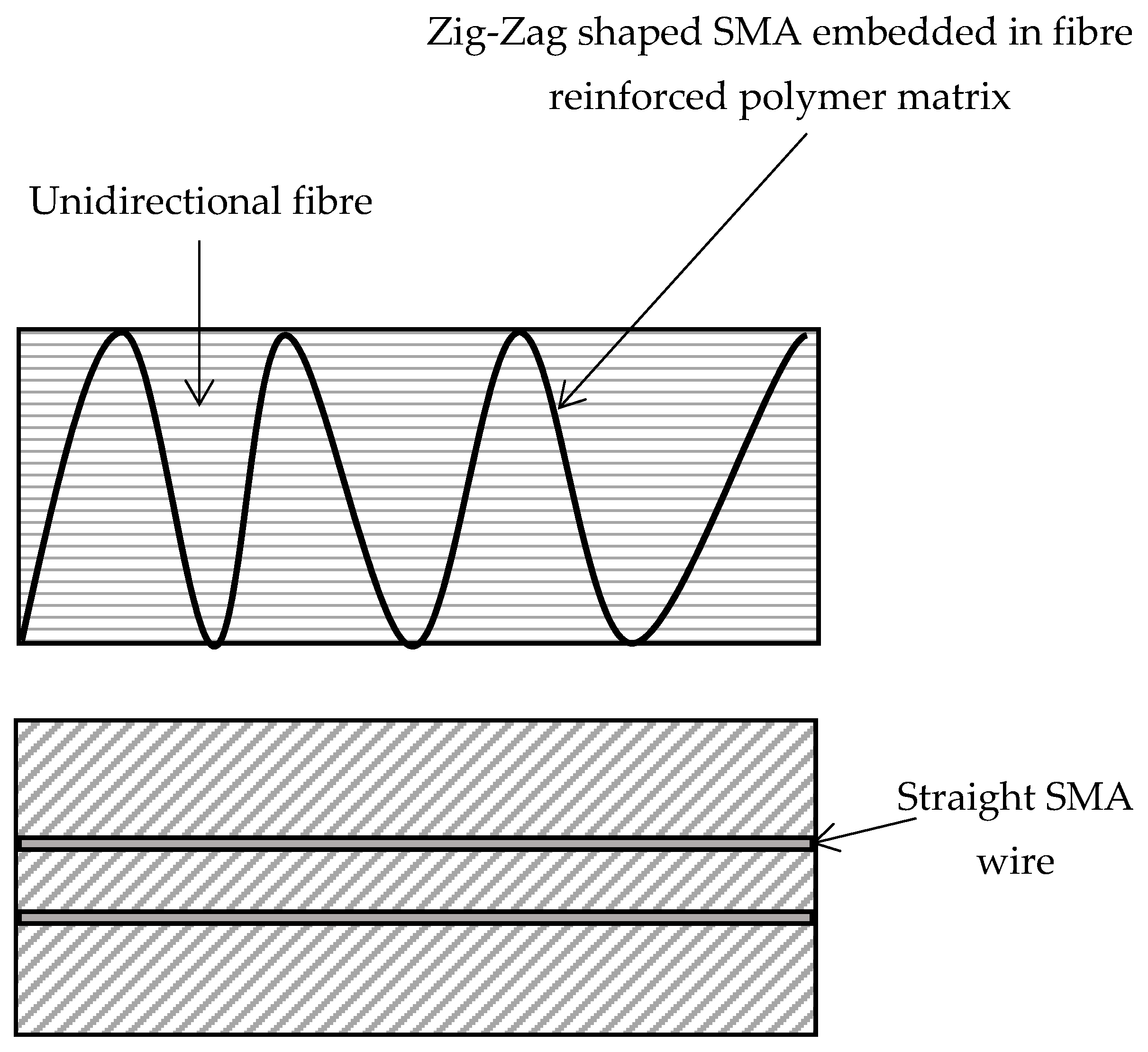

Figure 1. Integration of SMA into a Fibre-Reinforced Polymer Composite.
Similarly, the electron beam curing technique composite can also reduce stress concentration [18]. The technique involves generating free radicals from a high-energy electron accelerator that propagates the polymerisation and crosslinking reaction at room temperature. Since the curing temperature is kept below the traditional thermal curing process temperature, the residual stress generated using an electron beam will be lowered [19]. Moreover, high processing electron beam curing results in an increased production rate and low shrinkage compared to that of conventional thermally cured composites [20]. To utilise the electron beam curing process, cationic initiators are required. Hence, the initiators—that are primarily Lewis or Bronsted acids—react when exposed to high energy electron irradiation. However, a high initiator concentration can lead to a thermal degradation of the polymer matrix, while excess irradiation can damage the fibre strength [21].
Despite their positive influences, electron beam cured composites cannot replicate some of the characteristics of thermally cured composites (high fracture toughness and inter-laminar shear strength) [20]. Similarly, expanding monomers have reportedly been used as anti-shrinkage in composite materials [22]. The polymerisation reaction of the polymer matrices results in a volumetric shrinkage of the matrices during the curing stage. The addition of the expanding polymer gives rise to volumetric expansion, thereby reducing volumetric shrinkage and residual stress [23][24]. The expanding monomers can also reduce the modulus and initiate the transverse cracking of composite materials [9]. Compared to the techniques mentioned above concerning the cost and simplicity, fibre-prestressing is relatively more acceptable.

3. Fibre-Prestressing Technique

There has been growing interest in improving the mechanical performance of FRP composites by minimising the induced stress without increasing the mass or dimension of the composite [8]. Since improving the composite performance increases the production cost, improving the production technique of composites through fibre-prestressing is a possible way of mitigating the cost [9]. Fibre-prestressing has been discovered by researchers as a productive method of reducing the effect of residual stresses in composite materials during production [25][26][27].
Fibre-prestressing can be achieved elastically or viscoelastically. The elastically prestressed polymer matrix composite (EPPMC) is achieved by subjecting the fibre material to the applied load and maintaining the load throughout the curing cycle of the polymer composite [28][29]. The load is released after the cooling and solidification of the composite at ambient temperature. Subsequently, the prestressed fibres tend to return to their initial length, generating compressive stresses in the matrix. These compressive stresses reduce the detrimental effect of the tensile residual stresses induced during the curing process [29]. In addition, the viscoelastically prestressed polymer matrix composite (VPPMC) is formed by subjecting polymeric fibres to a tension load, which introduces creep stress, and then removing the load before moulding the fibre to the polymer matrix. After the curing stage, prestressed fibres tend to return to their initial length, thereby creating compressive stresses that counterbalance the effect of induced tensile residual stresses [28].

3.1. Elastically Prestressed Polymer Matrix Composite (EPPMC)

The fibres are prestressed by subjecting them to a force lower than the elastic limit of the fibre and maintaining this force throughout the curing cycle of the composite. After curing, the force is removed, and the fibres tend to return to their original states. Compressive stresses are developed within the solidified matrix due to the bonding of the prestressed fibre with the polymer matrix [30].

3.2. Viscoelastically Prestressed Polymer Matrix Composite (VPPMC)

The technique involves using polymeric fibres to generate compressive stress in a composite material through the viscoelastic recovery process [31][32]. The fibres are prestressed by applying a load over a while to induce creep. After removal of the load, the fibres undergo a time-dependent elastic recovery. When the prestressed fibres are embedded in the polymer matrix and subjected to curing, the elastic recovery with the surrounding polymer matrix continues, thereby imparting compressive stresses that counterbalance the tensile residual stresses generated in the composite matrix [20]. Because the fibre stretching and moulding operations can be carried out independently, the technique offers flexibility in the geometry of the manufactured composite [33]. Based on previous studies, VPPMC can be classified into cellulose-fibre-based VPPMC (CFVPPMC) and synthetic polymeric fibre-based VPPMC (SPFVPPMC). CFVPPMC contain prestressed cellulose fibres predominantly from natural plants such as kenaf, sisal, flax, bamboo, jute, wheat straw, ramie and eucalyptus. Natural fibres are biodegradable and cheap and have a low density. Table 1 show physicomechnical properties of some natural and synthetic fibres commonly used in PMC.
Table 1. Physicomechanical properties of some commonly used fibres.


Fibre

Density

(kg/m3)

Tensile Strength (MPa)

Elongation at Break (%)

Young Modulus (GPa)

References

Natural fibres

Kenaf

1200

295–930

2.7–6.9

53

[34][35]

Sisal

1200

507–885

1.9–3

9.4–22

[34][35]

Flax

1380

343–1035

1.2–3

27.6

[34][35]

Bamboo

800–1400

391–1000

2

11–30

[34][35]

Banana

1350

529–914

3–10

8–32

[34][35]

Wheat straw

1600

273

2.7

4.76–6.58

[34][35]

Hemp

1350

580–1110

1.6–4.5

70

[34][35]

Jute

1230

187–773

1.5–3.1

13–26.5

[34][35]

Ramie

1440

400–938

2–4

61.4–128

[34][35]

Rice straw

1650

449

2.2

1.21–1.25

[34][35]

Synthetic fibres

E-glass

2500

2000–3000

2.5

70

[36]

Carbon

1800

4000

1.3

300

[37]

Kevlar

1400

3600

2.7

130

[37]

Nylon

1100

950

18

5

[37]

3.3. Mechanical Properties of Prestressed PMC

Compared to other enhancing techniques, both of the two prestressing methods have shown their significance in improving the mechanical performance of composite material without increasing the mass or section dimension. Table 2 provides up-to-date findings and results of previous studies on fibre-prestressing techniques.
Table 2. Reviews on fibre-prestressed PMC.

Material

Prestress Technique

Research Area

Results of Findings

References

Glass fibre woven into a fabric

Phenol-based formaldehyde resin

Elastically prestressing of the glass fibre using tensioning rod (EPPMC).

Assessment of the compressive and tension characteristics of the composite.

Enhancement of elastic properties up to 31% was recorded due to the straightening of the warp fibres.

[38]

Unidirectional graphite/epoxy prepreg tape

Prepreg tape was subjected to tension by bending over a steel roller (EPPMC).

Tensile and elastic modulus measurement

Up to 17% increase in tensile strength

Composite elastic modulus was not affected

[39]

Unidirectional carbon fibre/epoxy composite with 60% fibre volume fraction

The load was applied to fibre before curing but the nature of assembly was not reported (EPPMC).

Thermal stress analysis of the composite.

Fibre-prestresses lessen the residual stresses in the matrix.

[40]

Unidirectional E-glass fibre/polyester resin with 56% fibre volume fraction

Deadweight

(EPPMC)

Tensile properties evaluation

The tensile strength increases with an increase in the level of prestressing (60–80 MPa applied load).

The maximum percentage increase in tensile strength and modulus obtained were 15% and 18%, respectively.

[41]

Carbon fibre/epoxy resin cross-ply laminate with 70% fibre volume fraction

Filament winding (EPPMC)

Modelling and experimental study of composite failure

Failure strength of the ply increased by increasing the prestress level up to 690 MPa

[42]

Graphite fibre/epoxy resin, unsymmetric cross-ply laminate with 56% fibre volume fraction

Hydraulic cylinder (EPPMC)

Examination of the tensile strength, curvature and transverse cracking

Fibre-prestressing reduced warping, curvature and transverse crack.

Up to 28% increase ultimate strength

[31]

Unidirectional Nylon 6.6 fibre/polyester resin (up 3% fibre volume fraction)

Bespoke vertical stretching rig (VPPMC)

Analysis of the impact energy

Viscoelastically induced compressive stresses.

Absorption of higher impact energy (25%) by the prestressed sample

[43]

E-glass fibre/epoxy resin cross-ply laminate (56% fibre volume fraction)

Biaxial loading frame (EPPMC)

Effect of low-velocity impact performance

25% increase in impact performance at low velocity due to prestressing

[44]

E-glass fibre/epoxy resin cross ply laminate (56% fibre volume fraction)

Biaxial loading frame (EPPMC)

Effect of high- and low-velocity impact performance

Improvement of impact performance at a low-level velocity

[45]

Unidirectional E-glass fibre/epoxy cross-ply laminates (58.2% fibre volume fraction)

Flatbed

(EPPMC)

Tensile, fatigue life and compressive strength measurement

Improved fibre alignment, increase in resistance to onset damage due to induced compressive strength.

9% increase in tensile modulus and compressive strength at prestressing levels of 51 MPa and 80 MPa, respectively.

[46]

Unidirectional Nylon 6.6 fibre/epoxy resin (16, 28, 41) and 53% fibre volume fraction

Bespoke vertical stretching rig

Tensile strength and modulus measurement

30% and 15% tensile modulus and tensile strength, respectively.

[47]

Carbon and glass fibre/Hexcel cross-ply laminates

Flatbed

(EPPMC)

Experimental and finite element analysis of bistable prestressed buckled laminate

Induction of bistable behaviour through prestressing.

[48]

Unidirectional Nylon 6.6 fibre/polyester resin (8, 12, 16% fibre volume fraction)

Bespoke vertical stretching rig (VPPMC)

Flexural properties measurement

Up to 50% increase in flexural modulus.

[49]

Unidirectional S-glass fibre/composite resins (Quixfil and Adoro) (12% fibre volume fraction)

Deadweight

(EPPMC)

Flexural properties measurement

Increase in flexural strength.

[50]

Unidirectional UHMWPE fibre/polyester resin (3.6% fibre volume fraction)

Bespoke vertical stretching rig (VPPMC)

Impact properties measurement

Prestressing increases impact energy absorption (up to 40% increase in some batches).

[30]

Carbon fibre/epoxy resin (50% fibre volume fraction)

Deadweight

(EPPMC)

Impact properties

Increase in strength of composite material.

[51]

Hybrid unidirectional Nylon 6.6 and Kevlar fibres/polyester

Bespoke vertical stretching rig (for Nylon alone)

(VPPMC)

Impact and flexural test

33 and 40% rise in absorption energy and flexural modulus.

[30]

Unidirectional Nylon 6.6 fibre/polymer resin (fibre volume fraction 2.2%)

Bespoke vertical stretching rig (VPPMC)

Impact assessment

Impact energy absorbed increased (40%).

[52]

Flax yarn/polyester resin

Tension frame (EPPMC)

Tensile and flexural assessment

Fibre alignment enhancement.

Increased tensile strength and modulus.

Increase in flexural strength and modulus.

[26]

Plain weave E-glass fabric/polyester resin (16% fibre weight fraction)

Hydraulic cylinder biaxial loading frame

(EPPMC)

Flexural characteristics

Up to 16% increase in flexural strength at 50 MPa optimum prestressing level

[53]

Plain weave E-glass fabric/polyester resin (11% fibre weight fraction)

Hydraulic cylinder biaxial loading frame

(EPPMC)

Tensile and fatigue characteristics

Fatigue life increased up to 43%

Fatigue life improvement when under low and intermediate stress fatigue load

[54]

Unidirectional E-glass fibre mats/epoxy resin

Horizontal testing machine (EPPMC)

Flexural, tensile and compression properties

Reduction in fibre waviness

Increase in flexural, tensile and compressive strength

[8]

Nylon 6.6 yarn/polyester cross-ply composite

Bespoke stretching rig (VPPMC)

Impact behaviour

Up to 29% reduction in damage depth

[28]

Unidirectional E-glass fibre/epoxy resin (10% fibre volume fraction)

Deadweight method

(EPPMC)

Tensile properties

Increase in maximum strength, percentage elongation and rupture strength by 38.5%, 45.57% and 106.2%, respectively

[55]

3.4. Residual Stresses Measurement

The continuous advancement in the development of composite materials has drawn more attention to prediction and measuring the distribution and sizes of residual stresses because the behaviour of composite materials is greatly influenced by these factors [56][57]. Residual stress development in the composites cannot be negligible; therefore, these can result in failure, especially when the tensile stresses generated become greater than the critical tensile strength of the material [58]. At this stage, microcracking can occur, thereby exposing the fibres to chemical and microbial attacks. Due to the nonlinear behaviour of composite material, it is difficult to measure some residual stresses that may result in material failure [59]. However, the effective measurement will reduce material failure and further enhance the research in the development of predictive control of residual stresses in composite material.
The measurement of residual stresses in the composite material can be achieved by modelling the entire production process or through the observation and measurement of the phenomena resulting in residual stress generation in a material. The latter method can be achieved through destructive and non-destructive testing. Table 3 highlights the difference between destructive and non-destructive testing techniques. The methods that are regarded as destructive typically require cutting, slitting or drilling operations to relieve the residual stresses. Afterwards, residual stresses are estimated by considering the dimensional changes that occurred. Table 4 shows some destructive and non-destructive testing methods that are commonly used to determine residual stresses in composite materials.
Table 3. Difference between destructive and non-destructive testing.

Destructive Testing (DT)

Non-Destructive Testing (NDT)

Part of the materials is removed or damaged.

Testing can be done without removing or damaging the material.

Testing cannot be repeated on the same specimen.

Testing can be repeated on the same specimen.

Residual stress measurement is limited to a small area of the material sample.

Residual stresses can be measured within a large surface (e.g., laminate).

Global residual stresses distribution along the plies in a composite can be measured.

They cannot estimate global residual stress distributions along with composite plies.
It is a common phenomenon to employ ultrasound waves in the detection of faults in engineering materials [60], but they may also be used to quantify applied and residual loads [61]. To effectively assess stress levels in a material, it is necessary to precisely measure the time-of-flight change of an ultrasonic wave travelling between the stressed and unstressed areas of that material. To obtain an absolute measurement of stress, the time-of-flight measurement in the stressed material is compared to that in the unstressed material. The method has the advantage of measuring high-magnitude residual stresses. The measuring procedure is fast and tri-axial residual stresses can be measured [61].
Table 4. Common destructive and non-destructive test methods used in the calculation of residual stresses in composites.

Methods

Principle

Material

Shortcomings

References

Layer Removal

(DT)

It monitors the elastic response of a laminate to the release of residual stresses

Ceramics

Metals

Polymers

Composites

Additional stresses can be imparted to the test sample due to the machining of the composite surfaces.

Limited to macro-scale residual stresses

[62][63]

Hole drilling

(SDT)

Drilling of a hole into the stressed object releases the stresses, leading to changes in the surrounding strain field that may be measured and related to the relaxed stresses.

Ceramics

Metals

Polymers

Composites

It requires several assumptions to simplify the result solution.

Accurate measurement around the hole, especially in the fibre direction, is very challenging.

Limited to macro-scale residual stress measurement

[64][65][66]

Ring-Core Method

(SDT)

It follows a principle comparable to the hole-drilling method. However, instead of discharging residual stresses by drilling a hole and measuring the elastic reaction of the surrounding material, the ring-core method discharges stress by cutting an annular groove into the surface of a component that contains residual stress.

Metals

Ceramics

Polymers

Limited to homogenous and isotropic material.

[67]

Contour Method

(DT)

The material is sliced through by a planar surface, releasing residual stresses across the plane. As a result, the surface experiences out-of-plane deformation, which is recorded, and the underlying residual stresses across the cut are calculated using the finite element technique.

Ceramics

Metals

Plastics

Composites

Difficulty in measuring residual stresses close to the surface of the material.

Not suited for small components.

[68]

Slitting Method

(DT)

A tiny slit is cut into a prestressed sample, and the resultant deformation parallel to the slot’s direction induced by the restoration of force equilibrium is determined. The repetition of this procedure at increasing depths allows for the determination of residual stress across the component’s thickness.

Ceramics

Metals

Plastics

Composites

Macro-scale residual stresses cannot be fully measured.

Only average stress along the transverse direction (y-axis) can be measured.

[69]

Neutron Diffraction Method

(NDT)

Raman spectroscopy employs light scattering to measure the vibrational energy of crystalline chemical bonds. The dispersed light is detected, and typical Raman peaks may be detected. Any externally imposed strain alters the position of these peaks. Consequently, a stressed and unstressed sample’s Raman peak position variations may be used to calculate the applied strain.

Metal

Ceramics

Composites

Resolution is limited, and residual stress changes smaller than 1 mm cannot be measured.

Not suitable for amorphous materials

[70]

Raman Spectroscopy Method

(NDT)

Stresses are determined by monitoring the frequency of certain luminescence peaks in comparison to those in an unstressed state.

Ceramics

Polymers

Composites

Limited to macro-scale residual stresses measurement.

[71]

X-ray Diffraction Method (NDT)

(destructive if used for measuring depth)

When residual stress is determined using X-ray diffraction (XRD), the strain in the crystal lattice is determined and the related residual stress is calculated using the elastic constants, assuming that the relevant crystal lattice plane exhibits linear elastic deformation.

Metal

Ceramics

Composites

Applicable to polycrystalline materials only.

The accuracy of this method is affected by the texture and grain size.

Measurement is limited to the surface of the material

[72]

Synchrotron X-ray Method

(NDT)

Similar to the X-ray diffraction method. However, X-rays are far more intense and have a much greater energy, and their tremendous energy allows them to penetrate much farther into materials.

Metal

Ceramics

Composites

Applicable to polycrystalline materials only

[73]

Ultrasonic Method

(NDT)

The material is subjected to an ultrasonic (acoustic) wave, which is then detected by reflection, transmission or scattering. To determine the magnitude of stresses, the velocity of an ultrasonic wave in some modes is evaluated.

Metals

Ceramics

Composites

Not suitable for amorphous materials.

Limited to macro-scale residual stress measurement.

[74]

DT: Destructive testing, SDT: Semi-destructive testing, NDT: Non-destructive testing.

4. Potential Applications and Prospects

Fibre-reinforced materials are used for many engineering applications where high mechanical properties are required. The use of carbon-fibre-reinforced polymer composites may reduce the weight of the materials up to 70% compared to steel [75]. Therefore, exploring such materials in making aeroplane and car parts provides the potential for minimising fuel consumption and carbon dioxide emission. Due to the high-impact energy absorption behaviour, prestressed fibre polymer composites can be used for ballistic protection in armours, vests and automobiles. Kevlar-based polymer matrix composites are materials used for ballistic protection [76]. It is well known that prestress induces an energy-absorbing mechanism at the fibre–polymer matrix interface [32], thereby increasing the impact absorption of the composite material.
Crashworthiness is an automobile’s capacity to protect its occupants from severe injury or death in the event of a given number of collisions. It is a quantitative assessment of a structure’s ability to protect its passengers in survivable crashes [77]. It is an essential factor that needs to be considered in selecting the material for vehicular structural assembly [78]. Material crashworthiness is characterised in terms of its energy absorption capacity (EAC). Generally, polymer composites have a high EAC compared to metals, and they can release deformation absorption energy during impact [79]. Prestressed fibres enhance the energy absorption capability of composite materials [52]. Moreover, the application of EPPMC and VPPMC technology in fibre-reinforced concrete development can enhance the resistance to crack propagation in a concrete structure. Bistable composite materials, which are often utilised in the aerodynamic control of aircraft and wind turbine blades, have drawn growing attention in recent years. They can be effectively manufactured utilising prestressed fibre technology [33]. The emerging developments will be toward alternate fibre materials, hybridisation, process optimisation and the use of a cost-effective fibre-prestressing technique.

References

  1. Grzesik, W. Advanced Machining Processes of Metallic Materials Theory, Modelling, and Applications, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2017.
  2. Maria, M. Advanced Composite Materials of the Future in Aerospace Industry. INCAS Bull. 2013, 5, 139–150.
  3. Chawla, K.K. Composite Materials, 3rd ed.; Springer: New York, NY, USA, 2012.
  4. Wu, H.; Fahy, W.P.; Kim, S.; Kim, H.; Zhao, N.; Pilato, L.; Koo, J.H. Recent Developments in Polymers/Polymer Nanocomposites for Additive Manufacturing. Prog. Mater. Sci. 2020, 111, 100638.
  5. Campbell, F.C. Manufacturing Processes for Advanced Composites. In Manufacturing Processes for Advanced Composites; Elsevier: Amsterdam, The Netherlands, 2004.
  6. Fazal, A. Polymer Fibre Composites: Investigation into Performance Enhancement through Viscoelastically Generated Pre-Stress. Ph.D. Thesis, The University of Hull, Hull, UK, 2014.
  7. Parlevliet, P.P.; Bersee, H.E.N.; Beukers, A. Residual Stresses in Thermoplastic Composites–A Study of the Literature. Part III: Effects of Thermal Residual Stresses. Compos. Part A 2007, 38, 1581–1596.
  8. Mohamed, M.; Selim, M.M.; Ning, H.; Pillay, S. Effect of Fibre Prestressing on Mechanical Properties of Glass Fibre Epoxy Composites Manufactured by Vacuum-Assisted Resin Transfer Moulding. J. Reinf. Plast. Compos. 2019, 39, 21–30.
  9. Mostafa, N.H.; Ismarrubie, Z.N.; Sapuan, S.M.; Sultan, M.T.H. Fibre Prestressed Polymer-Matrix Composites: A Review. J. Compos. Mater. 2016, 51, 39–66.
  10. Tan, S.C.; Nuismer, R.J. A Theory for Progressive Matrix Cracking in Composite Laminates. J. Compos. Mater. 1989, 23, 1029–1047.
  11. Zhou, N.; Peng, R.L.; Schönning, M.; Pettersson, R. SCC of 2304 Duplex Stainless Steel—Microstructure, Residual Stress and Surface Grinding Effects. Materials 2017, 10, 221.
  12. Russell, J.D.; Madhukar, M.S.; Genidy, M.S.; Lee, A.Y. A New Method to Reduce Cure-Induced Stresses in Thermoset Polymer Composites, Part III: Correlating Stress History to Viscosity, Degree of Cure, and Cure Shrinkage. J. Compos. Mater. 2000, 34, 1926–1947.
  13. Shah, P.; Halls, V.; Zheng, J.; Batra, R. Optimal Cure Cycle Parameters for Minimizing Residual Stresses in Fibre-Reinforced Polymer Composite Laminates. J. Compos. Mater. 2018, 52, 773–792.
  14. Ali, H.; Ghadbeigi, H.; Mumtaz, K. Processing Parameter Effects on Residual Stress and Mechanical Properties of Selective Laser Melted Ti6Al4V. J. Mater. Eng. Perform. 2018, 27, 4059–4068.
  15. Mann, B.; Ford, K.; Neilsen, M.; Kammler, D. Minimizing Residual Stress in Brazed Joints by Optimizing the Brazing Thermal Profile. In Volume 2A: Advanced Manufacturing. Am. Soc. Mech. Eng. 2020, 84485, V02AT02A035.
  16. Schrooten, J.; Michaud, V.; Parthenios, J.; Psarras, G.; Galiotis, C.; Gotthardt, R.; Humbeeck, J. Progress on Composites with Embedded Shape Memory Alloy Wires. Mater. Trans. 2002, 43, 961–973.
  17. Cohades, A.; Michaud, V. Shape Memory Alloys in Fibre-Reinforced Polymer Composites. Adv. Ind. Eng. Polym. Res. 2018, 1, 66–81.
  18. Raghavan, J. Evolution of Cure, Mechanical Properties, and Residual Stress during Electron Beam Curing of a Polymer Composite. Compos. Part A 2009, 40, 300–308.
  19. Razavi, S.M.; Ahmadi, S.J.; Rahmani Cherati, P.; Hadi, M.; Ahmadi, S.A.R. Effect of Electron Beam Irradiation on Mechanical Properties of Unsaturated Polyester/Nanoclay Composites Reinforced with Carbon and Glass Fibres. Mech. Mater. 2020, 141, 103265.
  20. Wolff-Fabris, F.; Altstadt, V.; Arnold, U.; Doring, M. Electron Beam Curing of Composites; Hanser Publshers: Cincinnati, OH, USA, 2010.
  21. Zhang, J.; Duan, Y.; Wang, B.; Zhang, X. Interfacial Enhancement for Carbon Fibre Reinforced Electron Beam Cured Polymer Composite by Microwave Irradiation. Polymer 2020, 192, 122327.
  22. Orso, J.; Vizzini, J.A. Stress Effects of Inhomogeneous Expansion-Controlled Matrices in Continuous Fiber Composites. J. Compos. Mater. 1995, 29, 2003–2004.
  23. Marx, P.; Wiesbrock, F. Expanding Monomers as Anti-Shrinkage Additives. Polymers 2021, 13, 806.
  24. Fu, J.; Liu, W.; Hao, Z.; Wu, X.; Yin, J.; Panjiyar, A.; Liu, X.; Shen, J.; Wang, H. Characterization of a Low Shrinkage Dental Composite Containing Bismethylene Spiroorthocarbonate Expanding Monomer. Int. J. Mol. Sci. 2014, 15, 2400–2412.
  25. Sokairge, H.; Elgabbas, F.; Rashad, A.; Elshafie, H. Long-Term Creep Behaviour of Basalt Fibre Reinforced Polymer Bars. Constr. Build. Mater. 2020, 260, 120437.
  26. Zaidi, B.M.; Magniez, K.; Miao, M. Prestressed Natural Fibre Spun Yarn Reinforced Polymer-Matrix Composites. Compos Part A 2015, 75, 68–76.
  27. Dvorak, G.; Suvorov, A. The Effect of Fiber Pre-Stress on Residual Stresses and the Onset of Damage in Symmetric Laminates. Compos. Sci. Technol. 2000, 60, 1129–1139.
  28. Qin, Y.; Fancey, K.S. Drop Weight Impact Behaviour of Viscoelastically Prestressed Composites. Compos Part A 2020, 131, 105782.
  29. Ge, C.; Wang, B.; Fancey, K.S. An Evaluation of the Scanning Electron Microscope Mirror Effect to Study Viscoelastically Prestressed Polymeric Matrix Composites. Mater. Today Commun. 2017, 12, 79–87.
  30. Fazal, A.; Fancey, K.S. UHMWPE Fibre-Based Composites: Prestress-Induced Enhancement of Impact Properties. Compos. Part B 2014, 66, 1–6.
  31. Osman, B.; Tian, Z.; Jiang, G.; Sun, X.; Carroll, A. Experimental Study on Dynamic Properties of UHMWPE and PVA Fibers Concrete. KSCE J. Civ. Eng. 2020, 24, 2993–3011.
  32. Fazal, A.; Fancey, K.S. Performance Enhancement of Nylon/Kevlar Fibre Composites through Viscoelastically Generated Pre-stress. Polym. Compos. 2014, 35, 931–938.
  33. Wang, B.; Ge, C.; Fancey, K.S. Snap-through Behaviour of a Bistable Structure Based on Viscoelastically Generated Prestress. Compos. Part B Eng. 2017, 114, 23–33.
  34. Djafari Petroudy, S.R. Physical and Mechanical Properties of Natural Fibres. In Advanced High Strength Natural Fibre Composites in Construction; Elsevier: Amsterdam, The Netherlands, 2017; pp. 59–83.
  35. Mohanty, A.K.; Misra, M.; Drzal, T. Natural Fibers, Biopolymers, Biocomposites; CRC Press: New York, NY, USA, 2005.
  36. Ashori, A.; Bahreini, Z. Evaluation of Calotropis Gigantea as a Promising Raw Material for Fiber-Reinforced Composite. J. Compos. Mater. 2009, 43, 1297–1304.
  37. Sarkar, A.; Connor, A.J.; Koffas, M.; Zha, R.H. Chemical Synthesis of Silk-Mimetic Polymers. Materials 2019, 12, 4086.
  38. Zhigun, I.G. Experimental Evaluation of the Effect of Prestressing the Fibres in Two Directions on Certain Elastic Characteristic of Woven-Glass Reinforced Plastics. Polym. Mech. 1972, 4, 691–695.
  39. Brown, G.G. Development of Prestressed Graphite Processing Techniques; North American Rockwell: Hampton, VA, USA, 1976.
  40. Tuttle, M.E. A Mechanical/Thermal Analysis of Prestressed Composite Laminates. J. Compos. Mater. 1988, 22, 780–792.
  41. Jorge, L.D.A.; Marques, A.T.; De Castro, P.M.S.T. The Influence of Prestressing on the Mechanical Behaviour of Unidirectional Composites. In Developments in the Science and Technology of Composite Materials; Springer: Dordrecht, The Netherlands, 1990; pp. 897–902.
  42. Rose, D.H. Effect of Prestressed Fibres Upon the Response of Composite Materials. Master’s Thesis, The University of Dayton, Dayton, OH, USA, 1993.
  43. Fancey, K.S. Investigation into the Feasibility of Viscoelastically Generated Pre-Stress in Polymeric Matrix Composites. Mater. Sci. Eng. A 2000, 279, 36–41.
  44. Jevons, M.; Fernando, G.; Kalsi, G. Effect of Pre-Tensioning on the Low-Velocity Impact Performance of Glass Fibre Composites. In Proceedings of the Tenth European Conference on Composite Materials (ECCM-10), Brugge, Belgium, 3–7 June 2002; pp. 3–7.
  45. Jevons, M.P. The Effects of Fibre Pre-Stressing on the Impact Performance of Composite Laminates. Ph.D. Thesis, Cranfield University, Silsoe, UK, 2011.
  46. Abdullah, O.A.; Hassan, A.K.F. Effect of Prestress Level on the Strength of CFRP Composite Laminate. J. Mech. Sci. Technol. 2016, 30, 5115–5123.
  47. Pang, J.W.C.; Fancey, K.S. Analysis of the Tensile Behaviour of Viscoelastically Prestressed Polymeric Matrix Composites. Compos. Sci. Technol. 2008, 68, 1903–1910.
  48. Daynes, S.; Potter, K.D.; Weaver, P.M. Bistable Prestressed Buckled Laminates. Compos. Sci. Technol. 2008, 68, 3431–3437.
  49. Pang, J.W.C.; Fancey, K.S. The Flexural Stiffness Characteristics of Viscoelastically Prestressed Polymeric Matrix Composites. Compos. Part A Appl. Sci. Manuf. 2009, 40, 784–790.
  50. Schlichting, L.H.; de Andrada, M.A.C.; Vieira, L.C.C.; de Oliveira Barra, G.M.; Magne, P. Composite Resin Reinforced with Pre-tensioned Glass Fibres. Influence of Prestressing on Flexural Properties. Dent. Mater. 2010, 26, 118–125.
  51. Nishi, Y.; Okada, T.; Okada, S.; Hirano, M.; Matsuda, M.; Matsuo, A.; Faudree, M.C. Effects of Tensile Prestress Level on Impact Value of 50 vol% Continuous Unidirectional 0 Degree Oriented Carbon Fiber Reinforced Epoxy Polymer (CFRP). Mater. Trans. 2014, 55, 318–322.
  52. Fancey, K.S.; Fazal, A. Prestressed Polymeric Matrix Composites: Longevity Aspects. Polym. Compos. 2015, 37, 2092–2097.
  53. Mostafa, N.H.; Ismarrubie, Z.; Sapuan, S.; Sultan, M. The Influence of Equi-Biaxially Fabric Prestressing on the Flexural Performance of Woven E-Glass/Polyester-Reinforced Composites. J. Compos. Mater. 2015, 50, 3385–3393.
  54. Mostafa, N.H.; Ismarrubie, Z.N.; Sapuan, S.M.; Sultan, M.T.H. Effect of Fabric Biaxial Prestresses on the Fatigue of Woven E-glass/Polyester Composites. Mater. Des. 2016, 92, 579–589.
  55. Al-Dulaimy, A.; Khalid, M.A.; Al-hassany, M.O.A.; Shakir, S.W. The Effect of Unidirectional Pre-Load on Tensile Characteristics of E-Glass Fibre and Epoxy Composite. Mater. Today Proc. 2021, 42, 2510–2515.
  56. Rossini, N.; Dassisti, M.; Benyounis, K.; Olabi, A. Methods of Measuring Residual Stresses in Components. Mater. Des. 2012, 35, 572–588.
  57. Ersoy, N.; Vardar, O. Measurement of Residual Stresses in Layered Composites by Compliance Method. J. Compos. Mater. 2000, 34, 575–598.
  58. Shen, J.; Tong, Q. Prestressing Strategy for Strengthening Biocomposites: A Numerical Study. ACS Biomater. Sci. Eng. 2021, 7, 5014–5027.
  59. Perreux, D.; Lazuardi, D. The effect of Residual Stress on the Non-Linear Behaviour of Composite Laminates Part II. Layer, Laminate Non-Linear Models and the Effect of Residual Stress on the Model Parameters. Compos. Sci. Technol. 2001, 61, 177–190.
  60. Marquez, F.; Muñoz, C. A New Approach for Fault Detection, Location and Diagnosis by Ultrasonic Testing. Energies 2020, 13, 1192.
  61. Kudryavtsev, Y.; Kleiman, J. Ultrasonic Technique and Equipment for Residual Stresses Measurement. Eng. Appl. Res. Stress 2011, 8, 55–66.
  62. Eijpe, M.; Powell, P. Residual Stress Evaluation in Composites Using a Modified Layer Removal Method. Compos. Struct. 1997, 37, 335–342.
  63. Dreier, S.; Denkena, B. Determination of Residual Stresses in Plate Material by Layer Removal with Machine-integrated Measurement. Procedia CIRP 2014, 24, 103–107.
  64. Sicot, O.; Gong, X.; Cherouat, A.; Lu, J. Influence of Experimental Parameters on Determination of Residual Stress Using the Incremental Hole-Drilling Method. Compos. Sci. Technol. 2004, 64, 171–180.
  65. Ghasemi, A.; Mohammadi, M. Residual Stress Measurement of Fiber Metal Laminates Using Incremental Hole-Drilling Technique in Consideration of the Integral Method. Int. J. Mech. Sci. 2016, 114, 246–256.
  66. Liu, X.; Wang, X.; Guan, Z.; Jiang, T.; Geng, K.; Li, Z. Improvement and Validation of Residual Stress Measurement in Composite Laminates Using the Incremental Hole-Drilling Method. Mech. Mater. 2021, 154, 103715.
  67. Song, X.; Yeap, K.; Zhu, J.; Belnoue, J.; Sebastiani, M.; Bemporad, E.; Zeng, K.; Korsunsky, A. Residual Stress Measurement in Thin Films Using the Semi-Destructive Ring-Core Drilling Method Using Focused Ion Beam. Procedia Eng. 2011, 10, 2190–2195.
  68. Prime, M.; Sebring, R.; Edwards, J.; Hughes, D.; Webster, P. Laser Surface-Contouring and Spline Data-Smoothing for Residual Stress Measurement. Exp. Mech. 2004, 44, 176–184.
  69. Hill, M. The Slitting Method. Pract. Residual Stress Meas. Methods 2013, 89–108.
  70. Hutchings, M.; Withers, P.; Holden, T.; Lorentzen, T. Introduction to the Characterization of Residual Stress by Neutron Diffraction; CRC Press: Boca Raton, FL, USA, 2005.
  71. Niu, X.; Zhang, H.; Pei, Z.; Shi, N.; Sun, C.; Gong, J. Measurement of Interfacial Residual Stress in SiC Fiber Reinforced Ni-Cr-Al Alloy Composites by Raman Spectroscopy. J. Mater. Sci. Technol. 2019, 35, 88–93.
  72. Balasingh, C.; Singh, V. Measurement of Residual Stresses in CFRP Laminates by X-ray Diffraction Method. Bull. Mater. Sci. 1997, 20, 325–332.
  73. Zhang, X.; Xue, Y.; Zhang, H.; Fu, H.; Wang, Z.; Nie, Z.; Wang, L. Thermal Residual Stresses in W Fibers/Zr-based Metallic Glass Composites by High-energy Synchrotron X-ray Diffraction. J. Mater. Sci. Technol. 2015, 31, 159–163.
  74. Xu, C.; Song, W.; Pan, Q.; Li, H.; Liu, S. Nondestructive Testing Residual Stress Using Ultrasonic Critical Refracted Longitudinal Wave. Phys. Procedia 2015, 70, 594–598.
  75. Lengsfeld, H.; Wolff-Fabris, F.; Krämer, J.; Lacalle, J.; Altstädt, V. Composite Technology: Prepregs and Monolithic Part Fabrication Technologies; Hanser Publishers: Munich, Germany, 2016.
  76. Pekbey, Y.; Aslantaş, K.; Yumak, N. Ballistic Impact Response of Kevlar Composites with filled epoxy matrix. Steel Compos. Struct. 2017, 24, 191–200.
  77. Alkbir, M.F.M.; Sapuan, S.M.; Nuraini, A.A.; Ishak, M.R. Fibre Properties and Crashworthiness Parameters of Natural Fibre-Reinforced Composite Structure: A Literature Review. Compos. Struct. 2016, 148, 59–73.
  78. Jacob, G.; Starbuck, J.; Fellers, J.; Simunovic, S. Energy Absorption in Chopped Carbon Fiber Epoxy Composites for Automotive Crashworthiness. Polym. J. 2003, 35, 560–567.
  79. Isaac, C.W.; Ezekwem, C. A Review of the Crashworthiness Performance of Energy Absorbing Composite Structure within the Context of Materials, Manufacturing and Maintenance for Sustainability. Compos. Struct. 2021, 257, 113081.
More
© Text is available under the terms and conditions of the Creative Commons Attribution (CC BY) license; additional terms may apply. By using this site, you agree to the Terms and Conditions and Privacy Policy.
Upload a video for this entry
Information
Subjects: Engineering, Mechanical
Contributor MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to https://encyclopedia.pub/register : Raphael Ogunleye
View Times: 1.3K
Revisions: 3 times (View History)
Update Date: 28 Mar 2022
Table of Contents
    1000/1000
    Hot Most Recent
    Notice
    You are not a member of the advisory board for this topic. If you want to update advisory board member profile, please contact office@encyclopedia.pub.
    OK
    Confirm
    Only members of the Encyclopedia advisory board for this topic are allowed to note entries. Would you like to become an advisory board member of the Encyclopedia?
    Yes
    No
    Academic Video Service
    Feedback
