1. Introduction

Postnatal neurogenesis is restricted to two sites in the mammalian brain, the subventricular zone (SVZ) of the lateral ventricles and the subgranular zone (SGZ) of the dentate gyrus of the hippocampus. Unlike newborn cells in the SGZ destined for the overlying granule cell layer ^[1], the cells arising in the SVZ have to migrate a relatively long way through the rostral migratory stream (RMS) to their final destination, the olfactory bulb (OB).

In the SVZ, the largest neurogenic zone of the adult brain, astrocyte-like cells which are neural stem cells (type B cells) ^[2] give rise upon activation to transit-amplifying cells (type C cells), which generate neuroblasts (type A cells) and glia ^[3][4]. Neuroblasts originating in the SVZ of rodents migrate tangentially in chains several millimeters along the RMS. The chains of neuroblasts are surrounded by a meshwork of astrocytes. Once the neuroblasts reach the OB, they detach from the chains and migrate radially to the bulbar layers, where they differentiate into interneurons ^[5]. The migration of neuroblasts in the migratory pathway surrounded by mature tissue is a complex process. The mechanism of migration of postnatally-generated neural precursors differs from that in prenatal development. In contrast to the embryonic period, SVZ-derived neuroblasts in the adult brain migrate along the RMS without the aid of radial glia processes, since the radial glia disappear and/or transform into astrocytes after birth^[6]. Instead, neuroblasts use each other as a physical substrate, forming chains of cells based on cell-cell contacts in a process termed homophilic migration. This type of neuroblast movement is faster than other types of migration ^[7][8]. In addition, postnatally-generated neuroblasts are able to divide while migrating through the RMS ^[9][10][11], unlike in the embryonic period when only postmitotic neuroblasts migrate to the final position ^[12]. Recently, growing body of evidence indicates that blood vessels in the adult brain play a role in guiding neuroblast migration in the RMS, as well as, providing molecular cues affecting migration. It has been shown that vasculature is a prominent feature of stem-cell niches and plays an important role in their regulation and maintenance ^[13][14]. The vasculature of the main neurogenic regions (SGZ and SVZ) is highly organized compared to that in non-neurogenic brain areas ^{[13][14][15][16][17][18]}, and is characterized by a dense network of blood vessels which provide a substrate for progenitor cells ^{[13][14][15][19]}. Blood vessels in the RMS serve as a migration-promoting scaffold due to their specific arrangement. It has been shown that, for the proper migration of neuroblasts in the SVZ-RMS-OB neurogenic region, what is essential is not only the establishment of vessels in the embryonic period, but also their reorganization into a migration-promoting scaffold during the early postnatal period ^[20][21].

This review focuses on the role of blood vessels in relation to neuroblast migration in the SVZ-RMS-OB, the development and vascularization of the presumptive neurogenic region during the embryonic period, the relevance of blood vessel rearrangement in the RMS during the early postnatal development, and the function of blood vessels in neuroblast migration in the neurogenic area of the adult brain.

2. Development and Vascularization of the Telencephalon and the Rostral Migratory Stream during the Embryogenesis of Rodents

After the establishment of the neural tube in the processes of neurulation, generation of neurons, also known as neurogenesis, takes place by proliferative activity of neuroepithelial cells. These progenitors residing in the area of the telencephalic germinal zones give rise to various neuronal populations employing different modes of migration toward their target destinations, including the olfactory bulb (OB) ^[22]. Different types of neurons colonize the OB in specific time-windows throughout embryonic and postnatal life^[23][24][25] . The primordium of the OB emerges in the rodent brain after the fibers of the olfactory nerve reach the anterior pole of the telencephalon (E11–E13; E–embryonic day)^{[22][26][27][28]}. It is assumed that the OB develops primarily from the rostral part of the ventral pallium in the murine brain^[29]. In this period, early neuroblasts destined for the OB differentiate into populations of mitral cells and tufted cells, expressing markers of the projection neurons such as Tbr-1, Id-2, Reelin, neurotensin, and neuropilin^[30][31] and migrate radially along the basal processes of the radial glial cells toward the OB intermediate zone^[30][32]. It seems that the populations of OB neurons originate in different places. Bayer and Altman^[33] suggested that mitral cells of the main OB in rats originate in the septal/accumbal neuroepithelium and migrate toward the prospective OB, while tufted cells and the mitral cells of the accessory OB originate in the neuroepithelium of the OB primordium. The populations of OB interneurons originate from the proliferating subpallial progenitors of the LGE^[33] and acquire selective migratory capacity toward the OB in the later periods of embryonic development^[29][33]. An in vitro study indicates that the population of neuronal cells originating in the rostral LGE migrates radially toward the piriform cortex, then the cells reorient their processes and migrate tangentially toward the prospective OB. This population does not contribute to the populations of OB interneurons, but rather to the neuronal populations expressing markers of relay neurons such as Tbr-1 ^[34]. Moreover, OB interneurons derived from the precursors of the embryonic LGE in the later periods of development retain their restricted migratory capacity toward the OB, even if grafted into the SVZ of adult mice^[35], since E14, TUJ1, or MAP2 positive neuroblasts organize themselves into chains leading from the ventral anterior tip of the lateral ventricles toward the OB ventricles. Migrating neuronal cells in the RMS have bipolar morphology and express migratory markers such as NCAM or PSA-NCAM. As the development proceeds, neuronal cells in the RMS organize themselves into a dense patch (by E16), which increases in size and elongates toward the OB. Cells surrounding the patch, also termed non-patch cells, remain undifferentiated until birth, when they start to express neuronal markers. During migration in the embryonic RMS, patch cells forming its core start to express markers of GABAergic interneurons such as GAD65 or GAD67^[36]. After reaching the OB, neuronal cells in the embryonic and early postnatal RMS migrate along the processes of radial glial cells^[7][37] to their final position and differentiate into populations of OB interneurons such as periglomerular or granule cells^[24][25][36] expressing GABA, calretinin, calbindin, GAD65, GAD67, or tyrosine hydroxylase^[23][36]. Astrocytes emerge in the developing RMS (in the region of the patch) of rats during the late embryonic periods (at E16)^[36], however their number increases especially during the first postnatal weeks^[38][39].

Establishment of external vasculature around the developing neural tube of rodents occurs through the coalescence of endothelial cells differentiating from angioblasts into the primitive sinusoid vessels known as the perineural vascular plexus (PNVP)^[40][41][42]. The PNVP spreads along the rostro-caudal axis of the neural tube and supplies the neuroepithelium with oxygen and nutrients^[43][44][45].Subsequently, internal vascularization of the telencephalon is established through the mechanisms of sprouting angiogenesis driven by the increased metabolic demands of neuronal progenitors during the onset of neurogenesis ^[43][44][46]. Blood vessels ingress the telencephalon from the PNVP and from the basal artery, located on the floor of the basal ganglia primordium, giving rise to the periventricular vascular plexus (PVVP)^[47][48]. Development of the PVVP in the mouse telencephalon progresses in ventral-to-dorsal direction, since the PVVP emerges first in the subpallial preoptic area, continuing toward the MGE, LGE, ventral pallium, and to the dorsal pallial regions, successively^[44][47].

The studies examining structural features and arrangement of blood vessels in the presumptive forebrain neurogenic region of mice during development revealed that blood vessels re-orient during the early embryonic stages and become more complex as development proceeds^[49][50]. At E14.5, radially-oriented blood vessels predominate in this region. They are short, straight, and relatively unbranched. A few longer blood vessels border the RMS elbow^[49]. At E16, tangentially-oriented blood vessels start to appear in the presumptive RMS region^[50]. From E17.5 until postnatal day 1 (P1), blood vessels within the forebrain neurogenic niche undergo gradual remodeling. At E17.5, blood vessels follow the longitudinal axis of the primordial forebrain neurogenic region, with the exception of blood vessels located in the olfactory placode, which form loop-like structures. At this age, blood vessels become longer, branched, and more frequent along the borders of the RMS^[49].

Finally, intense vascular remodeling continues during perinatal and early postnatal ages in the forebrain neurogenic region^[20][49][50]. At early postnatal stages (during the first postnatal week), blood vessels become more aligned in the longitudinal direction of the RMS and parallel to each other^[50]. During the later postnatal stages, the blood vessels continue increasing in complexity and length^[49].

3. Angiogenesis in the Brain during the Postnatal Period and Mutual Coordination between Nervous and Vascular Systems

In the postnatal period, angiogenesis in the brain gradually attenuates. In the rat brain, angiogenesis is complete within approximately three weeks after birth^[51][52]. Then, proliferation of endothelial cells is markedly down-regulated and angiogenesis is linked only with vascular growth, matching the growth of the brain^[53]. On the other hand, endothelial cells, though relatively quiescent in the adult brain, can proliferate under pathological conditions such as hypoxia, tumor growth, or brain injury^[52][54]. Under physiological conditions, angiogenesis persists only in restricted areas of the adult brain with continuing neurogenesis ^[55][56], i.e., in the SVZ of the lateral wall of the lateral ventricles and the SGZ of the dentate gyrus of the hippocampus. In these areas, neural stem cells and endothelial cells/capillaries are in close proximity within a so-called “vascular niche” ^[57][58].

Coordinated interactions between nervous and vascular systems have been found not only during embryogenesis but also in the neurogenic regions of the adult brain^[59]. Both these systems share molecular cues, which regulate their development, function, and maintenance, such as VEGF^[60][61], brain-derived neurotrophic factor (BDNF) ^[62], basic fibroblast growth factor (bFGF)^[63][64], insulin-like growth factor-1 (IGF-1)^[65], erythropoietin^[66], angiopoietin^[67][68], and others (for review see^[57][59]), so that postnatal angiogenesis and neurogenesis are regulated by growth factors produced by both, endothelial cells and neurons^[57].

4. Blood Vessels and Neuroblast Migration in Neurogenic Areas in the Postnatal Period

In general, blood vessels in the postnatal brain are responsible for supplying oxygen and nutrients and removing metabolic waste products. In addition, blood vessels together with astrocytes and pericytes constitute a blood-brain barrier which regulates transport of substances toward the brain by allowing the movement of vital substances but restricting the flow of harmful agents from blood to brain. In addition to common functions, blood vessels have been found to play another role in neurogenic areas of the adult brain. Blood vessels are an integral component of these regions and they release cues providing a microenvironment to maintain the neural stem cell niche^[69]. Dividing neural precursors are in fact closely associated with blood vessels in the SGZ^[56], the SVZ^[13] and the RMS^[50]. Moreover, a growing body of evidence shows that blood vessels in the SVZ-RMS-OB promote migration of neuroblasts from the SVZ to their target structure, the OB^{[16][17][21][70]}.

Unlike postmitotic CNS neurons migrating along radial glial processes to the cortex of the developing brain ^[71][72], in the adult brain RMS, SVZ-derived neuroblasts migrate independently of radial glia. They migrate using each other via cell–cell contacts, creating “chains”, and this homophilic mode of cell movement is also called chain migration^[38][73]. The chains of migrating neuroblasts in the RMS are enwrapped by astrocytes which separate them from the mature tissue of the brain. It was initially believed that astrocytic tubes represent a physical barrier restricting this migration, and a scaffold navigating neuroblasts toward the OB ^[5].However, it was subsequently observed that astrocytes do not provide continuous wrapping around the migrating neuroblasts^[17][18][38]. Besides the astrocytic scaffold, blood vessels “emerged” as a potential candidate which could serve as a support for migrating neuroblasts.

The RMS in rodents is several millimeters long (approximately 5 mm in mice)^[3] and is sigmoidal in shape. It is possible to distinguish the following anatomical regions along the caudal–rostral axis of the RMS: I) the vertical arm, the segment descending from the SVZ, leading ventrally, which can be subdivided into the caudal part, also known as the anterior part of the SVZ (SVZa) and the rostral part, also known as the vertical limb or descent; II) the elbow: the most ventral segment of the RMS, which turns rostrally; III) the horizontal arm, also known as the horizontal limb or enter, the segment leading rostrally, the horizontal arm, also known as the horizontal limb or enter, the segment leading rostrally, entering the OB (Figure 1)^{[17][18][36][74]}.

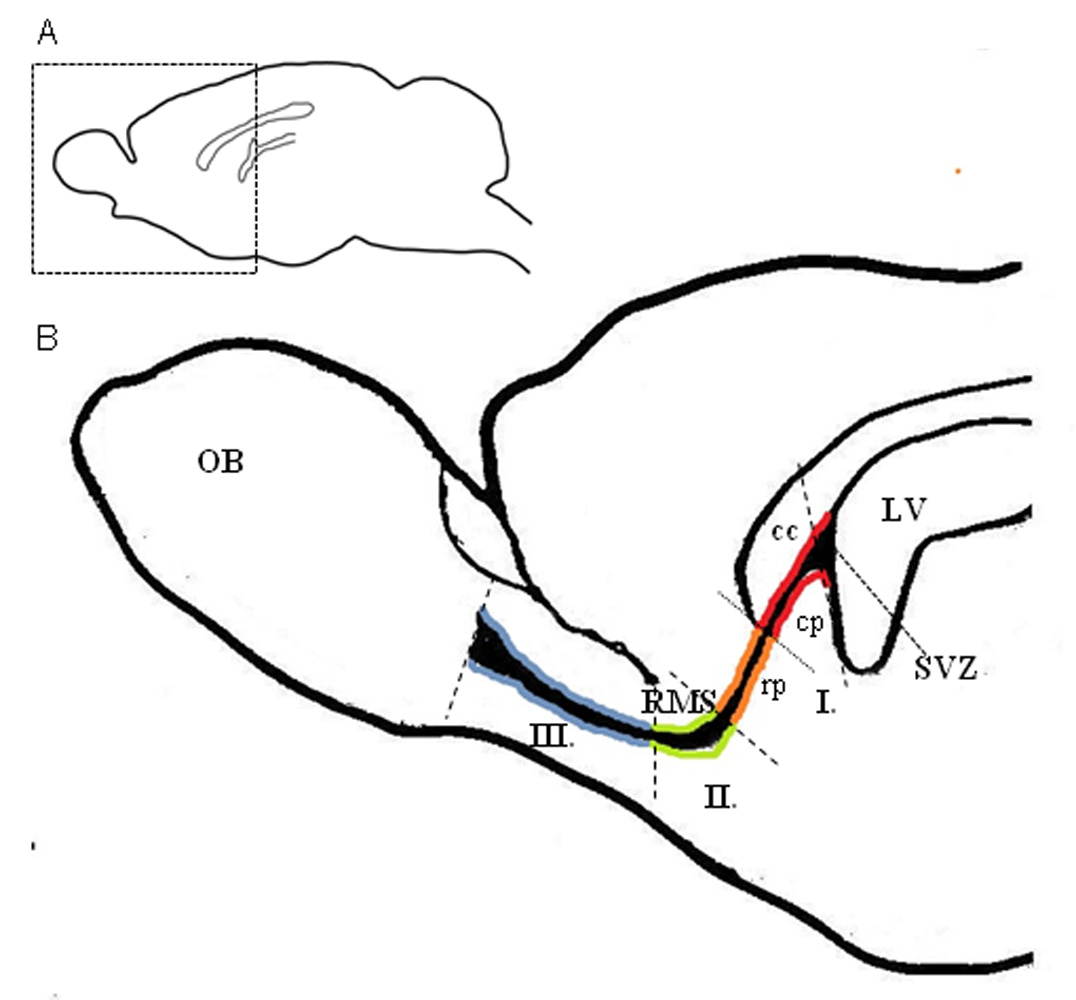

Figure 1. Anatomical regions of the RMS. (A) Schematic drawing of a sagittal section of the adult rat brain. (B) Schematic drawing of magnification of the boxed area of the picture (A) showing the division of the RMS into anatomical regions. The regions are highlighted with different colors. In the caudal to rostral direction, the following can be recognized: the vertical arm (I), which can be subdivided into the caudal part (cp—red) lying under the corpus callosum and the rostral part (rp—orange) leading ventrally; the elbow (II—green) and the horizontal arm (III—blue) leading rostrally toward the OB. LV—lateral ventricle, cc—corpus callosum, OB—olfactory bulb, RMS—rostral migratory stream, SVZ—subventricular zone.

Although exact borders between the RMS regions cannot be recognized, some differences relating to blood vessels in these regions are obvious. For example, different blood vessel density in individual regions of the RMS in both, adult mice^[17] and rats^[18] and different arrangement of blood vessels along the caudo-rostral axis of the RMS in rats (see below)^[18]. Moreover, differing permeability of blood vessels has been found along the SVZ-RMS-OB axis, with highly-permeable blood vessels in the SVZ and impermeable blood vessels in the RMS/OB^[13][75]. Even though the reasons for these region-dependent distinctions remain unclear, one of the possible explanations could be the different developmental base of individual parts of the RMS. According to Pencea and Luskin^[36], the RMS arises in advance and independently of the cortical SVZ and is derived from two sets of cells with different mitotic activities called patch and nonpatch. Although patch and nonpatch regions merge postnatally, they may originate separately under the influence of distinct intrinsic and extrinsic factors^[36].

The arrangement of the RMS blood vessels was first described in adult mice^[16][17]. According to these studies, blood vessels in adult mice precisely outline the migratory stream from its posterior (SVZ) to the most anterior (OB) regions^[16], and their orientation is parallel to the RMS throughout its extent^[17]. In a later morphological study, we showed that this parallel arrangement of blood vessels is not applied to the whole RMS in rats^[18]. We found clear differences in the arrangement of blood vessels between posterior and anterior regions of the RMS. In the posterior part of the rat RMS (the caudal part of the RMS vertical arm, lying under the corpus callosum), blood vessels are oriented perpendicular to the migratory pathway, or they are turned under a distinct angle, creating a spiral-shaped configuration (Figure 2A). In contrast to this, in the rest of the migratory pathway, i.e., in the rostral part of the vertical arm as well as the elbow and the horizontal arm of the RMS in adult rats, the orientation of blood vessels is parallel to the migratory stream (Figure 2A)^[18]. Our preliminary results comparing the pattern of the RMS blood vessels in adult mice and rats revealed that there were not so striking differences in the arrangement of blood vessels between the species, whereby even in mice, the blood vessels are not aligned parallel to the migratory pathway, at least in its most posterior part (SVZa) ( Figure 2B) (unpublished data).

Figure 2. Arrangement of blood vessels in the RMS of adult rodents. Micrographs show organization of PECAM-1-labelled blood vessels (red) in the RMS of adult rat (Wistar albino) (A) and mice (Balb/c) (B). Nuclei were counterstained with DAPI (blue). Inset in A shows sagittal section of the rat brain processed with haematoxylin-eosin staining. The RMS is visible as an L shape strip of densely-packed cells. I—vertical arm of the RMS, cp—caudal part of the vertical arm, rp—rostral part of the vertical arm, II–elbow of the RMS, III—horizontal arm of the RMS, OB—olfactory bulb, cc—corpus callosum, LV—lateral ventricle, SVZ- subventricular zone, D—dorsal, V—ventral, C—caudal, R—rostral.

Besides the specific arrangement of blood vessels in the RMS, another characteristic is their higher density in the migratory pathway in comparison with adjacent tissue of the brain in both species, mice, and rats ^[17][18]. Higher density of blood vessels applies to all parts of the RMS, and together with the known high density of cells in the RMS, this could logically suggest higher metabolic demand in this area. However, high blood vessel density may not be causally related to high cell density, since Whitman et al. ^[17] showed that the granule cell layer of the cerebellum, an area as equally cell-dense as the RMS, has a lower density of blood vessels. Recently, it has been shown that the higher density of blood vessels, as well as their specific arrangement, plays an important role in the RMS. Besides supplying nutrients, oxygen, and regulatory cues and being a part of the blood-brain barrier, another role of blood vessels in the neurogenic area of the adult brain has been proposed linked to neuroblast migration. Several studies have shown that there is evident association between blood vessels and the chains of neuroblasts. These studies suggest that blood vessels together with astrocytes might serve as a physical substrate fostering neuroblast migration from the SVZ to the OB^{[16][17][18][70]}. The first indication of vasculature-guided (vasophilic) neuroblast migration appeared in the study of Bovetti et al.^[70] and concerns the migration of neuronal precursors in the OB of mice. Other studies provided further evidence for the vasophilic mode of neuroblast migration in the RMS of adult mice^[16][17].  Time-lapse video imaging in acute brain slices of adult mice showed neuronal precursors migrating tangentially along the blood vessels in the RMS^[16] and radially in the granular cell layer of the OB^[70]. It was revealed that the neuroblasts migrated in a saltatory fashion along the blood vessels. This movement consisted of a migratory phase in which the neuronal cell body shifted toward the leading process, which was then followed by a stationary phase^[16][70].

In the RMS, the chains of migrating neuroblasts are surrounded by GFAP-expressing astrocytes.It has been shown that the morphology of astrocytes in the RMS differs from that in the surrounding tissue.The astrocytes in the RMS of adult mice do not exhibit the typical stellate shape; they are rather polarized, and their branches are aligned with the path of migration^[17]]. Similarly, in adult rats, the majority of astrocytes have their long processes aligned with the migratory pathway; however, in the caudal part of the vertical arm (overlaid by the corpus callosum), most astrocytic processes are directed toward the corpus callosum, irrespective of the direction of neuroblast migration^[18]. The astrocytes of the RMS line the blood vessels, and their processes interdigitate with the neuroblasts. It has been found that migrating neuroblasts can actively remodel astrocytic tubes to facilitate their directed migration. The neuroblasts have the ability to remove impeding astrocytic processes by secreting a diffusible protein with repulsive activity, Slit1, whose receptor, Robo, is expressed on the RMS astrocytes^[76].

Based on tracer experiments, it was found that the blood–brain barrier of the SVZ is modified and that circulating small molecules can enter the SVZ via two routes, directly from the vessels in the SVZ vascular plexus and from vessels in the choroid plexus^[13][75]. Neuronal precursors residing in the SVZ may, therefore, easily receive spatial cues and regulatory signals circulating in the bloodstream. Moreover, endothelial cells themselves producediffusible signals, such as VEGF, BDNF and other factors, which can affect neuronal precursors^[62][77][78].

The Saghatelyan group demonstrated that in the SVZ-RMS, BDNF is produced by endothelial cells of blood vessels^[16]. Moreover, they revealed the principle of vasophilic migration^[16][79] and they showed that migrating neuroblasts control their own migration by regulating the amount of extracellular BDNF.BDNF produced by endothelial cellsbound with p75NTR low-affinity receptors on neuroblasts, thus fostering the entrance of neuroblasts to the migratory phase. Then, GABA released by neuroblasts induced Ca²⁺-dependent expression of TrkB, high-affinity receptor for BDNF, onastrocytes. This resulted in trapping of BDNF by astrocytes, thereby regulating its availability in extracellular space, which induces entry of migrating neuroblasts to the stationary phase^[16].

During perinatal and early postnatal developmental stages, intense vascular remodeling takes place in the forebrain neurogenic region^[49][50]. Mechanisms leading to the appearance and formation of a migration-promoting vasculature scaffold during early developmental stages were examined by Bozoyan et al.^[20]. During early postnatal stages, the RMS contains two distinct sub-regions, the border and the core, with different characteristics^[20]. It has been suggested that the migration-promoting vasculature scaffold is first laid down on the borders of the RMS^[20]. As the brain grows, the RMS gradually becomes longer and thinner, the center of the RMS collapses, and the RMS borders approach each other^[20].

Although the RMS blood vessels are laid down during early development^[49], their reorganization occurs postnatally^[20] and this vascular rearrangement seems to be crucial for neurogenic processes in the SVZ-RMS-OB. By blocking VEGF signaling during early developmental stages, Licht et al.^[80] induced a collapse of the RMS vascular network, which resulted in complete failure of the migration of newborn neuronal precursors from the SVZ toward the OB and thus piling up of neuronal precursors amidst the RMS and their subsequent apoptosis. Later, it was shown that during the early postnatal period, VEGF is produced by astrocytes, which first emerge on the outer bordersof the migratory stream and this astrocyte-derived VEGF plays a key role in the development and structural rearrangement of the vasculature scaffold^[20]. When the VEGF expression was downregulated in vivo, specifically in the astrocytes of the developing RMS, the development of the vascular scaffold was affected and this consequently led to alteration of the neuronal migration, accumulation of neuronal precursors in the RMS, and decrease in the number of newborn neurons arriving at the OB^[20]. In our laboratory, we obtained similar results when angiogenesis was inhibited during the early postnatal period^[21]. Administration of endostatin, an endogenous inhibitor of angiogenesis which interferes with VEGFR-2, prevented the effect of VEGF on angiogenesis and resulted in the disruption of blood vessel reorganization into a proper vascular scaffold^[21]. This failure of vascular rearrangement caused disruption of the mode and direction of neuroblast migration. Taken together, this suggests that the reorganization of blood vessels in the RMS and formation of a vascular scaffold during the early postnatal period is crucial for the regular course of postnatal neurogenesis in the SVZ-RMS-OB system.
