Persufflation (PSF) utilises the organ's own vascular network to provide oxygen to the organ tissue and maintain metabolism during preservation to avoid hypoxic damage. This method discovered in the early 20th century has shown promise in providing both longer-term preservation and organ reconditioning capabilities for multiple organs including the liver, kidneys, and pancreas.
Currently, the most commonly used method of preservation, static cold storage (SCS), provides a simple and cost-effective method of preserving organs. This technique works by slowing the metabolism of the organ using specialised preservation solutions. However, lack of oxygen for extended periods leads to deleterious effects which may impact on transplantation outcomes. Whilst this technique is acceptable for standard criteria donors over shorter preservation times, it has been shown to be incapable of preserving them for longer durations. This technique’s shortcomings become more prevalent when using extended-criteria donor organs. Due to the lack of active oxygen supply, there is an increase in risk with extended preservation times that can lead to hypoxia and the damage associated with it, especially with large solid organs . This has driven the need for improved techniques that can cater for these requirements. So-called ’active’ preservation techniques, which typically perfuse fluids through the existing vasculature, have shown to be able to do just that. Various active preservation techniques have been investigated that have been shown to be better at providing oxygen directly to the organ and thus providing extended preservation times without degradation in organ viability. Such techniques include hypothermic machine perfusion (HMP) and normothermic machine perfusion (NMP) which perfuse the organ using specialised preservation solution, or persufflation (PSF) which uses humidified oxygen gas directly as the perfusate.
PSF was first described in the early 20th century when it was discovered by R Magus, which went unused for several decades due to a lack of possible applications . This technique would see a resurgence in the late 1950’s after the first successful transplantation in humans was performed; however, its usage as a preservation technique was overshadowed by the discovery and adoption of SCS in the 1960’s . Interest in PSF remained prevalent in the following decades with two different approaches, retrograde and anterograde, being described in the 1970’s . In recent years, PSF has regained the interest of the scientific community for its ability to aptly provide oxygenation to larger organs, its relative ease of use, and simplicity when compared to other advanced preservation techniques . PSF has shown promise in improving the durations an organ can be safely preserved for, whilst also maintaining organ quality to help improve the outcome of the transplantation.
Organ preservation and transplantation presents various logistical and technical challenges. Organs are often required to be transported great distances and may face local competition from operating theatres necessitating extended preservation. This frequently leads to operations being performed out-of-hours by tired transplant teams, which has been shown to lead to a higher rate of surgical complications .
The most common form of organ preservation, SCS, relies solely on reducing metabolism whilst osmotically balancing the extracellular space to match what cells experience intracellularly during hypothermic storage. While this can provide adequate preservation from traditional donor organs exposed to brief periods of cold ischaemia, it can manifest several changes over time, which may damage the organ either during preservation itself or following reperfusion leading to what is known as Ischaemia Reperfusion Injury (IRI) . These changes damage organs and may lead to dangerous scenarios if transplanted; resulting in an often overly cautious approach and unfortunately resulting in wastage of transplantable organs. To address this, a variety of preservation technologies have been investigated in recent years.
PSF is one such technology, which aims to restore tissue oxygenation by providing maintenance of bioenergetic status; ameliorating tissue degradation due to hypoxic exposure during ischaemia. This enables a longer period of possible preservation facilitating more successful transplants with better posttransplant function. For PSF, the organ or tissue that is being preserved, is cannulated and connected to a device that perfuses oxygen gas directly into the vasculature of the graft. Multiple studies have demonstrated that, for larger organs, this method provides superior oxygenation to the organs when compared to alternatives such as SCS . This has been shown to extend the preservation time as well as providing some restorative benefits to marginal organ grafts.
Hypothermic reconditioning (HR) is also a key interest of PSF studies. This being the process of applying PSF after a period of SCS to reverse ischaemia associated alterations, reduce the risk of IRI, and permanent tissue damage .
PSF is typically performed in either of two ways as can be seen in Figure 1. Retrograde Persufflation (R-PSF), is the process of cannulating the vein of the organ to pass the gaseous oxygen through. This method requires that the organ is punctured using multiple pinpricks to gradually let the oxygen escape from the organ. Using a high concentration of oxygen (>95%), gas is perfused through the venous system in a reversed manner to normal physiological flow. This version requires lower pressures to perfuse oxygen through the organ leading research to suggest that it has no adverse effect on venous endothelium . On the other hand, Anterograde Persufflation (A-PSF), works like R-PSF with the distinction that the flow is reversed to mimic the natural flow of blood in the body, typically entering via an artery before traversing the capillary bed and draining via the vein. Studies have shown that A-PSF has demonstrated the ability to provide more efficient gas exchange when compared to R-PSF due to the higher surface area provided by the capillary bed and therefore lower concentrations of oxygen (40%) are used to avoid damaging the graft tissue.

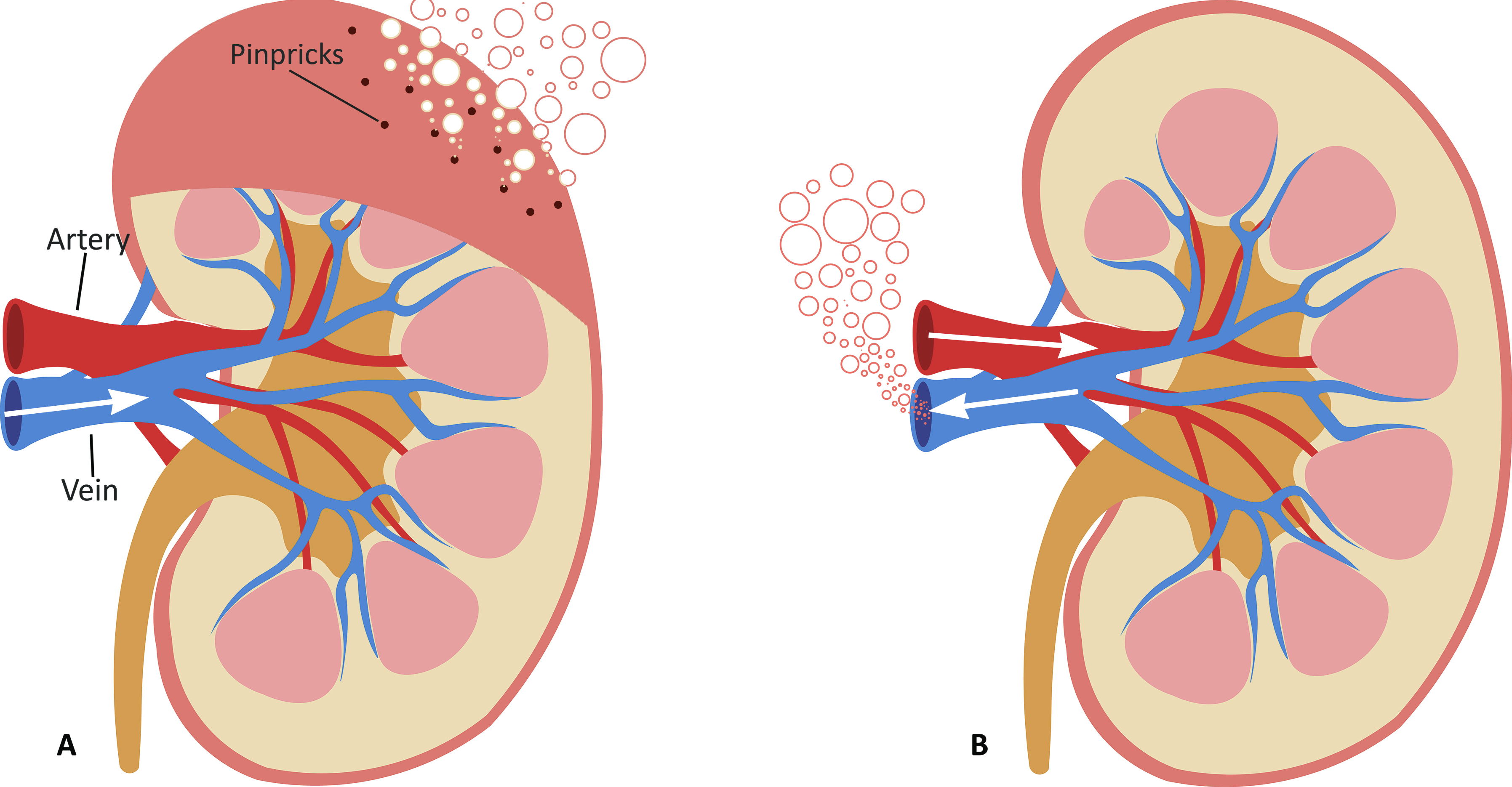

Figure 1. Cross-sectional diagram of the kidney being persufflated using two different approaches: (A) Retrograde Persufflation (R-PSF); with the gas being perfused through the vein and bubbling out through the pinpricks. (B) Anterograde Persufflation (A-PSF); with the gas being perfused through the artery and exiting through the vein.
In recent years, PSF development has focused mainly on three different organs, these being the liver, kidney, and pancreas. Using varying animal models, researchers have attempted to assess the different aspects of PSF and its effects.
A variety of studies were conducted on the liver, such as those that aim to investigate the effects and the parameters of the technique as well as its usage on DCD livers. Most notably, researchers such as Minor, Koetting, and Stegemann used various models to identify the optimal time, concentration of oxygen, and sequence of using PSF to obtain the best results .
Beyond this, the usage of adjuvant approaches during preservation, such as using antioxidant agents to provide additional protection to the organ, has been explored primarily in murine models. Several groups attempted to mix the oxygen with nitric oxide which led to improved results in terms of graft quality and viability . In a similar fashion, Koetting et al. used carbon monoxide to suppress early inflammatory reaction and ischemia-reperfusion injury. The treated livers exhibited a significant improvement in liver function and graft tissue integrity compared to SCS but similar results to normal PSF .
The application of PSF extended to other types of marginal organs such as steatotic or hypovolemic shocked organs. In a study by Jafari et al., PSF was used on hypovolemic shocked livers to preserve and hypothermically recondition them which ultimately produced no favourable results as the organs continued to deteriorate . Steatotic livers showed significant improvement when preserved with PSF supplemented with high-dose reduced-glutathione . Human mildly steatotic livers also benefited significantly from the usage of PSF as described in a study by Khorsandi et al. .
Clinical application of PSF was first attempted by Treckmann et al. in 2008. Rejected marginal livers with various levels of WIT were treated with PSF and transplanted into patients with low MELD scores. The study analysed functional markers of the liver pre and post-transplantation. The results showed that the liver showed significant improvement in these measurements as well as exhibiting good primary graft function .
More recently, a clinical trial was conducted for the usage of PSF on livers. Originally designed by Minor et al. in 2011, the results of the 116 patient trial were published by Gallinat et al. in 2019 . The cohort of patients (who had low MELD scores) was split into 2 groups, one receiving marginal livers treated with 2 hours of PSF and the other being the control group, receiving untreated marginal livers. The results obtained for the one to five-year survival rates of both groups were similarly high, with the PSF group showing improved results in the older age group (70+) .
Similarly to the liver, many studies in this period for the kidney explored the efficacy of the method both for preservation as well as a hypothermic reconditioning tool.
This period saw several studies that compared various preservation techniques to PSF, including studies by Teckmann et al. in 2009, Kalenski et al. in 2016 as well as Molacek et al. and Min in 2018 . Whilst using different parameters, the common result obtained was that PSF is mostly comparable to other active techniques such as HMP whilst being superior to SCS.
For pancreas preservation, most recent works centered around the effects of PSF and comparison to other techniques, mainly in human or porcine models.
Efficacy of PSF was investigated in 2014 by Reddy et al. on DCD rat pancreta. They demonstrated that, whilst the resultant organs were of poorer quality when compared to non-DCD grafts, they were significantly better than those preserved solely with SCS .
Scott et al. published several works comparing PSF to an advanced variant of SCS called the two-layer method (TLM). In these works it was shown that PSF was able to better oxygenate the pancreas grafts and maintain a high level of certain functional markers such as ATP . They later reported improved islet isolation yield and quality in the PSF group when compared to TLM . On the topic islets, Kelly et al. conducted a study in 2019, investigating the effects of preservation on them. Whilst the PSF group underwent longer periods of preservation than their SCS counterpart, they showed no adverse effects. The study concludes by discussing the negative effects that prolonged preservation using SCS has on the islet and insulin secretion .
Historically, the heart was a mainstay of PSF studies, however, in recent times interest seems to have subsided. Whilst we are aware of several abstracts being presented during the past 15 years, we were unable to find any publications to report in this review.
We are also aware of several abstracts investigating the use of PSF for composite tissue preservation such as for limbs. However, we were similarly unable to find publication to report in this review. These abstracts demonstrate that there is some interest in other applications and we look forward to seeing more publications emerging moving forward.
We are presently unaware of any other applications of PSF beyond those mentioned above.
