Nanocellulose from Agricultural Wastes
Edit
Upload a video

Nanocellulose-based composites are characterized for being highly biocompatible and scarcely toxic, which are the the major reasons for its use in numerous biomedical applications. Incorporation of nanocellulose to drug delivery systems could control both the manner drugs are released and the interactions with target molecules, thus increasing the effectiveness of drug administration. Changes on nanocellulose surface must be carried out to link drugs, non-ionic chemicals with hydrophobic character, to the nanopolymer.

  • lignocellulose biomass
  • nanocellulose
  • nanocrystal
  • nanofibers
Information
Contributor :
View Times: 180
Revisions: 2 times (View History)
Update Time: 18 Sep 2021

1. Introduction

Food packaging, biomedicine, mechanical reinforcement of matrices and membrane filtration among many other industries have used nanocellulose-based materials for their product applications [1]. Lately, nanocellulose has spurred research toward a wide range of products and applications, ranging from nanocomposites, gels and aerogels, viscosity modifiers, films, barrier layers, fibers, foams, energy applications or filtering membranes [2]. The ordered structure of cellulose enables nanocelluloses to be isolated from LCB by employing processes that aim to disintegrate cellulose fibers into cellulose nanocrystals (CNC) and cellulose nanofiber (CNF), depending on the processing conditions [3].

Acid hydrolysis and mechanical treatments are the most widely employed methods for obtaining CNC and CNF, respectively; however, these procedures have some drawbacks related to economic and environmental aspects such as the energy demand of the process and the high amount of water required in the neutralization steps [4]. Another possibility for producing nanocellulose is the use of enzymatic hydrolysis, a promising environmentally friendly and sustainable route due to the advantages of enzymatic treatments, although the cost of enzymes may be an inconvenient. Some authors have evaluated the use of enzymes combined with mechanical treatments in order to facilitate fibrillation of cellulose bundles and to reduce energy requirements for nanocellulose isolation processes [5][6].

Nanocellulose is often used as a general term for different types of nano-sized and micro-sized cellulosic particles [7]. Nanocellulose is the disintegration product of cellulosic fibers to the diameter and length shown in Table 1 , depending on the structure. Three types of nanocellulose morphologies can be distinguished: cellulose nanofibers (CNF), usually obtained by means of enzymatic and/or mechanical disintegration processes; cellulose nanocrystals (CNC), rod-shaped highly crystalline cellulose nanocrystals generally obtained by hydrolysis with concentrated mineral acids (mainly HCl or H 2SO 4); and bacterial nanocellulose (BNC), obtained almost exclusively by a family of bacteria known as Gluconoacetobacter xylinius .

This review carries out a study of the main processes for obtaining cellulose nanofibers and nanocrystals as well as their optimization. Schematically, the process would consist of a series of stages: (a) conditioning of the biomass (milling, sieving and drying); (b) attainment of cellulose through pretreatments, mainly by alkaline processes, that degrade the structure of the lignocellulosic residue in order to facilitate the release of its monomers; (c) purification and bleaching; and (d) attainment of nanocrystals or nanofibers, mainly by acid hydrolysis.

2. Biomass Sources

Cell wall structure of LCB is composed mainly by three kinds of polymer: cellulose, hemicellulose and lignin, Figure 1 . The proportion of these three components depends on the type and source of lignocellulosic biomass (different species).

Figure 1. Scheme of the main components of lignocellulosic biomass.

Hemicellulose, 15–40% in lignocellulosic biomass, is an heteropolymer which is composed by short, linear and branched chains of different kinds of pentoses and hexoses as monomers. The most common types of hemicellulose are xylans and glucomannans. These are mainly found in the composition of hardwoods, while glucanans are mainly found in softwood [8]. Hemicellulose is attached to the cellulose fibrils through hydrogen bonds and van der Waal interactions. By using acid, alkaline or enzymatic hydrolysis in mild conditions of hemicellulose, ethanol and other valuable chemical products can be generated. Their applications in food, cosmetic and pharmaceutical industries possess great development.

The orientation of the glucose molecules and hydrogen bonding results in different cellulose allomorphs; the proportion of which depends fundamentally on the lignocellulosic biomass source and the treatment method. Generally, there are four types of cellulose allomorphs, namely cellulose types I, II, III and IV [7], Figure 2 . Cellulose type I is the general allomorph of cellulose in nature or native cellulose, and there is a parallel packing of hydrogen-bond network. Cellulose type II comes from the chemical regeneration of type I by dissolving it in a solvent or swelling in acidic or alkaline solution. This fact justifies that in this allomorph the packing of the hydrogen bond network is antiparallel. Cellulose type III can be obtained from the ammonia treatment of cellulose I or II, while cellulose type IV is obtained by heating cellulose III up to 260 °C in glycerol.

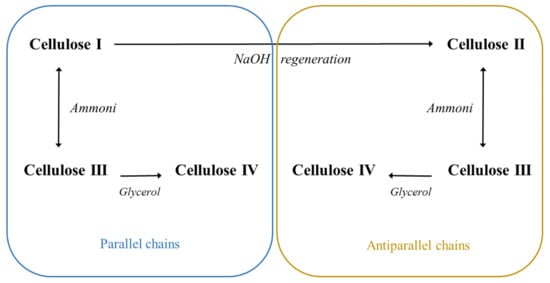

Figure 2. Polymorphs of cellulose and most the common ways to obtain them.

Under the denomination of agricultural residue of lignocellulosic nature, all residues that are generated directly in the field are included. Depending on the crop, they can be grouped as woody crop residues that include the pruning of fruit, citrus, vine and olive trees; and herbaceous crop residues, which are formed by the remains after the harvest, where we would find the sunflower, corncob and the remains of cotton. Table 2 resumes the composition of some of the most usually employed wastes.

Table 2. Composition on the dry basis of the main agricultural wastes of lignocellulosic nature used.
  % Cellulose % Hemicellulose % Lignin
Aspen 53 22 20
Bamboo 40 20 21
Barley straw 38 35 16
Bean hulls 52 26 10
Coconut husk fiber 25 12 40
Corncob 45 35 15
Corn husks 29 40 11
Corn stover 38–40 24–26 7–19
Cotton 40 23 23
Jute 61–71 14–20 12–13
Mango seeds 55 21 24
Olive tree pruning 30–40 24–27 18–23
Pineapple leaf fibre 75 13 10
Pine 47 20 27
Pistachio shells 54 20 25
Poplar 49 24 20
Raw banana fibre 70 20 6
Rice straw 30–35 25–35 12–23
Sorghum bagasse 34–45 18–27 14–21
Soy hulls 48 24 6
Spruce 43 30 28
Sugarcane bagasse 40–50 20–24 25–30
Switchgrass 5–20 30–50 10–40
Sunflower 37 21 17
Wheat straw 30–38 21–50 15–23

3. Nanocellulose Products

Depending on the treatment carried out, two main types of nanocellulose structures, nanofibers or nanocrystals, are mainly obtained from the cellulose extracted in the pretreatments [9]. Most of the bibliography contemplates the extraction of cellulose and its purification based mainly on acid treatments. In general, for obtaining cellulose nanocrystals after the alkaline treatment and the purification, an acid hydrolysis would be carried out, while the attainment of cellulose nanofibers is produced with mechanical treatments that culminate in a high pressure homogenization process. Moreover, bacterial nanocellulose can be obtained through the fermentation processes, see Figure 3 .

Figure 3. Schematic representation of nanocellulose production from agricultural wastes.

Cellulose nanocrystals are rod-like or whisker-shaped particles remaining after acid hydrolysis of lignocellulosic biomass. These particles have also been named nanocrystalline cellulose, cellulose whiskers and cellulose nanowhiskers, and they are nearly 100% cellulose.

Among the various applications of cellulose nanocrystals, it is worth highlighting its application in the manufacture of biocomposite packaging materials [10][11].

Cellulose nanofibers (CNF), which are also called microfibrillated cellulose, cellulose microfibril or microfibrillar cellulose, are currently being the subject of interest to researchers due to their interesting nanocomposite applications. In order to produce these structures, it is necessary to subject the cellulosic fibers to a mechanical disintegration treatment in order to cause the delamination of the fiber, thus isolating the nanometric fibers. This process requires high energy consumption in order to ensure the effectiveness of the nanofibrillation process. In order to reduce it and to increase the efficiency of the process, different pretreatments have been developed to undergo cellulose fiber before its nanofibrillation [12].

4. Applications and Future Perspectives

The application of BNC obtained from agricultural wastes has been investigated in order to design packaging materials with components that release or absorb substances from or into the packaged food or the surrounding environment to extend the shelf-life and to maintain or improve the condition of packaged food [13].

In order to achieve low-cost smart materials with biotechnological sensitivity, nanocellulose can be modified by using different surface groups, other polymer chains or even other nanoparticles; these processes allow obtaining materials with interesting properties and functions on their surface, specifically with electrochemical, electrical and optical applications [14].

The main objective may be the creation of chiral nematic compounds from cellulose nanocrystals together with other polymers or silica; this allows some component to be selectively eliminated later or used as a nanocomposite. Selective removal of a part of the starting nanocomposite provides chiral mesoporous material that can host materials or serve as a template to obtain other chiral materials [15].

Potential applications in the electronics field range from chiral plasmonics, sensitive hydrogels, anti-reflective coatings, optical filters, versatile electronics and soft actuators. On the other hand, cellulose nanocrystrals have been employed to develop optical materials, including surface plasmons, UV blocking and fluorescence and low refractive materials [16].

References

  1. Abitbol, T.; Rivkin, A.; Cao, Y.; Nevo, Y.; Abraham, E.; Ben-Shalom, T.; Lapidot, S.; Shoseyov, O. Nanocellulose, a tiny fiber with huge applications. Curr. Opin. Biotechnol. 2016, 39, 76–88.
  2. Heise, K.; Kontturi, E.; Allahverdiyeva, Y.; Tammelin, T.; Linder, M.B.; Nonappa; Ikkala, O. Nanocellulose: Recent fundamental advances and emerging biological and biomimicking applications. Adv. Mater. 2020, 33, 2004349.
  3. Klemm, D.; Kramer, F.; Moritz, S.; Lindström, T.; Ankerfors, M.; Gray, D.; Dorris, A. Nanocelluloses: A new family of nature-based materials. Angew. Chem. Int. Ed. 2011, 50, 5438–5466.
  4. Ribeiro, R.S.A.; Pohlmann, B.C.; Calado, V.; Bojorge, N.; Pereira, N. Production of nanocellulose by enzymatic hydrolysis: Trends and challenges. Eng. Life Sci. 2019, 19, 279–291.
  5. Squinca, P.; Bilatto, S.; Badino, A.C.; Farinas, C.S. Nanocellulose production in future biorefineries: An integrated approach using Tailor-made enzymes. ACS Sustain. Chem. Eng. 2020, 8, 2277–2286.
  6. De Campos, A.; Correa, A.C.; Cannella, D.; de M Teixeira, E.; Marconcini, J.M.; Dufresne, A.; Mattoso, L.H.C.; Cassland, P.; Sanadi, A.R. Obtaining nanofibers from curauá and sugarcane bagasse fibers using enzymatic hydrolysis followed by sonication. Cellulose 2013, 20, 1491–1500.
  7. Lavoine, N.; Desloges, I.; Dufresne, A.; Bras, J. Microfibrillated cellulose—Its barrier properties and applications in cellulosic materials: A review. Carbohydr. Polym. 2012, 90, 735–764.
  8. Kapu, N.S.; Trajano, H.L. Review of hemicellulose hydrolysis in softwoods and bamboo. Biofuels Bioprod. Biorefin. 2014, 8, 857–870.
  9. Raghav, N.; Sharma, M.R.; Kennedy, J.F. Nanocellulose: A mini-review on types and use in drug delivery systems. Carbohydr. Polym. Technol. Appl. 2021, 2, 100031.
  10. Li, Q.; Zhou, J.; Zhang, L. Structure and properties of the nanocomposite films of chitosan reinforced with cellulose whiskers. J. Polym. Sci. Part B Polym. Phys. 2009, 47, 1069–1077.
  11. Xu, K.; Liu, C.; Kang, K.; Zheng, Z.; Wang, S.; Tang, Z.; Yang, W. Isolation of nanocrystalline cellulose from rice straw and preparation of its biocomposites with chitosan: Physicochemical characterization and evaluation of interfacial compatibility. Compos. Sci. Technol. 2018, 154, 8–17.
  12. Habibi, Y.; Goffin, A.L.; Schiltz, N.; Duquesne, E.; Dubois, P.; Dufresne, A. Bionanocomposites based on poly(ε-caprolactone)-grafted cellulose nanocrystals by ring-opening polymerization. J. Mater. Chem. 2008, 18, 5002.
  13. Urbina, L.; Corcuera, M.Á.; Gabilondo, N.; Eceiza, A.; Retegi, A. A review of bacterial cellulose: Sustainable production from agricultural waste and applications in various fields. Cellulose 2021, 28, 8229–8253.
  14. Blanco, A.; Monte, M.C.; Campano, C.; Balea, A.; Merayo, N.; Negro, C. Chapter 5. Nanocellulose for Industrial Use: Cellulose Nanofibers (CNF), Cellulose Nanocrystals (CNC), and Bacterial Cellulose (BC). In Handbook of Nanomaterials for Industrial Applications; Elsevier: Amsterdam, The Netherlands, 2018; pp. 74–126.
  15. Reshmy, R.; Philip, E.; Paul, S.A.; Madhavan, A.; Sindhu, R.; Binod, P.; Pandey, A.; Sirohi, R. Nanocellulose-based products for sustainable applications-recent trends and possibilities. Rev. Environ. Sci. Bio/Technol. 2020, 19, 779–806.
  16. Habibi, Y.; Lucia, L.A.; Rojas, O.J. Cellulose nanocrystals: Chemistry, self-assembly and applications. Chem. Rev. 2010, 110, 3479–3500.
