    Chitosan/Graphene Oxide Composite Films

    View times: 21
    Submitted by: Sara Moradi

    Definition

    The healing of wounds is still one of the challenging clinical problems for which an efficient and fast treatment is needed. Therefore, recent studies have created a new generation of wound dressings which can accelerate the wound healing process with minimum side effects. Chitosan, a natural biopolymer, is an attractive candidate for preparing biocompatible dressings. The biodegradability, non-toxicity and antibacterial activity of chitosan have made it a promising biopolymer for treating wounds. Graphene oxide has also been considered by researchers as a non-toxic, inexpensive, and biocompatible material for wound healing applications. This review discusses the potential use of chitosan/graphene oxide composite films and their application in wound dressing and drug delivery systems.

    1. Introduction

    The creation of smart wound dressings that work proactively with the human body to speed up the wound healing process and prevent infection has received more attention recently, particularly for individuals with chronic wounds. Due to the need for a new generations of smart wound dressings with the ability to accelerate the wound healing process and prevent infections, various kinds of dressings with novel materials and structures have been prepared and studied. Biopolymers in particular have attracted more interest due to their biocompatibility and low or non-toxicity.

    Chitosan is one of the most attractive biopolymers for wound dressing applications. It is a linear polysaccharide derived from chitin, which is the second most abundant biopolymer after cellulose. It has antimicrobial, anticoagulant, antibacterial, antifungal, anti-tumor, and haemostatic properties [1]. Due to these excellent characteristics, chitosan has been a potential biomaterial for biomedical applications such as wound dressings [2], drug delivery systems and tissue engineering scaffolds [3]. Graphene oxide (GO), is one of the most important derivatives of graphene.  In recent years it has been considered as a suitable material for biomedical applications. Owing to its large surface area and functional groups, such as carboxyl and hydroxyl, GO is hydrophilic in nature, and so it can be dispersed in aqueous solutions via electrostatic repulsion [4]. GO can be applied to reinforce natural polymers such as chitosan, and some reports have indicated that chitosan/GO composites can capitalize on the advantages of both chitosan and GO materials [5].  Therefore, there are several studies regarding the preparation and characterization of chitosan/GO composite films and their application in different biomedical fields such as wound dressings and drug delivery systems.

    2. Chitosan

    The general term chitosan describes a range of poly-(beta-1-4) N-acetyl-D-glucosamine materials (Figure 1) whose properties are highly dependent on the degree of deacetylation, average molecular weight, polydispersity, morphology and chemical structure. Chitosan is one of the most widely used materials for biomedical end-uses including wound dressing applications [6][7][8][9]. It has excellent biocompatibility and low toxicity, and can stimulate a positive immune response as described in our previous review paper about applications for chitosan hydrogels as wound dressing materials [1].

    Figure 1. Chitosan structure [1].

    3.Graphene Oxide

    Graphene, also known as graphite, consists of a single layer of carbon atoms arranged in a two-dimensional honeycomb lattice. Graphene oxide is composed of carbon, oxygen, and hydrogen in variable ratios, obtained by treating graphene with strong oxidizing agents (Figure 2). The structure and properties of graphene oxide depend on the method of synthesis and the degree of oxidation. It usually maintains the single layer structure of graphene, but the layers are buckled and the space between the layers is about two times larger (~0.7 nm) than that of graphene. Graphene oxide can be considered a promising candidate for biological and biomedical applications because of its amphiphilicity, aqueous processability, ease of surface functionalization, and its capacity for fluorescence quenching [10].

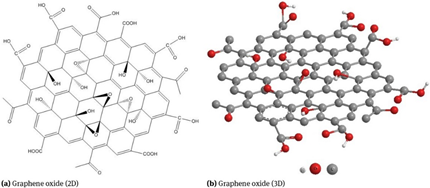

    Figure 2. Graphene oxide [11].

    3.1. Toxicity and Biocompatibility

    The toxicity of graphene oxide (GO) has been studied by several researchers. In a study undertaken by Chang et al. [12] evaluating of toxicity of GO on A549 human lung cells, it was shown that GO does not enter the A549 cell and causes no evident cytotoxicity. But based on the applied dose, it can lead to oxidative stress in cells and some loss of cell viability at high concentrations. LiQiang et al. [13] showed that GO has a moderate level of toxicity to human bone marrow neuroblastoma cells and human epithelial carcinoma cells. When studied with zebrafish (Danio rerio) embryos, a 20% inhibition of cell growth was observed. And when a high dosage of 50 mg/L was used, this caused a delay in the hatching of the zebrafish embryos, but it did not increase apoptosis significantly. Majidi et al. [14] synthesized GO-chitosan nanohybrid films for wider biomedical applications and characterized the film’s structure, antibacterial activity and cytotoxicity. The results of the antibacterial tests showed that GO-chitosan hybrids had greater antibacterial activity compared to that of pure GO. Also, the attachment of graphene sheets to GO decreased the level of cytotoxicity and in some cases led to increased cell proliferation. In another study Liao et al. [15] evaluated the cytotoxicity of GO and graphene sheets with different sizes and oxygen levels on human red blood cells and adherent skin fibroblasts using WST-8 viability and hemolysis assays. The results of the WST-8 assay and hemolysis data proved that compact graphene sheets were more toxic to mammalian fibroblasts than the less dense graphene oxide. Also, the graphene sheets produced more reactive oxygen species on the surface of the dermal fibroblasts. They concluded that the toxicity of graphene and graphene oxide depends on the exposure environment, such as the level of aggregation, and the type of cell interaction (i.e. cell suspension versus adherent cells). Exposure of reduced graphene oxide (rGO) particles with a diameter between 100–110 nm and a thickness between 3–5 nm to human PC12 neuronal cells increased the activation of caspase-3, the release of lactate dehydrogenase, and the generation of reactive oxygen species. However, rGO had a moderate effect on protein levels during contact with human HepG2 hepatoma cells [16]. According to the literature, the toxicity of GO and rGO is strongly dependent on their concentration and increases with the amount of GO or rGO. For instance, a GO concentration of greater than 50 μg/mL showed toxicity to human fibroblasts, decreased the amount of cell adhesion and promoted cell apoptosis [17].

    Liao et al. [15] also investigated the blood compatibility of GO and graphene sheets on human red blood cells and adherent skin fibroblasts. The observed level of hemolysis for the GO samples was strongly dependent on the extent of exfoliation of the injured dermal tissue and the particle size. Smaller-sized GO particles had a higher hemolytic activity compared to larger sized GO particles. Their results demonstrated that the size, shape and density of the graphene particles, oxygen content and electrostatic charge on the surface of the particles strongly affected the toxicological and biological response by the red blood cells. They also found that covering GO with chitosan removed any hemolytic activity. Zhang et al. [18] investigated the biocompatibility and distribution of GO in mice. The results showed that GO did accumulate in the lungs over an extended period of time. GO also contributed to a slower blood circulation time, with 5.3 + 1.2 hours half-life compared to other carbon nanomaterials. When the mice were exposed to 1 mg kg−1 body weight of GO for 14 days, no pathological changes were observed in the examined organs. GO exhibited good biocompatibility to red blood cells. The conclusions recommended that GO in low doses is an acceptable candidate for biomedical applications, but when the dosage exceeds 10 mg kg−1 body weight, some pathological changes, such as pulmonary edema, chronic inflammation, and granuloma formation are likely to occur. Based on a review report by Kiew et al. [19], after incubation for 3 hours, the micro-sized (3μm) graphene sheets (10% hemolysis at 100 μg/mL) caused less hemolysis than nano-sized GO (350 nm) particles (70% at 25 μg/mL). The superior hemocompatibility of the smaller-sized graphene oxide sheets was no doubt due to the limited overall surface area available for interaction with red blood cells.

    Chen et al [3] also investigated the biocompatibility of the PVA/CS/modified GO (mGO) films by measuring viability of HaCaT cells after seeding on the surfaces of different concentrations of the composite films (Figure 3). The PVA/CS/1.0 wt% mGO film could lead to some detrimental effects on HaCaT cell viability after 5 days and no remarkable differences in cell viability of other films were observed indicating that the films with concentration of below 0.5 wt% mGO have no obvious in vitro cytotoxicity.

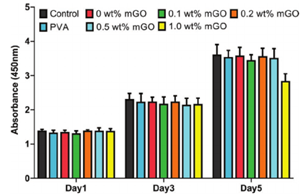

    Figure 3. Cell viability of modified GO-loaded films with different concentrations [3].

    Mouse Preosteoblasts cells seeded in contact with chitosan/GO 0.5 and 3 wt% had a significantly (p<0.001) higher rate of viability and proliferation than the ones in contact with chitosan control after 2 days of culture (Figure 4). This can be related to the presence of GO which could have a role in increasing cells metabolic activity and proliferation [20].

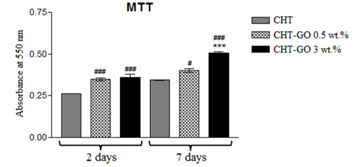

    Figure 4. Quantification of MC3T3-E1 preosteoblasts metabolic activity in contact with chitosan and chitosan/GO films [20].

    3.2. Biomedical Properties

    The study of Mukherjee et al. [21] showed that the activation of inflammasomes does not depend on the lateral dimensions of the GO sheets. Inflammasomes, are receptors/sensors of the innate immune system, that regulate the activation of caspase-1 and are responsible for the activation of inflammatory responses, such as IL-1β [1]. Mukherjee et al. [21] also showed that when GO sheets (small and large) are exposed to primary human macrophages, they are not cytotoxic for primary human macrophages and do not trigger a typical Th1 cytokine (i.e., TNF‐α, IL‐6, or IL‐1β) or Th2 cytokine (i.e., IL‐4, IL‐5, and IL‐13) response in macrophages. From these observations, it was concluded that endotoxin‐free GO is biocompatible and proinflammatory.

    GO can be gradually degraded through enzyme induced oxidization by, for example, horseradish peroxidase (HRP). Because of the remote possibility of toxicity to macrophages, coating GO with biocompatible macromolecules can be a method to reduce its level of cytotoxicity. But at the same time, coating can limit the degradability of GO due to steric hindrance.  So more recent studies have attempted to design a surface modified GO carrier that will degrade and provide drug delivery functionality while maintaining an acceptable level of toxicity [22][23]. In one study done by Tavakoli et al. [24], chitosan film completely degraded in 3 while chitosan/GO films degraded after 28 days. By adding small amount of GO and interaction of the COOH functional groups of GO with chitosan, crystallinity of the composite film increases leading to the reduction of degradation rate which make it a good candidate to bone replacement in orthopedic applications. In another study, enzymatic hydrolysis in the presence of lysozyme was performed for evaluation of biodegradability of the chitosan/GO films. It was observed that the degradability of the chitosan decreased by increasing the amount of GO which is probably because GO sheets postpone the penetration of the enzyme inside the polymer matrix [25].

    Gurunathan et al. [26] investigated the antibacterial activity of GO and reduced graphene oxide (rGO) against P. aeruginosa. The rGO sample was synthesized from GO using betamercapto-ethanol (BME) as a novel reducing agent, which is known to be less cytotoxic than hydrazine. The results showed that both GO and rGO had significant antibacterial activity in a concentration- and time-dependent manner. They also realized that oxidative stress is a key mechanism for antibacterial activity of GO and rGO. In another study by Liu et al. [27] the antibacterial activity of GO sheets with different sizes and shapes was evaluated against Escherichia coli. The results indicated that the antibacterial activity of GO depended on the specimen’s lateral size. Larger-sized GO sheets had more antibacterial activity compared to smaller-sized ones.  They also had different time- and concentration-dependent antibacterial activities. The antibacterial activity of different graphene-based materials, including graphite (Gt), graphite oxide (GtO), graphene oxide (GO), and reduced graphene oxide (rGO), were investigated against Escherichia coli, and the results showed that GO had the highest antibacterial activity, followed by rGO, Gt, and GtO [28].

    Angiogenesis is another key property to accelerate the wound healing process. Ozkan et al. demonstrated that GO and rGO have promising angiogenesis properties [29]. A combination of GO and other polymers, such as GelMA [30] and chitosan [31], provides an attractive method to accelerate the wound healing process by promoting angiogenesis. Reactive oxygen species (ROS) in biological systems play an important role in angiogenesis. Both GO and rGO can increase the concentration of the ROS and ROS can also act as signaling molecules as part of the growth factor-mediated physiological response to cell proliferation and wound healing [30].

    3.3. Electrical Conductivity

    Graphene also has unique optical, electrical, and thermal characteristics, which make it suitable for a range of different applications, such as biosensors, transparent conductors, and drug diagnostics.  Both GO and rGO have residual functional groups leading to faster heterogeneous electron transfer on the surface and better biocompatibility, dispersibility and charge transfer than is possible with pure graphene [32]. Several studies have demonstrated the effect of electrical conductivity of GO in combination with other polymers and its applications. Ozkan et al. prepared chitosan/rGO nanocomposites with appropriate levels of conductivity, stability, charge density, and electrochemical properties for designing molecular detection systems [32]. In another study, chitosan and reduced graphene oxide sheets with a high conductivity of 1.28 S m−1 were fabricated for various biological applications, such as biosensors and tissue engineering scaffolds [33]. Highly reduced few-layer graphene oxide films with conductivities of up to 500 S cm−1 obtained by Betriu et.al [34]. Conductivity is strongly depended on the properties of the GOs (as these determine the effectiveness of the chemical reduction), structural and morphological defects of the flakes and connectivity. Electrically conductive chitosan/GO based scaffolds have been prepared for cardiac tissue engineering end-uses [35][36]. And the electrical conductivity of GO has been found to be highly desirable for use as biosensors [37][38], supercapacitors [39][40] and cardiovascular tissue engineering scaffolds [41][42].

    4. Chitosan/Graphene Oxide Films for Biomedical Applications

    Because of its electronegativity, graphene oxide can easily interact with cationic polymers, such as chitosan, which may lead to a reduction in toxicity and enhanced mechanical properties of the composite structure. For example, loading 1 wt% of GO can improve the tensile strength from 43.2 MPa (pure chitosan) to 104.2 MPa (Chitosan/GO). This should be attributed to the effective load transfer between GO and chitosan coming from good interfacial properties after cross-linking [43]. With respect to the specific properties of chitosan/graphene oxide blends, there are a series of different wound dressing studies with alternative techniques for the preparation of the chitosan/GO composites, which are classified and discussed in the following sections.

    4.1. Chitosan/Graphene Oxide Hydrogels

    Hydrogels are cross-linked and three-dimensional structures which can absorb water and biological liquids without dissolving or losing their 3D network. They are able to absorb and hold high levels of exudate and can be separated from the wound’s surface with minimal pain. Fan et al. [44] prepared composite hydrogels from oxidized konjac glucomannan (OKGM) and carboxymethyl chitosan (CMCS) with different concentrations of graphene oxide (GO) as a nano-additive. The hydrogels had a stable 3D structure with a fast gelation time, good water retention capacity and a high swelling ratio. The compressive modulus and strength were significantly enhanced by adding GO, which was due to the increased hydrogen bonding between the polymer chains and the GO. An in vitro cytotoxicity assay showed that the samples loaded with GO had better biocompatibility compared to those without GO, from which it was concluded that the prepared hydrogels could be considered as potential wound dressings.

    Another type of wound dressing was developed by loading polyhexamethylene guanidine (PHMG)‐modified graphene oxide (mGO) into a polyvinyl alcohol/chitosan (PVA/CS) matrix [3]. The dressings had good mechanical properties, less swelling time, higher water vapor transmission rate (WVTR), faster cell proliferation and greater antibacterial activity compared to those without mGO. The average wound closure time for the films loaded with mGO was 8.2 ± 0.4 days, which was significantly shorter than the Vaseline gauze control and the hydrogels without mGO (Figure 5). An in vivo trial confirmed that this novel composite PVA/CS/mGO film had the ability to accelerate wound healing and therefore showed promise in wound dressing applications.

    Figure 5. Wound closure time of hydrogels with GO [3].

    Layered nanocomposite hydrogel films containing chitosan and GO were prepared for use in biomedical applications by Zhang et al. [45]. The resultant hydrogels had superior mechanical properties and a pH-driven shape memory effect. Shape memory polymers are stimuli-responsive materials that can maintain a temporary deformed shape, but then return to their original permanent shape when exposed to external stimuli. In this study, the initial shape of the CS and CS/GO hydrogels were straight strips. After 5 minutes of immersion in pH 3 solution, the films could be easily deformed and bent into a “U” shape by an external applied stress, and kept in that shape at pH 12 aqueous solution for 10 min. The deformed and bent films were then transferred back to pH 3 solution, and as can be seen from Figure 6, the CS/GO hydrogel reverted to its original shape in 9 minutes whereas the CS hydrogel strip did not returned to its original straight shape in more than 15 minutes. The shape fixity ratio of the hydrogels with 5 wt% GO was about 99% compared to 86% for the pure CS film. These results demonstrated that the prepared films could be combined with hydrogels for biomedical applications such as wound dressings.

    Figure 6. Photographs of pH-driven shape memory polymer samples a) CS/5 wt% GO and b) pure CS. The CS strip was coated with methylene blue for impd visibility. OS: original sample [45].

    Several other studies which involved the preparation of chitosan/GO hydrogels are listed in Table 1.

    Table 1. Chitosan/GO hydrogels and their biomedical applications.

    Ingredients

    Potential Applications

    Characterization

    Reference

    Chitosan/GO/curcumin

    Wound dressings

    Improved Young's modulus. Improved antibacterial activity and in vitro release after addition of curcumin. Greater proliferation of NIH/3T3 fibroblast cells. GO/curcumin  increased hydrophilic properties.

    [46]

    Chitosan/iron oxide/GO

    Biomedical Applications

    Improved thermal and mechanical properties. Significant antimicrobial activities. Non-cytotoxic

    [47]

    Chitosan/GO and Chitosan/reduced GO

    Tissue engineering

    Improved Young's modulus (rGO was soft and easy to bend). Improved structural, thermal, surface, and mechanical properties

    [48]

    Carboxymethyl chitosan/GO/polyacrylamide

    Bioengineering and drug delivery systems

    Excellent mechanical performance. Biocompatible. Fast recovery

    [49]

    Quaternary chitosan/ cyclodextrin/GO

    Wound dressings

    Similar conductivity with that of skin and rapid self-healing behavior. Superior antibacterial property. Accelerated in vivo wound healing. Good biocompatibility

    [50]

    Carboxymethyl-hexanoyl chitosan/GO/cellulose nanocrystals

    Wound dressings

    Excellent biocompatibility. Superior antibacterial properties. High water absorption capacity and water retention capability. GO/cellulose increased hydrophilic properties

    [51]

    Poly(p-phenylene sulfide)/ chitosan/rGO

    Wound Tissue Engineering

    Acceptable biocompatibility and cell attachment. Swelling ratio and WVTR* decreased by adding PPS**/rGO . Improved mechanical properties

    [52]

    * Water vapor transmission rate

    ** Poly(p-phenylene sulfide)

    4.2. Chitosan/Graphene Oxide Nanofibers

    Because of the similarity of the structure to extracellular matrix, electrospun chitosan/graphene oxide nanofiber webs can promote cell adhesion, proliferation and migration, and as a result, they can be considered as an attractive candidate for wound dressing applications. They can act as a barrier to the contamination of open wounds from exogenous microorganisms, and they can maintain a moisture of wound surface to promote the wound healing process. Electrospun nanofibers have a high surface area, which makes them ideal for use in drug delivery systems [53].

    Yang et al. [53] prepared chitosan/polyvinyl alcohol/graphene oxide (CS/PVA/GO) nanofibers loaded with antibiotic drugs, such as ciprofloxacin and ciprofloxacin hydrochloride, by using an electrospinning technique. The drug release results showed a controlled release without an initial burst. Adding GO moderately improved the drug release ratio. The drug-loaded nanofibers had significant antibacterial activity against both gram-negative and gram-positive bacteria, as well as cytocompatibility with melanoma cells. In another study, by increasing the GO content in the electrospun antibacterial CS/PVA/GO nanofibers was found to decrease the thermal stability of the hybrid composite nanofibers [54]. The nanofiber web had effective antibacterial activity against both Gram-negative and Gram-positive bacteria, suggesting that the electrospun nanofiber web could be used as a wound dressing. The natural garlic extract, allicin, with its strong antibacterial activity, was loaded into the electrospun chitosan/polyvinyl alcohol/GO nanofibers, and the release study showed that the amount of allicin released could be controlled by the GO content. The drug-loaded nanofibers had effective antibacterial activity against Staphylococcus aureus, and the nanofibers containing GO had superior antibacterial activity compared to those without GO. The drug-loaded nanofibers also had a significant moisture-retention capacity and hygroscopicity, and as a result these nanofibers were considered to be potential candidates for wound dressing and tissue engineering applications.

    In another study, multi-component nanofiber webs loaded with various antibacterial agents, such as silver nanoparticles (Ag), graphene oxide (GO), curcumin (CUR) and chitosan (CS), were prepared [55]. First, PEGylated GO was used as the template to synthesize a series of PEGylated GO/Ag/CUR nanocomposites by incorporating them into CS/polyvinyl alcohol nanofibers  (Figure 7). The results from an antibacterial test indicated improved effectiveness compared to other formulations. The GO increased the mechanical properties of the nanofibers, with a tensile strength of 25 MPa compared to 7.2 MPa, and a Young's modulus of 364 MPa compared to 73 MPa. A cell viability assay also confirmed the biocompatibility of the nanofiber web, indicating that the prepared nanocomposites had potential for use as wound dressing materials.

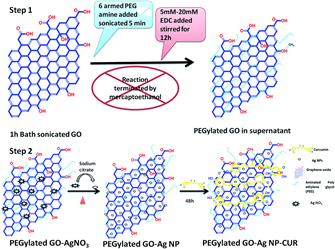

    Figure 7. Schematic of synthesis of PEGylated GO and the PEGylated-GO-based nanocomposites [55].

     Some other preparations are also listed in Table 2.

    Table 2. Chitosan/GO nanofiber webs and their biomedical applications.

    Ingredients

    Potential Applications

    Characterization

    Reference

    Chitosan /polyvinyl pyrrolidone /polyethylene oxide /GO

    Wound dressings

    Enhanced elastic modulus and tensile strength. Controllable water permeability. Biocompatible. Accelerated in vivo wound closure rate

    [56]

    Chitosan / levorotatory poly-L-lactide/ GO

    Wound dressings

    Excellent antimicrobial activity. Promoted proliferation of pig iliac endothelial cells. Improved in vivo wound healing

    [57]

    Polyvinyl alcohol/ chitosan/ GO

    Tissue engineering, wound healing, and drug delivery systems

    Improved mechanical properties. Effective antibacterial activity

    [58]

    Chitosan/bacterial cellulose/ GO

    Skin tissue engineering and wound dressing

    Adding GO reduced nanofiber size. Water vapor permeability and hydrophilicity decreased by adding GO

    [59]

    Polylactide-co-glycolide/ chitosan/ GO/ silver nanoparticles

    Biomedical applications

    Improved wettability of nanofibers. Enhanced antimicrobial function

    [60]

    Chitosan/ gelatin/ GO-silver

    Tissue engineering, nanomedicine

    Improved tensile strength and Young's modulus. Enhanced antimicrobial activity. Improved thermal stability

    [61]

    4.3. Other Types of Chitosan/Graphene Oxide Composites

    Shao et al [62] fabricated biocompatible graphene oxide nanocomposite membranes cross-linked with chitosan which can be used for different applications. A schematic diagram of the reaction is shown in Figure 8. The tensile strength of the membranes was significantly improved with the incorporation of GO. By adding 1 wt% GO the tensile strength improved from 43.2 MPa to 104.2 MPa, an increase of 141% which can be explained by the formation of covalent bonds formed during the chitosan/GO cross-linking reaction. The authors claimed that by controlling other physicochemical properties of GO, such as the density of the functional groups and the particle size, superior nanocomposite properties can be achieved.

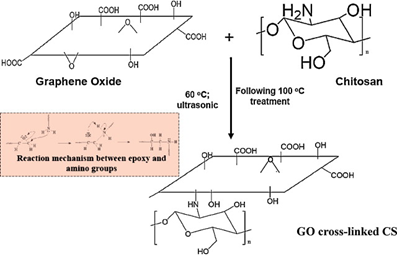

    Figure 8. Cross-linking reaction between GO and CS to form nanocomposite membranes [62].

    Chitosan/GO and chitosan/reduced GO (rGO) hybrid nanocomposites were fabricated by Kosowska et al. [63]. Reduced graphene oxide was synthesized by “green” reducing agents such as L-ascorbic acid (LAA), grape extract, and green tea extract. Among these three reducing agents, the nanocomposites prepared with rGO-LAA had good wettability and a regular, homogeneous microstructure, indicating that such nanocomposite materials may be considered as potential tissue engineering scaffolds. The composites prepared from grape and green tea extracts were less homogenous and formed visible agglomerates.

    Chitosan/hyaluronic acid wound dressings were prepared with GO/copper using sodium trimeta-phosphate (STMP) as the crosslinking agent followed by vacuum freeze-drying [64]. The reason for using copper was that it is a cheaper antimicrobial agent with the ability to kill pathogens on its metallic surface. The prototype dressings had excellent antimicrobial activity against two strains of Staphylococcus aureus, usually found in wound infections, and good cytocompatibility when cultured with NIH/3T3-L1 mouse fibroblasts. The wound dressings loaded with copper provided a significantly faster rate of wound healing together with controlled inflammatory infiltration and improved angiogenesis in the regenerated surrounding granulation tissue. No adverse pathologies were observed when the tissues of other organs, such as the heart, lung, liver and kidney, were examined.

    A series of chitosan and graphene oxide (CS/GO) aerogels were developed as hemostatic agents by incorporating proanthocyanidins such as flavan-3-ols obtained from grape seed and skin extracts [65]. The aerogels were produced from solutions at two different pHs: acidic and alkaline. When exposed to whole blood the acidic aerogels reached total absorption within the first 30 s and the alkaline aerogels within 60 s. But the structure of acidic aerogels was found to be unstable due to capillarity forces, which caused them to dissolve in the media. Therefore, the alkaline aerogels were considered more suitable as hemostatic agents due to their rigidity, porosity, superficial charge, PBS and blood absorption capacities as well as their stability in physiological media. These CS/GO aerogels promoted the accumulation of red blood cells through electrostatic interactions. The loaded aerogels showed slight cytotoxicity; however, the use of skin instead of grape seed extract increased the cell viability, making them acceptable for hemostatic applications. However, the authors mentioned that additional studies are needed to realize the mechanisms which promote coagulation. Finally, they concluded that the prepared CS/GO aerogels could be considered for use as hemostatic agents in wound management.

    5. Chitosan/Graphene Oxide as Drug Delivery Device

    Justin et al. [66] prepared chitosan/graphene oxide (CS/GO) nanocomposites, such as microneedle arrays, that were designed for transdermal drug delivery. The hybrid nanocomposite was found to provide faster, and more effective drug release compared to pure chitosan, and the drug delivery profile was dependent on the ratio of the loaded drug. The drug release of these particular nanocomposites were also pH sensitive, with 48% less release under acidic conditions compared to a neutral environment. In another study, chitosan/sulfonated graphene oxide nanohybrid scaffolds were designed for drug delivery and as a tissue engineering scaffold [67]. Greater hydrophilicity and improved mechanical properties were observed compared to chitosan alone. These nanohybrid prototype scaffolds had a uniform porous structure which facilitated the sustained release of an antimicrobial drug, tetracycline hydrochloride.  In addition, they were highly biocompatible.

    A genipin-crosslinked chitosan/graphene oxide (CS/GO) composite was prepared using a solution casting method [68]. The presence of the GO decreased the expansion ratio of the composite film when exposed to physiological conditions and increased the resistance to in vitro degradation by lysozymes. A cell culture study using mouse MC3T3-E1 pre-osteoblasts showed positive adhesion and cell proliferation, and the prototype films were considered attractive candidates for tissue engineering and drug delivery applications. In another study chitosan‐functionalized graphene oxide hybrid nanosheets were synthesized and demonstrated that the experimental nanosheets significantly improved the solubility of the GO in aqueous acidic media [69]. They also provided controlled release of drugs, such as ibuprofen and 5‐fluorouracil, and exhibited long-term biocompatibility, suggesting that these CS/GO functionalized devices were suitable for biomedical applications such as drug delivery. Table 3 presents some other examples of the application of CS/GO films to serve as drug delivery devices.

    Table 3. Application of chitosan/GO films to serve as drug delivery systems.

    Ingredients Potential Applications Characterization Reference

    Chitosan/reduced GO

    Transdermal drug delivery

    Enhanced electrical conductivity. pH dependent release behavior. rGO reduced biodegradation rate. Improved mechanical properties

    [70]

    Chitosan/modified GO

    Drug carrier

    Stability in aqueous acidic and physiological solutions. Biocompatible. Excellent dispersibility

    [71]

    Aldehyde-conjugated chitosan/GO

    Controlled chemical release

    Improved mechanical properties. Time-dependent aromatic release

    [72]

    Chitosan/hydroxyethyl cellulose/GO

    Drug delivery application

    Stability over all pH ranges. Biocompatibility.

    [73]

    Chitosan/GO

    Delivery of Proanthocyanidins * (Ext.)

    Nontoxic to kidney cells. Thermostable. Biocompatibility of Ext. increased

    [74]

    Chitosan/GO/Dextran

    Anti-cancer drug delivery

    Increase release in acidic medium (pH sensitivity behavior observed). Strong cytotoxicity to cancer cells. Non-specific protein adsorption decreased

    [75]

    Galactosylated chitosan/GO

    Drug delivery system for therapeutic treatment of cancer

    Stable in physiological conditions. Higher fluorescence intensity in tumor cells. Greater tumor cytotoxicity and better tumor growth inhibition compared to GO/GO derivatives

    [76]

    Chitosan/Silver Nanoparticle/GO

    Multi-Drug delivery

    pH controlled single and/or dual drug release. Strong antibacterial ability

    [77]

    * Obtained from grape seed extract

    6. Clinical and Pre-clinical Studies

    To the best of our knowledge, there are not as yet any published reports describing clinical studies of using chitosan/graphene oxide (CS/GO) hydrogels as wound dressings. There are some pre-clinical in vitro and in vivo studies in this field. For example, in one study superior acute-wound healing was observed when CS/GO nanofibers were implanted in adult male rats [78]. The CS/GO nanofiber webs were prepared without any surfactants and organic solvents to make sure that the fibrous structure had excellent biocompatibility. In vitro evaluations with human skin fibroblasts indicated that the addition of GO improved cell viability with enhanced bactericidal capacity. In vivo wound healing studies on rat’s skin demonstrated faster healing and full recovery of a 1.5×1.5 cm2 open wound within 14 days. It is therefore recommended that these experimental CS/GO nanofiber webs have potential use in biomedical applications.

    Other experimental wound dressings have been fabricated by incorporating polyhexamethylene guanidine and modified graphene oxide (mGO) into a polyvinyl alcohol/chitosan film [3]. In this in vivo study, cytotoxicity and wound healing were evaluated by applying HaCaT immortalized human keratinocyte cells to murine‐infected full‐thickness skin wounds. The results of the  cytotoxicity test demonstrated good biocompatibility and the films generated rapid wound healing through faster re‐epithelialization.  However, by increasing the concentration of mGO up to 1 wt%, the proliferation of the HaCaT cells was prevented and lower cytotoxicity was observed. In another in vivo study rapid healing of dermal wounds was observed by using a prototype wound dressing made of chitosan/L-polylactic acid/GO nanofibers [57].

    Reports in the literature have shown that collagen/chitosan/graphene oxide films with the addition of basic fibroblast growth factor (bFGF) have been studied for wound healing applications [79]. The bFGF was observed to provide continuous release for at least 28 days. No cytotoxic effects were found by adding GO to the films, and in fact the addition of GO actually improved the cytocompatibility. This in vivo murine wound study confirmed that the GO prototype films were capable of accelerating the wound healing process in comparison with the control group.

    Alkylated chitosan/GO sponges have also been studied for their hemostatic effects which can be used in wound healing applications [80]. The results of a rabbit femoral injury study showed higher hemostatic efficacy and promoted the adhesion of erythrocytes and platelets compared to the control samples. And by increasing the concentration of GO, blood clotting efficiency, platelet activation levels and the release of intracellular Ca2+ all increased.

    7. Conclusions

    Wound healing involves the replacement of damaged or injured tissue of living organisms by newly regenerated tissue. Due to the complexity of the wound healing process, much effort has been focused on new approaches to wound management, such as fabricating a new generation of wound dressings. This review summarized chitosan/graphene oxide composite films and their potential applications as wound dressings and drug delivery devices. Chitosan is an attractive candidate due to its biodegradability, non-toxicity and biocompatibility. Graphene oxide (GO) can be a substitute for carbon nanotubes or similar materials because of its lower price, low-toxicity, and ability to enhance the mechanical properties. In addition, it promotes nerve regeneration in the case of deep wounds, due to its excellent electrical conductivity. Composite or hybrid films composed of chitosan and graphene oxide can benefit from the advantages of both components which makes them promising candidates for drug delivery and wound dressing applications.

    The entry is from 10.3390/app11177776
