1. Introduction

Advancements in computing technology and networking have given rise to the Internet of Things (IoT), which aims to enable objects to gather and share data over the Internet using smart devices [1][2]. The IoT was envisioned as a large-scale network of Internet-connected objects that are uniquely addressable and reachable using standard networking protocols [3]. It has played a pivotal role in the development of smart cities, where interconnected devices and systems work together to enhance the efficiency, sustainability, and quality of urban life [4]. Some prominent applications include smart energy management systems [5], building controls [6], and smart transportation [7][8], which have gained significant attention from both academia and industry. Many networking protocol stacks have been designed to meet the specific needs of diverse smart city applications and IoT-based systems [9]. Zigbee and Bluetooth are widely adopted protocols in smart city applications. Zigbee is used in various monitoring systems and smart infrastructure [10], while Bluetooth is employed for occupancy detection, asset tracking, and seamless connectivity in smart buildings and transportation systems [11].
The majority of IoT applications in the real world make use of single-hop wireless connectivity to the gateway based on a star topology. Alternatively, the mesh topology has also been considered that enables each node to communicate with every other node and gateway, enhancing reliability [12]. While wireless standards such as Bluetooth and ZigBee are continuously evolving to support mesh networks. To extend the support towards mesh networks, a new protocol named Thread has been developed using open and proven standards, such as IEEE 802.15.4 and 6LoWPAN [13].
The Thread is a communication protocol that is maintained by Thread Group [14]. It has been designed to meet the requirements of applications that demand low power consumption, low data throughput, and a short communication range. Thread protocol is designed to meet the specific needs of diverse smart city applications, providing secure and scalable connectivity to a large number of devices in an energy-efficient and reliable manner. The Thread-based IoT mesh network can be connected to the global Internet using a gateway called a border router that provides connectivity through Ethernet or Wireless Local Area Network (WLAN). Thread provides end-to-end encryption, no single-point failure, and consumes low power. Thread is a relatively new protocol compared to ZigBee and Bluetooth, so its performance has not been extensively studied, especially in real-world applications with varying scenarios.

2. Protocol Stack

The Thread protocol stack is a combination of various standards like IEEE 802.15.4 and 6LoWPAN, etc. [15][16]. It has six different layers, as can be seen in Figure 1. Each of the layers is described below:
Applsci 13 07745 g001 550
Figure 1. Thread protocol stack [14].
  • IEEE 802.15.4 Physical Layer
    The physical layer is used for the transmission and reception of packets over a physical medium. The physical and MAC layers of the Thread are defined according to the IEEE 802.15.4 standard. In the physical layer, it operates in the 2.4 GHz free ISM band and is divided into 16 channels numbered from 11 to 26. It offers a data rate of 250 kbps [12].
  • IEEE 802.15.4 MAC Layer
    This layer is responsible for message handling and management, congestion control, and error correction. The MAC layer includes CSMA-CA (Carrier Sense Multiple Access-Collision Avoidance), allowing Thread devices to utilize the bandwidth efficiently. It has features like beacon management, channel access, Guaranteed Time Slot (GTS) management, etc. [17].
  • 6LoWPAN
    It stands for IPv6 for low-power wireless personal area network (6LoWPAN). It facilitates the Thread network by providing adaptation between the IP layer and the 802.15.4 MAC layer. Packet fragmentation happens here as the packets are assembled into IPv6 format while passing from the MAC layer to the IP layer and vice versa. The layer adapts the bigger frames into smaller ones, making it more suitable for energy-constrained and low-bandwidth devices. 6LoWPAN supports both mesh and star topologies [9].
  • IP Routing
    As Thread supports the IPv6 architecture, DHCPv6 is used for router address assignment. The IPv6 frames are 40 bytes long and contain an address field of 128 bits, allowing more addresses than the IPv4. In IP routing, the mesh local addresses of routers are maintained in a routing table, ensuring constant connectivity and the availability of paths. Thread uses the distance vector routing protocol, which aims to maximize the amount of routing information in a single message. The routing cost is estimated using the Mesh Link Establishment (MLE) mechanism [14][16].
  • User Datagram Protocol
    Thread uses User Datagram Protocol (UDP) for messaging between devices. It also supports TCP-based services for application-layer communication. UDP enables messaging with minimum connection overhead, providing a faster and higher throughput of messages. Applications requiring a guarantee may use the TCP protocol, assuring reliability by detecting network congestion and packet acknowledgement and re-transmission [13][14].
  • Application Layer
    The application layer provides an interface to the network. Thread is application-layer agnostic and provides the flexibility to choose from a variety of application layers to enable device connectivity like Message Queuing Telemetry Transport (MQTT), Constrained Application Protocol (CoAP), etc. [18][19]. Thread, however, provides multicast and UDP messaging as essential application layer services to allow communication over IP.

3. Device Types and Topology

Thread network supports a connectivity model where the end devices are only connected to their parent nodes while all the routers are connected together, forming a mesh network. The devices in Thread play different roles based on their functionalities [14][16][19], as shown in Figure 2. In IEEE 802.15.4 networks, the commonly used terminologies of coordinator, router, and end device are prevalent. However, the Thread network architecture introduces specific roles and functionalities that bring added clarity and facilitate customized network design for IoT applications.
Applsci 13 07745 g002 550

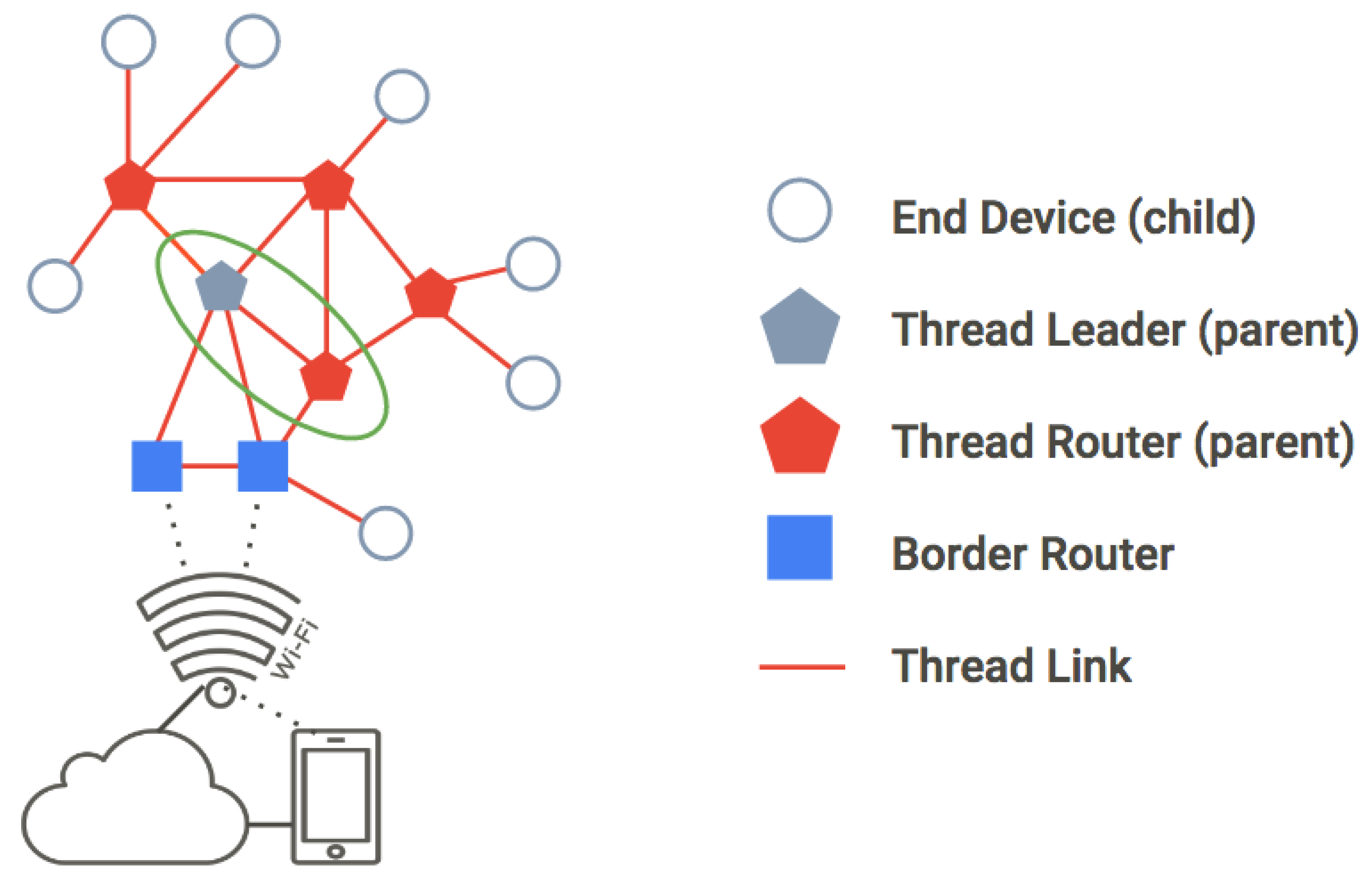

Figure 2. Basic topology and device types of Thread network [14].
  • End Device
    These devices have reduced functionalities and are energy-constrained, similar to their counterparts in other wireless protocols like ZigBee and Bluetooth. However, Thread provides specific features to optimize energy consumption, such as allowing end devices to enter sleep mode to conserve energy. Unlike some other protocols, Thread end devices are always connected to their parent node, which has routing capabilities and remains continuously active. Thread also introduces the concept of Router Eligible End Devices (REEDs) that can be promoted to routers for improved performance. The dynamic up-gradation and down-gradation of devices is managed both explicitly by the network manager and automatically by the network based on prevailing conditions.
  • Router
    Thread routers share similarities with routers in other protocols, such as ZigBee and Bluetooth, in terms of their routing capabilities. These devices require power throughout and are also called Full Thread Devices (FTD). All routers in the network are connected together, forming a mesh, and route the data packets from source to destination nodes. Additionally, Thread routers also provide joining and commissioning services to the end nodes. These nodes are also capable of becoming border routers or leader routers, and if a leader goes down due to some reason, these nodes can be automatically elected as leaders by the network.
  • Border Router
    This router connects the Thread network with the outside world and enables data flow in and out of the network. It can also be termed the gateway of the Thread network to the global internet or cloud. It can support both WiFi and Ethernet for connection to an external network. Unlike other networks having a single gateway, in Thread multiple border routers can also exist in a network, thus avoiding a single point of failure.
  • Leader
    Any router or border router that manages the Thread network is called a leader. It has all the functionalities of the router but also has additional responsibilities like assigning IP, upgrading or downgrading the router status of REEDs, and distributing the network configuration information to the routers in the network. Unlike other wireless protocols, such as Bluetooth and ZigBee, which may have central devices or coordinators, if the Thread leader goes down, a router is elected as a leader by other thread routers to perform network management tasks.
