1. Characteristics and classification of myeloid-derived suppressor cellsIntroduction

The tumor microenvironment (TME) is a complex immune network that is a vital contributor to the promotion of tumor cell proliferation, metastasis, and immune escape. In the TME, other cells are present in addition to tumor cells, such as fibroblasts, immune and inflammatory cells, adipose cells, and immunosuppressive cells. In the TME, tumor cells incapacitate immune cells, including natural killer (NK) cells and T cells, by themselves and by immunosuppressive cells that are reprogrammed such that the tumor cells are not recognized and killed by the immune system. These “assistants” that assist tumorigenesis consist of tumor-associated macrophages (TAMs), regulatory T cells (T_regs), cancer-associated fibroblasts (CAFs), and myeloid-derived suppressor cells (MDSCs). All members of these suppressive cells secrete large amounts of cytokines, chemokines, and other small molecule metabolites to build a hotbed suitable for the survival of malignant tumors^[1][2][3].

MDSCs are a heterogeneous group of cells. Under normal circumstances, MDSCs represent a group of immature myeloid cells (IMCs) derived from bone marrow (BM) of various stages of differentiation and eventually differentiate into macrophages, dendritic cells (DCs), and neutrophils^[4]. Therefore, MDSCs have considerable plasticity and diversity. However, under pathological conditions, such as the graft-versus-host disease (GVHD), autoimmune diseases, infections, and cancers, MDSCs are abnormally generated and activated^[5]. Especially in the TME, hematopoietic progenitor cells (HPCs) are stimulated by tumor-derived inflammatory factors, e.g., granulocyte-macrophage colony-stimulating factors (GM-CSF), tumor necrosis factor-alpha (TNFα), vascular endothelial growth factor (VEGF), and prostaglandin E2 (PGE2), and differentiate into common myeloid progenitors (CMPs) and granulocyte-macrophage progenitors (GMPs). GMPs differentiate into monocyte/macrophage and dendritic cell precursors (MDPs) and myeloblasts (MBs) and are ultimately converted into MDSCs ^[6][7](Figure 1). Activated MDSCs flow through the blood and spleen and are eventually recruited to the tumor site by C–X–C motif chemokine ligand 1 (CXCL1), C–C motif chemokine ligand 2 (CCL2), and other chemokines. MDSCs expressing anti-inflammatory factors such as interleukin (IL)-10 and transforming growth factor-beta (TGFβ) play important immunosuppressive roles in the TME to promote tumor development and expansion^[6][8][9]. Given the obvious protumoral capabilities, tumor treatment strategies targeting MDSCs are highly valued.

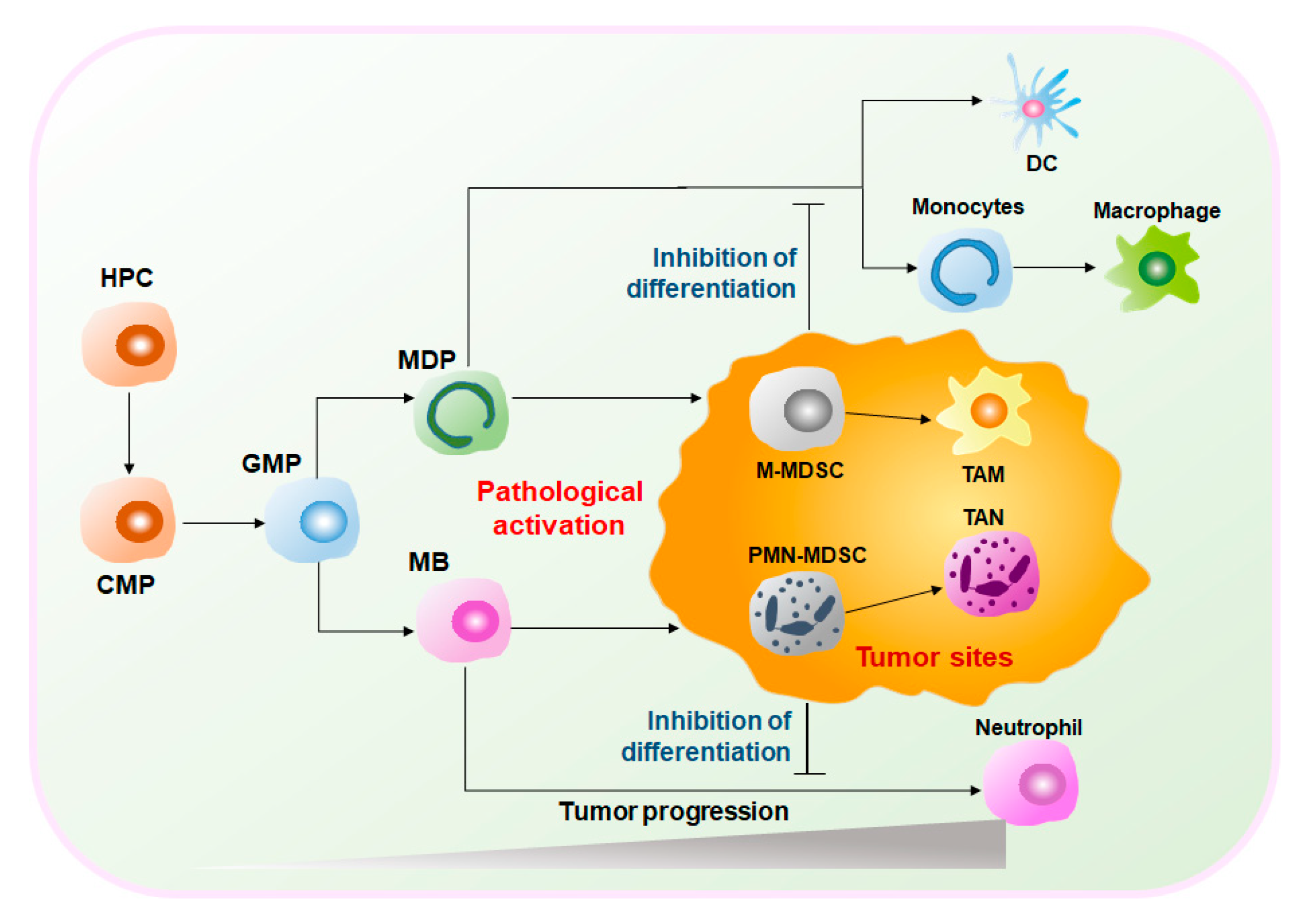

Figure 1. Differentiation and development of myeloid-derived suppressor cells (MDSCs) in the tumor microenvironment (TME). Under physiological conditions, neutrophils, dendritic cells (DCs), and monocytes originate from hematopoietic progenitor cells (HPCs) in the bone marrow. HPCs differentiate into granulocyte-macrophage progenitors (GMPs) after common myeloid progenitors (CMPs), and then GMPs differentiate into monocyte/macrophage and dendritic cell precursors (MDPs) and myeloblasts (MBs). Among them, MDPs are the precursors of DCs and monocytes, and MBs are the precursors of neutrophils. However, under pathological conditions, such as cancer, myeloid cells are induced to differentiate into suppressor cells, including monocytic myeloid-derived suppressor cells (M-MDSCs), tumor-associated macrophages (TAMs), polymorphonuclear myeloid-derived suppressor cells (PMN-MDSCs), and tumor-associated neutrophils (TANs). TME, tumor microenvironment; HPCs, hemopoietic progenitor cells; CMPs, common myeloid progenitors; GMPs, granulocyte-macrophage progenitors; MBs, myeloblasts; MDPs, monocyte/macrophage and dendritic cell precursors; M-MDSCs, monocytic myeloid-derived suppressor cells; PMN-MDSCs, polymorphonuclear myeloid-derived suppressor cells; TAMs, tumor-associated macrophages; TANs, tumor-associated neutrophils; DCs, dendritic cells.

2. The Therapeutic Effects of Targeting MDSCs

Immunotherapy is currently the mainstream cancer therapy and can effectively save the lives of cancer patients through an immune checkpoint blockade (ICB)^[10]. However, immunotherapy is not effective for every patient. Only a few patients can be cured, and it is limited to specific types of cancer. The immunosuppressive function of MDSCs is considered to make a major contribution to tumor development given their extensive inhibition of antitumor responses and promotion of tumorigenesis. Studies have shown that MDSCs are the main contributors to the poor clinical outcome of immunotherapy^[11][12]. Therefore, in recent years, a variety of cancer treatment strategies have been developed to reduce the number of MDSCs and impede the immunosuppressive function of MDSCs. In addition, some traditional treatment approaches, such as radiotherapy or other methods, can also effectively damage the inhibitory activity of MDSCs^[13][14]. Furthermore, a large number of studies have combined treatment methods targeting MDSCs with immunotherapy, which has exhibited potential antitumor effects (Figure 2 and Figure 3).

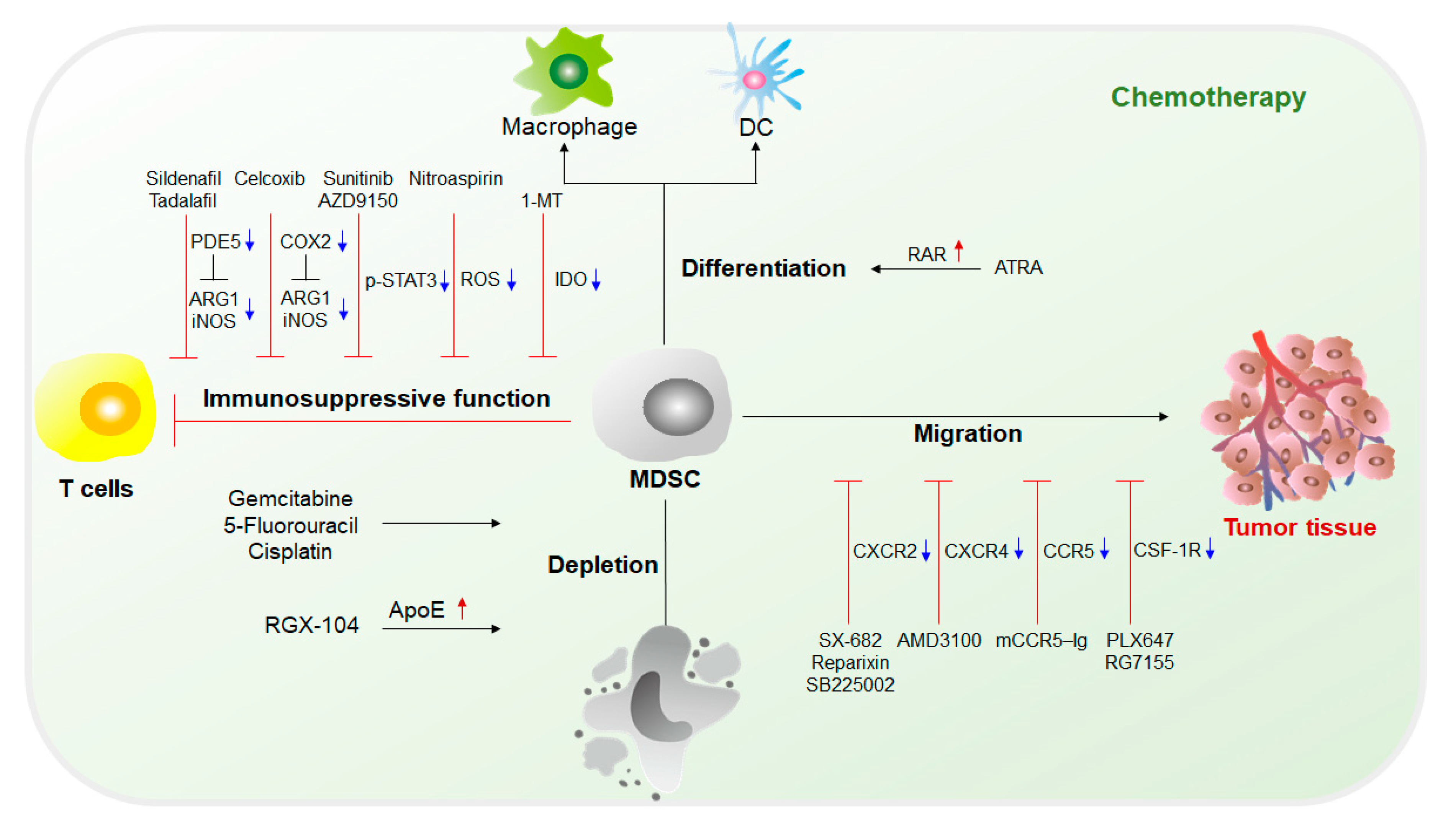

Figure 2. Chemotherapy targeting MDSCs. Current chemotherapeutics targeting MDSCs are mainly studied from four aspects: (1) Attenuation of the immunosuppressive activity of MDSCs by downregulating the expression of ARG1, iNOS, and IDO, the activation of STAT3 and the production of reactive oxygen species (ROS); (2) induction of MDSC differentiation inducing MDSCs to differentiate into mature myeloid cells, such as DCs and macrophages, to initiate and regulate immune responses; (3) targeting chemokine receptors on the surface of MDSCs to prevent MDSCs from migrating to tumor tissues; and (4) promotion of MDSC deletion to reduce the population of MDSCs. ARG1, arginase 1; iNOS, inducible nitric oxide synthase; IDO, indoleamine 2,3-dioxygenase; STAT3, signal transducer and activator of transcription 3; ROS, reactive oxygen species; PDE5, phosphodiesterase 5; COX2, cyclooxygenase-2; ATRA, all-trans retinoic acid; RAR, retinoic acid receptor; CXCR, C-X-C chemokine receptor; CCR, CC chemokine receptor; CSF-1R, colony-stimulating factor-1 receptor.

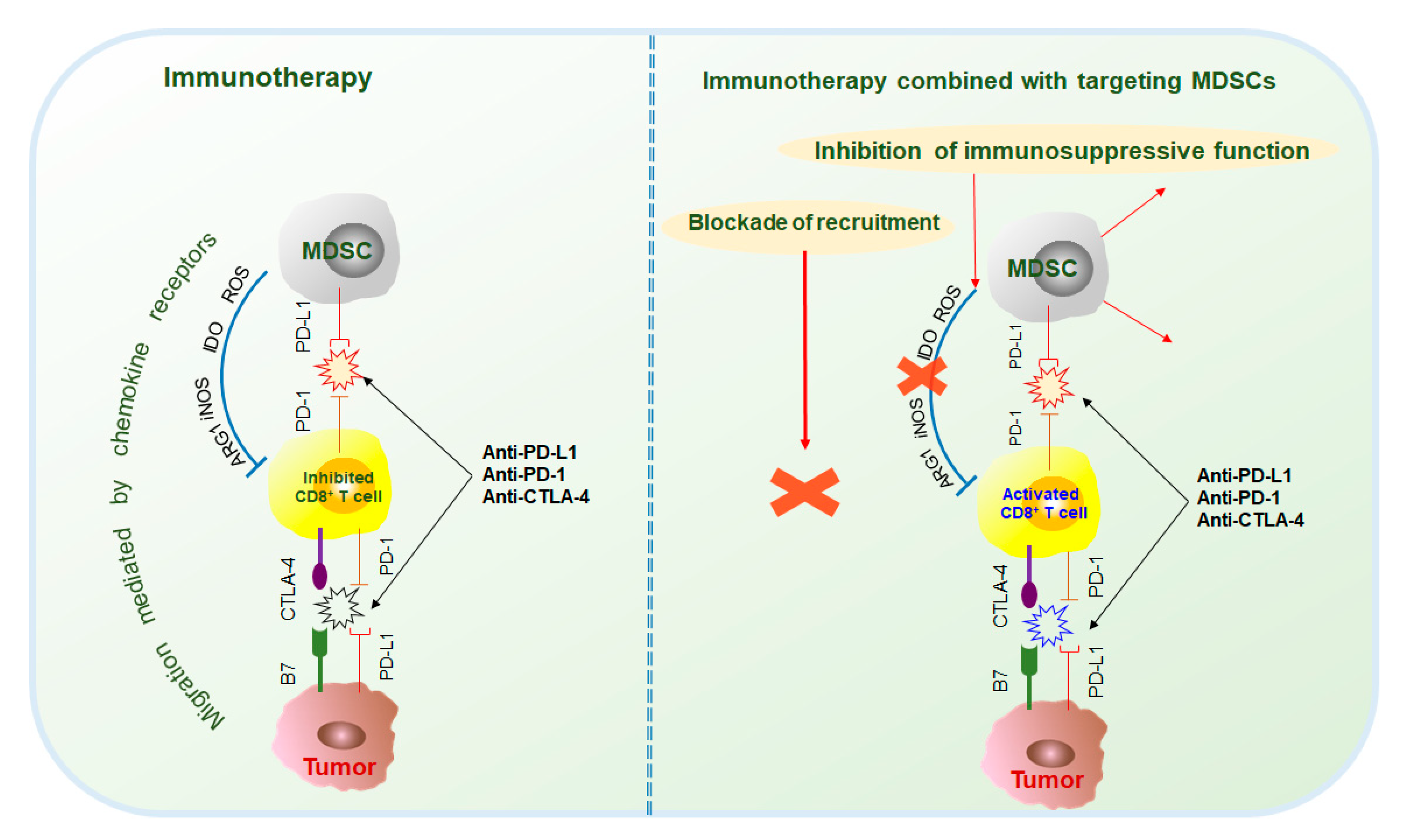

Figure 3. Combination of immunotherapy and targeting MDSCs. Using an immunotherapy regimen alone, the therapeutic outcome is not very satisfactory mainly due to the strong suppressive effect of MDSCs on cytotoxic T cells. Dual therapy involving immunotherapy and targeted MDSCs can enhance the therapeutic effect of immunotherapy. On one hand, it can effectively reduce the population of MDSCs; on the other hand, it can also greatly weaken the ability of MDSCs to inhibit cytotoxic T cells. PD-1, programmed death 1; PD-L1, programmed death ligand-1; CTLA-4; cytotoxic T lymphocyte-associated antigen 4; B7, costimulatory molecules.

2.1. Chemotherapy Targeting MDSCs

The fundamental purpose of therapy targeting MDSCs is to eliminate MDSCs. Without the immunosuppression mediated by MDSCs, the limitation of the antitumor response can be lifted, and tumor development can be suppressed. Current chemotherapy approaches targeting MDSCs mainly include (1) inhibition of immunosuppressive functions of MDSCs; (2) elimination of MDSCs in both tumor sites and the circulatory system; (3) blockade of MDSC recruitment to the TME; and (4) induction of the differentiation of MDSCs into mature myeloid cells that lack suppressive activity ^[4][15][16](Figure 2).

2.2. Immunotherapy in Combination with MDSC Targeted Therapy

Tumor and immunosuppressive cells, such as MDSCs, also inhibit antitumor responses through the interaction of immune checkpoint molecules, such as PD-1/PD-L1, CTLA-4/B7, and Gal-9/TIM-3^[17]. Current studies mainly focus on the immunotherapy of PD-1, PD-L1, and CTLA-4. PD-1 antibodies include pembrolizumab and nivolumab; PD-L1 antibodies include atezolizumab, durvalumab, and avelumab; and CTLA-4 antibodies include ipilimumab and tremelimumab^[17][18]. However, because MDSCs are the main contributors to immunosuppression, the effects of immunotherapy are often hindered. Therefore, the combination of immunotherapy and targeted MDSCs has been thoroughly researched and has made great progress (Figure 3).

2.3. Other Therapy Strategies

In addition to the targeted MDSC approaches, other treatments can affect the number and function of MDSCs and thus achieve the purpose of inhibiting tumor growth and improving survival (Figure 4).

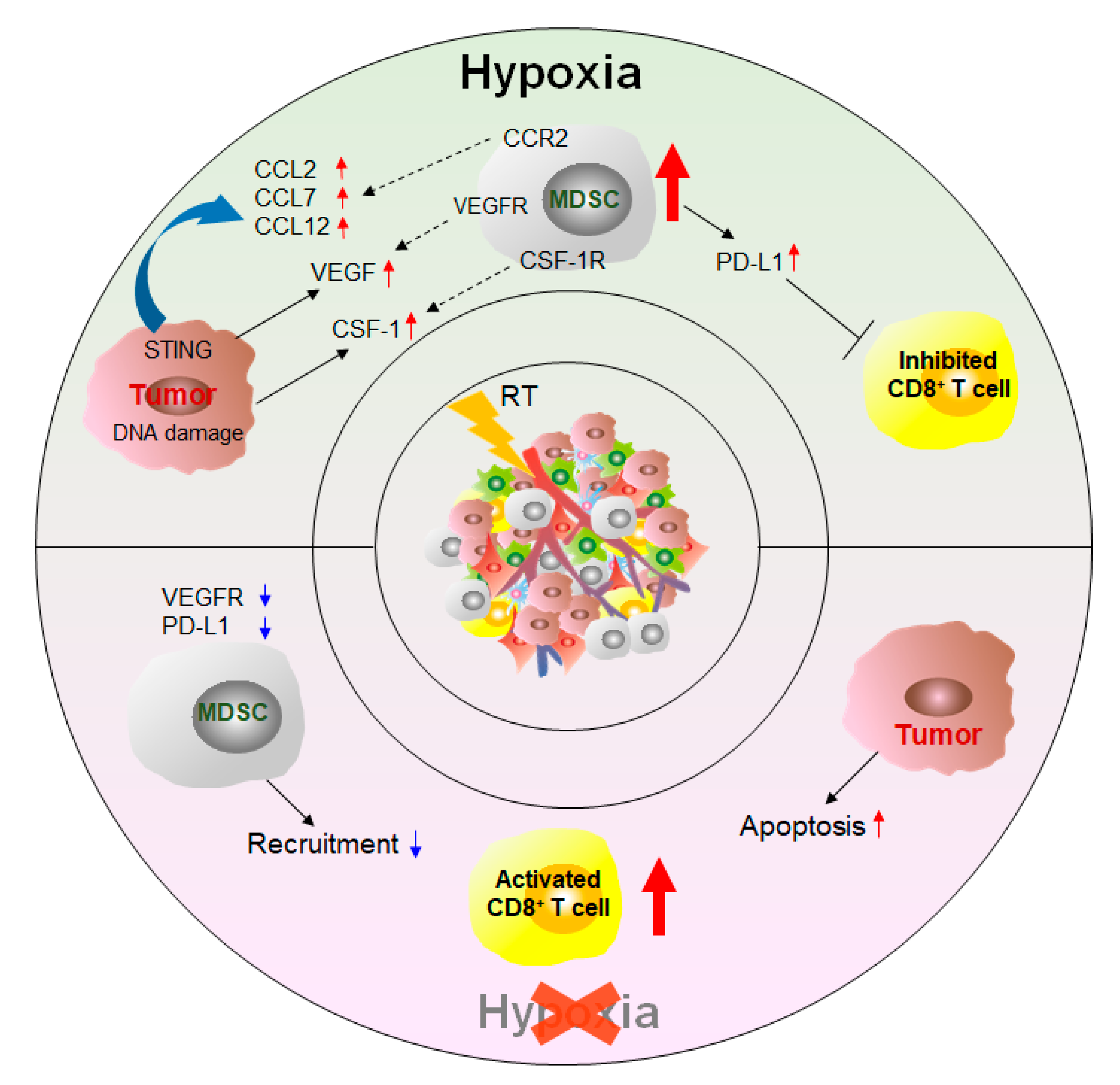

Figure 4. Effect of radiation therapy (RT) on MDSCs. Treatment with conventional fractionated radiotherapy (CFRT) promotes the secretion of tumor cytokines and chemokines in response to activation of the STING signaling pathway and DNA damage. These secreted factors bind to the receptors on the membrane of MDSCs, which increases the number of MDSCs migrating to the TME, upregulates the expression of PD-L1 on MDSCs, and strengthens the ability to suppress T cells. Ablative hypofractionated radiotherapy (ABHRT) reduces the recruitment of MDSCs by destroying the hypoxic environment in the TME and induces tumor apoptosis, leading to reactivation of the antitumor response. CCL, CC chemokine ligand; STING, stimulator of interferon genes; VEGF, vascular endothelial growth factor.

3. Conclusions

Overall, MDSCs are one of the main promoters of cancer. MDSCs abolish the antitumor response by exerting immunosuppressive functions, promote the formation of the tumor microenvironment, and provide comfortable conditions for tumor growth. At present, research on MDSCs remains insufficient, and how to distinguish MDSCs from other myeloid cells remains controversial. Emerging high-throughput technologies may help to better identify the phenotype of MDSCs. Therapeutic methods targeting MDSCs have been shown to effectively limit the accumulation of MDSCs in tumor tissue and peripheral organs. In the future, the combination of targeted MDSCs and immunotherapy may become the main cancer treatment strategy.
