There are two main types of air pollution: pollution of the external environments (outdoor) and pollution of the domestic environments (indoor) [1]. Today, air pollution is a current problem, since it can cause damage to the environment in which human bweings live and to human health [2]. Air is a mixture of fundamental components (78% nitrogen and 21% oxygen) and secondary components (1% carbon dioxide and other gases). Environmental pollution is due to the presence of elements in the air deriving from human activities (industrial sources, domestic heating, vehicular traffic) and from natural phenomena (e.g., volcanic eruption). These last natural sources can produce elements potentially harmful for the human respiratory system.

The substances that modify the composition of atmospheric air, causing pathological alterations for the respiratory system, are numerous and of different nature. In the recent decades, the number of subjects with chronic respiratory diseases increased exponentially in relation to air pollution ^[3][4][5][6][8,9,10,11]. Already in the 1960s, when the main source of air pollution (outdoor) in cities was the combustion of coal, a close association between urban pollution and symptoms of bronchitis was observed, which was generally accompanied by decreased respiratory functions ^[7][12]. An analysis from the Global Burden of Diseases Study stated that air pollution is the second most common cause of death and disability for people with COPD ^[8][13].

Air pollutants are largely produced by vehicle exhausts and are represented by carbon monoxide (CO), nitrogen oxides (NOx), sulfur dioxide (SO₂), polycyclic aromatic hydrocarbons (PAH), particulate matter (PM) and suspended powders, cadmium ^[3][8], ozone, and volatile organic compounds (VOCs), which include benzene, toluene, and xylene, among others. Note that environmental air pollutants also include heavy metals such as lead, aluminum, and mercury ^[4][9]. It is worth particular attention that carbon monoxide (CO), once inhaled, binds to hemoglobin, a protein of red blood cells responsible for transporting oxygen, forming carboxyhemoglobin (COHb). This bond is much more stable (about 200–300 times) than hemoglobin and oxygen; in this way, the CO prevents the normal transport of oxygen to the tissues, thus creating toxicological effects of different magnitudes ^[9][14]. In fact, recent studies have reported that short-term exposure to environmental CO determines the increased risk of developing respiratory diseases (bronchiectasis, pneumonia, and asthma) ^[10][15]. As for nitrogen oxides (NOx), they are compounds of both natural origin (volcanic eruptions and soil emissions) and anthropogenic, and their ability to form nitric acid in the mucosa of the airways and on the skin makes them toxic to humans and animals.

Short-term exposure to nitrogen dioxide (NO₂), especially in subjects with pre-existing lung disease, causes an increase in the exacerbation and an increase in bronchial reactivity. In addition, some meta-analysis studies have reported an association between NO₂ concentration and mortality from lung cancer ^[11][16] as well as respiratory and cardiovascular diseases ^[12][17]. Sulfur dioxide (SO₂) also causes harmful effects on human health. Exposure to this substance for a short period result in a significant increase in hospital admissions for respiratory diseases; 10 out of 25 are associated with an increase in symptoms and a reduction in lung function, while long-term exposure causes premature death and impairs the function of the airways, causing heart problems ^[13][14][18,19].

Polycyclic Aromatic Hydrocarbons (PAHs) is a class of numerous organic compounds structurally characterized by the presence of two or more aromatic rings condensed together. PAHs include benzopyrene, acenaphthylene, anthracene, and fluoranthene, among others, and according to the Environmental Protection Agency, benzo-[a]-pyrene (B [a] P) is the most potent. PAHs are different for environmental sources and chemical characteristics. However, PAHs are formed during the incomplete combustion of organic products such as coal, oil, gases, or waste. They are present in the air as mixtures of many dozens of molecules, which are often present in different and variable proportions. The presence of PAH mixtures in the air makes it difficult to understand the specific mechanisms by which PAHs affect human health. These compounds are recognized as toxic, mutagenic, and carcinogenic and are an important risk factor for lung cancer ^[15][20]. At the same time, the International Cancer Research Agency (IARC) identifies lead, cadmium, nickel, and arsenic as the most representative heavy metals for environmental risk and, both for their massive use and for their toxicity, are classified as carcinogenic to humans. Among these, nickel can have negative effects on the respiratory system, while lead is absorbed by the pulmonary epithelium and enters the bloodstream and is deposited in various organs ^[16][21]. Therefore, the current legislation (Legislative Decree 155/2010) has defined a limit value for lead, arsenic, cadmium, and nickel in the air. On the other hand, fine powders (e.g., PM₁₀ and PM_2.5) are polluting particles present in the air, of organic or inorganic nature, capable of adsorbing on their surface various substances with toxic properties, such as sulfates, nitrates, metals, and volatile compounds.

The toxicity of these substances to the respiratory system increases as their size decreases. However, air contaminants are also present in the confined (indoor) environments where we live and work on a basis daily (formaldehyde, radon, volatile organic compounds, polycyclic hydrocarbons, etc.) ^[3][8], and numerous studies have documented a link between increased mortality cardiovascular or respiratory and exposure to fine particulate matter (PM₁₀ and PM_2.5) ^{[17][18][19][20]}[22,23,24,25]. Furthermore, it has been shown that elevated concentrations of atmospheric PM are associated with an increase in hospital admissions for heart or respiratory diseases in subjects at risk (e.g., patients with asthma), and that chronic exposures to these substances are a risk factor for cancer ^[21][22][26,27]. Respirable “particulate matter” (PM) has been identified by the US Environmental Protection Agenc as a “criteria air pollutant” together with carbon monoxide, ground level ozone, nitrogen dioxide, sulfur dioxide, and lead ^[23][24][25][28,29,30].

In this regard, the European project ESCAPE (European study of cohorts for air pollution effects), which included nine European countries including Italy, highlighted the relationship between lung cancer, the degree of pollution in the areas of residence, and exposure to fine dust (PM₁₀ and PM_2.5). However, increases in lung cancer cases were also recorded in groups exposed to pollution levels below the maximum limits established under current European legislation (equal to 40 μg/m³ of PM₁₀ and 25 μg/m³ of PM_2.5) ^[26][31]. Therefore, the World Health Organization (WHO) defined that it is not possible to establish a threshold value below which PM_2.5 is not harmful to people; therefore, the environmental concentration of PM₁₀ and PM_2.5 in the air should be kept as low as possible ^[27][32]. PM₁₀, PM_2.5, and nitrogen oxides (NOx) are among the main atmospheric pollutants considered persistent carcinogens. They are monitored at European levels; about 90% of city dwellers are exposed to concentrations of pollutants higher than the values considered harmful to health ^[28][29][33,34]. Furthermore, a recent study showed a close relationship between increased atmospheric concentrations of nitrogen dioxide and PM_2.5, death rate, and hospital admissions for COPD ^[30][35], while lung cancer cases have been linked to the presence of PM in the deepest part of the lungs ^[31][36]. The composition of PM mixtures from underground railways is very different of PM mixtures from urban areas. PM mixtures from underground railways are rich in metals associated with wheel, track, and brake wear and electrical arc and component wear ^[32][37]. When particulate matter enters the respiratory tract, an interaction is created between lung epithelium and the immune system: this activates the local inflammatory response associated with the disease ^[33][38]. Epidemiological and experimental studies suggest that among particulate air pollutants, diesel exhaust particles seriously affect the increase in morbidity and mortality from respiratory diseases. In fact, in urban areas, fine particulate matter produced by diesel engines (diesel exhaust particle cells) is a major source of PM_2.5 as it is readily inhaled deep into the lungs and remains there for a long time, resulting in cellular responses that generate intense inflammatory reactions in the airways ^[32][37].

Respiratory diseases are multifactorial and therefore have various risk factors, including active and passive smoking, air pollution ^[34][39], and cellular oxidative stress related to environmental contamination. This last is involved in the deregulation of cellular senescence and in severe airway disease with public health implications affecting the respiratory system ^[35][40]. In the sites characterized by the presence of large industrial settlements, refineries of petrochemical nature, or chemical plants, there are the atmospheric pollutants. The air pollution can affect the respiratory system, causing malignant tumors or chronic inflammatory diseases of the lung in both adult and asthmatic children with a consequent increase in hospitalizations for asthma at a young age ^[35][40].

Among the most dangerous compounds for human health, Persistent Organic Pollutants (POPs) should be mentioned, which are halogenated compounds persistent in the environment. This family of pollutants includes polychlorinated or polychlorinated biphenyls (PCBs), organochlorine pesticides, and polybrominated diphenyl ethers (PBDEs), which are all highly toxic. As for PBDEs, these are known as emerging contaminants generally referred to as “flame retardants”. According to the European Food Safety Authority (EFSA 2011), the main source of PBDE exposure is food of animal origin with high fat content (fish, meat, and dairy products) ^[36][41]. They are ubiquitous and lipophilic, and they tend to accumulate in adipose tissue and interfere with the immune system ^[4][9]. Therefore, humans are exposed to PBDEs through diet as well as through the accidental ingestion of dust, skin contact, and inhalation. Atmospheric levels of PBDEs depend on deposition processes, weather conditions, long-range atmospheric transport, and the proximity of PBDE sources to the sampling site (urban/industrial or background locations). A recent study monitored atmospheric PBDE levels (PBDE 28, 47, 85, 99, 100, 153, 154, 183, and 209) in Central Europe, and the results indicate a global increase in low-bromine PBDEs in atmosphere ^[37][42]. This effect is due to the photolysis process, which favors the de-bromination of PBDEs with a higher bromine content.

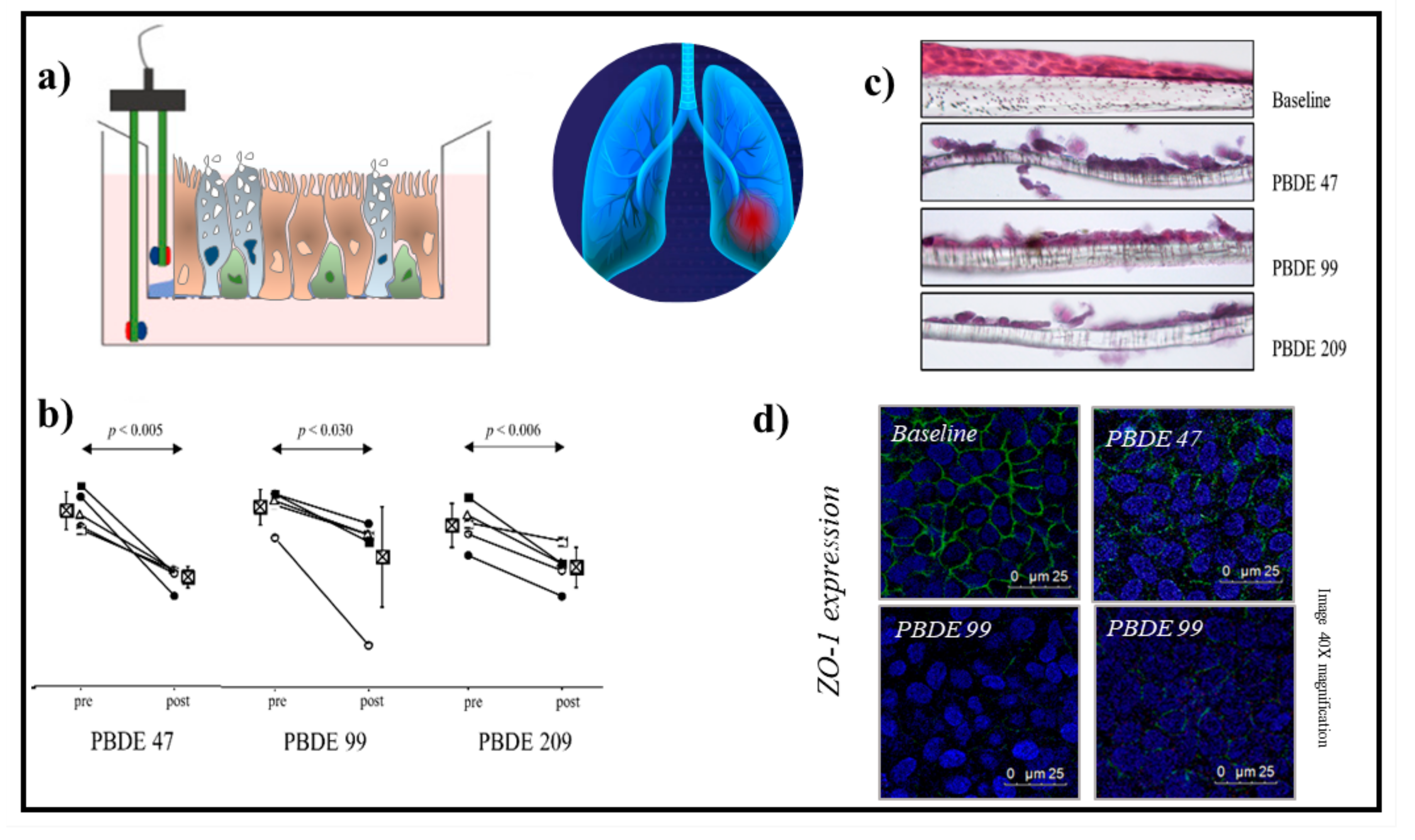

Emerging contaminants such as the flame retardants (polybromo-diphenil, PBDEs ethers) PBDE-47, -99, and -209 are widespread in indoor and outdoor environmental contamination. These substances are present in fabrics, electrical materials, dust; e.g., they induce pulmonary toxicity by promoting an inflammatory response in lung epithelial cells ^[38][39][40][43,44,45]. The same PBDE profile has been described in southern Europe by Besis et al. ^[41][46], while Pozo et al. identified, of 26 PBDEs routinely analyzed, the presence of three (PBDE-47, -99 and -100) in the coastal areas of Sicily ^[42][47]. These substances are highly carcinogenic, and they certainly interfere with the endocrine system (endocrine disruptors). They have a negative effect on the reproductive system and, in mouse study models, alter the immune system ^[43][48], reducing the reactivity of macrophages compromising the associated immune response to cellular signals regulated by the TLR4/NF-kB pathway. A further experimental study showed that congeners -47, -99, and -209 are transferred from the mother to the fetus via the placenta, representing a risk factor for the development and growth of the fetus ^[44][49], often leading to the development of child allergic/asthmatic phenotype ^[4][9]. Due to their presence in the environment and their proven toxicity, commercial blends of Penta and Octa-PBDE have been banned in the European Union (EU) and some US states since 2004 ^[45][50] and in Canada since 2006. In 2009, they were designated as new persistent organic pollutants (POPs), and the Stockholm Convention banned their production and established the decrease in the use of commercial blends with more than seven bromine atoms (UNEP, 2015). Furthermore, in 2008, the EU banned the use of Deca-PBDE in electronic and electrical applications at concentrations higher than 0.1% of the total concentration of PBDEs ^[46][51].

2. Cell Systems to Study the Effects of Environmental Contaminants in Respiratory Diseases

One of the “gold standards” of environmental scientific research is to obtain data to understand the effects of exposure to inhaled toxic substances on human health. In vivo studies were used only to collect data related to an indirect effect of pollutants. These studied do not establish a direct relationship between ethical and safety precautions, high costs, very long periods, and environment with pathogenetic alterations regarding human health. Furthermore, data obtained from observational studies of subjects in the areas of environmental contamination are to lower the resolution of pathological effects at the cellular and molecular levels ^[47][132]. For many years, scientific research has used animal models as the main tools to evaluate the effects of inhaled substances on human health. However, results obtained in mouse models are not always able to predict diseases, and their general use for research purposes has raised growing public and animal welfare concerns. The scientific research pushes toward the use of alternative and innovative in vitro/ex vivo experimental models ^{[48][49][50][51]}[133,134,135,136]. The history of experimental models began in 1885 with the zoologist Wilhelm Roux. He was the pioneer of experimental embryology studying the embryonic chicken cells in saline for several days. However, only in the mid-1950s, Harry Eagle gave a significant boost to this area of research by studying and identifying the nutrients needed by cells in culture ^[52][53][137,138]. To date, the cell cultures and in vitro/ex vivo models are essential for the identification and the study of the effects of inhaled noxae, which are represented by atmospheric pollutants, on biological systems ^[54][139]. In recent decades, tissue engineering approaches have made enormous progress, and several in vitro models have been established to study the effect of inhalation toxicity and disease. The aims of these studies are to improve the understanding of pathophysiological processes and to provide new and more independent experimental systems for pharmacological and toxicological studies. In vitro lung models are currently available for all important segments of the respiratory system starting from the nasal cavity and trachea to the proximal and distal airways ^[55][140]. Traditional two-dimensional (2D) monolayer culture models (also called “submerged cultures”) are used to identify molecules involved in the signaling of altered cellular and molecular mechanisms that arise in the case of pulmonary toxicity. However, these models lack the key features of the human airway microenvironment that are essential for accurately studying the toxic effects of inhaled exogenous noxae. Recently, the traditional method of two-dimensional single-layer cell culture was replaced with more innovative methods, since it does not faithfully reflect what is observed within tissues in vivo ^[56][57][141,142]. The main reason for the inadequacy of these cell culture systems is the lack of the architectural support and heterogeneity typical of the cells of the lung tissue. This awareness has led to an increase in the development of more complex three-dimensional (3D) models in which cells can grow in multiple directions in order to better reflect the cellular interaction present in the natural environment in vivo. Furthermore, multiple cell types may be present in these models ^{[39][58][59][60][61]}[44,143,144,145,146] and an extracellular matrix, thus allowing to mimic a model similar to one in vivo. The “air–liquid interface” (ALI) culture is an example of these innovative models of cell culture (Figure 12).

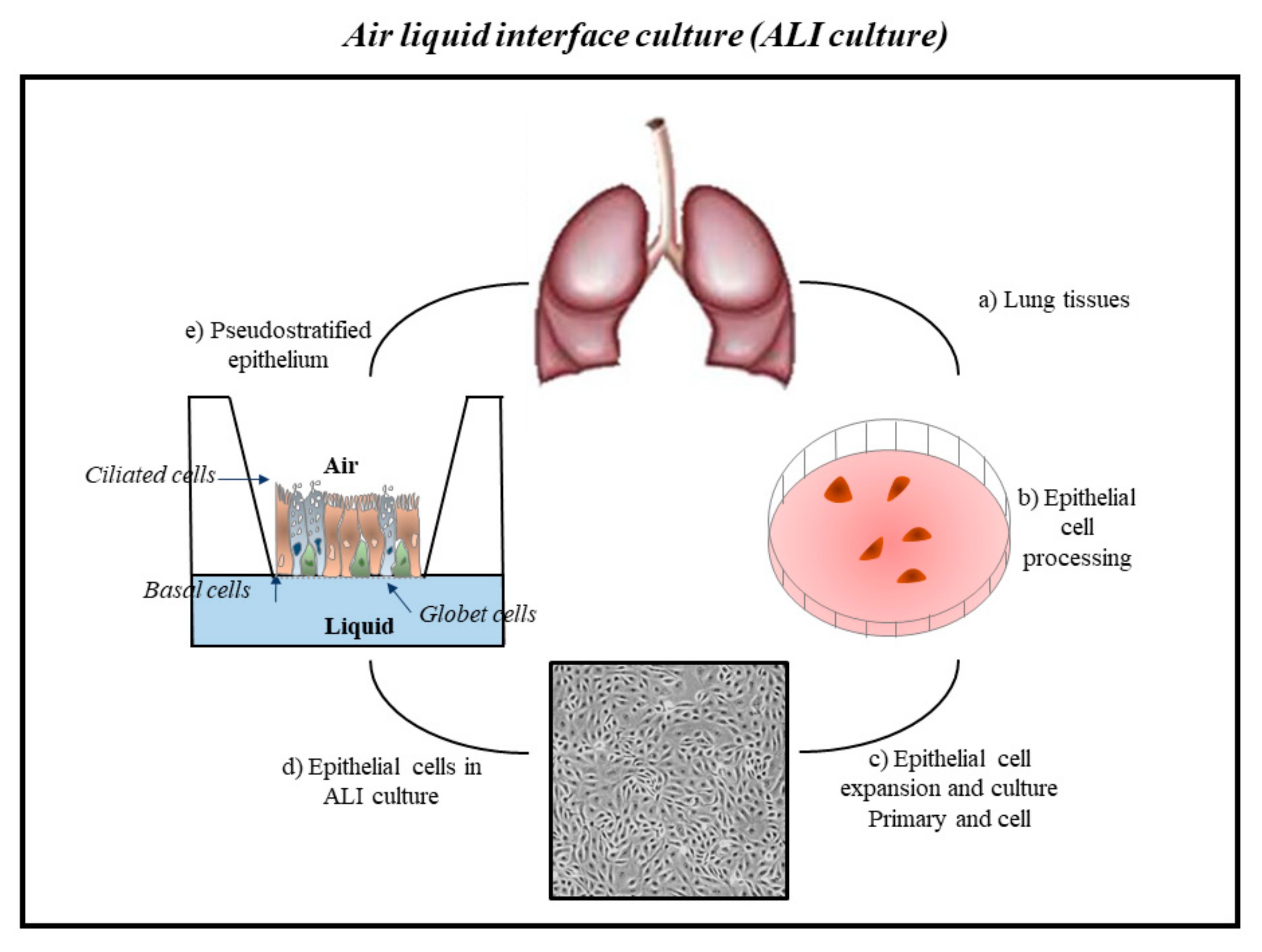

This biological system of epithelial cells has a well-differentiated epithelium similar to human airways. Thus, epithelial cell cultured in ALI represents a valuable tool for scientific research to study the toxic effect of inhaled chemicals on the human health affecting respiratory diseases, providing the opportunity to evaluate and identify important cellular and molecular mechanisms ^[62][147]. Airway epithelial cells cultured in ALI grow and form a pseudo-stratified epithelium composed of basal, ciliated, and goblet cells typical of a human airway epithelium in vivo ^{[63][64][65][66]}[148,149,150,151]. In this culture model, the cells fully differentiate, show tight junctions and cilia, and secrete mucins and protective mediators (e.g., antimicrobial peptides and pro-inflammatory cytokines), representing the in vivo structure and function of the airway epithelium ^[64][149]. Thus, the ALI cultures have led to important advances in the characterization of cell biology, in the study of infections, in pharmacological and inhalation toxicity tests of the respiratory epithelium ^[66][67][151,152]. ALI cultures mimic the human airway epithelium and successfully reproduce the lung microenvironment. Furthermore, these cell cultures can punctually reproduce the tissue of origin containing different structural (fibroblasts, endothelial cells, etc.) and inflammatory cell types (macrophages, neutrophils, eosinophils, etc.), and other than polarized epithelial tissue ^[68][153]. Currently, there are various 3D organ-typic cell cultures (pulmonary micro-organ) of the airways that aid to understanding many cellular and molecular aspects of the effects of inhaled substances in the lung (Figure 23) ^[69][154]. Organ-typic cell cultures or organoids are defined as “cultured structures”. They are built with multiple cell types grouped and spatially organized in a similar way to the organ and show some organ functions ^[70][155]. Organ-typic cell models may be obtained with commercially available materials of tissue culture. They are suitable for a variety of experimental projects and for modeling complex lung toxic responses, including inflammation, oxidative stress, myofibroblast formation, transepithelial migration, and invasion. Organ-typical patterns also mimic epithelial barrier properties and changes in cytotoxic and pro-inflammatory effects upon exposure to environmental toxicants such as those observed in vivo ^[71][72][73][156,157,158]. The term ‘‘organoid’’ defines the 3D culture referring to stem cell-derived native-like tissue structures of a given organ created by the induction of genetically encoded self-assembly programming ^[74][159]. Similar to processes that regulate organogenesis during embryonic development, cells within organoids undergo self-organization guided by cell-specific adhesion properties and spatially restricted progenitor differentiation. Organoid culture derived from stem cells or organ-specific progenitor cells that differentiate and self-organize through cell sorting and lineage commitment similar to the in vivo process. It should be noted that this recent definition is not yet strictly used in the literature ^[75][76][160,161]. The gold standard of respiratory system modeling is represented by the lung-on-a-chip (LOC). It is the result of the combined use of most modern techniques of microfluidics and tissue engineering ^[77][78][162,163]. The LOC model provides a microfluidic perfusion system to emulate the cellular microenvironment within the lung with high spatiotemporal precision ^[77][78][162,163]. It is a device made on a transparent glass microplate and made up of three parallel microchannels. The central one is divided into two halves, lower and upper, by a porous membrane, on the two sides of which there are two layers of human cells, respectively endothelial cells of the capillaries and cells of the lining of the lung alveoli. Therefore, half of the channel functions as an airway and half functions as a blood vessel. The two channels are in close adhesion to each other, just as in an in vivo lung. Instead, the two lateral channels have a mechanical function, and when the vacuum is created in the device, they simulate a microdiaphragm ^[79][80][81][164,165,166]. The LOC system offers new possibilities for inhalation toxicology research. These new technologies may represent an added value in the research; however, these tools are not yet widely available in the scientific community. In fact, technical problems in the use of induced pluripotent stem cells (IPSC) and LOC technology limit their use in the studies of inhalation toxicology ^[81][166]. The successful applications of these innovative cell models in pulmonary drug discovery suggests their use in the assessments of inhalation toxicity. Therefore, future research aspires to the validation of innovative models and to the development, optimization, and implementation of new integrated cell models (Figure 34).
