1. Introduction

By combining biopolymers and minerals into hierarchical nanoscaled structures, nature succeeds in developing hybrid materials with amazing mechanical performances such as high strength toughness adapted to the specific needs of biological systems [1]. In this respect, complex biological architectures, displaying self-assembly processes and implying the key role of nanostructuration and nano-objects intrigue researchers and inspire them for the development of innovative engineering materials ^{[2][3][4][5][6][7]}[2–7]. Elaboration of bio-inspired materials has already been investigated in a plethora of engineering materials, mimicking natural systems such as nacre, tooth, bone, or wood ^{[8][9][10][11][12]}[8–12]. Practically, it seems that these architectures modify stress transfer mechanisms within the material and boost their strength and fracture toughness thanks to nanostructuration and the development of a “hierarchical architecture” ^{[13][14][15][16][17]} [13–17]. The hierarchical architecture of a system can be defined as the deployment of structures exhibiting specific organizations at different length scales, going from the macro- to the nanoscale, and ensuring interesting properties to the entire material. This concept has notably been used in composite materials with the implementation of hierarchical fibres via the deposition of nano-objects on fibre surfaces. As an example, the whiskerization of carbon fibres with carbon nanotubes (CNTs) has been developed for the manufacturing of carbon fibre reinforced composites ^[18][19][18,19]. The developed nanostructured composites displayed enhanced mechanical properties due to increased mechanical interlocking and lower local stress concentrations at the fibre/matrix interface, hence resulting in higher strength and toughness ^{[20][21][22][23][24]}[20–24]. Karger-Kocsis et al. (2015) also pointed out the potential of such hierarchical composites for sensing applications, that is, the in-situ sensing of stress, strain, and damage for structural health monitoring [18].

Besides, current environmental issues push towards the implementation of eco-friendly and high-performance composite materials on the market, either hybrid, that is, synthetic/bio-based, or fully bio-based and reinforced with natural fibres and/or bio-based nano-objects ^[25][26][25,26]. In this regard, the development of hierarchical fibres at the interphase zone in (bio)composites is at its very early stage and could be an interesting strategy to tackle current and future challenges raised by the implementation of fully bio-based natural fibre reinforced biocomposites in industrial applications ^[27][28][29][27–29].

This review reports on the current state of the art use of hierarchical fibres for improving fibre/matrix interfacial adhesion and toughening of (bio)composite materials. First, several biological systems will be described to understand the role of nano-objects in naturally occurring hierarchical architectures. Then, current studies on hierarchical fibre reinforced composites will be discussed and divided into three main categories: (i) fully synthetic hierarchical composites, (ii) hybrid hierarchical composites either reinforced with bio-based nanoparticle modified synthetic fibres, or with synthetic or mineral nanoparticle modified natural fibres, and (iii) hierarchical biocomposites reinforced with bio-based nanoparticle modified natural fibres, the matrix being oil-based or bio-based.

2. Naturally Occurring Hierarchical Structures: Towards the Conception of Bio-Inspired Architectures for Composite Materials

2.1. Hierarchical Structures in Biological Systems

The complex architectures found in naturally occurring biological systems are the result of billions of years of evolution with continuous refining of their structure to face different challenges and adapt in an ever-changing environment. They are made of hierarchical micro/nanostructures with soft and organic interfaces (or matrices) and small stiff building blocks. In general, these hierarchical structures include nano-objects, enhancing drastically the mechanical properties, as for instance in bones ^[30][31] [30,31], nacre of seashells ^[32][33][32,33], or wood [34].

The bone is structured by mineral crystals, that is, hydroxyapatite nanocrystals (thickness 2–4 nm; length up to 100 nm), embedded in a (collagen-rich) protein matrix ^[35][36][35,36], as illustrated in Figure 1. The specific three-dimensional network of hydroxyapatite nanocrystals embedded into collagen fibrils shows peculiar deformation mechanisms that impact positively the mechanical properties of bones [13,14]. Indeed, collagen fibrils are assembled into collagen fibres, hence forming macroscopic structures such as osteons and lamellae. This hierarchical structure developed over the entire system induces crack deflection and crack bridging mechanisms with impressive properties such as self-healing and adaptation to local stress ^[37][38][39][37–39].

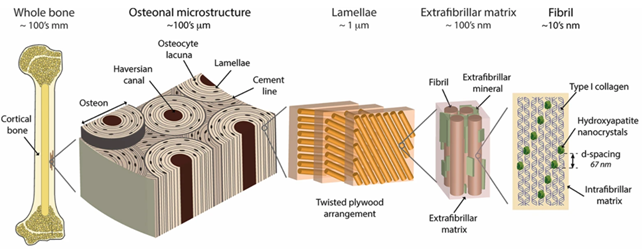

Figure 1. Hierarchical structure of human cortical bone with the presence of hydroxyapatite mineral nanocrystals (reprinted with permission from Zimmermann et al. 2016 [40]).

The nanostructuration plays a central role in the mechanical behaviour of bones. Gao et al. (2003) reported that mineral nanocrystals in natural materials have an optimum size to ensure optimum fracture strength and maximum tolerance of flaws for toughness [41]. Indeed, according to the Griffith criterion, when the mineral size exceeds a critical length of about 30 nm, the fracture strength is sensitive to crack-like flaws and fails by stress concentration. As the mineral platelets size drops below this critical length, the mineral behaves similarly to perfect crystals whatever the type of pre-existing flaws due to accidental soft protein matrix incorporation or defective crystal structure. Considering the bone material, nanometric dimensions of hydroxyapatite crystals and their hierarchical structure thus appears as an optimization for better reinforcement.

Nacre can be found in the inner layer of mollusc shells (mussels, oysters, etc.) and is made of aragonite plate-like crystals (thickness 200–500 nm; length few micrometres) and a soft matrix of proteins and polysaccharides present in very small amounts ^[42] [42]. These mineral platelets are structured in a three-dimensional brick wall fashion, as illustrated in Figure 2a. The interfaces between each platelet are soft and very thin (30–40 nm) but seem to play a key role in the toughening mechanisms of mollusc shells. In fact, nacre has a fracture toughness around 3000 times higher than its main component, that is, the aragonite CaCO₃ [33], due to its high deformation capacity when submitted to stress along the direction of the platelets (Figure 2b). A sliding of platelets relative to each other occurs under stress, this phenomenon is driven by the nanostructured interfaces, strengthened by the nano-asperities of the platelets surface, and controlled by the hydration rate ^[43][44][43,44]. Moreover, the crack propagation in nacre is deflected along the interfaces in Figure 2c, which strongly increases the fracture toughness of the material [1].

Plant cell walls are the main components of annual plant stems and wood ensuring structural, conducting functions, and protection against pathogens. They are complex composite materials with a hierarchical structure starting from the stem or branch down to the cellulose elementary fibrils/crystallites (thickness 3–5 nm; length 100–1000 nm) associated with various biopolymers as hemicelluloses, lignin and pectins in various amount depending on the species [45]. Müller et al. studied the macroscopic biological interface branch-stem of a Norway spruce in terms of microstructure, and mechanical and self-healing mechanisms [15]. As illustrated in Figure 3, they observed during the bending and breakage of the branch, the occurrence of a zig-zag crack propagation path with crack bridging at the branch-stem interface. This zig-zag shape of cracks has also been observed in natural materials like nacre and bone and requires much more energy for the formation and extension of cracks [46]. This crack pattern is the consequence of the complex and optimized hierarchical interface branch-stem with multiple length scales. At the nanometric scale, the cell orientation and the microfibrillar angle (MFA) of cellulose microfibrils within plant cell walls are perfectly adjusted in tissues of the branch and stem to ensure high flexibility and strength. Moreover, the distribution of cells appears to be adapted to the local damages that could occur at the branch-stem interface, by limiting local stress concentrations.

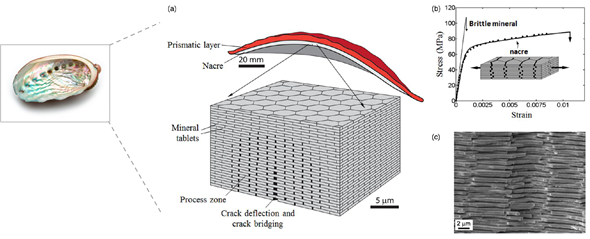

Figure 2. Nacre from mollusc shell (a) three-dimensional nanostructure of nacre organized in brick wall fashion, (b) tensile stress-strain curves for pure aragonite and nacre, (c) SEM image of the fracture surface of nacre with crack propagation deflected along the interfaces (reprinted with permission from Barthelat et al. 2015 [4]).

Figure 3. Zig-zag cracking of branch-stem interface with the model (insert) of the crack propagation in the sacrificial tissue. Wood rays (green) reinforced with tracheids (red) form tissue bundles responsible for crack bridging. High concentration of resin ducts (yellow) activated after the cracking ensures antimicrobial and hydrophobic protection. (reprinted with permission from Müller et al. 2015 [15]).

The description of naturally occurring hierarchical architectures and their behaviour under stress can thus be a model for the structuration of interfaces in man-made composite materials based on hierarchical structure concepts using nano-objects. The next section will focus on the conception of hierarchical fibre reinforced composite materials implying the use of nano-objects, as observed in the biological systems presented previously. The creation of such hierarchical composites targets the enhancement of the fibre/matrix interfacial adhesion, a key parameter for stress transfer in composite materials.

2.2. Towards the Conception of Hierarchical Composite Materials Using Nano-Objects

Fibre-reinforced polymer composites are commonly used in many daily life applications and consist of at least three phases: the polymer matrix (thermoplastic, thermoset), the reinforcing fibres (glass, carbon, natural fibres, etc.) and interfacial zones in between, also called interphases since they develop over a certain thickness from the bulk of the matrix to the fibres. The matrix protects reinforcing fibres and achieves the distribution of loads to the fibres and among fibres through the interphases when the composite is submitted to mechanical solicitations ^[47] [18,47]. The mechanical properties of the composite such as strength and stiffness are primarily determined by the reinforcement characteristics (intrinsic mechanical properties, volume fraction, orientation, L/d aspect ratio, i.e., L is the fibre length and d corresponds to the fibre lateral dimensions), but the characteristics of the interphases also appear as a key. Indeed, this three-dimensional region between the fibres and the matrix can ensure the load transfer from the matrix to the fibres, provided that the fibre/matrix interfacial adhesion is good enough. Thereby, the bonding strength at the interface largely influences the final properties of the composite, and the role of the interfacial adhesion on their structural integrity is now commonly accepted.

One of the main challenges when developing composite materials is precisely to combine strength and toughness [48]. In general, a strong fibre/matrix interfacial adhesion will achieve high strength and stiffness, while a weaker interfacial adhesion or flexible interphase could enhance toughness performance. Interestingly, structural natural materials such as bones, shells and plant stems seem to succeed in gathering these mechanical properties often antagonistic, and it appears that the combination of soft and stiff components inside the systems, in optimized architectures and concentrations, could be the key for such reinforcement ^[49][4,49]. Moreover, considering the three examples of biological systems described above, the presence of nano-objects within the structure is likely to reinforce the most vulnerable parts of the system undergoing higher stress levels [41]. By now, if we transpose all these observations of natural materials to synthetic and man-made composite materials, the concept of hierarchical architecture appears as an attractive strategy to tailor the fibre/matrix interphase zone, and so increase the strength and toughness and hamper crack propagation within composites.

The following sections will focus on the different types of hierarchically nanostructured fibre reinforced composites as schematized in Figure 4, the matrix being either oil-based or bio-based.

Figure 4. Schematic structures of the different hierarchically nanostructured fibre reinforced composites with: (a) fully synthetic hierarchical composites, (b) hybrid hierarchical composites either reinforced with bio-based nanoparticle modified synthetic fibres or with synthetic or mineral nanoparticle modified natural fibres; and (c) hierarchical biocomposites reinforced with bio-based nanoparticle modified natural fibres. Green colour stands for bio-based (nano-)reinforcements and black colour stands for synthetic (nano-)reinforcements.
