Vitamin Analysis Using Electroanalytical Techniques
Edit

Vitamins comprise a group of organic chemical compounds that contribute significantly to the normal functioning of living organisms. Although they are biosynthesized in living organisms, some are also obtained from the diet to meet the needs of organisms, which is why they are characterized as essential chemical compounds. The lack, or low concentrations, of vitamins in the human body causes the development of metabolic dysfunctions, and for this reason their daily intake with food or as supplements, as well as the control of their levels, are necessary. The determination of vitamins is mainly accomplished by using analytical methods, such as chromatographic, spectroscopic, and spectrometric methods, while studies are carried out to develop new and faster methodologies and techniques for their analysis such as electroanalytical methods, the most common of which are voltammetry methods.

vitamins nanomaterials voltammetry technique carbon paste electrode

1. Fat-Soluble Vitamins

1.1. Vitamin A

The determination of vitamin A in foods has been studied by using square-wave pulse voltammetry that uses carbon paste electrode (CPE) molded with Pt:C nanoalloy in ionic liquid (IL). This technique exhibits good sensitivity with a linear response between 0.1–100 M and with an LOD equal to 0.04 M [1]. The electrochemical determination of retinol has also been done by using differential pulse voltammetry with carbon paste electrode molded with sodium dodecyl sulfate surfactant (CPE/SDS). The method has turned out to be linear with low detection limits (up to 4.6 × 10−7 M) [2]. A simultaneous determination of retinol and Vitamin E in CH3CN has also been done with cyclic voltammetry with glassy carbon electrode (GCE) molded with the synthetic nanomaterial MWCNT [1].

1.2. Vitamin D

The determination of vitamin D2 has been done with a combination of cyclic voltammetry and differential pulse voltammetry using a glassy carbon electrode coated with a thin synthetic indium-titanium oxide (ITO; CD-CH) layer [3]. In order to determine vitamin D3, this electrode was combined with polyacrylonitrile nanofibers (PANnFs) and nanoparticles (NPs) of magnetite (Fe3O4) and studied with differential pulse voltammetry. PANnFs are very soluble and have thermal and mechanical stability, while magnetite nanoparticles are biocompatible and non-toxic [4]. A better determination of D3 was done with the glassy ITO electrode, molded with a gadolinium oxide sensor NRs (Gd2O3NRs), combined with aspartic acid (Asp-Gd2O3NRs) and with differential pulse voltammetry analysis [5]. In Figure 1 are shown cyclic voltammograms of vitamin D3.

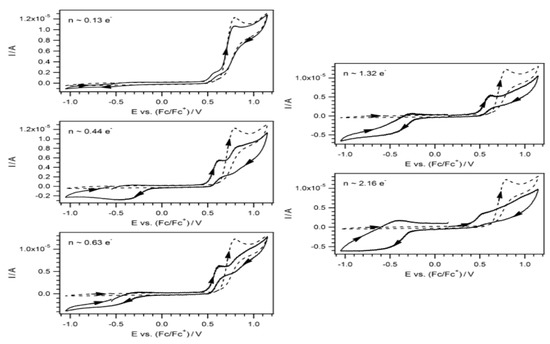

Figure 1. Cyclic voltammograms of vitamin D3 [5].
Vitamin D3 has also been determined in pharmaceutical samples with a combination of cyclic voltammetry and differential pulse voltammetry using glassy carbon electrode molded with Ni(OH)2 particles in an inorganic SiO2/graphene oxide matrix. This method exhibited great selectivity and sensitivity, while the limit of detection was very low [6]. In analysis of blood samples, the detection of vitamin D was done with cyclic voltammetry using a glassy carbon electrode molded with an electrochemical sensor consisting of a synthetic film of bimetallic nanoparticles Cu-Ni and fullerene-C60. The method proved quite effective and showed good sensitivity [7]. Another technique for detecting vitamin D in human plasma samples has recently been developed by means of a reconstructive adsorbent voltammetry using a screen-printed carbon paste electrode (SPCE) coated with a polymer (MIP) combined with p-phenylenediamine resorcinol [8]. Another recent combination study of cyclic voltammetry and differential pulse voltammetry used a cerium (IV) oxide immunonanosensor (nCeO2/CC), which was prepared in carbon fabric (CC) by electrophoretic deposition of the nanomaterial (nCeO2). The method was applied to biological samples with good repeatability and high sensitivity [9].

1.3. Vitamin E

Differential pulse voltammetry experiments on Pt microelectrodes to quantify vitamin E in solutions of vegetable oils and fats in N-methyl-2-pyrrolidine (NMP) solution with 0.2 M electrolyte nBu4NPF6 gave a potential of +1.04 V versus the standard Ag|AgCl electrode [10]. In another study, a combination of cyclic voltammetry and differential pulse voltammetry was applied to analyze simultaneously vitamins E and K in dietary supplements using Au electrodes molded with polyaniline (PAn) and γ-aluminium oxide (c-Al2O3), forming the nanomaterial PAn/c-Al2O3 [11]. On the other hand, to determine the active forms of E and K (quinones and tocopherols) in dietary supplements, adsorptive stripping square-wave voltammetry was applied to a glassy carbon electrode. The method had excellent sensitivity while being a low-cost and simple technique [12]. In another quantification study of α-, γ- and δ-tocopherols in oil samples, a square-wave pulse voltammetry was applied to a CF UMEinBz/ EtOH disk (1: 2) with 0.1 mol/L H2SO4 [13]. The results were processed using chemometric methods with two multivariate calibration models, MCR-ALS (multivariate curve resolution-alternating least squares) [14], and SandANNs (artificial neural networks (ANNs)) [15]. The advantages of these chemometric methods are their ability to obtain quantitative information from overlapping signals through mathematical models and the fact that no prior pretreatment of the sample is required. However, a disadvantage that can arise in the application of electroanalytical techniques is the lack of selectivity.
A recent study conducted a simultaneous identification of vitamins E and K in dietary supplements. The method involved a glassy carbon electrode in which an ex situ accumulation of the vitamins on the electrode surface was first performed. The vitamins were then detected by using adsorptive stripping square-wave voltammetry in a solution of 0.01 mol/L HNO3 containing 0.1 mol/L KCl at pH = 2.08. Both vitamins were detected in the anode, while the method turned out to be quite selective and highly sensitive [12].

1.4. Vitamin K

For the study of the reduction of phylloquinone with cyclic voltammetry a glassy carbon electrode has been used on which a reversible adsorption reaction takes place [16]. In plant foods, vitamin K1 has been detected with a square wave adsorptive stripping voltammetry, preceded by the adsorption of the vitamin on the surface of the solid glassy carbon electrode. This method turned out to be quite sensitive and effective [17]. Additionally, the analysis of vitamin K2 in pharmaceutical preparations samples and foods has been done with cyclic voltammetry with a glassy carbon electrode, bare and modified [16][18]. The polyelectrode Pt, modified with a liquid amalgam film (RAgLAFm-E), has also been used for the quantification of K2. In recent years, many electrochemical sensors have also been developed to detect K, triggering the study of the manufacture of optical fiber sensors, which have a fairly low cost but very high sensitivity [19]. In blood plasma, vitamin K1 has been detected with cyclic voltammetry using pencil graphite electrode (PGE) modified with Ag nanoparticles and 2-amino-5-chlorobenzophenone (2-A-5-CBP), which were deposited by electro deposition on the surface of the PGE [20]. Additionally, for the determination of vitamin K3 in animal pharmaceuticals, a sensor consisting of a glassy carbon electrode molded with an imprinted poly(3,4-ethylenedioxythiophene) film (PEDOT) has been used [21]. The method has been applied with a combination of cyclic voltammetry and linear sweeping voltammetry, and has had very good sensitivity and detected K3 in traces. Additionally, an attempt has been made to simultaneously determine all four vitamins—A, D, E and K—by using square-wave adsorptive stripping voltammetry with a glassy carbon electrode. However, because all four vitamins are deposited on the surface of the electrode, the method has not shown selectivity and has not been able to separate them from each other. This is notably the case for vitamin D3. The simultaneous determination can be achieved by modifying the electrode with carbon nanomaterials [22].

2. Water-Soluble Vitamins

2.1. Vitamin C

A recent study carried out the determination of vitamin C in fruit juices and creams with a combination of cyclic voltammetry and differential pulse voltammetry using a Hydroxyapatite-ZnO-Pd NPs modified carbon paste electrode (HAP-ZnO-Pd NPs/CPE) [23]. The voltammetric determination of ascorbic acid was also done using a disposable printed carbon electrode, bare and molded with a synthetic ZnO/Al2O3 nanosensor, which showed high selectivity, repeatability, and sensitivity. The anodic peak potential for the oxidation of ascorbic acid with the ZnO/Al2O3/SPE sensor is approximately 335 mV compared to 370 mV for the bare SPE. This shows that ZnO/Al2O3 nanomaterial improves the oxidation signal of ascorbic acid [24].
Differential pulse voltammetry with a graphene-molded carbon paste electrode has been successfully applied to determine ascorbic acid. Graphene greatly enhances the intensity of the current of a redox reaction as it is a good conductor. In this way the sensitivity of the method has been increased [25]. Differential pulse voltammetry has also been applied to pharmaceutical analysis using molded carbon paste electrodes with porphyrins. This combination has given low detection limits to the method (up to 1.1 × 10−14 mol/L) [26].
The successful determination of ascorbic acid with high sensitivity has also been done with cyclic voltammetry with a glassy carbon electrode molded with a polymeric film of poly [bromocresol purple], which enhances the signal of the generated current [27]. With cyclic voltammetry, a formed hyaline carbon electrode with a polymeric film (3-(5-chloro-2-hydroxyphenylazo)-4,5-dihydroxynaphthalene-2,7-disulfonic acid) has also been used in a solution with pH = 4, where a successful detection of ascorbic acid in a mixture of substances has been done [28]. The glassy carbon electrode has also been successfully modified with multi-wall carbon nanotubes and synthetic carbon nanotubes with [poly] xanthurenic acid. The formation with carbon nanotubes leads to great stability of the electrode at various pH values, low detection limits, and very good sensitivity [29][30]. Cyclic voltammetry with iodine-coated Pt electrode in 0.1 M KCL solution has been successfully applied for the selective determination of ascorbic acid in multivitamin pharmaceutical products (B1, B6, B12, B9, and C). The oxidation peak of ascorbic acid has occurred at 0.28 V, while the detection limits have been quite low [31]. Pharmaceutical formulations and foods have been studied with a combination of cyclic voltammetry and differential pulse voltammetry, with a carbon paste electrode molded with multi-walled carbon nanotubes and graphite in acidic solution with pH = 2 [32]. The successful determination of ascorbic acid in commercial samples has also been done with cyclic voltammetry, using bare carbon paste electrodes (PCPEs) and molded carbon paste electrodes (MCPEs) with calixarenes, such as p-tert-butylcalix(4)arene, in ammonium acetate (pH = 5) containing Pb2+ ions [33]. MCPEs have displayed better electrocatalytic activity. The greater catalytic action of MCPE can be explained by considering that the Pb2+ ion is strongly held in the p-tert-butylcalix(4)arene cavity, acting as an electron transport bridge, allowing it to interact with the ascorbic acid in the solution while oxidizing it. As the oxidation of ascorbic acid depends on pH, with its increase, there is a shift in the potential towards less positive values. This is also true in the case of any bare electrode, such as Au. For the MCPEI electrode, at low pH values, peak heights are low, and this can be attributed to an absence or reduced complexation of Pb2+ on the electrode surface while the mechanism is assumed to occur through diffusion [33].
Several voltammetric studies have been performed to concurrently determine ascorbic acid, uric acid, and dopamine. Studies of cyclic voltammetry using carbon paste electrode with formers such as 2,2′-(1,8-octanediylbisnitriloethylidine)-bis-hydroquinone and tetrabromo-p-benzoquinone have been used effectively [34][35]. The molded electrode enhances the production of current, contributing to the efficient detection of ascorbic acid in the mixture. The same sample has been studied by using cyclic voltammetry with a glassy carbon electrode molded with 0.1 mol/L H2SO4 solution in phosphate solution. The results have showed that the molded electrode interacts with H2SO4 to form a redox pair, resulting in active groups that reduce the oxidation potential when compared to the interactions of the non-molded electrode. The detection of all three compounds has been successful [36]. A simultaneous identification of all three compounds was also carried out with a molded glassy carbon electrode with LaFeO3 nanoparticles [37]. A combination of cyclic voltammetry and differential pulse voltammetry with a glassy carbon electrode molded with graphene/Pt nanoparticles was performed in the same sample [38]. In a bovine embryonic serum sample, the three compounds were detected by using differential pulse voltammetry with a glassy carbon electrode molded with helical carbon nanotubes. This method proved quite effective and showed great sensitivity [39]. Another study of this mixture used square-wave pulse voltammetry and molded glassy carbon electrode with Ni-poly(1,5-diaminonaphthalene) nanoparticles in NaOH 0.1 mol/L [40].
Ascorbic acid was successfully detected in a mixture with tryptophan and paracetamol by using square-wave pulse voltammetry and with a carbon paste electrode molded with multi-walled carbon nanotubes. A selective assay of ascorbic acid was carried out with this method [41]. By using square-wave pulse voltammetry, ascorbic acid was also determined in a mixture with rutin, using a carbon paste electrode molded with a carbon-chitosan nanotube film [42]. The simultaneous determination of ascorbic acid and dopamine in pharmaceutical products was conducted via the application of cyclic voltammetry with a glassy carbon electrode molded with a polymerized (poly)caffeic acid film. The polymerized film enhanced the rate of electron transfer at the electrode, resulting in the increased selectivity of the method [43]. On the other hand, the simultaneous determination of ascorbic acid and paracetamol was done by using differential pulse voltammetry with glassy carbon electrodes molded with carbon nanotubes [44].
Another study with differential pulse voltammetry was applied for the simultaneous determination of ascorbic acid and uric acid using a carbon paste electrode the surface of which was modified by adsorption of the surfactant chitosan-cetylpyridinium bromide. Both compounds were selectively identified by this method [45]. The same mixture was also studied by using linear sweeping voltammetry using a molded copper electrode with dimercaptothiadiazole, which effectively separated the peaks of the two substances [46]. In another cyclic voltammetry study to detect ascorbic acid and dopamine in pharmaceuticals and foods, the carbon paste electrode was successfully modified with a copper binuclear complex, which effectively reduced the potentials of redox reactions [47]. The mixture of ascorbic acid and dopamine was also successfully studied with differential pulse voltammetry, with an Au electrode molded with Au nanoparticles, where an effective separation of the peaks of the two substances took place [48].
In another study, a combination of differential pulse voltammetry and cyclic voltammetry was applied for the simultaneous determination of ascorbic acid, uric acid, and epinephrine. A glassy carbon electrode molded with a film of carbon nanotubes was used, thanks to which low detection limits were obtained [49]. These two techniques were also combined with a SiO2/Nb2O5-coated carbon electrode, which improved the electron transfer from ascorbic acid to the electrode surface. Covalent bonds may develop between ascorbic acid and Nb2O5, increasing the rate of oxidation. Nb2O5 helped to reduce the oxidation potential of ascorbic acid, which shifted to smaller values. The use of this electrode proved quite effective in determining ascorbic acid [50].
Many studies have been done to determine ascorbic acid in juices with various combinations of techniques and electrodes. Cyclic voltammetry has been applied in combination with carbon paste electrodes, while for low concentrations of ascorbic acid, modified graphite electrodes with manganese dioxide have been used in phosphate buffers (pH = 7.2) [51]. Linear sweeping voltammetry using an Au electrode has also been applied. Differential pulse voltammetry has been applied to juices and wines using glassy carbon electrode and Pt microelectrodes molded with polyvinyl sulfonium and polystyrene sulfonium film, which increased the functionality of the electrode [52][53][54]. The effective quantification of ascorbic acid has also been done in plants of the Rosa family via application of differential pulse voltammetry and square-wave pulse voltammetry with hyaline carbon electrodes [55]. In a recent study done to determine ascorbic acid in the Rosa canina plant, a square-wave pulse voltammetry was applied with a graphene oxide paste electrode molded with a film of Mn(II) complex. The method was effective, and no interference from the presence of other substances in the sample was detected. The detection limits were low (1.2888 µg/mL) and the determination of ascorbic acid was successful [56]. Another study conducted a cyclic voltammetric study of ascorbic acid using a polymelamine/gold nanoparticle modified carbon paste electrode (PM/AuNPs/CPE) in phosphate buffer solution of pH = 7.0. The electrode favored the oxidation of ascorbic acid and significantly increased the peak current, while the oxidation potential shifted to more negative potentials [57]. In a recent study, a combination of cyclic voltammetry and square-wave pulse voltammetry was applied, with a microelectrode made from pyrolytic graphite sheet (PGS), to quantify ascorbic acid in real samples. The method proved to be quite sensitive, showing low sensitivity thresholds and a linear response across a wide range of concentrations [58].

2.2. Vitamin B1 (Thiamine)

The determination of thiamine in pharmaceuticals and juices has been studied by adsorptive stripping voltammetry at a glassy carbon electrode naked and molded with Pb2+ film, in acetate buffer of 0.05 mol/L and pH = 5.6. On the molded electrode a reduction peak with a potential of −1.25 V versus the Ag/AgCl electrode appeared, while on the bare electrode no peak was observed. This showed the effectiveness of Pb2+ film as a formator. One possible mechanism indicates that thiamine is likely adsorbed to the Pb2+ film but not to the electrode. At Pb2+ concentration of between 1 × 104–1.5 × 104 mol/L, the maximum reduction of thiamine was observed [59].
In another study, the electrochemical behavior of thiamine was studied by using square-wave voltammetry at a Cys/SAM shaped Au electrode (Cys/SAM/Au) in an alkaline environment (pH = 11.0). The results showed that the Cys/SAM/Au molded electrode had electrocatalytic activity with versus thiamine and thatthe process was controlled by adsorption. With an increase in pH (from 7.4 to 11.9) the anodic peak shifted to more negative values. This method was a simple, fast, and selective high-precision technique for determining thiamine in the presence of other vitamins in pharmaceutical formulations, and could be applied in clinical analysis and drug analysis [60].
The successful determination of vitamin B1 in a mixture of vitamins B2 and C was also achieved by using adsorptive stripping voltammetry with a glassy carbon electrode molded with solid silver amalgam film (AgLAF-AgSAE), which caused very good separation of the peaks of vitamin B1 and C and showed satisfying detection limits [61]. The use of DNA/MWCNT-molded carbon paste electrode also appeared effective [62].

2.3. Vitamin B2 (Riboflavin)

The determination of riboflavin in pharmaceutical formulations has been done by using cyclic voltammetry using an optical sensor made of cyclodextrin wherein riboflavin is encapsulated in cyclodextrin [63]. The determination of riboflavin in real samples has been mainly done by adsorptive stripping voltammetry with an Hg electrode at basic conditions (a bare glassy carbon electrode has also been used), in H2SO4 buffer of 0.5 M. The mechanism has showed the reversible reduction of two electrons and two protons in the solution while a small amount of riboflavin has been adsorbed to the bare electrode [64]. This electrode has also been used to determine riboflavin in breast milk [65]. Riboflavin has also been studied with a pretreated glassy carbon electrode (PGCE). In one such study, the described mechanism showed a reversible reduction of riboflavin to quinone on the carbon surface with a potential of +0.4 V. Riboflavin and its reduction product adsorbed much more readily to the activated electrode than to the untreated electrode [63]. The mechanism of adsorption of vitamin B2 on the hanging Hg drop electrode in an aqueous mean is due to the redox reaction of 2e/2H+ of the flavin portion, accompanied by strong adsorption on the electrode surface of both the redox form of quinone and the hydroquinone of vitamin B2. In addition to conventional square-wave pulse voltammetry, the mechanism of electrodes has been investigated in more detail with cyclic square-wave voltammetry (CSWV) [66]. Voltammetric parameters are affected by vitamin B2 concentration, pH, and accumulation time. With an increase in the concentration of the adsorbed materials on the electrode surface, the peaks shift to less negative potentials. This demonstrates that interactions between the adsorbed species take place. With an increase in pH the transfer of electrons becomes faster, and the adsorption of riboflavin becomes stronger, than at a lower pH. The increase in accumulation time forms a solid film on the surface of the electrode, allowing it to require higher energy for the redox reaction, thus shifting the potential towards negative values. However, by increasing the surface concentration, repulsive interactions between adsorbed molecules become important [66].
The determination of riboflavin has also been studied by using adsorptive voltammetry with hyaline carbon electrode molded with nanomaterials which enhance the catalytic action of riboflavin. Such nanomaterials include polythiophene nanotubes, metal nanocrystals, oleylamine nanoparticles (OLA), Cr/SnO nanoparticles, NiO/MWCNTs, and poly(3,4-ethylenedioxythiophene)/zirconia (PEDOT/ZrO2NPs) [67]. Additionally, a study was conducted using differential pulse voltammetry with carbon paste electrodes molded with Co-Y zeolites. The Co-Y zeolite interacted with riboflavin, resulting in increased electrode selectivity and sensitivity [68]. Recently, a sensor based on the transition nanocomposite materials made of metal binary oxide (ZnO-MnO) was synthesized with a CSNs shell core on the surface of a glassy carbon electrode. This sensor was used to determine riboflavin with cyclic voltammetry, differential pulse voltammetry, and linear sweeping voltammetry with excellent stability, repeatability, selectivity, and sensitivity [69].

2.4. Vitamin B3 (Nicotinic Acid/Niacin)

The determination of vitamin B3 in biological samples, food, and pharmaceutical tablets has been an object of much interest. The use of electrochemical sensors on a carbon paste electrode is a very good method of determining vitamin B3 in pharmaceutical products due to their simplicity, selectivity, high sensitivity, and low cost. A study that used cyclic voltammetry to determine vitamin B3 in syrup samples used CoTMPP-molded graphite paste microelectrode (CoTMPP/Nafion/GPE), which enhanced the electrocatalytic response of the vitamin’s reduction current. The corresponding cyclic voltammograms were recorded in 0.1 mol/L NaNO3 solution, pH = 3.9, using GPE, CoTMPP/GPE, and CoTMPP/Nafion/GPE at a scan rate of 0.1 V/s. The utilized method proved too sensitive and simple for the selective determination of nicotinic acid [70]. The determination of nicotinic acid in pharmaceutical products was also done using an Au electrode and the application of cyclic voltammetry, while in food, an Au electrode molded with thioglycolic acid and an adsorptive stripping voltammetry was applied [71][72].

2.5. Vitamin B5 (Pantothenic Acid)

The detection of D-Panthenol in a urine sample was done by using square-wave pulse voltammetry with a glassy carbon electrode at pH = 4.2. The method proved to be quite sensitive and with low limits of detection (5.0 × 10−7 M) [69].

2.6. Vitamin B6 (Pyridoxine)

The determination of vitamin B6 in pharmaceutical products has been carried out with applications of cyclic voltammetry and differential pulse voltammetry using molded glassy carbon electrodes with materials such as vanady(IV)-salen complex, carbon nanotube, Ru(bpy)33+ with diamond-boron complex, Prussian blue, poly-methylene blue, and graphite-modified carbon paste electrode. A study conducted with differential pulse voltammetry for the simultaneous determination of vitamins B6 and C used a carbon paste electrode molded with ZnO/Cuo nanocomposites with 2-[ferrocenylethynyl]fluorine-9-one, ZnO/Cuo in an ionic liquid, 2FE/ZC/IL/CPE. The results showed good sensitivity and competent separation of the peaks [73]. On the other hand, in other differential pulse voltammetric studies, Au electrodes fused with carbon nanotubes and Au-CuO molded carbon nanotubes have also been effectively used. In foods (energy drinks and cereals) and dietary supplements (multivitamins), B6 has been determined by using differential pulse voltammetry with printed disposable silk electrodes. This method proved to be quite effective, selective, repeatable, and with low sensitivity limits (1.5 × 10−6 M) [74].

2.7. Vitamin B7 (Biotin)

In food, the electroanalytical study of biotin has been done by using differential pulse voltammetry with a film biosensor that was synthesized from ionic liquid-chitin and modified with Pd-Fe-Ni nanoparticles [75]. In another study, the determination of biotin in blood plasma was performed using a boron-doped diamond electrode (BDD) on the surface of which a Nafion layer had formed. The detection limit of the method was quite low (up to 5 nM), and it has been quite an effective method in clinical analyses [76].

2.8. Vitamin B9 (Folic Acid)

The detection of vitamin B9 in pharmaceuticals and foods has been done primarily with square-wave voltammetry, differential pulse voltammetry, and cyclic voltammetry, but also with a combination of these. In each case, different working electrodes are used. In studies with square-wave pulse voltammetry, carbon paste electrodes molded with Pt:Co nanomaterials have been used [77]. In studies that have combined square-wave pulse voltammetry and cyclic voltammetry, carbon paste electrodes molded with complexed carbon nanotubes with Ru(II)ZnO have been used [78]. In studies combining square-wave and differential pulse voltammetry, carbon paste electrodes modified with nanomaterials have been used [79][80]. In differential pulse voltammetry studies, carbon paste electrodes molded with polymer films, TiO2 nanomaterials, and magnetite nanoparticles have been used, and Au electrodes molded with nanomaterials have also been used [81][82][83][84]. In studies combining differential pulse voltammetry and cyclic voltammetry, carbon paste electrodes molded with carbon nanotubes have been used [85]. Additionally, the determination of folic acid in food has also been studied by using adsorptive voltammetry with film-Bi-molded Au electrodes, Ag amalgams, or Hg [76][86][87]. In a recent study involving pharmaceutical tablets, the detection of vitamin B9 was done using a combination of cyclic voltammetry and differential pulse voltammetry in a phosphate buffer (pH = 7), using as a sensor an electrochemically polymerized tyrosine film on a graphite substrate. This method turned out to be quite sensitive and repeatable [88].
Additionally, the simultaneous determination of folic acid and riboflavin has been done by using cyclic voltammetry using Hg electrodes [89]. The results have showed that both vitamins are strongly adsorbed on the surface of the electrodes, and that this is due to the presence of the aromatic rings. Adsorbed molecules can then be measured by using the technique of adsorptive stripping voltammetry, which has been found to be quite effective for the simultaneous determination of folic acid and riboflavin, in the presence of excess electroactive substances in solution with great precision and selectivity. In another study, the successful determination of folic acid in a mixture with ascorbic acid and riboflavin was performed by using adsorptive stripping voltammetry involving glassy carbon electrodes molded with Pb2+ [90].

2.9. Vitamin B12 (Cobalamin)

The determination of vitamin B12 in blood plasma and urine has been studied by using differential pulse voltammetry with an electrochemical sensor, molded with polypyrrole, which is prepared with carbon fiber paper, and then by applying the electro deposition of palladium-gold nanoparticles (PdAu). A study on this has showed good selectivity in the presence of other substances [91]. Similarly, vitamin B12 has been detected in foods with ferromagnetic nanoparticles from triazine dendrimers (FMNPs@TD) using a combination of cyclic voltammetry and differential pulse voltammetry techniques [11]. The selective detection of B12 in injectable drugs has also been performed by using cyclic voltammetry with glassy carbon electrodes, molded with fluorescent nanosensors without labeled carbon. The fluorescence intensity of CD charts decreases as the concentration of vitamin B12 increases, showing a linear relationship in the range from 0 to 60 M [92]. In another recent study, the electrochemical determination of cyanocobalamin with square-wave pulse voltammetry was applied using an electrode of a carbon paste molded with a Mg complex film with thiophene-2-carboxylic acid and triethanolamine substituents in KCl. The method proved to be selective, as the resulting interference did not affect the detection of cyanocobalamin, had low detection limits and low cost, and was effectively applied to pharmaceutical tablets and dietary supplements [93]. In another study, the determination of cyanocobalamin was performed in human urine samples by using a combination of cyclic voltammetry and adsorptive transfer square wave voltammetry, using a DNA electrochemical biosensor and a modified carbon paste electrode. The electrode was modified with an electrochemically produced polymer (Mn(thiophenyl-2-carboxylic acid)2(triethylonamine)), while cyanocobalamin was immobilized onto the modified electrode. The method proved to be simple, fast, selective, and with low detection limits (1210 µg/L) [94].
The determination of B12 in pharmaceuticals has been done by using cyclic voltammetry, with an Au electrode modified with mercaptoacetic acid at 0.01 mol/L HCl. The corresponding voltammogram has showed three reduction peaks with potentials of 0.21 V, 0.16 V, and −0.41 V, with a total exchange of two electrons. The main form of Co3+ is directly reduced to 0.21 V via transfer of an electron by CN cleavage into the cyanocob(II)alamin. The detection limit of this method is quite low (1.0 × 10−9 mol/L) [95]. In previous studies on the determination of vitamin B12 in pharmaceuticals, anodic adsorptive voltammetry was applied with disposable graphite screen-printed electrodes that had been modified with Bismuth film [96]. Square-wave voltammetry using a disposable pencil graphite electrode modified with peptide nanotubes was also effective [97]. Additionally, a successful combination of cyclic voltammetry and square-wave voltammetry with a disposable pencil graphite electrode modified with carbon-chitosan nanotubes has been applied [98]. In a study of dietary supplements, the determination of vitamin B12 was done through the application of cyclic voltammetry with a boron-doped diamond electrode wherein the determination of the redox pair Co+→Co2+ was monitored. The corresponding voltammogram obtained at pH = 5.0 showed two oxidation peaks for the pairs Co+→Co2+ and Co2+→Co3+ with potentials −0.74 V and +0.18 V, respectively, and two reduction peaks for the pairs Co3+→Co2+ και Co2+→Co+ with potentials −0.12 V and −0.75 V, respectively [99]. All relevant analytical figures of merit are being summarized in Table 1.
Table 1. Aggregated results from the voltammetric studies of vitamins (fat/water-soluble) in samples.
Vitamin Voltammetric Technique [ab.] Working Electrode Sample Reference
Vitamin A CV Glassy carbon Retinol/Vitamin Ε [100]
SWV Carbon paste modified with Pt: Co nanoalloy Foods [1]
DPV Carbon paste modified with surfactant sodium dodecyl sulfate [CPE/SDS] - [2]
Vitamin D SWV Boron Doped Diamond Electrode - [101]
CV Glassy carbon - [5][10][102][103]
CV, DPV Glassy carbon modified thin synthetic indium-titanium oxide D2 [3]
DPV Glassy carbon modified with PANnFs and NPsFe3O4 D3 [4]
DPV Glassy carbon ΙTO, modified with Asp-Gd2O3NRs sensor D3 [5]
CV, DPV Glassy carbon modified with Ni[OH]2 particles in SiO2/ graphene oxide organic-inorganic matrix Pharmaceutical [6]
CV Glassy carbon modified with nanosensor employing fullerene-C60 and bimetallic nanoparticles composite film Blood [7]
AdSV Screen-printed carbon coated with MIP and p-phenylenediamine-resorcinol Real samples [8]
CV, DPV nCeO2/CC immunosensor Biological samples [9]
Vitamin Ε DPV Planar Pt Vegetable oils and fats [10]
CV, DPV Au modified with Pan/c-Al2O3 Food supplements [11]
SWAdSV Glassy carbon Vitamins Ε και Κ [12]
SWV CF disk UME in Bz/EtOH [1:2] α-, β-, γ-, δ-tocopherols in oil samples [13]
SWAdSV Glassy carbon Vitamins Ε and Κ in food supplements [17]
Vitamin Κ CV Glassy carbon - [17]
SWAdSV Glassy carbon Plant based foods [18]
CV Glassy carbon Pharmaceutical Products and Foods [17][19]
CV Pencil graphite modified with silver nanoparticles and 2-amino-5-chloro benzophenone Blood plasma [20]
CV, LSV Glassy carbon modified with PEDOT Poultry drugs [21]
SWAdSV Glassy carbon Vitamins A, D, E, K [22]
Vitamin C SWV Carbon paste modified with Fe[III]-Y - [104]
CV Carbon paste modified with p-tert-butylcalix [105] arene Commercial Samples [33]
CV, DPV Carbon paste coated with NPsZnO-Pd Fruit Juices, creams [23]
CV, DPV Printed carbon electrode bare and modified with ZnO/Al2O3 Real samples [24]
DPV Carbon paste modified with graphene Pharmaceutical Products [25]
DPV Carbon paste modified with porphyrins Pharmaceutical Products [26]
CV Glassy carbon modified with poly[bromocresol purple] film - [27]
CV Glassy carbon modified with poly [3-[5-chloro-2-hydroxyphenylazo]-4, 5-dihydroxynaphthalene-2, 7-disulfonic acid] film Ascorbic acid in a mixture of substances [28]
CV Pt coated with iodine MultiVitamins [B1, B6, B9, B12, C] [31]
CV, DPV Carbon paste modified with multi-wall carbon nanotubes and graphite Pharmaceutical formulations και Foods [32]
CV Carbon paste modified with 2,2′-[1,8-octanediylbisnitriloethylidine]-bis-hydroquinone and tetrabromo-p-benzoquinone Mixture of ascorbic acid, uric acid and dopamine [34][35]
CV Glassy carbon modified with H2SO4 - [36]
CV Glassy carbon modified with LaFeO3 nanoparticles - [37]
CV, DPV Glassy carbon modified with graphene/Pt nanoparticles - [38]
SWV Glassy carbon modified with Ni-poly [1,5-diaminonapthalene] nanoparticles - [40]
DPV Glassy carbon modified with helical carbon nanotubes Ascorbic acid, uric acid and dopamine in a bovine foetal serum sample [39]
SWV Carbon paste modified with multi-wall carbon nanotube Ascorbic acid, tryptophan, paracetamol [41]
SWV Carbon paste modified with multi-walled carbon nanotubes–chitosan composite film Ascorbic acid-Rutin [42]
CV Glassy carbon modified with poly [caffeic acid] Ascorbic acid and dopamine in Pharmaceutical Products [43]
DPV Glassy carbon modified with carbon nanotubes Ascorbic acid, paracetamol [44]
DPV Carbon paste modified with cetosan-cetylpyridinium bromide Ascorbic acid and uric acid [45]
LSV Au modified with dimercaptothiadiazole - [46]
CV Carbon paste modified with novel bicopper complex Ascorbic acid and dpamine in Pharmaceutical Products και Foods [47]
DPV Au modified with self-assembled Au nanoparticles Ascorbic acid abd dopamine [48]
DPV, CV Glassy carbon modified with multiwall carbon nanotubes with nafion Ascorbic acid, uric acid, epinephrine [49]
DPV, CV Carbon coated with SiO2/Nb2O5 - [50]
CV Carbon paste Juices [51]
CV Graphite modified with Manganese dioxide Juices [51]
LSV Gold Juices [51]
DPV Glassy carbon Juices and wines [47][48][49][50][51][52][53][54]
DPV Pt microelectrodes modified with polyvinyl sulfonium and polystyrene sulfonium film Juices and wines [52][53][54]
DPV, SWV Glassy carbon Plants of the Rosa family [55]
SWV Graphene oxide paste modified with manganese[II] complex Rosa canina [56]
CV Carbon paste modified with PM/AuNPs - [57]
CV, SWV Microelectrode made from pyrolytic graphite sheet [PGS] Real samples [58]
DPV Glassy carbon modified with MXene powder (titanium carbide) Human urine samples [106]
Vitamin Β1 AdSV Carbon paste - [107]
CV Carbon paste modified with MnPC - [107]
CV Platinum Thiamine Pyrophosphate [108]
AdSV Glassy carbon modified with Pb2+ film Pharmaceutical Products and Juices [59]
SWV Au modified with Cys/SAM Pharmaceutical formulations [60]
AdSV Glassy carbon modified with AgLAF-AgSAE Mixture vitamins B1, B2, C [61]
AdSV Carbon paste modified with DNA/MWCNT - [62]
Vitamin Β2 CV Optical sensor made of cyclodextrin Pharmaceutical formulations [63]
AdSv Hg/Bare glassy carbon Real samples [64]
AdSV Bare Glassy carbon Breast milk [65]
ASV Glassy carbon modified with nanomaterials - [66]
DPV Carbon paste modified with Co zeolites - [68]
CV, DPV, LSV Glassy carbon modified with ZnO-MnO/CSNs - [69]
Vitamin Β3 DPV Glassy carbon - [10]
CV Hg/Dropping Hg/Pt - [10]
CV Microelectrode graphite paste modified with CoTMPP/Nafion Syrup [70]
CV Gold Pharmaceutical Products [71][72]
ASV Au modified with thioglycolic acid Foods [71][72]
Vitamin Β5 CV, DPV, LSV Carbon paste modified with cobalt[II]oxide catalyst D-panthenol [10]
SWV Glassy carbon Urine [69]
Vitamin Β6 SWV Carbon paste modified with ZnO/Cuo Mixture of vitamins C and Β6 [73]
DPV Au modified with carbon nanotubes - [73]
DPV Glassy carbon modified with dsDNA - [73]
DPV Disposable printed silk Foods (Energy drinks, cereals), multivitamins [74]
Vitamin Β7 SWV Film biosensor modified with Pd-Fe-Ni NPs Foods [75]
CV, DPV Diamond with mixture of boron/Nafion Blood plasma [76]
Vitamin Β9 CV Au modified with MBT/SAM film - [10]
CV Dropping Hg - [10]
CV Au modified. with multi-wall carbon nanotube Au/NPs, - [109]
CV, AdSV Hg electrode Folic acid, riboflavin [89]
ASV Glassy carbon modified. with Pb2+ film Mixture of ascorbic acid and riboflavin [90]
SWV Carbon paste modified. with Pt:Co nanomaterials Pharmaceutical Products, Foods [77]
SWV, CV Carbon paste modified. with Ru[II]ZnO complex carbon nanotubes Pharmaceutical Products, Foods [78]
SWV, DPV Carbon paste modified. with nanomaterials Pharmaceutical Products, Foods [79][80]
DPV Carbon paste modified. with polymeric film, TiO2 nanomaterials, magnetite nanoparticles/Au modified with nanomaterials Pharmaceutical Products, Foods [81][82][83][84]
DPV, CV Carbon paste modified with carbon nanotubes Pharmaceutical Products, Foods [85]
ASV Au modified. with Bi-film, Ag or Hg amalgams Foods [84][86][87]
CV, DPV Polymerized tyrosine film on graphite substrate Pharmaceutical tablets [88]
Vitamin Β12 DPV Electrochemical sensor modified. with polypyrrole and PdAu NPs Blood plasma, Urine [91]
CV, DPV Ferromagnetic nanoparticles from triazine dendrimers [FMNPs@TD] Foods [11]
CV Glassy carbon Injectable Drugs [92]
SWV Carbon paste modified. with Mg complex film with thiophene-2-carboxylic acid and triethanolamine substituents Pharmaceutical tablets, Food supplements [93]
AdSV Carbon paste modified. with [Mn [thiophenyl-2-carboxylic acid]-2 [triethylonamine] polymer and DNA biosensor Urine samples [94]
CV Au modified. with mercaptoacetic acid Pharmaceutical Products [95]
ASV Disposable carbon mesh modified with bismuth film Pharmaceutical Products [96]
SWV Graphite modified with peptide nanotubes Pharmaceutical Products [97]
SWV Pencil Graphite modified with carbon nanotube-chitosan Pharmaceutical Products [98]
CV Diamond with boron admixture Food supplements [99]
CV; cyclic voltammetry, SWV; square wave voltammetry, ASV anodic stripping voltammetry, AdSV adsorptive voltammetry, DPV; Differential pulse voltammetry.

References

  1. Kumari, A.; Vyas, V.; Kumar, S. Advances in electrochemical and optical sensing techniques for vitamins detection: A review. ISSS J. Micro Smart Syst. 2022, 11, 329–341.
  2. Žabčíková, S.; Mikysek, T.; Červenka, L.; Sýs, M. Electrochemical study and determination of all-trans-retinol at carbon paste electrode modified by a surfactant. Food Technol. Biotechnol. 2018, 56, 337–343.
  3. Sarkar, T.; Bohidar, H.B.; Solanki, P.R. Carbon dots-modified chitosan based electrochemical biosensing platform for detection of vitamin D. Int. J. Biol. Macromol. 2018, 109, 687–697.
  4. Chauhan, D.; Gupta, P.K.; Solanki, P.R. Electrochemical immunosensor based on magnetite nanoparticles incorporated electrospun polyacrylonitrile nanofibers for Vitamin-D detection. Mater. Sci. Eng. C Mater. Biol. Appl. 2018, 93, 145–156.
  5. Chan, Y.Y.; Yue, Y.; Webster, R.D. Voltammetric studies on vita-mins D2 and D3 in organic solvents. Electrochim. Acta 2014, 138, 400–409.
  6. Canevari, T.C.; Cincotto, F.H.; Landers, R.; Machado, S.A. Synthesis and characterization of α-nickel hydroxide particles on organic-inorganic matrix and its application in a sensitive electrochemical sensor for vitamin D determination. Electrochim. Acta 2014, 147, 688–695.
  7. Anusha, T.; Bhavani, K.S.; Kumar, J.S.; Brahman, P.K. Designing and fabrication of electrochemical nanosensor employing fullerene-C60 and bimetallic nanoparticles composite film for the detection of vitamin D3 in blood samples. Diam. Relat. Mater. 2020, 104, 107761.
  8. Kia, S.; Bahar, S.; Bohlooli, S. A novel electrochemical sensor based on plastic antibodies for vitamin D3 detection in real samples. IEEE Sens. J. 2019, 19, 4752–4757.
  9. Chauhan, D.; Yadav, A.K.; Solanki, P.R. Carbon cloth-based immunosensor for detection of 25-hydroxy vitamin D. Mikrochim Acta 2021, 188, 145.
  10. Lovander, M.D.; Lyon, J.D.; Parr, D.L.; Wang, J.; Parke, B.; Leddy, J. Critical Review—Electrochemical Properties of 13 Vitamins: A Critical Review and Assessment. J. Electrochem. Soc. 2018, 165, G18–G49.
  11. Parvin, M.H.; Azizi, E.; Arjomandi, J.; Lee, J.Y. Highly sensitive and selective electrochemical sensor for detection of vitamin B12 using an Au/PPy/ electrode. Sens. Actuat B Chem. 2018, 261, 335–344.
  12. Kastrati, G.; Jashari, G.; Sýs, M.; Švecová, B.; Arbneshi, T.; Metelka, R.; Bílková, Z.; Korecká, L. Simultaneous determination of vitamin E and vitamin K in food supplements using adsorptive stripping square-wave voltammetry at glassy carbon electrode. Appl. Sci. 2020, 10, 4759.
  13. Robledo, S.N.; Zachetti, V.G.L.; Zon, M.A.; Fernández, H. Quantitative determination of tocopherols in edible vegetable oils using electrochemical ultra-microsensors combined with chemometric tools. Talanta 2013, 116, 964–971.
  14. Antunes, M.C.; Simão, J.J.; Duarte, A.C.; Tauler, R. Multivariate curve resolution of overlapping voltammetric peaks: Quantitative analysis of binary and quaternary metal mixtures. Analyst 2002, 127, 809–817.
  15. Ni, L.; Wang, S.K. Applications of the Voltammetry. Anal. Chim. Acta 2000, 412, 185–193.
  16. Gul, W.; Anwar, Z.; Qadeer, K.; Perveen, S.; Ahmad, I. Methods of Analysis of Vitamin K: A Review. J. Pharm. Pharm. Sci. 2015, 3, 14–22.
  17. Sýs, M.; Jashari, G.; Švecová, B.; Arbneshi, T.; Metelka, R. Determination of vitamin K1 using square wave adsorptive stripping voltammetry at solid glassy carbon electrode. J. Electroanal. Chem. 2018, 821, 10–15.
  18. Jedlińska, K.; Strus, M.; Baś, B. A new electrochemical sensor with the refreshable silver liquid amalgam film multi-electrode for sensitive voltammetric determination of vitamin K2 . Electrochim. Acta 2018, 265, 355–363.
  19. Tabassum, R.; Gupta, B.D. Simultaneous estimation of vitamin K1 and heparin with low limit of detection using cascaded channels fiber optic surface plasmon resonance. Biosens. Bioelectron. 2016, 86, 48–55.
  20. Rostami-Javanroudi, S.; Babakhanian, A. New electrochemical sensor for direct quantification of vitamin K in human blood serum. Microchem. J. 2021, 163, 105716.
  21. Zhang, Z.; Xu, J.; Wen, Y.; Zhang, J.; Ding, W. The electro-synthesized imprinted PEDOT film as a simple voltammetric sensor for highly sensitive and selective detection of vitamin K3 in poultry drug samples. Synth. Met. 2017, 230, 79–88.
  22. Sýs, M.; Žabcíková, S.; Cervenka, L.; Vytras, K. Adsorptive stripping voltammetry in lipophilic vitamins determination. Potravinarstvo 2016, 10, 260–264.
  23. Shahamirifard, S.A.; Ghaedi, M. A new electrochemical sensor for simultaneous determination of arbutin and vitamin C based on hydroxyapatite-ZnO-Pd nanoparticles modified carbon paste electrode. Biosens. Bioelectron. 2019, 114, 111474.
  24. Ganjali, M.R.; Nejad, F.G.; Beitollahi, H.; Jahani, S.; Rezapour, M.; Larijani, B. Highly sensitive voltammetric sensor for determination of ascorbic acid using graphite screen printed electrode modified with ZnO/Al2O3 nanocomposite. Int. J. Electrochem. Sci. 2017, 12, 3231–3240.
  25. Li, F.; Li, J.; Feng, Y.; Yang, L.; Du, Z. Electrochemical behavior of graphene doped carbon paste electrode and its application for sensitive determination of ascorbic acid. Sensors Actuators B Chem. 2011, 157, 110–114.
  26. Stefan-van Staden, R.I.; Balasoiu, S.C.; van Staden, J.F.; Radu, G.L. Microelectrodes based on porphyrins for the determination of ascorbic acid in pharmaceutical samples and beverages. J. Porphyr. Phthalocyanines 2012, 16, 809–816.
  27. Zhang, R.; Liu, S.; Wang, L.; Yang, G. Electroanalysis of ascorbic acid using poly film modified glassy carbon electrode. Measurement 2013, 46, 1089–1093.
  28. Ensafi, A.A.; Taei, M.; Khayamian, T. A differential pulse voltammetric method for simultaneous determination of ascorbic acid, dopamine, and uric acid using poly -4, 5-dihydroxynaphthalene-2, 7-disulfonic acid] film modified glassy carbon electrode. J. Electroanal. Chem. 2009, 633, 212–220.
  29. Kul, D.; Ghica, M.E.; Pauliukaite, R.; Brett, C.M. A novel amperometric sensor for ascorbic acid based on poly and functionalised multi-walled carbon nanotube modified electrodes. Talanta 2013, 111, 76–84.
  30. Lin, K.C.; Yeh, P.C.; Chen, S.M. Electrochemical determination of ascorbic acid using poly and multi-walled carbon nanotubes. Int. J. Electrochem. Sci. 2012, 7, 12752–12763.
  31. Amayreh, M.; Hourani, W.; Hourani, M.K. Voltammetric determination of ascorbic acid in pharmaceutical formulations using modified iodine-coated platinum electrode. Vitae 2021, 28.
  32. Noroozifar, M.; Motlagh, M.K.; Tavakoli, H. Determination of ascorbic acid by a modified multiwall carbon nanotube paste electrode using cetrimonium iodide/iodine. Turkish J. Chem. 2012, 36, 645–658.
  33. Ijeri, V.S.; Algarra, M.; Martins, A. Electrocatalytic determination of vitamin C using calixarene modified carbon paste electrodes. Electroanalysis 2004, 16, 2082–2086.
  34. Zare, H.R.; Nasirizadeh, N.; Ardakani, M.M. Electrochemical properties of a tetrabromo-p-benzoquinone modified carbon paste electrode. Application to the simultaneous determination of ascorbic acid, dopamine and uric acid. J. Electroanal. Chem. 2005, 577, 25–33.
  35. Mazloum-Ardakani, M.; Habibollahi, F.; Zare, H.R.; Naeimi, H.; Nejati, M. Electrocatalytic oxidation of ascorbic acid at a 2, 2′--bis-hydroquinone modified carbon paste electrode. J. Appl. Electrochem. 2009, 39, 1117–1124.
  36. Thiagarajan, S.; Tsai, T.H.; Chen, S.M. Easy modification of glassy carbon electrode for simultaneous determination of ascorbic acid, dopamine and uric acid. Biosens. Bioelectron. 2009, 24, 2712–2715.
  37. Wang, G.; Sun, J.; Zhang, W.; Jiao, S.; Fang, B. Simultaneous determination of dopamine, uric acid and ascorbic acid with LaFeO3 nanoparticles modified electrode. Microchim. Acta 2009, 164, 357–362.
  38. Sun, C.L.; Lee, H.H.; Yang, J.M.; Wu, C.C. The simultaneous electrochemical detection of ascorbic acid, dopamine, and uric acid using graphene/size-selected Pt nanocomposites. Biosens. Bioelectron. 2011, 26, 3450–3455.
  39. Zhang, B.; Huang, D.; Xu, X.; Alemu, G.; Zhang, Y.; Zhan, F.; Shen, Y.; Wang, M. Simultaneous electrochemical determination of ascorbic acid, dopamine and uric acid with helical carbon nanotubes. Electrochim. Acta 2013, 91, 261–266.
  40. Shi, W.; Liu, C.; Song, Y.; Lin, N.; Zhou, S.; Cai, X. An ascorbic acid amperometric sensor using over-oxidized polypyrrole and palladium nanoparticles composites. Biosens. Bioelectron. 2012, 38, 100–106.
  41. Keyvanfard, M.; Shakeri, R.; Karimi-Maleh, H.; Alizad, K. Highly selective and sensitive voltammetric sensor based on modified multiwall carbon nanotube paste electrode for simultaneous determination of ascorbic acid, acetaminophen and tryptophan. Mater. Sci. Eng. C 2012, 33, 811–816.
  42. Deng, P.; Xu, Z.; Li, J. Simultaneous determination of ascorbic acid and rutin in pharmaceutical preparations with electrochemical method based on multi-walled carbon nanotubes–chitosan composite film modified electrode. J. Pharm. Biomed. Anal. 2013, 76, 234–242.
  43. Li, N.B.; Ren, W.; Luo, H.Q. Simultaneous voltammetric measurement of ascorbic acid and dopamine on poly -modified glassy carbon electrode. J. Solid. State Electrochem. 2008, 12, 693–699.
  44. Habibi, B.; Jahanbakhshi, M.; Pournaghi-Azar, M.H. Differential pulse voltammetric simultaneous determination of acetaminophen and ascorbic acid using singlewalled carbon nanotube-modified carbon–ceramic electrode. Anal. Biochem. 2011, 411, 167–175.
  45. Sripriya, R.; Chandrasekaran, M.; Noel, M. Voltammetric analysis of hydroquinone, ascorbic acid, nitrobenzene and benzyl chloride in aqueous, non-aqueous, micellar and microemulsion media. Colloid Polym. Sci. 2006, 285, 39–48.
  46. Kalimuthu, P.; John, S.A. Solvent dependent dimercaptothiadiazole monolayers on gold electrode for the simultaneous determination of uric acid and ascorbic acid. Electrochem. Commun. 2005, 7, 1271–1276.
  47. Wang, M.; Xu, X.; Gao, J. Voltammetric studies of a novel bicopper complex modified glassy carbon electrode for the simultaneous determination of dopamine and ascorbic acid. J. Appl. Electrochem. 2007, 37, 705–710.
  48. Raoof, J.B.; Kiani, A.; Ojani, R.; Valiollahi, R.; Rashid-Nadimi, S. Simultaneous voltammetric determination of ascorbic acid and dopamine at the surface of electrodes modified with self-assembled gold nanoparticle films. J. Solid. State Electrochem. 2010, 14, 1171–1176.
  49. Yogeswaran, U.; Thiagarajan, S.; Chen, S.M. Nanocomposite of functionalized multiwall carbon nanotubes with nafion, nano platinum, and nano gold biosensing film for simultaneous determination of ascorbic acid, epinephrine, and uric acid. Anal. Biochem. 2007, 365, 122–131.
  50. Arenas, L.T.; Villis, P.C.; Arguello, J.; Landers, R.; Benvenutti, E.V.; Gushikem, Y. Niobium oxide dispersed on a carbon–ceramic matrix, SiO2/C/Nb2O5, used as an electrochemical ascorbic acid sensor. Talanta 2010, 83, 241–248.
  51. Langley, C.E.; Šljukić, B.; Banks, C.E.; Compton, R.G. Manganese dioxide graphite composite electrodes: Application to the electroanalysis of hydrogen peroxide, ascorbic acid and nitrite. Anal. Sci. 2007, 23, 165–170.
  52. Wang, J.; Freiha, B.A. Evaluation of differential pulse voltammetry at carbon electrodes. Talanta 1983, 30, 317–322.
  53. Bradshaw, M.P.; Prenzler, P.D.; Scollary, G.R. Square-Wave Voltammetric Determination of Hydrogen Peroxide Generated from the Oxidation of Ascorbic Acid in a Model Wine Base. Electroanalysis 2002, 14, 546–550.
  54. Yilmaz, S.; Sadikoglu, M.; Saglikoglu, G.; Yagmur, S.; Askin, G. Determination of ascorbic acid in tablet dosage forms and some fruit juices by DPV. Int. J. Electrochem. Sci. 2008, 3, 1534–1542.
  55. Erdurak-Kiliç, C.S.; Uslu, B.; Dogan, B.; Ozgen, U.; Ozkan, S.A.; Coskun, M. Anodic voltammetric behavior of ascorbic acid and its selective determination in pharmaceutical dosage forms and some Rosa species of Turkey. J. Anal. Chem. 2006, 61, 1113–1120.
  56. Karastogianni, S.; Diamantidou, D.; Girousi, S. Selective voltammetric detection of ascorbic acid from rosa canina on a modified graphene oxide paste electrode by a manganese complex. Biosensors 2021, 11, 294.
  57. Farida, A.N.; Fitriany, E.; Baktir, A.; Kurniawan, F.; Harsini, M. Voltammetric Study of Ascorbic Acid Using Polymelamine/Gold Nanoparticle Modified Carbon Paste Electrode. IOP Conf. Ser. Earth Environ. Sci. 2019, 217, 12004.
  58. Škugor Rončević, I.; Skroza, D.; Vrca, I.; Kondža, A.M.; Vladislavić, N. Development and Optimization of Electrochemical Method for Determination of Vitamin C. Chemosensors 2022, 10, 283.
  59. Tyszczuk-Rotko, K. New voltammetric procedure for determination of thiamine in commercially available juices and pharmaceutical formulation using a lead film electrode. Food Chem. 2012, 134, 1239–1243.
  60. An, Q.W.; Ang, N.Y.; Yongkang, Y.E. Electrochemical Behavior of Thiamine on a Self-Assembled Gold Electrode and Its Square-Wave Voltammetric Determination in Pharmaceutical Preparations. Anal. Sci. 2002, 18, 413–416.
  61. Houston, D.K.; Johnson, M.A.; Nozza, R.J.; Gunter, E.W.; Shea, K.J.; Cutler, G.M.; Edmonds, J.T. Age-related hearing loss, vitamin B-12, and folate in elderly women. Am. J. Clin. Nutr. 1999, 69, 564–571.
  62. Brahman, P.K.; Dar, R.A.; Pitre, K.S. DNA-functionalized electrochemical biosensor for detection of vitamin B1 using electrochemically treated multiwalled carbon nanotube paste electrode by voltammetric methods. Sens. Actuators B Chem. 2013, 177, 807–812.
  63. Shiu, K.K.; Shi, K. Selective determination of vitamin B2 at electrochemically activated glassy carbon electrode. Electroanalysis 2000, 12, 134–139.
  64. Gorton, L.; Johansson, G. Cyclic voltammetry of FAD adsorbed on graphite, glassy carbon, platinum and gold electrodes. Electroanal. Chem. 1980, 113, 151.
  65. Mikheeva, E.V.; Martynyuk, O.A.; Slepchenko, G.B.; Anisimova, L.S. Study of the voltammetric behavior of vitamin B 2 and the development of a procedure for its determination in breast milk. J. Anal. Chem. 2009, 64, 731–734.
  66. Mirceski, V.; Smarzewska, S.; Guziejewski, D. Measuring the Electrode Kinetics of Vitamin B2 at a Constant Time Window of a Square Wave Voltammetric Experiment. Electroanalysis 2016, 28, 385–393.
  67. Nie, T.; Zhang, K.; Xu, J.; Lu, L.; Bai, L. A facile one-pot strategy for the electrochemical synthesis of poly /Zirconia nanocomposite as an effective sensing platform for vitamins B2, B6 and C. J. Electroanal. Chem. 2014, 717, 1–9.
  68. ANezamzadeh-Ejhieh, P.P. Voltammetric determination of riboflavin based on electrocatalytic oxidation at zeolite-modified carbon paste electrodes. J. Ind. Eng. Chem. 2014, 20, 2146–2152.
  69. Ganesamurthi, J.; Shanmugam, R.; Chen, S.M. Electrochemical Evaluation of Vitamin B2 through a Portable Electrochemical Sensor Based on Binary Transition Metal Oxide in Various Biological Vegetable Samples. J. Electrochem. Soc. 2022, 169, 096505.
  70. Negut, C.C.; Stefanov, C.; Gugoasa, L.A.D.; van Staden, J.K.F. Rapidly renewable graphite paste electrode modified with 5,10,15,20-tetrakis-21H,23H-porphine cobalt for electrochemical determination of nicotinic acid. J. Electroanal. Chem. 2020, 863, 114063.
  71. Wang, X.; Yang, N.; Wan, Q. Cyclic voltammetric response of nicotinic acid and nicotinamide on a polycrystalline gold electrode. Electrochim. Acta 2006, 52, 361–368.
  72. Yang, N.; Wang, X. Thin self-assembled monolayer for voltammetrically monitoring nicotinic acid in food. Colloids Surfaces B Biointerfaces 2008, 61, 277–281.
  73. Liu, S.Q.; Sun, W.H.; Li, L.C.; Li, H.; Wang, X.L. Electrocatalytic oxidation and voltammetric determination of vitamin B6 by a ssDNA-modified Electrode. Int. J. Electrochem. Sci. 2012, 7, 324–337.
  74. Brunetti, B.; Desimoni, E. Voltammetric determination of vitamin B6 in food samples and dietary supplements. J. Food Compos. Anal. 2014, 33, 155–160.
  75. Gholivand, M.B.; Jalalvand, A.R.; Goicoechea, H.C.; Paimard, G.; Skov, T. Surface exploration of a room-temperature ionic liquid-chitin composite film decorated with electrochemically deposited PdFeNi trimetallic alloy nanoparticles by pattern recognition: An elegant approach to developing a novel biotin biosensor. Talanta 2015, 131, 249–258.
  76. Buzid, A.; McGlacken, G.P.; Glennon, J.D.; Luong, J.H.T. Electrochemical Sensing of Biotin Using Nafion-Modified Boron-Doped Diamond Electrode. ACS Omega 2018, 3, 7776–7782.
  77. Jamali, T.; Karimi-Maleh, H.; Khalilzadeh, M.A. A novel nanosensor based on Pt: Co nanoalloy ionic liquid carbon paste electrode for voltammetric determination of vitamin B 9 in food samples. LWT-Food Sci. Technol. 2014, 57, 679–685.
  78. Karimi-Maleh, H.; Tahernejad-Javazmi, F.; Daryanavard, M.; Hadadzadeh, H.; Ensafi, A.A.; Abbasghorbani, M. Electrocatalytic and Simultaneous Determination of Ascorbic Acid, Nicotinamide Adenine Dinucleotide and Folic Acid at Ruthenium Complex-ZnO/CNTs Nanocomposite Modified Carbon Paste Electrode. Electroanalysis 2014, 26, 962–970.
  79. Kun, Z.; Ling, Z.; Yi, H.; Ying, C.; Dongmei, T.; Shuliang, Z.; Yuyang, Z. Electrochemical behavior of folic acid in neutral solution on the modified glassy carbon electrode: Platinum nanoparticles doped multi-walled carbon nanotubes with Nafion as adhesive. J. Electroanal. Chem. 2012, 677, 105–112.
  80. Babakhanian, A.; Kaki, S.; Ahmadi, M.; Ehzari, H.; Pashabadi, A. Development of α-polyoxometalate–polypyrrole–Au nanoparticles modified sensor applied for detection of folic acid. Biosens. Bioelectron. 2014, 60, 185–190.
  81. Kalimuthu, P.; John, S.A. Selective electrochemical sensor for folic acid at physiological pH using ultrathin electropolymerized film of functionalized thiadiazole modified glassy carbon electrode. Biosens. Bioelectron. 2009, 24, 3575–3580.
  82. Ardakani, M.; Sheikhmohseni, M.A.; Beitollahi, H.; Benvidi, A.; Naeimi, H. Simultaneous determination of dopamine, uric acid, and folic acid by a modified TiO2 nanoparticles carbon paste electrode. Turkish J. Chem. 2011, 35, 573–585.
  83. Kingsley, M.P.; Desai, P.B.; Srivastava, A.K. Simultaneous electro-catalytic oxidative determination of ascorbic acid and folic acid using Fe3O4 nanoparticles modified carbon paste electrode. J. Electroanal. Chem. 2015, 741, 71–79.
  84. Bandžuchová, L.; Šelešovská, R. Voltammetric determination of folic Acid using liquid mercury free silver amalgam electrode. Acta Chim. Slov. 2011, 58, 2411–2419.
  85. Xiao, F.; Ruan, C.; Liu, L.; Yan, R.; Zhao, F.; Zeng, B. Single-walled carbon nanotube-ionic liquid paste electrode for the sensitive voltammetric determination of folic acid. Sens. Actuat B Chem. 2008, 134, 895–901.
  86. Rutyna, I. Determination of Folic Acid at a Bismuth Film Electrode by Adsorptive Stripping Voltammetry. Anal. Lett. 2015, 48, 1593–1603.
  87. Farias, P.A.M.; Rezende, M.; Moreira, J.C. Folic acid determination in neutral pH electrolyte by adsorptive stripping voltammetry at the mercury film electrode, IOSR. J. Pharm. 2012, 2, 302–311.
  88. Santhy, A.; Beena, S.; Veena; Shahina, S. Electrochemical quantification of vitamin B9 on poly tyrosine modified pencil graphite electrode. IOP Conf. Ser. Mater. Sci. Eng. 2020, 872, 12128.
  89. Villamil, M.J.F.; Miranda Ordieres, A.J.; Costa García, A.; TuñÓn Blanco, P. Simultaneous adsorptive stripping voltammetric determination of riboflavin and folic acid in multivitamin preparations. Anal. Chim. Acta 1993, 273, 377–382.
  90. Korolczuk, M.; Tyszczuk, K. Determination of folic acid by adsorptive stripping voltammetry at a lead film electrode. Electroanalysis 2007, 19, 1959–1962.
  91. Akshaya, K.B.; Anitha, V.; Nidhin, M.; Sudhakar, Y.N.; Louis, G. Electrochemical sensing of vitamin B12 deficiency marker methylmalonic acid using PdAu-PPy tailored carbon fiber paper electrode. Talanta 2020, 217, 121028.
  92. Gong, F.; Zou, W.; Wang, Q.; Deng, R.; Cao, Z.; Gu, T. Polymer nanoparticles integrated with excited-state intramolecular proton transferfluorescent modules as sensors for the detection of vitamin B1. Microchem. J. 2019, 148, 767–773.
  93. Karastogianni, S.; Girousi, S. Square Wave Voltammetric Determination of Cyanocobalamin in Pharmaceuticals and Supplements on a Carbon Paste Electrode Modified by a Manganese Polymeric Film. Anal. Lett. 2022, 55, 399–410.
  94. Dimitropoulou, G.; Karastogianni, S.; Girousi, S. Development of an electrochemical DNA biosensor for the detection of vitamin B12 at a carbon paste modified electrode with a manganese complex. J. Appl. Bioanal. 2017, 3, 70–80.
  95. Yang, N.; Wan, Q.; Wang, X. Voltammetry of Vitamin B 12 on a thin self-assembled monolayer modified electrode. Electrochim. Acta 2005, 50, 2175–2180.
  96. Michopoulos, A.; Florou, A.B.; Prodromidis, M.I. Ultrasensitive Determination of Vitamin B12 Using Disposable Graphite Screen-Printed Electrodes and Anodic Adsorptive Voltammetry. Electroanalysis 2015, 27, 1876–1882.
  97. Pala, B.B.; Vural, T.; Kuralay, F.; Çırak, T.; Bolat, G.; Abacı, S.; Denkbaş, E.B. Disposable pencil graphite electrode modified with peptide nanotubes for Vitamin B 12 analysis. Appl. Surf. Sci. 2014, 303, 37–45.
  98. Kuralay, F.; Vural, T.; Bayram, C.; Denkbas, E.B.; Abaci, S. Carbon nanotube– chitosan modified disposable pencil graphite electrode for Vitamin B 12 analysis. Colloids Surf. B Biointerfaces 2011, 87, 18–22.
  99. Pereira, D.F.; Santana, E.R.; Piovesan, J.V.; Spinelli, A. A novel electrochemical strategy for determination of vitamin B12 by Co redox pair monitoring with boron-doped diamond electrode. Diam. Relat. Mater. 2020, 105, 107793.
  100. Ziyatdinova, G.; Giniyatova, E.; Budnikov, H. Cyclic Voltammetry of Retinol in Surfactant Media and Its Application for the Analysis of Real Samples. Electroanalysis 2010, 22, 2708–2713.
  101. Đurović, A.; Stojanović, Z.; Kravić, S.; Kos, J.; Richtera, L. Electrochemical Determination of Vitamin D3 in Pharmaceutical Products by Using Boron Doped Diamond Electrode. Electroanalysis 2020, 32, 741–748.
  102. Hart, J.P.; Norman, M.D.; Lacey, C.J. Voltammetric behaviour of vitamins D2 and D3 at a glassy carbon electrode and their determination in pharmaceutical products by using liquid chromatography with amperometric detection. Analyst 1992, 117, 1441.
  103. Cincotto, F.H.; Canevari, T.C.; Machado, S.A. Highly sensitive electrochemical sensor for determination of vitamin D in mixtures of water-ethanol. Electroanalysis 2014, 26, 2783.
  104. Nezamzadeh, A.; Amini, M.K.; Faghihian, H. Square-wave voltammetric determination of ascorbic acid based on its electrocatalytic oxidation at zeolite-modified carbon-paste electrodes. Int. J. Electrochem. Sci. 2007, 2, 583–594.
  105. Dawson-Hughes, B.; Harris, S.S.; Lichtenstein, A.H.; Dolnikowski, G.; Palermo, N.J.; Rasmussen, H. Dietary fat increases vitamin D-3 absorption. J. Acad. Nutr. Diet. 2015, 115, 225–230.
  106. Murugan, N.; Jerome, R.M.; Preethika, A.; Sundaramurthy, A. Sundaramurthy. 2D-titanium carbide (MXene) based selective electrochemical sensor for simultaneous detection of ascorbic acid, dopamine and uric acid. J. Mater. Sci. Technol. 2021, 72, 122–131.
  107. Oni, J.; Westbroek, P.; Nyokong, T. Voltammetric detection of vitamin B1 at carbon paste electrodes and its determination in tablets. Electroanalysis 2002, 14, 1165–1168.
  108. Sutton, J.; Shabangi, M. Activation of the electrochemical properties of thiamin and its phosphate esters in acidic solutions. J. Electroanal. Chem. 2004, 571, 283–287.
  109. Le Gall, A.C.; van den Berg, C.M. Determination of folic acid in sea water using adsorptive cathodic stripping voltammetry. Anal. Chim. Acta 1993, 282, 459.
More
Information
Contributors MDPI registered users' name will be linked to their SciProfiles pages. To register with us, please refer to https://encyclopedia.pub/register : ,
View Times: 384
Revisions: 2 times (View History)
Update Date: 28 Jun 2023
1000/1000
Video Production Service
