Antimony/Bismuth Chalcohalides

Despite their comparable performance to commercial solar systems, lead-based perovskite (Pb-perovskite) solar cells exhibit limitations including Pb toxicity and instability for industrial applications. To address these issues, two types of Pb-free materials have been proposed as alternatives to Pb-perovskite: perovskite-based and non-perovskite-based materials. In this entry, we briefly introduce the crystal, energy band structures and theoretical insights of Sb/Bi chalcohalides as solar abosrbers.

antimony chalcohalides bismuth chalcohalides solar cells

1. Introduction

Since the Snaith group reported the 10.9% milestone power conversion efficiency (PCE) required for industrial applications for lead-based perovskite (Pb-perovskite) solar cells in 2012 [1], many types of Pb-perovskite solar cells have been fabricated, with performance significantly improving over the past few years [2][3][4][5][6][7]. At present, the certified PCE exceeds 25% [8], approaching the theoretical maximum efficiency for multi-junction Pb-perovskite solar cells [9]. This efficiency is also comparable to those of commercial solar systems based on Si, CdTe, and Cu(In,Ga)Se2. Moreover, high-performance Pb-perovskite solar cells can be manufactured through solution processing at a low temperature of <150 °C, which can reduce costs. Therefore, these characteristics make them the most promising alternative to current photovoltaic systems. However, Pb-perovskite solar cells exhibit limitations for commercialization, with potential health problems and stability being the two main barriers [6][7][10][11][12][13][14][15]. In particular, Pb can be easily released from the Pb-perovskite because of its instability, which can cause major health problems [10][11][12][13][14][15]. Although techniques of material and interface engineering, surface passivation, and encapsulation can significantly improve the stability of Pb-perovskite [7][15][16][17], thereby minimizing the Pb loss, the persistent toxicity problem requires attention to enhance commercialization.

To address these issues, many researchers have focused on finding Pb-free and stable materials with comparable optoelectronic properties. The Pb-free photovoltaic materials proposed as alternatives to date are presented in Table 1. Replacing Pb by tin (Sn) or germanium (Ge), with similar ionic radius and belonging to the same group of the periodic table, in Pb-perovskites is a simple method for fabricating Pb-free materials while maintaining the perovskite structure. These materials are known as Pb-free perovskites. In particular, Sn-based perovskites ASnX3 (A = Cs+, organic cations; X = Cl, I, and Br) exhibit properties comparable to those of Pb-perovskites such as optimal band gaps (Egs) of 1.1–1.4 eV, high carrier mobilities, long carrier lifetimes, and long diffusion lengths [10][11]. Thus, many researchers have devoted attention to developing Sn-based perovskite solar cells [10][11]. Consequently, a record PCE of 11.4% was achieved through the FASnI3 (FA = CH5N2+) solar cell by introducing a phenylhydrazine hydrochloride [18]. However, Sn-perovskites still involve the serious disadvantage of rapid decomposition because Sn is readily oxidized from the +2 to +4 state on exposure to air [10][11]. Another approach for fabricating Pb-free perovskites involves replacing two Pb2+ ions with ions of two metals with oxidation states of +1 and +3 to form double perovskites represented as A2MIMIIIX6 [12][19], with the Cs2AgBiBr6 as a typical example. Alternatively, the two Pb2+ ions are replaced by a tetravalent metal ion, such as Sn4+ or Ti4+, forming compounds with the general formula A2MIVX6 [12][20]. Such compounds are termed vacancy-ordered double perovskites, with the Cs2SnI6 as a prime example. In addition, two-dimensional (2D) perovskites  are produced by replacing the Pb2+ ions with trivalent metal ions such as Sb3+ or Bi3+ [15][21]. Although these Pb-free double and 2D perovskites display significant stability improvement over Pb- and Sn-perovskites, efficiency remains a limitation.

Table 1. Types of Pb-free photovoltaic materials and their best photovoltaic performance data.


Metal (M) Ions

Chemical Compound

Record Device Performance





Sn2+, Ge2+





Ag+, Bi3+

Double perovskite/A2MIMIIIX6





Vacancy-ordered double perovskite/A2MIVX6




Sb3+, Bi3+

2D perovskite/




Sb/Bi-based non-perovskites


Sb chalcogenides/M2Ch3, CuMCh2




Sb3+, Bi3+

Ternary chalcohalides/MChX, M13Ch18X2




Sn2+, Pb2+, Sb3+, Bi3+

Quaternary chalcohalides/




PCE— power conversion efficiency.

Apart from these Pb-free perovskites, antimony/bismuth (Sb/Bi)-based non-perovskites are another alternative to Pb-perovskites. Unlike perovskites, most of these non-perovskites crystallize in a layered structure, with the layers linked by weak van der Waals forces. This anisotropic crystal structure provides unique and interesting properties that can significantly affect photovoltaic performance [25][26][27]. To date, many Sb/Bi non-perovskites for solar cells have been reported, and these comprise two types, according to elemental composition. The first type is the Sb chalcogenides involving an orthorhombic structure, such as the Sb2Ch3 and CuSbCh2 (Ch = S, Se). In fact, studies on these as photovoltaic materials predates those of Pb-perovskites because of their promising properties, such as the tunable Eg values of 1.0–1.8 eV, high visible light absorption coefficient, stability, low toxicity, and earth-abundant constituents [25][26]. Although varied engineering methods and device architectures have been employed to achieve high-efficiency for Sb chalcogenide solar cells, the performances of these cells remained below the 10% milestone until 2018 [26][27][28][29][30][31][32][33][34][35]. However, recently, a PCE of 9.2% was obtained from the [001]-oriented Sb2Se3 nanorod solar cells [36], and finally, a PCE of 10.5% was reported by Chen’s group from the hydrothermally deposited Sb2(S,Se)3 thin film solar cells [22][37].

Sb/Bi chalcohalides represent the other type of Sb/Bi non-perovskites, comprising Sb/Bi-based semiconductors containing halides and chalcogenides. Following the initial application of Sb sulfoiodide (SbSI) in solar cells by the Seok group in 2018 [38], multiple Sb/Bi chalcohalide solar cells have been proposed. Thus far, the materials investigated for use in solar cells include ternary (MChX and M13Ch18X2, where M = Sb, Bi) [23][38][39][40][41][42][43][44][45][46][47][48][49][50][51][52][53] and quaternary chalcohalides (, where MII = Sn, Pb; MIII = Sb, Bi) [23][54]. These chalcohalides commonly exhibit advantageous properties that can be adjusted for use in solar cells. In particular, the electronic structure of the most studied MChX family is similar to that of Pb-perovskites, with beneficial properties for solar cells such as high dielectric constant, low effective mass, and tunable Eg [39][42][43][44][55]. Therefore, high-performance MChX solar cells comparable to Pb-perovskite cells are expected due to these properties. Recently, the Seok group reported a PCE of 4.07% for Sb0.67Bi0.33SI solar cells, highlighting the high-efficiency potential for the MChX family [23]. In addition, the MChX family is suitable for other applications including the fabrication of room-temperature radiation detectors and p-type transparent conductors [39]. This wide-ranging applicability facilitates designing multifunctional devices. In addition to the MChX family, PCEs of 0.85% and 4.04% have been reported for solar cells based on M13Ch18X2 and , respectively. However, the highest PCE achieved for Sb/Bi chalcohalide solar cells remains at around 4%, although the performance has significantly improved over the past few years.

2. Crystal and Energy Band Structures of Sb/Bi Chalcohalides

In this section, the crystal and energy band structures of Sb/Bi chalcohalides used to date for solar cells are briefly presented. Depending on the number of elements and composition, Sb/Bi chalcohalides with different structures can be created, as shown in Table 2. The ternary chalcohalides employed for solar cells are the MChX and M13Ch18X2 types. The MChX type, such as SbSI and BiSI, involves the orthorhombic structure with the Pnma space group, crystallizing into an [(MChX)2]n double-chained structure, with the adjacent chains joined by van der Waals forces [57][58]. Conversely, the M13Ch18X2 type such as the Bi3S18I2 possesses a hexagonal structure with a ribbon-shaped (M4Ch6) subunit. The M4Ch6 subunits form six spokes around the central hexagonal channel at the corners of the unit cell, with iodine in between [53][58]. For the quaternary chalcohalides (M2IIMIIICh2X3), such as Pb2SbS2I3 and Sn2SbS2I3, crystallization produces the orthorhombic structure with the Cmcm space group [24][54][59].

Table 2. Summarized data for the structural properties of Sb/Bi chalcohalides used for solar cells.


Chemical Formula

Structure/Space Group

Typical Materials


Ternary chalcohalides









Quaternary chalcohalide






To employ Sb/Bi chalcohalides in solar cells, the energy band structure deserves priority because of its importance in light harvesting and conversion. Specifically, the Eg should be checked because it determines the maximum PCE achievable for each material according to the Shockley–Queisser limit [60][61]. Thus, materials with an Eg value between 1.10 and 1.55 eV are preferred for solar cells. Figure 1 displays the energy band diagram of typical Sb/Bi chalcohalides reported to date. The positions of the conduction band minimum and valence band maximum as well as the Eg value vary depending on the elemental composition and number of elements. Along with the chalcohalides shown in Figure 1, Sb/Bi chalcohalides exhibit Eg values varying from 0.75 eV for Bi13S18I2 [53] to 2.31 eV for SbSBr [42]. These results indicate that their band structures can be tuned via chemical substitution, and that the electron transporting layer (ETL) and hole transporting layer (HTL) applications necessitate selectivity for each solar cell depending on the chalcohalide used. In addition to the band structures, other factors such as the optical absorption strength, charge effective mass, dielectric constant, and defects require consideration [44][61]. However, research on these remains insufficient, and this highlights the need for further studies.

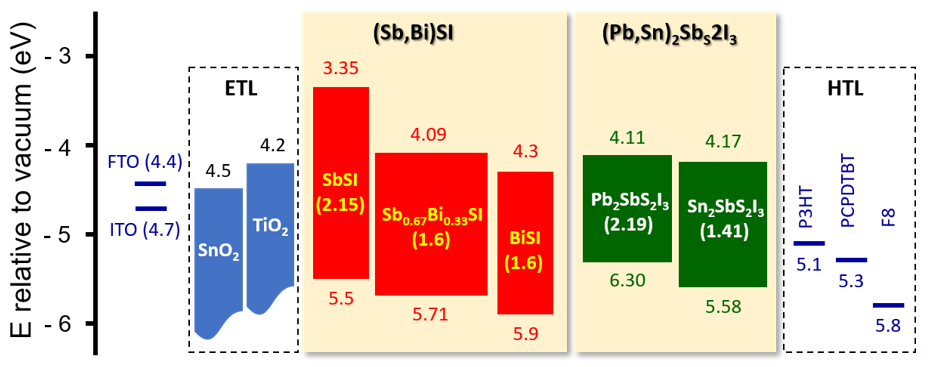

Figure 1. Energy band diagram of typical Sb/Bi chalcohalides. The SbSI, Sb0.67Bi0.33SI, BiSI, Pb2SbS2I3, and Sn2SbS2I3 energy levels were obtained from [23][38][47][54] and [24], respectively. For comparison, the energy levels for typical conducting oxides (F-doped SnO2 (FTO) and In-doped SnO2 (ITO)), the electron transporting layer (ETL), and hole transporting layer (HTL) are included. P3HT, PCPDTBT, and F8 denote poly(3-hexylthiophene), poly[2,6-(4,4-bis(2-ethylhexyl)-4H-cyclopenta[2,1-b;3,4-b’]dithiophene)-alt-4,7-(2,1,3-benzothiadiazole)], and poly(9,9-di-n-octylfluorenyl-2,7-diyl), respectively.

3. Theoretical Insights on Sb/Bi Chalcohalides as Solar Absorbers

Theoretical calculations, such as first-principle methods, provide further insight into the potential of specific materials (e.g., as solar absorbers) and clues for designing device structures. However, the research on such theoretical investigations is very limited because Sb/Bi chalcohalide solar cells are still in their early stages of development compared to the Pb-perovskite cells. Thus, in this section, theoretical insights into only the most studied MChX family are briefly introduced.

Based on the first-principle calculations, Brandt et al. identified the MChX family as promising solar absorbers due to its low effective masses, large dielectric constants, and strong absorption, as shown in Table 3 [62]. They further found that BiSI and BiSeI are most suitable for achieving high-performance solar cells because of their much stronger spin-orbit coupling. The suitability of these Bi compounds for solar cells was also confirmed by other groups [39][43][44][63]. Ganose et al. suggested that the conducting oxide and HTL should be selected for efficient charge transfers by considering the electron affinity (EA = 4.9–5.0 eV) and ionized potential (IP = 6.2–6.4 eV) of these Bi chalcohalides, respectively [43]. They also concluded from the defect analysis that these Bi compounds represent intrinsic semiconductors regardless of fabrication conditions, making them best suited for application in p-i-n device architecture [44].

Table 3. Summary of effective masses of hole (mh*) and electron (me*), static dielectric constant, and absorption coefficient of MChX family, calculated by different methods.

MChX Compounds



Static Dielectric Constant

Absorption Coefficient 1


Pb-perovskite 2




>1 × 105 cm−1






>1 × 105 cm−1






>1 × 105 cm−1
















0.51, 0.52




1 Absorption coefficient values at visible region are presented. 2 Data of (CH3NH3)PbI3 are shown as typical of Pb-perovskites for comparison.

Butler et al. analyzed the band structures of SbChX (SbSI, SbSeI, and SbSBr) by different calculation methods [42][55]. The effective masses were calculated to be below 0.65, indicating that SbChX have high charge carrier mobilities suitable for solar cells. They also found that the SbSBr have deeper IP energy (5.8 eV) than that of I-containing SbChX (5.3 eV for SbSeI and 5.4 eV for SbSI). This different IP energy suggests that contacting layers such as ETL and HTL should be selected depending on the halide ion of SbChX for optimal device performance [42]. For example, the contacting layers used in Cu2ZnSnS4 (CZTS) can be applied to SbSBr solar cells due to their similar IP value with that of CZTS. In addition, a heterojunction structure composed of SbSI/SbSBr with SbSBr epitaxially grown on SbSI was proposed for efficient charge separation based on their closely matched lattice parameters and band offsets [55].


  1. Lee, M.M.; Teuscher, J.; Miyasaka, T.; Murakami, T.N.; Snaith, H.J. Efficient Hybrid Solar Cells Based on Meso-Superstructured Organometal Halide Perovskites. Science 2012, 338, 643–647.
  2. Choi, Y.C.; Lee, S.W.; Jo, H.J.; Kim, D.-H.; Sung, S.-J. Controlled growth of organic-inorganic hybrid CH3NH3PbI3 perovskite thin films from phase-controlled crystalline powders. RSC Adv. 2016, 6, 104359–104365.
  3. Choi, Y.C.; Lee, S.W.; Kim, D.-H. Antisolvent-assisted powder engineering for controlled growth of hybrid CH3NH3PbI3 perovskite thin films. APL Mater. 2017, 5, 026101.
  4. Jung, E.H.; Jeon, N.J.; Park, E.Y.; Moon, C.S.; Shin, T.J.; Yang, T.-Y.; Noh, J.H.; Seo, J. Efficient, stable and scalable perovskite solar cells using poly (3-hexylthiophene). Nature 2019, 567, 511.
  5. Seok, S.I.; Grätzel, M.; Park, N.G. Methodologies toward Highly Efficient Perovskite Solar Cells. Small 2018, 14, 1704177.
  6. Jena, A.K.; Kulkarni, A.; Miyasaka, T. Halide perovskite photovoltaics: Background, status, and future prospects. Rev. 2019, 119, 3036–3103.
  7. Kim, B.; Seok, S.I. Molecular aspects of organic cations affecting the humidity stability of perovskites. Energy Environ. Sci. 2020, 13, 805–820.
  8. Green, M.A.; Dunlop, E.D.; Hohl‐Ebinger, J.; Yoshita, M.; Kopidakis, N.; Hao, X. Solar cell efficiency tables (version 56). Photovolt. 2020, 28, 629–638.
  9. Granas, O.; Vinichenko, D.; Kaxiras, E. Establishing the limits of efficiency of perovskite solar cells from first principles modeling. Rep. 2016, 6, 36108.
  10. Nasti, G.; Abate, A. Tin Halide Perovskite (ASnX3) Solar Cells: A Comprehensive Guide toward the Highest Power Conversion Efficiency. Energy Mater. 2020, 10, 1902467.
  11. Hasan, S.A.U.; Lee, D.S.; Im, S.H.; Hong, K.-H. Present Status and Research Prospects of Tin‐based Perovskite Solar Cells. Solar RRL 2019, 4, 1900310.
  12. Kung, P.-K.; Li, M.-H.; Lin, P.-Y.; Jhang, J.-Y.; Pantaler, M.; Lupascu, D.C.; Grancini, G.; Chen, P. Lead‐Free Double Perovskites for Perovskite Solar Cells. Solar RRL 2019, 4, 1900306.
  13. Miyasaka, T.; Kulkarni, A.; Kim, G.M.; Öz, S.; Jena, A.K. Perovskite Solar Cells: Can We Go Organic‐Free, Lead‐Free, and Dopant‐Free? Energy Mater. 2020, 10, 1902500.
  14. Nie, R.; Sumukam, R.R.; Reddy, S.H.; Banavoth, M.; Seok, S.I. Lead-free perovskite solar cells enabled by hetero-valent substitutes. Energy Environ. Sci. 2020, 13, 2363–2385.
  15. Jin, Z.; Zhang, Z.; Xiu, J.; Song, H.; Gatti, T.; He, Z. A critical review on bismuth and antimony halide based perovskites and their derivatives for photovoltaic applications: Recent advances and challenges. Mater. Chem. A 2020, 8, 16166–16188.
  16. Uddin, A.; Upama, M.; Yi, H.; Duan, L. Encapsulation of Organic and Perovskite Solar Cells: A Review. Coatings 2019, 9, 65.
  17. Wang, R.; Mujahid, M.; Duan, Y.; Wang, Z.K.; Xue, J.; Yang, Y. A Review of Perovskites Solar Cell Stability. Funct. Mater. 2019, 29, 1808843.
  18. Wang, C.; Gu, F.; Zhao, Z.; Rao, H.; Qiu, Y.; Cai, Z.; Zhan, G.; Li, X.; Sun, B.; Yu, X.; et al. Self-Repairing Tin-Based Perovskite Solar Cells with a Breakthrough Efficiency Over 11%. Mater. 2020, 32, 1907623.
  19. Yang, X.; Chen, Y.; Liu, P.; Xiang, H.; Wang, W.; Ran, R.; Zhou, W.; Shao, Z. Simultaneous Power Conversion Efficiency and Stability Enhancement of Cs2AgBiBr6 Lead‐Free Inorganic Perovskite Solar Cell through Adopting a Multifunctional Dye Interlayer. Funct. Mater. 2020, 30, 2001557.
  20. Chen, M.; Ju, M.-G.; Carl, A.D.; Zong, Y.; Grimm, R.L.; Gu, J.; Zeng, X.C.; Zhou, Y.; Padture, N.P. Cesium Titanium(IV) Bromide Thin Films Based Stable Lead-free Perovskite Solar Cells. Joule 2018, 2, 558–570.
  21. Yang, Y.; Liu, C.; Cai, M.; Liao, Y.; Ding, Y.; Ma, S.; Liu, X.; Guli, M.; Dai, S.; Nazeeruddin, M.K. Dimension-Controlled Growth of Antimony-Based Perovskite-like Halides for Lead-Free and Semitransparent Photovoltaics. ACS Appl. Mater. Interfaces 2020, 12, 17062–17069.
  22. Wang, X.; Tang, R.; Jiang, C.; Lian, W.; Ju, H.; Jiang, G.; Li, Z.; Zhu, C.; Chen, T. Manipulating the Electrical Properties of Sb2(S,Se)3 Film for High‐Efficiency Solar Cell. Energy Mater. 2020, 10, 2002341.
  23. Nie, R.; Im, J.; Seok, S.I. Efficient Solar Cells Employing Light-Harvesting Sb67Bi0.33SI. Adv. Mater. 2019, 31, 1808344.
  24. Nie, R.; Lee, K.S.; Hu, M.; Paik, M.J.; Seok, S.I. Heteroleptic Tin-Antimony Sulfoiodide for Stable and Lead-free Solar Cells. Matter 2020, 3, 1701–1713.
  25. Chen, C.; Tang, J. Open-Circuit Voltage Loss of Antimony Chalcogenide Solar Cells: Status, Origin, and Possible Solutions. ACS Energy Lett. 2020, 5, 2294–2304.
  26. Lei, H.; Chen, J.; Tan, Z.; Fang, G. Review of Recent Progress in Antimony Chalcogenide‐Based Solar Cells: Materials and Devices. Solar RRL 2019, 3, 1900026.
  27. Zhou, Y.; Wang, L.; Chen, S.; Qin, S.; Liu, X.; Chen, J.; Xue, D.-J.; Luo, M.; Cao, Y.; Cheng, Y.; et al. Thin-film Sb2Se3 photovoltaics with oriented one-dimensional ribbons and benign grain boundaries. Photonics 2015, 9, 409–415.
  28. Choi, Y.C.; Lee, D.U.; Noh, J.H.; Kim, E.K.; Seok, S.I. Highly Improved Sb2S3 Sensitized-Inorganic-Organic Heterojunction Solar Cells and Quantification of Traps by Deep-Level Transient Spectroscopy. Funct. Mater. 2014, 24, 3587–3592.
  29. Choi, Y.C.; Mandal, T.N.; Yang, W.S.; Lee, Y.H.; Im, S.H.; Noh, J.H.; Seok, S.I. Sb2Se3-Sensitized Inorganic-Organic Heterojunction Solar Cells Fabricated Using a Single-Source Precursor. Chem. Int. Ed. 2014, 53, 1329–1333.
  30. Choi, Y.C.; Lee, Y.H.; Im, S.H.; Noh, J.H.; Mandal, T.N.; Yang, W.S.; Seok, S.I. Efficient Inorganic-Organic Heterojunction Solar Cells Employing Sb2(Sx/Se1−x)3 Graded-Composition Sensitizers. Energy Mater. 2014, 4, 1301680.
  31. Choi, Y.C.; Seok, S.I. Efficient Sb2S3-Sensitized Solar Cells Via Single-Step Deposition of Sb2S3 Using S/Sb-Ratio-Controlled SbCl3-Thiourea Complex Solution. Funct. Mater. 2015, 25, 2892–2898.
  32. Choi, Y.C.; Yeom, E.J.; Ahn, T.K.; Seok, S.I. CuSbS2-Sensitized Inorganic-Organic Heterojunction Solar Cells Fabricated Using a Metal-Thiourea Complex Solution. Chem. Int. Ed. 2015, 54, 4005–4009.
  33. Chen, C.; Li, K.; Chen, S.; Wang, L.; Lu, S.; Liu, Y.; Li, D.; Song, H.; Tang, J. Efficiency Improvement of Sb2Se3 Solar Cells via Grain Boundary Inversion. ACS Energy Lett. 2018, 3, 2335–2341.
  34. Wu, C.; Zhang, L.; Ding, H.; Ju, H.; Jin, X.; Wang, X.; Zhu, C.; Chen, T. Direct solution deposition of device quality Sb2S3−xSex films for high efficiency solar cells. Energy Mater. Sol. Cells 2018, 183, 52–58.
  35. Tang, R.; Wang, X.; Jiang, C.; Li, S.; Jiang, G.; Yang, S.; Zhu, C.; Chen, T. Vacuum assisted solution processing for highly efficient Sb2S3 solar cells. Mater. Chem. A 2018, 6, 16322–16327.
  36. Li, Z.; Liang, X.; Li, G.; Liu, H.; Zhang, H.; Guo, J.; Chen, J.; Shen, K.; San, X.; Yu, W.; et al. 9.2%-efficient core-shell structured antimony selenide nanorod array solar cells. Commun. 2019, 10, 125.
  37. Tang, R.; Wang, X.; Lian, W.; Huang, J.; Wei, Q.; Huang, M.; Yin, Y.; Jiang, C.; Yang, S.; Xing, G.; et al. Hydrothermal deposition of antimony selenosulfide thin films enables solar cells with 10% efficiency. Energy 2020, 5, 587–595.
  38. Nie, R.; Yun, H.-S.; Paik, M.-J.; Mehta, A.; Park, B.-W.; Choi, Y.C.; Seok, S.I. Efficient Solar Cells Based on Light-Harvesting Antimony Sulfoiodide. Energy Mater. 2017, 8, 1701901.
  39. Shi, H.; Ming, W.; Du, M.-H. Bismuth chalcohalides and oxyhalides as optoelectronic materials. Rev. B 2016, 93, 104108.
  40. Hahn, N.T.; Rettie, A.J.E.; Beal, S.K.; Fullon, R.R.; Mullins, C.B. n-BiSI Thin Films: Selenium Doping and Solar Cell Behavior. Phys. Chem. C 2012, 116, 24878–24886.
  41. Kunioku, H.; Higashi, M.; Abe, R. Low-Temperature Synthesis of Bismuth Chalcohalides: Candidate Photovoltaic Materials with Easily, Continuously Controllable Band gap. Rep. 2016, 6, 32664.
  42. Butler, K.T.; McKechnie, S.; Azarhoosh, P.; van Schilfgaarde, M.; Scanlon, D.O.; Walsh, A. Quasi-particle electronic band structure and alignment of the V-VI-VII semiconductors SbSI, SbSBr, and SbSeI for solar cells. Phys. Lett. 2016, 108, 112103.
  43. Ganose, A.M.; Butler, K.T.; Walsh, A.; Scanlon, D.O. Relativistic electronic structure and band alignment of BiSI and BiSeI: Candidate photovoltaic materials. Mater. Chem. A 2016, 4, 2060–2068.
  44. Ganose, A.M.; Matsumoto, S.; Buckeridge, J.; Scanlon, D.O. Defect Engineering of Earth-Abundant Solar Absorbers BiSI and BiSeI. Mater. 2018, 30, 3827–3835.
  45. Choi, Y.C.; Hwang, E.; Kim, D.-H. Controlled growth of SbSI thin films from amorphous Sb2S3 for low-temperature solution processed chalcohalide solar cells. APL Mater. 2018, 6, 121108.
  46. Tiwari, D.; Cardoso-Delgado, F.; Alibhai, D.; Mombrú, M.; Fermín, D.J. Photovoltaic Performance of Phase-Pure Orthorhombic BiSI Thin-Films. ACS Appl. Energy Mater. 2019, 2, 3878–3885.
  47. Choi, Y.C.; Hwang, E. Controlled Growth of BiSI Nanorod-Based Films Through a Two-Step Solution Process for Solar Cell Applications. Nanomaterials 2019, 9, 1650.
  48. Pathak, A.K.; Prasad, M.D.; Batabyal, S.K. One-dimensional SbSI crystals from Sb, S, and I mixtures in ethylene glycol for solar energy harvesting. Phys. A 2019, 125, 213.
  49. Xiong, J.; You, Z.; Lei, S.; Zhao, K.; Bian, Q.; Xiao, Y.; Cheng, B. Solution Growth of BiSI Nanorod Arrays on a Tungsten Substrate for Solar Cell Application. ACS Sustainable Chem. Eng. 2020, 8, 13488–13496.
  50. Mistewicz, K.; Matysiak, W.; Jesionek, M.; Jarka, P.; Kępińska, M.; Nowak, M.; Tański, T.; Stróż, D.; Szade, J.; Balin, K.; et al. A simple route for manufacture of photovoltaic devices based on chalcohalide nanowires. Surf. Sci. 2020, 517, 146138.
  51. Nishikubo, R.; Kanda, H.; García-Benito, I.; Molina-Ontoria, A.; Pozzi, G.; Asiri, A.M.; Nazeeruddin, M.K.; Saeki, A. Optoelectronic and Energy Level Exploration of Bismuth and Antimony-Based Materials for Lead-Free Solar Cells. Mater. 2020, 32, 6416–6424.
  52. Murtaza, S.Z.M.; Vaqueiro, P. Rapid synthesis of chalcohalides by ball milling: Preparation and characterisation of BiSI and BiSeI. Solid State Chem. 2020, 291, 121625.
  53. Li, S.; Xu, L.; Kong, X.; Kusunose, T.; Tsurumachi, N.; Feng, Q. Bismuth chalcogenide iodides Bi13S18I2 and BiSI: Solvothermal synthesis, photoelectric behavior, and photovoltaic performance. Mater. Chem. C 2020, 8, 3821–3829.
  54. Nie, R.; Kim, B.; Hong, S.-T.; Seok, S.I. Nanostructured Heterojunction Solar Cells Based on Pb2SbS2I3: Linking Lead Halide Perovskites and Metal Chalcogenides. ACS Energy Lett. 2018, 3, 2376–2382.
  55. Butler, K.T.; Frost, J.M.; Walsh, A. Ferroelectric materials for solar energy conversion: Photoferroics revisited. Energy Environ. Sci. 2015, 8, 838–848.
  56. Nie, R.; Mehta, A.; Park, B.W.; Kwon, H.W.; Im, J.; Seok, S.I. Mixed Sulfur and Iodide-Based Lead-Free Perovskite Solar Cells. J. Am. Chem. Soc. 2018, 140, 872–875.
  57. Savytskii, D.; Sanders, M.; Golovchak, R.; Knorr, B.; Dierolf, V.; Jain, H.; Heo, J. Crystallization of Stoichiometric SbSI Glass. J. Am. Ceram. Soc. 2014, 97, 198–205.
  58. Groom, R.; Jacobs, A.; Cepeda, M.; Drummey, R.; Latturner, S.E. Bi13S18I2: (Re)discovery of a Subvalent Bismuth Compound Featuring [Bi2]4+ Dimers Grown in Sulfur/Iodine Flux Mixtures. Chem. Mater. 2017, 29, 3314–3323.
  59. Doussier, C.; Moëlo, Y.; Léone, P.; Meerschaut, A.; Evain, M. Crystal structure of Pb2SbS2I3, and re-examination of the crystal chemistry within the group of (Pb/Sn/Sb) chalcogeno-iodides. Solid State Sci. 2007, 9, 792–803.
  60. Shockley, W.; Queisser, H.J. Detailed Balance Limit of Efficiency of p-n Junction Solar Cells. J. Appl. Phys. 1961, 32, 510–519.
  61. Ganose, A.M.; Savory, C.N.; Scanlon, D.O. Beyond methylammonium lead iodide: Prospects for the emergent field of ns(2) containing solar absorbers. Chem. Commun. 2016, 53, 20–44.
  62. Brandt, R.E.; Stevanović, V.; Ginley, D.S.; Buonassisi, T. Identifying defect-tolerant semiconductors with high minority-carrier lifetimes: Beyond hybrid lead halide perovskites. MRS Commun. 2015, 5, 265–275.
  63. Ran, Z.; Wang, X.; Li, Y.; Yang, D.; Zhao, X.-G.; Biswas, K.; Singh, D.J.; Zhang, L. Bismuth and antimony-based oxyhalides and chalcohalides as potential optoelectronic materials. NPJ Comput. Mater. 2018, 4, 14.
  64. Peng, B.; Xu, K.; Zhang, H.; Ning, Z.; Shao, H.; Ni, G.; Li, J.; Zhu, Y.; Zhu, H.; Soukoulis, C.M. 1D SbSeI, SbSI, and SbSBr With High Stability and Novel Properties for Microelectronic, Optoelectronic, and Thermoelectric Applications. Adv. Theory Simul. 2018, 1, 1700005.
