Modifications on Sulfur Cathodes of Practical Lithium-Sulfur Batteries: History
View Latest Version
Please note this is an old version of this entry, which may differ significantly from the current revision.
Contributor: , , , , , , ,

Lithium–sulfur (Li–S) batteries hold great promise in the field of power and energy storage due to their high theoretical capacity and energy density. The “shuttle effect” of soluble lithium polysulfides (Li2Sx, 8 ≥ x ≥ 4, LiPSs) generated from sulfur cathodes during the charging/discharging process severely causes the loss of active materials and the deterioration of cycling performance.

  • lithium-sulfur batteries
  • shuttle effect
  • solid-phase conversion

1. Introduction

Under the circumstance of severe environmental pollution and shortage of traditional fossil energy, vigorously developing new energy systems has always been the focus of research work. Thereinto, electrochemical energy storage systems represented by lithium batteries have gained great attention owing to their high energy and power density, long lifespan, and environment-friendly features, which are widely applied in various portable electronic equipment and the new energy vehicle industry. For commercial lithium–ion batteries based on reversible (de)intercalation electrochemistry of Li+ at both cathodes and anodes, the energy density plays a vital role as one crucial assessment for the business value. However, the current research on the cathodes of traditional lithium–ion batteries such as LiFePO4 (LFP), LiCoO2 (LCO), and LiNixCoyMnzO2 (NCM) has reached the bottleneck of their theoretical energy densities, gradually dissatisfying the rapidly increasing energy demand [1][2][3]. Consequently, the Li–S battery has become one promising candidate as the next-generation battery under its ultrahigh theoretical discharge capacity (1675 mAh g−1) and energy density (2600 Wh kg−1) based on conversion chemistry between anodic lithium and cathodic sulfur [4][5]. Besides, the natural abundance and low cost of sulfur further promote the development of Li–S systems for large-scale investigations and applications [6].
Li–S batteries have had increasing attention in regard to their mechanisms and improvements over the past decades. A typical Li–S battery works by the total reversible reaction of 2Li + S ↔ Li2S, which is a multi-step reaction involving several intermediate products Li2Sx (8 ≥ x ≥ 1). This unique multi-electron conversion chemistry enables Li–S batteries to possess ultrahigh theoretical capacity while being accompanied by some intractable problems that impede their commercial application [7][8]. Firstly, the intrinsic electrical insulation of elemental sulfur (a poor conductivity of 5 × 10−30 S cm−1) and final products Li2S2/Li2S (10−13 S cm−1) hinder electron transportation in cathodes, leading to sluggish kinetics and low sulfur utilization [9]. Secondly, 80% volume expansion from sulfur to lithium sulfide easily triggers the collapse of electrodes and the whole batteries. Furthermore, the “shuttle effect” of soluble lithium polysulfides (Li2Sx, 8 ≥ x ≥ 4, LiPSs) generated from sulfur cathodes during the charging/discharging process severely causes the loss of active materials and the deterioration of cycling performance [10]. Simultaneously, partial LiPSs could pass through the separator to deposit on the lithium surface, resulting in the corrosion of anodes. Lastly, the Li dendrite caused by uneven lithium deposition also delivers a potential safety hazard for Li–S batteries [11].
Numerous efforts have been made to solve the challenges mentioned above, mainly in the modification of cathodes, electrolytes, and separators, as shown in Figure 1. Nazar group’s use of carbonaceous substrates to improve the electrical conductivity of cathodes and physically confine sulfur species was heuristically proposed by preparing a CMK-3/S cathode [12]. Nevertheless, weak physical adsorption between LiPS molecules and the surface of those meso- and micro-porous carbons still generates a considerable accumulation of high-concentration LiPSs in the electrolyte during long-term cycling [13][14]. Subsequently, a significant breakthrough by combining physical confinement and chemical bonding effects to alleviate the polysulfide shuttling to a large extent was widely achieved in cathode materials, electrolyte additives, and separator decorations [15][16]. Polar materials such as heteroatom-doped carbons [17][18][19], metal–organic frameworks (MOFs) [20][21], metallic compounds [22][23][24][25][26][27], nonmetallic nitrides [28][29][30], and covalent organic frameworks (COFs) all possess abundant active sites to anchor LiPS molecules chemically. In addition to the thermodynamic adsorption mentioned above, it is also a practical approach to kinetically accelerate the redox transformation of soluble polysulfides by reducing the reaction activation energy, which could shorten the residence time of LiPSs on the electrode surface and slow down their solubility and diffusion [31][32]. Ordinarily, chemisorption and electrocatalysis complement each other and synergistically enhance electrochemical performances of Li–S batteries. However, these methods treat the symptoms rather than the causes; that is, polysulfides’ intrinsic dissolution and diffusion can only be alleviated rather than completely suppressed, leading to a continuous decay of discharge capacities.

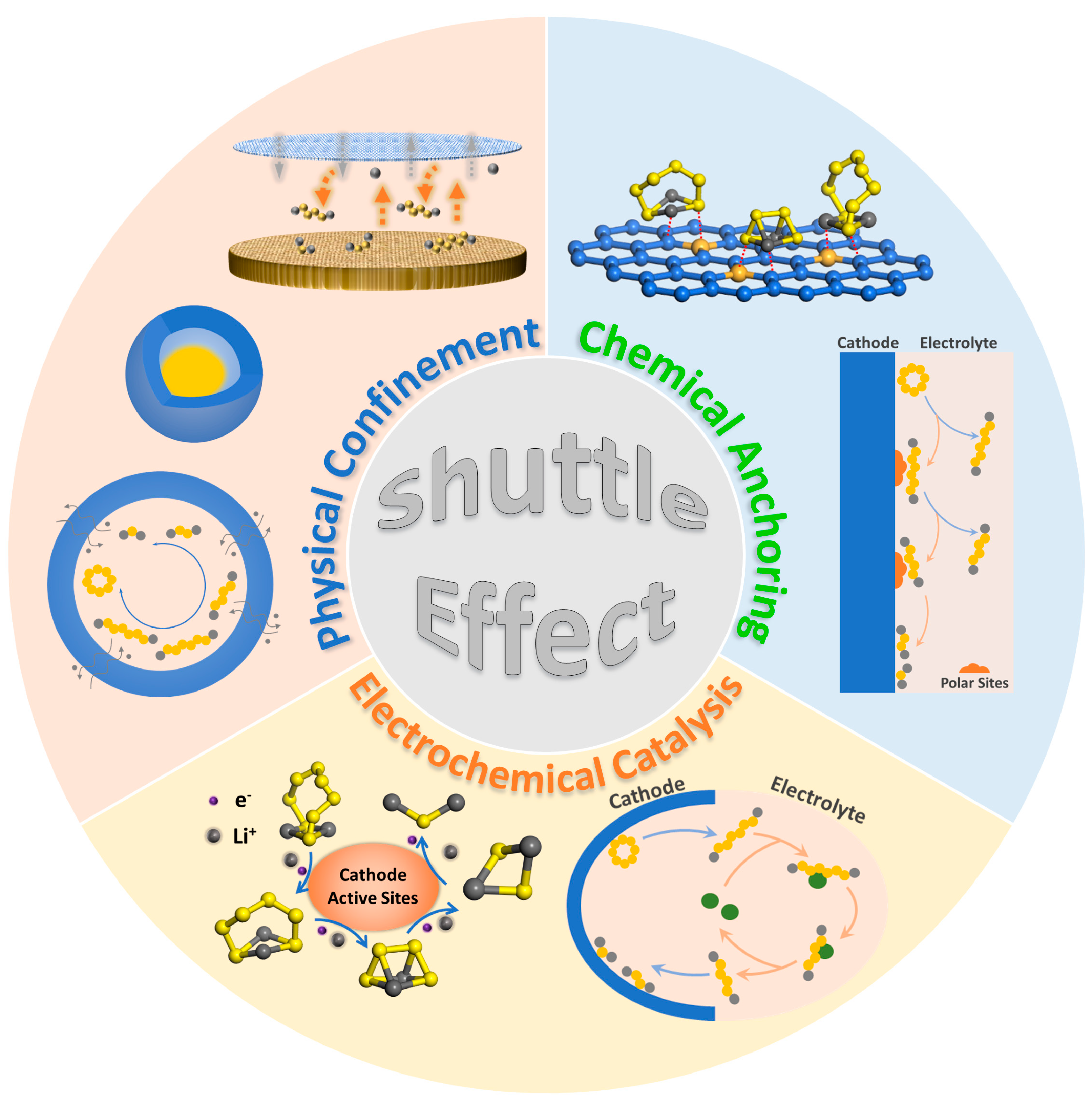

Figure 1. Schematic of the traditional ways to deal with the shuttle effect in Li–S batteries.
Based on this point of view, it is necessary to focus on the causing conditions of the shuttle effect, namely the generation and dissolution of LiPSs, for the practical application and development of Li–S batteries. Accordingly, a novel kind of Li–S batteries based on solid-phase conversion rose gradually and caught much attention. Different from the traditional Li–S system, this new one possesses distinct charge/discharge curves with only one single pair of plateaus between 1–3 V. As shown in Figure 2, it is due to this unique charging/discharging mechanism that solid-phase conversion-based Li–S batteries tend to exhibit excellent cycling performance, showing more promising development prospects. Figure 3 briefly illustrates the main pathways for realizing solid-phase conversion-based Li–S batteries. One direct approach is to eliminate the formation of soluble long-chain polysulfides in cathodes, which is mainly realized by physically confining small sulfur molecules (S2–4) in microchambers or chemically bonding short-chain sulfur species on polymer skeletons through covalent bonds [33][34]. Sulfurized polyacrylonitrile (SPAN), the most representative short-chain-sulfur-based organic composite synthesized by a simple pyrolysis and sulfurization process, has been proposed to covalently bond S2–4 chains via C-S and N-S bonds and deliver superior cycling stabilities, while the low sulfur content and poor rate performance limit the practical energy densities to a great extent [35]. Another guideline to restrain the shuttle effect performs by modifying electrolytes to inhibit the dissolution of LiPSs [36][37]. A few carbonate cosolvents or high-concentration lithium salts have been reported to contrast a compact solid electrolyte interface (SEI) on the surface of active species through the nucleophilic reaction, thus isolating LiPSs from the electrolyte during subsequent cycles. Furthermore, solid-state electrolyte (SSE), which not only solves the problem of polysulfide shuttling but also eliminates the hidden danger of traditional flammable liquid electrolytes, plays an effective solution in enhancing the cyclability of Li–S batteries [38]. However, those all-solid-state lithium-sulfur batteries (ASSLSBs) chronically suffer from low ionic conductivity and non-ignorable weight of the SSE, the remaining bottlenecks to improve sulfur reaction kinetics and mass energy densities. Despite these restrictions, Li–S batteries based on the above constructions are still the most promising for commercialization.

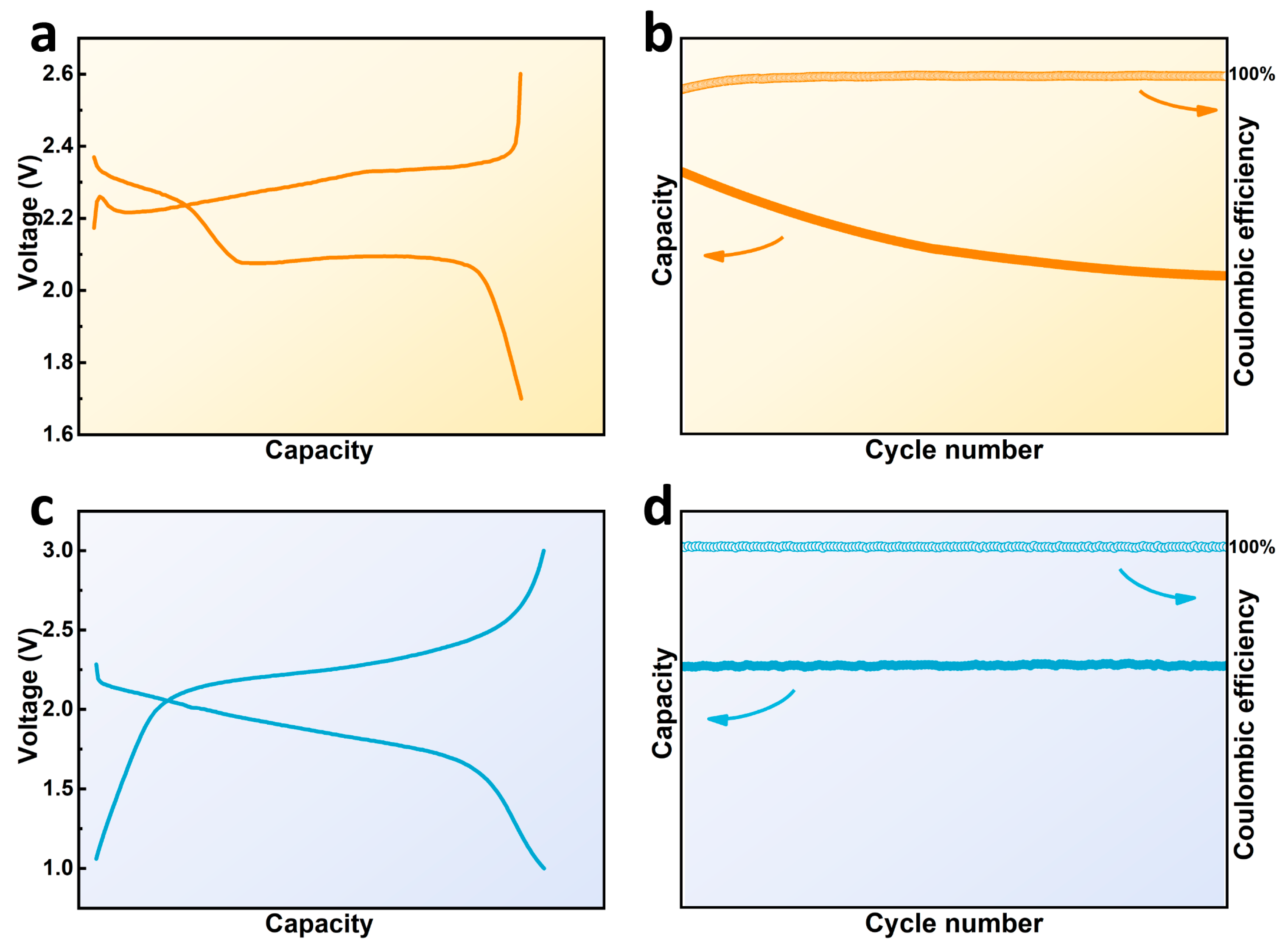

Figure 2. Typical charge/discharge curves of Li–S batteries and their cycling performance based on (a,b) solid–liquid–solid reaction and (c,d) solid-phase conversion.
Figure 3. Schematic of the approaches to realize the solid-phase conversion in Li–S batteries.

2. Modifications on Sulfur Cathodes

In the traditional Li–S batteries with cyclo-S8 as an active substance, which undergoes the solid–liquid–solid conversion process of S8-LiPSs-Li2S2/Li2S, the shuttle effect could not be eradicated, whether through thermodynamic adsorption or kinetic catalysis owing to the inevitable dissolution tendency of LiPSs. Consequently, striding across the formation of soluble polysulfide intermediates in cathodes employing a straight transformation from short-chain sulfur molecules to solid Li2S would realize a solid–solid reaction path. Unlike the multi-phase conversion involving the formation of liquid LiPSs intermediates, Li–S batteries based on solid-phase conversion undergo one continuous plateau during the whole discharging process. At the same time, they still retain high capacities and possess substantially improved cycling performances. For the past few years, the structural regulation of short-chain sulfur has been mainly achieved through two approaches, physically confining sulfur species into micropores to restrain their growth to long-chain polysulfides or covalently binding -Sx- (x ≤ 4) segments onto the carbon skeleton of organic polymers [39][40]. However, the sulfur content of those cathode materials is severely limited by the micropore volume or quantities of unsaturated bonds, while intrinsic slow kinetics among solid substrates also impact their rate performances, leaving nonnegligible obstacles for commercial applications [41][42]. Herein, methods and strategies to construct short-chain-sulfur cathodes are depicted. The recent research progress was systematically reorganized, such as structural optimization of typical materials, additional modification of electrolytes, and design of novel constructions, which are expected to explore the proper ways for the practical development of Li–S batteries.

2.1. Organic Sulfur Polymers

2.1.1. Cathodic Design Based on SPAN Compounds

Origin and Preparation Optimizations of SPAN

The employment of SPAN in rechargeable lithium batteries can be traced back to 2002, when Wang et al. [43] first proposed the novel conductive sulfur polymer compounds as the cathodic active material with promising electrochemical properties. The sulfurized compounds were briefly prepared by pyrolyzing the mixtures of polyacrylonitrile (PAN) powder and sulfur with specific mass ratios at around 300 °C under an inert atmosphere. Through matching with a polyvinylidene fluoride-hexafluoropropylene-based gel electrolyte, the SPAN compound containing 53.4 wt% sulfur exhibited an adaptable initial discharge capacity of 850 mAh g−1 (totals were calculated based on the mass of whole composite SPAN materials, the same applies in all the SPAN-associated capacities hereinafter) and remained over 600 mAh g−1 after 50 cycles at a current density of 0.2 mA cm−2. Shortly afterwards, the same group further developed favorable rate capabilities with discharge capacities of 670.8, 652.3, 639.6, and 616.9 mAh g−1 at 0.5, 1, 1.5, and 2 mA cm−2, respectively (Figure 4a) [44]. Such splendid sulfur utilization and electrochemical performances rapidly received extensive attention. More attractively, SPAN cathodes delivered uniquely single charge-discharge platforms at voltages of 2.3 and 1.8 V, which differed from the dual platforms of traditional elemental sulfur cathodes.
Figure 4. The typical optimization conditions, chemical structures, and lithium storage mechanisms of SPAN compounds. (a) Charging/discharging profiles of SPAN cathodes at different current densities. Reproduced with permission from Ref. [44]. Copyright © 2004 Elsevier Ltd. (b) Cycling performance of SPAN samples prepared at different temperatures. Reproduced with permission from Ref. [45]. Copyright © 2012 Royal Society of Chemistry. (c) Cycling performance of S@pPAN samples with different molecular weights. Reproduced with permission from Ref. [46]. Copyright © 2020 American Chemical Society. (d) Proposed structure of SPAN containing all relevant functional groups. Reproduced with permission from Ref. [47]. Copyright © 2011 American Chemical Society. (e) Proposed structure and mechanism of SPAN in Li–S batteries. Reproduced with permission from Ref. [48]. Copyright © 2018 American Chemical Society. (f) The proposed overall electrochemical lithiation/delithiation processes and calculated HOMO/LUMO energy level diagrams of SPAN species. Reproduced with permission from Ref. [49]. Copyright © 2019 WILEY-VCH.
On the basis of the above research, there were further investigations on the correlation of electrochemical performances with synthesis conditions and morphology of SPAN materials. Among general conditions, pyrolysis temperature might be the most closely related to the structure and performance of as-synthesized SPAN compounds. He et al. [45] initially prepared several SPAN samples at different temperatures from 120 to 400 °C, followed by characterization using Fourier-transform infrared (FT-IR) and UV-vis measurements. The spectra showed that PAN would perform an intramolecular cyclization at around 200 °C and chemically react with sulfur over 300 °C. Next, final electrochemical results decided on an optimized pyrolysis temperature of 350 °C with the highest reversible capacity of 1904 mAh g−1 and 1.9% capacity fading after 50 cycles (Figure 4b). Additionally, as the temperature continued to rise, another group found a different pattern that SPAN treated at 550 °C (SPAN550) which possessed higher thermostability and rate capability than SPAN330 [50]. Broadly speaking, lower temperature could raise preferable capacities, while the higher temperature was beneficial to rate performances and stabilities during long cycles, and the optimal pyrolysis temperature range comprehensively appeared from 450 to 500 °C.
On account of the vaporization of sublimed sulfur beyond 250 °C, the vapor pressure in the reactor became another determinant for the extent of the reaction and structure of SPAN particles. Wang et al. [51] turned the vapor pressure in high-pressure reactors full of argon to 2, 5. and 8 MPa (noted as S@pPAN-2, S@pPAN-5, and S@pPAN-8), compared with another sample obtained under normal pressure in argon (S@pPAN-0). The material characterization confirmed that a suitable pressure would contribute to favorable morphology and electric conductivity of the SPAN compound, leading to better properties in Li–S batteries. As shown in this work, S@pPAN-5 exhibited a high reversible capacity of 701 mAh g−1 and still remained 616.8 mAh g−1 after 100 cycles at a current density of 200 mA g−1. In addition, other synthesis conditions have also been systematically studied for better electrochemical performances, such as feeding ratios, mixing methods, and so on. For instance, Chen et al. [52] attempted two different mixing methods for composites of sulfur and dehydrogenated PAN (S/DPAN), and evaluated their costs and performances. By comparison with the composite obtained by conventional ball milling (S/DPAN-b), the product of manual mixing (S/DPAN-m) not only underwent a more straightforward and more economical approach but also displayed superior capacity retention and rate capabilities, which was attributed to the continuous electron conduction within the retained long PAN chains in S/DPAN-m according to morphological and electrochemical data. Recently, Wang’s [46] group verified a similar conclusion by comparing three SPAN composites from the molecular gradient weight of PAN precursors (84 k, 151 k, and 555 k), where the higher molecular weight facilitated a longer main chain and higher sulfur content, leading to preferable capacity and energy density (Figure 4c). Even at a higher operational temperature of 50 °C, the S@pPAN555k exhibited a reversible capacity of 900 mAh g−1 and stable cycling performance.
The morphology of active materials also played an influential role in cathodic properties, from nanoparticles to one-, two-, and even three-dimensional (noted as 1D, 2D, and 3D) structures with various conductive pathways or networks [53][54][55][56]. Aiming at the commercial pristine SPAN nanoparticles with poor specific surface area and low sulfur content, Wang et al. [57] designed a porous cross-linked PAN (CPAN) precursor with high surface area to form a 3D matrix for more sulfur loading, while the morphological structure still retained a regular smooth spherical shape. The resulting cathode with 53.63 wt% sulfur displayed a remarkable reversible capacity of 829 mAh g−1 at 0.2 C (1 C = 1675 mA g−1) and 659 mAh g−1 at a large current density of 5 C. On the other hand, in a primary monolithic SPAN cathode with an average particle size < 63 μm, the capacity and stability were proposed to be positively correlated with percolation and inversely with tortuosity, which were both adjusted by monomer content in the monolithic PAN precursor52. Noticeably, the monolithic SPAN cathode with appropriate parameters would even enable higher capacities of 540 mAh g−1 at 0.25 C and 170.5 mAh g−1 at 8 C than those of a reported fibrous SPAN cathode.
Nevertheless, agglomerate in stacks of SPAN particles was generally averse to fine electrochemical kinetics and structural stability, resulting in unsatisfied polarization and rate capability. Consequently, Zhao et al. [56] first developed SPAN nanosheets with a size of 300–500 nm and thickness of 5 nm using an inorganic salt template method. Benefiting from a fantastic cathode/electrolyte contact and shortened electronic/ionic transport channels, the nanosheet cathode showed a promising capacity of 887 mAh g−1 at 4.3 A g−1 after 100 cycles. What is more, considering the negative influence of a conductive agent, binder, and current collector on the actual energy density in the cathode, a novel free-standing SPAN cathode composed of cross-linked SPAN nanofibers via electrospun technique has recently caught much attention [55][58]. Within the cathode, the one-dimensional nanofiber allowed faster channels for lithium ion and electron migration compared with the powder, as well as better structural stability. Following that, electrochemical results provided an attractive capacity of 364.8 mAh g−1, even at a low operating temperature of 0 °C, which seemed to be enlightenment for more practical Li–S batteries.

Structure and Lithium Storage Mechanism of SPAN

Despite the preeminent electrochemical performances in Li–S batteries, the structure of SPAN molecules is still ambiguous and controversial. Up to now, it has been universally acknowledged that elemental sulfur existed in SPAN as short-chain forms rather than cyclic S8 molecules, which could be confirmed by thermogravimetry analysis (TGA) and X-ray diffraction (XRD) characterization. Besides, FT-IR, Raman, and X-ray photoelectron spectroscopy (XPS) have preliminarily verified that sulfur chains were covalently bound on the polymer skeleton, whereas the specific combining sites on polymer skeleton and the subsequent evolution process of SPAN structure during charging/discharging still remain different opinions.
When SPAN was first reported back in 2002, Wang et al. initially suggested that sulfur was fused at the molecular level in the cyclized PAN backbone [43]. Later, Yu’s group proposed the existence of C-S and S-S covalent bonds to explain the presentation of sulfur species [59]. In 2011, Buchmeiser et al. [47] elucidated a novel SPAN structure with unique thioamide groups embedded in the SPAN-derived backbone. In comparing two SPAN samples with different synthesis processes, the time-of-flight secondary ion mass spectrometry (TOF-SIMS), FT-IR, and XPS measurements suggested that sulfur chains exclusively combined with carbon atoms in polymer backbone other than nitrogen (N). Still, the elemental sulfur could react with partial nitrile groups to form thioamide fragments. Figure 4d displays a comprehensive model of the proposed SPAN structure containing all functional groups involved in this research. More importantly, the researchers mentioned that the initial capacity might originate from the lithiation of the π-conjugated polymer backbone. Later, Archer et al. [39] presented another molecular pattern of SPAN with metastable small sulfur species (S2/S3) covalently bound on the backbone containing pyridinic-N units. They demonstrated a three-step strategy for preparing SPAN nanocomposite. Dehydrogenation and cyclization of PAN occurred with sulfur as an oxidant to form a chain structure. Next, further carbonization proceeded to create a honeycomb carbon structure accompanied by partial nitrogen atoms removal. Since then, the chain structure seemed to have been generally accepted by a lot of researchers and applied to numerous subsequent theoretical calculations and mechanism analyses, but the fly in the ointment lacks a description about the specific location of terminal sulfur binding sites [60]. Complementarily, Wang’s group [49] designed four possible molecule structures of SPAN according to the experimental results of XRD, Raman, FT-IR, XPS, and elemental analysis, and finally determined the most reasonable one through theoretical frontier molecular orbital (FMO) and reaction enthalpy analysis by a density functional theory (DFT) method, in which both ends of each sulfur chain were attached to two adjacent carbon atoms in the polymer backbone.
It is worth noting that the vast majority of past studies concentrated on the C-S and S-S covalent bonds in SPAN structure while ignoring the environments of nitrogen atoms. They had faith in the formation of a pyridinic ring during the pyrolysis process. However, Jiang et al. first suggested N-S in addition to C-S and S-S bonds in the SPAN cathode [61], and later proposed a distinct skeleton consisting of pyridinic and pyrrolic nitrogen (noted as NPD and NPL) [62]. The authors performed 13C/15N solid-state nuclear magnetic resonance (ssNMR) and XPS tests to detect the existence of NPD and NPL and determined the optimal nitrogen configuration among six candidates through DFT calculations. Particularly, a revolutionary N-S bond was revealed for the first time, and its formation was claimed to be kinetically and thermodynamically controlled. This discovery can help us analyze the structure and evolution process of SPAN from another perspective, but the contradiction to previous reports brings perplexity to the unified understanding as well.
Apart from the static structure and forming process of SPAN compounds, their electrochemical kinetics and lithium storage mechanisms in Li–S batteries need logical exposition with equal urgency. He et al. [63] inspiringly used electrochemical impedance spectroscopy (EIS) to evaluate the electrochemical behaviors by measuring the electrolyte solution resistance (Re), charge transfer resistance (Rct). and interface impedance (Rsf) of batteries at various charging/discharging stages. An interesting pattern showed that Rct and Rsf decreased after lithiation while they increased after delithiation, and significantly, both decreased sharply after the initial lithiation, and tended to be stable thereafter. Correspondingly, the lithium ion diffusion coefficient of (DLi+) delivered the maximum value after the initial discharging/charging process. These tendencies could be preliminarily connected with the change of discharge specific capacities of SPAN cathodes during cycles, but regrettably, there was no specific elucidation for the relevance. Recently, Cavallo’s group [48] raised a new reaction mechanism involving thiyl radicals in SPAN cathodes. The radicals were detected by a 7Li solid-state NMR, an ex-situ electron paramagnetic resonance (EPR) measurement, and was further studied by theoretical simulations. As the researchers illustrated (Figure 4e), the reaction pathway of pristine SPAN underwent cleavage of S-S bond, existence of conjugative structure with thiyl radicals, formation of lithiated ionic SPAN, and infinite extension of the unit structure. The superior capability of the cathode could be assigned to a fast coordination between Li+ and negative areas on SPAN backbone. Note that the initial lithiation process was irreversible and the radical SPAN performed as the product of delithiation in the following cycles, which was responsible for the distinctive voltage and capacity of the initial discharge plateau. Such a radical mechanism refreshed past study of structure and reaction kinetics of SPAN cathodes, providing inspiration for the investigation of other polymer-based cathodes in metal–sulfur batteries.
Analogical to the above stepwise reaction pathway, Wang et al. [64] synchronously presented a lithium storage mechanism from the viewpoint of conjugate double-bond instead of ion-coordination. It was explained that lithium combined with C=C and C=N bonds to partially irreversibly construct Li-C-C-Li and Li-C-N-Li bridges, which not only afforded the excess capacity within first discharging but contributed to the enhanced conductivity and subsequent reduced polarization of the cathode. Shortly afterwards, observing the nucleation-growth and decomposition of Li2S on SPAN nanofibers, another group put forward a similar conjecture where the Li coordinated backbones PAN-Li and SPAN-Li reversibly intertransformed [49]. FMO analysis in Figure 4f demonstrated the energy gaps of SPAN, SPAN-Li, and PAN-Li fragments with significant decreasing tendency (1.92, 1.15, and 0.6 eV, respectively), theoretically confirming the intensified conductivity, which was answerable to the excellent electrochemical performances.
Generally, the structure and lithium storage mechanism of SPAN have been investigated for many years, leaving various molecular models and reaction pathways as reference. These patterns tended to agree that the form of -S2/S3- was covalently bound on the cyclized PAN backbone and the direct formation of Li2S via S-S bond cleavage during lithiation. Besides, extra Li could combine with SPAN fractions to supply the excess capacity in the first cycle and improve the total conductivity of the polymer skeleton. Nevertheless, details that involved locations of S or Li atoms were slightly inconsistent, and electrochemical performances of pure SPAN cathodes in similar conditions still differed distinctly. Therefore, more comprehensive and meticulous studies integrating different opinions were required to build systematic knowledge of SPAN substrates for better performances and more mature applications in practical Li–S batteries.

2.1.2. Performance Optimizations of Li–SPAN Batteries

Despite the outstanding electrochemical potential, the actual behaviors of pristine SPAN cathodes in Li–S batteries have been less than satisfactory, which could be attributed to the following points. Firstly, a relatively poor intrinsic electronic conductivity and the resulting sluggish kinetics impact the long-term cycling stability and rate capabilities at large current densities. Following that, a significant volume change between combined sulfur chains and Li2S molecules would cause severe structural destruction in cathodes and continuous consumption of electrolyte. Moreover, the limited sulfur content in composites was a nonnegligible constraint on holistic energy density all the same. In this section, various optimizations on cathodes, electrolytes, or other components of the Li–SPAN batteries are discussed.

Optimizations of Cathodic Active Material Structure

The most direct way to improve the conductivity of cathodes is the introduction of chemically inert carbonaceous materials such as carbon nanotubes (CNTs) [49], graphene [65][66], microporous carbon [67][68][69], and so on. The porous carbon particles wrapped by SPAN shell could help increase the specific surface area for higher sulfur loading an alleviate the volume expansion during cycling. On the other hand, a better contact of solid–liquid phase interface on cathode side also benefits Li+ transport for faster kinetics. As a consequence, the carbon incorporated SPAN (C@SPAN) cathode displays superior rate performances and long-term cycling stabilities than the pure one. The extra addition of carbon with negligible capacity contributing would not substantially advance in the energy density, thus leading to a tendency to prepare freestanding cathodes without binders and current collectors. Ahn et al. [70] embedded a kind of vapor grown carbon fibers into SPAN fibers (SVF) through electrospun to construct a freestanding porous cathode for flexible Li–S batteries (Figure 5a). As a result of the improved accessibility and conductivity, the SVF cathode with active material mass loading of 6.37 mg cm−2 possessed discharge capacity of 341 mAh g−1 and high retention after 150 cycles at 1 C. More recently, Zhu’s group [71] combined SPAN particles with holey graphene to form a 3D hierarchically porous framework (3DHG/PS) by freeze-drying the hydrogel composite and the following annealing procedure. Benefitting from a significantly enhanced electronic conductivity and shortened Li+ transport pathway, the 3DHG/PS electrode with incredible mass loading of 15.2 mg cm−2 delivered excellent performances of nearly 361 mAh g−1 at 0.1 C (Figure 5b) and remained as fine as 233.6 mAh g−1 even after 1500 cycles at 2 C, with a capacity fading of merely 0.012% per cycle. These freestanding C@SPAN electrodes exhibited favorable prospect for high energy density Li–S cathodes or other electrochemical energy storage devices.

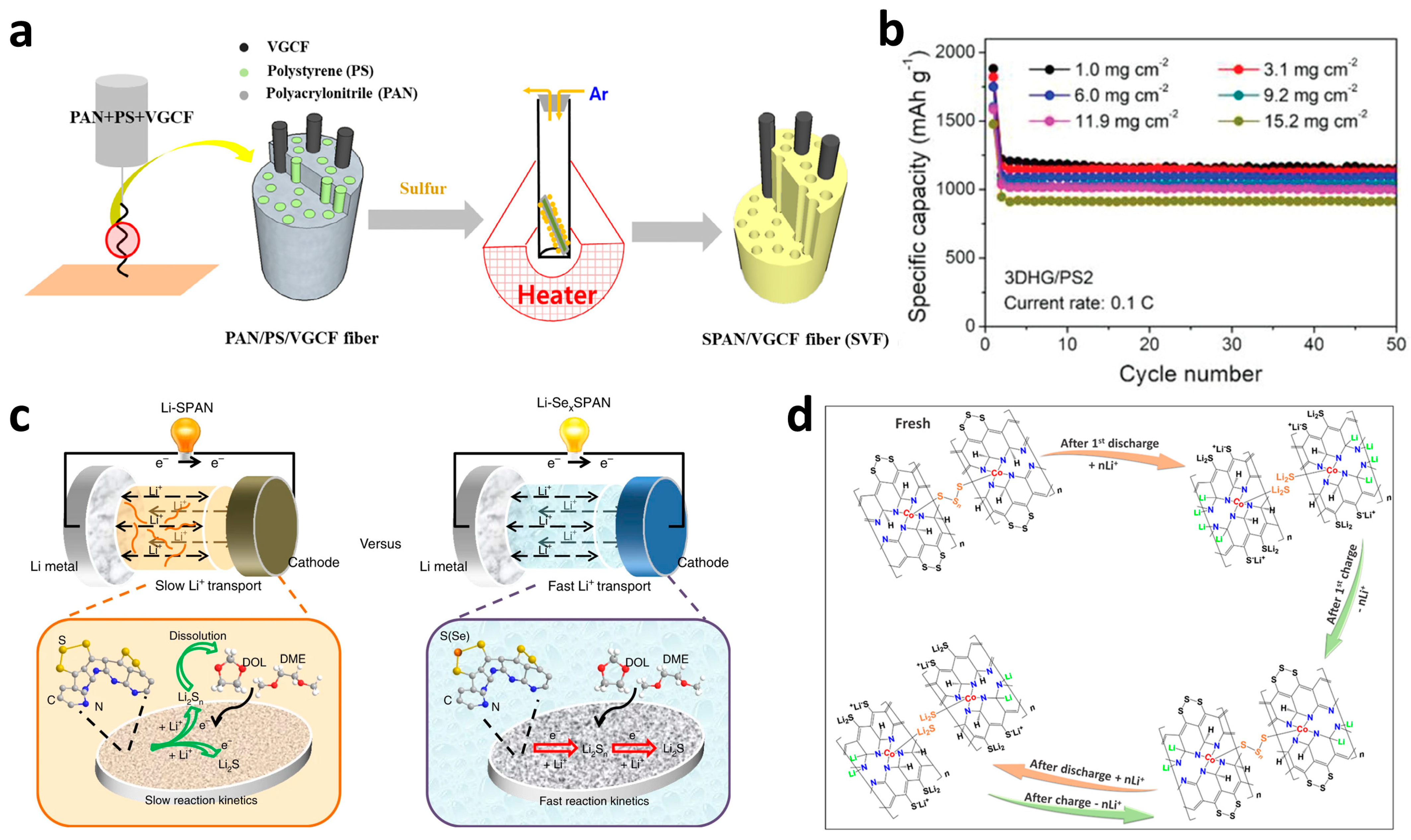

Figure 5. Several representative structural optimizations of SPAN cathodes. (a) Schematic of the steps for fabricating the SVF composite. Reproduced with permission from Ref. [70]. Copyright © 2018 Elsevier Ltd. (b) Capacity comparison of 3DHG/PS2 cathode under different mass loadings. Reproduced with permission from Ref. [71]. Copyright © 2021 Wiley-VCH. (c) The scheme of proposed reaction processes in Li–SPAN and Li–Se0.06SPAN batteries. Reproduced with permission from Ref. [72]. Copyright © 2019 Xin et al. (d) The proposed overall electrochemical lithiation/delithiation processes for Co10-SPAN-CNT. Reproduced with permission from Ref. [73]. Copyright © 2021 Elsevier B.V.
As the mixture level of SPAN and carbonaceous substrates just refers to physical microscopic morphology with a slight impact on the internal electrical conditions of SPAN molecule itself, certain limitations raise the effect of improving the electrochemical kinetics of molecules involved. Therefore, other additives that possess appropriate thermodynamic and electrochemical activities to chemically doped into SPAN, especially sulfur chains, come to mind. As chalcogenide elements, selenium (Se) and tellurium (Te) have also been proposed to serve as cathodic active component in lithium batteries with mediocre theoretical gravimetric capacities of 675 and 419 mAh g−1 but have a comparable volumetric capacity of 3253 and 2621 mAh cm−3, as well as greatly higher electrical conductivity of 1 × 10−3 and 2 × 10−2 S m−1 than that of elemental S (5 × 10−28 S m−1), respectively [74][75]. Accordingly, Li–Se or Li-Te systems usually perform better kinetics at higher rates than Li–S ones. In addition, under a special eutectic property, Se and Te can uniformly disperse in sulfur species at an atom level through S-Se or S-Te bonds, which is finely beneficial for these two substances to play the part of dopants into SPAN compounds. In 2014, Wang et al. [76] first discussed the performances of a selenium sulfide/carbonized polyacrylonitrile (SeSx/CPAN) composite by directly annealing the mixture of SeS2 and PAN at 600 °C. The obtained product SeS0.7/CPAN was verified to stably work long-term at various current densities because of the dual confinement by PAN backbones and a compact SEI layer on the surface of PAN particles. However, a relatively low content of only 33 wt% SeS0.7 and a poor proportion of S versus Se on account of the high temperature both limited the final capacities of the composite, with the remaining key issues about the pyrolysis temperature and S/Se ratio to be further optimized for more favorable energy density. For instance, Lou’ group [77] turned the reaction temperature of PAN powder and SeS2 (feeding mass ratio of 1:4) down to 380 °C, gaining a SeS2 content of 49 wt%, and then an even higher one of 63 wt% when using a multichannel fibrous PAN carrier. The achieved pPAN/SeS2 fibers displayed a satisfactory reversible capacity of 642.6 mAh g−1 at 0.5 A g−1 and an average coulombic efficiency of nearly 100%.
Instead of the direct use of selenium sulfide, elemental S and Se with adjustable mass ratio were reported to be simultaneously introduced into the mixture containing PAN materials, followed by a facile one-pot process to yield proper products [78]. Generally, a lower content of Se in SeS composite would conduct a higher specific capacity, while too little addition would also cause an inconspicuous enhancement of electroactivity. As Wang et al. [79] concluded, the trace amounts of Se atoms in SeSPAN compound could guide electrochemically reversible Se-S bonds to hold more sulfur species beyond typical C-S bonds. At the same period, another fractional step method recommended primarily synthesizing a solid solution of SeS through eutectic melting at above the melting temperature of Se before being annealed with PAN. This method further improved the dispersibility of Se in sulfur chains and the whole composite. Xie et al. [72] designed a Se0.06SPAN sample to serve as active cathode and achieved fast reaction kinetics owing to an improved Li+ diffusion coefficient and a reduced polarization after Se doping. It was also suggested that the accelerated conversion of soluble Li2Sn (n ≤ 4) intermediates was responsible for the excellent compatibility with an ether-based electrolyte (Figure 5c). A similar electrode (Se0.05S0.95PAN) was likewise fabricated into all-solid-state lithium–sulfur batteries for a successful application at room temperature with reversible capacity of 420.3 mAh g−1 and pleasant retention of 81% after 150 cycles [80].
Analogously, Te was performed to behave well as a eutectic accelerator in TexS1-x@PAN cathodes (0.04 ≤ x ≤ 0.06 in molar ratio, and 6.5–10 wt% for the according mass percentage of Te in the whole composites), according to several reports, by decreasing the reaction overpotential of sulfur species and charge transfer impedance [81][82]. This kind of eutectic catalyst seemed to show a satisfactory boosting effect for high energy density batteries and speculated application in other polymer substrates, while the appropriate element ratio and particular synergic mechanism required further optimized integrations.
Except for the above non-metallic additives, transition metallic materials have been studied extensively in Li–S batteries because of their outstanding catalytic activity originating from strong polarity. Besides, the commonly used soluble salt precursors tended to uniformly distribute metallic, active sites on the surface of the matrix. Consequently, metallic substances or compounds would attract attention to applications in Li–SPAN systems. Mg0.6Ni0.4O powder was initially reported to be doping into the mixture of sulfur and PAN just by a simple ball-milling method and then treatment at 350 °C in an Ar atmosphere [83]. The well-dispersed Mg0.6Ni0.4O nanoparticles were evidenced to prevent sulfur agglomeration, accelerate charge transfer, and reduce the electrochemical polarization of the S/PAN/Mg0.6Ni0.4O cathode, leading to enhanced kinetic behaviors and superior cycling capabilities. The physically mixing approach by ball milling not only suffered from a limitation on the degree of dispersion but would destroy the molecular structure of SPAN, as mentioned above. Metal sulfides were also studied in this field soon afterwards. Zhao et al. [84] decorated PAN fibers with internal CNTs and external CoS2 shells, which were derived from an in-situ-grown zeolitic imidazolate framework-67 (ZIF-67) particles to prepare a free-standing membraniform electrode with sufficient sulfur loading. In addition to the effect of improving electrical conductivity, CoS2 components were inferred to occur reversible redox transformation accompanying the lithiation/delithiation of the SPAN body, which generated accelerated kinetics by regulating charge transfer paths. More recently, the same group embedded atomically dispersed metal centers with amorphous structures into the SPAN matrix and put forward M-N4S (M represents metallic element) motifs to cross-link parallel SPAN molecular chains, as shown in Figure 5d [73]. Among several metallics (Mn, Fe, Co, Ni, Cu, Zn), elemental Co with single atomic nature deliver the best electro-catalytic activity, and the resulting Co10-SPAN-CNT exhibited the highest capacity of 586.2 mAh g−1 after 100 cycles at 0.2 C. Note that the addition of metallic materials could not effectively increase the sulfur content in composites, hence the energy density would still be limited, thus leaving the requirements for other structure optimizations of SPAN or fabrications of free-standing cathodes. The typical SPAN cathodes with different modifications and electrochemical performances are listed in Table 1.
Table 1. Summary of SPAN cathodes with different modifications.

Electrolyte Regulations

The electrolyte is another vital component in a Li–S battery for super performance, which affords the internal Li+ transporting and a compatible condition for the interface reactions. It is well known that carbonate would occur nucleophilic reactions with Li2Sn; thus, an ether-based electrolyte has been widely applied in traditional “dissolution-deposition” Li–S batteries. Due to the absence of long-chain sulfur species in the Li–SPAN system, both ester- and ether-based electrolytes have the potential for favorable performance. Up to now, a few studies have been performed to adjust the ingredients of electrolytes like solvents or lithium salts for uprating performance to varying degrees. Figure 6 demonstrates the main molecular structures of the related solvents, diluents, and additives in this section.

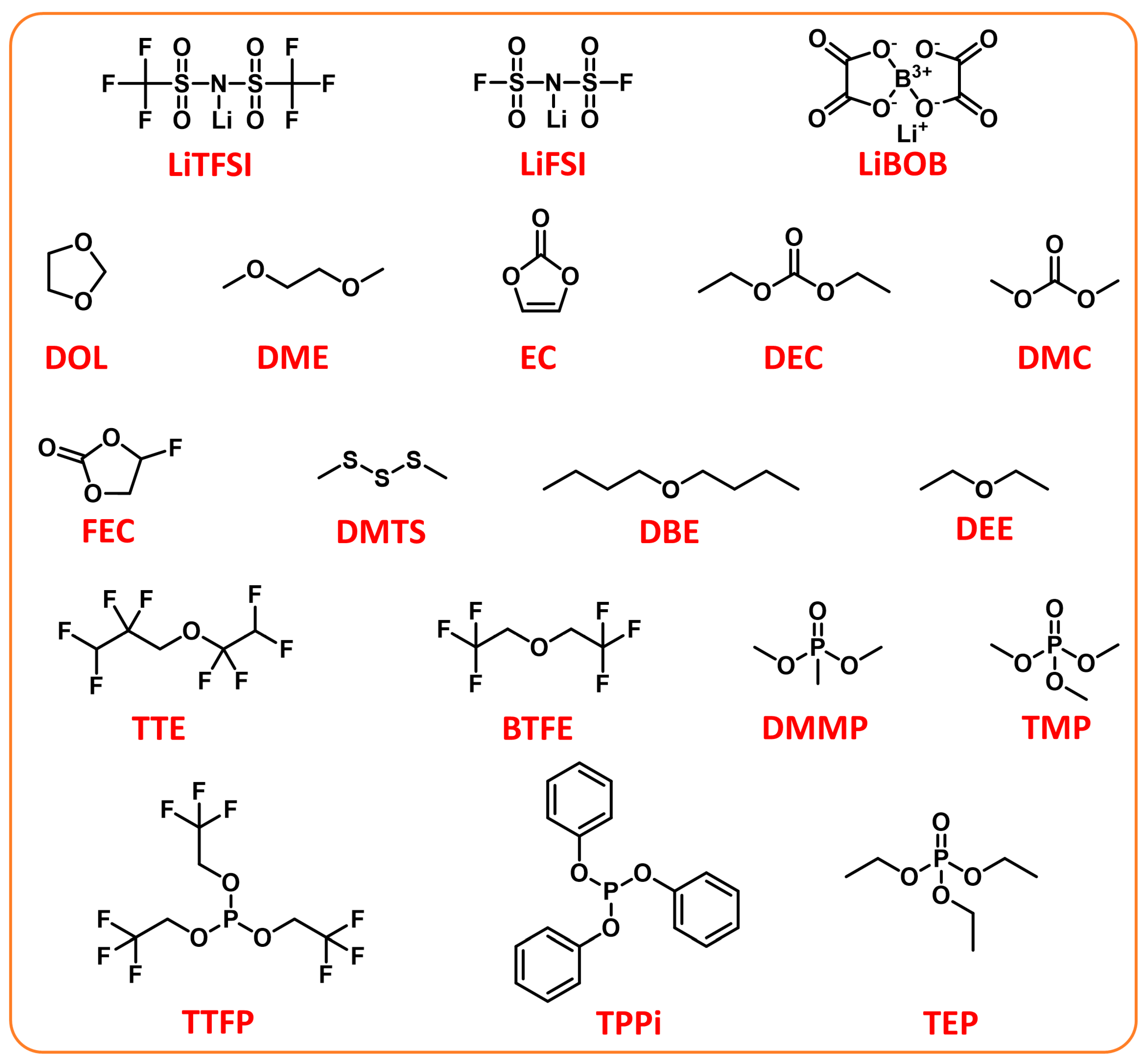

Figure 6. Main molecular structure of the related solvents, diluents, and additives.
In 2012, He et al. [85] compared the electrochemical behaviors of SPAN and traditional S/C cathodes in ether electrolytes containing 1 M lithium bistrifluoromethane sulfonimide (LiTFSI) in 1,3-dioxolane (DOL) and dimethoxyethane (DME) (1:1, v/v), or carbonate electrolyte containing 1 M lithium hexafluorophosphate (LiPF6) in ethylene carbonate (EC) and diethyl carbonate (DEC) (1:1, v/v), respectively. The charging/discharging results showed that the S/C cathode barely worked in carbonate condition, while the SPAN cathode possessed better cycling stability in carbonate than that in ether, suggesting that carbonate electrolytes were more compatible with the Li–SPAN system. Thereafter, carbonate electrolytes took a prominent part in the research and applications of Li–SPAN batteries and even other solid-phase conversion cathodes. However, another severe issue came with the distinct growth of lithium dendrites in carbonate electrolytes that restricted the performance and security of batteries. From the perspective of electrolytes, the most common and effective method to confine lithium dendrite is to form a dense and stable SEI film, which mainly consists of LiF and LiCO3, on the surface of the lithium anode by component decomposition. Accordingly, fluoride solvents have been extensively added into carbonate electrolytes for dendrite-free and more stable Li–SPAN batteries [86]. Buchmeiser et al. [87] particularly compared properties of several electrolytes that consisted of LiTFSI in fluoroethylene carbonate (FEC) and different linear symmetric carbonates, then proposed a negative correlation between electrochemical performance and the viscosity of these electrolytes, among which dimethyl carbonate (DMC) showed the lowest viscosity as well as the highest reversible capacity at 0.5 C (Figure 7a). Wang et al. [88] further elaborated that FEC-assisted DMC electrolytes containing LiPF6 salt would form fine SEI layers on both S@pPAN and Li sides for excellent compatibility and dendrite-free Li deposition. In addition to the solvents, lithium salts could also be adjusted to inhibit the growth of lithium dendrites. As the concentration of LiPF6 in EC/DMC (1:1, v/v) gradually increased, the electrolyte was demonstrated turning to a gel with a commendable desolvation effect, guiding an orderly deposition of lithium ions through ameliorating the electric field condition between two electrodes [89]. The obtained desolvated gel electrolyte (DGE) with a reduced charge transfer resistance showed considerable rate performance. Recently, Chen’s group [90] introduced lithium novel bis(oxalate)borate (LiBOB) into a conventional ternary carbonate electrolyte (1 M LiPF6 in EC/DMC/EMC). The additive salt could facilitate the in-situ generation of a clingy layer to protect the active material from electrolyte corrosion. Besides, other cation salts would present a similar effect as well [91]. Chen et al. [92] found the aggregation of potassium ions (K+) at the tips of the Li anode and the subsequent inhibition of Li dendrite by the formed electrostatic shield.

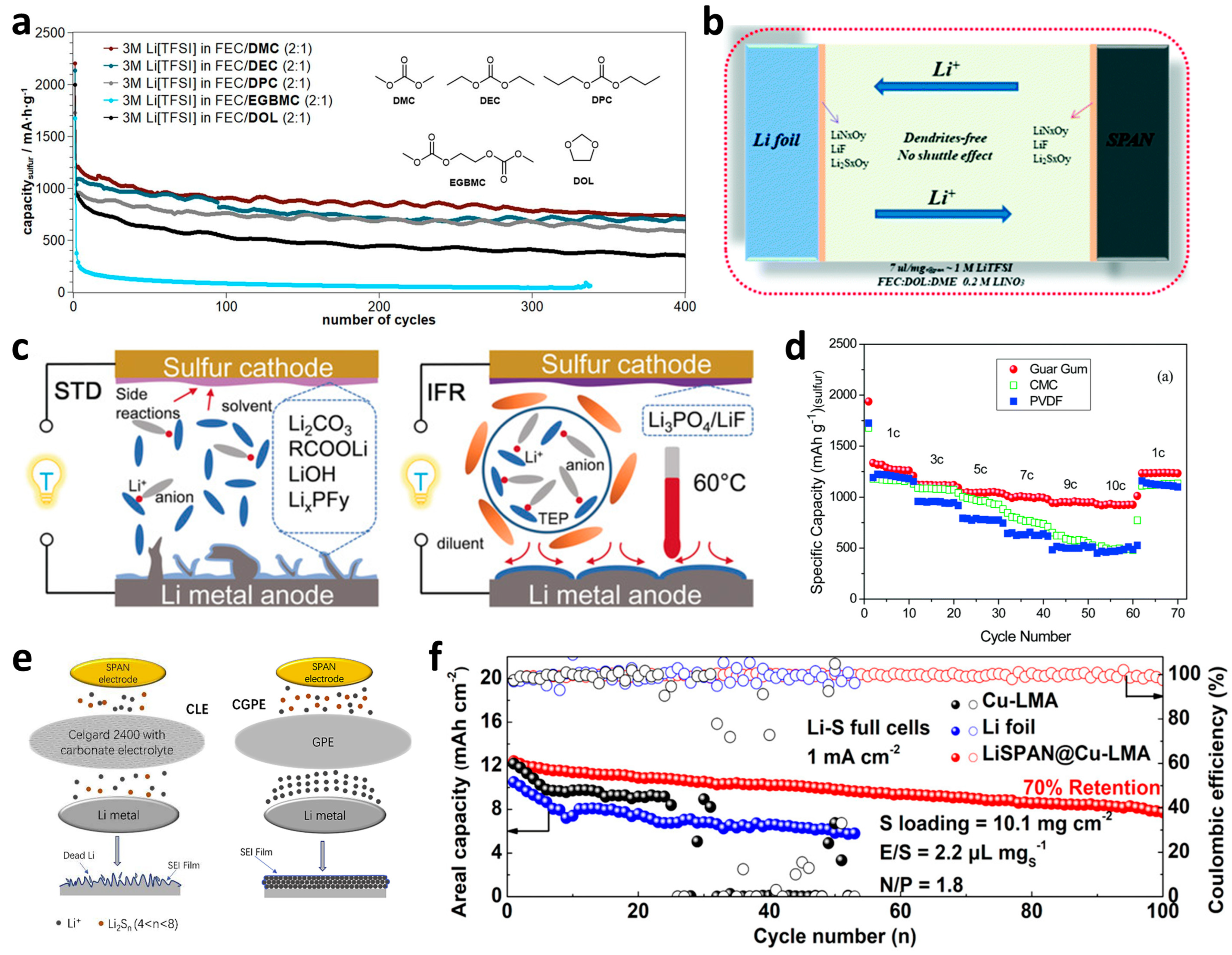

Figure 7. Optimizations of other components in the Li–SPAN batteries. (a) Electrochemical performance of SPAN cathodes with different carbonate-containing electrolytes. Reproduced with permission from Ref. [87]. Copyright © 2018 The Electrochemical Society. (b) Illustration of full cells with the FEC-based electrolyte. Reproduced with permission from Ref. [93]. Copyright © 2019 The Royal Society of Chemistry. (c) Illustration of Li–S batteries using STD electrolyte and IFR electrolyte. Reproduced with permission from Ref. [94]. Copyright © 2019 Wiley-VCH. (d) The rate capabilities of S@pPAN composites with various binders. Reproduced with permission from Ref. [95]. Copyright © 2016 The Royal Society of Chemistry. (e) Scheme of the working principle of CLE and CGPE. Reproduced with permission from Ref. [96]. Copyright © 2019 Liu et al. (f) Ultrathick Se0.05S0.95PAN cathode paired with different Li anodes. Reproduced with permission from Ref. [97]. Copyright © 2020 American Chemical Society.
Compared with carbonate electrolytes, ether ones usually possessed better compatibility with Li anodes because of the forming of an oligomer-based SEI layer. At the same time, the relatively low coulombic efficiency (~98%) and partial remained polysulfide dissolution limited their applications in practical Li–S batteries. Essential decorations on ether-based electrolytes have been performed mainly on functional solvents. A typical FEC additive was also injected into conventional DOL/DME solvent with LiTFSI and LiNO3 salts for a regulated Li+ solvation effect and the stable SEI layers consisting of LiF, LiNxOy and Li2SxOy (Figure 7b) [93]. Particularly in a lean electrolyte system, this FEC-based hybrid facilitated superior electrochemical stability of SPAN cathode, showing capacity retention of 75% after 300 cycles at a current density of 200 mA g−1. Buchmeiser et al. [98] proposed another liquid additive, dimethyl trisulfide (DMTS) in ether electrolyte, which could reversibly react with some insoluble sulfur species during discharging so as to avoid the unfavorable blocking of the electrodes, resulting in improved cycling stabilities over 700 cycles even up to 8 C. Notably, the additive would be performed as a liquid cathode to afford excess capacity, finally reaching 4.3 mAh cm−2 of the total system at 1 C. Concentrated electrolytes have also been verified to raise the electrochemical performances by means of the common ion effect and formation of compact SEI layers. However, as the most frequently used main solvents, DOL and DME presented too strong a dissolution ability of LiPSs to avoid the shuttle phenomenon effectively. Yang’s group [99] designed a new ether-based electrolyte by dissolving 4 M LiFSI in dibutyl ether (DBE) to serve in the Li–SPAN battery. A DFT analysis proposed that LiFSI with lower LUMO energy tended more to reduce on the Li surface to build a LiF-enriched SEI layer, then DBE with higher HOMO energy delivered poor reactivity to Li anode. This work supplied certain inspiration for the applications of inert diluents added into the concentrated electrolyte, which was called a diluted high-concentration electrolyte (DHCE). Compared with concentrated electrolytes, the DHCEs usually benefited from reduced costs (mainly from lithium salts) and viscosity, as well as enhanced electrochemical stability and compatibility (mainly from diluents) [100]. Xie et al. [101] systemically considered the fine-tuning of DHCEs for more practical conditions through configuring a modified localized high-concentration electrolytes (MDHCE) consisting of LiFSI/LiTFSI in DOL/DME/TTE (TTE refers to 1,1,2,2-tetrafluoroethyl-2,2,3,3-tetrafluoropropyl ether). In such a composite, LiFSI and DOL mainly acted on the regulation of SEI layers on both electrodes, and LiTFSI could help increase the sulfur utilization. As a result, the MDHCE possessed favorable stability and Li+ transportation to contribute to the outstanding cycling performance and satisfactory coulombic efficiency of 99.6%. More recently, Liu’s group reported another DHCE containing 1.8 M LiFSI in DEE (diethyl ether)–BTFE (bis(2,2,2-trifluoroethyl) ether) (weight ratio 1:4) for a Li||SPAN cell to protect both the cathode and anode. Benefiting from a superior compatibility and stable SEI layer, excellent anodic efficiency and cathodic cycling stability were obtained with no capacity decay, even during 1200 cycles [102].
As the electrochemical performances of the Li–SPAN system have been continuously improved, safety became another crucial issue to be gradually taken seriously, which primarily originated from the growth of Li dendrite and the flammability of conventional liquid electrolyte. Flame-retardant additives or solvents have been widely investigated in Li-ion and Li-metal batteries, mainly involving non-flammable phosphorus- or fluorine-rich electrolytes, and have been slightly adopted in Li–S systems as well. For instance, dimethyl methylphosphonate (DMMP) [103][104][105], tris(2,2,2-trifluoroethyl) phosphite (TTFP), and triphenyl phosphite (TPPi) were employed into the traditional carbonate solvents EC/DMC (1:1, v/v) with 1 M LiPF6, respectively, which were demonstrated to not only improve the thermostability of electrolytes by capturing the unstable free radicals at high temperature but also positively effect on the electrochemical properties of the Li–SPAN batteries through the formation of profitable cathode electrolyte interphase (CEI) films. Instead of the common EC/DMC, Wang et al. [106] selected triethyl phosphate (TEP) to mix with FEC (7:3, v/v) as the noumenal solvent, with a total concentration of 1 M LiBOB. The resulting electrochemical tests exhibited a satisfactory reversible capacity of 1257 and superior capacity retention than those of the standard carbonate system. Recently, Cao et al. [107] put forward a salt-to-solvent ratio conception rather than the molar concentration to crucially determine the stability of SEI films and designed a non-flammable electrolyte (LiFSI in TEP with a molar ratio of 1:2) with a bit of LiBOB-FEC additives to serve in a practical 18,650 Li-ion full battery, delivering the discharge capacity of which closed to its design value. Subsequently, several groups sequentially proposed saturated electrolytes mainly prepared by diluting the saturated LiFSI in flame-retardant trimethyl phosphate (TMP) or TEP with adjustable co-solvent TTE (Figure 7c) [94][108]. By means of the multiple effects of various components as mentioned above, the safe Li–SPAN systems all delivered fine performances at different conditions, exceptionally inspiring the practical applications of Li–S batteries.

Regulations of Other Components of Batteries

As other indispensable constituents to assemble a complete battery system, the binders, separators, anodes, and even current collectors all affect the physical or electrochemical performances to varying degrees. Up to now, there have been just a few studies on these aspects for Li–S, specifically for Li–SPAN batteries, which was due to the greatest impacts of active components and electrolytes regulation on the ultimate behaviors. Indeed, the binders also perform significantly on the cycling stabilities and rate capabilities of the SPAN cathodes by cohering all components in an integrated system, accommodating the volume variation and alleviating the dissolution of active materials. As a typical binder generally used in commercialized Li-ion and conventional Li–S batteries, poly(vinylidenefluoride) (PVDF) suffers from high cost and nonnegligible environmental pollution on account of the matched organic solvent N-methyl-2-pyrrolidone (NMP). Additionally, the electrochemical window of PVDF does not favorably match the SPAN cathode because of the relatively low discharge plateau and a cut-off voltage of the latter. Instead, aqueous binders have the distinct advantages of low cost, high safety, and environmental benignity. Wang et al. [109] synthesized a carbonyl-modified β-cyclodextrin (C-β-CD) aqueous binder with ultrahigh water solubility, strong adhesion, and wide electrochemical window of 0–5 V to bond SPAN species in the cathode. Benefiting from the compact layer wrapped on the cathode, the active materials presented a homogeneous distribution for superior capacity and stability than those of polytetrafluoroethylene (PTFE), PVDF, and β-CD binders. Thereafter, the same group found another aqueous binder guar gum (GG) with a distinguished property of Li+ transportation to gain unique rate capabilities [95]. At various current densities of 1, 3, 5, 7, 9, and 10 C, the S@pPAN/GG cathode delivered considerable capacities of 541.4, 473.8, 444.1, 423, 401.8, and 393.4 mAh g−1, respectively (Figure 7d). Based on this research, the researchers recently further decorated GG onto carboxylic styrene butadiene rubber (SCR) to crosslink a flexible multifunctional binder [110]. This artificial multifunctional flexible binder (AFB) could tightly protect the active particles from cracks during long-term cycling, and the fabricated flexible SPAN cathode displayed an outstanding areal capacity of 5.55 mAh cm−2, attracting much attention for practical application under large currents. Sodium carboxymethyl cellulose (CMC) is also a common aqueous binder usually used in silicon anodes by virtue of reasonable elasticity and chemical adsorbability of functional groups [111]. When adopted in the Li–SPAN system, the NaCMC binder was proposed to remarkably improve the rate and cycling performance in both ether and carbonate electrolytes, which was attributed to the strong affinity of polar functional groups to sulfur species. Figure 8 displays the chemical structure for the related binders.

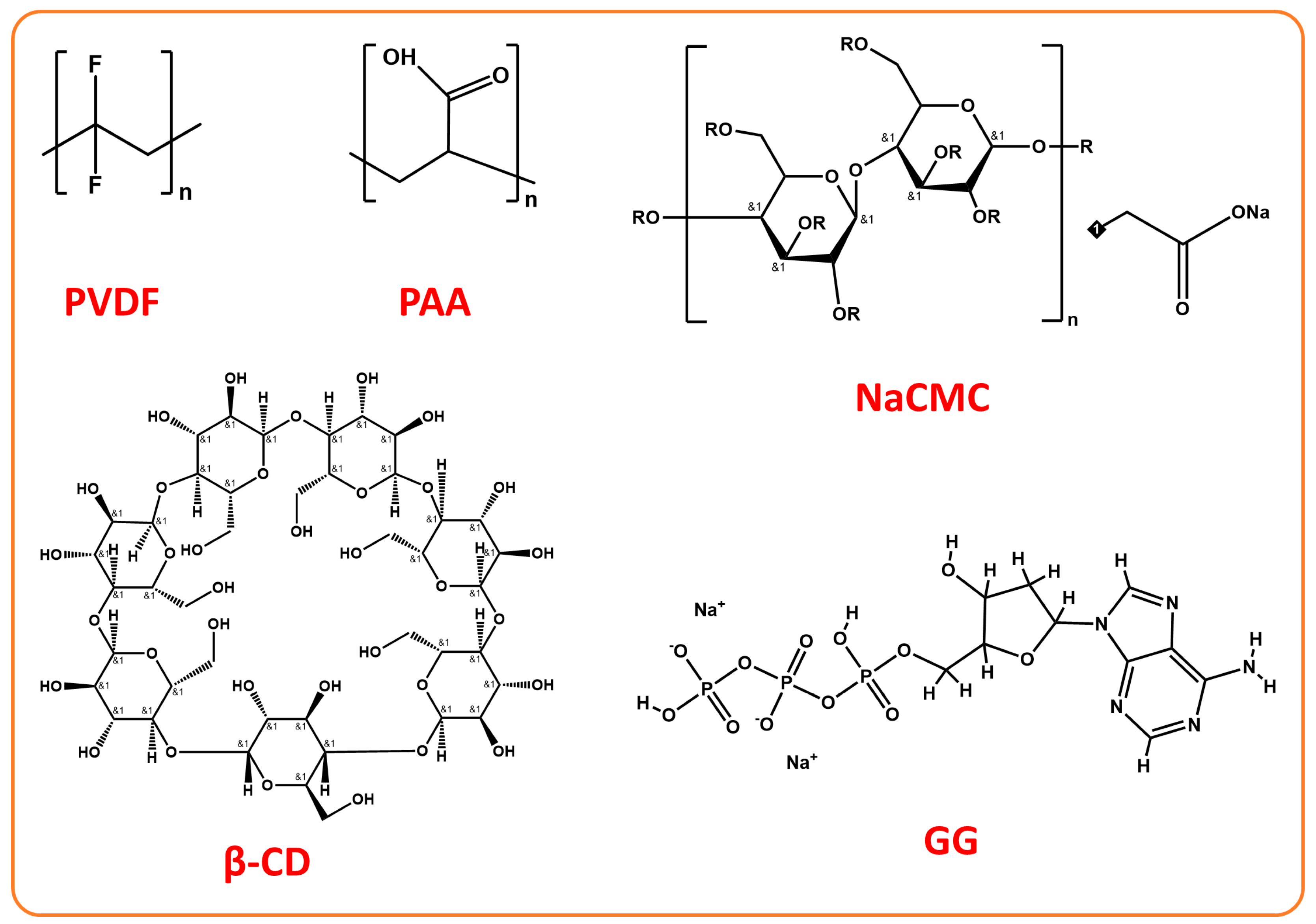

Figure 8. The chemical structure for the related binders.
The separator might seem to play an unconsidered part in the Li–SPAN system just for Li+ shuttling because of the absence of LiPSs, so there were few studies about the separator’s modifications to fit the SPAN cathode. Mu et al. [112] constructed a lithium metasilicate covering layer between the cathode and separator to avoid the corrosion of the cathode by HF or PF5 produced from Li salts so as to obtain cathodic stability. Fu’s group [96] took battery safety into consideration and designed a gel polymer membrane (GPM) cooperating with SPAN cathode and carbonate electrolyte to satisfy the high-temperature performance at 60 °C (Figure 7e). The integrative system possessed an excellent reversible capacity of 415 mAh g−1 even at a large current density of 2500 mA g−1. Besides, a novel ultralight carbon fiber current collector was adopted to load SPAN active materials through an electrostatic flocking method [113]. The vertically flocking-like carbon fibers were proved to make for the electron transfer into the bulk phase of the thick electrode, synthetically leading to a raised energy density of the total battery.
Lithium anode is the final part of influencing the ultimate behaviors of Li–SPAN batteries. Generally, Li foils or tablets with various thicknesses were directly used as anodes to supply sufficient Li+ during the discharging process. However, the pure Li metal anodes intrinsically suffered from several problems, such as a large negative-to-positive capacity (N/P) ratio and limited energy density caused by the superfluous Li, an undesirable growth of Li dendrite from the inhomogeneous deposition of Li+, constant consumption of electrolyte and low coulombic efficiency owing to the rough SEI on the anode surface, a potential for danger because of the activity of Li metal, etc. Aiming at the aforementioned issues, some non-lithium anodes were investigated after a prelithiation process to match the sulfur cathodes. Wang et al. [114] replaced Li metal with a SiOx/C composite, which delivered an intrinsic high specific capacity of 1256 mAh g−1 after 100 cycles with fine stability. After injecting the lithium source, the full cell composed of a SPAN cathode, prelithiated SiOx/C anode, and carbonate electrolyte exhibited comparable electrochemical behaviors to those of the Li/SPAN half-cell. Xie et al. [97] took full advantage of SPAN substrate to plate Li species at lithiophilic pyridine N sites through an over-discharging stage to 0.5 V, accompanied by a preformation of dense SEI layer. The obtained LiSPAN@Cu-LMA electrode was then extracted and reassembled with a fresh Se0.05S0.95PAN cathode to be tested as a full Li–S battery. As a result, the uniformly distributed lithiophilic sites and robust SEI film on such an ultrathick lithium metal anode guided the ordered lithium deposition and high coulombic efficiency. Even under the conditions of lean electrolyte (2.2 μL mgS−1) and low N/P ratio (1.8), the Li–S pouch cell still showed desirable stability with high areal capacity (Figure 7f).
In summary, the strategies to improve the performances of Li–SPAN batteries could be summarized as the following aspects: 1. improving the intrinsic conductivity of the SPAN structure itself; 2. constructing a 3D conductive network to relieve volume expansion and improve cycling stability; 3. regulating Li+ transport within the cell to improve high current adaptation; 4. building stable SEI and CEI films to protect the electrode and improve stability and safety. Despite these efforts, the sulfur content is still not effectively enhanced, which limits current density; thus, free-standing electrodes cooperating with modified separators, electrolytes, and lithium anodes appear to be one of the most promising directions for the commercialization of Li–SPAN and Li–S batteries.

2.1.3. Other Sulfur–Polymer-Based Cathodes

Inspired by the pyrolysis and sulfidation process of PAN material, other organic polymers that are capable of pyrolyzation and dehydrogenation at appropriate temperatures to produce hydrogen sulfide (H2S) gas in the presence of elemental sulfur may have the same possibility to covalently bonding sulfur chains on the backbones. Nowadays, there are numerous kinds of polymers confirmed to copolymerize with sulfur that serve as active cathodes in metal–sulfur batteries, displaying various sulfur contents (20–90 wt%) and theoretical capacities (400–1600 mAh gsulfur−1) [115]. However, most of those products are still plagued by the generation of soluble Li2Sx, while just a few of them could entirely perform the solid-phase-conversion in the Li–S system. Here researchers give a brief overview and analysis of these particular structures.
As early as 2013 [116], a unique pure carbon polymer without any other heteroatoms, carbyne analogue, which was interconnected by alternating -C-C- and unsaturated -C≡C- bonds, was first proposed to covalently bond sulfur species on the conducting carbon skeleton. Due to the abundant π electrons originating from the sp hybrid carbon atoms, carbyne could actively occur cleavage of acetylenic bonds to olefinic bonds at moderate temperature and simultaneously chemically bond the cracked sulfur chains onto the main backbone. The obtained carbyne polysulfide possessed an amorphous structure with a high sulfur content of 54.1% that mainly existed as Sm (1 ≤ m ≤ 4) forms, which was comprehensively confirmed by TGA, XRD, FT-IR, Raman, and XPS measurements. As a result, the cathodes exhibited distinct single plateaus in both ester and ether electrolytes and preferable electrochemical capabilities in the former condition, showing a reversible capacity of 960 mAh g−1 after 200 cycles at 0.1 C. Later, Huang et al. [117] developed a new carbon allotrope graphdiyne (GDY), with a 2D planar molecular structure intertwined by benzene centers and butadiyne bridges, which was revealed to facilitate the Li+ transport in-plane and out-plane as a sulfur host to perform in Li–S cathodes. Benefitting from the chemical binding of unsaturated bonds and physical confinement of triangle-like pores, as well as the fast ion and electron mobility, the sulfide graphdiyne (SGDY) delivered outstanding stabilities and rate performances in both Li–S and Mg-S batteries based on similar solid-phase-conversion mechanism, exhibiting reversible capacities of 821.4 and 713.7 mAh g−1 after 100 cycles at 0.5 and 1 C in the Li–S system with negligible attenuation. More recently, researchers' group synthesized a graphdiyne-like porous organic framework (GPOF) with π-π interaction of pyrene nodes and electron-enriched acetylenic groups (Figure 9a,b) [118]. As was proposed, the plenty of unsaturated bonds provided sufficient covalent sites to bind sulfur chains, as well as microporous skeleton afforded suitable cavities to accommodate the volume expansion, which led to high sulfur content and favorable long-term cycling stability for solid-phase conversion Li–S batteries. As a result, the optimized SGPOF-320 displayed outstanding electrochemical stability with negligible capacity decline after 250 cycles at 0.2 C with an average discharge capacity of 925 mA h g−1. The graphdiyne analogues and derivatives all possessed great potential to serve as substrates in sulfur cathodes and provided inspiration for more suitable sulfur hosts with sufficient unsaturated bonds and micropore features.

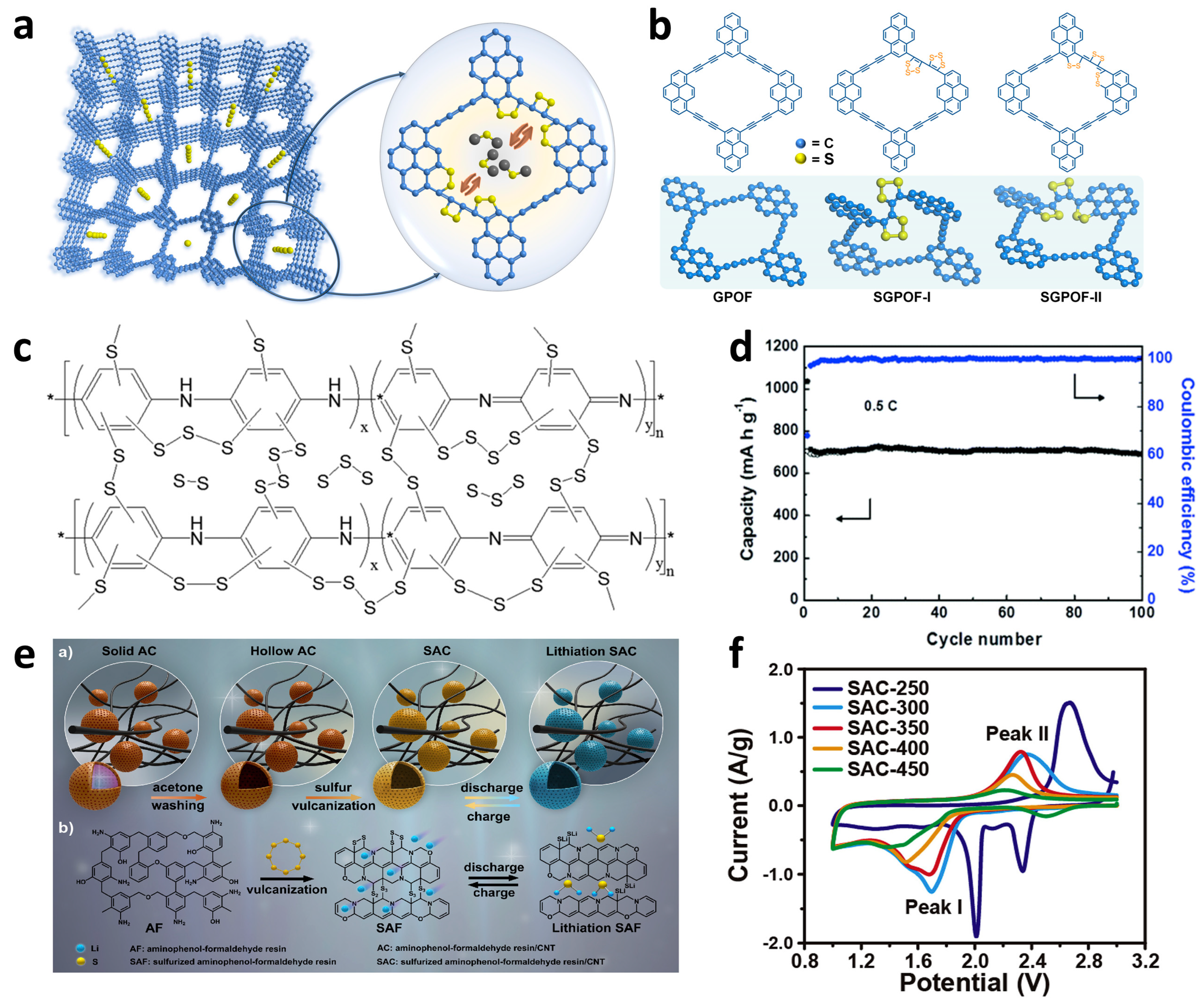

Figure 9. Structures and properties of other typical sulfur–polymer-based cathodes. (a) Illustration of mechanism of the SGPOF cathode and (b) structural diagrams of SGPOF models using DFT optimization. Reproduced with permission from Ref. [118]. Copyright © 2021 American Chemical Society. (c) Schematic illustration of the structure and (d) 0.5 C cycling performance of the SPANI cathode. Reproduced with permission from Ref. [119]. Copyright © 2018 The Royal Society of Chemistry. (e) Schematic illustrations of preparation and chemical structures of hollow SAC hybrids and (f) first cycle CV curves of SAC-x cathodes. Reproduced with permission from Ref. [120]. Copyright © 2019 Elsevier B.V.
Conducting polymers such as polyaniline (PANI), polypyrrole (PPy), polythiophene (PTh), and its derivate poly(3,4-ethylenedioxythiophene) (PEDOT) were broadly used as conductive carrying or coating matrices of S8 species to enhance the electronic transport in the traditional sulfur cathodes, while the generation of soluble polysulfides was not under consideration. Therefore, the problem of shuttle effect remains. Xu et al. [119] originally came up with in-situ sulfur confinement in PANI by chemical and physical patterns through a thermal treatment at around 320 °C. The sulfur–polymer product SPANI demonstrated a solid-to-solid conversion of active sulfur species owing to the existence of S2–4 in PANI backbones and ultrastable cycling performances at 0.5 and 1 C. Even at a high rate of 2 C, the cathode still showed a reversible capacity of 570 mAh g−1. The researchers additionally depicted a schematic structure of the SPANI composite, as shown in Figure 9c,d, where short sulfur chains covalently connected adjacent or paratactic dehydrogenated PANI units to form a crosslinking conductive network. Note that the Li+ diffusion coefficients of the SPANI cathode calculated by CV tests were comparable with those of reported SPAN samples, endowing a promising application of other conducting polymers into solid-phase-conversion-based Li–S batteries for achieving more excellent performances.
Recently, a typical high-molecular polymer aminophenol-formaldehyde (AF) resin was found to store sulfur species within the 3D network to produce an organic polysulfane structure (Figure 9e,f) [120]. Benefiting from the abundant chemical sites and in-situ crosslinking of AF resin particles by CNTs, the sulfurized aminophenol-formaldehyde resin/CNT (SAC) product displayed fine confinement of chain-like sulfurs, sufficient mesopores for alleviating volume expansion, electronic conductivity and Li+ diffusion, and finally performed excellent behaviors in both EC/DEC and DOL/DME electrolytes. XPS and TOF-SIMS characterizations of SAC material found that the -C-Sx-C- (x ≤ 3) fragments supported the solid-phase conversion of short-chain sulfurs. After the optimization of the vulcanizing temperature between 250 to 450 °C, the as-prepared SAC-350 sample with the optimal properties in physical and chemical aspects exhibited a high reversible capacity of 1015 mAh g−1 at 0.2 C after 200 cycles, as well as excellent stability of only 0.022% capacity fading per cycle within 1000 cycles at 2 C. The researchers then further ameliorated the morphology of the SAC composite to a yolk-shell-like tubular SC@A compound through a slight change of the catalyst [121]. The number of internal joints could significantly accelerate the charge transport in the material’s bulk phase to enhance the cathode’s electrochemical kinetics. As a result, the improved structure possessed a better rate capability with an initial capacity of 841 mAh g−1 at 5.0 C and only 0.06% capacity fading per cycle within 500 cycles.
These above investigations offer inspiration for exploring more applicable substrates to accommodate short-chain sulfur in solid-phase-conversion Li–S batteries. The optimization of SPAN cathodes could also be applied to other sulfur polymers. In general, the satisfactory material should meet the following features: sufficient active sites or unsaturated bonds to bond as much sulfur as possible, inner micro-/mesopores to adapt the volume expansion, stable 3D conductive network to guarantee the fast charge transport, and favorable thermal and chemical stabilities. More efforts should be performed according to these issues, among which the sulfur content has been the most crucial one to be solved for the achievement of high-energy-density Li–S batteries.

2.2. Individual Molecular Forms of Sulfur Substances

Instead of covalently anchoring short-chain sulfurs with existence in atomic form into organic polymers through a pyrolysis and vulcanization process, the solid-to-solid conversion of the sulfur cathode could also be realized as individual molecular sulfur materials through physical confinement of elemental sulfur in microcavities and the subsequent limitation of long-chain sulfur’s generation. Besides, some special sulfide compounds would supply unique redox conversions involving full-solid-phase transition as cathodic active materials in Li metal systems, such as sulfoselenides or transition metal sulfides, which deliver differential molecular transformation processes but similar charging/discharging profiles. Having been reported in a small amount of coverage over the past decade, here researchers make a systematic induction and organization to facilitate the understanding of these “molecular sulfur” cathodes and their development and application.

2.2.1. Microporous Carbon–Sulfur Composites

Carbonaceous matrices have been adopted to carry sulfur materials in Li–S cathodes for a long time owing to their favorable conductivity, large specific surface area, adjustable chamber volume, being lightweight, and chemical and thermal inertness. In spite of this, the weak polar interaction between sulfur and carbon substrates could not afford an effective restraint of polysulfide dissolution, resulting in an inevitably continuous capacity decay over long-term cycles. So far, there are two novel methods rising to address this issue, one of which is physically confining small sulfur into specific subminiature cavities and preventing the generation or diffusion of long-chain molecules through the space limitation, and the other is in-situ covering compact SEI films on the appropriate micro- or mesopores to protect polysulfides from the direct contact with electrolytes [41][122][123]. The former lays emphasis on the design of special carbonaceous structures and approach to load sulfur, while the latter prefers the modification of available electrolytes, which will be discussed in detail in later sections.
Dating back to 2002, Wang et al. [124] first demonstrated nano-/micro-pores to trap sulfur and presented unique single redox peaks in CV curves under the condition of gel electrolyte. Inspired by this phenomenon, after nearly a decade, various carbon materials with different morphologies and analogously ordered microporous structures were successively designed and synthesized to accommodate small sulfur molecules in Li–S cathodes. These kinds of microporous carbon matrixes could be prepared generally by a solvothermal-calcination method of sucrose or D-glucose [40][125][126][127][128][129], template method of phenolic resin [130][131][132][133][134], KOH activation of pre calciner carbons [135][136], or direct calcination of heteroatomic polymers and biomasses [137][138][139][140][141]. Some typically reported microporous carbon/sulfur composites and their properties are listed in Table 2. According to the theoretical calculation of dimensions of common carbonate solvents like EC (~0.574 nm) and DMC (0.796 nm), as well as the molecular size of S2–4 (<0.5 nm), the appropriate pore size was required to be less than 0.7 nm to not only separate S2–4 molecules from larger S5–8 ones but also prevent the solvent molecules entering inside of carbon cavities (Figure 10a) [131]. As was elaborated, the solvated Li+ shuttled across the electrolyte bulk phase and reached the surface of carbon substrates, then a de-solvation process happened to release free Li+ into the ultra-micropores to react with S2–4 and directly generate Li2S products, thus leading to a solid-phase conversion without the participation of liquid phase in the cathode [136].

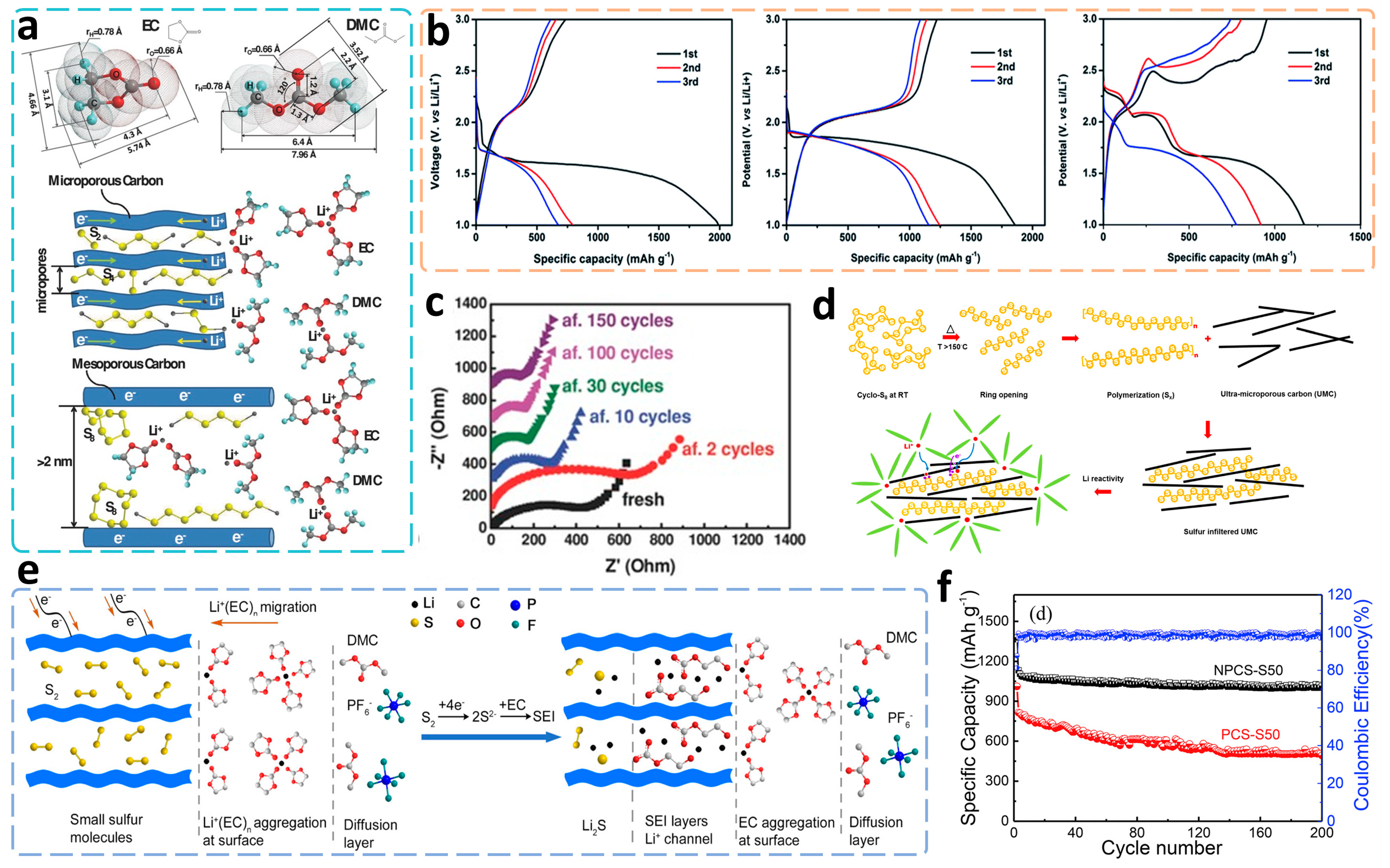

Figure 10. Mechanisms and electrochemical performance of microporous carbon–sulfur composites based on solid-phase conversion. (a) Schematics of the lithiation process in carbon cathodes in carbonate-based electrolyte. Reproduced with permission from Ref. [131]. Copyright © 2013 WILEY-VCH. (b) Galvanostatic discharge–charge profiles of c-MNS/S cathodes with different sulfur contents. Reproduced with permission from Ref. [136]. Copyright © 2018 Royal Society of Chemistry. (c) EIS plots of typical cycles at 3.0 V for FDU/S-40 [131]. (d) Schematic illustration of the preparation of UMC-S composites under vacuum. Reproduced with permission from Ref. [142]. Copyright © 2018 American Chemical Society. https://pubs.acs.org/doi/10.1021/acsomega.8b01681. Accessed on 1 November 2022. (e) Schematic Representation of the EDL Structure. Reproduced with permission from Ref. [143]. Copyright © 2020 American Chemical Society. (f) Cyclic performance and Coulombic efficiency of the NPCS-S50 and PCS-S50 hybrids at 0.3 C. Reproduced with permission from Ref. [144]. Copyright © 2016 Elsevier B.V.
Table 2. Summary of MPC/S cathodes with different structures and performances.
After the sulfur impregnation with different temperatures and sulfur contents, the microporous carbon/sulfur (MPC/S) composites would deliver distinctly different electrochemical behaviors in carbonate or ether electrolytes. For instance, Feng et al. [136] selected a kind of biomasses, macadamia nutshell (MNS), as a carbon source to synthesize a carbon scaffold with ultra-micropores less than 0.6 nm via KOH activation effect at 800 °C. The composed c-MNS/S composites with sulfur contents of 26% (c-MNS/S25), 41% (c-MNS/S40), and 62% (c-MNS/S60) exhibited three entirely different CV curves and cycling properties. Among these, the first two cathodes possessed typical single discharging plateaus at around 1.6 and 1.8 V, respectively, and both displayed favorable cycling stabilities. Following that, the c-MNS/S60 cathode exhibited distinctive tripartite plateaus at 2.3, 2.0, and 1.7 V and a continuous capacity fading during 100 cycles, which was explained as a conventional solid–liquid–solid conversion of excess long-chain sulfurs outside the micropores. The charging/discharging profiles of the three samples are presented in Figure 10b. Additionally, the reversible capacities of c-MNS/S25 and c-MNS/S60 cathodes were both significantly lower than that of the c-MNS/S40 cathode. The former could be attributed to a higher energy barrier and polarization due to the large interspace of cavities within too little sulfur, while the latter was ascribed to the generation and deposition of polysulfides from the external redundant sulfur species and the following blocking of pore canals. Another point worth noting was that an execrable irreversible capacity also arose after the initial discharging and charging, which originated from an irreversible lithiation process of the carbon matrix itself and the in-situ formation of the SEI layer on the surface of the microporous carbon. Yuan’s group [131] carefully found a slight but continuous increment of discharging plateaus and gradually decreased charge transfer resistances of the MPC/S cathode in carbonate electrolyte during cycling. As they hypothesized, an ordered rearrangement of short sulfur chains occurred in micropores after each lithiation and delithiation process to result in lower reaction kinetics and smaller impedances for better capabilities of the cathodes (Figure 10c).
Aiming at the existing forms of sulfur in ultramicroporous carbon (UMC), the most well-known viewpoint was reported to be small S2–4 molecules and has been widely adopted. However, Helen et al. [142] proposed a unique linear polymeric pattern of sulfur in such a UMC host, as shown in Figure 10d, where the cyclic S8 took cleavage and radical polymerization to form longer sulfur chains at around 150 °C and then infiltrated into ultramicropores via capillarity. Even when the temperature dropped to room temperature, stable space confinement would still keep this kind of linear state. The UMC-S cathode cooperating with carbonate electrolyte displayed normal electrochemical properties, while the one with ether electrolyte showed an evolution from solid–liquid–solid reaction to the complete solid-phase conversion because of a more facile contact of linear ether molecules to sulfur than cyclic carbonate ones, which also indicated the existence of long-chain sulfurs in the ultramicropores.
In order to investigate the electrochemical behaviors of MPC/S cathodes in battery conditions, two different electrolytes, 1 M LiPF6 in EC/DMC and 1 M LiTFSI in DOL/DME, were used to cooperate with the same cathode and compared the performances by several groups. In spite of lower viscosity and higher ionic conductivity, the battery using ether electrolyte suffered from a serious inevitable decay of capacity and a continuous increasing polarization. An explanation held that carbonate electrolytes might prefer to construct a more stable and compact SEI layer to cover the micropores for protecting both the cathode and anode. Specifically, Xu et al. [143] deeply studied the compositions and mechanisms of the carbonate-based SEI film on the surface of the MPC/S cathode by 1D/2D NMR technique and DFT calculations. As the authors proposed, an ordered electrochemical double layer (EDL) structure was built to demonstrate the preference of Li+ solvation by EC over DMC to generate the CEI film, the main components of which, lithium methyl carbonate (LMC) and lithium ethylene monocarbonate (LEMC), were evidenced to be produced through a nucleophilic reaction between sulfide and Li+ coordinated EC during the initial discharging process (Figure 10e). The final components of such a CEI film might be identical to those of SEI film on the graphitic anodes, but the generation mechanism of the former was completely different, which could help us to more systematically realize the electrochemical advantages of MPC/S cathodes in carbonate electrolytes for solid-phase-conversion-based Li–S batteries.
Heteroatoms were universally doped into carbon materials for adjustable electronic structures, improved electrical conductivity, and superior physical and chemical features. Especially in Li–S cathodes, various N-, S-, F-, or O-doped carbonaceous matrixes were reported to facilitate the thermodynamic anchoring of polysulfides and kinetic redox conversions for the ultimate improvement of electrochemical performances by dipole–dipole electrostatic interaction and tuning the p-band center of the active carbon atoms to enhance the LiS radical adsorption and minimize the overpotential [148][149]. Herein, N-doped microporous carbons were also proposed to immobilize small sulfur species for stable sulfur cathodes, which were generally prepared by directly calcination of nitrogenous precursors such as ZIF-8 [145][146], PPy [144], or other macromolecular polymers [147] with metal ion templates. As compared by Yang et al. [144], the N-doped microporous carbon sphere/sulfur hybrid (NPCS-S) exhibited dramatically increased capacities and ameliorative stabilities compared to those of a pure porous carbon sphere/sulfur (PCS-S) cathode, which was attributed to the enhanced interaction between sulfur molecules and the carbon surface with active nitrogen sites. The resulting NPCS-S cathode cooperating with carbonate electrolyte delivered a favorable capacity of 1002 mAh g−1 after 200 cycles at 0.3 C with negligible decay and a high reversible capacity of 645 mAh g−1 at 3 C (Figure 10f).
Microporous carbons, meaning ultra-microporous ones with a pore size of less than 0.7 nm, were essential members of the porous carbon family. Having presented outstanding performances like cycling stabilities and rate capabilities, the MPC/S composites still suffered from seriously limited sulfur contents that were usually less than 50 wt% and some even 30 wt%, leading to poor energy densities for practical Li–S batteries. Appropriate activation of carbon matrixes for more micropores and larger cavity volume would benefit the accommodation of active sulfur, while activation that is too deep might cause the increase of pore size, which was not conducive to the management of short-chain sulfur molecules. Thus, the coordination of pore size and pore volume should be carefully considered to obtain optimal results for the whole cathode.

2.2.2. Non-Metallic Sulfides

In addition to obtaining individual small sulfur molecules by physical space limitation, independent hybrid small molecules obtained by covalent binding of partial inorganic heteroatoms to sulfur chains could also be applied as Li–S cathodic active components, with effective inhibition of the polysulfide shuttling. Further loaded on suitable porous carbon matrixes and coordinated with proper electrolytes, these hybrids would perform satisfactory solid-phase conversion with a completely eliminated shuttle effect.
As mentioned in the previous section, Se and Te could build eutectics with sulfur atoms to form hybrid rings containing uniform S-Se or S-Te bonds and effectively promote the electrochemical kinetics of Se1−xSxPAN or Te1−xSxPAN polymer cathodes. Meanwhile, unalloyed Li–Se or Li-Te batteries intrinsically possessed laudable properties as well, thus maintaining a considerable developing potential of a pure combination of S and Se species to construct a Li–SexSy system [150][151]. It is worth noting that Li–Se batteries would exhibit entirely different electrochemical behaviors in different electrolyte conditions, delivering common multi-plateaus in charging/discharging process with solid–liquid–solid conversion in ether-based electrolyte while single pair of redox peaks of CV curves with solid-phase conversion in carbonate-based one. Taking the incompatibility of sulfur species with carbonate solvents originating from the nucleophilic reaction into consideration, as well as the severe shuttle effect due to the high solubility of polysulfides in ether solvents, electrolyte condition would indeed have a significant influence on the performances of Li–SexSy batteries. In the preliminary stage, the studies of Li–SexSy batteries preferred to match with DOL/DME solvents and optimize stabilities and rate capabilities by adjusting the atomic ratio of S and Se or changing the carbon hosts such as rGO, hollow carbon spheres, or mesoporous carbons. The discharging profiles among 1.6–2.8 V usually showed three or four plateaus corresponding to different conversion stages of polysulfides and polyselenides. Interestingly, the charging plateaus responding to the regeneration of S/Se alloys would partially disappear during dozens of cycles because of the dissolution of intermediates, which also brought an ineluctable issue of the shuttle effect, causing persistent capacity fading [152].
In 2015, several groups ever reported that elemental Se wrapped with porous carbon or graphene performed outstanding cycling performances by directly transforming Se to Li2Se with a solid-phase conversion mechanism when immersed in carbonate electrolyte [153][154]. Inspiringly, amorphous S-rich S1−xSex/C (x ≤ 0.1) composites were prepared by mixing certain ratios of S, Se, and microporous carbon at 260 °C, which was near the melting point of Se. Raman and XPS tests affirmed a covalent insertion of Se into S8 rings due to the existence of S-Se bonds (Figrue 11a). In comparison with the S/C composite without Se dopant, the S0.94Se0.06/C cathode presented distinctly increased reversible capacities and reformative stability in EC/DMC solvents [155][156]. This enhancement might also be preferentially related to the physical confinement by micropores as stated in Section 2.2.1 on account of the low amount of Se, slightly enlarging the pore size and then raising the Se content in SexSy compounds, analogous electrochemical results would also arise. Recently, an ordered mesoporous carbon (OMC) was picked to accommodate SeS2 entirely into the mesopores by means of CS2 cleaning the redundant active species outside pores [157]. The treated SeS2/OMC cathode displayed the same difference of battery behaviors in two different electrolytes as the Se/C electrodes, having an impressive capacity decaying in the ether while a minimal loss in carbonate within ultralong cycles. More importantly, replacing the host with a normal disordered porous carbon, Ketjen Black (KB), the SeS2/KB cathode still exhibited a steady single discharging platform with an increased capacity from 600 to 800 mAh g−1 at 0.1 C. Subsequently, Li et al. [158] systematically studied the mechanism of mesoporous carbon/SexSy cathodes in carbonate solvents and further investigated the influence of Se/S molar ratios on the final performances. Se dominated Li+ diffusion and deposition on the cathode, while S affected the total capacity and activation energy of hybrid rings. The synergistic effect of the optimal CMK-3/Se5S3 cathode offered a high reversible capacity of 695.7 mAh g−1 after 50 cycles and high retention of 98%. Furthermore, the fascinating performances of Li–Se battery in carbonate electrolyte were also explained as a fine immediate blocking of meso-spores by the large precipitations generated from Li2Se8 and carbonate solvents during first discharging, thus protecting the remaining active species from following corrosion (Figure 11b).

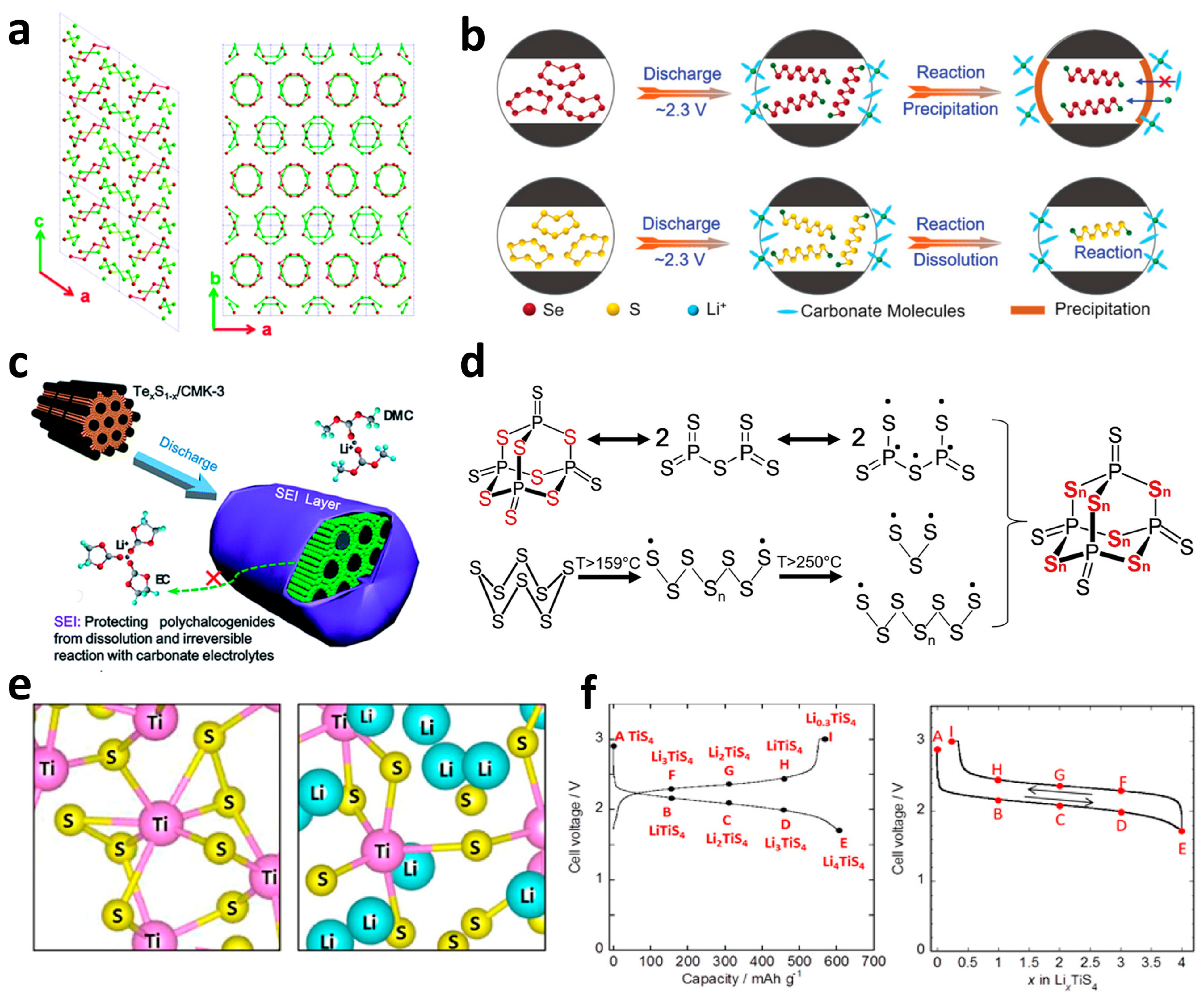

Figure 11. Structures and working mechanisms of non-metallic or transition metal sulfides in Li–S cathodes based on solid-phase conversion. (a) View of the isostructural γ-sulfur phase of SexS8−x (x < 4) at different orientations. Reproduced with permission from Ref. [155]. Copyright © 2015 The Royal Society of Chemistry. (b) CEI formation mechanisms of CMK-3/Se and CMK-3/S in carbonate-based electrolytes. Reproduced with permission from Ref. [158]. Copyright © 2021 Wiley-VCH. (c) Schematic diagram of the Te-induced formation of SEI layers on the TexS1−x/CMK-3 electrode surfaces. Reproduced with permission from Ref. [159]. Copyright © 2018 The Royal Society of Chemistry. (d) A schematic illustration of the synthesize route for P4S10+n molecules. Reproduced with permission from Ref. [160]. Copyright © 2020 Elsevier B.V. (e) Local structure models of a-TiS4 (left) and a-Li4TiS (right). (f) Discharge/charge curves of a-TiS4 for investigation of structural and lithium atoms changes. Reproduced with permission from Ref. [161]. Copyright © 2017 American Chemical Society.
Another chalcogen, Te, has also been discussed to participate in the heteroatomic S1−xTex/C composites to serve as stable cathodic materials in carbonate electrolytes. CMK-3 was chosen as the mesoporous carbon host, and various values of x were determined to prepare a series of samples. A fast and stable solid-phase conversion of active materials happened by virtue of an enhanced charge transfer and reaction kinetics through the Te dopant, as well as a great immobilization of sulfur species through the Te-S bonds. Besides, as shown in Figure 11c, a compact CEI film was likewise constructed after the first cycle to intercept polytellurides in cavities. As a result, the Te0.1S0.9/CMK-3 cathode displayed the highest capacity of 845 mAh g−1 after 100 cycles at a current density of 250 mA g−1 [159]. The chalcogenide eutectics take great advantage of the high capacity of S and fast kinetics of Se/Te, miraculously creating satisfactory integrated performances for advanced lithium storage [162]. Nonetheless, the mass content of active components and consumption of electrolytes needs to be further investigated and regulated to meet the practical lithium batteries.
Different from the congeneric elements, some neighboring ones in the periodic table could specifically bond to form inorganic non-metallic compounds, such as carbon dioxide, carbon disulfide, and phosphorus pentoxide, owing to the natural variable valence states and multi-electron reactions. Among those, phosphorus (P) could not only react with elemental S to produce phosphorus sulfide compounds but has also been proven to chemically anchor polysulfides and electrochemically accelerate their redox conversion. A special lithium thiophosphate (Li3PS4) was performed to combine with sulfur to yield lithium polysulfidophosphate (LPSP, Li3PS4+n) compounds as active cathodic materials in the Li–S battery [163]. The adjustable n value could control the sulfur content in polymers, which consist of PS43− nodes and interconnecting S-S bonds. During charging/discharging, S-S bonds reversibly broke to directly produce Li2S, delivering a high initial capacity as 1272 mAh gsulfur−1 (599 mAh g−1 based on the whole composite) of the optimal Li3PS4+5 cathode. Later, Hayashi et al. [164] put forward another compound, P2S5, to form a S-KB-P2S5 electrode without the usage of electrolyte, where an amorphous P2S5+x was obtained by sulfur connection as the Li+ conductor during the redox process. The atomic-level dispersed sulfurs in such a composite solid cathode/electrolyte system, with a sulfur content of 50%, achieved sufficient utilization (471 mAh per gram of sulfur composite electrode) and outstanding performances. Sun’s group [160] also proposed a series of P4S10+n compounds in all-solid-state sulfur cathodes, which could build a Li-P-S conductive network for fast charge transport. The synthesized route is shown in Figure 11d. As the n increased from 6 to 30, five samples (P4S16, P4S22, P4S28, P4S24, and P4S40) compounded with carbon substrates exhibited similar reversible capacities but distinctly changed electrochemical path, where fewer sulfur atoms would cause more discharging plateaus because of sluggish kinetics originating from the lack of sufficient Li+ channels. The optimal structure P4S34/C consequently showed the best capabilities with a high initial capacity of 618 mAh g−1 and a reversible capacity of 458.5 mAh g−1 after 180 cycles. Besides, small volume changes (<63%) and favorable rate properties were also exhibited. Note that these phosphorus sulfide compounds performed as not only active cathodic components but also asself-generated Li+ pathways without any extra electrolyte additives, providing a great prospect for integrative high-energy-density Li–S batteries. The above-reported non-metallic sulfides and their properties are listed in Table 3.
Table 3. Summary of non-metallic sulfides and their properties of batteries.

2.2.3. Transition Metal–Sulfide Compound

Breaking through the traditional concept of only sulfur or non-metal doped sulfur compounds as the active cathodic materials of Li–S batteries, crystalline metal sulfides have also been investigated to play the same roles with favorable electronic conductivity and stability but inadequate theoretical capacities [165]. Besides, some special amorphous transition metallic sulfides (a-TMSs) with more sulfur taking part in the redox process could also proceed reversible redox reactions with Li+ under proper electric potential through the breaking and repairing of sulfur-sulfur interactions. Owing to the atomic-form existence of sulfur in amorphous metal sulfides, soluble long-chain polysulfides were fundamentally eradicated so that a stable solid-phase conversion could be well implemented.
The early approaches of preparing amorphous metal sulfides such a-NbSx or a-TiS3 were usually a direct ball-milling method with elemental sulfur by means of the mechanochemical theory. As reported by Takeuchi et al. [165], the mixtures showed amorphous structure with the disappearance of monoclinic S8 and crystallographic NbS2 after mechanical mixing and dramatically reduced electronic conductivities as the S/Nb atomic ratio increased from 3 to 5. Matching with a typical carbonate electrolyte, the three cathodes all displayed a single discharging platform at around 2.1 V, where a-NbS5 cathode exhibited the highest initial capacity of 596 mAh g−1 while a-NbS3 delivered only 281 mAh g−1 but nearly non-decaying during 10 cycles. Tatsumisago et al. [166] took advantage of a similar mechanical way to prepare a series of a-TiS3/S/carbon composites by changing the carbon hosts and evaluating them in different electrolytes. The inducement and amorphization of a-TiS3 successfully convert the routine solid–liquid–solid pathway of S/KB cathode in an organic liquid electrolyte to a single-phase reaction, and the cathodic performances would get further improvement from 250 to 650 mAh g−1 after 50 cycles when adding moderate solid electrolyte. Such a mechanochemistry method benefits from a simple operation and large-scale preparation, but an unsatisfied uniformity limits the electrochemical properties to some extent.
An in-situ thermal decomposition-vulcanization method was employed for synthesizing a-TMSs through mixing the metal precursors with carbon matrixes, followed by annealing or sulfurization at appropriate temperatures. Well-dispersed a-MoS3/MWCNTs [167] or a-FeSx/C [168] composites were successively discussed by two groups to serve as sulfur-equivalent cathodes, and similarly, both the two cathodes displayed decent cycling stabilities in carbonate- or ether-based solvents, which indicated the absence of soluble sulfur species during redox conversion. Specifically, the MoS3 cathode with a high mass loading of 6.9 mg cm−2 exhibited 374 mAh g−1 at 0.5 mA cm−2 and maintained 78% after 200 cycles. For a-FeSx/C (x = 2, 4, 6) composites, the a-FeS4/C cathode delivered a remarkable capacity of 931 mAh g−1 at 0.1 A g−1 and the highest retention of 69% after 500 cycles. XPS measurement was performed to analyze the components of the cathode surface at different charging/discharging states, in which a SEI layer was found to thicken along with the discharge process gradually. What is more, neither free sulfur/metal nor Li2Sx (x ≥ 1) were detected during the whole electrochemical process, signifying a new mechanism of lithiation and delithiation in a-TMSs cathodes rather than a common fracture and formation of metal–sulfur bonds. In response to these phenomena, Sakuda et al. [161] proposed unique insertion/extraction reactions to illustrate the charge/discharge mechanism of a-TMSs cathodes, which combined the typical intercalation/deintercalation mechanism of Li-ion cathodes and conversion mechanism of Li–S systems (Figure 11e). Taking the a-TiS4 cathode as an example, lithiation of TiS4 consecutively occurred to form LixTiS4 (x increased from 1 to 4) during discharging, as shown in Figure 11f, accompanied by the variation of S-S bonds and coordination number of Ti. This unique reaction mechanism indeed protected a-TMSs cathodes from capacity fading and sluggish conversion kinetics of sulfur species, resulting in excellent performance higher than 500 mAh g−1 at a large current density of 400 mA g−1.
Vanadium tetrasulfide (VS4) was another classic TMS that has been reported as the cathodic material in lithium metal batteries with a praiseworthy theoretical capacity of 1196 mAh g−1 but a rapid decay. Recently, Yuki’s group [169] took advantage of the atomic P that has been discussed above in VS4 to design novel PxVSy compounds. The initial capacities slightly reduced as the amount of P rose, while the capacity retention dramatically improved from 10% to nearly 70% after 50 cycles for P0.4VS5. Different from other a-TMSs, the PxVSy cathodes would reversibly produce Li2S at the end of discharge, which was due to a change of the local structure around sulfur atoms after the P doping. In addition, Cheng et al. [170] also put forward a Mo6S8 multifunctional mediator that changed the reaction pathway of sulfur cathodes to a new quasi-solid conversion. Through inducing a uniform growth of Li2S by LixMo6S8 mediators, the reaction kinetics was distinctly promoted to avoid the polysulfide shuttling, leading to desirable properties even under a lean electrolyte/sulfur (E/S) ratio and appropriate N/P ratio. The above-reported transition metallic sulfides and their properties are listed in Table 4.
Table 4. Summary of transition metallic sulfides and their properties of batteries.
Figure 12 demonstrates the position of the aforementioned non-metals and transition metals in a periodic table. It could be observed that the non-metallic elements are in the same main group or adjacent to the same period as sulfur, which possess a similar outermost electron configuration for facilitating the formation of covalent structures. The transition metallic elements are also in close proximity to each other, concentrating between the third sub-group and the eighth group. These elements all have multiple valences and can combine with sulfur to form a variety of metal sulfides. This pattern, combined with the periodic table, can help us target more suitable sulfides for advanced cathode materials in Li–S batteries.

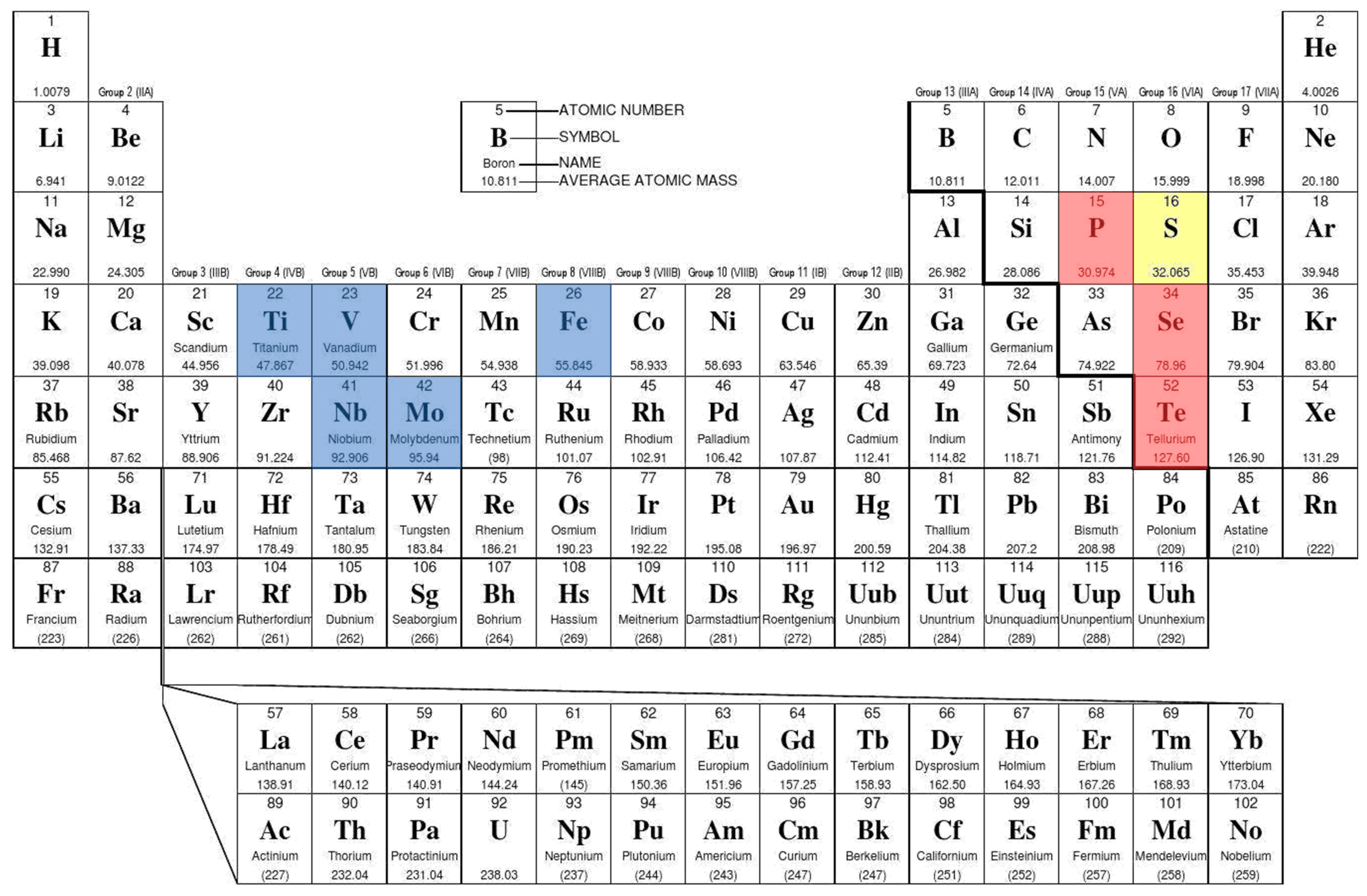

Figure 12. A typical periodic table and the non-metals (red color) and transition metals (blue color) are mentioned in Section 2.2.2 and Section 2.2.3.
Whether those organic sulfur polymers or these small molecular sulfur or sulfide compounds all possess excellent electrochemical stabilities with mainly single pair of charging/discharging plateaus owing to the lack of soluble sulfur species in redox processes, they depict a valuable application prospect for practical Li–S batteries. The relatively lower discharge voltage and sulfur content of simple C/S composites seriously affect the actual energy densities. Herein, several schemes are proposed to address these issues: 1. reasonable design of novel carrier structures for loading more sulfur; 2. construction of free-standing cathodes to eliminate the encumbrance of current collectors and binders; 3. adoption of lean electrolytes and thin lithium anodes; 4. combination of sulfur subjects with redox mediators to accelerate the kinetics for better rate performances. Based on these suggestions, any other approaches being constantly investigated may advance the development of Li–S batteries to varying degrees.
