1. Development

The 9K111 Fagot was developed by the Tula Machinery Design Bureau (Tula KBP) and development began in 1962 with the aim of producing the next generation of SACLOS ATGMs for use in both the man portable role and the tank destroyer role. The 9K111 Fagot was developed alongside the 9M113 Konkurs; both missiles use similar technology, only differing in size, and can use the same launchers. The missile entered service in 1970.

2. History

The anti-tank platoon of a Soviet BTR equipped motor rifle battalion had two (sometimes three)^[1] ATGM squads, each with two 9K111 Fagot teams. The team consisted of three men; the gunner carries the 9P135 launcher and tripod as a back pack, and the other two men each carry two launch tubes. The men also carry assault rifles, but do not carry an RPG, because unlike the earlier missiles there is only a small deadzone within which the missile cannot engage the target. Besides the four missiles carried by each team, each squad would normally have an extra eight missiles carried in their transport, usually a BTR. It can also be deployed from the BMP-1P, BMD-1P, BTR-D and UAZ-469.

North Korea was said to have acquired a number of the systems during the late 1980s until the 2000s from the USSR. These were subsequently reverse-engineered under the designation Bulsae-2.^[2] It was advertised under designation AT-4MLB by North Korean proxy company GLOCOM, in brochure it was stated that it is controlled by laser beam guidance method.^[3][4] Its use was first reported in 2014 in the ranks of the Izz ad-Din al-Qassam Brigades and the Al-Nasser Salah al-Deen Brigades.^[5] It was reported in 2014 on July 2nd that Hamas used Bulsae-2 to destroy Merkava tank near Gaza Strip on Eid al Fıtr.^[6][7]

3. Description

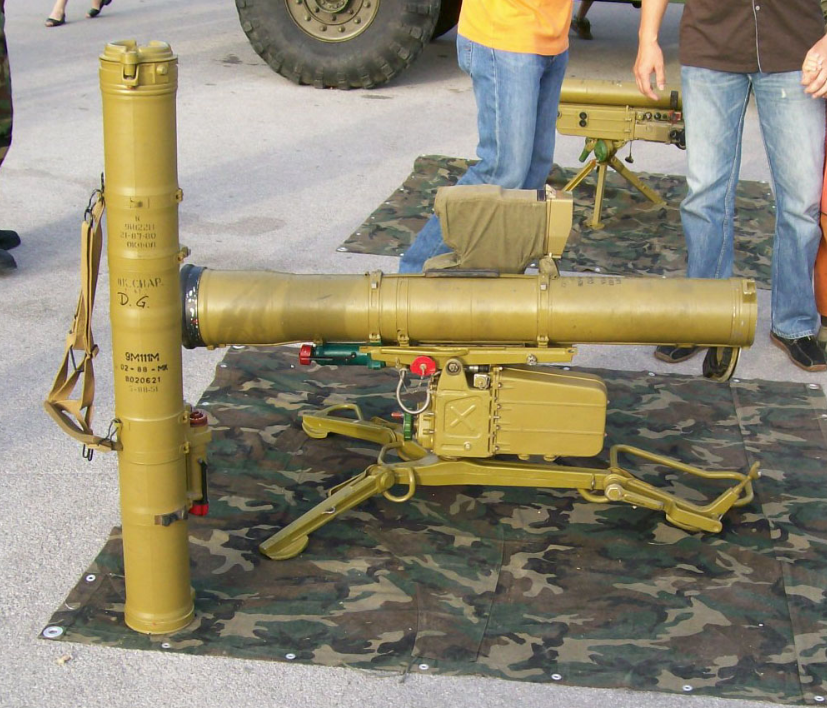

9K113 Konkurs missile system (launcher and missile) and a 9M111M Faktoriya missile in launch tube (standing). https://handwiki.org/wiki/index.php?curid=1946534

The missile is stored and carried in a container/launch tube. It is fired from a 9P135 launcher post, a simple tripod. A 9S451 guidance box is fitted to the tripod with the missile sitting just above. The 9Sh119 sight is fitted to the left side (from the gunner's POV). The complete launcher system weighs 22.5 kg (50 lb). The gunner lays prone while firing. The system can engage moving targets travelling at less than 60 km/h (37 mph). The launcher post can traverse through 360 degrees horizontally, and +/− 20 degrees in elevation. The sight has a magnification of 10x and a 5 degree field of view. Up to three missiles a minute can be fired from a launcher post.

The system uses a gas generator to push the missile out of the launch tube, which exits from the rear of the launch tube in a manner similar to a recoilless rifle. The missile leaves the launch tube at 80 m/s (180 mph; 290 km/h), and is then quickly accelerated to 186 m/s (420 mph; 670 km/h) by its solid fuel motor. This initial high speed reduces the missile's deadzone, since it can be launched directly at the target, rather than in an upward arc.

The launcher tracks the position of an incandescent infrared bulb on the back of the missile relative to the target and transmits appropriate commands to the missile via a thin wire that trails behind the missile. The SACLOS guidance system has many benefits over MCLOS, with the accuracy of the system stated as 90% in some sources, though its performance is probably comparable to the TOW or the later SACLOS versions of the 9K11 Malyutka.

4. Models

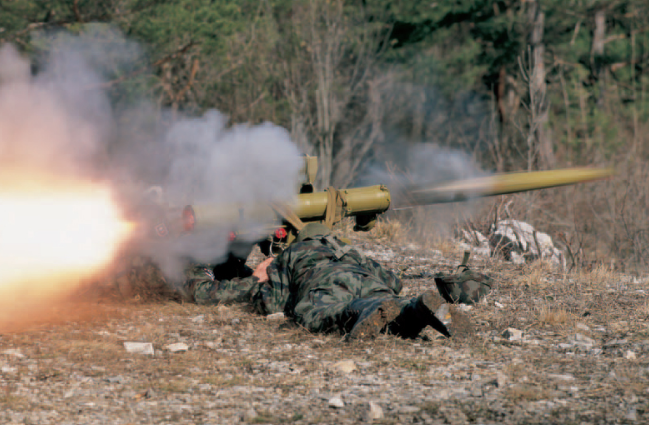

Slovenian army soldiers launching a Fagot. https://handwiki.org/wiki/index.php?curid=1780280

4.1. Missile

• 9M111 Fagot (NATO: AT-4 Spigot and AT-4A Spigot A) Entered service in 1970. Maximum range 2,000 m (6,600 ft; 1.2 mi), minimum 70 m (230 ft). Warhead 400 mm versus RHA or 200 mm towards armour inclined at 60°.^[8]
• 9M111-2 Fagot (NATO: AT-4B Spigot B) Slightly improved version.
• 9M111M Faktoriya/Faktoria^[9] (Trading post) or Fagot-M (NATO: AT-4C Spigot C) Improved motor, longer guidance wire. Maximum range 2,500 m (8,200 ft; 1.6 mi), minimum 75 m (246 ft). Improved single HEAT warhead; penetration 400 mm versus RHA or 230 mm towards armour inclined at 60°^[8][10][11] (some publications claimed 9M111M to have tandem HEAT warhead).

4.2. Launcher

• 9P135 22.5 kg (50 lb). Can only fire the 9M111 Fagot series.
• 9P135M Can fire the 9M111 Fagot (NATO: AT-4 Spigot) series as well as the 9M113 Konkurs (NATO: AT-5 Spandrel) series missiles.
• 9P135M1 Updated version of the 9P135.
• 9P135M2 Updated version of the 9P135.
• 9P135M3 Deployed in the early 1990s. Adds 13 kg (29 lb) TPVP thermal imaging night sight – range 2,500 m (8,200 ft; 1.6 mi) at night.
• 9S451M2 A launcher with a night sight featuring an anti-dazzle system has been developed.

5. Operators

Map with 9K111 operators in blue and former operators in red. https://handwiki.org/wiki/index.php?curid=1691992

5.1. Current Operators

• Afghanistan – 100
• Algeria – 2040 delivered between 1995-1996 for BMP-2 IFV.^[13]
• Angola – 100
• Armenia^[14]
• Azerbaijan
• Bosnia and Herzegovina – 52
• Belarus – 500
• Bulgaria – 222
• Croatia – 119
• Cuba – 100
• Czech Republic – 50
• Ethiopia – 50
• Finland – Several hundred 9P135M-1 launchers (withdrawn from service) and AT-4B as well as AT-5A missiles, known as PstOhj 82 and PstOhj 82M respectively.
• Georgia^[15]
• Greece – 262 (acquired from former East German stocks)
• Hamas - Known to use Bulsae-2s^[16][17]
• Hungary – 50
• Islamic State of Iraq and Levant – Unknown number captured^[18]
• India – 100
• Iran
• Iraq – used by Iraqi Kurdistan
• Kazakhstan - 200 in 2010^[19]
• Kuwait – 100
• Libya – 100
• Moldova – used on BMP-1
• Mozambique – 10
• North Korea – Unknown, reversed engineered under designation of Bulsae-2^[20]
• Romania – acquired in the 1980s
• Russia – 1,000. 100 more systems delivered in August 2019 with a thermal camera.^[21][22]
• Polisario front^[23]
• Serbia – 250
•  Slovakia – 50
• Free Syrian Army and other rebel groups – large numbers^[9]
• Syria^[24] – 100
• Ukraine – 800
• Yemen – 100
• Vietnam

5.2. Former Operators

• Template:TCH – all transferred to both successors after Dissolution of Czechoslovakia.
• East Germany – Passed on to Germany after the German Reunification.
• Germany – all retired soon after German Reunification.
• Poland – withdrawn and stored since early 2010s.^[25]
• Slovenia – replaced by Spike missile.
• Soviet Union – passed to successor states.
