1. Molecular Characteristics of Galectin-16 Gene and Recombinant Protein
The
LGALS16 gene structure and molecular details were described by Than and co-authors
[1].
LGALS16 (4735 bp) is located on chromosomal band 19q13.2, spans from bases 39,655,913 to 39,660,647, and contains 4 exons (
Figure 1a,b).
LGALS16 is found only in primates and is part of the chromosome 19 gene cluster containing four protein-coding genes (
LGALS10,
LGALS13,
LGALS14,
LGALS16)
[1][2][3][4]. The diversification and evolutionary origin of this cluster, including
LGALS16, is thought to be related to placenta development and mediated by transposable long interspersed nuclear elements (LINEs), which are commonly found at the boundaries of large inversions and gene duplication units
[1][5][6]. The relevant rearrangements and subsequent gains and losses of duplicated genes and pseudogenes are proposed to have enabled anthropoids to sustain highly invasive placentation and placental phenotypes, such as longer gestation for larger offspring and an increased body to brain size ratio
[1].
![](/media/common/202206/mceclip0-629a6d7f22193.png)

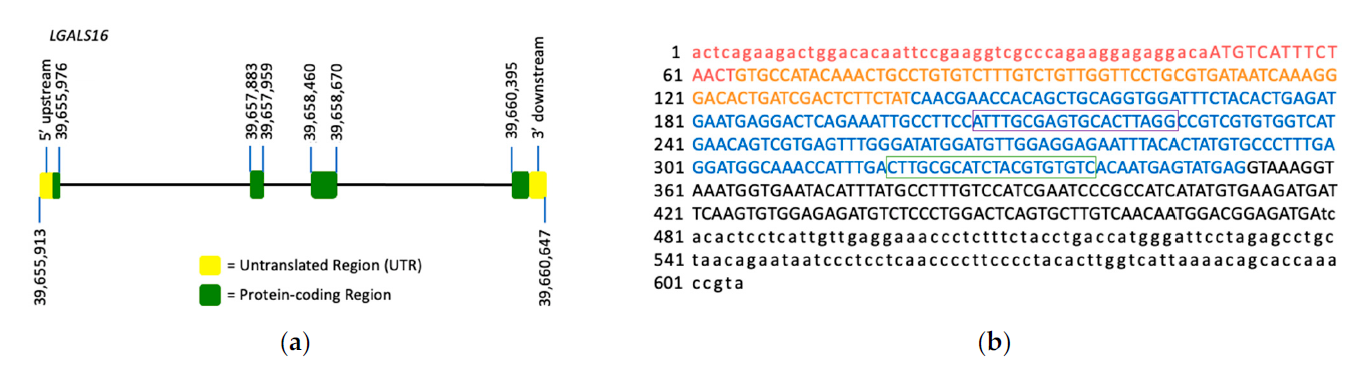

Figure 1. LGALS16 gene structure and the mRNA sequence. (a) LGALS16 (4,735 bp) is located on chromosomal band 19q13.2 and contains 4 exons (ENSG00000249861). (b) NCBI reference sequence of LGASL16 mRNA (NM_001190441.3). Each exon is highlighted with red, orange, blue, and black representing exons 1, 2, 3, and 4, respectively. The protein coding sequence (CDS) is indicated in capitals while UTRs in small characters. The oligonucleotide sequences for PCR amplification are boxed.
To the best of the knowledge, no one are available on native galectin-16 at the protein level whereas recombinant protein has been produced and tested. The crystal structure of recombinant galectin-16 and its mutants was solved by Si and co-authors
[7]. Recombinant galectin-16 is a monomeric protein, which is composed of 142 amino acids and has a typical galectin structure of the CRD β-sandwich with two sheets formed by six β-strands on the concave side (S1–S6) and five β-strands on the convex side (F1–F5) (
Figure 2). This group also showed that galectin-16 lacks lactose-binding ability unless arginine (Arg55) is replaced with asparagine in S4 β-strand. In comparison, an earlier one was showed that recombinant galectin-16 and two other human galectins (galectin-13 and galectin-14) can bind lactose–agarose beads and are efficiently and competitively eluted by lactose
[1]. More insights into this discrepancy are required considering multiple interfering factors, mutations/replacements of amino acids within the CRD, and different designs. Regardless, both glycan-dependent and glycan-independent interactions might be essential for galectin-16 similar to other galectins
[8].
Figure 2. Protein sequence and structure of recombinant galectin-16. (
a) The 142 amino acid sequence is 16.6 kDa for the galectin-16 protein. Each color corresponds to the exon from which the amino acids were encoded with red, orange, blue, and black representing exons 1, 2, 3, and 4, respectively. The anti-parallel β-sheets of F-face (F1–F5) and S-face (S1–S6) strands as well as a short α-helix are showed. (
b) The crystal structure was extracted from Protein Data Bank (available online:
rcsb.org, accessed on 6 September 2021), PDB ID: 6LJP.
2. Expression Patterns and Functions of LGALS16 in Cells and Tissues
Experimental ones was focusing on
LGALS16 are limited and an essential source of relevant information about this gene is Gene Expression Omnibus (GEO), a data repository for microarray and RNA-sequencing data
[9]. Overall, 287 datasets are available on GEO (November 2021 search) reporting
LGALS16 expression in 52 types of tissues and various cell lines based on the following platforms: Affymetrix Human Genome (
n = 27), Affymetrix Human Gene (
n = 151), Agilent (
n = 31), Human Unigene (
n = 1), Illumina Human (
n = 82), MCI Human (
n = 1), NuGO (
n = 1), and Sentrix Human (
n = 15). Quantification of differences in
LGALS16 expression between different platforms is challenging. However, evaluation of gene expression values within the same GEO datasets demonstrates that
LGALS16 can be classified as a gene with relatively low expression in comparison with
LGALS1 (a widely expressed galectin with a low tissue specificity) and
ACTB (a common housekeeping gene). Indeed, regardless of the platform, average GEO percentile rank of expression for
LGALS16 measured with different arrays ranged 4–32% on a scale of 1–100% while the range was 63–100% for
LGALS1 and 94–100% for
ACTB. Available GEO profiles do not contain relevant datasets with
LGALS16 for placenta for comparison, however, the Human Protein Atlas (HPA) reports tissue-specific overexpression of
LGALS16 in placenta followed by brain tissues and retina (
Figure 3a). The biological meaning and reasons of overexpression of
LGALS16 in these diverse tissues is unknown and requires further investigations in the context of developmental biology. For instance, the complex mechanisms of the placenta–brain axis of cell development
[10] could be addressed in terms of the unique association of
LGALS16 with these tissues.
Figure 3. The normalized expression of LGALS16 mRNA in human tissues and cells from HPA datasets. (a) LGALS16-positive cases out of 55 tissue types; (b) LGALS16-positive cases out of 69 cell lines. The data were retrieved on 28 November 2021.
To develop experimental models for learning
LGALS16 functions and regulation, it examined the gene expression in BeWo cells and an additional placental cell line JEG-3 in the context of trophoblastic differentiation. The expression of
LGALS16 mRNA was significantly increased in both cell lines after 36 h (JEG-3 cells) and 48 h (BeWo cells) treatment with a potent cell-permeable and metabolically stable activator of cAMP-dependent protein kinase 8-Br-cAMP (250 μM), which coincided with upregulation of
CGB3/5, genes encoding chorionic gonadotropin subunits 3 and 5 (
Figure 4). As chorionic gonadotropin is one of the biomarkers of placenta and trophoblastic differentiation, it was suggested that classifying
LGALS16 to the same category of biological molecules. Others were also reported significant upregulation of
LGALS16 in association with processes of cellular differentiation, even if the basal levels were relatively low. Thus, treatment of BeWo cells with forskolin, an inducer of cyclic adenosine 3′,5′-monophosphate (cAMP), stimulated trophoblastic differentiation and simultaneous
LGALS16 overexpression
[2]. An interesting example of
LGALS16 upregulation was reported in a model of intestinal differentiation of Caco-2 cells induced by a combined treatment with dexamethasone and p44/42 MAPK inhibitor PD98059
[11]. Therefore,
LGALS16 may deserve further attention as a factor associated with processes of cellular differentiation and tissue development.
Figure 4. LGALS16 expression in human placental choriocarcinoma cell lines, BeWo and JEG-3. Cells were treated with 8-Br-cAMP (250 μM) for different periods of time to induce syncytiotrophoblast differentiation. (a) BeWo cells (n = 4); (b) JEG-3 cells (n = 3). Agarose gels on the left confirm the expected size of PCR amplicons. Bar graphs show the fold changes in the expression of LGALS16 and CGB3/5 genes obtained by qPCR, which were quantified by the Livak method (2−ΔΔCT) using ACTB as a reference gene. Data are presented as means ± SD; means with the same letter are not significantly different from each other (Tukey’s post hoc HSD test, p > 0.05).
An important function of galectin-16 as well as placental galectin-13 and galectin-14 is the ability to induce apoptosis of CD3+ T cells, which was detected by flow cytometry of cells double-stained with annexin-V-FITC and propidium iodide
[1]. Considering the high expression of galectin-16 in differentiated trophoblasts, the apoptotic mechanism might contribute to the immune tolerance at the maternal-fetal interface reducing the danger of maternal immune attacks on the fetus and enabling anthropoid primates to evolve long gestation periods while retaining highly invasive placentation. The details of this regulation are obscure since there are no studies addressing the secretion of galectin-16 from trophoblasts. However, intracellular EGFP-tagged recombinant galectin-16 was readily localized in the nucleus and cytoplasm of transfected cells including, HeLa, 293T, HCT-116, SMMC-7721 and Jurkat cells
[7]. In fact, the nuclear staining was much stronger than in the cytoplasm suggesting that the transport of galectin-16 into the nucleus might play a role in regulating intranuclear processes. These authors showed that the binding partner of galectin-16 is c-Rel, a member of the NF-κB family of transcription factors (TFs), which is involved in the regulation of multiple processes such as apoptosis, inflammation, immune responses, tumorigenesis, cell growth and differentiation
[7][12]. All NF-κB family members, including c-Rel, have a conserved N-terminal DNA-binding/dimerization domain, known as the Rel homology domain (RHD)
[13]. Recombinant galectin-16 strongly binds to the RHD which might inhibit c-Rel and prevent activation of anti-apoptotic genes, such as Bcl-2 and Bcl-xL, promoting T-cell apoptosis during pregnancy
[7]. An additional aspect of
LGALS16 functions may contribute to the rescue of glucose restriction-induced cell death in a model of a whole genome gain-of-function CRISPR activation using human mitochondrial disease complex I mutant cells
[14].
3. Transcriptional and Post-Transcriptional Regulation of LGALS16
3.1. Transcription Factors
Multiple TFs can be involved in the regulation of
LGALS16 expression based on the presence of specific response elements in the promoter regions of the gene. Original analysis of retrotransposons within the 10 kb 5′ UTR by Than and co-authors demonstrated that the
LGALS16 promoter has binding sites for GATA2, TEF5, and ESRRG, which are also involved in the regulation of important trophoblast-specific genes such as
ERVWE1 (marker of cell fusion),
CGA, and
CGB3 (markers of chorionic gonadotropin production, a hormone released by differentiated trophoblasts to maintain pregnancy)
[2]. The contribution of these TFs in regulating
LGALS16 expression was claimed to vary, especially with decreased regulation from GATA2, due to the specific layout and properties of transposable elements (L1PA6 and L1PREC2) within the 5′UTR of this gene as compared to two other placental genes,
LGALS13 and
LGALS14. Additional shared TFs for the placental galectin gene cluster include TFAP2A and GCM1, which have binding sites within ALU transposable elements next to L1PREC2. Experimental evidence of this regulation was confirmed in a model of forskolin-induced differentiation of primary trophoblasts, which revealed time-dependent upregulation of
LGALS16 in parallel with the expression of
TEAD3,
ESRRG,
GCM1, and
ERVWE1 [2]. It is interesting to note that it was not revealed the effect of 5-azacytidin on
LGALS16 expression in BeWo trophoblast cells as compared to other upregulated placental galectins, which suggested a minor role of DNA methylation in the context of
LGALS16 regulation.
To enrich this analysis, it used human choriocarcinoma cell line JEG-3 and Qiagen RT
2 Profiler™ PCR Array to test changes in the mRNA transcript levels of 84 TFs during trophoblastic differentiation induced by 8-Br-cAMP. Overall, 60 TFs were upregulated in this assay including three top genes encoding Jun B proto-oncogene (
JUNB), SMAD family member 9 (
SMAD9), and activating transcription factor 3 (
ATF3) (
Figure 5). Since all of these three genes are expressed in placenta and brain tissues
[15][16][17][18][19][20], which are
LGALS16-positive, this observation provides a new insight into possible transcriptional regulation of this gene. JUNB and ATF3 belong to a family of TFs with a basic leucine zipper DNA binding domain, with JUNB preferentially binding to the 12-
O-tetradecanoylphorbol-13-acetate response element sequence and ATF3 binding to the cAMP response element in promoters with the consensus sequence, TGACGTCA
[21]. They are subunits of activating protein 1 (AP-1) TFs, which function as homodimers or heterodimers in association with other members of JUN, FOS, ATF, and MAF protein families
[21]. JUNB was reported to be directly involved in processes of trophoblastic cell syncytialization
[22][23], while upregulation of ATF3 was associated with cellular stress responses
[18][24][25], decidualization
[24], and preeclampsia
[26]. In comparison, SMAD9 is activated by bone morphogenic proteins (BMPs), a subfamily of the transforming growth factor-β (TGF-β) family
[17][27]. Although some BMPs such as BMP-4 can be regulated in a downstream manner from the cAMP pathway
[28], the connection between SMAD9 and cAMP is still unclear. GATA2 was found to be slightly upregulated, which may suggest that the enrichment of L1PREC2 in the 5′UTR still plays a role in regulating
LGALS16 despite the insertion of L1PA6
[2]. Interestingly, CREB1, a major regulator downstream of the cAMP pathway was not upregulated in this RT-qPCR array analysis suggesting that post-translational modification and transcriptional activation might be essential for this TF.
Figure 5. Changes in the expression of genes encoding TFs in JEG-3 cells. Cells were treated 8−Br−cAMP (250 μM) for 36 h to induce trophoblastic differentiation and Qiagen RT2 Profiler™ PCR Array kit was used to assess fold changes in gene expression between differentiated and control cells presented as a heatmap.
It further analyzed the 2 kb region upstream from the transcription start site of LGALS16 by extracting the sequence from Ensembl (Release 104) and performing in silico analysis of TF-binding sites using PROMO virtual laboratory with a 0% dissimilarity index. Putative binding sites for seventeen TFs were identified, which may represent specific response elements, enhancers, or silencers (Figure 6). To reveal common patterns in the expression of the predicted TFs, it was watched for their protein levels in two LGALS16-positive tissues, the cerebellum and placenta, using the expression scores (high, medium, low) available at HPA. Within this set of data, two TFs (CEBPβ and TFII-I) were characterized by high protein expression levels, seven TFs had variable levels (GR, NFAT1, p53, STAT4, TCF-4E, TFIID, and YY1), four TFs (ERα, FOXP3, Pax5, and PR A) showed low expression, and no HPA data were available for GRα, GRβ, PR B, and XBP-1 in these tissues (Figure 7). Thus, the role of the predicted TFs in tissue-specific transcriptional regulation of LGALS16 can be different and remains to be studied.
Figure 6. In silico screening of putative transcription factor binding sites for the LGALS16 gene. There are multiple binding sites for 17 transcription factors within the 2 kb promoter region upstream the transcription start site of LGALS16 gene as detected by PROMO.
Figure 7. Protein expression patterns of predicted transcription factors for LGALS16 regulation in the cerebellum and placenta.
3.2. miRNAs
Post-transcriptional control of mRNA availability for protein synthesis depends on miRNAs which can hybridize to complementary sequences in protein-coding mRNAs at the 3′ untranslated region and either block protein translation or induce mRNA degradation
[29]. Multiple miRNAs were predicted to target the
LGALS16 transcript by bioinformatics tools, such as Diana Tools
[30], miRabel
[31], miRDB
[32], and TargetScan
[33], which use different algorithms and methods. A robust application of these tools using default options shows that five miRNAs (hsa-miR-3155a, hsa-miR-3155b, hsa-miR-4689, hsa-miR-4778-5p, hsa-miR-6783-5p) are predicted by all four of these online platforms (
Figure 8). These miRNAs among others can be considered as perspective candidates for regulating the stability and/or translational potential of the
LGALS16 transcripts, especially in relevant tissues such as placenta and brain. Indeed, a significant decrease in hsa-miR-4778-5p expression during gestation in exosomes from maternal blood was associated with preterm birth pregnancies
[34]. Expression of hsa-miR-3155a was significantly upregulated in the anterior cingulate cortex of deceased patients with major depressive disorder
[35]. In comparison, the expression of hsa-miR-4689 was downregulated in exosomes isolated from the plasma of patients with mesial temporal lobe epilepsy with hippocampal sclerosis compared to controls
[36]. Differential expression of exosomal hsa-miR-4689 and hsa-miR-6783-5p was reported in patients with intracranial aneurysms
[37]. Human miRNA tissue atlas confirms expression of hsa-miR-3155a, hsa-miR-3155b, hsa-miR-4689, and hsa-miR-4778-5p in brain among other tissues at variable levels
[38]. Unraveling possible mechanisms of miRNA-mediated regulation of galectin-16 in these tissues awaits future research.
Figure 8. Putative miRNAs targeting LGALS16 mRNA transcript. Five miRNAs are unanimously predicted by four different online platforms such as Diana Tools, miRabel, miRDB, and TargetScan.
3.3. LGALS16 and Human Diseases
Dysregulation of the placenta-specific gene cluster containing
LGALS16 is associated with a pregnancy complication known as preeclampsia, which can be highly fatal for both the mother and fetus. As such,
LGALS16 together with
LGALS13 and
LGALS14 were confirmed to satisfy the criteria of placenta enriched genes in a comprehensive one of RNA-Seq datasets from 302 placental biopsies
[39]. However, although increasing expression of
LGALS13,
LGALS14, and
LGALS16 was observed during forskolin-induced syncytialization and differentiation of primary trophoblasts and BeWo cells in culture, only
LGALS13 and
LGALS14 were downregulated in preeclampsia with no significant changes of
LGALS16 [2]. Remarkably,
LGALS16 does not show sex-biased expression depending on the chromosomal sex of the fetus while
LGALS13 and
LGALS14 are notably elevated in fetal male placentas based on the chorionic villus transcriptome
[40]. These aspects of galectin network regulation remain unclear in the context of placental disorders and development. In addition,
LGALS16 may be an important molecule in the context of brain diseases as it follows from primary bioinformatics analyses
[41][42][43][44].
This entry is adapted from the peer-reviewed paper 10.3390/biom11121909
