Carbon filaments following the “tip-growth” mechanism are the most common type of carbon deposition observed in the catalytic decomposition of methane (CDM) process, first defined by Reshetenko and his workmates [36]. According to their opinions, the “tip-growth” mechanism referred to one carbon filament growing from one catalyst particle, while the latter is always located at the top of the filament. Take the Ni-based catalyst as an example in which the carbon filament grows from the carbon core on the metal-support side. With the continuous stacking of graphite layers, the Ni particle is separated from the support and remains at the tip of the carbon wire to ensure continuous contact with methane. The following section discusses experimental results on Ni, Co, and Fe-based catalysts that conform to this growth mechanism and summarizes the influencing factors for the carbon filament growth.











Zhang et al. and Shen et al. [37,38] captured carbon filament images on the deactivated Ni-based catalysts by SEM/TEM and proved their catalyst samples followed the “tip-growth” mechanism. Bright spots at the tip of these cross-growing carbon filaments were deactivated Ni metal particles due to carbon encapsulation, proved by EDS element identification. Takenaka et al. [39,40] observed similar bright metal tips in carbon filaments from CDM experiments using Co and Fe-based catalysts. They pointed out that the “tip-growth” mechanism would extend the catalyst lifetime and increase the hydrogen yield of fresh samples, but catalysts would lose their activity after the regeneration cycle. Although metal particles fell back to the supporting phase after the carbon removal process, it still led to irreversible damage to the catalyst structure.

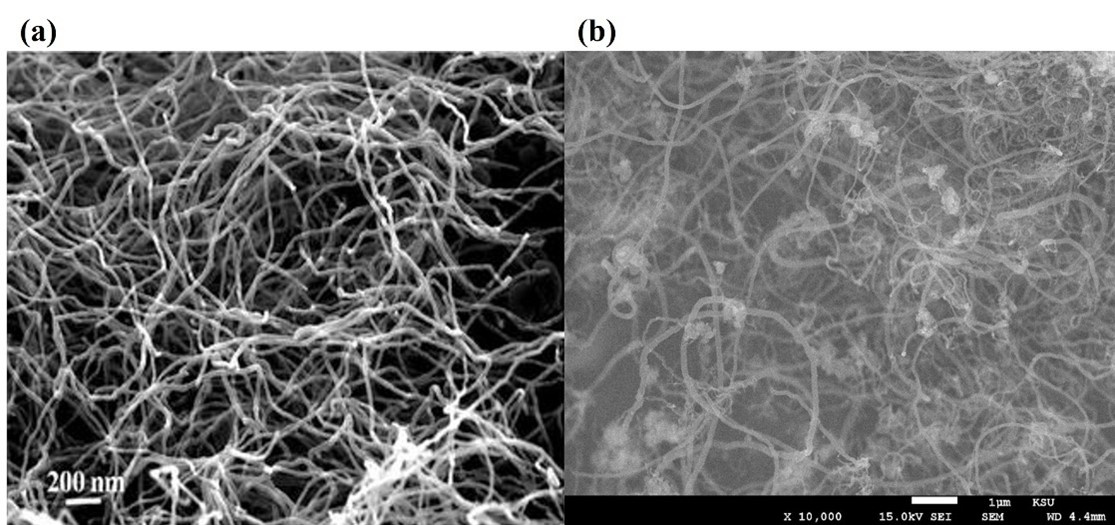

Figure 11. (a) FESEM image of carbon fibers deposited over Ni/SiO₂ [41]; (b) FESEM image of carbon fibers formed over Fe/Al₂O₃ [42]. Reproduced with permission from ref. 41 & 42. Copyright 2014 & 2016, Elsevier.



Catalysts used for methane cracking usually consist of active metals and support materials. The active metal phase has more intuitive effects on the outcome because its type and loading ratio determines the number of active sites available. From CDM experiments conducted at 550 °C and atmospheric pressure, Avdeeva et al. [43] observed carbon filaments with Ni metal particles at the tip from highly loaded Ni/Al₂O₃ catalysts by TEM. Among them, the 90% Ni/Al₂O₃ sample obtained the highest carbon yield, equal to 145 gC/gNi. Therefore, they believed catalysts with a higher metal ratio provided more active sites in the reaction, which had better performance. However, the supporting phase is indispensable because the pure Ni particles without supports were quickly encapsulated by carbons and deactivated. Reshetenko and his co-workers also support these results [36,44]. With the same catalyst and operation conditions, they produced 111.1 gC/gNi carbon filaments that followed the “tip-growth” mechanism. As for Ni/Al₂O₃ with a low metal proportion, Li et al. [45] found that the surface particle distribution and activity can be improved by changing the preparation method. Based on the experimental results, the 12% Ni/Al₂O₃ sample produced 132 gC/gNi carbon depositions at 500 °C in the fixed bed reactor.

Except for different metal-loaded ratios, the supporting materials also affect the carbon filament growth through interphase interaction. Some experimental results revealed that Al₂O₃ is not the most suitable supporting material for Ni-based catalysts because the NiAl₂O₄ compound may form at high temperatures. This solid solution is difficult to reduce by hydrogen and limits the number of active sites. By comparing the cracking performance of 12% Ni loaded on Al₂O₃ and SiO₂, Li et al. [45] pointed out that samples with SiO₂ support obtained higher carbon and hydrogen yield under the same operating conditions. When the metal proportions were reduced to 5%, defects from solid solutions became more obvious. Correspondingly, Ermakova et al. [46] extracted 340 gC/gNi carbons from a 90% Ni/SiO₂ catalyst sample in methane cracking experiments operated between 300–700 °C. Compared with Al₂O₃, SiO₂ supports can bring better stability to the catalyst, which extends the lifetime of samples nearly three times under the same conditions. After realizing the good compatibility of Ni and SiO₂, researchers represented by Takenaka [47,48] prepared Ni/SiO₂ catalysts with different loading ratios to find the sample with the best catalytic activity. At 500 °C and a 60 mL/min pure methane flow rate, a 40% Ni/SiO₂ catalyst showed the highest carbon yield (491 gC/gNi) and the longest lifetime (~70 h), which became the record at that time.

The CDM experiments on Co-based and Fe-based catalysts also produce carbon filaments conformed to the “tip-growth” mechanism. Avdeeva et al. [49] prepared 50–75 wt.% Co/Al₂O₃ samples and tested their catalytic activities between 475–600 °C. The optimal sample (75% Co-loaded) remained active for 15 h at 500 °C and produced 63 gC/gCo hollow carbon filaments. Although its yield was lower than Ni-based catalysts, more CNTs were observed in carbon by-products. These results are mostly consistent with Takenaka’s group [40]. They reported the performance of low-loaded Co catalysts in the CDM process between 500–800 °C and found the best sample produced 56.04 gC/gCo hollow carbon filaments. As for the supporting material in Co-based catalysts, Ashik and Daud [50] believed Al₂O₃ may be the most suitable. Under the same operating conditions, Co/SiO₂ and Co/MgO samples had evident agglomeration issues. From the TEM images, most of the particles were tens of times larger than expected, which significantly reduced the specific surface area and caused samples rapidly deactivated.

Due to the special reaction mechanism, Fe-based catalysts show methane cracking after the temperature exceeds the activation threshold. Zhou et al. [51] first tested the performance of high-loaded Fe/Al₂O₃ catalysts in the CDM process and found the best sample showed a stable conversion rate in 10 h. On this basis, Anis et al. [42] reported the catalytic activity of the 20% Fe/Al₂O₃ sample at 800 °C. Within the first two hours of cracking it maintained the methane conversion rate between 80–85%. However, excessive carbon depositions plugged the reactor and led to a high backup pressure, which stopped the reaction. The choice of supporting materials of Fe-based catalysts was mentioned by Ermakova et al. [52] under the same loading ratio and reaction conditions. Their results proved that the adaptability of ZrO₂, Al₂O₃, and TiO₂ with Fe was not as good as SiO₂. After optimization, the best Fe/SiO₂ sample produced about 45 gC/gFe, which was mainly composed of thin-wall carbon nanotubes.



Although most catalysts conform to the tip growth mechanism during the catalytic decomposition of methane (CDM) reaction, there are still some exceptions. When the interaction between phases is strong enough, the graphite layers stacking on the metal-support side fail to push the metal particle up. In this situation, the “base growth” mechanism, and carbon filaments are forced to grow from the metal-gas side [53]. Nevertheless, this mechanism results in the active sites on the surface quickly becoming covered by carbon deposits, thus reducing the effective lifetime of catalysts.















Figure 12. Schematic diagram of “base-growth” mechanism [53]. Reproduced with permission from ref.53. Copyright 2011, IntechOpen.



Most catalysts that follow the “base growth” mechanism are Co-based and produce hollow/solid seamless graphite cylinder carbon filaments. Frusteri et al. [54] verified this mechanism by methane cracking experiments on Co/Al₂O₃ samples with different loading ratios at 650 °C. Based on the carbon filament structure captured by SEM, they found that the growth mechanism on Co-based catalysts was closely related to the metal proportion. Carbon filaments on low-loaded Co samples (≤20%) were extended from the metal-gas side in multiple directions. By contrast, for high-loaded Co samples (≥40%), the growth of carbon filaments obeyed the “tip-growth” mechanism. G.I.Talinao et al. [55] further revealed the fundamental reasons for the growth mechanism change. After temperature-programmed reduction (TPR) analysis, a large amount of Co₃O₄ was detected on the high-loaded Co-based catalysts. This caused low metallic dispersion and weak phase interactions. On the samples with low Co loading, the content of Co₃O₄ was reduced, and more metallic cobalt particles were formed, which produced better dispersion of the active metal phase and stronger interactions [56].

Takenaka et al. [40] prepared 20% Co/Al₂O₃ samples by the impregnation method and captured the carbon filaments that followed the “base growth” mechanism in CDM reactions operated between 600–800 °C. They further designed comparative experiments to summarize the pros and cons of two carbon filament growth mechanisms. The activity of fresh and regenerated Co-based samples was compared with 20% Ni/Al₂O₃ catalysts prepared under the same conditions. Fresh sample results showed that the Ni-based sample with the “tip-growth” mechanism had several times more hydrogen than Co-based catalysts with a prolonged lifespan. However, after several air oxidative regeneration cycles, the Ni-based catalyst activity decreased significantly with the number of regenerations cycles. This was due to the destruction of the catalyst structure brought by the carbon oxidation and elimination process. Co-based samples that conform to the “base growth” mechanism avoided this problem since the carbon deposits were easily removed without damaged catalyst structures. Therefore, the “base growth” mechanism is more suitable for the large-scale CDM process, which allows catalysts to maintain a stable methane conversion rate through multiple regeneration cycles to achieve continued hydrogen generation [55].

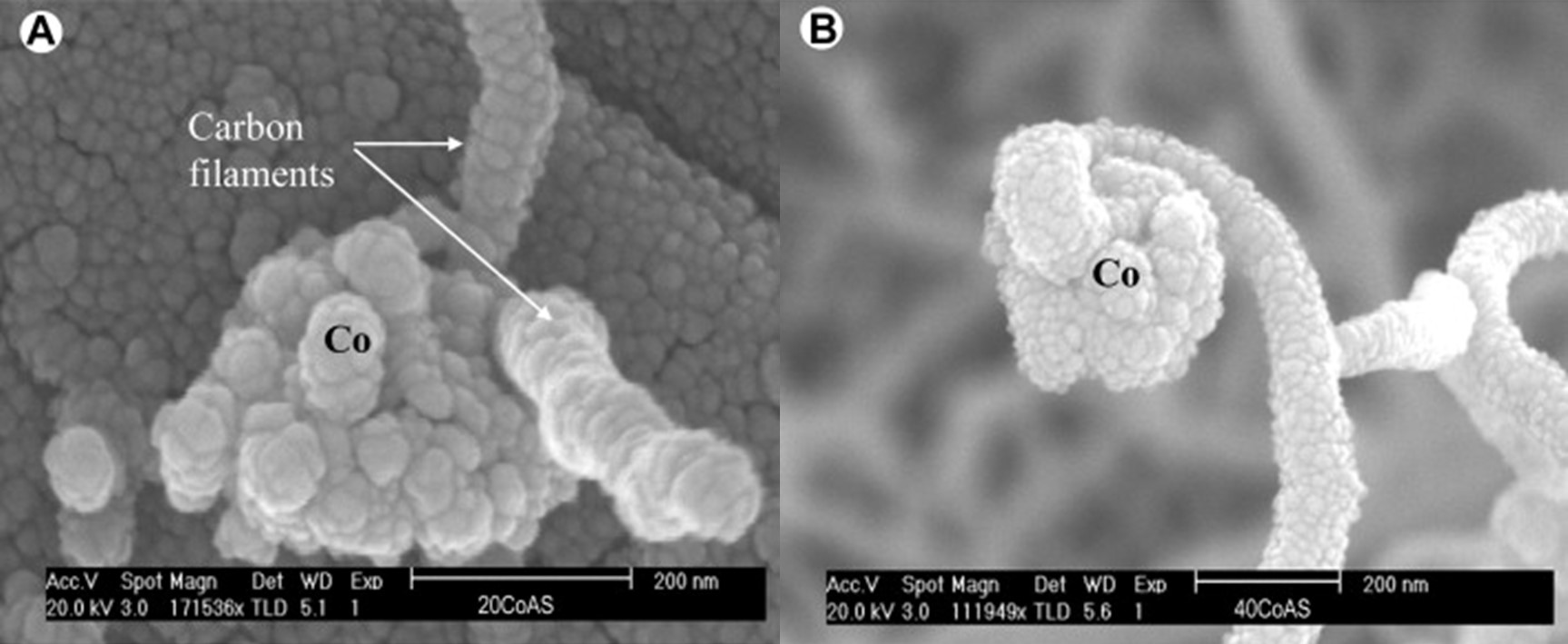

Figure 13. (a) Base growth mechanism for low-loaded Co-based catalyst; (b) Tip growth mechanism for high-loaded Co-based catalyst [54]. Reproduced with permission from ref.54. Copyright 2001, Elsevier.



Takenaka et al. [40] prepared 20% Co/Al₂O₃ samples by impregnation method and captured the carbon filaments that followed the “base growth” mechanism in CDM reactions operated between 600-800°C. They further designed comparative experiments to summarize the pros and cons of two carbon filament growth mechanisms. The activity of fresh and regenerated Co-based samples was compared with 20% Ni/Al₂O₃ catalysts prepared under the same conditions, respectively. Fresh samples’ results showed that the Ni-based one with the “tip-growth” mechanism obtained several times more hydrogen than that of Co-based catalyst with prolonged lifespan. However, after several air oxidative regeneration cycles, the Ni-based catalyst activity decreased significantly with the number of regenerations cycles. It is due to the destruction of the catalyst structure brought by the carbon oxidation and elimination process. Co-based samples that conform to the “base growth” mechanism avoid this problem since the carbon deposits were easily removed without damaged catalyst structures. Therefore, the “base growth” mechanism is more suitable for the large-scale CDM process, which allows catalysts to maintain a stable methane conversion rate through multiple regeneration cycles to achieve continued hydrogen generation [55].
