Rain is a natural process that attenuates the propagating signal at microwave and millimeter-wave frequencies. Therefore, it is necessary to mitigate rain attenuation to ensure the quality of microwave and millimeter-wave links. To this end, dynamic attenuation mitigation methods are implemented alongside attenuation prediction models that can predict the projected attenuation of the links. Studies on rain attenuation are used in geographically distributed locations to analyze and develop a rain attenuation model applicable over a wide frequency range, particularly radio frequencies over approximately 30 GHz for 5G and beyond network applications.
It is crucial to find a justification and insightful analysis to determine the variables that influence rain attenuation. Although rain is a crucial factor influencing rain attenuation, the link distance, frequency, and polarization play a significant role in the determination of rain attenuation. A brief review of more parameters for rain attenuation is presented here. In the literature, various researchers have found different rain attenuation factors for either terrestrial or slant links. In this regard, we compiled 17 parameters that can impact rain attenuation for microwave links using artificial or ML-based techniques [1].
The rain rate is an essential parameter for determining rain attenuation. In this section, different data collection techniques for rain attenuation are discussed.
A newly devised model should check the efficiency for its validity the confirmation. In most cases, the model developer uses the ITU-R DBSG3 rain attenuation database. In some cases, weather databases European Center for Medium-Range Weather Forecasts (ECMWF) or ECMWF re-analysis-15 (ERA-15) were also used as secondary sources of determining the rainfall rate. These secondary databases lack rain attenuation information on terrestrial and earth-space links for tropical regions. Consequently, most of the models developed in tropical countries are needed to create facilities to prepare the rain attenuation databases.
A simple method of determining the rain rate is to set up an experiment to deploy measuring equipment such as the use of a disdrometer, weather station, and rain gauges that measure the rain rate at lower integration times (⩽1 min intervals), which can be saved in a personal computer with the help of a dedicated data logger [2][3][4][5]. In some cases, the radar information of the rain cell was used to measure the rain rate. The problem with radar-based techniques is that massive investments are required to collect rain rate information if radar systems have not been deployed for other purposes [6][7].
The rain rate time series in a specific area is essential because it is used to calculate the attenuation in a fixed radio transceiver infrastructure [8]. The general procedure for collecting the rain rate time series is to collect the data by employing an experimental setup. Thus, the general approach is time-consuming because a minimum of one year of data should be collected over a particular area. Cost is also associated with this process. In addition to this experimental technique, a synthetic method can be used to calculate the time series using a mathematical approach. Table 1, summarizes the various types of synthetic time series assessment techniques.
To accurately determine the rain attenuation, it is necessary to consider the spatial distribution of the rainfall intensity. The rain rate cannot be measured everywhere using the rain rate collector, which significantly reduces the accuracy of the experimental setup. However, an intense spatial resolution rain rate is required for accurate estimation. There exist some synthetic techniques by which the undetermined rain rate can be estimated to solve the problem at a particular location.The inverse distance weighting (IDW) technique as per Equation (1) can be used to determine the rainfall rate at ungauged locations [9][10]:
where N is the number of rain gauges. The rain value wi depends on the location of di in the estimated position p is given by Equation (1), and wi is given by Equation (2):
The average rainfall rate was then determined from these estimated values, along with the rain gauge readings used in this analysis. Using Equation (1) the rain rate can be predicted up to 10–30 km. Unfortunately, the rainfall data available in the weather database ERA-40 provided by the ECMWF suffer from a low spatial resolution 1.125∘×1.125∘ latitude per longitude grid.
The spatial-temporal rainfall distribution mechanisms based on the top-to-bottom data analysis approaches are surveyed in [11]. This survey compared most techniques that predict high-resolution space-time rainfall using remote sensing, conventional spatial interpolation, atmospheric re-analysis of rainfall, and multi-source blending techniques, and discussed issues in integrating various merging algorithms. In the article, it was shown that the maximum spatial resolution is available by the Global Satellite Mapping of Precipitation Near Real-Time (GSMaP-NRT) dataset with a resolution of up to 0.01∘ with an update of once per hour, which is clearly higher than the ECMWF database. Table 2 presents an analysis of different high-resolution spatial rainfall estimation techniques.
Another technique for generating the rain rate is applying the local rain data to the MultiEXCELL model [12]. This model was used in [13] to generate synthetic rain rates. Transmitting and detecting specific differential phase-shifted signals through a dual-band radar system has been experimented with in [14]. As a result of this experiment, the authors noticed the scattering effects in the detected signals that arise due to the radar signals’ differential reflection. A corrector factor should be used for the reflected and differently reflected signals in order to eliminate the scattering effects. The statistical uncertainties of rainfall are then calculated by considering the propagation of the power-law relations.
Table 1. Estimation techniques of rain attenuation time series.
Ref. | Estimation Techniques |
---|---|
[15] | The proposed technique generates rain attenuation time series using storm speeds from 1 to 12 m/s in a two-layered rain structure model. Also, temperature, altitude, and height are used as per the geographic location. |
[16] | A(t)=a0⋅e2dAG/βa√⋅W(t)+dAG⋅va/βa⋅t1+dAG⋅a0∫t0e2dAG/βa√⋅W(s)+dAG⋅va/βa⋅sds where a0:0–0.5 dB, W(t): Wiener process, βa, va: gamma distribution parameters, dAG: Dynamic parameter β of the Maseng-Bakken model. |
[17] | It proposed an enhanced technique to generate rain attenuation time series where precise rain rates are not available at global scale using ITU-R model. The technique uses mean and standard deviation of rain rate either from NOAA [18] and ITU-R model [19] and the output of Gaussian noise through a low-pass filter (LPF: k/p+β, cut-off frequency fc: 0.2 MHz) into a non-linear memoryless device, where Aoffset is the calibration factor, Aoffset:exp(m+σQ−1(P0/100)) and Q: zero-mean, unit variance Gaussian probability density function. |
[20] | A(x0)=kA∫LA0RαA(x0+Δx0,ξ)dξ+kB∫LBLARαB(x0,ξ)dξ where LA and LB are the radio path lengths, Δx0 is the shift due to the presence of layer B, x0=v⋅t, and v is the average storm speed (typically 10 m/s). |
[21] | A(t0)=1cosθ[∫d0+SAd0kAR(l)αAdl+∫d0+SA+SBd0+SAkB3.134αBR(l)αBdl], where θ:link elevation angle, (αA, kA), (αB, kB): power-law coefficients that converts the rain rate into specific attenuation for layers A and B, respectively, and R: rain rate along the link. |
[22] | A copula is a multivariate distribution function expressed by marginally uniform random unit interval variables and it can avoid dependence index like in log-normal distribution. The procedure is: ρ=sin(πτ2)→ zero mean Gaussian random variables correlated matrix→normal CDF→desired random variable→inverse CDF of the desired distribution. |
[23] | The procedure is: RG=e−β⋅|τ|→[βEMB,βgamma]→H(z)=1−e−2βTs√1−z−1e−βTs, where Ts: sampling time, and βEMB and βgamma are 12.3d−0.95×10−4 and 6.9d−0.6×10−4, respectively. |
[24] | The procedure is: ak=1N∑N−1j=0Mje−i2πNkj=I(Mj)→ak=hkI(cG)−−−−−−−√×ek→Mj=I−1(ak),[hk=0.5], where M(t): Gaussian process, ℑ and I−1 are direct and inverse Fourier transforms, respectively. |
[25] | Compute the stochastic differential equation: dA(t)=μ4da(μ2λA(t)−A2(t)+μ2).dt+daμ3λ−−−−√A(t)dW(t), where da=2βaS2aλμ3, where μ and γ are found by fitting to experimental first order statistics of rain attenuation, βa and Sa are the parameters of the diffusion coefficient of the M-B model. |
[26] | Compute:P(ti)=1−P0,i→zi=Tz(ri)→findMz(d)→GaussianPDF→ρj(τ)→Hi(z), where P0,i is the possibility of rain in the ith station, ri represents a nonlinear transformation Tz, and ρj is the temporal autocorrelation function of rain attenuation for ith link. |
Table 2. Highly spatial resolution rainfall estimation models.
Ref. | Technique or Resolution |
---|---|
[3] | Analyzed millimeter-wave and showed that the ITU-R predicted rainfall rate of region P is up to 0.01% of time (agrees → 99.99% of time and disagrees → 0.01% of time). |
[11] | This multi-source blending technique to estimate high-resolution space-time rainfall scales to develop and merge remote sensing, conventional spatial interpolation, atmospheric re-analysis of rainfall, and multi-source blending techniques. |
[27] | It presented gauged-based data re-analysis at a resolution of 0.5∘×0.5∘. |
[28] | In GSMaP-NRT, it analyzed the satellite, microwave-infrared, and near real time weather dataset to compare better predictability presented resolution about 0.01∘×0.01∘. |
[29] | ECMWF: 1.125∘×1.125∘ |
[30] | It proposed the spatial and the temporal correlation functions to determine rainfall rate. |
Table 3. Techniques to calculate effective path length (EPL) or path length coefficient factor (PCF).
Ref. | EPL or PCF | Parameter Settings | Remarks |
---|---|---|---|
[2] | r=1/{1+0.03(100P)βlm}⧫ | Method: Practical measurement; Frequency band: 7–38 GHz; Path length: 58 km; and rain rates were collected over 1-min time interval. | The correction factor depends on β; link length; and p% of rain |
[31] | rrad(t)=Arad,d(t)/γRd | Method: Simulation Frequency: 22 and 38 GHz Path lengths: 2, 5, 10 and 20 km | The correction factor only depends on the Arad,d(t), and γR(t). |
[32] | r=11+L2636R(P)−6.2 | Method: Practical measurement Rain rate: 5-min point at 11 GHz frequency; 42.5 km long radio link with R>10mm/h | The correction factor depends on the radio link length and rain rate. |
[33] | r=1.08L−0.5108 (7 GHz for 0.01% of the time) |
Method: Practical virtual link; Link length: 1–10 km; Time exceedance: 0.01%; Frequency 7 GHz | The reduction function depends only on the total path length. Estimation: Exponential curve fitting |
[34] | deff=11+d/d0⋅d | Method: Practical setup; Site: S. Paulo, Brazil; Season: Dry season; Frequency: 15 GHz (4 links) and 18 GHz (2 links) with vertical and horizontal polarizations; Path lengths: 7.5–43 km; Duration: 1–2 year | The correction factor depends only on the rain rate exceedance of p% of the time. Estimation: exponential curve fitting |
[35] | r(R0.01,L)=L×(−R0.011+ζ(L)×R0.01)▲ | ITU-R database; Site: 8 countries; Path lengths: 1.3–58 km; Frequency: 11.5–39 GHz; Rain rates (0.1%): 18–105mm/h | The PCF depends on rain rate exceedance %p of time and link length. Estimation: curve fitting |
[36] | r=3.6435Rp−0.377 | Method: Practical setup; Link length: 2.29 km; Rain Gauge: Tipping rain bucket (0.254 mm accuracy); Frequency: 28.75 GHz | The correction factor depends only on the rain rate exceedance of the %p of the time. Estimation: curve fitting. |
[37] | r(R0.01,d)=d/[1+{d/2.6379R0.010.21}] | Practical setup; Link length: unavailable; Rain Gauge: Tipping, Frequency: 15 GHz, Availability: 99.95%; Duration: 4 years; Rain rate: R (0.1 to 0.001) | The correction factor depends only on the rain rate exceedance of the %p of the time and LOS link length. Estimation: exponential curve fitting |
[38] | r=1.303ς1+LD♣ | Model: empirical model, based on the point of inflexion (POI) | The correction factor depends only on the slant path length and the rain cell diameter. |
[39] | r=A/(kRαTXLslant) | Method: MultiEXCELL rain simulation. Calculation: rain attenuation is calculated via the numerical approach. Rain field size: 1 km × 1 km to 250 km × 250 km | The correction factor depends on calculated attenuation, specific attenuation conversion coefficients, ‘measured’ rain rate at the transmitter end, and the LOS link length. |
[40] | r=1[0.477L0.633R0.073α0.01%f0.123−10.579(1−e−0.024L)] | (1) Can be used worldwide; (2) frequency band: 5–100 GHz; (3) Maximum path length is 60 km | The correction factor depends on the frequency (GHz), specific attenuation coefficient (α), and link length (L). |
[41] | r=⎧⎩⎨⎪⎪Necosθ(hR−hStanθ)Necosθ(10.056+0.012R)R<R0R≥R0 | The number of effective cells (Ne) is calculated after analyzing ITU-R DBSG3 database. | To define the rain cell, it needs to know the cell (R0) boundary rain rate. |
[42] | r=⎧⎩⎨⎪⎪⎪⎪⎪⎪⎪⎪[11.77d0.77R−0.050.01][10.477d0.633R0.0730.01f0.123]2f≤40GHzf>40GHz | It was based on the measured attenuation of smaller than 1 km terrestrial link and frequency 26/38 GHz. | It concluded that the distance factor is inconsistent for a link length smaller than 1 km. |
⧫ m(F,l)=1+Ψ(F)lnl and Ψ(F)=1.4×10−4F1.76 the value of depends on path length and the considered rain percentage exceedance, ▲ ζ(L)=−100 when L≤7km and ζ(L)=⌈(44.2L)⌉0.78 when L>7km, ♣ ζ0.01=ζ1; R0.01≥110mm/h, otherwise ζ0.01=S2 or ζ2S3
Table 4. Error estimation techniques for rain rate prediction
Ref. | Technique or Resolution | Remarks |
---|---|---|
[43] | E=1nCountry∑i=1415Wi∣∣∣log(RiDBSG3RiS−B)∣∣∣ | This test was used to re-analysis based rain rate and the rain rate provided by the ITU-R DBSG3 database. |
[44] | ER0.01=E2ψ+E2ϕ+ΔR0.012−−−−−−−−−−−−−−−√ where E2ψ=(∂R0.01∂ψ)2σ2ψ and E2ϕ=(∂R0.01∂ϕ)2σ2ϕ. |
The model was developed and verified using DBGS3 along with CHIRPS rainfall (ψ), and TPW (ϕ) in the ERA-Interim Reanalysis database. Authors have not compared with measured data and the precise calculation of rain rate R0.01 showed lower accuracy (uncertainty is about 14%). |
The wet-antenna effect has relation with the bias value of the signal in the receiver section. However, an appropriate bias compensation technique has not yet been developed.
A rain-rate-retrieval algorithm was designed using radar reflectivity derived from the rain rate in [45]. Based on the Doppler velocity, the derived radar reflectivity was classified as low-and high-rain cases. This model paved the way for blending reflectivity and attenuation to predict the rain rate. However, beyond reflectivity and attenuation, other factors, such as seasonal variation and rain type, were not considered.
The minimum observed attenuation and the maximum observed attenuation were calculated through a commercial microwave link (CML) within a fixed interval [46]. Using these minima and maxima, the observed attenuation value averaged rain-intensity can be calculated as
Since 2000, numerical weather prediction (NWP) has become popular in predicting rainfall and has drawn interest from the meteorological forecasting industries, researchers, and other stakeholders. However, owing to decreased portability and implementation coverage in remote locations, NWP-based techniques are not a potential technique for remote area application. Therefore, the prediction of learning supported rain diminution is standard because the problem of the NWP technique can be solved. In [47][48][49][50][51][52][53] ML-based rainfall prediction techniques were presented. Table 4 lists some of the error estimation techniques for rain rate prediction.
The rain attenuation (A) was calculated by multiplying the specific attenuation and the distance between the transmitting and receiving antennas.
Assuming the effective path length Le to be 1 km, in Equation (5) the specific attenuation and the link attenuation are equal. Equation (5) is true if the rain and cloud are uniformly distributed over the entire path between the transmitting and receiving antennas. However, if the distance between the transmitting and receiving antennas is not 1 km:
Owing to the non-uniform distribution of rain, the values of the specific and link attenuation (for 1 km length) are different, which defines a term called the effective path length. This implies that the effectual and actual distance varies for non-uniform rain distributions and links. The effectual distance is usually calculated based on the rainfall distribution [2]. Many models calculate the effective path length using a correction factor, referred to as the path adjustment factor. In terrestrial links, all the link lengths remain within a single rain cell for a short link or many cells for a long link. A brief discussion on the parameters that affect either the effective path length or path length adjustment factor is presented in the next section. In most cases, the accuracy of the model discussed above was calculated using the measured rain attenuation data, which was then compared to the attenuation derived through the attenuation formula. In some cases, the root means square (RMS) and standard deviation (STD) values were calculated to validate the model. Table 3 contains all of the most critical effective path length or distance correction factors proposed in the literature.
1.4. Frequency and Polarization
The specific attenuation can be determined from the rainfall rate, frequency and polarization using the following power-law relation[19][54][55] .
where R0.01 is the rain rate, and x and y are regression coefficients that depend on several factors such as: polarization, carrier frequency, temperature, and rain drop size distribution[54] . The values of x and y can be determined experimentally as empirical values. ITU-R P. 838-3[19], provides the prediction values for x and y for 1–100 GHz frequency bands at horizontal and vertical polarizations.In this section, various parameters of rain attenuation, rain rate data collection procedure, available public domain databases, time-series generation techniques, percentage of time exceedance of rain (Equation (7)), specific attenuation coefficient determination procedure, and the procedure of distance correction factor have been discussed. All the data collected or modified through these techniques can be used by the rain attenuation models, which will be discussed in the next section.
Existing terrestrial models can be classified into five categories based on the formulation of the rain attenuation model. These include the empirical, physical, statistical, fade slope, and optimization-based models.

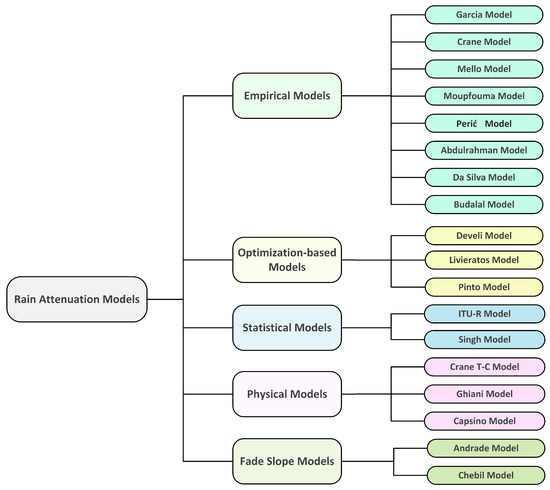

Figure 1, represents a taxonomy of the well-known and recently developed rain attenuation models used in this study.
Figure 1. Taxonomy of terrestrial rain attenuation models.
This model [35] uses the rain rate exceeded by 0.01 percent of the time and the calculation of the proportion of time-correlated with the excess of any given interest attenuation.
where Leq is the equivalent path length for which the rain propagation is assumed to be uniform.
In this model [42] according to the 300 m link’s attenuation analysis with frequencies of 26 and 38 GHz, the authors found attenuation inconsistency provided by the latest ITU-R model. They then investigate the specific attenuation (γth) as per ITU-R P.838-3 [19] and found an inconsistency between the effective specific attenuation (γeff) can be defined as Equations (10) and (11):
It is inferred that the model can be used for short-range outdoor links with frequencies higher than 25 GHz in 5G networks.
This model is also referred to as a dynamic model [56]. It depends on the cumulative distribution function of the rain intensity of the area of interest, the number of rain events in which the rain intensity threshold is exceeded, the rain advection vector intensity, and the rain advection vector azimuth. The model considers the spatial distribution within a 10 km radius around an antenna and is suitable for small geographical areas, up to 10 km × 10 km. Furthermore, it has not been tested in a real-world network environment.
It is one of the modified version [57] of Lin model [32], assuming that the path length reduction coefficient changes with the path length and rainfall rate. The developed model was tested with in Paris, Stockholm, Dijon (France), and Kjeller (Norway), with variations in frequency and path length. The model is best suited for temperate European regions.
This model improves the limitation of the 5-min rain rate requirement of the original Lin’s model. This model’s drawback is that it was only tested at 11 GHz and not at higher frequencies. Furthermore, the model did not consider spatial rain distribution variations. Another limitation of this model is that it only applies to terrestrial links.
This model [58] uses the full rainfall rate distribution with multiple nonlinear regressions from the rain attenuation database. It is primarily developed for terrestrial links and can be later extended to slant links. For a terrestrial link,
where ReffT is the approximate effective rain rate for terrestrial links and the and the cell diameter d0 is given by Equations (14) and (15) respectively.
For the terrestrial case Ls=d, the second term in the brackets vanishes as θ=0∘, and the expression is reduced to the terrestrial case prediction method. With the correct consistency for terrestrial and slant paths, the model exhibits good performance; however, the error has not been compared with real attenuation data.
This model [61] establishes rain distribution from a global perspective and the USA’s precise rain distribution maps. From these maps, the rain rate distribution can be calculated.
If the path length D>22.5km, then the rain rate should be modified:
where D0=22.5km
where the constants are given by Equation (24)
This model [62] is based on different integration techniques for heavy and light rainfall regions. The author proposed two versions of the T-C models: the first is a simple T-C model and was published in 1982. The model consisted of several steps. (1) Determining the propagation path for the global climate. (2) Finding a mathematical relation between the projected path length in the rain cell and debris region. (3) Fixing the expected amount of attenuation. (4) Deriving the required rain rate to produce rain attenuation and calculating the probability that the specified attenuation is fixed in step (3).
The model was primarily developed for Western Europe and the USA, and has difficulty in determining rainfall parameters, such as the probabilities of occurrence and mean rainfall, for weak and strong rain cells. Sometimes these weak and strong rain cells are referred to as debris and cell, respectively. The model was verified for both the satellite and terrestrial links.
This model [63] is based on a PCF-correction-based model for terrestrial links. It can be modeled by simulation with Equation (26) and analyzed with Equation (27):
(1) Calculate
(2) Calculating the PCF: PCF=A/kRTXαL for the number of rain maps generated by the MultiEXCELL model. This results in the following expression:
where the symbols a, b, and c are taken from the regression coefficients. These three coefficients depend on the values of frequency and path length.
(3) Because the effect of the frequency is negligible
where the constants are given by the set of equations in (30),
This model’s drawback is that the RMS of the prediction error against the ITU-R database did not exhibit better performance compared to the ITU-R and Brazilian models. Thus, a better terrestrial link rain database from DBSG3 or Comité Consultatif International des Radiocommunications (CCIR) was required for examination before its final application.
The parameters of this statistical model [64] of the horizontal rain structure can be determined based on the local statistical distribution of the point rainfall intensity. The model was validated using the COST 205, 1985 database. This model consists of several rain cell structures, collectively refereed to as kernels. In such a rain cell, the rainfall rate at a distance l from the center is given by:
Probability of attenuation equation:
where r=1/4πl¯0.
Rain distribution can be calculated as:
Here, P(R)=0 indicates that the probability of rain is zero, which will be true at the rain cell boundary. A simplified version of the model with the point rain intensity at point (x,y) can be defined as:
along a cell radius:
In the sense of the rain attenuation model, this model does not provide attenuation. However, it facilitates the generation of a synthetic rain rate from which attenuation can be predicted using a suitable prediction model. There are critics that the exponential rain peak is not present [65] in nature, and the model does not differentiate between stratiform and convective rain.
This model [40] is primarily based on a distance factor that relies on the rain rate R0.01, frequency, link length, and power-law relationship coefficients of the specific attenuation α (furthermore, it is a function of frequency and polarization). The attenuation and the distance factors can be calculated as:
The attenuation, Ap, which exceeded for a percentage of time p other than 0.01%, was determined by the simplification of the attenuation A0.01. This model, validated in Malaysia, showed good agreement with the measured attenuation [66].
This model [67] provides an easy calculation mechanism compared to the ITU-R model. The specific attenuation follows the ITU-R model for the frequency band of 1–100 GHz. After calculating the specific attenuation, the curve fitting technique using the MATLAB software cubic polynomial Equation (38) is approximated for the specific attenuation.
where the coefficients c3, c2, c1, c0 of Equation (38) for the horizontal polarization are given by:
and for the vertical polarization:
A similar approach-based technique was proposed in[68] . However, it was considered the original power-law relationship rather than the simplified polynomial form in that proposal. The second difference is that the constants k, α referring to the Equation (42) depends only on frequency and either vertical or horizontal polarization.
In the Andrade model [69] the variance of the fade slope is proportional to the attenuation as per Equation (43):
The predictor can estimate the next attenuation level A(ti+tp) from the current attenuation value A(ti) and fade slope:
where tp is the prediction time, it can be considered that tp=10, which corresponds to the minimum prediction time, that is, the sampling time of the experimental data.
This model [70] is based on the Differential evolution approach (DEA) optimization technique and experimentally tested at 97 GHz on terrestrial link in the United Kingdom (UK). The steps of the DEA attenuation model are as follows:
(1) The rate of rainfall and percentage of the time exceedance is related to the rain attenuation by equation:
where ak,bn (k=0,1,…,K, n=1,2,…,N) are the model parameters. K+N is the total number of input variables in the model.
(2) The mean absolute error is:
which can be alternatively represented as:
The mean absolute error given by this equation is treated as the cost function and used to obtain the optimized error by applying the DEA algorithm.
(3) Mutation:
where n is the generation index, Pmut is the mutation variable, p1,p2 and i are three arbitrarily chosen individual indexes, and the M and opt refer to the gene pool and the optimal entity in the population, respectively.
This model [71] was developed using a DBSG3 database-based on a supervised machine-learning (SML) technique. In this rain attenuation model, the SML technique was blended with a Gaussian process (GP). A rain attenuation algorithm must be trained in a particular area of interest to measure the different interdependencies of the parameters for detecting rain attenuation in a specific region, weather, or carrier frequency.
This model [72] is based on the actual distance correction mechanism through the distance correction factor (r) along with the effective rainfall rate distribution (Reff). It uses the quasi-Newton method in addition to particle swarm optimization (PSO); minimizing the root mean square error (RMSE) is the objective function in both cases.
The ai(i=1,2,…,9) coefficients can be calculated using quasi-Newton multiple nonlinear regression (QNMRN) and the Gaussian RMSE (GRMSE) algorithm. These coefficients were further fine-tuned using the PSO technique. The model performance has not been compared with the recently developed model, except for ITU-R P.530-17 [40]. Thus, there is a need for further verification before application, except for the temperate climate and Malaysia rainfall database areas.
This entry is adapted from the peer-reviewed paper 10.3390/s21041207
