Nitrogen, Phosphorus and Microalgal: History
View Latest Version
Please note this is an old version of this entry, which may differ significantly from the current revision.
Subjects: Cell Biology
Contributor:
Ranga Rao Ambati

Microalgae can be used as a source of alternative food, animal feed, biofuel, fertilizer, cosmetics, nutraceuticals and for pharmaceutical purposes. The extraction of organic constituents from microalgae cultivated in the different nutrient compositions is influenced by microalgal growth rates, biomass yield and nutritional content in terms of lipid and fatty acid production. In this context, nutrient composition plays an important role in microalgae cultivation, and depletion and excessive sources of this nutrient might affect the quality of biomass. Investigation on the role of nitrogen and phosphorus, which are crucial for the growth of algae, has been addressed. However, there are challenges for enhancing nutrient utilization efficiently for large scale microalgae cultivation. Hence, this study aims to highlight the level of nitrogen and phosphorus required for microalgae cultivation and focuses on the benefits of nitrogen and phosphorus for increasing biomass productivity of microalgae for improved lipid and fatty acid quantities. Furthermore, the suitable extraction methods that can be used to utilize lipid and fatty acids from microalgae for biofuel have also been reviewed.

  • microalgae
  • nitrogen
  • phosphorus
  • biomass
  • lipids
  • fatty acids

1. Introduction

The size of microalgae generally ranges between 1 µm and 2 mm. They can utilize light and carbon dioxide through the photosynthetic process to multiply and produce biomass [1][2]. Generally, microalgae are unicellular aquatic microorganisms that can be cultivated in a wide range of environmental conditions, either in saltwater, freshwater or wastewater, due to their high tolerance to environmental stress [3][4]. Different cultivation conditions of microalgae may affect microalgal growth rates, biomass yield and their nutritional content in terms of lipid and fatty acid production [3][5][6][7][8].

Microalgae are adopted to reduce pollution in waterways by a phycoremediation process to purify contaminants from water bodies and wastewater. Jais et al. [9] and Yaakob et al. [10] have reported microalgae-mediated reduction in pollutant levels in water bodies by the degradation of organic matters, uptake of heavy metals and regulation of chemical oxygen demand (COD) and biological oxygen demand (BOD) to the levels which are safe to be discharged. Scenedesmus sp. was adapted to treat swine wastewater wherein the total phosphorus (TP), total nitrogen (TN) and total carbon (TC) in swine wastewater were reduced up to 83%, 87% and 12%, respectively, for 40 days through the phycoremediation process [11][12].

Microalgae generally comprise 28–70% of protein (on a dry matter basis), 10–20% of lipids and 10–50% of carbohydrates, respectively [13][14][15]. Studies by Hakalin et al. [16] and Baharuddin et al. [17] demonstrated that microalgae can be used in aquaculture for fish and shrimp feed due to their size, and are easily consumed. Microalgal feeds also promote rapid growth rates and high nutritional content in terms of lipids, proteins, carbohydrates, amino acids and fatty acids in the aquaculture-cultivated fish and shrimps.

Microalgae can be used to produce biofuel as an alternative energy source due to their high lipid content in the cells with an additional advantage of minimal land usage compared to terrestrial plants [4][18]. Few studies have demonstrated that microalgae can produce 58,700 L/ha of oil for biofuel, which is relatively higher compared to other crops such as jatropha and canola, with 1892 L/ha and 1190 L/ha, respectively [18][19]. High lipid content in microalgal biomass is a prime factor of its suitability to produce biofuel. Zhang and Hong [20] reported that Scenedesmus sp. yielded 22% lipids from their biomass. The main factors which may influence microalgae cultivation are nutrient content such as nitrogen and phosphorus, followed by mode of cultivation, temperature, light intensity, light:dark period, salinity, pH, mixing, turbulence and also carbon dioxide concentration [7][21]. Nitrogen and phosphorus are essential macronutrients needed to promote algal growth and they regulate metabolic activities if supplied in an acceptable form. Various nitrogen and phosphorus concentrations in microalgae cultivation medium may influence lipid and fatty acid yield [4][18]. According to Munoz and Guieysse [22], microalgae can take up high nitrogen and phosphorus concentrations for the buildup of protein and nucleic acid synthesis in up to 40–60% of their dry weight.

2. Microalgae Nutrient Composition

Several factors may influence microalgal growth, biomass, and lipid and fatty acids production. However, this review paper will focus only on how the limitation of nutrients (nitrogen and phosphorus) affects microalgal growth and its biochemical composition as studied in different microalgae species [4][5][6][7][23].

2.1. Role of Nitrogen

Nitrogen is an essential macronutrient for microalgal growth and plays an important role in protein, lipid and carbohydrate synthesis [5][7]. Generally, nitrogen concentration significantly influences microalgal growth and their biochemical compositions; at the same time, depletion of nitrogen in cultivation medium causes a decrease in growth with concomitant increases in d lipid productivities [24]. Microalgae can assimilate nitrogen in the form of nitrate, nitrite, urea and ammonium [25]; nevertheless, nitrate is widely used for microalgae culture compared to ammonium salts as it is more stable with less likelihood of pH shift. Moreover, ammonia (NH4+) concentrations greater than 25 μM are toxic for microalgae; thus, nitrate (NO3−) is used commonly in culture media [26]. However, the limitation of nitrogen in the culture medium may lower biomass production but would enhance lipid production. This was demonstrated by Xu et al. [25] who observed that a drop in pH in ammonium-supplemented cultivation medium of Ellipsoidion sp. caused a reduction in growth rate with simultaneous enhancement in eicosapentaenoic acid (EPA) and polyunsaturated fatty acids (PUFA) accumulation. Yang et al. [4] showed that biomass accumulation in Chlamydomonas reinhardtii was inhibited under nitrogen deficiency up to 31.7%, with simultaneous increases in total fatty acid yield up to 93%, coupled to enhancement in lipid production up to 113.46 ± 1.78 mg/L. Thus, it can be concluded that nitrogen concentration favors higher biomass productivity, and depletion of nitrogen shifts the flux to lipid production [4][5][7][8]. Table 1 shows microalgae cultivation in correlation with nitrogen content.

Table 1. Microalgae cultivation correlation with nitrogen content.

Microalgae Types Experiment Outcomes Growth and Biochemical Composition Reference
Nannochloropsis sp. Transferred from nitrogen-sufficient to -deficient condition Lipid content increased from 32% to 60% [27]
Chlorella vulgaris Lipid production under nitrogen starvation conditions Lipid productivity was 58.39 mg/L/day. [28]
Chlorella zofingiensis 10 days cultivation in two conditions: nitrogen starvation and nitrogen repletion (0 g/L and 1.1 g/L, respectively) Rapid growth in nitrogen-sufficient culture medium, whereas growth inhibition under nitrogen starvation condition [3]
Scenedesmus sp. Effects of nitrogen limitation and starvation on morphological and biochemical changes Nitrate starvation generates 27% lipid accumulation [29]
Nannochloropsis oceanica 14 days under nitrogen-deplete and nitrogen-replete conditions Regulation of metabolic pathways along with acetyl CoA synthesis and lipid degradation for TAG synthesis [30]
Chlorella sp. and Nannochloropsis oculata 13 days in Conway nutrient batch cultures without nitrogen in the 7th day of growth 15.3 ±1.0% lipid in Chlorella sp., 33.7 ± 2.8% lipid in N. oculata under nitrogen limitation [31]
Phaeodactylum tricornutum Lipid accumulation in nitrogen-deficient medium High lipid content (53.04 ± 3.26%) [5]
C. reinhardtii Effect of different nutrients on standard TAP, TAP nitrogen deficiency (T-N), TAP without nitrogen and phosphorus (T-N-P), TAP nitrogen deficiency with additional phosphorus 1 M(K)PO4 (T-N+P) on growth and lipid accumulation Lipid contents in cells increased as a result of nitrogen-deficient conditions; the highest lipid content was 104.7% in T-N-P condition and the lowest lipid values were 49.9% in T-N condition [32]
I. galbana Effect of different nitrogen concentrations(0, 36, 72, 144 and 288 mg/L) on the growth rate and biochemical composition Growth decreased in nitrogen-deficient conditions; in contrast, carbohydrates and fatty acids showed the highest value, 47% and 75%, respectively [7]
Scenedesmus obliquus Various nitrogen concentrations’ effect on growth and lipid production Lipid production increased with increasing nitrogen concentration; the highest cell density (1.7 × 107 cells/mL) and lipid production (242.4 mg/L) [33]

2.2. Role of Phosphorus

Phosphorus is another essential compound that plays a significant role in algal growth, lipid production, fatty acid yield and metabolic processes such as energy transfer, signal transduction and photosynthesis [6][34]. Phosphorous is an essential nutrient that makes up slightly less than 1% of total algal biomass and is required at approximately 0.03–0.06% in the medium to sustain algae growth [26][34][35]. Phosphorous is essential to microalgal cells for the production of cellular components such as phospholipids, DNA, RNA and ATP for the metabolic pathways that involve energy transfer and nucleic acid synthesis [36]. Microalgae can uptake phosphorus in the form of polyphosphate or orthophosphate to enhance their growth and nutritional content in the cells.

Polyphosphate in microalgae represents another form of cell protection from metal toxicity as it can bind with incoming metals into a detoxified complex [26]. C. reinhardtii accumulated copper (Cu) and cadmium (Cd) and survived the metals’ toxic effects in polyphosphate-rich conditions [26]. However, some microalgae could accumulate more phosphorus in the form of orthophosphate (PO43−) and polyphosphate than required for growth as they can be converted to ATP under unfavorable nutritional conditions. The ATP is needed for pumping of the polyphosphate into the microalgae cell and for the conversion of phosphorus to polyphosphate. The source of energy for ATP is the photosynthetic process and also respiration [2][28][37]. Table 3 shows microalgae cultivation related to various phosphorus content in the medium.

Table 3. Microalgae cultivation in relation to phosphorus content.

Microalgae Types Experiment Outcomes Reference
Eustigmatophyte sp. Phosphorus limitation condition Triacylglycerols, TAG content increased from 12.9% to 15.1% in absence of phosphorus condition [38]
C. zofingiensis Affects phosphate on lipid accumulation as a biodiesel feedstock Lipid content obtained from phosphate-deficient was 44.7%, relatively higher than cells grown in full medium (33.5%). [39]
C. vulgaris Biodiesel production under phosphorus-sufficient conditions Lipid yield of C. vulgaris for biodiesel production was 58.39 mg/L/day in phosphate-sufficient conditions [28]
I. galbana Varied levels of phosphorus in F/2 medium for biodiesel production Phosphorus starvation stimulated lipid accumulation up to 50% w/w [40]
Scenedesmus sp. Phosphorus-rich medium from public market wastewater treated for 8 days Total phosphorus in medium reduced about 82.17% [41]
Chlorella ellipsoidea and Chlorococcum infusionum Phosphorous starvation culture for 30 days Total lipid content of Chlorella (41.8 ± 1.9% at 16 days of incubation period) and Chlorococcum (31.3 ± 1.0% at 18 days of incubation period) [42]
Scenedesmus obtusiusculus Cultivated in BG-11 medium under non-limiting conditions 6.4% w/w lipid yield after SCCO2 extraction [43]
Scenedesmus sp. Resuspension in modified SE medium with 2 mg/L NaH2PO4·2H2O for 9 days The highest lipid production (350 mg/L) and lipid content (41.0%) were obtained by addition of 2 mg/L NaH2PO4·2H2O every 2 days [6]
Chlorella sp. Lipid enhancement through nutrient starvation Under phosphate starvation, the lipid content was 13.9%. [44]

Mulbry et al. [45] showed that microalgae have high efficiency to absorb inorganic phosphate from wastewater by luxurious uptake in the range of 70% to 90% compared to optimal levels needed for their growth [46]. It is also reported that microalgae growth and phosphate uptake are linearly proportional to the biomass yield. Chu et al. [28] demonstrated that Chlorella vulgaris had been cultivated for biodiesel production under phosphorus-sufficient conditions. The result showed that the lipid yield of C. vulgaris for biodiesel production was 58.39 mg/L/day in phosphate-sufficient conditions, which was relatively higher than in a phosphate-deficient regime. Thus, it can be concluded that phosphate is an important macronutrient for microalgal lipid production [28]. However, the phosphorus uptake by microalgae can reach saturation due to the limitation of light, and reduction of carbon dioxide and oxygen levels in the culture medium.

Phosphorus is an essential nutrient for microalgae growth and cell division, and its requirement is varied in different microalgae species. According to Roopnarain et al. [40] the optimum phosphorus concentration for microalgae is in the range of 0.001 g/L to 0.179 g/L. Phosphorus limitation is an efficient environmental pressure to induce lipid accumulation [6][18]. The lipid content in Scenedesmus sp. has increased under reduced phosphorus levels in the medium. The Scenedesmus sp. grown in 50 mg/L phosphorus achieved 22.3% lipid content, whereas lipid yield reached 42.5% in 1 mg/L phosphorus [6]. Similarly, Rhodosporidium kratochvilovae under limited phosphorus concentration (0.05 g/L) produced 51.7 ± 0.81% lipid content after eight days of cultivation [32]. Under the limitation of phosphorus, R. kratochvilovae formed big irregular-sized lipid droplets (LD) and enhanced TAG accumulation, which improves the biodiesel production properties like oxidative stability, viscosity, cetane number and cold filter plugging point [32].

Phosphorus-limited conditions in I. galbana showed that the phosphorus starvation medium (0%) and limited P medium (12.5%) induced high lipid content up to 50% (w/w) on 14 days of cultivation [40]. Besides that, the study also reveals that under stress conditions, I. galbana tends to use all available phosphorus in their cell for survival. Limited phosphorus concentrations could support continuous cell growth as well as enhance lipid accumulation in microalgae by switching photosynthetic carbon partitioning toward energy-rich storage macromolecules, mainly lipids, under stress conditions. Carbon partitioning blocks CO2 and starch synthesis, driving the metabolism towards lipid production for energy storage in phosphorus stress conditions [6][18]. The observation was corroborated by Feng et al. [39], who showed that phosphorus-limited conditions were suitable for lipid generation in C. zofingiensis.

3. Microalgae Lipids and Fatty Acids Extraction Methods

The lipid extraction method is an important process for the production of microalgae biofuels and there are several techniques used to determine lipids and fatty acids concentration from microalgae biomass such as supercritical fluids, pressurized solvent extraction, infrared spectroscopy and gas chromatography-mass spectrometry (GC-MS). This subsection will critically discuss analytical techniques previously used by researchers to extract lipid and fatty acids.

3.1. Lipids Extraction Methods

Lipids are essential compounds in the microalgae biomass as they comprise triacylglycerols (TAG), phospholipids and glycolipids [2][5][47], which are essential for metabolic activities and biofuel production. Usually, microalgae were associated with high costs for biomass downstream processing for oil extraction. Thus, it is important to extract lipids from microalgae cells using suitable technology that is cost-effective and environmentally friendly. Several methods were applied to quantify lipids from microalgae such as near infrared spectroscopy at specific wavelengths, electroporation, the supercritical fluid extraction method (SEF), pressurized solvent extraction, organic solvent and also osmotic shock [2][48][49] as in Table 5.

Table 5. Techniques used to quantify lipids in microalgae [48].

Types of Extraction Method Advantages/Efficiency Key Methodology Drawbacks
Mechanical Approach
Expeller press Simple and effective crushing method High mechanical pressure to crush the cells and squeeze oil out from microalgae biomass Pressure decreased lipid recovery, increased heat; expensive and time-consuming
Ultrasound-assisted extraction Economical and eco-friendly, completed in a short time, high reproducibility, does not require the addition of beads or chemicals Cavitation produces heat shock waves to disrupt microalgae cells with less thermal denaturation of biomolecules Expensive, leads to free radicals and detrimental to the oil quality
Bead beating Moderate efficiency Disruption of cells using high-speed spinning beads Moderate efficiency
Microwaves irradiation method Short reaction time, low costs, efficient extraction and quick oil recovery Extraction and transesterification of the oils into biodiesel by intracellular heating, which disrupts the cells High maintenance cost on a large scale.
Electroporation High efficiency Altered cell membranes and cell walls to improved lipid extraction High initial and maintenance costs
Chemical Approach
Supercritical fluid extraction method (SEF) Rapid, safe and economical method and does not require dewatering of biomass Using high pressure to extract lipids from cells High cost and environmental and safety issues
Bligh and Dyer method Rapid and easy processing of large number of samples Extracting total lipids from microalgae using ratio 2:1 methanol: chloroform Less sensitive
Pressurized solvent extraction High efficiency Using solvent and pressurized nitrogen for extraction High cost, fire, health and environmental hazards
Folch method Rapid and easy processing of large number of samples Combination of different solvents such as chloroform–methanol in the ratio of 2:1 by volume Less sensitive
Soxhlet extraction method Easy processing of a large number of samples and moderate efficiency Normally used to quantify high quality lipids such as fatty acids and triglycerides using hexane as a solvent Environmental and health risks
Accelerated solvent extraction (ASE) Short process time and can recover solvent for reuse Using heat or pressure to achieve better lipid recovery Less efficient in a larger scale

Kumar et al. [48] stated that electroporation, pressurized solvent extraction and the supercritical fluid extraction method are the most efficient technologies to extract lipids from microalgae biomass. However, they required high energy with high operational costs. Generally, cost-effective methods are used for lipid extraction such as osmotic shock, organic solvents through Soxhlet extraction, Bligh–Dyer method and Folch method [18][24][49].

According to King, [50] the supercritical fluid extraction method (SEF) can be used to extract lipids without using any organic solvent for analysis. This SEF method requires high energy consumption that is expensive for commercialization. The SEF method can separate lipids according to properties, enrichment, hydrogenation and hydrolysis. Figure 4 illustrates microalgae lipid extraction using SEF methods. Santana et al. [51] reported the use of the SEF method to extract lipids from Botryococcus braunii for biodiesel production. They observed that the lipid yield decreased with an increase in the temperature of extraction. However, the pressure enhancement has a positive influence on lipids productivity. The optimum operating conditions for SEF was in the range of 220–250 bar for pressure and 50 °C for temperature, respectively. Similar results were carried out in Nannochloropsis salina, Scenedesmus obliquus and Scenedesmus obtusiusulus for extraction of lipids to generate biodiesel [45][52]. SEF optimum conditions to generate 92% of lipids was performed at 12 MPa, 20 °C, and a CO2 to biomass ratio of 100 [45].

Cells 10 00393 g004 550

Figure 4. Microalgae supercritical fluid extraction method.

Other than SEF, the most common methods used for lipid extraction are modified Folch and Bligh and Dyer methods as shown in Figure 5. The harvested microalgae biomass was added with methanol and chloroform (2:1 v/v) for lipid extraction. Then, lipid extracts were washed with 0.9% saline followed by vortex and separation phase either using thin layer chromatography (TLC) or chromatography (GC-MS). Zienkiewicz et al. [8] followed this method for Nannochloropsis oceanica: total lipid quantification and after centrifugation separation, lipids were visualized by thin layer chromatography (TLC). Similarly, Vooren et al. [24] had measured lipid content in Nannochloropsis oculata using the Bligh and Dyer extraction method followed by high performance thin layer chromatography (HP-TLC). Vooren et al. [24] showed that C. zofingiensis cultivated under nitrogen starvation conditions produced triglycerides in the range of 31% to 43% due to a shift in cell metabolism. Zhu et al. [3] used GC-MS to analyze lipid content in C. zofingiensis. The Folch et al. [53] and Bligh and Dyer [54] methods were used for total lipid recovery and extraction was used; it was widely performed by researchers due to the simple procedures, time efficiency, energy savings and suitability for a large sample size.

Cells 10 00393 g005 550

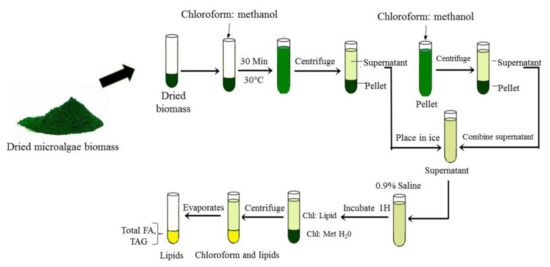

Figure 5. Microalgae lipid extraction by Bligh and Dyer and Folch methods.

Another promising method for lipid extraction was an osmotic shock that degrades microalgae cell structures to increase lipid yield efficiency. Gonzalez-Gonzaález et al. [55] studied the effect of osmotic shock on Dunaliella salina and Chaetoceros muelleri for biogas (methane) generation. The study reported that C. muelleri lipid recovery efficiency for methane production was higher than D. salina with 72% and 21%, respectively. Microalgae biomass can be used for biomethane generation through anaerobic digestion or the biomass gasification and methanation process. Biomass produced in limited nitrogen culture media was more stable with low inhibitory substances such as ammonia which caused acidosis. Microalgae with high lipids content will yield greater volumes of biomethane than microalgae rich in carbohydrates and protein [56]. Klassen et al. [57] reported that high biomethane productivity was achieved under nitrogen-limited biomass conditions with 462 ± 9 mLN CH4 g−1VS day−1 and the biomass-to-biomethane energy conversion efficiency was up to 84%.

Similarly, Yoo et al. [49] reported that osmotic shock enhanced the lipid recovery by two-fold in wet biomass of Chlamydomonas reinhardtii. In this technique, microalgae biomass was mixed with hexane, chloroform and methanol solvent in the Teflon-sealed tubes for 10 min for better lipid recovery since hexane and methanol required low heat for evaporation and rupture of microalgae cells [49]. It concluded that an osmotic shock is a promising technique for microalgae lipid extraction recovery from wet biomass.

3.2. Fatty Acids Extraction Method

Fatty acids (FA) are carboxylic acids with an aliphatic chain consisting of 4–26 carbons, joined by either saturated or unsaturated bonds [47]. There are several techniques to extract fatty acids from the microalgae biomass and convert it into fatty acid methyl ester (FAME) using gas chromatography-mass spectrometry (GC-MS), followed by subjecting it to a direct transesterification method; also, there is the Microbial identification (MIDI) system, Newark, Delaware, USA, the gravimetric method and the modified one-step in situ transesterification method (IST).

A modified one-step in situ transesterification method (IST) was used to quantify fatty acid methyl ester (FAME) and it has been used by Zarrinmehr et al. [7] and Tang et al. [58]. Transesterification is the most common, less energy-consuming process to exchange pre-existent ester linkage using an acid or basic catalyst to release methanol and glycerol from synthesized fatty acid methyl esters [24]. According to Tang et al. [58], transesterification was related to the direct conversion of microalgal lipids into fatty acid methyl esters (FAME), either using acid or alkaline catalysts. This IST can be performed without lipid extraction technique (Figure 6). Besides that, this IST technique was widely used due to the high accuracy, simplicity and reliability. Generally, saturated fatty acids (SFA) possess a high cetane number and better oxidative stability. Microalgae with a high percentage of C18:1 were valuable components for biofuel production [59]. Higher cetane number is a prerequisite for reduced NO2 emission to the atmosphere [60]. According to Praveenkumar et al. [60], Chlorella sp. had potential as an alternative to biodiesel when cultivated in nitrogen-deficient conditions compared to phosphorus-limited conditions. An increase in unsaturated fatty acids is usually undesirable for biofuel production as it leads to a low cetane number, thereby enhancing NO2 emission, oxidation and lubricity of biofuels [60]. Hence, the biofuels must have a high amount of saturated and monounsaturated fatty acids with low levels of polyunsaturated fatty acids.

Cells 10 00393 g006 550

Figure 6. Microalgae fatty acids in situ transesterification.

Nannochloropsis gaditana contained a high amount of eicosapentaenoic acid (EPA), followed by docosahexaenoic acid (DHA) content [58]. The c FAME yield of N. gaditana was 10.04% ± 0.08% by weight, with the EPA yields as high as 4.02% ± 0.17% by dry weight, which is approximately two times higher than the conventional method.

Besides that, another technique that is commonly used to quantify FAME is gas chromatography-mass spectrometry (GC-MS). Microalgae biomass was extracted first using solvents, and an aliquot of extraction was injected into the GC-MS capillary column at a specific time and pressure for the determination of fatty acid profile. Prommuak et al. [61] reported the fatty acids profile in C. vulgaris using GC-MS technique wherein the highest FAME obtained were methyl linoleate, methyl palmitate, methyl oleate and methyl stearate. Similarly, the study recorded that under nitrogen deprivation conditions, Chlorella sp. showed high amounts of saturated and monounsaturated fatty acids containing 36.45% stearic acid, 16.78% arachidic acid, 7.02% heneicosanoic acid and 19.91% linoleic acid. This study concludes that nitrogen starvation is suitable for the synthesis of high quality fatty acids for sustainable biodiesel production [60].

Cointet et al. [62] reported that FAME from Entomoneis paludosa, Nitzschia alexandrina and Staurosira sp. directly undergo transesterification using hydrochloric methanol and chloroform as solvent. The studies reported that the most abundant saturated fatty acid (SFA) was palmitic acid (C16:0), ranging from 32.5 ± 4.3% to 64.6 ± 6.0% for all strains in nitrogen-limited treatment. Whereas, the highest unsaturated fatty acid was oleic acid for E. paludosa (20.1 ± 3.2%) and palmitoleic acid for N. alexandrina and Staurosira sp., with 25.2 ± 1.9% and 25.0 ± 9.0%, respectively [62].

Finally, FAME also can be analyzed using the MIDI system (Microbial ID, Newark, Delaware) as reported by Mulbry et al. [45]. They found that fatty acid content in algal turf scrubber (ATS) consisted of C14:0, 16:0, 16:1.7, 16:1.9, 18:0, 18:1.9, 18:2.6 and 18:3.3 when analyzed by the MIDI system. Figure 7 shows microalgae FAME analysis using the MIDI microbial ID technique.

Cells 10 00393 g007 550

Figure 7. Microalgae fatty acids by Microbial Identification (MIDI) system.

The MIDI microbial identification system is a fully automated gas chromatographic analytical system, which identifies microalgae strains and bacteria based on their unique 9 to 20 carbons in length fatty acid profiles. Four reagents are required to cleave the fatty acids from lipids that involve several phases such as the saponification phase (sodium hydroxide, methanol and distilled water), methylation phase (hydrochloric acid and methyl alcohol), extraction phase (hexane and methyl tert-butyl ether) and sample cleanup phase (sodium hydroxide solution) before samples are injected to the GC port liner for analysis. The MIDI-FAME profile is an effective, rapid technique, and does not require concentrated biomass to be transferred from vial to vial [45][63][64].

This entry is adapted from the peer-reviewed paper 10.3390/cells10020393
