Liquid Crystalline Materials Based on Copper(I) Complexes: History
View Latest Version
Please note this is an old version of this entry, which may differ significantly from the current revision.
Contributor:
Muhammed Alkali
,
Viorel Cîrcu

Liquid crystals are generally referred to as substances that blend the structure and properties of solid and liquid states; they share with liquids the ability to flow but also exhibit some structural arrangement similarities with solids. With so many compounds synthesized, liquid crystals containing metals, also known as metallomesogens, have become a major subject of study. The incorporation of metal into organic matrices enhances and induces unique magnetic, spectroscopic, and redox properties of the resulting materials. At least one liquid crystalline complex has been reported in the literature for most metals.

  • copper(I)
  • metallomesogens
  • luminescence
  • complex
  • ligand

1. Introduction

Copper(I) complexes have not been studied to a great extent as luminescent materials in the liquid crystalline state, but they do possess luminescence properties with great potentials [1][2][3][4][5][6][7][8][9][10]. Copper, which is somewhat abundant and affordable, is a suitable alternative to noble metal complexes [11][12]. The ratio of triplet to singlet excitons is 3:1; consequently, for luminescent materials to be used in OLEDs, they should essentially be able to harvest all the excitons. Because copper(I) complexes exhibit various metal-to-ligand charge-transfer (MLCT) behaviors, they can induce spin orbital coupling of the triplet and singlet states, leading to small energy separations between the energy levels [13]. This allows for reverse intersystem crossing (RISC), i.e., singlet harvesting, resulting in thermally activated delayed fluorescence (TADF) [14]. Therefore, liquid crystals based on copper(I) complexes have considerable promise for producing effective luminescent materials for a wide range of optical or electro-optical applications due to the large diversity of possible structures, including mononuclear or polynuclear complexes, and the great potential of emission behavior. In addition, the range of coordination geometries (such as linear, plan-trigonal, or tetrahedral) combined with the ligands’ structural design provide a significant benefit for controlling the LC properties, including their enhanced thermal stability and mesophase type related to both calamitic and discotic materials.

2. Copper(I) Metallomesogens with Sulfur-Containing Ligands

A series of cationic macrocyclic copper(I) complexes based on non-mesogenic bis[4-(n-alkyloxy) benzamide derivatives of 1,10-diaza-4,7,13,16-tetrathiacyclooctadecane was reported in 1994 by Ghedini et al. [15]. The studied complexes had transition temperatures from the solid to liquid crystalline states ranging from 93 to 123 °C. Complex 1e (Figure 1) demonstrated the clearest mesomorphism among the series, with sufficient thermal stability, so the research group focused their X-ray analysis on it, and the study revealed an X-ray diffraction pattern consistent with a disordered layered structure associated with a smectic phase of A or C type.
Chemistry 05 00046 g001 550

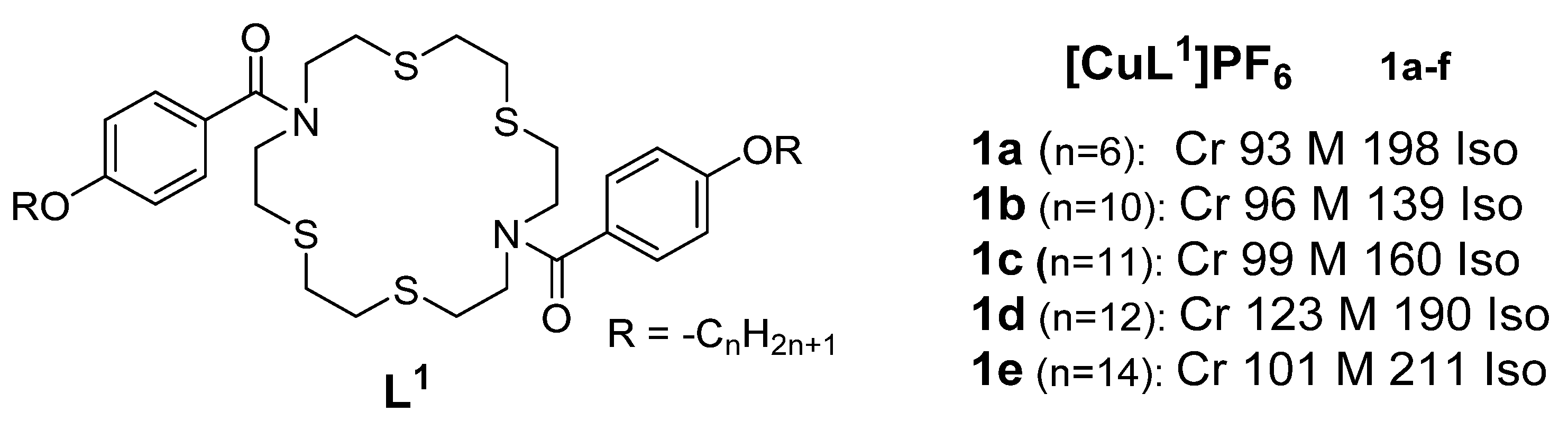

Figure 1. Copper(I) complexes from azamacrocycle derivatives. Transition temperatures are in °C [15].
Alkyl thiolates (R-SH) are strong ligands that can bind to metals via the donor S atom to obtain metal thiolates. In 1999, Espinet et al. [16] reported the preparation of a series of copper(I) thiolates, [CuSCnH2n+1], where n = 4, 6, 8, 10, 12, 14, 16, and 18. X-ray diffraction analysis of the polycrystalline sample revealed a layered structure in the solid state, contrary to previously reported work by Dance et al. (1991) [17]. However, the authors suggested that the discrepancies might have been due to the methodology used, indicating that the preparative method of the complex influences its stability towards oxidation. The textures of the complexes show a columnar mesophase based on stacking of cyclic [Cu4(µ2-SCnH2n+1)4] aggregates, with transition temperatures ranging from 56 to 210 °C.
A new class of copper(I) metallomesogens based on copper(I) halide complexes with thiourea-based ligands with long-chain alkoxy groups and a perfluorooctyl group were reported in 2018 by Ilis and Cîrcu [18] (Figure 2). They found no liquid crystalline behavior for the ligand but observed a hexagonal columnar phase for both complexes 2a and 2b at high temperatures above 100 °C via a combined study of POM, DSC, and XRD, while the thermal stability studied by TGA indicated a higher stability (180 °C) for the corresponding copper(I) complexes compared to that of the BTU (160 °C) ligand.
Chemistry 05 00046 g002 550

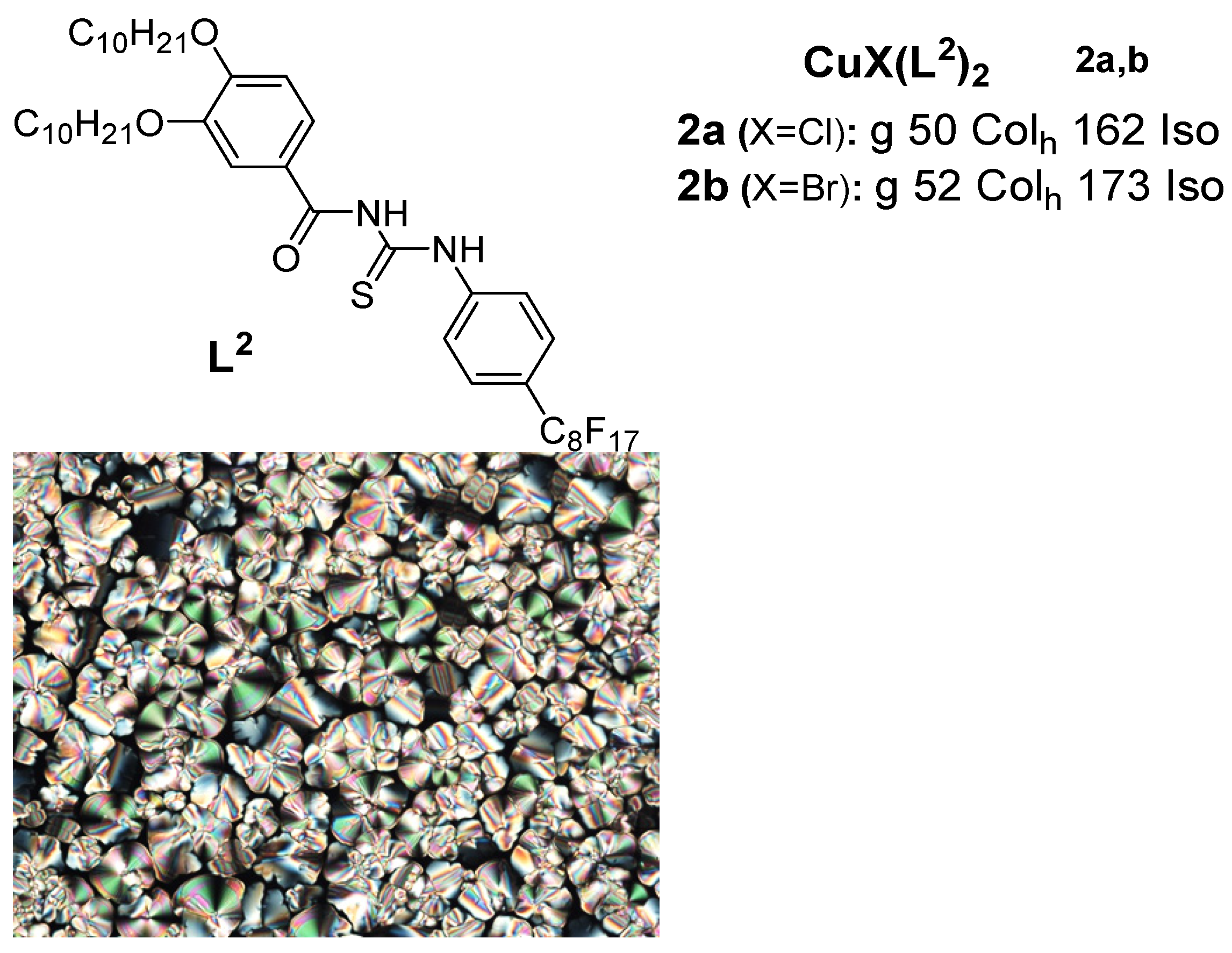

Figure 2. Copper(I) complexes with benzoylthiourea ligands. Transition temperatures are in °C. Inset: POM image of the Colh phase of 2a at 85 °C [18].

3. Copper(I) Metallomesogens with N-Donor Ligands

Many copper(I) complexes with N-donor ligands integrating pyrazole, 2,2’-bypiridine, 1,10-phenantroline moieties, or Schiff bases have been described to date. Copper(I) metallomesogens with three-coordinate geometry were first reported by Lin et al. in 2001 [19]. The complexes were derived from bis{2-[3’-(3’’,4’’-dialkoxyphenyl)-5’-methyl-1’-pyrazolyl]ethyl} ethers and from bis{2-[3’-(3’’,4’,5’-trialkoxyphenyl)-5’-methyl-1’-pyrazolyl]ethyl} ethers. These novel complexes were obtained by complexing the ethers with [Cu(MeCN)4]BF4 (Figure 3). The reported copper(I) complexes with four or six alkoxy chains exhibited liquid crystalline behavior and are characteristic of columnar discotics. DSC analysis results indicated a higher enthalpy for the melting transitions at lower temperatures and a relatively lower enthalpy for the isotropization transitions at higher temperatures. The attachment of an additional alkoxy chain on the terminal benzene ring resulted in lower transition temperatures, while preserving the mesophase type (Colhd).
Chemistry 05 00046 g003 550
Figure 3. Copper(I) complexes with ether-type ligands. All temperatures are in °C [19].
Schiff bases are a diverse group of compounds formed by the nucleophilic substitution reaction of an aldehyde or ketone with an amine. These compounds are characterized by the presence of a double bond linking carbon and nitrogen atoms, the functionalities of which are generated in many ways to combine a variety of alkyl or aryl substituents useful for the design of liquid crystalline materials, either organic or metallomesogens [20][21][22][23][24][25]. The lone pair of electrons on nitrogen provides a basis for making complexes with metals, including copper(I). Diverse liquid crystalline copper(I) complexes have been prepared with these ligands; the resulting complexes are indicated in Figure 4. Dinuclear copper(I) complexes (4a and 4b) with Schiff bases based on the α,α’-imino-substituted 2,2’-bipyridine unit were developed by El-ghayoury et al. [26]. The two ligands adopt a rather unusual coordination mode in which the central unit bridges the two copper(I) centers. The tetrahedral surrounding is completed by the coordination of the two imino groups of each Schiff base ligand with the iminopyridine fragment chelated in a cis fashion to provide a symmetric structure. Complex 4a is non-mesomorphic, owing to the unsuitable balance between the aliphatic chains and the aromatic core. The optical textures observed upon slow cooling of the isotropic melt of complex 4b clearly indicate the existence of a viscous columnar phase at temperatures as low as 25 °C.
Chemistry 05 00046 g004 550
Figure 4. Copper(I) metallomesogens with Schiff bases. All transition temperatures are in °C (transition temperature for 4a not reported) [26][27][28].
Although non-mesogenic, upon complexation with copper(I), free ligands L5 and L6 showed mesogenic character, as described by the DSC and POM experiments. The results indicated that complex 6 showed high stability after several heating cycles relative to complex 5, which was thought to be due to the lack of substituents at position 6. In addition, the optical textures observed for complex 6 during slow cooling from the isotropic melt are typical of a columnar phase (with pseudo-focal-conic textures [28]. Similarly, Douce and coworkers prepared new complexes (7a–c) by modifying the organic ligands to enable scrutiny of the nature of the packing in the liquid crystalline phase. In their work, the authors reported the preparation of new ligands with various chain lengths (n = 8, 12, and 16) bearing an additional methyl fragment in the α-position of the pyridine ring in order to protect the copper complex (5) against oxidation and decomplexation. The prepared complexes displayed hexagonal columnar mesophases with a transition temperature range of 30 to 56 °C [27].
A study by Ziessel et al. (2004) [29] presented mesomorphic materials based on copper(I) complexes with phenanthroline-based ligands (Figure 5). The authors aimed to engineer a structural framework with additional supramolecular binding factors (hydrogen bonding) so as to stabilize the mesophase both as a free ligand and within the complex. The thermotropic properties of the ligands and complexes of the phenanthroline derivatives were investigated via a combination of POM, DSC, and XRD methods. The ligand used for complexes 8b and 8c showed distinct cubic and disordered lamellar mesophases at different temperature regions in the reported XRD measurements. Neither the ligand with the shortest chain (n = 8) nor the corresponding copper(I) complex (8a) displayed any mesomorphic behavior in the investigated temperature region, but as expected, the related copper(I) complexes with longer chains (8b (n = 12) and 8c (n = 16)) showed mesomorphic behaviors, displaying mesophases characteristic of an oblique columnar phase. In effect, the complexation of the metal center with the organic ligand resulted in a distinct change in the mesomorphic properties. It was observed that the mesophase stability was enhanced upon coordination with copper(I), as reflected by the large increase in the clearing temperature by nearly 50 °C, whereas the melting temperature remained almost the same for the ligands, as well as for the corresponding complexes.
Chemistry 05 00046 g005 550

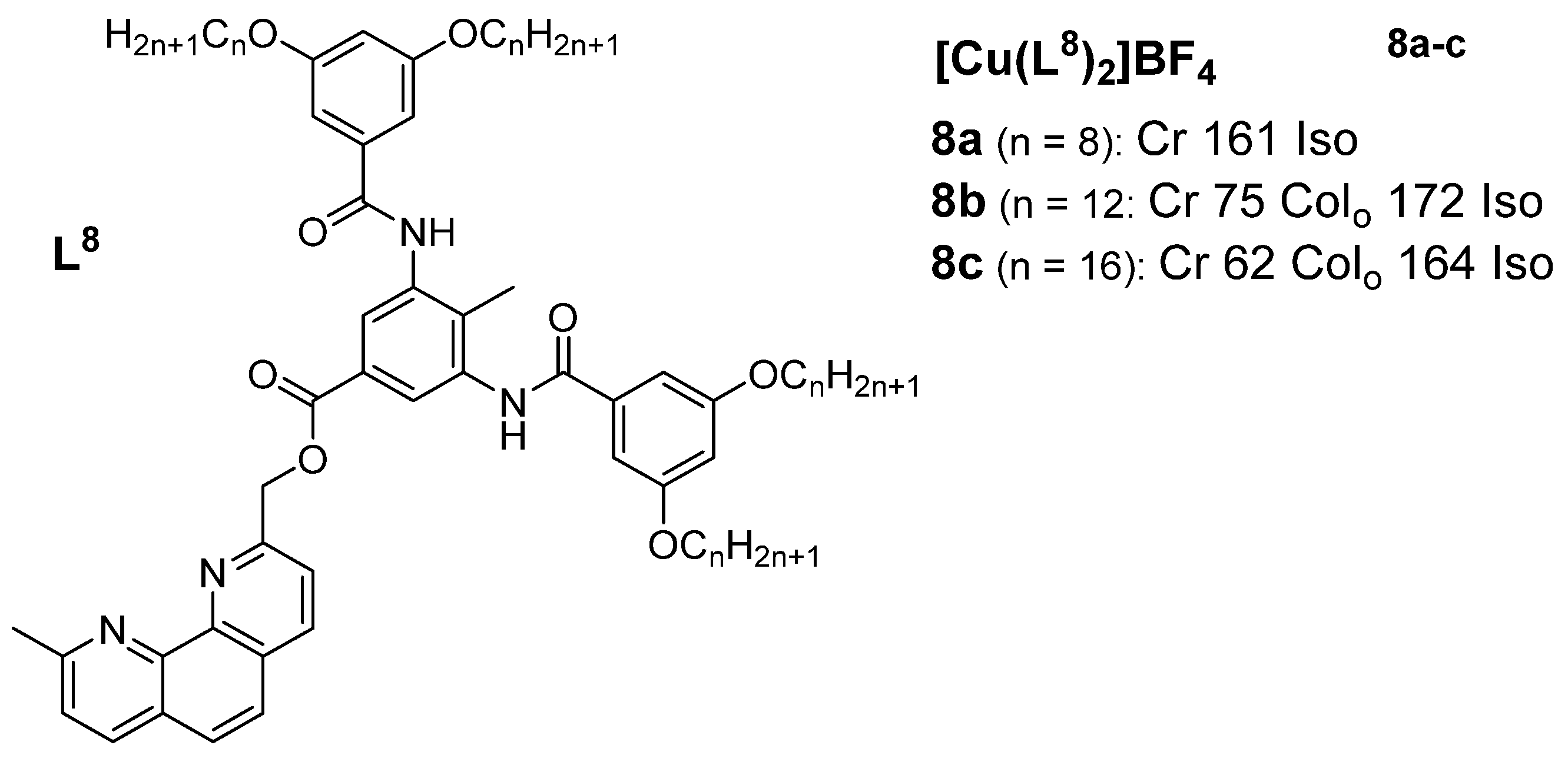

Figure 5. Copper(I) complexes with phenanthroline-based ligands. Temperatures are in (°C) [29].

This entry is adapted from the peer-reviewed paper 10.3390/chemistry5010046

References

  1. Tudor, C.A.; Iliş, M.; Secu, M.; Ferbinteanu, M.; Cîrcu, V. Luminescent heteroleptic copper(I) complexes with phosphine and N-benzoyl thiourea ligands: Synthesis, structure and emission properties. Polyhedron 2022, 211, 115542.
  2. Favarin, L.R.V.; Rosa, P.P.; Pizzuti, L.; Machulek, A.; Caires, A.R.L.; Bezerra, L.S.; Pinto, L.M.C.; Maia, G.; Gatto, C.C.; Back, D.F.; et al. Synthesis and structural characterization of new heteroleptic copper(I) complexes based on mixed phosphine/thiocarbamoyl-pyrazoline ligands. Polyhedron 2017, 121, 185–190.
  3. Chan, K.C.; Cheng, S.C.; Lo, L.T.L.; Yiu, S.M.; Ko, C.C. Luminescent Charge-Neutral Copper(I) Phenanthroline Complexes with Isocyanoborate Ligand. Eur. J. Inorg. Chem. 2018, 2018, 897–903.
  4. Bergmann, L.; Friedrichs, J.; Mydlak, M.; Baumann, T.; Nieger, M.; Bräse, S. Outstanding luminescence from neutral copper(i) complexes with pyridyl-tetrazolate and phosphine ligands. Chem. Commun. 2013, 49, 6501–6503.
  5. Enikeeva, K.R.; Shamsieva, A.V.; Strelnik, A.G.; Fayzullin, R.R.; Zakharychev, D.V.; Kolesnikov, I.E.; Dayanova, I.R.; Gerasimova, T.P.; Strelnik, I.D.; Musina, E.I.; et al. Green Emissive Copper(I) Coordination Polymer Supported by the Diethylpyridylphosphine Ligand as a Luminescent Sensor for Overheating Processes. Molecules 2023, 28, 706.
  6. Tsuge, K.; Chishina, Y.; Hashiguchi, H.; Sasaki, Y.; Kato, M.; Ishizaka, S.; Kitamura, N. Luminescent copper(I) complexes with halogenido-bridged dimeric core. Coord. Chem. Rev. 2016, 306, 636–651.
  7. Sun, Y.; Lemaur, V.; Beltrán, J.I.; Cornil, J.; Huang, J.; Zhu, J.; Wang, Y.; Fröhlich, R.; Wang, H.; Jiang, L.; et al. Neutral Mononuclear Copper(I) Complexes: Synthesis, Crystal Structures, and Photophysical Properties. Inorg. Chem. 2016, 55, 5845–5852.
  8. Borges, A.P.; Carneiro, Z.A.; Prado, F.S.; Souza, J.R.; Silva, L.H.F.E.; Oliveira, C.G.; Deflon, V.M.; de Albuquerque, S.; Leite, N.B.; Machado, A.E.H.; et al. Cu(I) complexes with thiosemicarbazides derived from p-toluenesulfohydrazide: Structural, luminescence and biological studies. Polyhedron 2018, 155, 170–179.
  9. Brown, C.M.; Li, C.; Carta, V.; Li, W.; Xu, Z.; Stroppa, P.H.F.; Samuel, I.D.W.; Zysman-Colman, E.; Wolf, M.O. Influence of Sulfur Oxidation State and Substituents on Sulfur-Bridged Luminescent Copper(I) Complexes Showing Thermally Activated Delayed Fluorescence. Inorg. Chem. 2019, 58, 7156–7168.
  10. Bergmann, L.; Braun, C.; Nieger, M.; Bräse, S. The coordination- and photochemistry of copper(i) complexes: Variation of N^N ligands from imidazole to tetrazole. Dalton Trans. 2018, 47, 608–621.
  11. Li, X.; Xie, Y.; Li, Z. Diversity of Luminescent Metal Complexes in OLEDs: Beyond Traditional Precious Metals. Chem. Asian J. 2021, 16, 2817–2829.
  12. Dumur, F. Recent advances in organic light-emitting devices comprising copper complexes: A realistic approach for low-cost and highly emissive devices? Org. Electron. 2015, 21, 27–39.
  13. Yersin, H.; Czerwieniec, R.; Shafikov, M.Z.; Suleymanova, A.F. TADF Material Design: Photophysical Background and Case Studies Focusing on Cu(I) and Ag(I) Complexes in Highly Efficient OLEDs: Materials Based on Thermally Activated Delayed Fluorescence; Yersin, H., Ed.; Wiley-VCH: Hoboken, NJ, USA, 2018; pp. 1–60.
  14. Housecroft, C.E.; Constable, E.C. TADF: Enabling luminescent copper(i) coordination compounds for light-emitting electrochemical cells. J. Mater. Chem. C 2022, 10, 4456–4482.
  15. Neve, F.; Ghedini, M.; Levelut, A.-M.; Francescangeli, O. Ionic metallomesogens. Lamellar mesophases in copper(I) azamacrocyclic complexes. Chem. Mater. 1994, 6, 70–76.
  16. Espinet, P.; Carmen Lequerica, M.; Martín-Alvarez, J.M.Â. Synthesis, Structural Characterization and Mesogenic Behavior of Copper(I) n-Alkylthiolates. Chem. Eur. J. 1999, 5, 1982–1986.
  17. Dance, I.G.; Fisher, K.J.; Banda, R.M.H.; Scudder, M.L. Layered Structure of Crystalline Compounds AgSR. Inorg. Chem. 1991, 30, 183–187.
  18. Iliş, M.; Cîrcu, V. Discotic Liquid Crystals Based on Cu(I) Complexes with Benzoylthiourea Derivatives Containing a Perfluoroalkyl Chain. J. Chem. 2018, 2018, 7943763.
  19. Lin, H.-D.; Lai, C.K. Ionic columnar metallomesogens formed by three-coordinated copper(I) complexes. J. Chem. Soc. Dalton Trans. 2001, 2383–2387.
  20. Raczuk, E.; Dmochowska, B.; Samaszko-Fiertek, J.; Madaj, J. Different Schiff Bases—Structure, Importance and Classification. Molecules 2022, 27, 787.
  21. Khalaji, A.D. Structural Diversity on Copper(I) Schiff Base Complexes, Current Trends in X-Ray Crystallography. Chandrasekaran, Q., Ed.; InTech: London, UK, 2011; pp. 161–190. ISBN 978-953-307-754-3.
  22. Jamain, Z.; Azman, A.N.A.; Razali, N.A.; Makmud, M.Z.H. A Review on Mesophase and Physical Properties of Cyclotriphosphazene Derivatives with Schiff Base Linkage. Crystals 2022, 12, 1174.
  23. Rananavarem, S.B.; Pisipati, V.G.K.M. An Overview of Liquid Crystals Based on Schiff Base Compounds, Liquid Crystalline Organic Compounds and Polymers as Materials XXI Century: From Synthesis to Applications; Iwan, A., Schab-Balcerzak, E., Eds.; Transworld Research Network: Trivandrum, Kerala, 2011; ISBN 978-81-7895-496-7.
  24. Hoshino, N. Liquid crystal properties of metal–salicylaldimine complexes.: Chemical modifications towards lower symmetry. Coord. Chem. Rev. 1998, 174, 77–108.
  25. Torroba, J.; Bruce, D.W. Comprehensive Inorganic Chemistry II: From Elements to Applications, 2nd ed.; Elsevier Ltd.: Amsterdam, The Netherlands, 2013; Volume 8, pp. 837–917.
  26. El-Ghayoury, A.; Douce, L.; Skoulios, A.; Ziessel, R. Cation-Induced Macroscopic Ordering of Non-Mesomorphic Modules—A New Application for Metallohelicates. Angew. Chem. Int. Ed. 1998, 37, 2205–2208.
  27. Douce, L.; Diep, T.H.; Ziessel, R.; Skoulios, A.; Césario, M. Columnar liquid crystals from wedge-shaped tetrahedral copper(i) complexes. J. Mater. Chem. 2003, 13, 1533–1539.
  28. Douce, L.; El-Ghayoury, A.; Ziessel, R.; Skoulios, A. Columnar mesophases from tetrahedral copper(I) cores and Schiff-base derived polycatenar ligands. Chem. Commun. 1999, 2033–2034.
  29. Ziessel, R.; Pickaert, G.; Camerel, F.; Donnio, B.; Guillon, D.; Cesario, M.; Prangé, T. Tuning Organogels and Mesophases Will Phenanthroline Ligands and Their Copper Complexes by Inter- to Intramolecular Hydrogen Bonds. J. Am. Chem. Soc. 2004, 126, 12403–12413.
