1. Introduction

A chemical sensor is defined as a device that transforms chemical information into an analytically useful signal ^[1]. Generally, chemical information originates from the chemical reaction of the analyte with the active part of the sensor that induces a variation of the properties of the sensor. However, not only the chemical reaction but also physical processes (adsorption-desorption), mechanisms of electrical conductivity of sensitive material, etc., contribute to the overall sensitivity of the sensor ^[1]. Chemical/gas sensors are identified as excellent candidates for the detection and quantification of chemical/gas compounds due to their direct electronic interface, fast response, high sensitivity, and low cost of production ^[1],^[2],^[3],^[4],^[5],^[6],^[7],^[8],^[9]]. In general, chemical/gas sensors are based on oxidation or reduction of the active material by the surrounding atmosphere. Numerous types of chemical/gas-sensing materials including metal oxide semiconductors ^[2],^[3],^[4],^[5],^[6], conducting polymers ^[7], conducting polymer composites ^[8],^[9], carbon nanomaterials ^[10], metal oxide/polymer composites ^[11],^[12], and various transduction mechanisms have been reported over the past decades.

Metal oxide (MOX) semiconductors may be divided in two different groups depending on their majority carriers. For instance, in n-type MOX semiconductors, such as ZnO, In 2O 3, Fe 3O 2, TiO 2, WO 3, SnO 2, the majority carriers are electrons, while in p-type, NiO, Co 3O 4, Cr 2O 3, Mn 3O 4, CuO, the majority carriers are holes ^[13],^[14],^[15]. In contrast to n-type MOX gas sensors, p-type MOX ones are less studied, and the reported works are still in a premature stage of development.

Figure 1 shows the results of p-type and n-type MOX gas sensors in Web of Knowledge on 30 June 2021 with the keyword “metal oxide gas sensor.” Only 13% of articles report on the p-type MOX gas sensors out of a total of 24,234 articles concerning MOX gas sensors. Irrespective of the number of reported works, p-type metal oxides have shown excellent performances in chemical/gas sensing owing to the majority of charge carriers, their conduction paths, resistance to humidity influence on sensing performances, superior catalyst properties, long-term stability, and lower open circuit resistance in contrast to n-type MOX gas sensors ^[16]. Furthermore, oxygen is excellently adsorbed at p-type MOX surface at low temperature compared to n-type. Thereby p-type MOX gas sensors could potentially be used for the sensing of volatile organic compounds (VOCs) since they are highly oxidized by adsorbed oxygen at the surface compared to surface lattice oxygen ^[17],^[18],^[19]. Moreover, the excellent gas-sensing performances at low working temperatures in p-type MOX gas sensors have paved the interest for the detection and quantification of VOCs ^[16]. Thereby, the number of scientific research works was gradually increased on p-type MOX as shown in

Figure 2 .

.

Figure 1. The reported scientific research on

n-type and

p-type metal oxide gas sensors in Web of Knowledge on 30 June 2021.

Consequently, scientific works on Co3O4 gas-sensing applications have been gradually increased (

-type metal oxide gas sensors in Web of Knowledge on 30 June 2021.

Figure 2. The advancement of p-type MOX gas sensors by yearly from the search on Web of Knowledge on 30 June 2021.

Consequently, scientific works on Co₃O₄ gas-sensing applications have been gradually increased (

Figure 2 ) due to tremendous sensitivity, response/recovery, and stability even at lower and elevated temperatures, superior electrical and chemical properties together with their abundance  ^[20],^[21]. Similarly, various nanostructures of Co3O4, nanoparticles ^[22],^[23], nanowires ^[24],^[25],^[26],^[27],^[28],^[29], nanorods^[30],^[31], nanosheets ^[32],^[33], nanocubes ^[34], nanoneedles ^[35], hollow microspheres ^[36],^[37],^[38], urchin-like structures ^[39],^[40],^[41], have been reported in the literature for the detection of CH3OH, C2H5OH, HCHO, CH4, CH 3COCH3, C6H6, C6H5CH3, C6H5(CH3)2, CO.

2. Material and Sensing

Generally, cobalt oxide comprises the spinel structure with an indirect band gap of ~1.5 eV and direct band gap ~2.2 eV. Usual spinel structure is represented by the formula (A)[B₂]C₄, in which A and B are cations in tetrahedral and octahedral coordination respectively, whereas C stands for anions. The spinal structure is significantly stable when A is divalent, and B is trivalent for instance (A²⁺)[B³⁺]C₄. Similarly, the cobalt oxide (Co₃O₄) is known to follow the spinel structure as (Co²⁺)[Co₂³⁺]O₄ [45]. The high spin Co²⁺ occupies the interstitial sites of tetrahedral (8a) whereas low spin Co³⁺ are known to occupy the interstitial sites of octahedral (16d) of the close-packed face-centered cubic lattice of CoO.Co₂O₃ as shown in Figure 3a,b. The p-type conductivity of the material (CoO.Co₂O₃) is known to originate from the vacancies of Co in the crystal lattices or/and excess oxygen at interstitial sites [45]. However, the charge carriers concentration of the material varies with the operating temperature or doping. Co₃O₄ is one of the versatile transition magnetic MOX semiconductors.

Figure 3. Crystal structure of Co₃O₄ (a) unit cell; (b) primitive cell (right). • Co²⁺, • Co³⁺, • O²⁻. Reprinted with the permission from [45].

2.1. Characteristics Properties of a Chemical/Gas Sensor

The key parameters that can be useful when discussing chemical/gas sensors are response, selectivity, response time, recovery time, stability, gas detection limit, and operating temperature. A comprehensive but brief understanding on each parameter is useful prior to the detailed discussion on chemical/gas sensors.

Response may be described as the fraction of the resistance on the sensing material when interacting with the analyte gas (R_g) and the one in air (R_a). However, response vastly relies on the crystallite size, porosity, operating temperature, and film thickness. Selectivity determines the ability of identifying the target gas in a mixture of gases and can be tuned with the operating temperature. However, MOX chemical/gas sensors may respond in similar manners toward different gas molecules [46]. Hence the selectivity is one of the paramount features when describing the sensing performances. Stability is the ability of the active material to keep its properties, such as electrical resistance in case of conductometric sensors, constant over time. Response time is an evaluation of the sensors dynamics to achieve a stable value of the monitored sensor parameter, for example the time to accomplish 90% of the final resistance of the sensor when interacting with the gas. Usually, the electrical resistance of a conductometric chemical/gas sensors changes when interacting with the analytes molecules as shown in Table 1. In general, a dynamic response curve shows the resistance/conductance variation of the sensor with time. While the recovery time may be calculated as the time interval necessary to get back to 90% of the resistance value in air before the gas introduction as the air flow is restored. These parameters can be calculated from the dynamic response plot as shown in Figure 4. Detection limit is the least concentration of analyte gas that may be detected by the sensor. Lastly, working temperature is the temperature where the sensor is operating.

Figure 24. The advancement of p-type MOX gas sensors by yearly from the search on Web of Knowledge on 30 June 2021.

However, the significant improvements in the application of one dimensional (1D) nanostructures of Co 3O 4, on chemical/gas sensing have been attributed to the superior adsorption—desorption of chemical compounds which results in an outstanding response and reliability for chemicals/gases detection ^[42],^[43]. Additionally, the higher surface energy, crystalline quality, large intrinsic resistance modulation, number of reactive sites, and large surface to volume ratio of 1D nanostructures have significantly improved the gas-sensing performances ^[14],^[44].

2. Material and Sensing

The key parameters that can be useful when discussing chemical/gas sensors are response, selectivity, response time, recovery time, stability, gas detection limit, and operating temperature. A comprehensive but brief understanding on each parameter is useful prior to the detailed discussion on chemical/gas sensors.

Response may be described as the fraction of the resistance on the sensing material when interacting with the analyte gas (Rg ) and the one in air (Ra ). However, response vastly relies on the crystallite size, porosity, operating temperature, and film thickness. Selectivity determines the ability to identify the target gas in a mixture of gases and can be tuned with the operating temperature. However, MOX chemical/gas sensors may respond in similar manners toward different gas molecules ^[45]. Hence the selectivity is one of the paramount features when describing the sensing performances. Stability is the ability of the active material to keep its properties, such as electrical resistance in the case of conductometric sensors, constant over time. Response time is an evaluation of the dynamics of the sensor to achieve a stable value of the monitored sensor parameter, for example, the time to accomplish 90% of the final resistance of the sensor when interacting with the gas. Usually, the electrical resistance of the conductometric chemical/gas sensors changes when interacting with the analytes molecules as shown in

Table 1. In general, a dynamic response curve shows the resistance/conductance variation of the sensor with time. While the recovery time may be calculated as the time interval necessary to get back to 90% of the resistance value in the air before the gas introduction as the airflow is restored. These parameters can be calculated from the dynamic response plot as shown in

Figure 3. The detection limit is the least concentration of analyte gas that may be detected by the sensor. Lastly, working temperature is the temperature where the sensor is operating.

Table 1

) [48].

Figure 5. Two types of transducing platforms: (a) planar; (b) tubular configuration.

The electrical conduction in a chemical gas sensor is based on charge carriers (electrons for n-type and hole for p-type MOX gas sensors). However, the ionosorbed species on MOX surface play also a key role in the electrical conduction since these sensors are working in ambient environment. In this scenario, oxygen and water vapors are the prominent. Concerning oxygen adsorption, molecular O₂⁻, atomic O⁻, and O²⁻ species are present at the temperatures < 150 °C, 150–400 °C, and >400 °C respectively and the chemical routing is shown in Equations (1)–(3) [11,14]. When oxygen ions are chemisorbed, free charge carriers (holes) concentration increase in p-type materials such as Co₃O₄. These chemisorbed oxygen species are responsible for electron trapping from MOX valance band, forming an electronic core shell as depicted in Figure

Variation of the resistance in MOX upon the interaction of reducing or oxidizing gases.

6 [14]. This may result in a hole-accumulating layer (HAL) near the semiconductor surface [14]. The formed HAL is crucial for the receptor/transduction function. Additionally, in p-type MOX semiconductors electrical conduction is through the semiconducting near surface regions (parallel path conduction) [14,49]. A detailed description on conductive model on p-type metal oxide is found in Barsan et al. and Kim et al. [14,49].

O_2(ads) + e⁻ → O₂⁻_(ads) (1)

O₂⁻_(ads) + e⁻ → 2O⁻_(ads) (2)

2O⁻_(ads) → O²⁻_(ads) (3)

Figure 36.

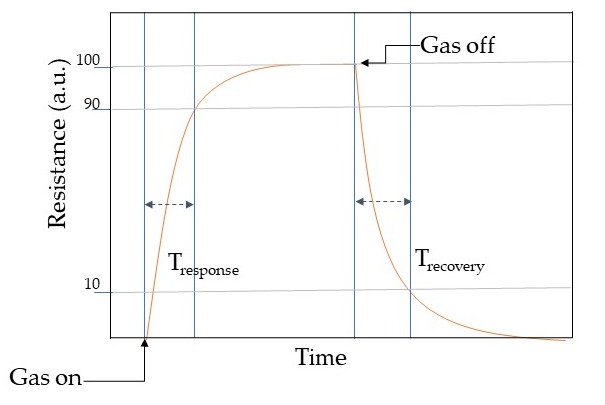

Schematic illustration of a dynamic response curve of a conductometric chemical/gas sensor.

7a depicts the band structure prior to any surface reaction. Once oxygen is ionosorbed on the MOX surface, electron from the valence band are captured on the surface traps. This process alters the hole concertation in the accumulation layer resulting in upward band bending as represented in Figure 7b. Subsequently, the electrical resistance of the hall accumulation layer decreases [49]. The interaction of the reducing gas with sensing material may increase the HAL resistance due to the consumption of ionosorbed species. This results in the decrease of the hole concentration causing a downward band bending as in Figure 7c. Furthermore, direct adsorption of oxidizing species, such as highly electronegative NO₂, can also alter the MOX electrical conductance and a detailed explanation has been reported in Comini et al. [5]. Additionally, energy band bending due to the electron transfer between the semiconducting material and the chemical compounds, formation of Schottky barriers, microstructure of the MOX semiconductor also influence the electrical resistance [47,50].

Figure 7. Energy bands structure at the near surface when interacting with oxygen and reducing gases: (a) prior to any surface interaction; (b) electrons trapping and formation of the holes accumulation layer due to oxygen adsorption; (c) the decrease of the surface charge due to the interaction with the reducing gas; E_C–conduction band position, E_F–Fermi level position, E_C–valance band position, q- electron charge, qV_S- potential barrier.

The net electrical resistance of the gas-sensing element is the total resistance of the combination of three regions; (a) metal-semiconductor, (b) semiconductor-semiconductor, and (c) semiconductor metal junctions. There are therefore four types of resistance:

• Metal to semiconductor;
• Outer conductive and narrow accumulation layers at the surface of the nanowire;
• Narrow accumulation layers at the surface of the grains and broad bulk of the nanowire;
• Nanowire to nanowire.

By assuming constant resistance and capacitance values in these four types of resistance described above irrespective of gases interaction, a detailed explanation on the conductance is provided based on DC equivalent circuit by Barsan et al. in the specific case of granular materials [49].

Considering all these facts, synthesis of 1D nano structures for the chemical/gas sensing has attracted the researchers’ attention for sensitivity and response improvements by reducing the resistance in the large number of contacts regimes mentioned above.

In general, the electron momentum in 1D nanostructures is confined in two directions which in turn force electron motion in one direction. However, the electrical transport phenomena in 1D nano structures may be described using the cylindrical approach of Poisson equation [49,50]. The limitation on the electrical conduction length is varying depending on the formation of the space charge layer (depletion layer or hole accumulation layer in n-type or p-type metal oxide semiconductor respectively) due to the ionosorption species as shown in Figure 8a,b. Nevertheless, the transport mechanism should be revised when the grain size (dm) becomes low compared to the Debye length (λ_D). In the instance of a large grain, (grain size, d_m >> thickness of the space charge layer, 2λ_D), the conductance is limited by Schottky barrier at grain boundaries. Once, d_m = 2λ_D, conductance is limited by necks between the grain, while the conductance is highly affected by each grain once d_m < 2λ_D [46]. This may account for specific effects along the nano structure which is known to be the main reason for significant alterations in its electrical properties.

Figure 8. Graphical representation: (a) nano wire diameter higher than Debye length and space charged layer; (b) cross section of the nano wire and space charged layer. d is the diameter of the nano wire and the d^/ is the width of the space charge layer.

In general, bottom-up or top-down approaches are used for the growth of nanostructures. The experimental setup for bottom-up approaches may be low cost producing high crystallinity and purity nanostructures, but their alignment may be extremely difficult. Top-down approaches suffer from long preparation times, while they easily form structures directly on flat substrates. Concerning the growth of Co

₃

₄ nanostructure as chemical/gas sensors, several growth techniques such as hydrothermal, electrospinning, and solvothermal were widely employed.

3. Overview of Reported 1 D Nano-Structured Co3O4 Gas Sensors

3

nano structure as chemical/gas sensors, several growth techniques such as hydrothermal [15,16,22,23,24,34,52,53], electrospinning [54], and solvothermal [3,27,55,56] were widely employed. Thereby a brief description of each growth techniques will be made.

3.1. Hydrothermal and Solvothermal Techniques

The hydrothermal and solvothermal techniques are the topmost attracting methods for fabricating nanostructured materials owing to high yield, uniform products, low energy consumption, lower pollution, easy control together with simple manipulation [57]. In general, both the methods are similar. Hydrothermal process is carried out in aqueous medium above the boiling point. Solvothermal occurs in a nonaqueous (mainly organic phase) solution at quite high temperatures. Both the techniques are executed in steel autoclaves with or without Teflon liners under specific growth conditions such as pressure, temperature, reactant concentration, and duration which are known to tune morphology and crystal structure as shown in Figure 9a–h. Additionally, a comprehensive comparison on each method is found in Wang et al. [58].

Figure 9. The SEM microgram hydrothermally grown Co₃O₄ nano structures: (a,b), nanoparticles-assembled Co₃O₄ nanorods, reprinted with the permission from [27]; (c,d) Cr-doped Co₃O₄ nanorods, reprinted with the permission from [59]; (e,f) hierarchical nanorods, reprinted with the permission from [53]; (g,h) rhombus-shaped nanorod arrays, reprinted with the permission from [25].

3.2. Electrospinning Techniques

Electrospinning technique is performed injecting a liquid precursor solution via a spinneret. In general, high electrical voltage difference is applied between the liquid precursor and the collector, which leads to an extrude on the solution forming a jet from the nozzle. The jet-formed fibers are deposited on the collector [46]. This method of growing nano structures with higher length is simple and flexible specially for the nano fibers’ growth. However, electrospinning is controlled by several parameters, such as operating voltage, viscosity, pressure, flow rate, and temperature [60]. Presently, two standard electrospinning setups are available; horizontal and vertical and a comprehensive study on electrospinning techniques is found in Bhardwaj et al. [61]. Additionally, a post growing heat treatment is essential in the electrospinning technique to eliminate the solvent and to solidify the nano structures. Figure 10a,b shows the general electrospinning setup and Figure Sens10c–f the SEM images of different achieved Co₃O₄ NFs. However, with the advancement of this technology, some research groups have introduced state-of-the-art systems that can grow more graded nano fiber structures at higher efficient and controllable means.

Fing ure 10. Experimental setup of electrospinning technique: (a) vertical; (b) horizontal, reprinted with the permission from [61]; (c,d) nano structure obtained via eletrospun technique, reprinted with the permission from [62]; (e,f) nano structure obtained via eletrospun technique, reprinted with the permission from [63].

Toward Ethble 2

Ethanol is a VOC that is vastly present in the daily life of human beings in means of food, beverages, fuel-processing, pharmaceutical, as well as in many laboratories and industries for diverse research and applications ^[47]. However, long-term exposure to C2H5OH has been identified as the main reason for serious health effects such as lethargy, irritation to skin and eye, difficulty breathing, coma, liver damage, and intoxication. Moreover, C2H5OH as an alcoholic drink has been identified as one of the root causes for rising traffic accidents around the world ^[48]. For this reason, almost all countries have legalized the consumption limitation of C2H5OH. For example, in Italy, the highest ethanol level that is allowed in the breath of drivers is 130 ppm (0.05% in the blood) while in the USA, 208 ppm (0.08% in the blood) ^[49]. Hence, detection and quantification of C2H5OH in the environment as well as in human breath have become a necessity. Before discussing the C2H5OH-sensing applications it would be interesting to understand its sensing mechanism at MOXs surface. When ethanol is interacting with the near-surface irrespective of the type of MOXs sensor, these molecules are chemisorbed on the MOXs surfaces. Afterward, chemisorbed ethanol molecules start to react with the adsorbed oxygen species resulting in the formation of H2O and CO2. Hence the trapped electrons are liberated back to the MOXs altering the sensor resistance. The chemical reaction between C2H5OH and adsorbed oxygen species on the near-surface of the MOXs is described as in (1–2) regardless of the type of the MOXs ^[49].

C2H5OH (ads) + O¯ (ads) → CH3CHO (ads) + H2O + e− (1)

4.1. Sensing toward Ethanol (C2H5OH)

CH3CHO (ads) + 5O− (ads) → 2CO2 +2H2O + 5e− (2)

Electrospinning has been employed for the preparation of nanofibers (NFs) for the detection of C2H5OH by Yoon et al.^[50]. The sensors have shown superior sensitivity (Rg /Ra = 51.2) toward 100 ppm of C2H5OH compared to CO, C3H8, and H2 at 301 °C before decreasing to 19.2 at 336 °C. While the recovery time was decreasing as the operating temperature increases due to the thermal boosting of oxygen ionization.

3.2

Ethanol is a VOC that is vastly present in the daily life of human beings in means of food, beverages, fuel-processing, pharmaceutical, as well as in many laboratories and industries for diverse research and applications [72]. However, the long-term exposure to C₂H₅OH has been identified as the main reason for serious health effects such as lethargy, irritation to skin and eye, difficulty breathing, coma, liver damage, and intoxication. Moreover, C₂H₅OH as alcoholic drink has been identified as one of the root causes for the rising traffic accidents around the world [73]. For this reason, almost all countries have legalized the consumption limitation of C₂H₅OH. For example, in Italy the highest ethanol level that is allowed in the breath of drivers is 130 ppm (0.05% in blood) while in the USA, 208 ppm (0.08% in blood) [74]. Hence, detection and quantification of C₂H₅OH in environment as well as in human breath have become a necessity. Before discussing the C₂H₅OH-sensing applications it would be interesting to understand its sensing mechanism at MOXs surface. When ethanol is interacting with the near surface irrespective of the type of MOXs sensor, these molecules are chemisorbed on the MOXs surfaces. Afterwards, chemisorbed ethanol molecules start to react with the adsorbed oxygen species resulting in the formation of H₂O and CO₂. Hence the trapped electrons are liberated back to the MOXs altering the sensor resistance. The chemical reaction between C₂H₅OH and adsorbed oxygen species on the near surface of the MOXs is described as in (4–5) regardless of the type of the MOXs [74].

C₂H₅OH_(ads) + O¯_(ads) → CH₃CHO_(ads) + H₂O + e⁻ (4)

CH₃CHO_(ads) + 5O⁻_(ads) → 2CO₂ +2H₂O + 5e⁻ (5)

Among the synthesis techniques for Co₃O₄ NRs preparation, solvothermal technique one has been used to prepare C₂H₅OH-sensing devices by Choi et al. in 2010 [3]. The integrated sensors by the Choi et al. have demonstrated a superior selectivity and response to 100 ppm of C₂H₅OH compared to that of H₂ and CO at 300 °C. Furthermore, the effective and prompt diffusion of gases onto the whole surface Co₃O₄ nanorods give rise to a superior response of 25.4 (R_a/R_g) to 100 ppm C₂H₅OH together with the response time of 29 s and recovery time of 10–13 s compared to the one of nano cubes and particles [3].

It is known that the morphology of the nano structures can be altered depending on the original material, the growth technique, and its parameters. Wen et al. in 2013 have addressed the growth of Co₃O₄ rhombus-shaped NRs on polycrystalline alumina ceramics plate, investigating their C₂H₅OH detection capabilities [25]. They have also demonstrated the necessity of post treatment annealing step for the hydrothermal-assisted growth. This additional step is known to support the removal of adsorbed water molecules upon calcination [25]. Wen et al. have shown the absence of FTIR peaks of O-H (3574 cm⁻¹ and 1635 cm⁻¹), O-H groups interacting with fluoride (3417 cm⁻¹), Co-OH (995 cm⁻¹), and Co-F (734 cm⁻¹) vibrations in the calcinated sample compared to that of the as-grown one (Figure S11a). Additionally, dehydration and lattice contraction may also occur during the thermal treatment, causing a topology modification of more rough surfaces (Figurens 11b,c). Furthermore, the rougher topology along with the unique structure of Co₃O₄ NR arrays, the high surface to volume ratio, the actual participation of each NR for the gas sensing due to the direct growth of Co₃O₄ NRs on substrates and the space between individual NRs has been identified as the main roots of outstanding sensing performances [25]. Moreover, these unique features have also tuned the sensor toward breath analysis application and extended stability [25].

Fing towure 11. FTIR spectra of the Co₃O₄ NRs: (

a

) before and after sintering at 450 °C; (b) SEM images of Co(OH)F NR; (c) SEM image of the rhombus-shaped Co₃O₄ NR arrays annealed at 450 °C. Reprinted with the permission from [25].

Nguyen et al. have reported the occurring of rough and porous nature in the topology on the NRs upon the calcination [24]. However, the porous morphology has been attributed to the oxidation of Co(OH)_x(CO₃)_0.5.0.11H₂O in the as grown material. Furthermore, Nguyen et al. have observed the necessity of higher amount of oxygen vacancies [Equations (4)–(6)] for an effective ethanol detection. Co₃O₄ NRs sensors show higher responses toward ethanol at 300 °C in ambient air compared to N₂ environment due the reduction of pre-adsorbed oxygen in the Co₃O₄ in N₂ environment.

Electrospinning has been employed for the preparation of nano fibers (NFs) for the detection of C₂H₅OH by Yoon et al. [65]. The sensors have shown superior sensitivity (R_g/R_a = 51.2) toward 100 ppm of C₂H₅OH compared to CO, C₃H₈, and H₂ at 301 °C before decreasing to 19.2 at 336 °C. While the recovery time was decreasing as the operating temperature increases due to the thermal boosting of oxygen ionization.

Furthermore, Yoon et al. have demonstrated the effect of NFs dimension in the sensing properties in 2014 [63]. In the reported study three sets of NFs were grown by altering the ultrasound sonication time using the electrospinning followed by calcination. The sensor resistance has been found to increase with the sonication time due to the reduction of the effective surface area. This decrement resulted from the breaking of well-connected long nanofibers into less connective nanoparticles or shorter fibers. Additionally, the variation in the contact area among the particles has been identified as a possible reason for the decrease in the response with higher duration of sonication. Hence, the inter-particle connectivity could be a significant parameter for the gas-sensing performances in Co₃O₄ devices.

The detection of lower concentrations is highly beneficial when considering safety applications. One successful study has reported the detection of 10 ppm C₂H₅OH exploiting needle shaped Co₃O₄ nano arrays (Figurde Ac12a) that were grown in facile hydrothermal route by Wen et al. in 2014 [34]. The reported nanoneedles array has demonstrated mesoporosity and quasi-single-crystalline structure which has been identified as the main motivation for the superior response of 89 (R_g/R_a) toward 100 ppm ethanol at a working temperature of 130 °C (Figureton 12b). Furthermore, several other key factors, such as the strong adhesion between the sensing materials and the substrates, which in turn improve the good ohmic contact, the random orientation of the nanoneedle arrays and the special exposed crystal planes of Co₃O₄ have been ascribed for the superior sensing performance and their stability.

Figure (C12. The SEM image of Co₃O₄: (a) nanoneedle arrays; (b) the dynamic response and recovery plot of the Co₃O₄ toward ethanol. Reprinted with the permission from [34].

4.2. Sensing toward Acetone (C₃H₆O)

Acetone is a VOCs known to be caused by irritation to nose, eyes, throat, and central nervous system as the concentration is higher than 173 ppm or if the exposure continues for several hours [60,72]. Moreover, it has been identified as a key compound to identify health issues in human body by analyzing the human breath [67,75]. Hence, the detection of acetone is essential for both society safety and health. An illustration of C

₃

₆O)

A superior sensitive and selective performance toward acetone has been reported by Choi et al. on Co

₃

₄

₃

₄

₃

₄

₂

₃

₃

₄ NFs due to Ir NPs together with the effective electronic sensitization by the GO sheets. In addition, the rapid transfer of the carrier to the sensing electrodes, due to the highly conductive GO sheets, contributed to improving the performances.

Another interesting morphology for chemical compounds detection is one of the hierarchical nanofibers (HNF). Its effective surface area is outstanding and there is a smooth transfer of carriers through nanofibers without additional barriers, due to the connection of the nanosheet-like structures in the nanofiber ^[51]. In 2019 Cao et al. have demonstrated C3H6O sensing with HNFs at an operating temperature of 190 °C. The grown HNFs comprised many nanosheets with a smooth surface almost perpendicular to the nanofiber’s surfaces (thickness of 20–40 nm) ^[51]. However, Zhang et al. have reported the possibility of detecting C3H 6O at an operating temperature of 75 °C with Co3O4 NWs assembled on hollow carbon spheres (Co3O4 NW-HCS) ^[23]. The enhanced sensing performances at low operating temperatures have been attributed to the interaction between hollow carbon spheres and short Co3O4 nanowires. Moreover, the unique porous cavity structure of hollow carbon spheres contributes to the excellent sensing performances by paving a higher number of available sites for easy adsorption and desorption of C3H6O molecules.

NFs due to Ir NPs together with the effective electronic sensitization by the GO sheets. In addition, the rapid transfer of carrier to the sensing electrodes, due to the highly conductive GO sheets, contributed to improve the performances.

Figure 13.3 The illustration of sensing mechanism of C₃H₆O on Co₃O₄. Reprinted with the permission from [52].

Another interesting morphology for chemical compounds detection is one of the hierarchical nanofibers (HNF). Its effective surface area is outstanding and there is a smooth transfer of carriers through nanofibers without additional barriers, due to the connection of the nanosheet-like structures in the nanofiber [52]. In 2019 Cao et al. have demonstrated C₃H₆O sensing with HNFs at an operating temperature of 190 °C. The grown HNFs comprised many nanosheets with smooth surface almost perpendicular to the nanofiber’s surfaces (thickness of 20–40 nm) as shown in Figure 14a–c [52]. However, Zhang et al. have reported the possibility of detecting C₃H₆O at an operating temperature of 75 °C with Co₃O₄ NWs assembled on hollow carbon spheres (Co₃O₄ NW-HCS) [23]. The enhanced sensing performances at low operating temperature have been attributed to the interaction between hollow carbon spheres and short Co₃O₄ nanowires. Moreover, the unique porous cavity structure of hollow carbon spheres is contribute to the excellent sensing performances by paving higher number of available sites for easy adsorption and desorption of C₃H₆O molecules.

Figure S14. The SEM micrograms: (a–c) HNF of Co₃O₄. Reprinted with the permission from [52].

4.3. Sensing toward Carbon Monoxide (CO)

The World Health Organization has announced that 92% of the world’s population live in zones with poor air quality [69]. Consequently, the lack of air quality has been identified as the reason for the increment of the premature death worldwide [69]. CO is one of the major air pollutants. It is a byproduct of the incomplete combustion process of fossil fuels, from power stations (coal), industrial factories, and vehicle exhaust. CO is colorless, tasteless, poisonous, and odorless [70]. CO has a greater affinity with hemoglobin compared to O₂. Thereby, CO binds easier than O₂ to hemoglobin as it enters into the blood which in turn results in suffocation to death [71]. Hence CO monitoring in living environments is significantly valuable. Co₃O₄ 1D nano structures growth for the detection of CO may be interesting due to its long-term stability, high surface/volume ratio, and low-temperature operation [16]. Figurens 15 shows the interaction of CO on the MOX surface. The sensing reactions can be written as in Equations (6)–(9) [64].

CO_(g) → CO_(ads) (6)

CO_(ads) + O⁻ → CO₂ + e⁻ (7)

CO + OH⁻_(ads) ↔ HCO₂¯ ↔ H⁺_(ads) + CO₂ + 2 e⁻ (8)

CO + H₂O → CO₂ + H₂ (9)

Fing towure 15. The schematics of proposed CO detection mechanism: (

a

,b) adsorption of O₂ to the Co₃O₄ surface; (c) adsorption of CO to the Co₃O₄ surface once it reacts with surface-near lattice oxygen; (d) the desorption of CO as CO₂; (e,f) oxygen vacancies are replenished by oxygen from the gas phase; (g,h) replenishment of oxygen vacancies by oxygen from the surface-remote lattice. Redrawn with the permission from [28].

In 2010 Patil et al. have demonstrated Co₃O₄ NRs sensing of CO with a response of 6.5 to 50 ppm CO at 250 °C [15]. The NRs sensors have demonstrated a higher response compared to the commercially available NP sensors due to the stronger bonding between nanoparticles in the NRs beside the higher surface-to-volume ratio. Additionally, the fabricated sensors have shown superior selectivity compared to H₂, LPG, CO₂, and ethanol.

However, CO sensing at a low working temperature (100 °C) has been reported by Dou et al. in 2014 [16]. The NFs sensors demonstrated a higher response (~13.5 (R_g/R_a) toward 50 ppm CO. Moreover, the detection of 5 ppm at 100 °C has been reported by the Busacca et al. on NFs Co₃O₄ sensors in the same year [62]. The excellent CO-sensing response of 2.4 (R_g/R_a) together with response time of 14 s and recovery time of 36 s of NFs was attributed to the higher effective surface area as well as the higher number of oxygen vacancies or defects on the NFs surface. Additionally, the lower crystallite size (about 15 nm) has been identified as one of the potential factors that could enhance the sensor performances. However, the sensor response was saturated at a concentration of 20 ppm at 100 °C owing to the formation of carbonates species at a low temperature that deactivates the action of Co₃O₄ catalysts in CO oxidation.

4.4. Sensing toward Toluene (C₇H₈) and Xylene (C₈H₁₀)

Toluene is another VOC widely used in paints, rubber, adhesives, and printing. Nonetheless, it is toxic, dangerous, and a neurotoxic compound that is damaging to humans even at very low concentrations (88 ppm) [27,76]. Owing to these consequences chemical/gas sensors are required to monitor toluene concentration in the afore mentioned applications.

Wang et al. have reported Co₃O₄ NRs-assisted gas sensors for toluene detection [27]. The grown rods-like structures were oriented from the assembly of numerous fine nanoparticles. The Figure 16a,b shows NRs with 40–50 nm width and cubic spinel Co₃O₄ phase. The sensors have shown an excellent response of 6 (R_g/R_a) toward 10 ppm of toluene and 35 (R_g/R_a) for 200 ppm at 200 °C together with response and recovery time of 90 s and 55 s respectively. Furthermore, higher sensing response has been obtained in rod-like structure, compared to nanoparticle, due to the higher amount of adsorbed oxygen molecules and the easiest diffusion of toluene through the well-aligned porous structures. This in turn improves toluene molecules absorption in the rod-like Co₃O₄ surface as depicted in Figure 16c,d. Once toluene molecules interact with the pre-adsorbed oxygen, the following reaction takes place on the surface of Co₃O₄:

C₇H₈ + 2O¯ → C₇H₆O¯ + H₂O + e⁻ (10)

Figure 16. The FESEM:(a) as grown; (b) calcinated at 450 °C for 3 h; (c) TEM and; (

d

) HRTEM of the calcinated Co₃O₄ nano rods. The illustration of gas-sensing mechanism; (e) Co₃O₄ nanorods; (f) commercial Co₃O₄ powder. Reprinted with the permission from [27].

The released electron will interact with the hole in Co₃O₄ resulting in the decrease of the carrier concentration (hole), thus increasing the sensor resistance which can be used to study the concentration of interacting chemical compounds.

Sensing properties tunability, such as selectivity toward different gases, could be interesting when considering the production costs. The possibility to detect two gases with the same sensor exploiting different operating temperatures has been demonstrated by the Jeong et al. on Cr-incorporated Co₃O₄ NRs for xylene and toluene [59]. The responses to xylene of pure Co₃O₄ NRs and Cr-incorporated NRs were found to increase at 250 °C and the sensing properties were tuned toward the toluene as it is working at 300 °C. Additionally, the fabricated Cr incorporated sensor has shown higher selectivity of 5.61 (S_toluene/S_ethanol) and 6.01 (S_xylene/S_ethanol) in the 1.89% Cr-doped Co₃O₄ NRs at 275 °C for a concentration of 5 ppm. The selective sensing of toluene in Cr incorporated sensors has been attributed to the synergetic effect of abundant adsorbed oxygen on Co₃O₄ surface and the catalytic action of Cr for partial oxidation of methyl groups in toluene into a more reactive chemical species for xylene detection. Yet, the fastest detection of xylene was reported for Co₃O₄ 1D nano structures NFs by Qu et al. in [67] with a response and a recovery time of 15 s and 22 s respectively. The reported faster response and recovery times have been attributed to the fast mass transfer of xylene molecules from and to the interaction area, together with the distribution of bimodal pore sizes [67].

4.5. Sensing toward Ammonia (NH₃)

Ammonia is one of the extensively employed chemical in many fields for instance food processing, clinical diagnosis, and fertilizer production. However, direct contact or inhalation of ammonia at lower ppm levels can lead to burn of skin, eyes, lungs. Subsequently, inhalation of very high NH₃ concentration (10,000 ppm) for 3 h may cause death [77,78]. Hence detection of NH₃ is important. Beside the existing ammonia sensors that operate at high working temperature (>300 °C), an outstanding NH₃ sensor operating at 160 °C has been reported with the exceptional response and recovery time of 2 s and 10 s, a sensing response of 11.2 for the concentration of 100 ppm [53]. The reported sensor has been prepared with hierarchical structured Co₃O₄ NRs. The grown NRs were 200 nm in diameter approximately and from 1 to 2 µm in length (Figure C17a–c). The superior response has been ascribed to the enormous number of active sites and space in the hierarchical nanostructures for adsorption and reaction between analyte gases and adsorbed oxygen ions (Figure 17d) [79]. The existence of multiple HALs layers on the surface of hierarchical nano structures may be one of the reasons for this superior sensing performance toward NH₃. NH₃-sensing reaction on the Co₃O₄ surface can be understand as follows.

2NH₃ + 7O⁻ _(ads) ↔ 3H₂O + 2NO₂ + 7e⁻ (11)

Figure 17. The FESEM images: (

a

–c) hierarchical Co₃O₄ nanorods; (d) illustration of the gas detection mechanism. Reprinted with the permission from [53].

Hence Fung et al. have demonstrated an excellent NH₃ sensor based on reduced graphene oxide (rGO) encapsulated Co₃O₄ composite nanofibers working at room temperature [71]. Fabricating a sensor that demonstrates outstanding gas detection capabilities at room temperature is among the best achievement when considering energy consumption, stability, portability, and low operation cost. There are a lot of research works focusing on low cost and stable sensors. The fabricated sensors have achieved a response of 53.6% (R_a−R_g)/R_a together with 4 s and 5 min as response and recovery time respectively [71]. The exceptional room temperature gas-sensing performances can be ascribed to the remarkable NH₃ interaction with the superficial layer of rGO and the polarized C-Co³⁺ covalent cores within the porous nanofibers. Furthermore, these sensors show a superior selectivity to NH₃ among the ethanol, methanol, formaldehyde, methylbenzene, benzene, and acetone owing to the different adsorption properties, higher polarity of NH₃, and the coupling effect of Co-C. The schematic illustration of the growth and gas-sensing mechanism is shown in Figure 18a–c.

Figure 18. The schematic illustration of growth mechanism: (a) rGO-Co₃O₄ composite nanofibers; (

bon

) dynamic response toward the NH₃; (c) schematic diagram of the sensing mechanism of the rGO–Co₃O₄ composite nanofibers toward ammonia at room temperature. Reprinted with the permission from [71].

4.6. Detection toward Hydrogen Sulfide (H₂S)

H₂S is a colorless, irritating, and highly toxic gas. It may lead to strong effects in both visual and respiratory systems at concentrations close to 50 ppm. Furthermore, even a rapid exposure above 100 ppm may induce coma and even death due to respiratory paralysis [80,81]. Thereby, a reliable sensor for H₂S detection is necessary to monitor its presence.

Fabrication of Co₃O₄ mesoporous nanochains sensor for H₂S detection has been demonstrated in 2018 by Quang et al. [82]. The nanochains were obtained by calcinating the hydrothermal grown nanowires at 600 °C for 5 h (Figure Monox19a–c). The meso-porosity in the nanochains were ascribed to the elimination of adsorbed water molecules (justified by the total weight loss of 30.5% calcinated/as grown nanochains). The weight change was noticed in 30–200 °C and 200–400 °C temperature range in TG-DTA, corresponding to the removal of absorbed water and oxidation of Co(CO₃)_0.5(OH).11H₂O into Co₃O₄. These nanochains have shown superior selectivity toward H₂S among other tested gases (NH₃, H₂, and CO). Moreover, the response stability was measured over a period of five months and response and recovery time were 46 s and 24 s. Additionally, the principal mechanisms of H₂S detection would be interesting to mention [Equation (11)] to conclude the discussion on H₂S detection [64,72].

2H₂S + 3O₂¯→ 2H₂O + 2SO₂ + 3e⁻ (12)

Figure 19. Morphological features of the mesoporous Co₃O₄ nanochains: (a) SEM; (b) TEM; (c) HRTEM images; (

d

In 2010 Patil et al. have demonstrated Co3O4 NRs sensing of CO with a response of 6.5 to 50 ppm CO at 250 °C ^[15]. The NRs sensors have demonstrated a higher response compared to the commercially available NP sensors due to the stronger bonding between nanoparticles in the NRs beside the higher surface-to-volume ratio. Additionally, the fabricated sensors have shown superior selectivity compared to H 2, LPG, CO2, and ethanol.

However, CO sensing at a low working temperature (100 °C) has been reported by Dou et al. in 2014 [16]. The NFs sensors demonstrated a higher response (~13.5 (R

_g

_a) toward 50 ppm CO. Moreover, the detection of 5 ppm at 100 °C has been reported by the Busacca et al. on NFs Co

₃

₄ sensors in the same year [62]. The excellent CO-sensing response of 2.4 (R

/R

) together with a response time of 14 s and recovery time of 36 s of NFs was attributed to the higher effective surface area as well as the higher number of oxygen vacancies or defects on the NFs surface.

_ds) + 2O²¯ → CO₂ + H₂O + 4e⁻ (17)

Figure 20. Co₃O₄ hollow nanotubes: (a) The FESEM image; (b) the TEM image; (c,d) elemental mapping images of Co and O, of Co₃O₄ hollow nanotubes. Reprinted with the permission from [85].

4.9. Sensing toward Dimethyl Methylphosphonate (C₃H₉O₃P, DMMP)

Dimethyl methylphosphonate (DMMP) is a nontoxic and organophosphorus compound which is commonly considered as a simulant for sarin. Sarin is known as a G-type nerve agent that is dangerous even a few ppm [88]. Therefore, there is an increasing demand for a reliable sarin sensor but, due to security reasons, the lab tests are normally made with DMMP. One among the different strategies, proposed to achieve its low operating temperature sensing, is the use of organic functionalized composite metal oxide nanomaterials. Furthermore, MOX surface photoactivation during the chemical interaction has been widely investigated to decrease the sensor energy consumption. In 2020 Alali et al. have proposed hexafluoroisopropanol (HFIP) functionalized Co₃O₄/CuO composite nanotubes as a hybrid-sensing material for DMMP detection [89]. These hybrid HFIP-Co₃O₄/CuO NTs have shown an excellent response (Rg/Ra) of 8.8 to 0.5 ppm of DMMP at 90 °C together with rapid response and recovery time under light irradiation (7.3 s and 5.2 s, respectively). These excellent gas-sensing performances were ascribed to both H-bonding between DMMP and HFIP groups and photo-activation (Figure 21a). The fast response and recovery may be justified by the hollow morphology, while the lower operating temperature by the p-p heterojunction formation which may lower the potential energy barrier. Moreover, this hybrid sensor has shown superior repeatability and stability even at 80% RH (Figure 21b,c). DMMP-sensing mechanism is shown in Figure 22a,b.

Figure 21. Dynamic response: (a) Co₃O₄/CuO NTs (S1) and hybrid HFIP-Co₃O₄/CuO NTs (S2) sensors toward 0.5 ppm DMMP; (b) responses of the S1 and S2 along with the relative humidity (RH %); (c) response and recovery times of S2 sensors. Reprinted with the permission from [89].

Figure

Additionally, the lower crystallite size (about 15 nm) has been identified as one of the potential factors that could enhance sensor performances. However, the sensor response was saturated at a concentration of 20 ppm at 100 °C owing to the formation of carbonates species at a low temperature that deactivates the action of Co

₃O

₄ catalysts in CO oxidation.

The sensing mechanism can be understood as follows.

4. Conclusions and Outlook

Usually, Co3O4 is a p-type MOX semiconductor with excellent catalytic properties together with higher stability in chemical/gas testing even in humid conditions. Among the different growth techniques of growing the Co3O4 nano structures, hydrothermal, solvothermal, and electrospinning techniques have been vastly employed owing to higher yield, simplicity, and scalability. The excellent catalytic effect of the Co3O4 has been identified as one of the root causes for the achievement of exceptional sensing performance turning to operate at elevated working temperatures as well as the long-term stability. However, Co3O41D nano structures are still capable of detecting few gases such as CO, H2S, NH3, and some VOCs such as C2H5OH , C3H6O, HCHO, C4H 10O, and C3H9O 3P. Among these gases and VOCs, Co3O41D nano structures are highly selective toward C2H5OH and C3H6O. Besides, the sensing performances are highly dependent on the morphology where rougher topology along with the unique structure of Co3O4 NR arrays to a large extent could be the best choice for the superior gas-sensing performances. Nonetheless, low working temperature regimes can be proposed for the chemical/gas sensors based on Co3O4 ID nano structures owing to its excellent catalytic properties. However, a complete and well-controlled characterization of operating temperature on the key factors such as response time, recovery time of the Co3O4 1D chemical/gas sensors would not be far away because of rapid development of the new technologies adapted to nanomaterials.

In conclusion, a reliable material growth process and cheaper production cost of the devices must be achieved for large-scale production of both active material and transducer. Unfortunately, most of the reported sensors in this review article do not provide a significant indication for the possibility of large-scale production. However, various fabrication and characterization strategies have been developed over the past decade to demonstrate the possible application of Co3O4 1D nanostructures as reliable and cheaper chemical/gas sensors. As long as an appropriate optimization of the growth technologies will allow the controlled and reliable production of Co3O4 1D nanostructures together with improvement in the sensor’s performances, the large-scale production and their integration in commercial gas-sensing devices will certainly follow owing to the day by day improvements and progresses in materials research.
